Kombineeritud LED-esituli (EL) - Vasak pool, tagumine kinnitus - LG920RL EL

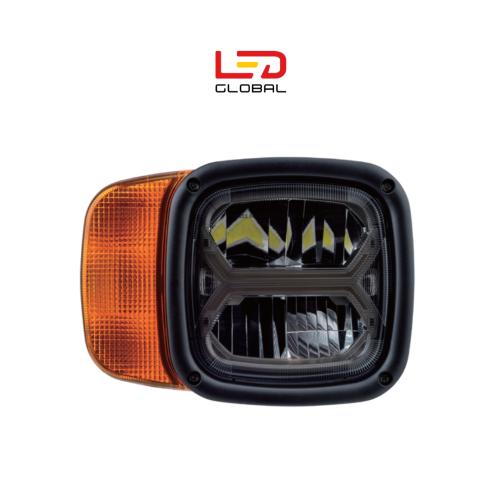

Combo LED Headlight (EU) – Left Side, Rear Mount – LG920LREU

This is a proper, all-in-one headlight, engineered for professional vehicles that work hard and need to stay road-legal. It combines high and low beams, a full direction indicator with side repeater, and a parking light into a single, robust unit. Fully ECE-approved and sealed to an IP69K rating, it’s built to deliver uncompromising visibility in the toughest European conditions.

When you're replacing a headlight on a working machine, you need a single unit that does the job of several lamps without any fuss. That’s exactly what the LG920LREU is designed for. It integrates all your essential forward lighting functions into one tough, reliable package. The high beam delivers a powerful 7,000 raw lumens to illuminate the field or work site, while the ECE R149 approved low beam provides a crisp, clear pattern for safe on-road travel.

We’ve built this for a hard life. The housing is machined from a durable aluminium alloy, which acts as a massive heat sink, and the lens is made from high-impact polycarbonate that resists chips and cracks. But it's the sealing that sets it apart. Rated at IP69K, the unit is completely dust-tight and shrugs off high-pressure, high-temperature jet washing. So, whether it’s a muddy field or a depot wash-down, you can be sure that water and dust stay out. It’s proven to perform reliably from −45 °C to +50 °C, making it a fit-and-forget solution for any European climate.

Compliance is non-negotiable. This headlight is fully approved for European roads, meeting ECE R149 (for driving beams), ECE R148 (for indicator and parking lights), and the critical ECE R10 standard for electromagnetic compatibility. The CISPR 25 Class 3 rating ensures it won’t interfere with your radio, GPS, or other sensitive on-board electronics. Installation is straightforward for left-side, rear-mount applications, with a DT 6-pin plug and cable supplied for a secure, weather-sealed connection to any 12V or 24V DC system.

Key Features

• All-in-One Functionality: Integrates high beam, low beam, turn indicator, side DI, and parking light.
• Powerful Illumination: Provides 7,000 lm (high beam) and 4,000 lm (low beam) for exceptional visibility.
• Fully Road-Legal for EU: Approved to ECE R149 (R112), ECE R148 (R7), and ECE R10.
• Built for Harsh Environments: Sealed to IP69K for complete protection against high-pressure water and dust ingress.
• Interference-Free Operation: CISPR 25 Class 3 rated to prevent interference with radio and GPS systems.
• Wide Voltage Compatibility: Operates on any system from 10–30 V DC, suitable for both 12V and 24V vehicles.
• Robust Construction: Features a tough aluminium alloy housing, shatter-resistant polycarbonate lens, and stainless steel mounts.
• Easy Installation: Supplied with a DT 6-pin plug and cable for a secure, plug-and-play connection.
• Wide Operating Range: Engineered to perform in extreme temperatures from −45 °C to +50 °C.
• Specific Fitment: Designed for left-side, rear-mount installation. Dimensions: 209 × 175 × 101 mm.

Ideal Applications

• Agricultural machinery such as tractors, combines, and self-propelled sprayers
• Construction and plant equipment including excavators, loaders, and telehandlers
• Municipal and specialist service vehicles
• Commercial trucks and HGVs requiring a robust, rear-mounted headlight unit

Why Choose LED-Global Lighting

We don’t believe in compromise. Our lighting is engineered in Europe for the professionals who rely on it every day. By focusing on proven components, rigorous testing, and real-world durability, we deliver lighting solutions that keep your fleet safe, compliant, and productive. No excuses, just performance you can depend on.

Esilaternate detailid

Premium EL-i heakskiidetud kombineeritud LED-esituli vasakpoolse tagumise paigalduse jaoks. Disainitud vastupidavuseks ja nähtavuseks koos pikk- ja lühituledega, suuna- ja külgsuunatuledega ning parkimistulega. Valmistatud alumiiniumisulamist ja polükarbonaadist materjalidest, pakkudes suurepärast ilmastikukindlust IP69K kaitsega ja laia 10–30 V tööpinge vahemikuga.

Kaitse

Sertifikaadid

Mõõtmed
