Phare LED Combo (UE) - Côté gauche, montage inférieur - LG920L UE

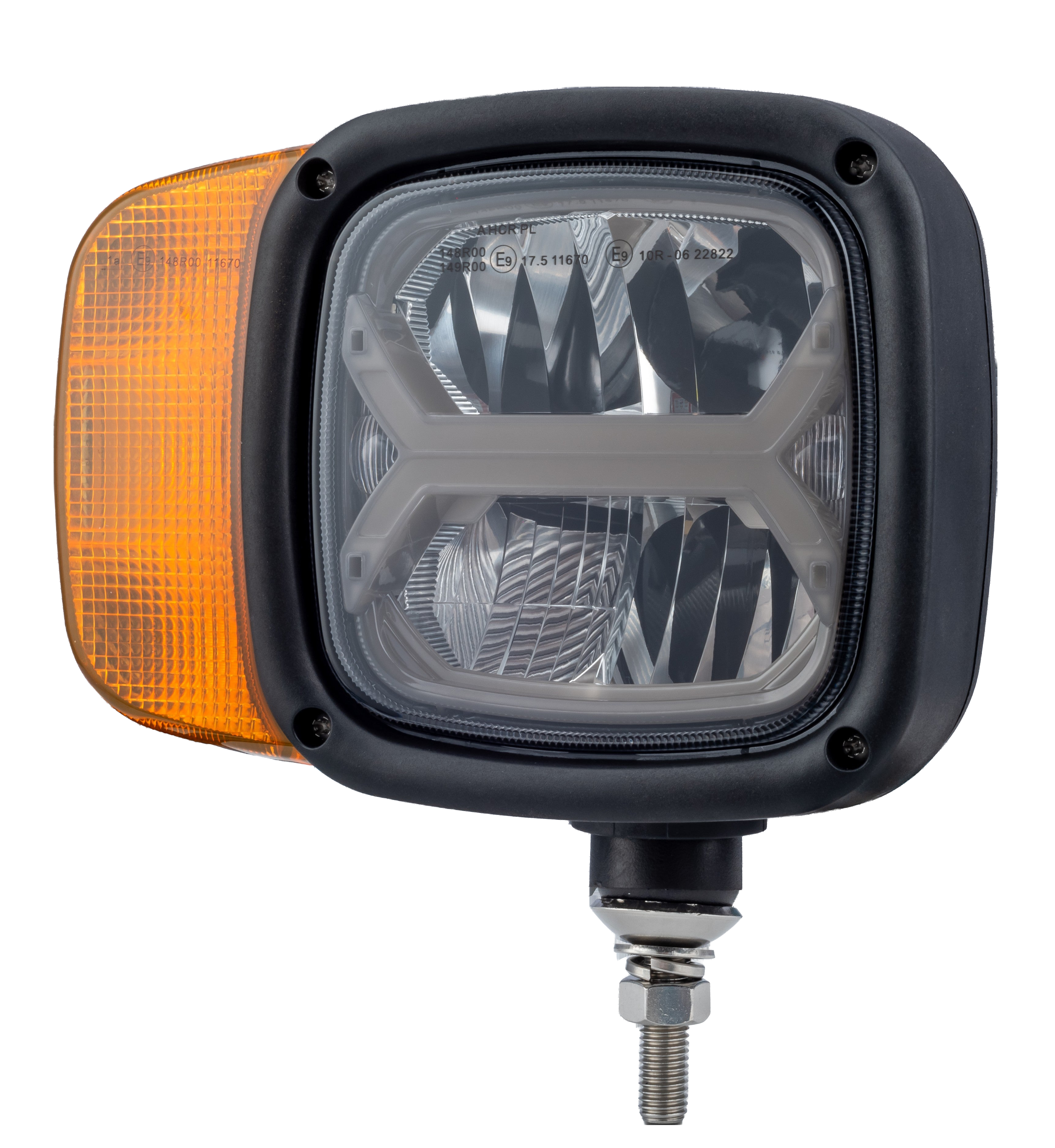

Combo LED Headlight (EU) - Left Side, Bottom Mount – LG920L EU

A complete lighting solution in one rugged unit. This EU-approved combo LED headlight integrates all essential road functions—high and low beam, turn indicator, and parking light—into a single, heavy-duty housing designed for the left side of your vehicle. It’s engineered to keep your agricultural machinery and industrial plant visible and compliant, day in, day out.

On a modern farm or construction site, lighting failure isn't an option. It means downtime. It costs money. That's why we engineered the LG920L EU. Built from a corrosion-resistant aluminium alloy with a tough-as-nails polycarbonate lens, this unit is designed to handle the constant vibration and harsh conditions that kill lesser lights. Its wide 10–30 V DC operating range shrugs off voltage drops and electrical noise common on heavy machinery, ensuring consistent, flicker-free performance when you need it most.

But how tough is it? It’s sealed to IP69K. This means it’s completely dust-tight and can withstand high-pressure, high-temperature wash-downs without a single drop of moisture getting inside. We've also engineered it to be electronically quiet. Its CISPR 25 Class 3 rating means you won't get that frustrating static on your radio or GPS. And for road use, it's fully approved, meeting ECE R149 (high/low beam), ECE R148 (indicator/parking), and ECE R10 (EMC) standards for legal use across Europe.

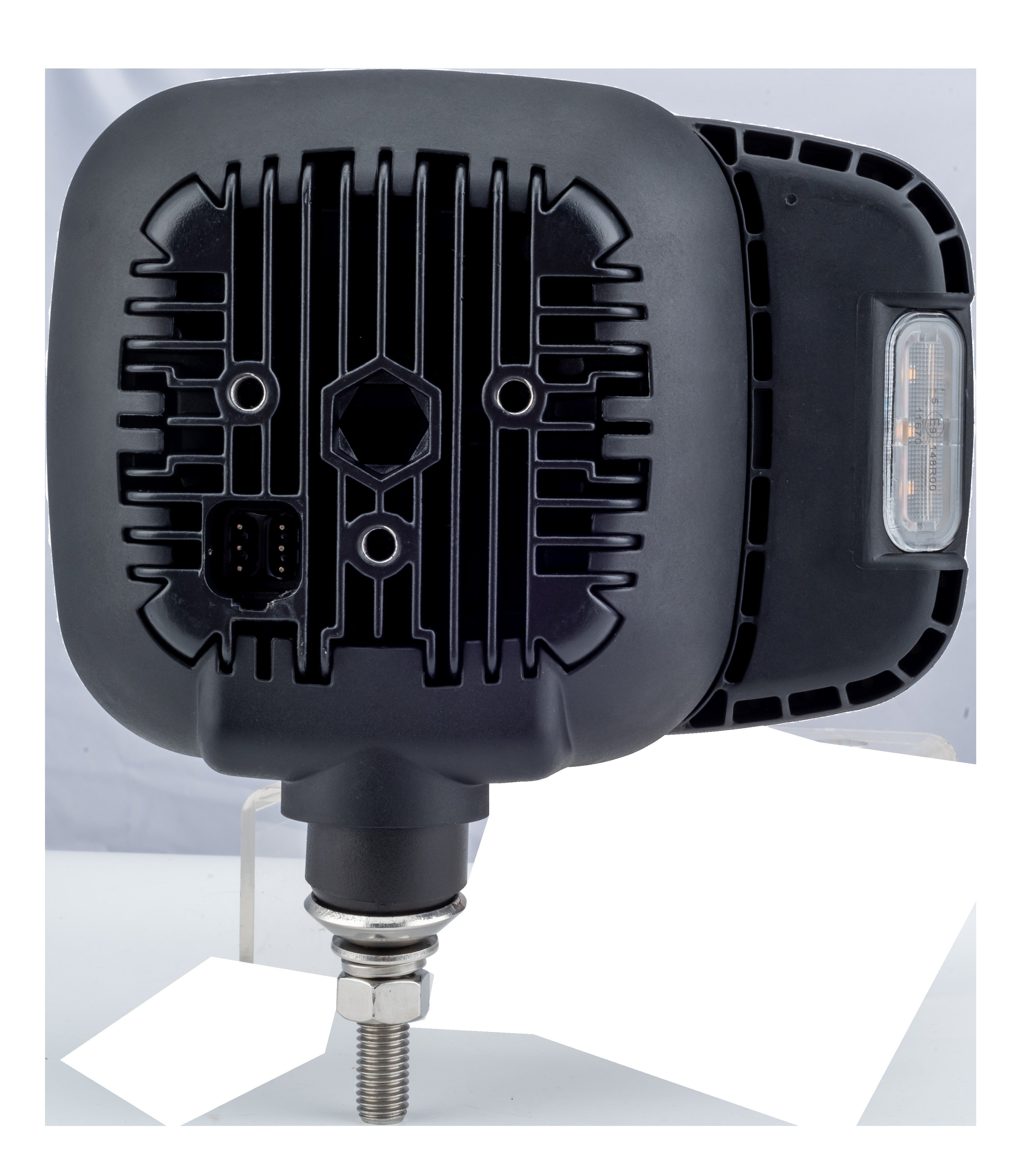

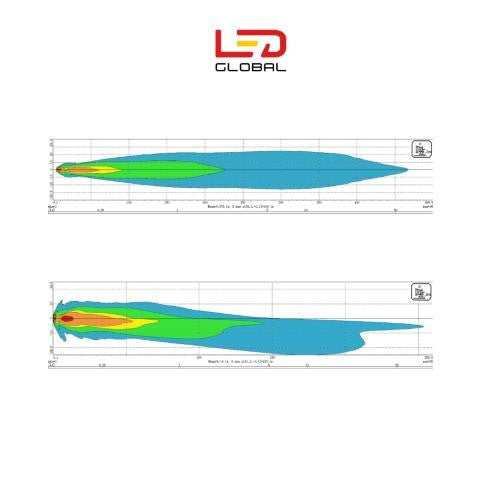

Installation is straightforward. This model is configured for left-side, bottom-mount applications and comes supplied with a DT 6-pin plug and cable for a secure, weather-tight connection. Once fitted, the performance speaks for itself. The high beam throws out a powerful 7,000 raw lumens to illuminate the path far ahead, while the low beam provides a broad 4,000 raw lumen spread for excellent working visibility without dazzling others.

Key Features

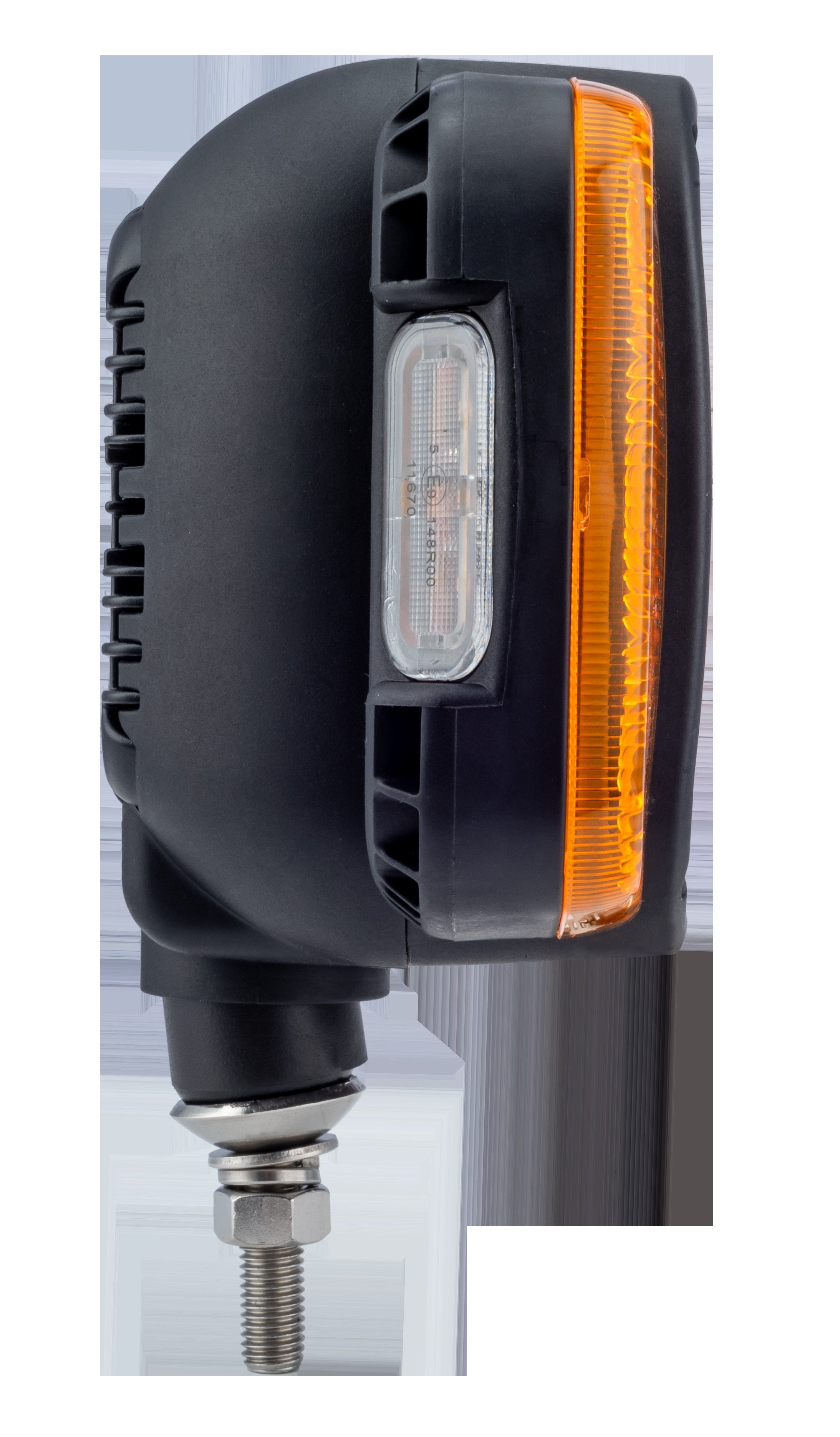

• All-in-one combination light featuring high beam, low beam, turn indicator, side indicator, and parking functions.
• Designed for left-side installation with a robust bottom-mount configuration.
• Fully EU road-approved with ECE R149, ECE R148, and ECE R10 certifications.
• Sealed to IP69K for complete protection against dust and high-pressure jet washing.
• CISPR 25 Class 3 rated for excellent electromagnetic compatibility and no radio interference.
• Versatile 10–30 V DC input range suitable for all 12 V and 24 V systems.
• Powerful output of 7,000 lm (high beam) and 4,000 lm (low beam) for superior visibility.
• Built with a durable aluminium alloy body, shatterproof polycarbonate lens, and stainless steel mounts.

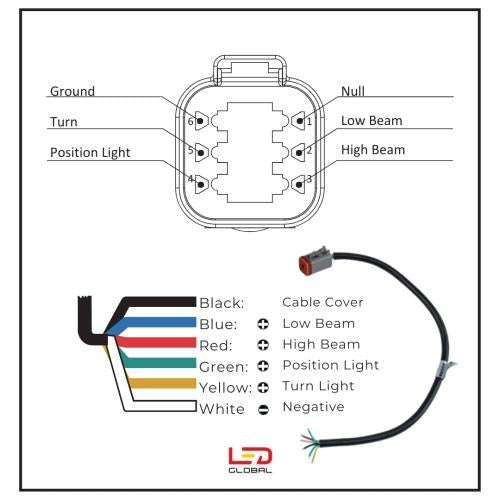

• Supplied with a DT 6-pin plug and cable for a reliable, sealed connection.
• Proven to operate in extreme temperatures from −45 °C to +50 °C.

Ideal Applications

• Agricultural tractors, combines, and self-propelled sprayers
• Construction and plant machinery such as excavators, wheel loaders, and telehandlers
• Heavy-duty municipal and road maintenance vehicles
• Forestry and mining equipment operating in harsh environments

Why Choose LED-Global Lighting

When your fleet's productivity and safety depend on reliable lighting, you need a specialist partner. At LED-Global, we don't just sell lights; we engineer lighting solutions. Each component is designed and tested in Europe to meet the demands of modern industrial and agricultural work, ensuring you get proven performance and guaranteed compliance you can trust.

Phare LED COMBO (UE) – Côté gauche, montage arrière

Projecteur combiné LED certifié UE robuste avec feux de route et de croisement, clignotant et indicateur de direction latéral intégrés, et fonction de stationnement. Conçu pour les véhicules industriels et agricoles avec un corps en alliage d'aluminium résistant à la corrosion, une large plage de fonctionnement 10–30 V, et une protection IP69K pour des conditions extrêmes.

Protection & Certifications

Dimensions
