LED Tail Light Burger Combination – LG534

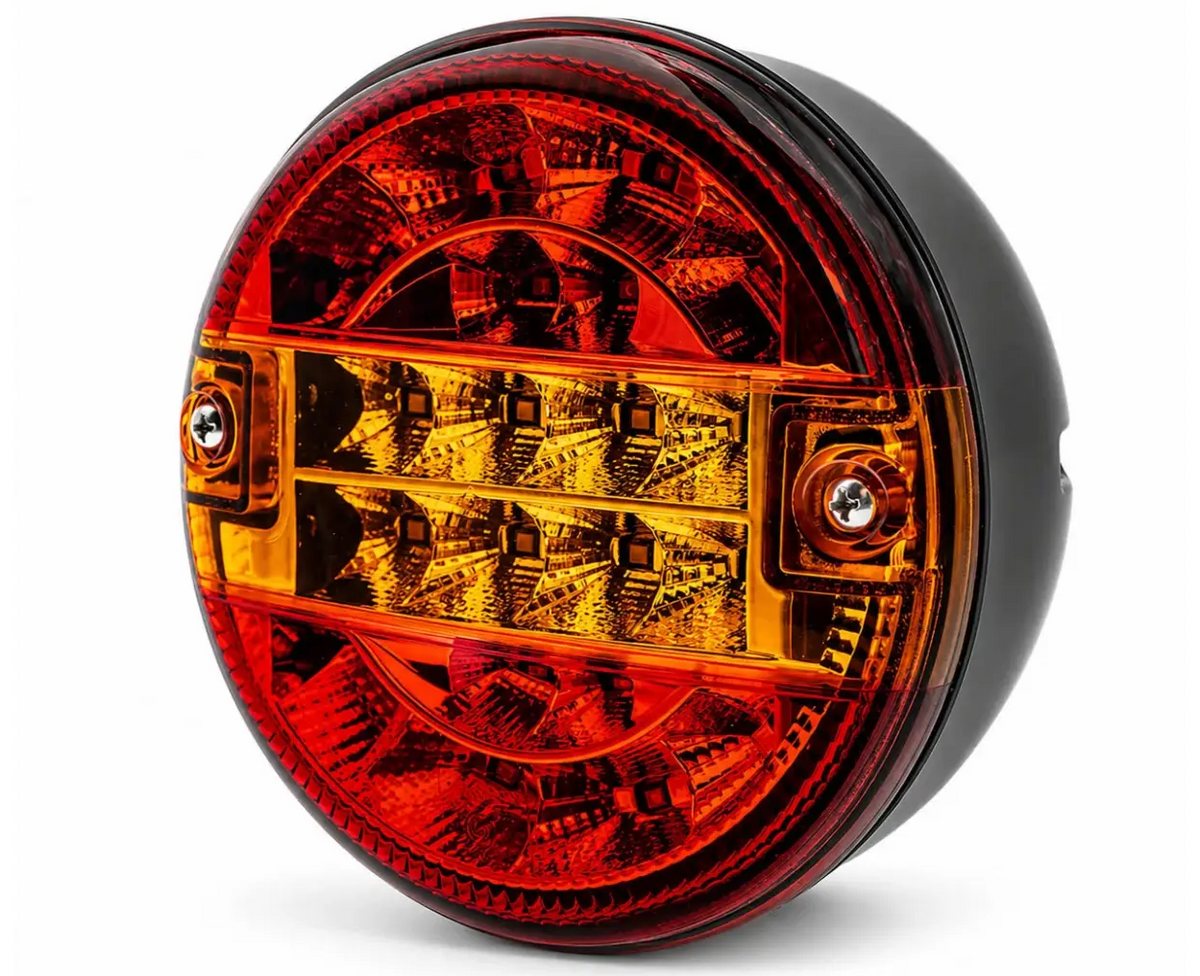

The LED Tail Light Burger Combination LG534 is a compact, slim rear lamp that combines stop, tail and indicator functions in one neat unit. Designed for 9–33 V systems, it suits mixed fleets running 12 V and 24 V. With ECE R10, R6 and R7 approvals and CISPR25 Class 3 EMC performance, it’s a proven, road-ready choice for professional installations.

This burger-style combination tail light is built for busy vehicles that need clear, reliable rear signalling without bulky housings. You get three core functions in one: bright stop, steady tail, and crisp amber indicator, all within a 140 mm × 35 mm footprint. That saves space on crowded rear panels and simplifies wiring and installation.

The wide 9–33 V operating range covers almost every light commercial, trailer and plant vehicle in a modern fleet. One part number. Both 12 V and 24 V systems covered. With ECE R6 and R7 approvals, the indicator, stop and tail functions are road-legal across Europe when installed correctly, while ECE R10 and CISPR25 Class 3 mean low electromagnetic emissions and reduced risk of radio interference with telematics, radios or CANbus systems.

The LG534 carries an IP67 ingress protection rating, so it’s sealed against dust and can withstand temporary immersion – ideal for vehicles that see spray, washdowns and harsh weather. Mounting is flexible: you can flush mount with a gasket for a clean, OEM-style look, or use a surface-mounted bracket where bodywork or retrofit constraints demand it. A 1 metre pre-wired cable gives enough length for tidy routing into looms or junction boxes, keeping installation time under control.

Key Features

• 3-in-1 combination lamp – integrated stop, tail and indicator functions reduce lamp count and simplify rear lighting layouts.
• Wide 9–33 V input range – compatible with both 12 V and 24 V vehicle and trailer electrical systems.
• Slim housing, compact footprint – only 140 mm × 35 mm, ideal for tight rear panels, trailer cross-members and body kits.
• ECE R6, R7 approved – compliant for indicator, stop and tail functions, supporting road-legal rear lighting in European markets.
• ECE R10 approved – meets automotive EMC standards for vehicle electronics, helping avoid electrical and radio interference issues.
• EMC CISPR25 Class 3 – controlled radio frequency emissions, trusted by installers working with sensitive comms and telematics.
• IP67 ingress protection – sealed against dust and protected against temporary immersion, suited to jet-wash, spray and wet conditions.
• Flexible mounting options – flush mount with gasket for a low-profile finish, or surface-mounted bracket where recessing isn’t possible.

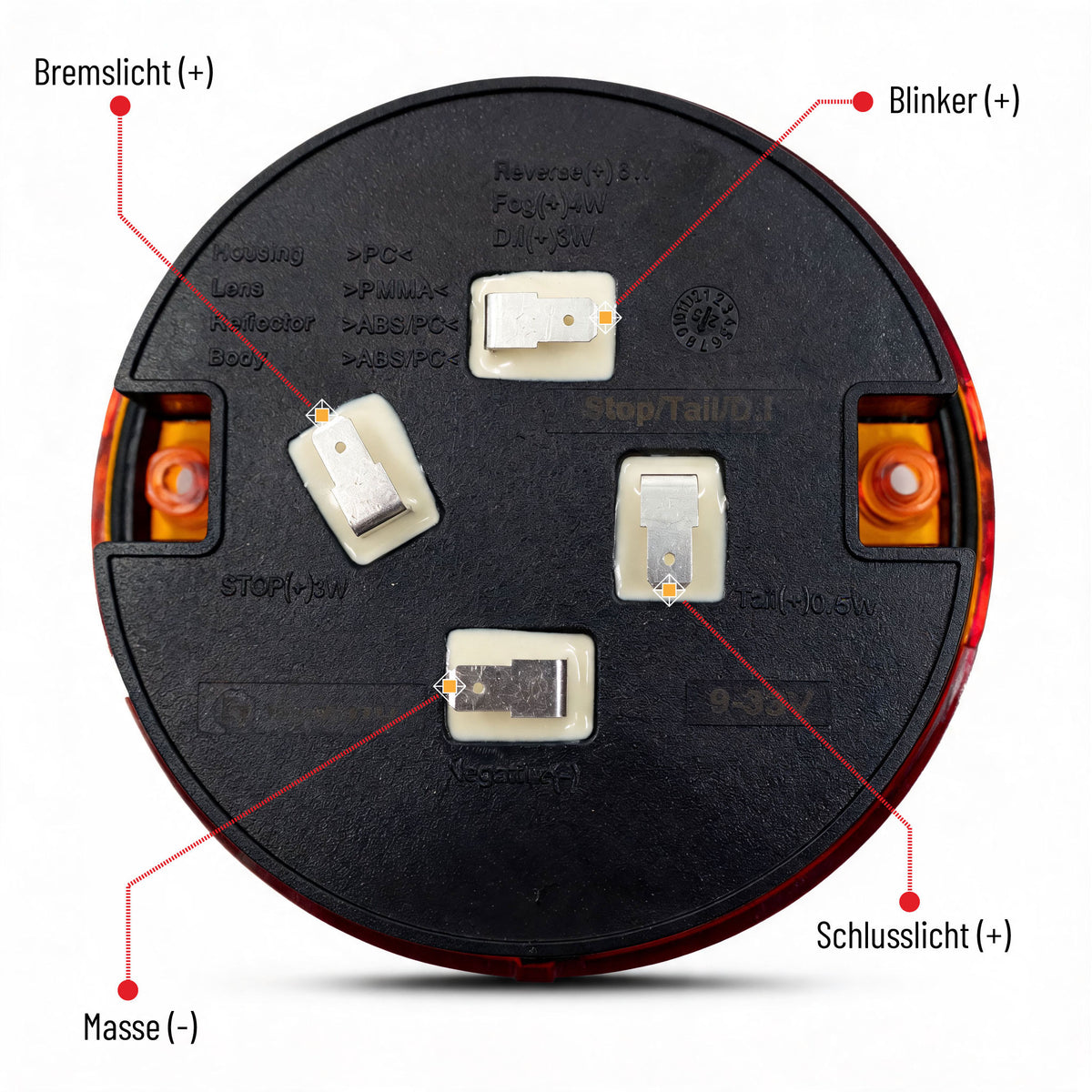

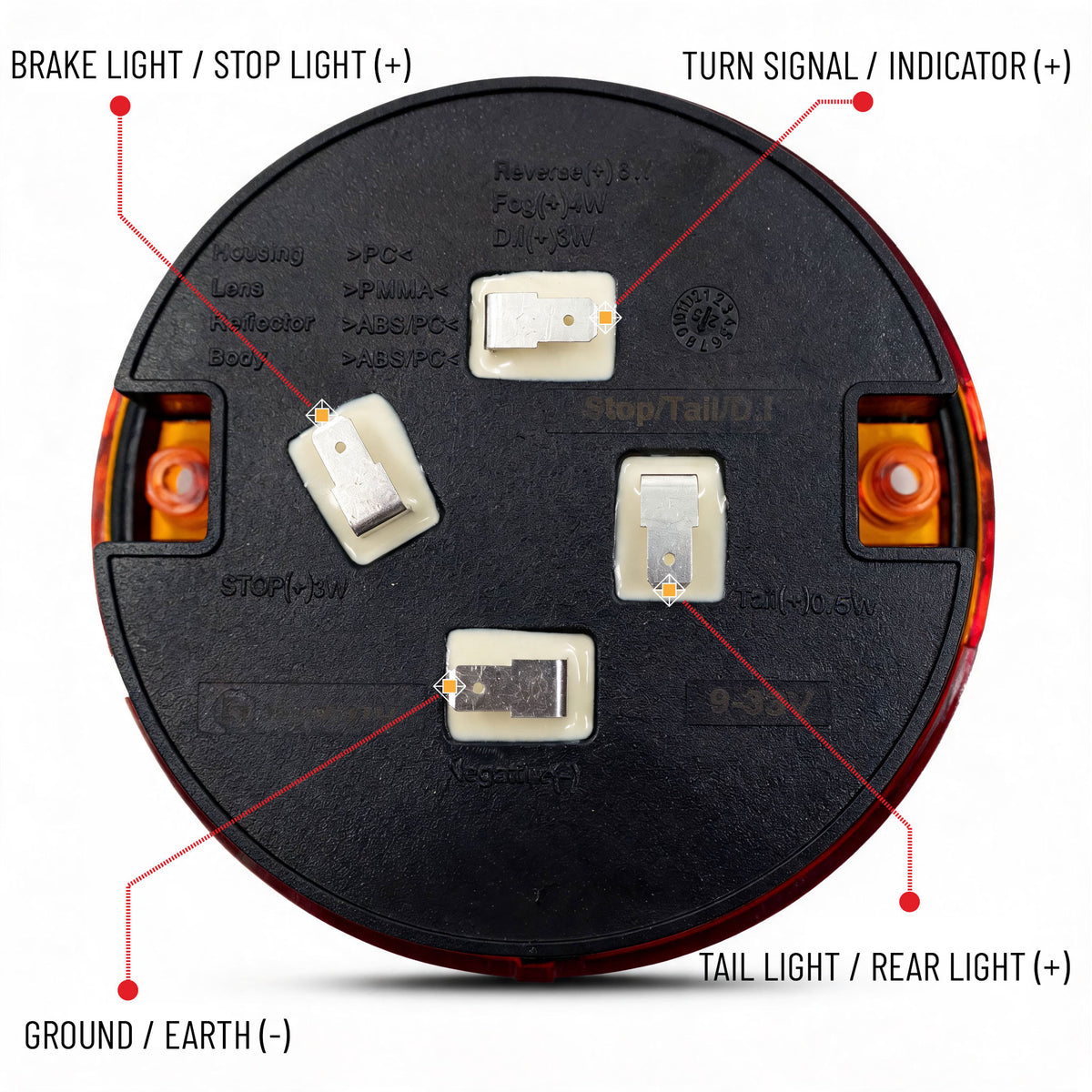

• 1 m cable pre-fitted – simplifies wiring, allows junctions to be made in dry, protected locations, and speeds up repeat installs.
• Robust LED technology – solid-state light source for long service life and low maintenance compared with filament bulbs.

Ideal Applications

• Commercial vans and light trucks needing compact, road-legal rear combination lights.
• Car transporters and plant trailers where space is limited and vibration resistance matters.
• Agricultural and forestry equipment working in mud, dust and washdown environments.
• Municipal service vehicles such as refuse trucks, sweepers and maintenance fleets.
• Construction and utility trailers that require durable, multi-voltage rear lighting.

Why Choose LED-Global Lighting

LED-Global specialises in European-engineered vehicle lighting that does what it promises in real-world conditions. Every product is selected and specified with an engineer’s eye: approvals, EMC performance, ingress protection and installation practicality all matter. With the LG534 and the wider LED-Global range, you get proven, compliant lighting that helps keep your fleet visible, legal and earning, backed by a team that understands how your vehicles are used day to day.
