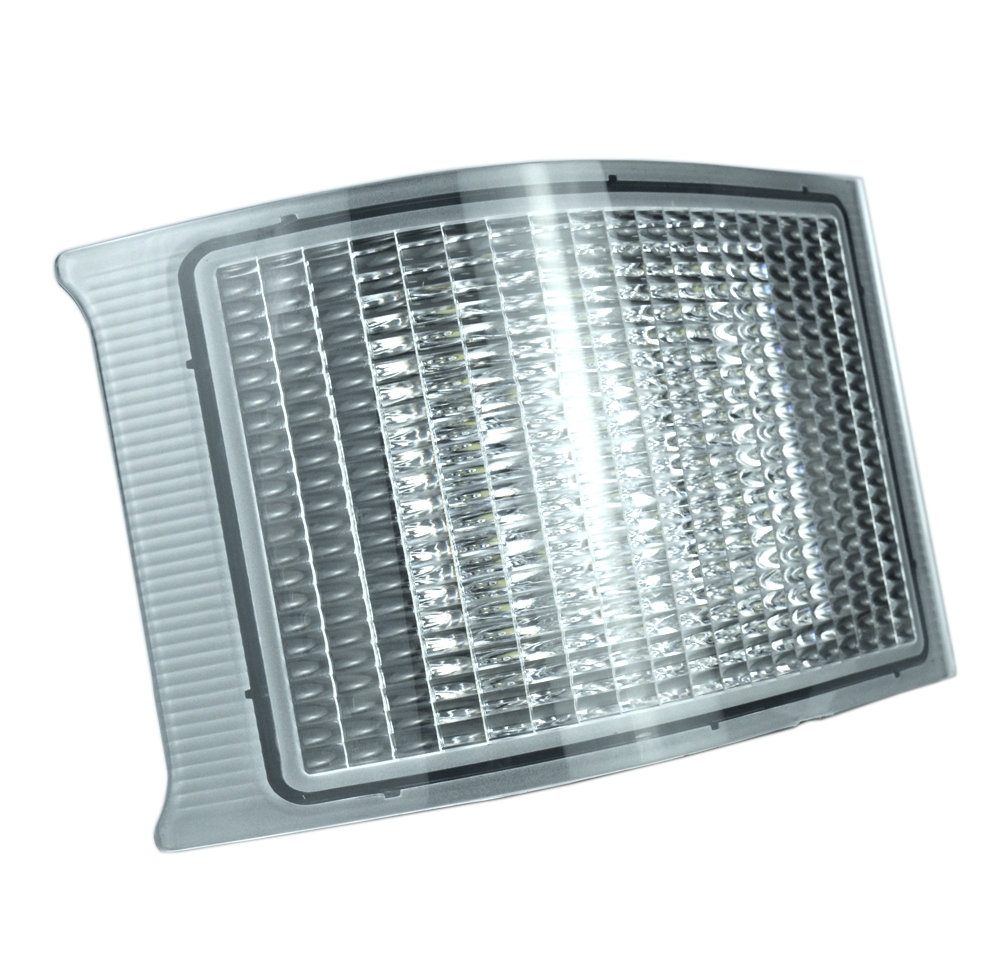

45W LED rohové světlo - přední pravé (*vhodné pro New Holland) - LG917R

45W LED Corner Light – Front Right (*Suitable for New Holland) – LG917R

This 45W LED corner light for New Holland machines gives you clear, even light at the front-right corner where operators need it most. With 9 x 5W OSRAM LEDs delivering 3600 lumen at 6000K, it replaces dim, ageing halogen corner units with a clean white working beam. Built for agricultural conditions, it runs on 10–30V DC, carries IP68 sealing, CISPR 25 Class 4 EMC protection and ECE R10 approval for dependable performance around sensitive vehicle electronics.

When you’re working late in the yard or in the field, shadowed corners on the machine are where accidents start. This LG917R front-right LED corner light is engineered to fill that gap, giving crisp illumination right where the OEM light sits, but with far higher efficiency and output. The 45W OSRAM LED array is tightly controlled, so you get a strong, usable beam rather than wasted glare.

The unit is built on a die-cast aluminium housing for strength and thermal control, with a tough polycarbonate (PC) lens that shrugs off stone strikes and vibration. It runs happily on both 12V and 24V systems (10–30V DC) with a low current draw of 2.33A @ 12V and 1.17A @ 24V, so it’s easy on batteries and alternators on older tractors and newer Tier 5 machines alike. With an operating temperature from -40°C to +60°C and an IP68 enclosure, it’s designed for year-round European use in mud, dust and heavy rain.

Electrically, this is where it stands apart from cheap imports. EMC protection to CISPR 25 Class 4 and ECE R10 approval mean it’s designed to sit on modern CAN-bus and ISOBUS-equipped tractors without throwing radio interference or upsetting control systems. It uses a built-in H11 connector, so integration with existing looms is straightforward for most installations and keeps connections secure against moisture ingress.

The LG917R is dimensionally compact at 176.3 x 109 x 110.3 mm, so it’s a practical LED upgrade in the OEM footprint, not a bulky add-on. It’s engineered as a replacement for the front-right corner light on suitable New Holland models, matching the look and position while upgrading output and lifespan to 30,000 hours. OEM reference, for cross-checking, includes left side OEM part number 82014130; always confirm fitment on the specific machine before ordering. Original equipment names, numbers and references are used for identification only and do not imply that these parts are supplied as original equipment.

Key Features

• 45W LED output (9 × 5W OSRAM LEDs) for a strong, efficient working beam at the front-right corner
• Approx. 3600 lumen light output for clear visibility around loader arms, implements and headstocks
• Wide operating voltage: 10–30V DC suitable for both 12V and 24V agricultural electrical systems
• Low current draw – 2.33A @ 12V, 1.17A @ 24V – reduces load on alternators and batteries
• 6000K colour temperature gives a clean white light that improves contrast over old halogen lamps
• IP68-rated enclosure for dust-tight sealing and long-term resistance to heavy rain and washdown conditions
• Operating temperature -40°C to +60°C for reliable use in winter starts and hot summer work
• Die-cast aluminium housing for strength, vibration resistance and good heat dissipation
• Impact-resistant PC lens designed to withstand debris and agricultural handling
• Built-in H11 connector for simple plug-style connection to existing harnesses where compatible
• EMC protection to CISPR 25 Class 4 helps prevent radio and electronics interference
• ECE R10 approved for electromagnetic compatibility on-road and off-road machinery
• RoHS compliant construction to current European environmental standards
• Compact size: 176.3 × 109 × 110.3 mm to sit neatly in the OEM position on suitable New Holland models

Ideal Applications

• Front-right corner light replacement on New Holland tractors and handlers (where dimensions and connector match)
• Agricultural loaders and telehandlers needing improved near-field corner lighting around attachments
• Yard and livestock work where good side/front visibility reduces impact risk near people and buildings
• Contractor and fleet upgrades moving from halogen to LED for longer life and reduced maintenance
• Mixed-brand machinery fleets wanting a high-spec, EMC-safe LED corner light that integrates cleanly with vehicle electrics

Why Choose LED-Global Lighting

LED-Global focuses on European-engineered lighting built for real work, not brochure photos. Every unit is specified with honest lumen figures, robust housings and proven EMC performance, so it behaves properly on modern machinery. Our products are trusted by operators, fleet managers and installers who need reliable, compliant lighting that fits, works and keeps working through long seasons.
