Komplet Plug & Play LED Trailerlys Sæt - LG576

Complete Plug & Play LED Trailer Light Kit – LG576

Sorting out trailer lighting can be a frustrating, time-consuming job. That's why we engineered the LG576 kit. It's a complete, fully-wired lighting system that eliminates guesswork and cuts installation time to a fraction of a traditional setup. This fully E-marked kit includes smart load resistors to prevent indicator errors on modern vehicles, ensuring a fit-and-forget solution for professionals.

This isn't just a collection of parts; it's a complete, pre-configured trailer lighting system designed for maximum efficiency and reliability. The entire kit is built around a plug-and-play wiring loom, with pre-terminated, sealed connectors and correctly measured cable lengths for both the left and right lamps, plus the number plate light. There’s no cutting, no splicing, and no complex wiring diagrams to decipher. It’s that simple. This approach not only saves valuable workshop time for trailer builders and fleet mechanics but also removes the risk of common installation errors that lead to water ingress and premature failure.

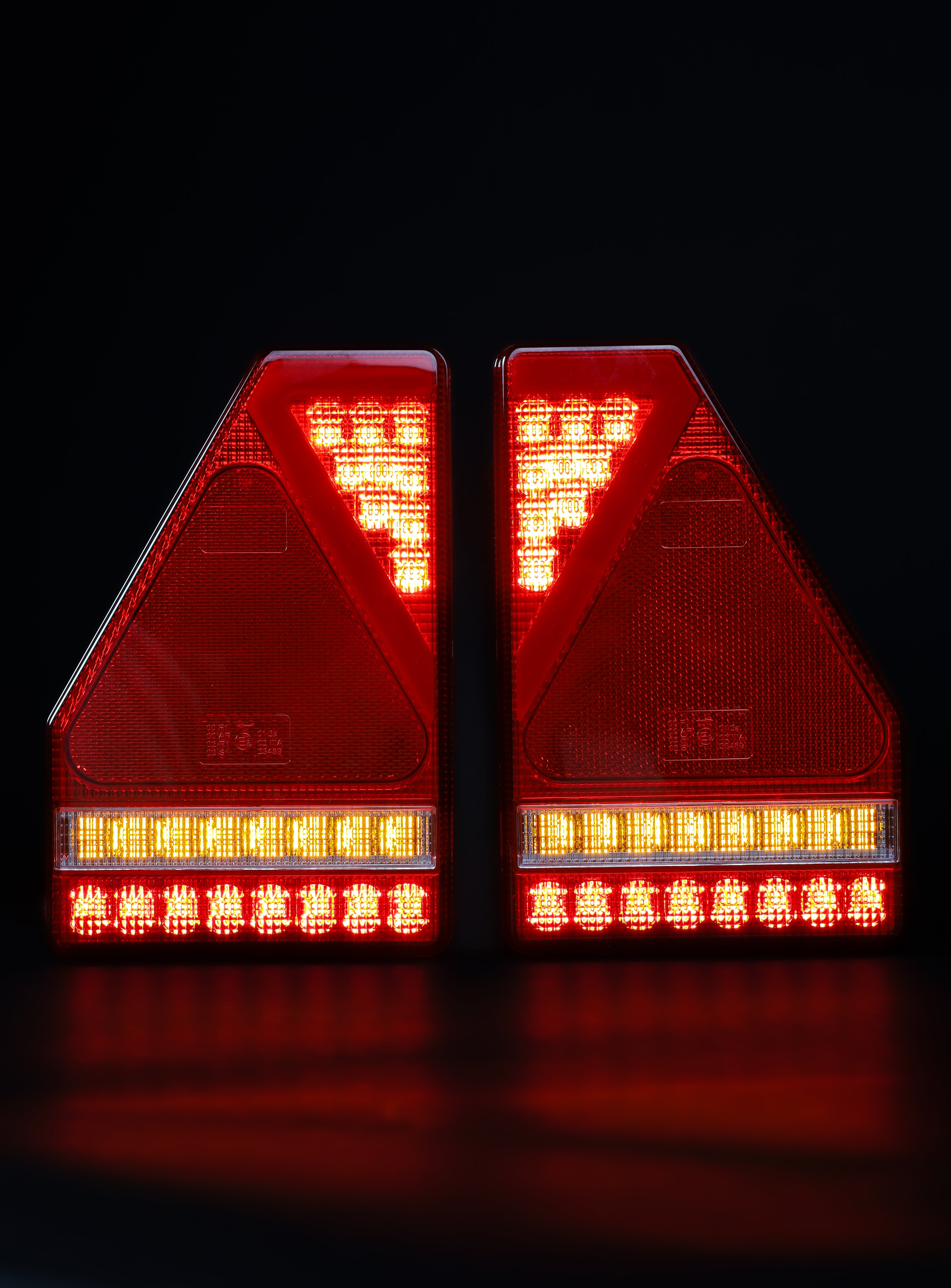

The heart of the system is a pair of robust, multi-function combination lamps. Each unit integrates seven functions—Stop, Tail, Indicator, Fog, Reverse, a built-in reflex Reflector, and a reflective Triangle—into a single, sealed housing. Engineered to operate on any system from 9-33V DC, these lamps are built for hard work. They are rated for a 50,000-hour lifespan and sealed to IP67, providing complete protection against dust and temporary water immersion. We've also ensured they can withstand the punishing conditions of agricultural and commercial use, with vibration testing to 15G.

For professional operators, compliance is non-negotiable. This kit is fully approved and E-marked, meeting a comprehensive set of ECE regulations including R10, R3, R6, R7, R23, R38, and R91. Crucially, it provides proven EMC suppression to CISPR 25 Class 4, guaranteeing no interference with on-board radios, GPS, or other sensitive electronics. To solve the persistent problem of retrofitting LEDs to modern vehicles, we've integrated smart load resistors directly into the indicator circuit. This prevents the "hyper-flashing" and dashboard errors common with CAN-bus systems, ensuring seamless compatibility.

Key Features

• Complete Plug & Play System for rapid, error-free installation right out of the box.
• 7-Function Combination Lamps including Stop, Tail, Indicator, Fog, Reverse, Reflector, and Triangle.
• Built-in Smart Load Resistors prevent hyper-flashing and CAN-bus errors on modern vehicles.
• Fully E-Mark Approved to ECE R10, R3, R6, R7, R23, R38 & R91 for guaranteed road legality.
• Multi-Voltage 9-33V DC Input for universal use on a wide range of trailers and towing vehicles.
• IP67 Ingress Protection ensures the entire system remains sealed against dust and water.
• CISPR 25 Class 4 EMC Suppression for proven, interference-free operation with radios and GPS.
• Exceptional Durability with a 50,000-hour lifespan and vibration resistance tested to 15G.
• Includes 7 to 13 Pin Adaptor and plug holder for maximum vehicle compatibility.
• Lamp Dimensions: 218 mm (Width) x 145 mm (Height) x 35 mm (Depth).

Ideal Applications

• New trailer manufacturing and assembly lines.
• Refurbishment and upgrade of existing commercial HGV trailers.
• Agricultural trailers, horseboxes, and plant trailers.
• Fleet maintenance workshops seeking to standardise repairs and reduce vehicle downtime.

Why Choose LED-Global Lighting

At LED-Global, we engineer lighting for professionals. The LG576 kit is a perfect example of our approach: a practical, robust system designed to solve real-world problems for fleet operators, upfitters, and trailer builders. Built to withstand the demands of European roads and backed by our commitment to quality, it’s a solution you can install with confidence.

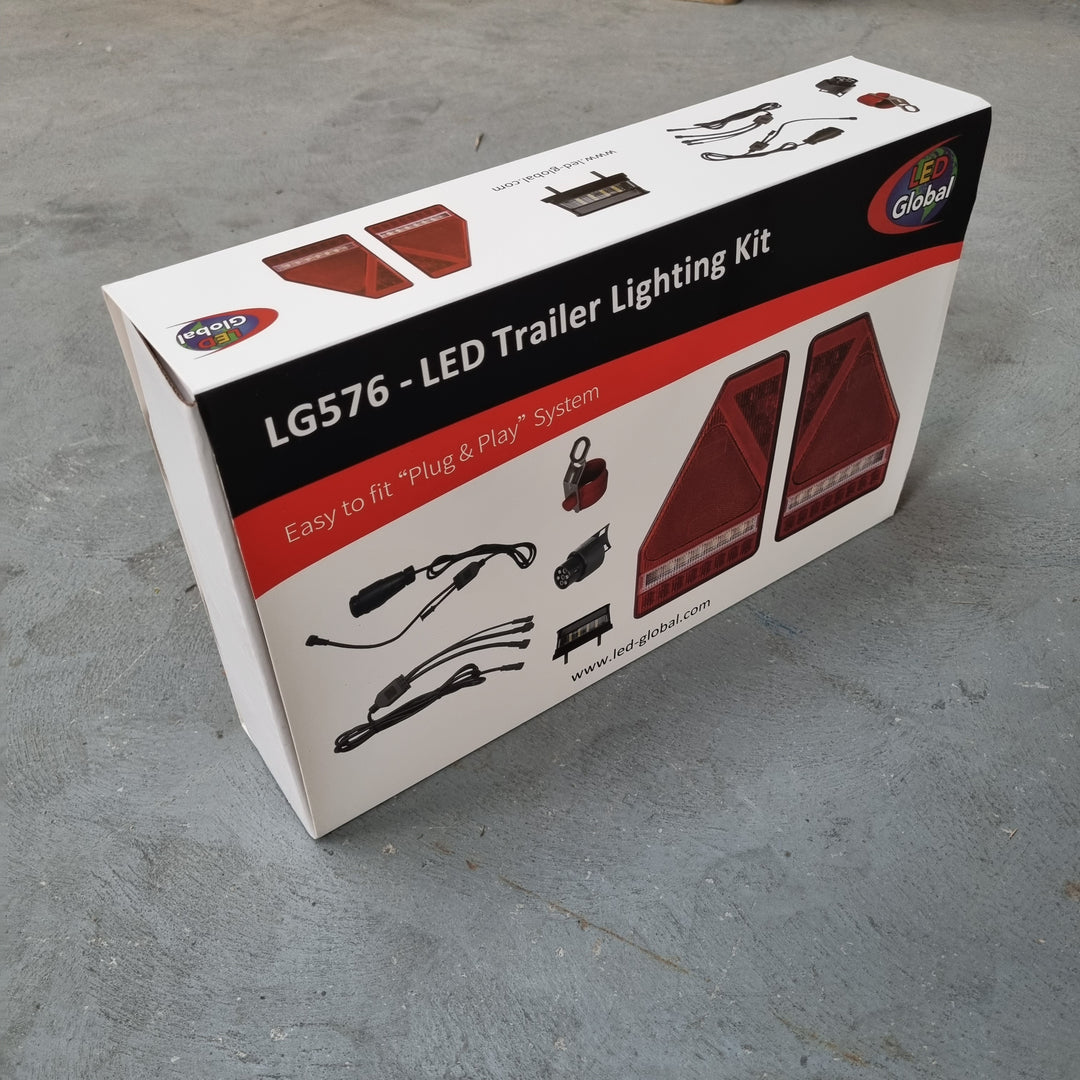

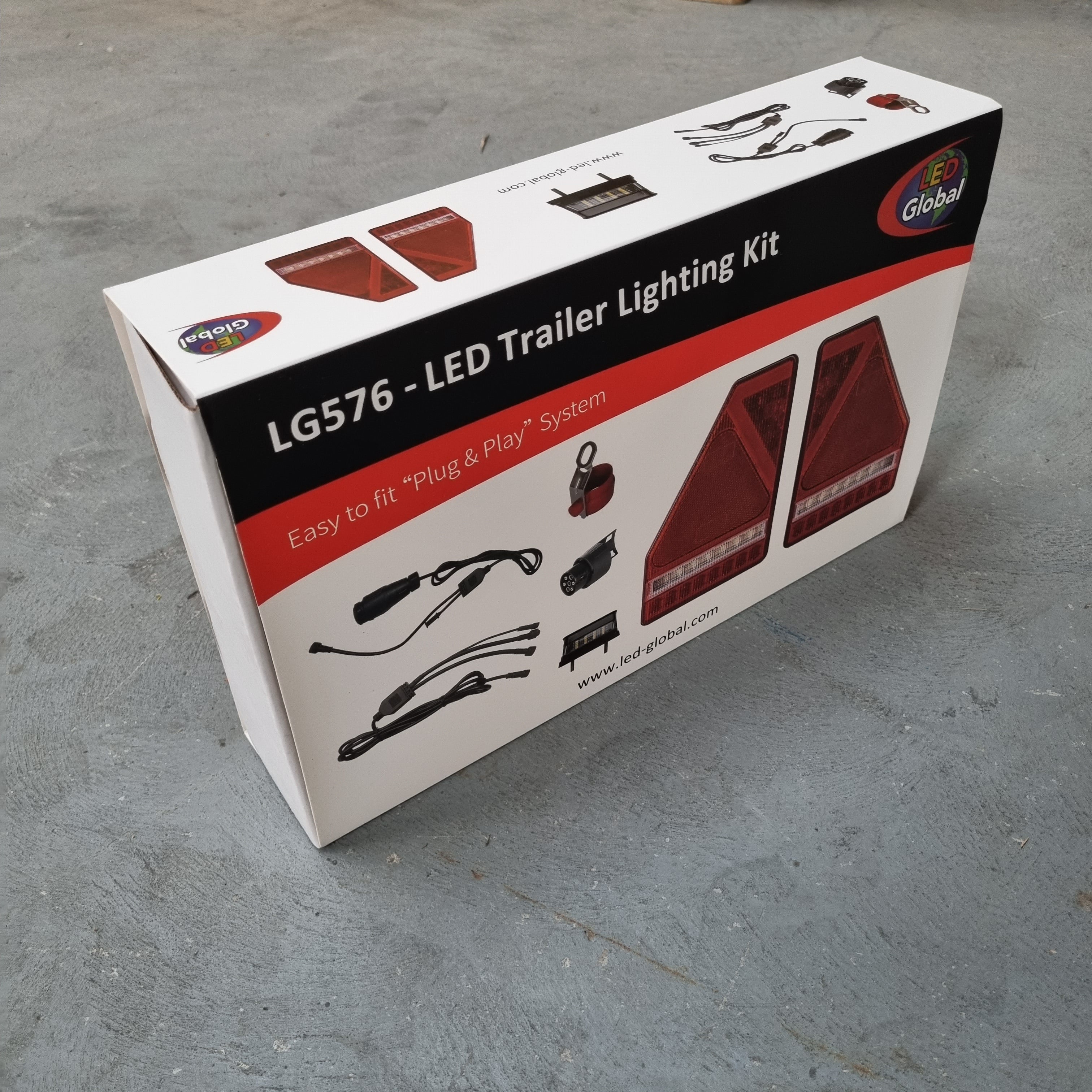

1. Komplet Plug & Play Kabelsystem
2. LED Kombinations Trailerlys Sæt (LG570 + LG571)
3. LED Nummerpladelys (LG195)
4. 7 til 13 Pins Adapterstik
5. Stikholder

LED Trailer Baglyskombination Funktioner

• Venstre & Højre Hånd Kombinationslygter
• 45 LED'er
• Stop/Baglys/Blinklys/Tågelys/Baklys/Reflektor/Trekant
• 9-33vAnvendelse
• 50.000t / E Mark Certificeret / IP67
• ECE R10, R3, R6, R7, R23, R38, R91 Godkendt
• EMC - CISPR25 Klasse 4 (Radiofrekvensundertrykkelse)
• Indbygget Smart Belastningsmodstand på Blinklys

Tekniske Lys Egenskaber

• Lysfarve: Amber/ Rød/ Hvid
• Farvetemperatur: 6000K ved baklys

Elektriske egenskaber

• Højintensitets CREE XTE LED'er
• Egnet til 9-33V DC
• Vibrationstest op til 15G

Dimensioner

• Lampens bredde: 218 mm
• Lampehøjde: 145 mm
• Lampetykkelse: 35 mm

Teknisk ledningsdiagram

• Hvid er jord
• Grå er baglygte
• Blå er bremselys
• Brun er tågelys
• Gul/Grøn er blinklys
• Sort er baklys

Sådan fungerer det:

1. 13-pin stik med 1,8 meter kabel til 7-pin stik & 2-pin PRS
2. 7-pin stik med 2,5 meter kabel til 3-vejs splitter
3. 3-vejs splitter er 6-pin til venstre lampe, 6-pin til højre lampe & 2-pin stik til nummerpladelys
4. Venstre lys har Plug & Play med 50 cm kabel til splitter
5. Højre lys har Plug & Play med 150 cm kabel til splitter
6. Nummerpladelys har Plug & Play-stik med 50 cm kabel til splitter
