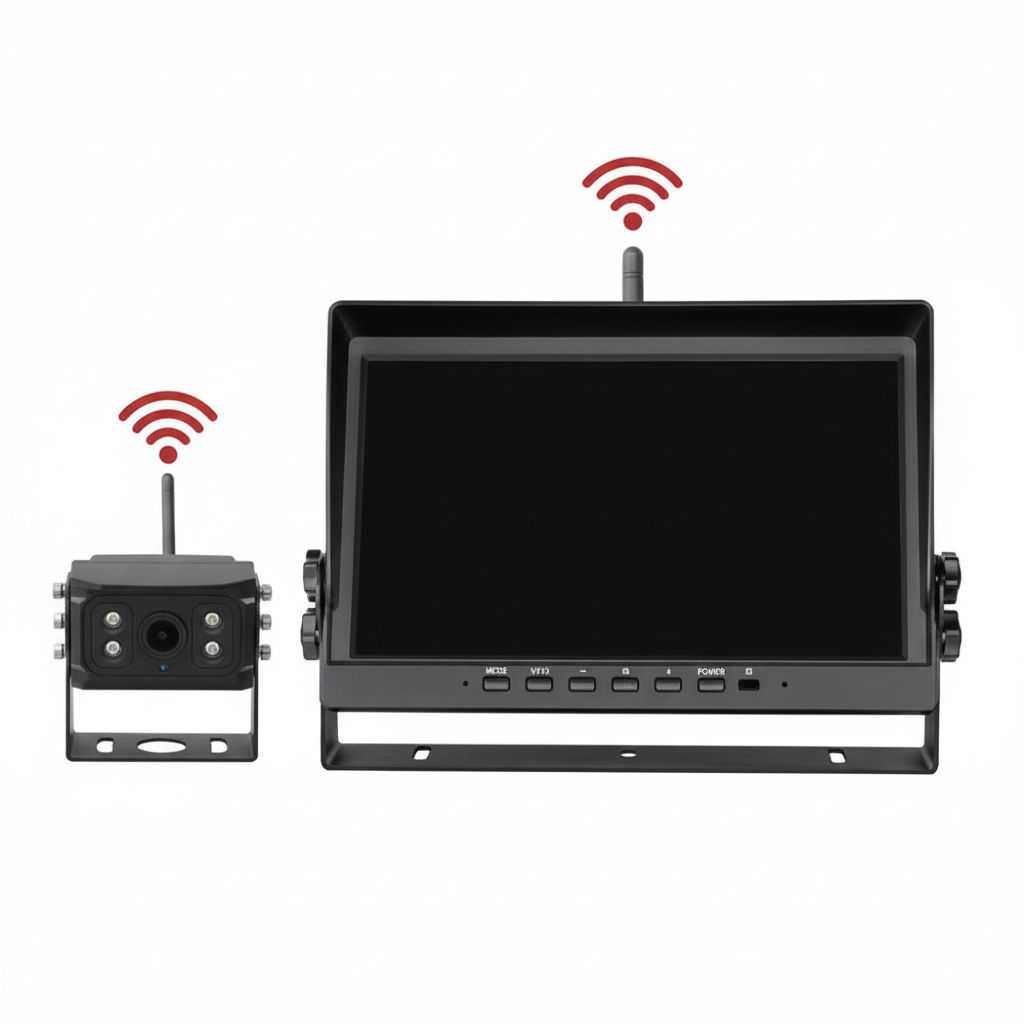

10-inch Wireless Reversing Camera Kit - LG9011

10-inch Wireless Reversing Camera Kit – LG9011

The 10-inch wireless reversing camera kit LG9011 is built for fleets and professional operators who need a big, clear view with minimal wiring. A 10.1-inch monitor pairs with a 1080P wireless camera to give a sharp, stable image when manoeuvring larger vehicles, even in poor light. Designed for 12/24 V systems, it’s a practical upgrade for trucks, plant, agri and vans where downtime and blind spots cost money.

This kit solves a simple problem: you can’t manage what you can’t see. The large 10.1" 16:9 display (1024 × 600 RGB) gives drivers a proper picture of what’s behind the vehicle, not a postage stamp. Because the system uses digital 2.4 GHz wireless AHD transmission, you don’t need to run video cables the length of the chassis. That means faster installs, easier retrofits, and less to go wrong later.

The monitor can take up to 4 camera channels, with single, split, triple or quad views selectable from the on-screen menu. So you can start with one reversing camera and grow into a full surround-view system as the fleet develops. Trigger priority can be set on the dedicated trigger wires, so selecting reverse or indicating can automatically bring up the right camera view without driver distraction.

The 1080P camera (1920 × 1080 effective pixels) uses a 1/3" AHD sensor with 4 super IR LEDs for night work. That gives a wide 120° viewing angle and a usable image in low light, ideal for yards, construction sites and unlit rural roads. With an IP69K housing, the camera is built to handle high-pressure cleaning and harsh weather on heavy vehicles. Both monitor and camera run on DC 12/24 V, so they drop straight into standard commercial vehicle electrical systems.

Installation is straightforward. You power the monitor at the dash and the camera at the rear via its power pigtail. No video cable is required, just the included power cable set and wireless antenna. The heavy-duty monitor housing with sunshade cuts glare, while the rugged camera housing resists vibration up to 10G, making it suitable for plant, trailers and agricultural kit that see hard use.

Key Features

• 10.1" widescreen monitor (16:9 aspect ratio) with 1024 × 600 RGB resolution for a large, clear reversing view.
• Wireless 1080P AHD camera with 1920 × 1080 effective pixels for sharp detail when aligning trailers, docking or working in tight yards.
• Built-in 2.4 GHz digital wireless link, so no long video cable runs along the chassis – faster installation and fewer potential failure points.
• Up to 4 video channels with single / split / triple / quad display modes, ideal for rear, side and load cameras on one screen.
• OSD (On-Screen Display) menu for easy setup and configuration directly on the monitor, without extra tools.
• Trigger priority control, allowing reverse, indicator or other inputs to automatically select the correct camera view for the driver.
• 1/3" AHD image sensor with 4 super IR lights and 120° wide-angle lens for good low-light performance and broad coverage behind the vehicle.
• IP69K camera housing, engineered to withstand high-pressure, high-temperature washdowns and harsh outdoor conditions on commercial vehicles.
• Heavy-duty monitor design with sunshade, improving visibility in bright daylight and resisting daily knocks in working cabs.
• 12–24 V DC operating voltage on both monitor and camera, compatible with most vans, trucks, plant and agricultural equipment.
• Vibration resistance up to 10G on the camera, proven for use on rough terrain, sites and unpaved roads.
• Power cable set and wireless antenna included, with simple monitor power lead and camera power pigtail connection.

Ideal Applications

• Rigid and articulated trucks needing a reliable reversing camera system without running long video cables.
• Tippers, mixers and construction vehicles operating on busy or confined sites where rear visibility is critical.
• Agricultural tractors, sprayers and trailers where frequent hitching, unhitching and washdowns demand robust wireless hardware.
• Light commercial vans and recovery vehicles requiring a large-screen reverse view for urban work and depot manoeuvres.
• Plant, loaders and material handlers where multiple camera views (rear, side, boom) on one monitor improve safety and speed.

Why Choose LED-Global Lighting

LED-Global focuses on practical, high-performance vehicle lighting and vision systems for European fleets. Products are engineered with installers and drivers in mind: correct voltage ranges, robust housings, and specifications that match real-world use, not brochure claims. Every system is selected and tested to integrate cleanly with 12/24 V commercial vehicles and to stand up to European weather, roads and wash routines.

With LED-Global, you get honest specifications, stable supply and technical backup from people who understand trucks, plant and agri – not just part numbers.
