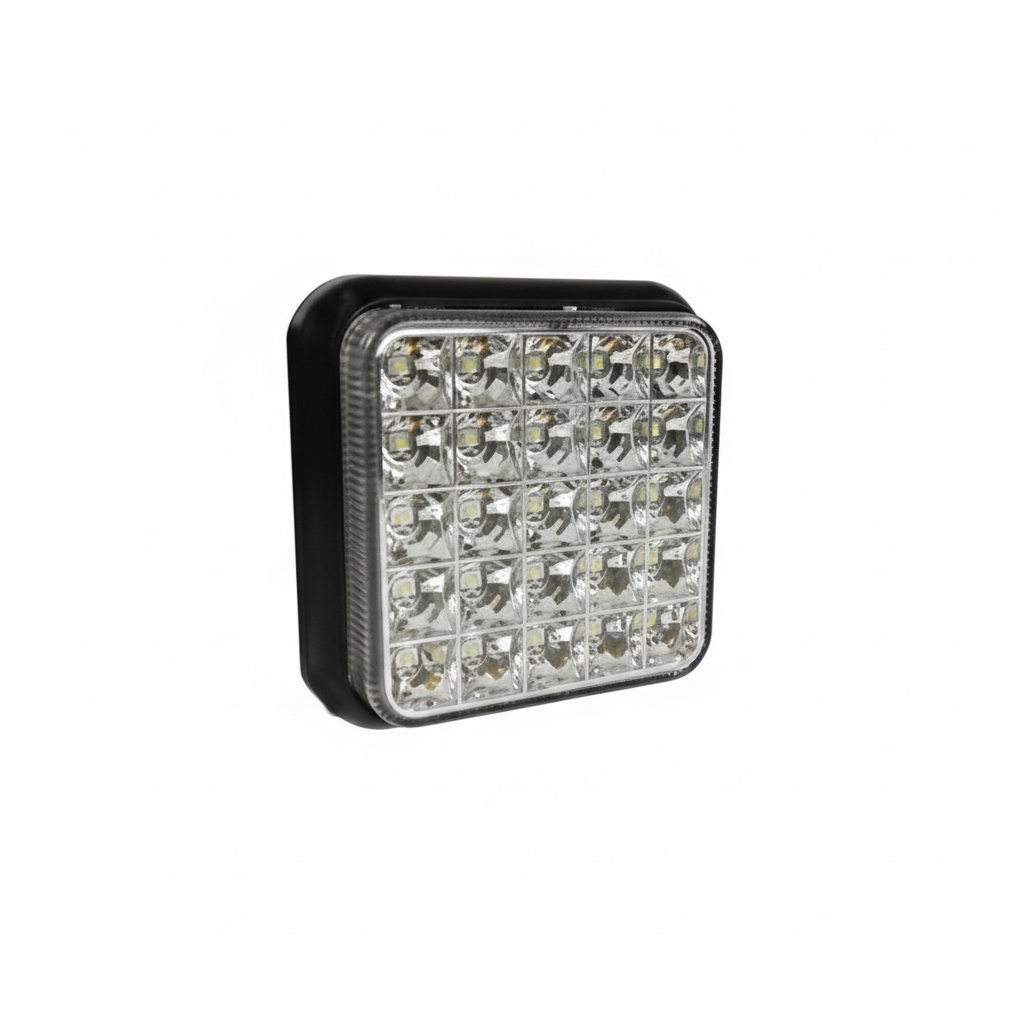

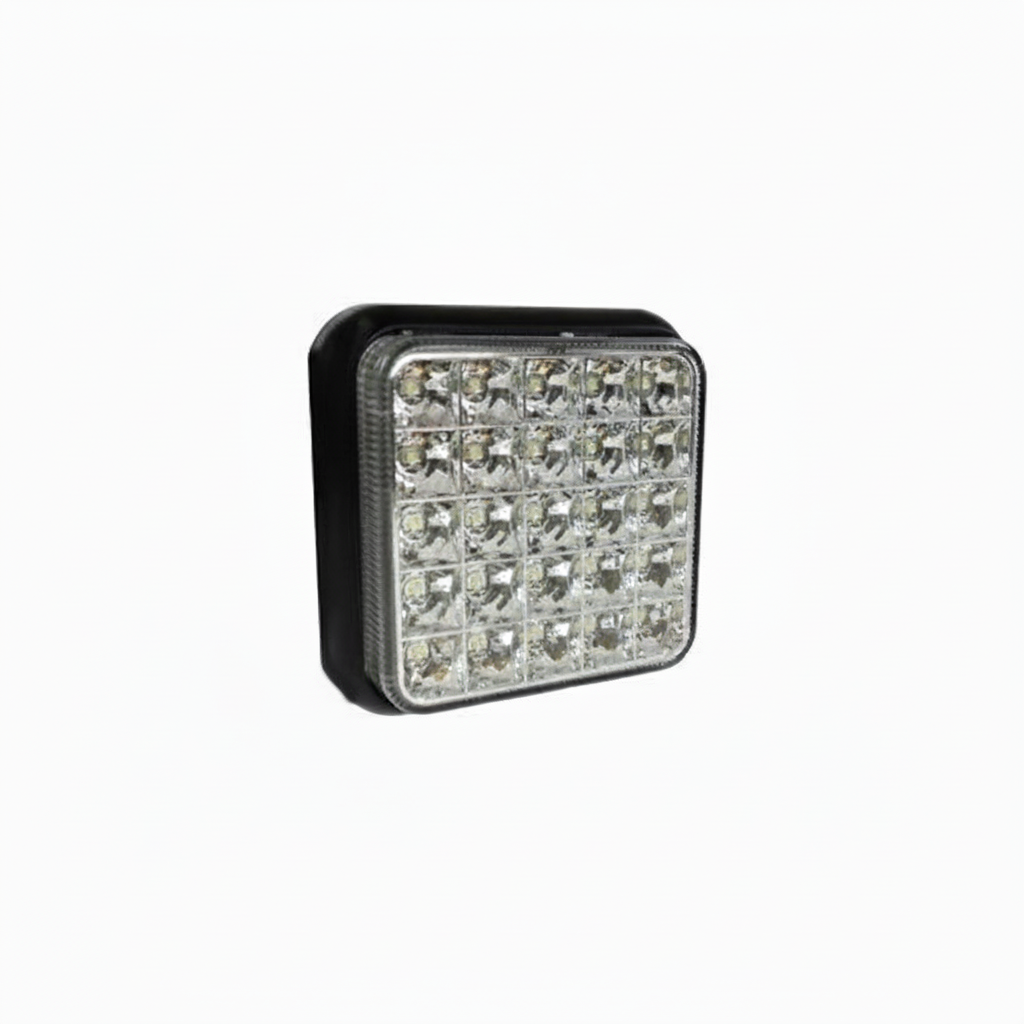

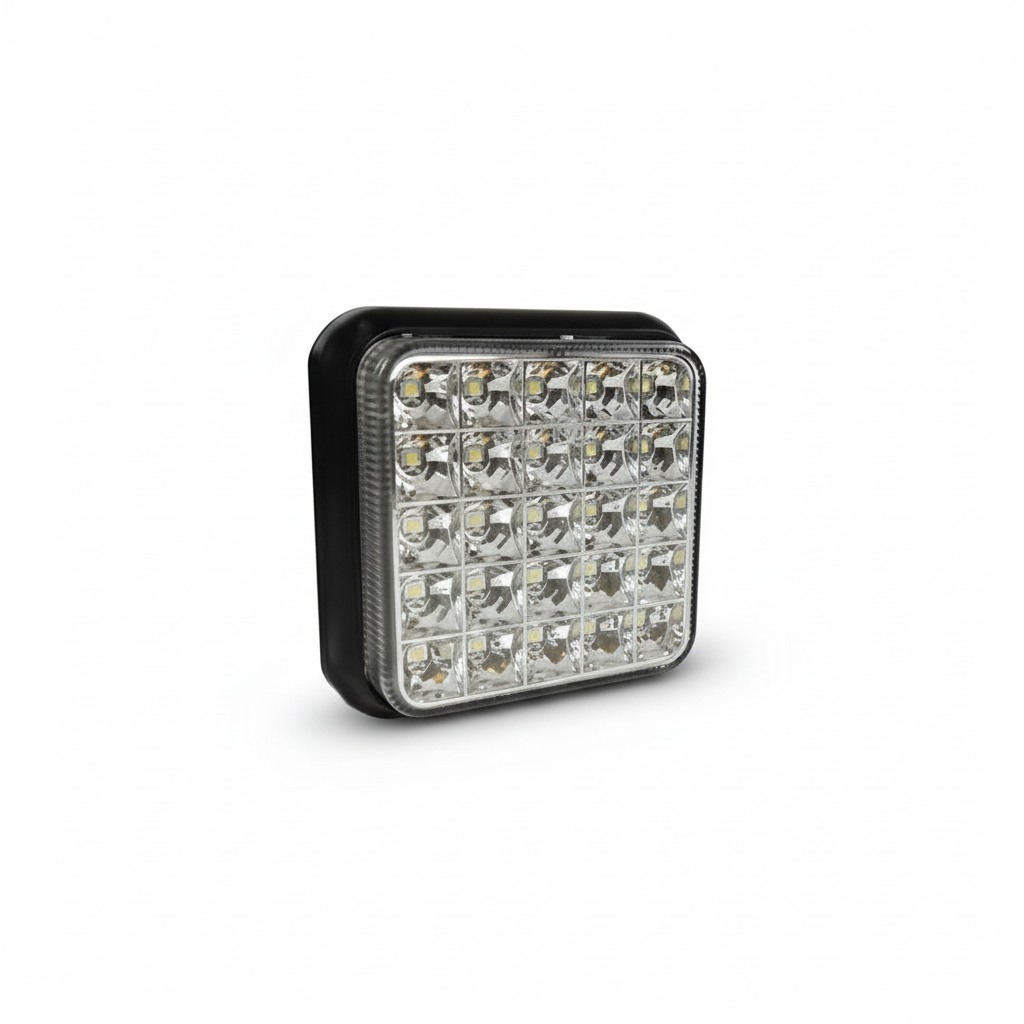

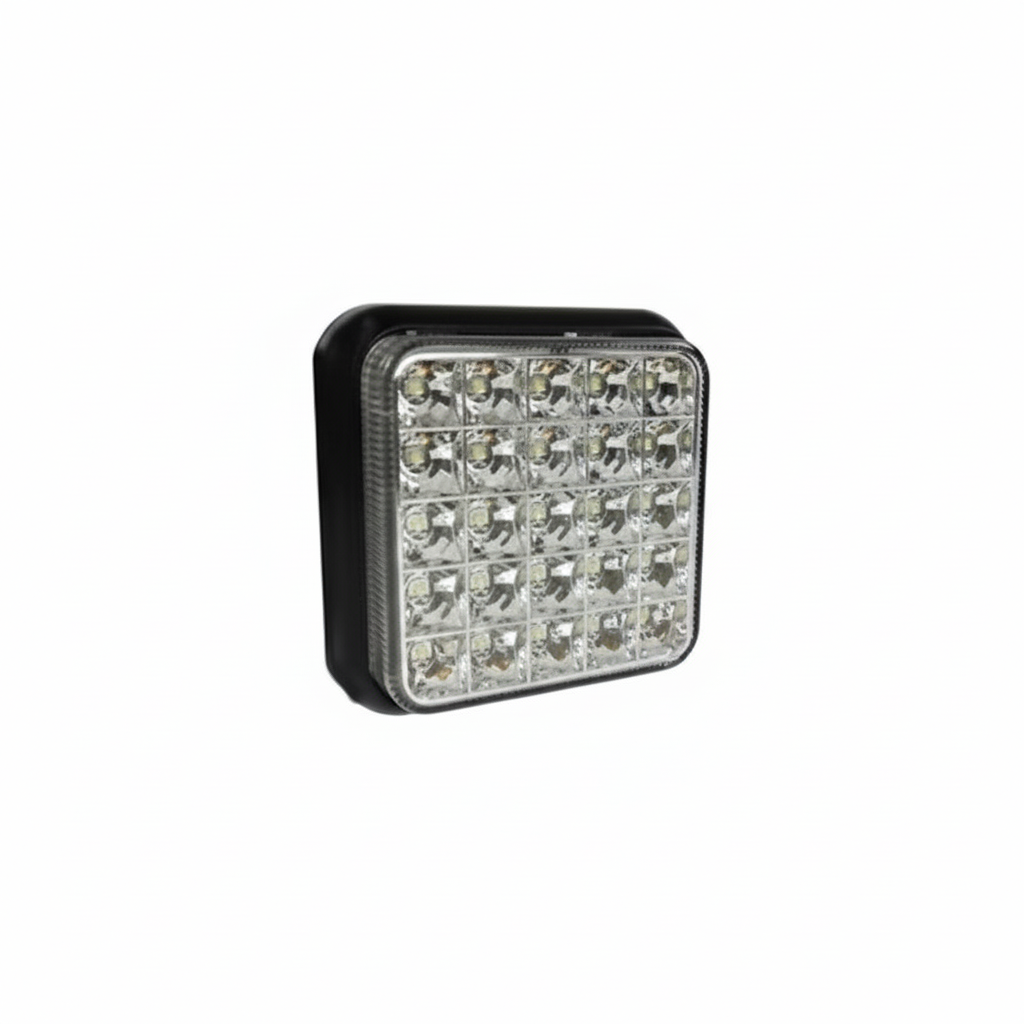

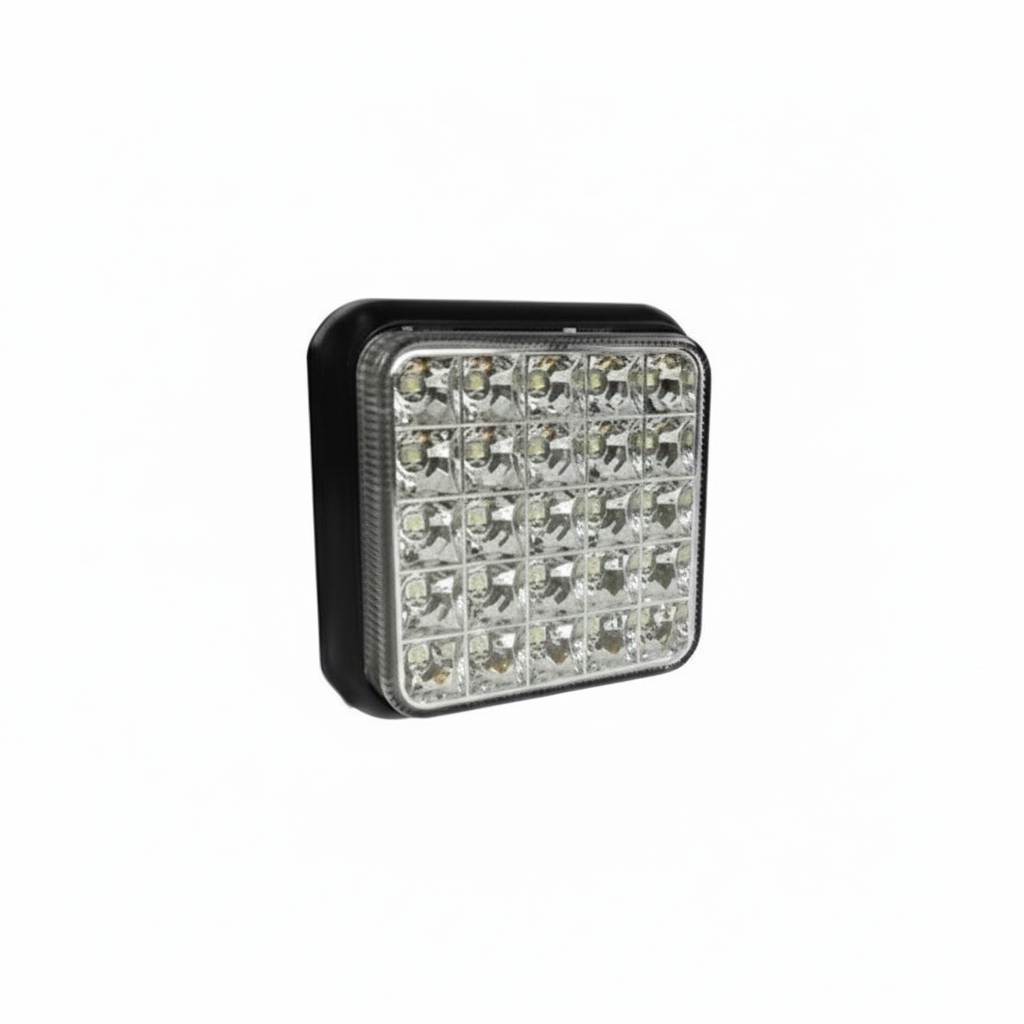

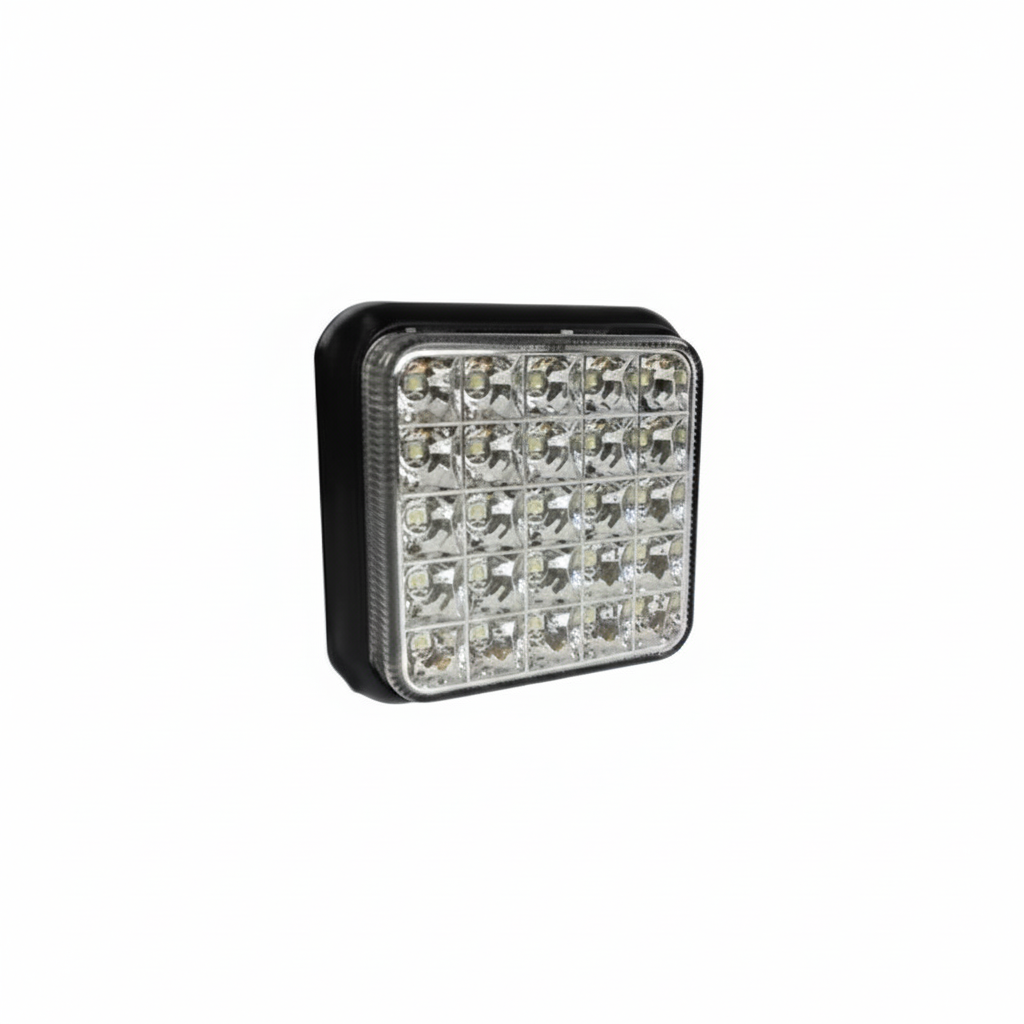

12–24 V LED Square Reverse Light – LG215

The LG215 12–24 V LED square reverse light provides clear, controlled white illumination when backing up commercial vehicles, trailers, plant and agricultural machinery. With 30 high-output LEDs in a compact 88 × 90 × 36 mm housing, it delivers a wide, even spread of light. The lamp is IP67-rated and ECE R10 approved for EMC compliance.

The LG215 is designed for tight yards, unlit sites and crowded depots where clear rear visibility helps reduce damage, downtime and near misses.

Even, Wide White Illumination

The 30 LED array gives a broad, even spread of white light rather than a harsh hotspot. This helps drivers see kerbs, posts, pedestrians and loading bay edges with better contrast than tired halogen units, particularly in poor weather and on unlit sites.

Mixed Fleet Compatibility

The lamp accepts both 12 V and 24 V systems within a single design, allowing operators to standardise across light commercial vans, rigid trucks, trailers, plant and agricultural machinery. Solid-state LED construction is vibration-resistant with no filament to fail on rough roads or off-road work.

Built for European Conditions

The IP67-rated housing is dust-tight and protected against temporary immersion in water. It handles road spray, sensible-distance pressure washing and daily abuse. The wide operating temperature range from −40 °C to +65 °C covers winter starts and summer heat without degraded output.

EMC-Safe for Modern Vehicles

ECE R10 approval confirms proven EMC performance, helping prevent interference with radios, tracking systems, telematics and on-board electronics on modern CAN-bus vehicles.

Key Features

• Multi-voltage 12–24 V DC input.
• 30 high-output LEDs for even reverse illumination.
• IP67 rated – dust-tight and protected against temporary immersion.
• ECE R10 approved for EMC.
• Operating temperature −40 °C to +65 °C.
• Compact square housing: 88 × 90 × 36 mm.
• Solid-state, vibration-resistant LED construction.
• Low maintenance, long LED service life.

Ideal Applications

• Light commercial vans and pickups needing a compact reverse work light.
• Rigid trucks, tippers and distribution vehicles in yards and bays.
• Trailers including box, curtain and plant trailers needing extra rear lighting.
• Construction, quarry and plant equipment reversing on unlit sites.
• Agricultural machinery and implements working around buildings and tracks after dark.

Important Fitment Note

Please confirm vehicle voltage, mounting position, wiring loom compatibility and applicable road-traffic regulations before installation. Install by a competent vehicle electrician for best results.
