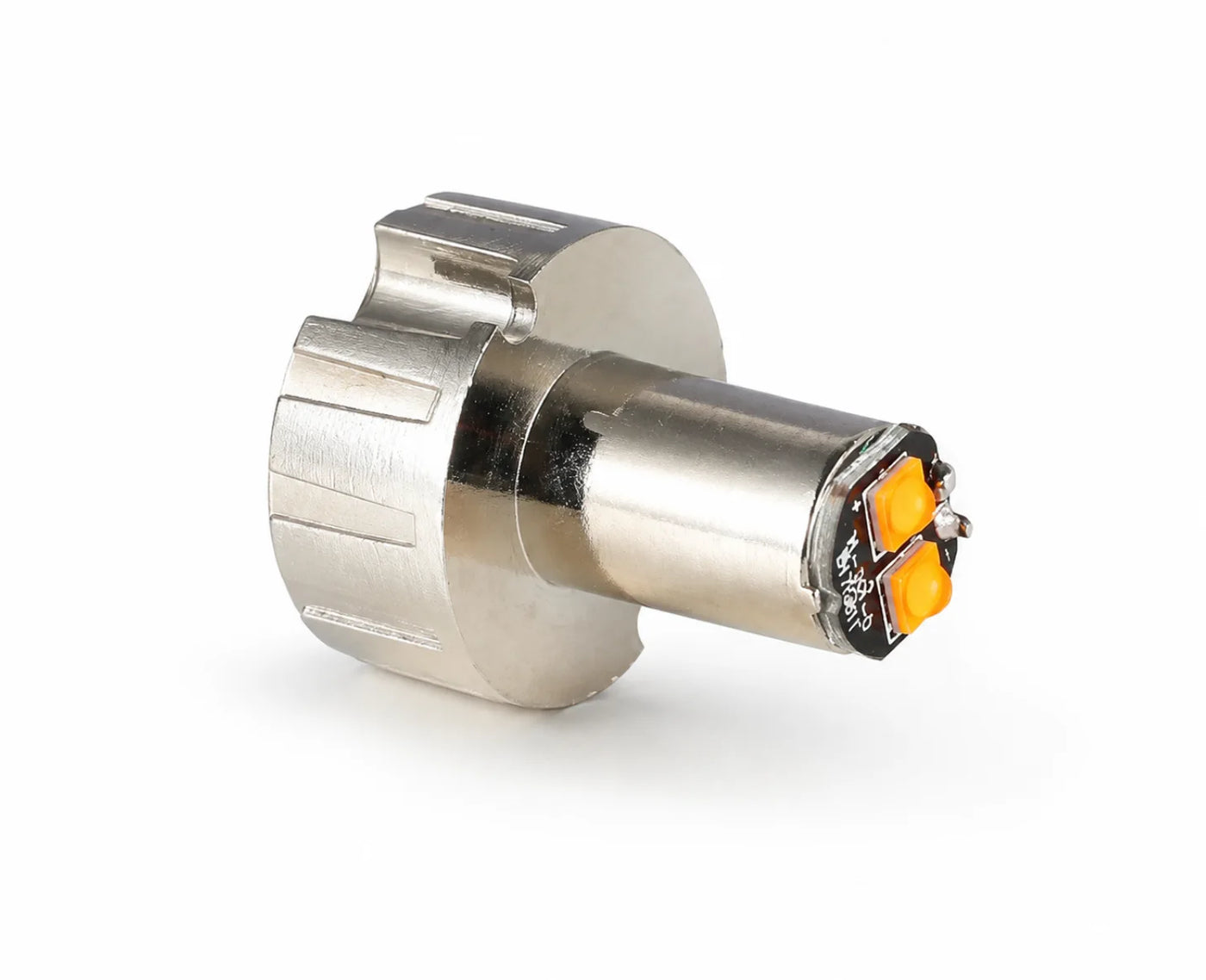

2 LED Hideaway Red Warning Strobe - LG783

2 LED Hideaway Red Warning Strobe – LG783

The 2 LED hideaway red warning strobe LG783 is a compact, high-intensity warning light designed for discreet mounting in existing vehicle lamps or panels. It delivers a powerful red flash through a clear lens with 26 selectable flash patterns, making it ideal for emergency, agricultural, and construction vehicles that need to be seen, not shouted about. Fully ECE R65 and ECE R10 approved, it’s road-legal where red warning is permitted and behaves properly on modern CANbus and sensitive electrical systems.

Engineered for 9–30 V operation, the LG783 runs on both 12 V and 24 V systems without any extra hardware. Two high-output LEDs sit behind a clear lens, producing a sharp, focused red flash that cuts through dust, rain, and working light. Because the unit is IP67-rated, it’s sealed against dust and can withstand temporary immersion, so it’s well suited to vehicles that live outdoors, wash down regularly, or operate in mud and slurry.

This hideaway strobe is designed for flush mount installation in a 25 mm (1 inch) hole, which keeps it protected and out of harm’s way on busy working machines. With a body size of just 27 × 24 × 39 mm, it hides neatly in rear clusters, grille sections, bumpers or tool bodies, giving you clean installs without big external housings. Pre-wired leads speed up fitting, and the unit can be synced/paired with other LG783 strobes so your flash pattern stays coordinated along the vehicle.

LG783 is ECE R65 approved for light performance, ECE R10 compliant for EMC, and tested to CISPR 25 Class 3, which means it won’t interfere easily with radios, GPS, or control electronics when installed correctly. That combination matters if you manage a mixed fleet and want one proven module that can go on tractors, harvesters, plant, service vans and utility trucks across Europe without rethinking the electrical design each time.

Key Features

• Wide voltage range: 9–30 V – designed for both 12 V and 24 V vehicle systems, ideal for mixed fleets and retrofits.
• 2 high-output LEDs – compact but intense red warning signal, easily seen in poor weather and busy worksites.
• 26 selectable flash patterns – choose the pattern that best suits your operation or fleet standard, from single flash to more aggressive patterns.
• Clear lens with red flash – discreet appearance when off, strong red warning colour when activated.
• Flush mount in 25 mm (1 inch) hole – neat, protected installation in lamp housings, bumpers, grilles or body panels.
• Compact body: 27 × 24 × 39 mm – easy to position even in tight lamp clusters or confined mounting spaces.
• IP67 ingress protection – dust-tight and protected against temporary immersion, suitable for regular washing and outdoor use.
• ECE R65 approved – meets European light output and performance standards for warning beacons and strobes.
• ECE R10 compliant & CISPR 25 Class 3 – reduced risk of electrical and radio interference on modern vehicles.
• Sync / pairing capability – link multiple LG783 units to flash together for a professional, coordinated warning system.
• Pre-wired for quick installation – saves time for auto electricians and workshop teams.

Ideal Applications

• Agricultural machinery – tractors, sprayers, and harvesters needing extra red rear warning when working on or near public roads.
• Construction and plant – dumpers, loaders, telehandlers, and excavators where low-profile warning lighting is preferred or exposed.
• Utilities and roadside service vehicles – vans and pickups with hidden warning lights in rear clusters or high-risk zones.
• Municipal and fleet vehicles – refuse trucks, gritters, maintenance trucks, and support vehicles requiring ECE R65-compliant red signalling.
• Specialist and emergency support vehicles – incident response units, recovery trucks, and escort vehicles (where red is legally permitted).
