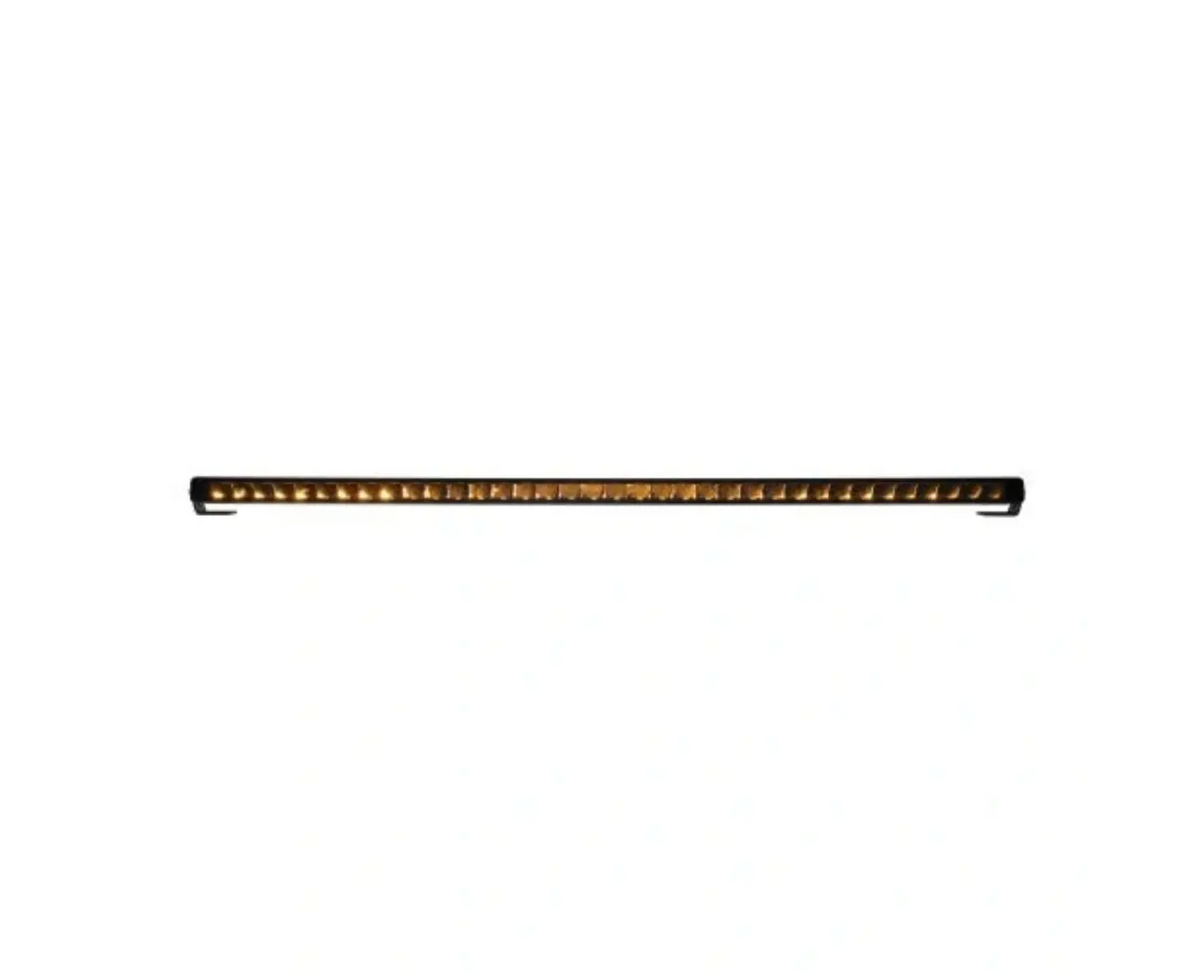

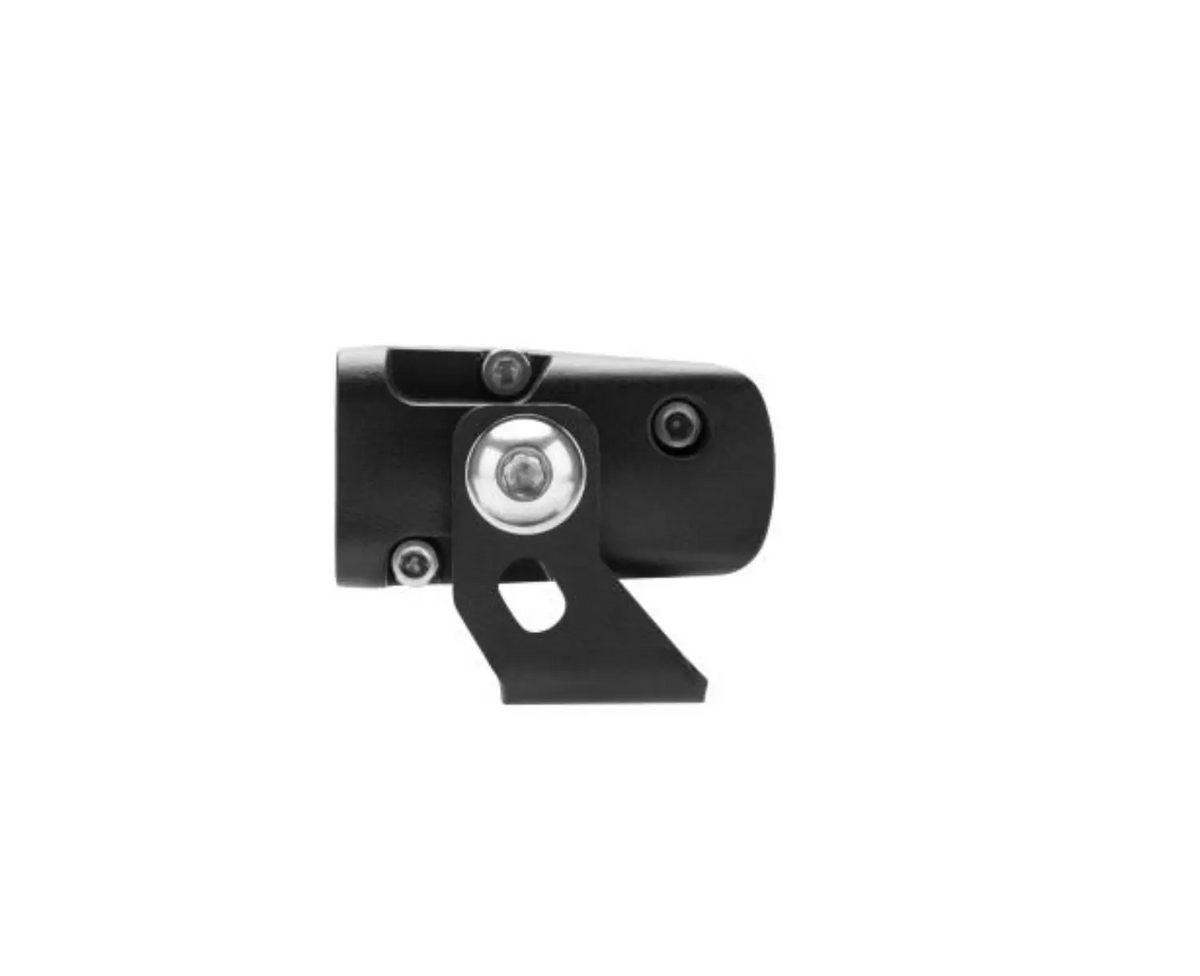

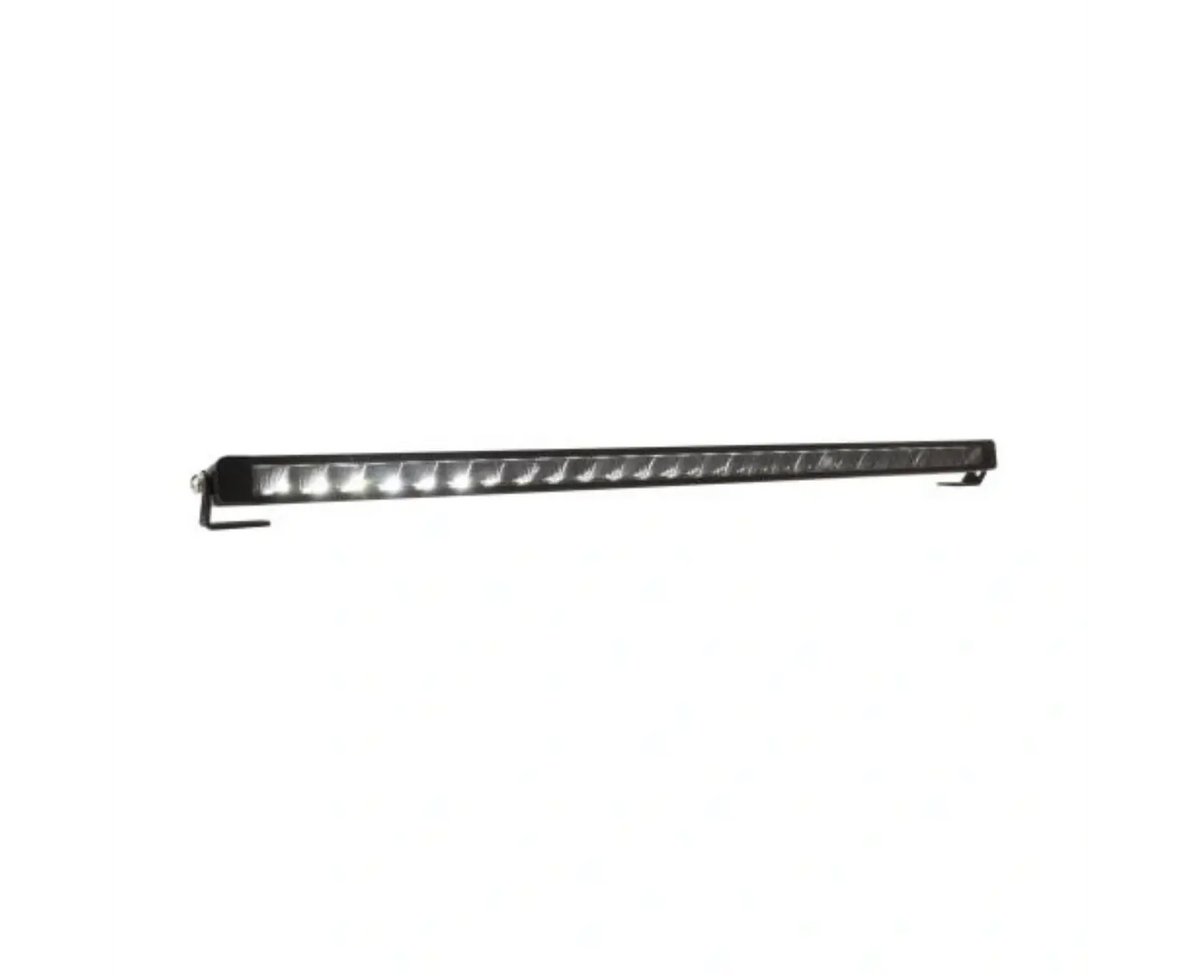

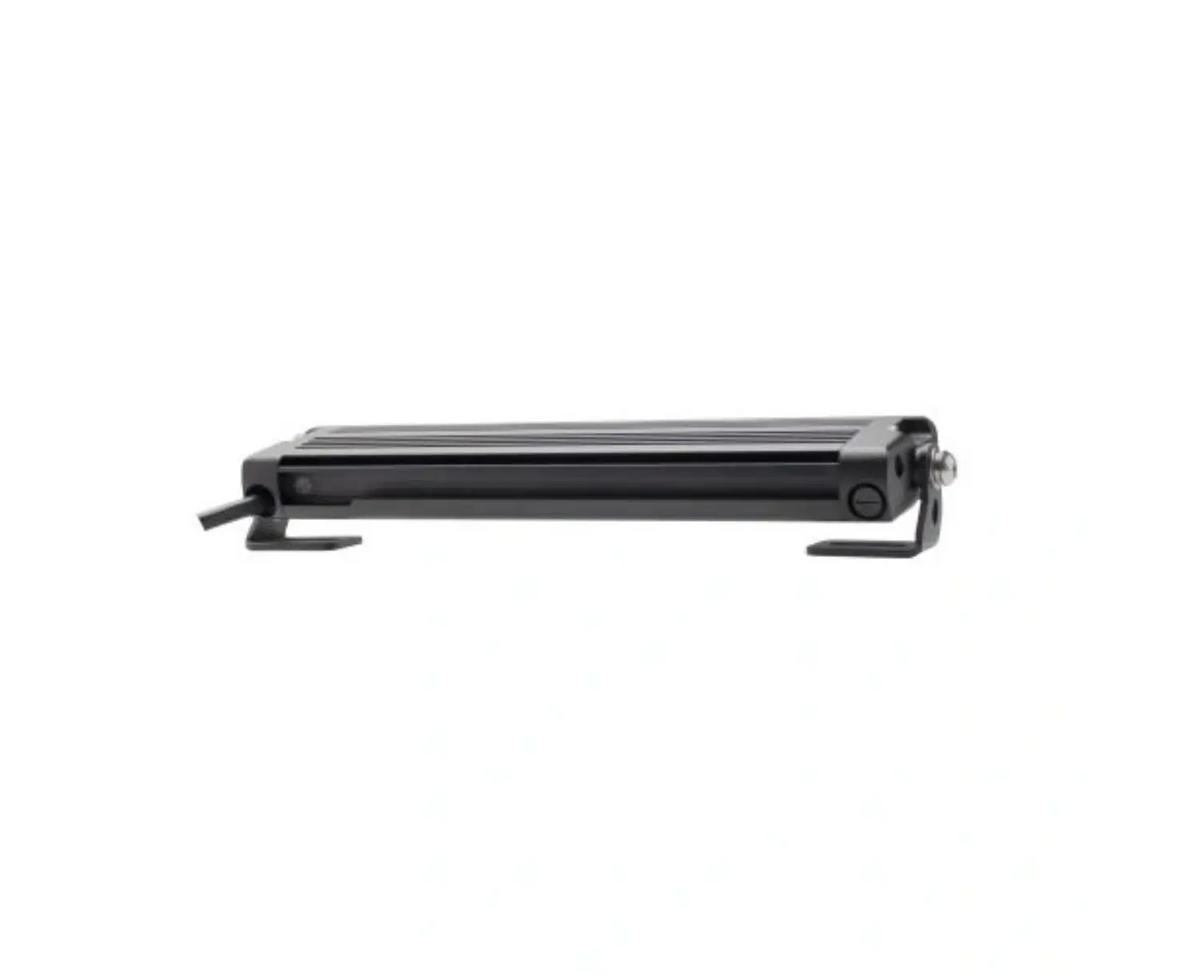

40"(1000mm) Super Slim LED Driving Bar with Dual Colour Park Light - LG953

40" (1000mm) Super Slim LED Driving Bar with Dual Colour Park Light – LG953

The LG953 40" super slim LED driving light bar is built for long-distance visibility when space is tight but demands are high. It combines an ECE-approved road-legal driving beam with a powerful off-road boost mode, plus a dual-colour white/amber position light for better presence and style. Ideal for professional 4x4, commercial, and fleet vehicles that need proven performance with minimal wind noise and a clean OEM look.

The LG953 is engineered for drivers who spend serious time on unlit roads and tracks. In ECE road mode, advanced reflector optics focus the 36 × 6 W LEDs to deliver a clear, controlled driving beam that meets ECE R112 requirements, so you stay compliant on public roads. Switch to off-road boost mode via a dedicated trigger wire and you unleash the full 216 W output, pushing light out to 762 m @ 1 lux for fast, confident driving in open terrain.

Despite the performance, the bar is impressively low-profile. At just 33 mm wide and 70 mm high, with a 1 020 mm length (≈ 40"), it sits close to the bodywork or roof rack and cuts wind noise. The aerodynamic aluminium housing manages heat effectively, protecting the LEDs and electronics during long night shifts. A polycarbonate lens resists impact and stone chips, while a high-quality breather filter helps prevent condensation build-up inside the unit – a small detail that makes a big difference over years of service.

The dual-colour park light adds a practical edge. Run white for a clean, modern DRL-style presence, or switch to amber for a more conspicuous signature in dust, fog, or at the worksite. With a 10–30 V DC input range, the LG953 suits both 12 V and 24 V systems, making it straightforward for installers working across mixed fleets. The bar is rated IP67/IP69K, which means it’s dust-tight and designed to withstand high-pressure, high-temperature washdowns – exactly what you want on vehicles that see winter roads, mud, or daily depot cleaning.

On wiring, the split operating modes give you options. The ECE road mode connects to your main beam circuit for legal on-road use. The off-road boost can be wired to a separate switch, so the driver has full control and can only engage maximum output where conditions allow. That separation helps fleet managers maintain compliance while still giving drivers the light they need off the tarmac.

Key Features

• 216 W high-output LED bar using 36 × 6 W LEDs + 36 × 0.5 W LEDs for strong distance and foreground fill.
• Dual-beam technology with ECE road-legal driving mode and off-road boost mode for flexible, controlled performance.
• Beam distance:
• 468 m @ 1 lux in ECE driving mode for compliant on-road reach.
• 762 m @ 1 lux in off-road mode for extended visibility on tracks and open ground.
• Dual-colour position light ( white / amber ) for improved vehicle presence, style, and situational visibility.
• Super-slim housing: 1 020 × 33 × 70 mm, ideal where grille, bumper, or roof space is limited.
• Advanced reflector optics for a sharp, efficient beam pattern with reduced stray light and glare.
• Robust construction with aluminium body and polycarbonate lens to handle vibration, stone impact, and daily use.
• Protection rating: IP67 / IP69K – dust-tight and built to tolerate high-pressure, high-temperature cleaning.
• Voltage range: 10 – 30 V DC, suitable for both 12 V and 24 V vehicle systems across mixed fleets.
• Approvals:
• ECE R10 – electromagnetic compatibility, minimising interference with radios and vehicle electronics.
• ECE R112 – approved driving beam pattern for road use in ECE markets.

Ideal Applications

• 4x4 and off-road vehicles needing a slim but long-range light bar on roof racks, bull bars, or behind grilles.
• Light commercial vans and pickups where aerodynamic profile, low wind noise, and OEM-style integration matter.
• Heavy trucks and tractor units operating on unlit rural routes and night trunking.
• Utility, telecoms, and rail support fleets requiring reliable long-range lighting for remote access tracks.
• Agricultural and forestry machines working extended hours in low light, where distance and durability are critical.

Why Choose LED-Global Lighting

LED-Global focuses on European-engineered lighting that works hard in real conditions, not just on paper. Products like the LG953 are built around proven optics, solid thermal design, and correct ECE approvals, so fleet managers, fitters, and drivers all know where they stand. Every unit is specified for professional use, backed by a team that understands vehicle electrics, harsh climates, and the pressures of keeping vehicles earning after dark.
