240 Watt LED Curved Work Light Bar - LG804

240 Watt LED Curved Work Light Bar – LG804

This 240 W LED curved work light bar delivers serious output and wide coverage for long days and longer nights. With 19,200 lm from 80 × 3 W CREE XTE LEDs, it turns dark fields, quarries and yards into controlled working areas. ECE R10 and CISPR 25 Class 4 approvals mean stable, low-interference operation on modern 12 V and 24 V vehicles.

The LG804 is built for operators who need one bar to do the lot on tractors, harvesters, construction kit and utility vehicles. The curved housing pushes light outwards, giving a broader spread than a straight bar across the full 1,120 mm width, while the combi / flood beam pattern balances reach and close-in visibility. You get clean, cold white 6,000 K light that makes implements, obstacles and ground detail stand out without eye strain on long shifts.

Electronics sit in a die-cast aluminium housing with a tough PMMA lens, engineered to handle shock, vibration and regular machine washing. With IP68 ingress protection, the bar is sealed against dust and can withstand long-term immersion, so it copes with slurry, spray and constant bad weather on site. A service life of 50,000+ hours means most fleets will fit it once and forget about it for years.

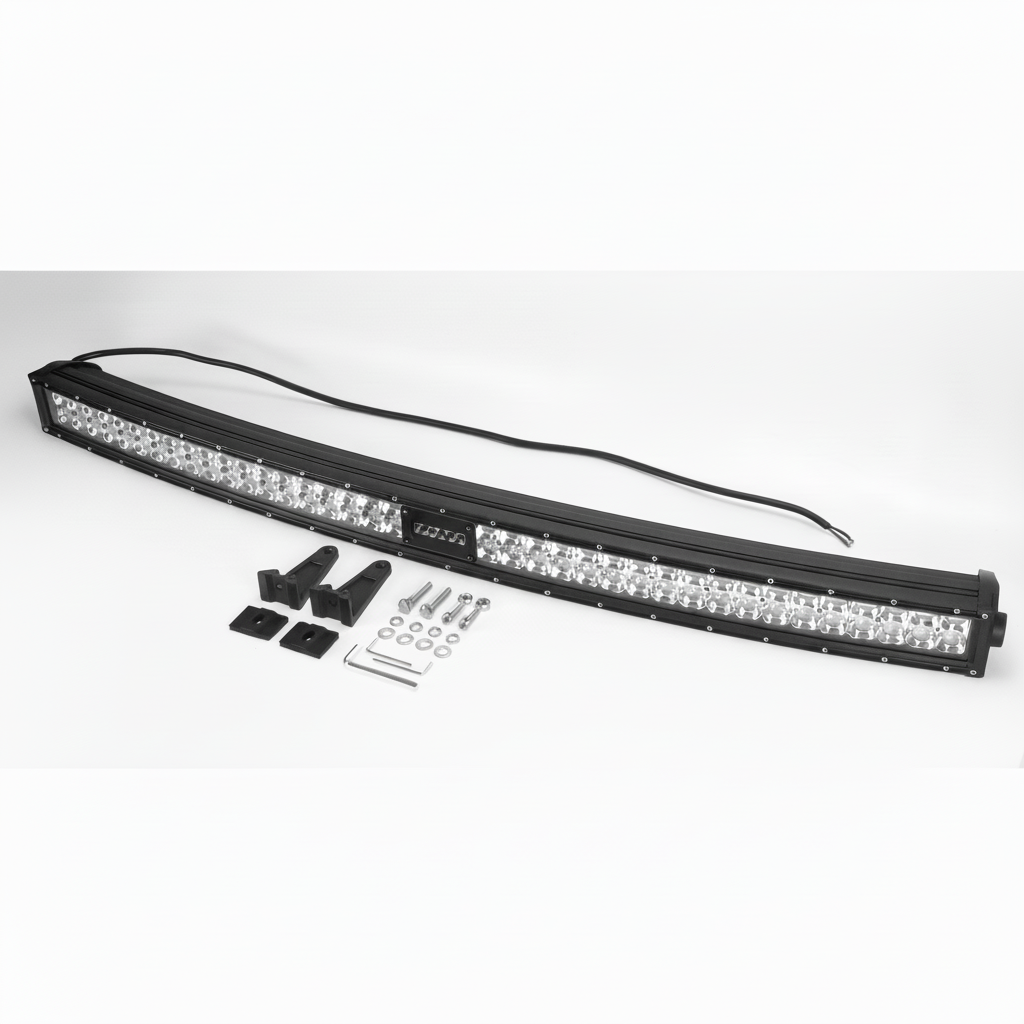

The wide 9–32 V DC voltage range makes this light bar suitable for almost any agricultural or construction machine, whether it’s running 12 V or 24 V electrics. ECE R10 and EMC CISPR 25 Class 4 compliance help protect CAN bus systems, radios and GPS from interference, which matters on modern, electronics-heavy tractors and plant. Mounting hardware allows straightforward fitment to roofs, light bars and front rails; auto electricians and workshops will find wiring simple thanks to the stable DC input and proven LED driver design.

Key Features

• High output 240 W LED bar with 80 × 3 W high-intensity CREE XTE LEDs for strong, uniform work light on large machines
• 19,200 lm luminous flux provides excellent area coverage for fields, yards, forestry tracks and construction sites
• Curved housing design improves lateral spread, giving wider illumination across the machine width and surrounding work area

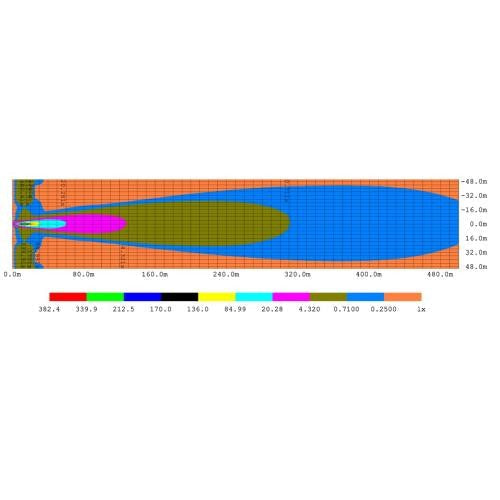

• Combi / flood beam pattern balances mid-distance throw with broad, close-range coverage for safer, quicker manoeuvring
• 9–32 V DC operating range suits 12 V and 24 V systems on agricultural, construction and utility vehicles
• 6,000 K cold white colour temperature for a daylight-style beam that improves contrast and reduces operator fatigue
• Die-cast aluminium housing for efficient heat management and long LED life in high-vibration, heavy-duty environments
• Durable PMMA lens resists impact and abrasion from gravel, branches and regular cleaning
• IP68 ingress protection for dust-tight sealing and protection during extended exposure to water and washdowns
• ECE R10 approved and EMC CISPR 25 Class 4 compliant to minimise electrical interference with radios, CAN bus and GPS
• Long service life – 50,000 h+ reduces downtime and replacement cost over the vehicle’s lifecycle
• Compact profile for its output: approx. 1,120 × 114 × 90 mm (W × H × D) for easy mounting on roofs, bars and brackets

Ideal Applications

• Agricultural machinery – tractors, harvesters, telehandlers and slurry tankers needing powerful, wide-area work lighting
• Construction and plant – excavators, loaders, dumpers and graders working in quarries, demolition and night shifts
• Utility and municipal vehicles – gritters, road maintenance, forestry and drainage trucks operating in poor light
• Off-road and 4×4 builds – recovery trucks, service vehicles and expedition rigs requiring robust, high-output lighting
• Industrial yards and depots – fixed or semi-fixed mounting on gantries and frames for loading and security lighting

Why Choose LED-Global Lighting

LED-Global focuses on high-performance vehicle lighting engineered for European conditions and regulations. Products like the LG804 are specified with proven LED chips, robust housings and correct EMC approvals, so fleet managers and installers know exactly what they’re fitting. Every light is selected for reliability, compliance and real-world usability, giving you consistent illumination, less downtime and a support team that speaks your language when you need technical advice.
