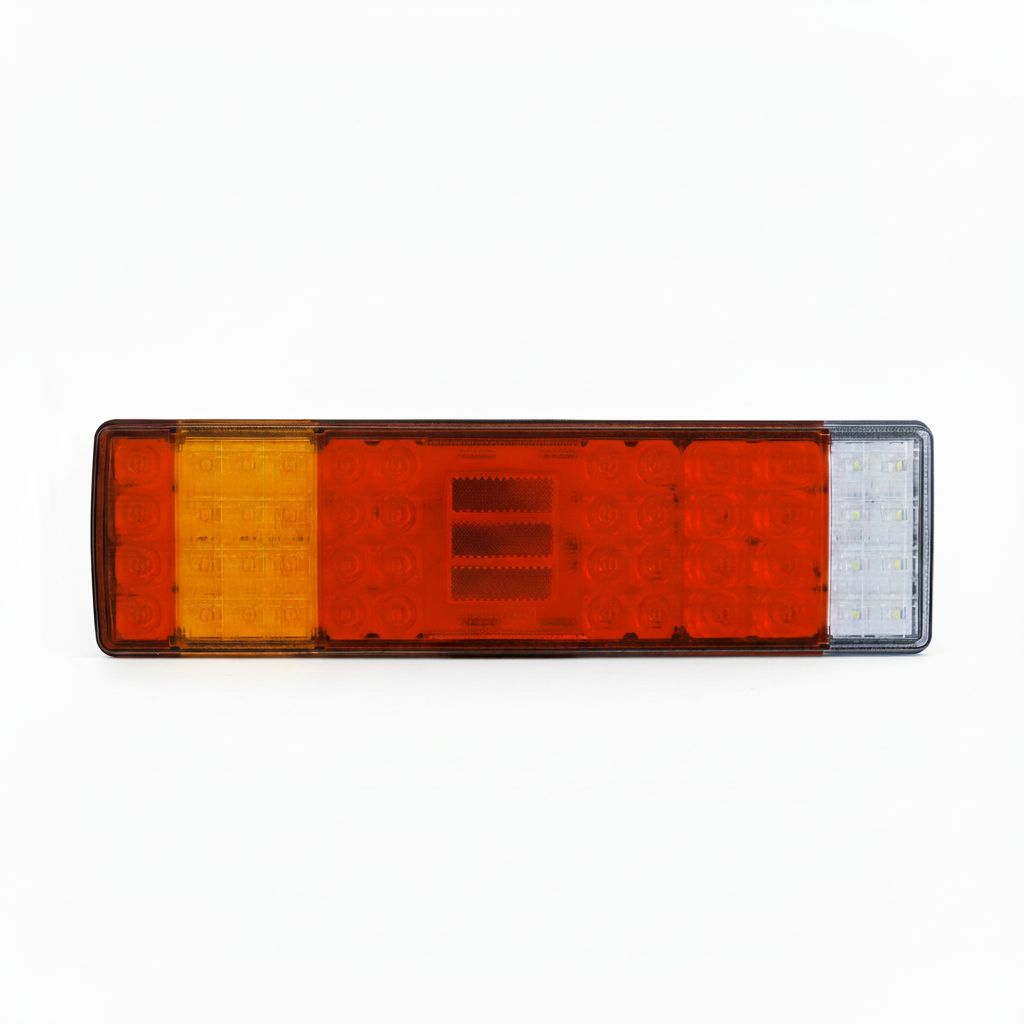

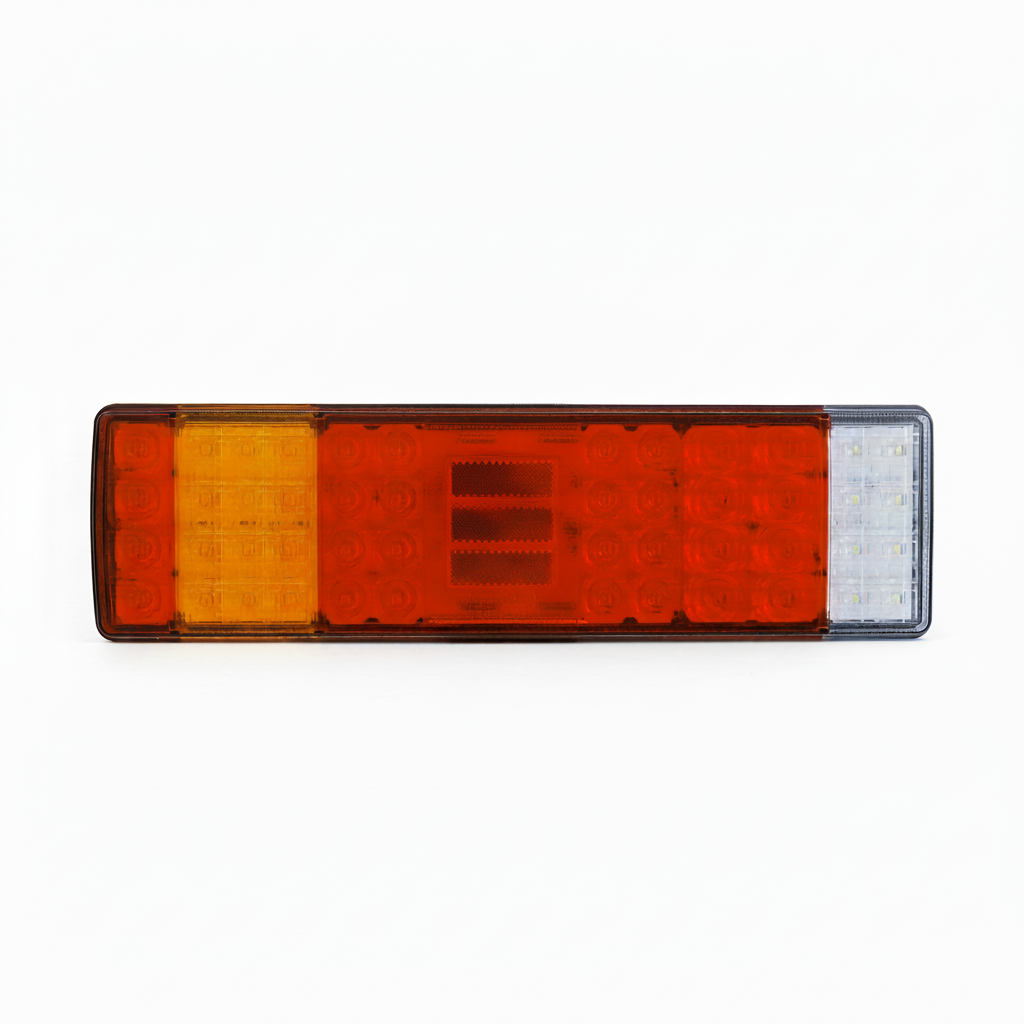

LED Tail Light Combination Truck/Trailer with Built-In Smart Resistor (LH) - LG552

LED Tail Light Combination Truck/Trailer with Built-In Smart Resistor (LH) - LG552 is a 24 V DC rear combination lamp designed for heavy-duty trucks and trailers. This left-hand (LH) unit integrates multiple rear lighting functions into one robust, road-legal housing, helping simplify installations and reduce the number of separate lamps and wiring points.

• Functions: stop, tail, indicator, rear fog, reverse, and reflector
• Additional integrated lights: bottom number plate light and side marker light
• Built-in smart load resistor (indicator): helps maintain correct indicator behavior on many modern 24 V systems without adding external resistors
• Voltage: 24 V DC
• Ingress protection: IP68 sealed housing for demanding weather and wash environments
• EMC: CISPR 25 Class 4, ECE R10 for reduced radio frequency interference
• Approvals: E-mark certified; ECE R3, R4, R6, R7, R23, R38, R91
• Dimensions: 486 mm (Width) x 130 mm (Height) x 70 mm (Thickness)

Ideal for: 24 V trucks, trailers, and semi-trailers requiring a compact, multi-function LED rear lamp with integrated number plate and side marker lighting.

What is included: 1 x LH LG552 LED tail light with 7-pin plug and 100 cm cable, plus built-in side connection plug.
