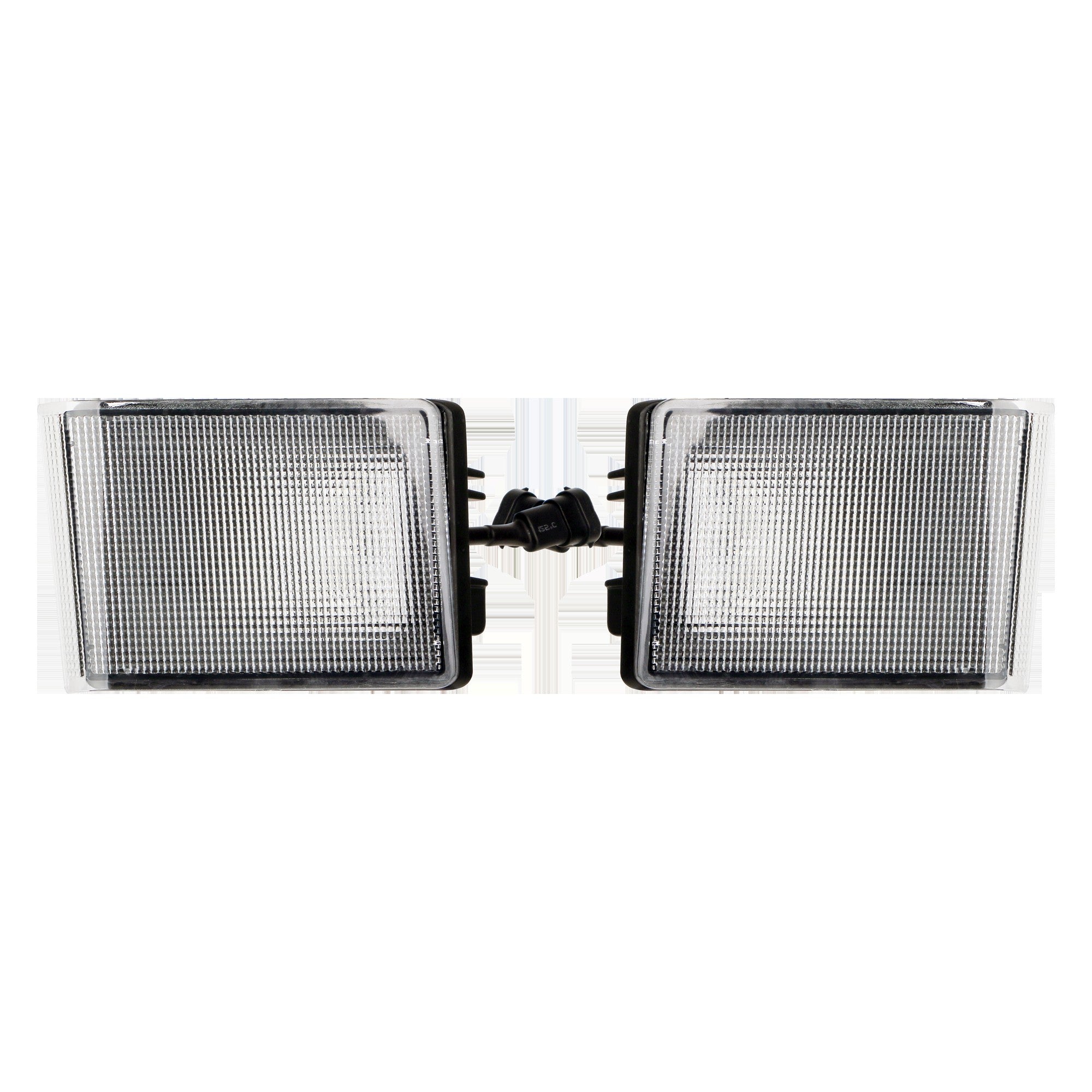

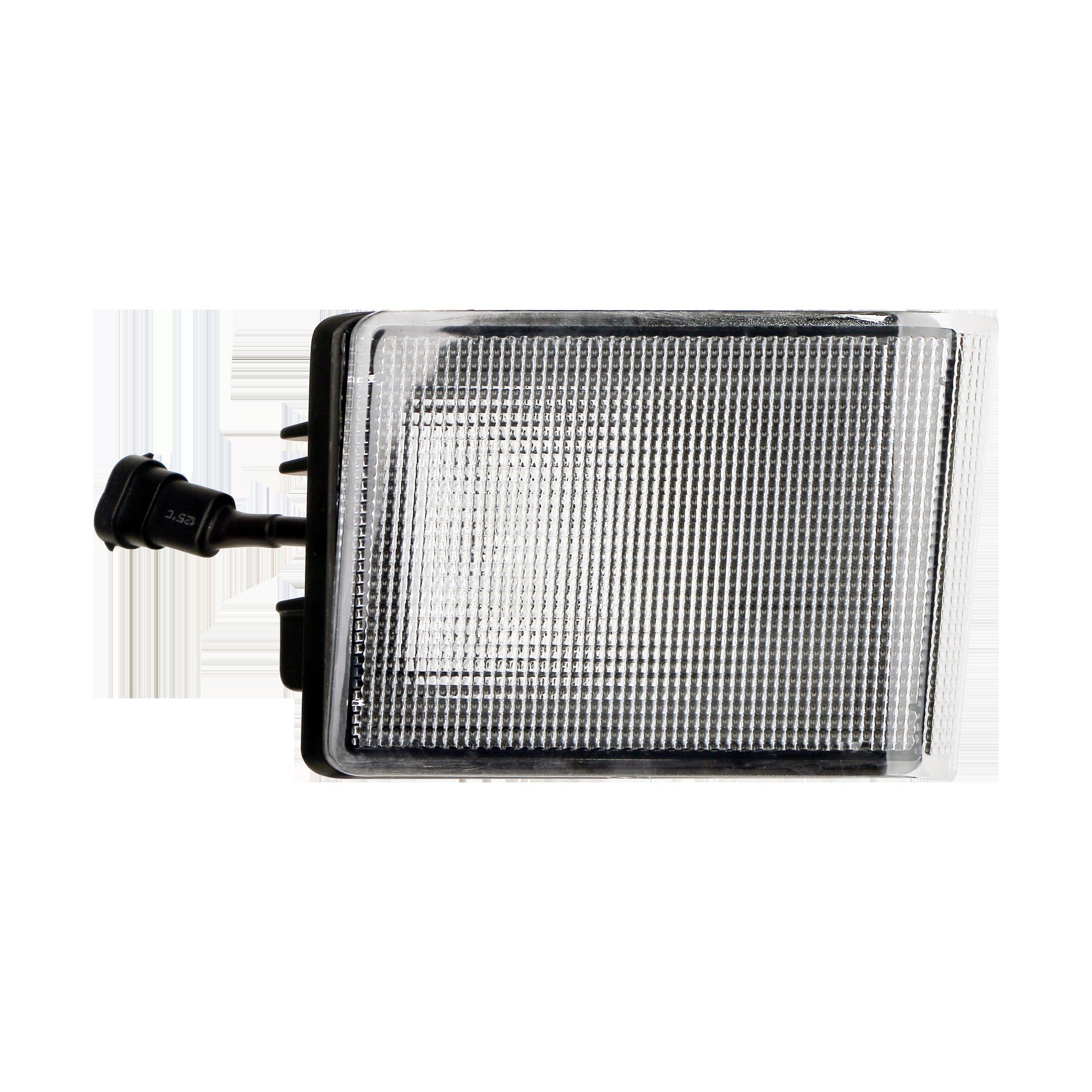

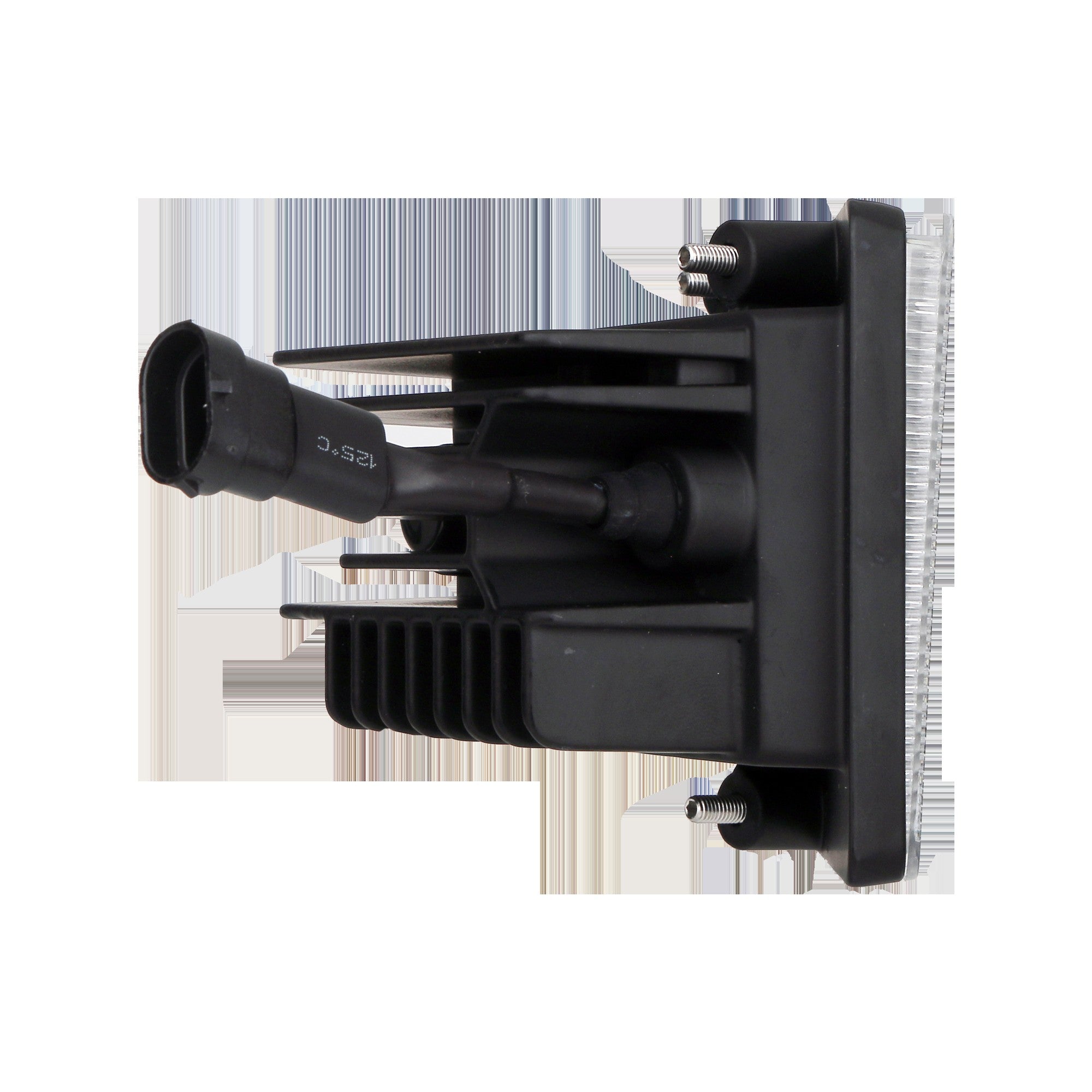

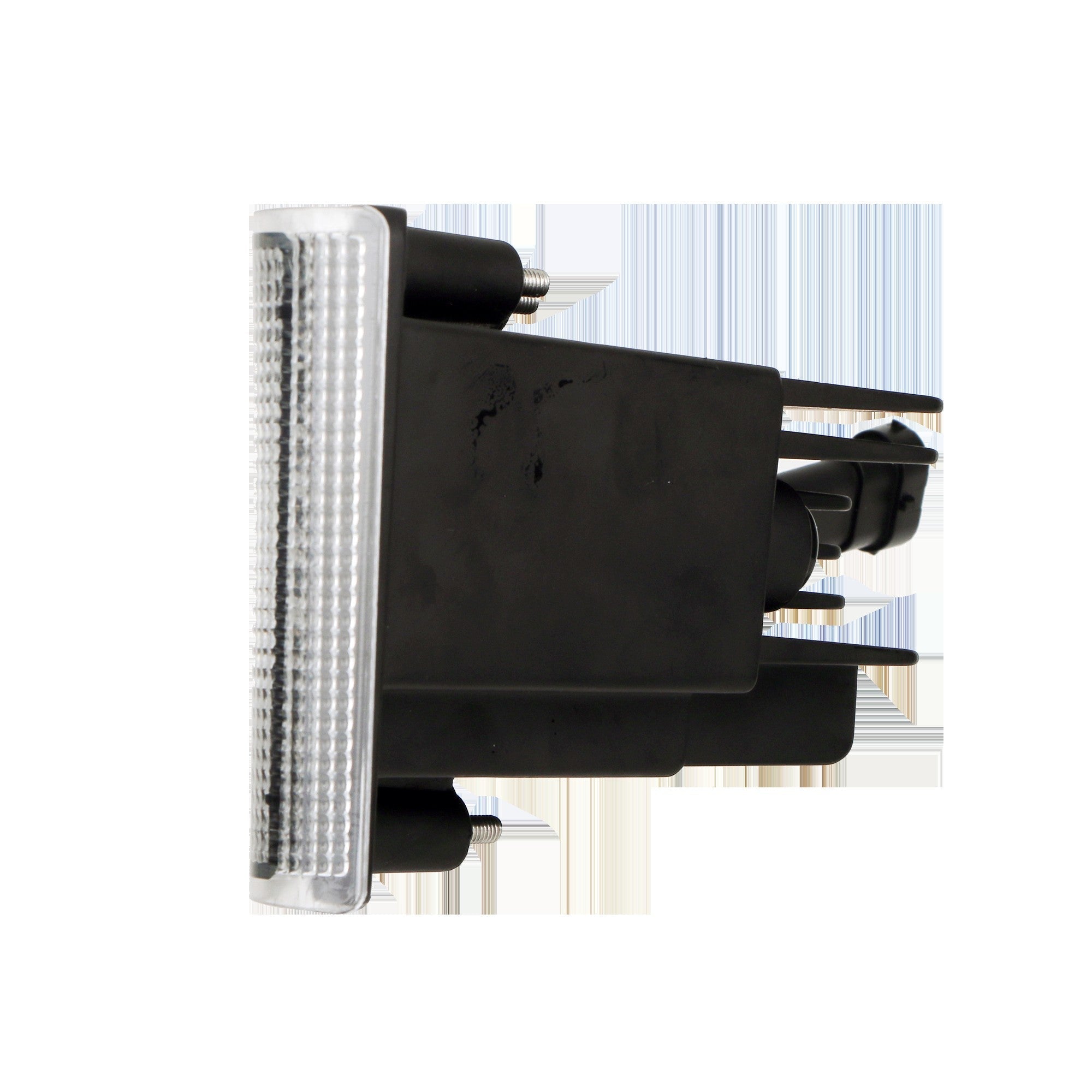

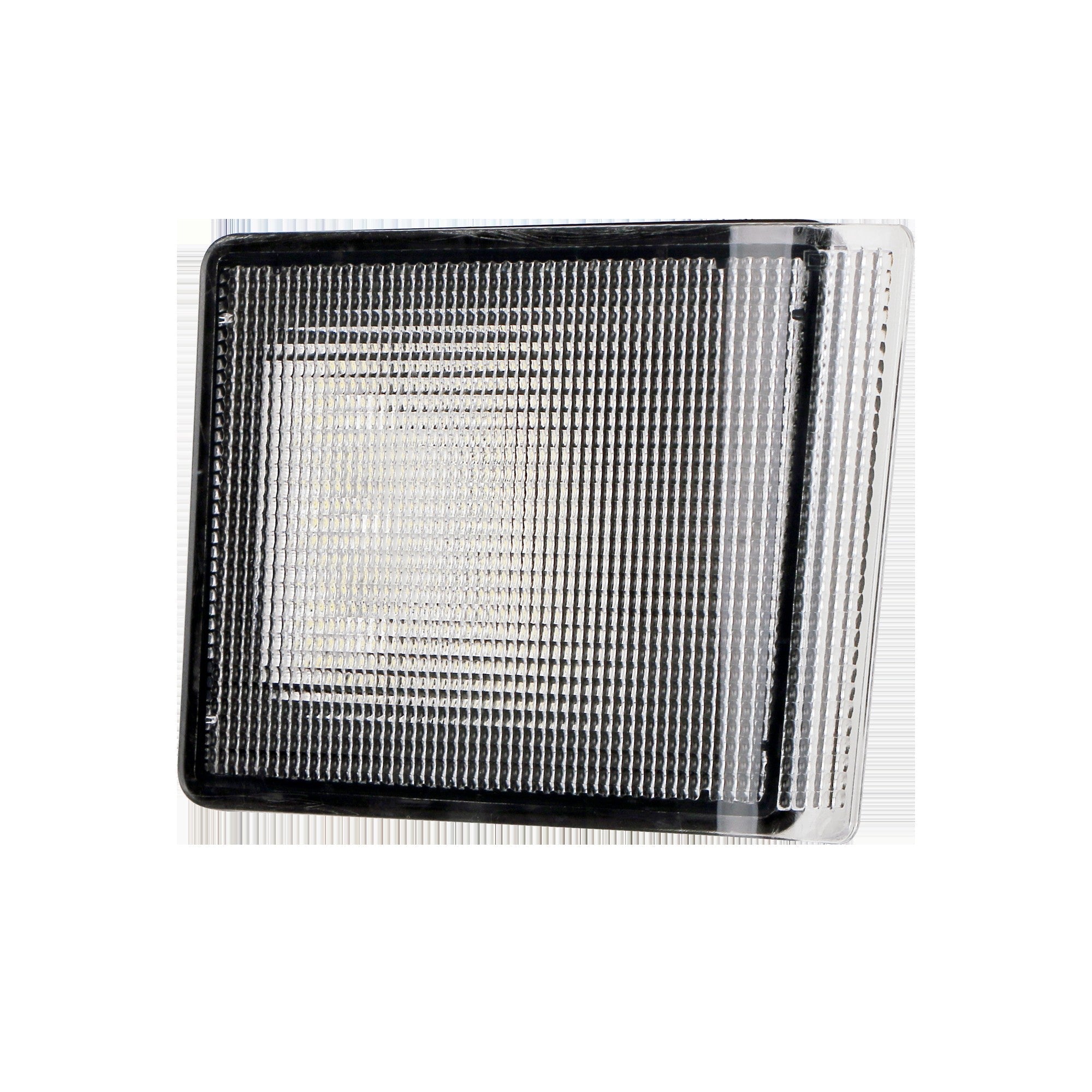

30W LED Corner Light - Left (Suitable for John Deere) - LG899L

30W LED Corner Light – Left (Suitable for John Deere) – LG899L

This 30W LED corner work light for John Deere tractors and sprayers gives you strong, even light exactly where you need it on the left-hand side. It’s built around Osram 5 W LEDs, delivers 2400 lumen of clean white light, and runs on 10–30 V DC, so it drops straight into most 12 V and 24 V systems. ECE R10 / CISPR 25 Class 4 EMC compliance keeps it radio‑friendly, even on sensitive agricultural machines.

When you’re working long hours with a John Deere 7610, 7710, 7810 or 4700‑series sprayer, light fall-off at the corners is more than a nuisance. It slows you down and hides what the boom and front wheels are doing. This LG899L left-hand LED corner light, suitable for John Deere, replaces the original RE151564 unit with a modern 30 W Osram LED module, giving a wide flood beam that fills in those blind spots around the front corner of the cab.

The 5700 K colour temperature produces a neutral white light that makes crop structure, ground detail and implement edges stand out, without the harsh glare you get from cheap lamps. With around 50,000 hours rated lifetime and a robust die-cast aluminium housing, it’s engineered for daily use in European farming conditions – from winter nights at -40 °C right up to dusty summer heat at +80 °C. The IP68 rating means the unit is dust‑tight and can handle continuous immersion, so regular washing and foul weather don’t trouble it.

Electromagnetic compatibility matters on modern tractors with GPS, ISOBUS and radios running side by side. That’s why this lamp is approved to ECE R10 and CISPR 25 Class 4, helping to minimise interference with your existing electronics. The unit comes with a 9005 plug and a black housing designed as a direct left-side replacement on listed John Deere models, keeping installation straightforward for workshop teams and fit-out contractors.

Key Features

• 30 W Osram LED light source – proven 5 W LEDs per chip for stable output and long service life.
• Light output: 2400 lumen – strong, usable work light that clearly illuminates the tractor’s front corner and immediate work area.
• Wide flood beam pattern – designed to spread light over a broad area rather than a tight spot, ideal for close‑range field and yard work.
• Operating voltage: 10–30 V DC – compatible with both 12 V and 24 V electrical systems commonly used on agricultural machinery.
• Colour temperature: 5700 K – clean white light that improves contrast and operator visibility compared with older halogen units.
• Operating temperature: -40 °C to +80 °C – dependable performance from deep winter starts to hot summer spraying.
• Ingress protection: IP68 – fully dust-tight and protected against continuous immersion, suitable for high‑pressure cleaning and wet field conditions.
• Die-cast aluminium housing with PC lens – tough, corrosion‑resistant body and impact‑resistant polycarbonate lens in a black finish.
• EMC approvals: ECE R10 and CISPR 25 Class 4 – reduced risk of interference with GPS, radios and other on‑board electronics.
• Direct-fit left-hand replacement – suitable for John Deere OEM ref RE151564 (left) with 9005 plug for quick, clean installation.

Ideal Applications

• John Deere tractors: 7610, 7710, 7810 – left-hand corner work light replacement or LED upgrade.
• John Deere sprayers: 4700, 4710, 4720 – improved corner lighting for boom ends and wheel tracks.
• Agricultural fleet upgrades where standard halogen corner lamps are failing or underpowered.
• Contractor and co‑op machines that need robust, low‑maintenance lighting for extended night work.
• Mixed-brand farms looking to standardise on high‑quality LED work lighting across key John Deere units.

Why Choose LED-Global Lighting

LED-Global focuses on high-performance lighting for professional vehicles across Europe. Products like the LG899L use proven components, tight quality control and practical design, so workshop time is kept to a minimum and uptime stays high. You get lighting engineered to European standards, with clear approvals and honest specifications, backed by a team that understands how these lamps are used on real machines in real fields.
