| Brand | LED Global |
|---|---|
| SKU | LG852 |
| EAN / Barcode | 4255929221104 |
| Product Type | LED Work Light |
| Included in Box | 1x Work Light, 304 Stainless Steel Bracket, M10 Single Bolt Hardware |
| Ideal Applications | Massey Ferguson 4200, 4300, 6100, 6200, 8100 series tractors |
| Beam Pattern | Flood beam |
| Luminous Flux (Lumens) | 3000 Lumens |
| Color Temperature (K) | 6000K |
| Number of LEDs | 8 LEDs |
| LED Brand/Type | CREE XTE LEDs |
| Power Consumption (Watts) | 40W |
| Operating Voltage (V) | 10-30V DC |
| Expected Service Life (Hours) | 50,000h+ |
| ECE Approvals | ECE R10 Approved |
| EMC Rating | CISPR25 Class 4, EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| Protection Rating (IP) | IP67 |
| Operating Temperature Range (°C) | -40°C to +50°C |
| Shock | 20G |
| Vibration | 8Grms 20-2000Hz |
| Shape | Rectangle |
| Housing Material | Die-cast Aluminium |
| Lens Material | Polycarbonate |

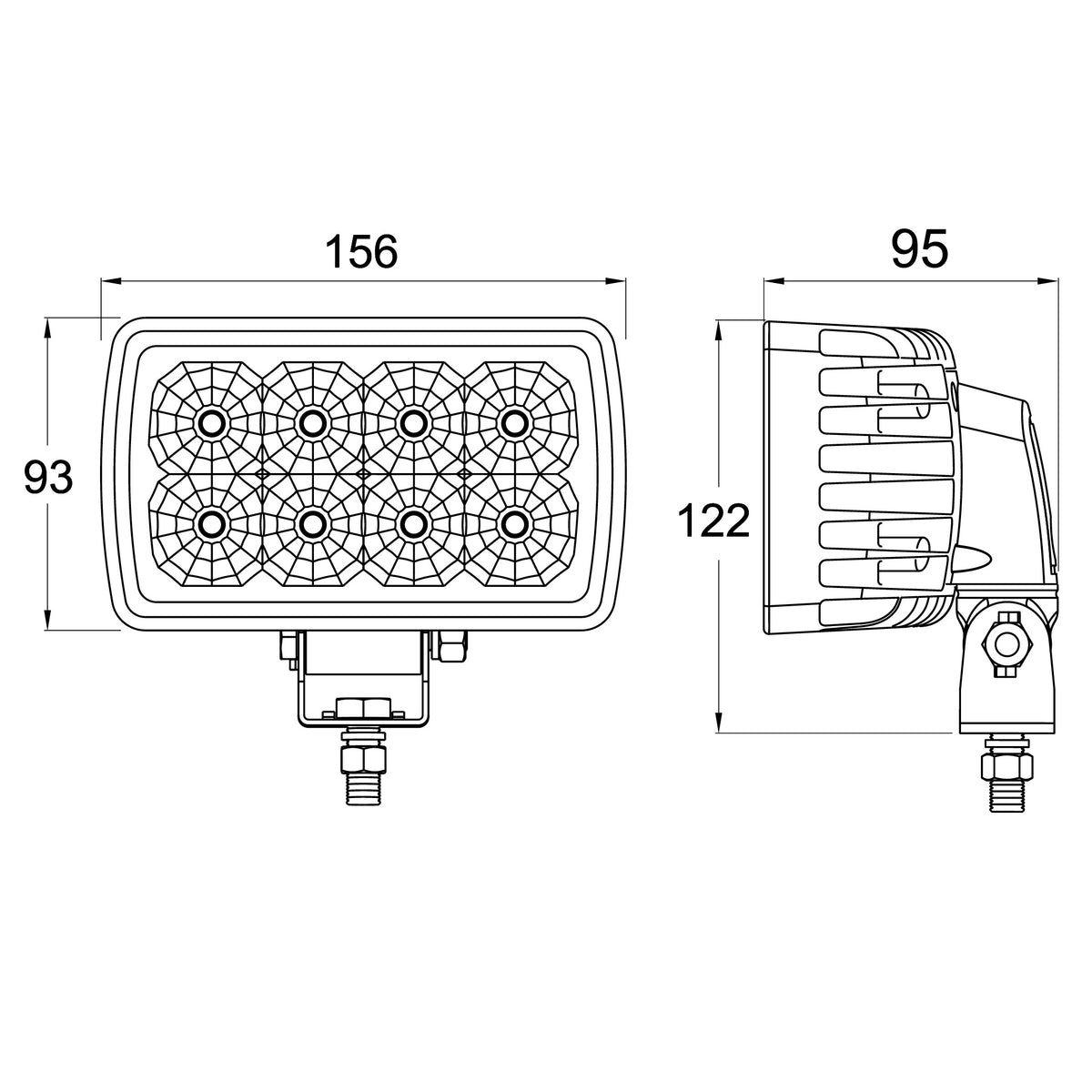

| Width (mm) | 156 mm |
| Height (mm) | 93 mm (body) / 122 mm (with bracket) |
| Depth (mm) | 95 mm |
| Mounting Type | Rotatable bracket, Single Bolt M10 |
| Fastening Type | 304 Stainless Steel Bracket |
| Wiring | Red, Positive |
| Wiring | Black, Ground |
| Connection Type | Integrated 2-Pin Deutsch (DT) Connector with Bare Fly Leads |
| Illuminance | 186 m @ 1 lux |
40 Watt LED Rectangle Adjustable Mount Work Light - LG852
In stock
incl. VAT
Specifications
| Brand | LED Global |
|---|---|
| SKU | LG852 |
| EAN / Barcode | 4255929221104 |
| Product Type | LED Work Light |
| Included in Box | 1x Work Light, 304 Stainless Steel Bracket, M10 Single Bolt Hardware |
| Ideal Applications | Massey Ferguson 4200, 4300, 6100, 6200, 8100 series tractors |
| Beam Pattern | Flood beam |
| Luminous Flux (Lumens) | 3000 Lumens |
| Color Temperature (K) | 6000K |
| Number of LEDs | 8 LEDs |
| LED Brand/Type | CREE XTE LEDs |
| Power Consumption (Watts) | 40W |
| Operating Voltage (V) | 10-30V DC |
| Expected Service Life (Hours) | 50,000h+ |
| ECE Approvals | ECE R10 Approved |
| EMC Rating | CISPR25 Class 4, EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| Protection Rating (IP) | IP67 |
| Operating Temperature Range (°C) | -40°C to +50°C |
| Shock | 20G |
| Vibration | 8Grms 20-2000Hz |
| Shape | Rectangle |
| Housing Material | Die-cast Aluminium |
| Lens Material | Polycarbonate |
| Width (mm) | 156 mm |
| Height (mm) | 93 mm (body) / 122 mm (with bracket) |
| Depth (mm) | 95 mm |
| Mounting Type | Rotatable bracket, Single Bolt M10 |
| Fastening Type | 304 Stainless Steel Bracket |
| Wiring | Red, Positive |
| Wiring | Black, Ground |
| Connection Type | Integrated 2-Pin Deutsch (DT) Connector with Bare Fly Leads |
| Illuminance | 186 m @ 1 lux |
Description

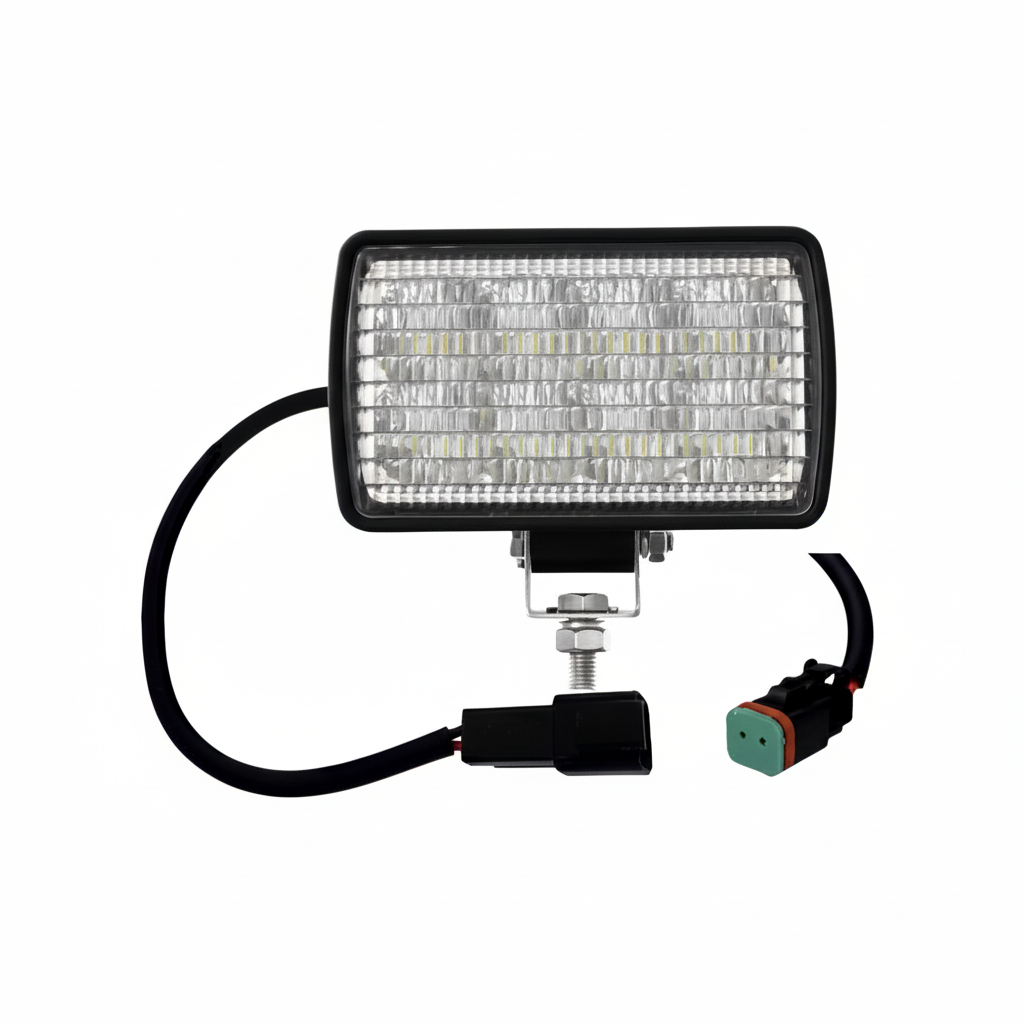

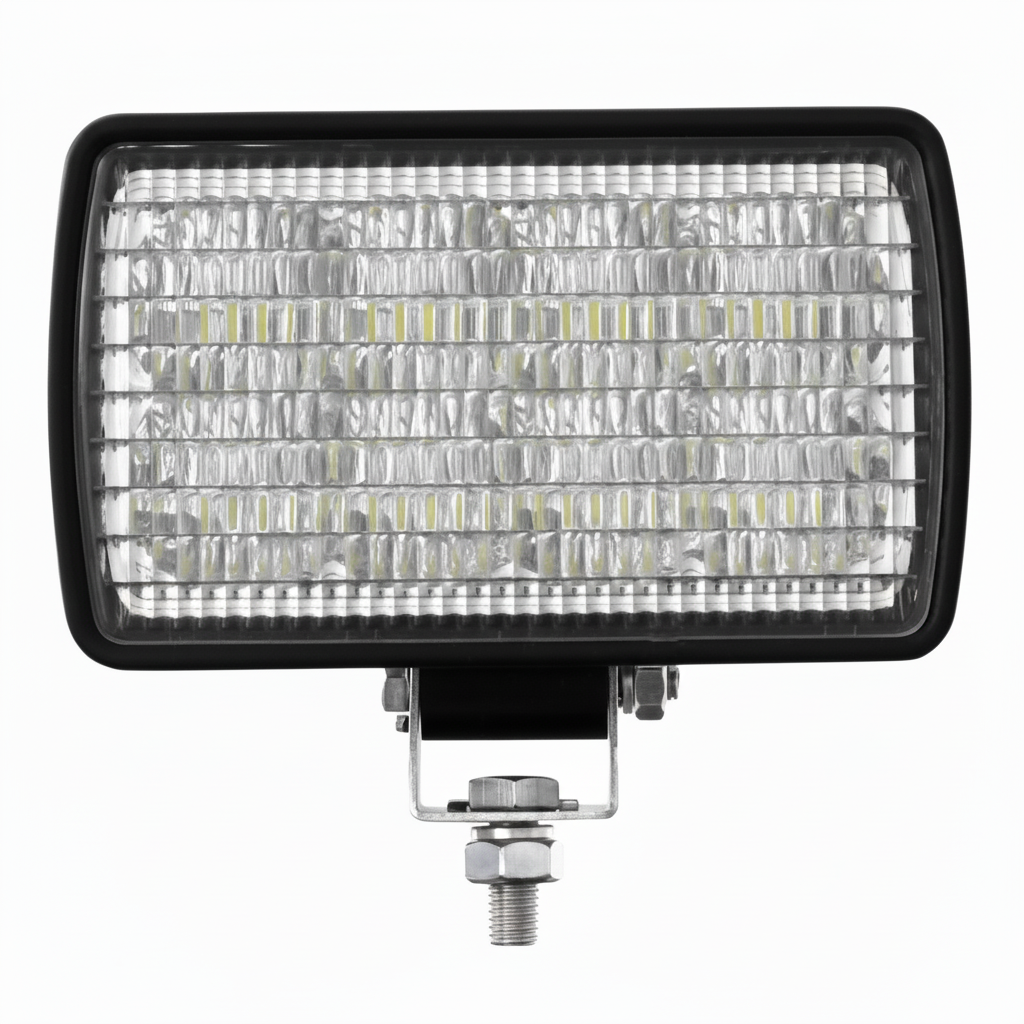

The LG852 delivers 3,000 lumens of flood illumination from eight CREE XTE LEDs at 6000K. Its rotatable bracket and single M10 mounting bolt allow the beam to be positioned for the working area. It operates on 10–30V DC.
The IP67 diecast aluminium housing, polycarbonate lens and 304 stainless steel bracket suit demanding working environments. ECE R10 approval, CISPR25 Class 4 suppression, 20G shock resistance and 8Grms vibration resistance are specified. The integrated 2-pin DT connection has bare fly leads. Suitable applications include Massey Ferguson 4200, 4300, 6100, 6200 and 8100 series tractors; check mounting and electrical compatibility before fitting.
Tractor Fit Work Light
40 Watt LED Rectangle Adjustable Mount Work Light - LG852
40W rectangular LED work light with adjustable mounting
The LG852 delivers 3,000 lumens of flood illumination from eight CREE XTE LEDs at 6000K. Its rotatable bracket and single M10 mounting bolt allow the beam to be positioned for the working area. It operates on 10–30V DC.
The IP67 diecast aluminium housing, polycarbonate lens and 304 stainless steel bracket suit demanding working environments. ECE R10 approval, CISPR25 Class 4 suppression, 20G shock resistance and 8Grms vibration resistance are specified. The integrated 2-pin DT connection has bare fly leads. Suitable applications include Massey Ferguson 4200, 4300, 6100, 6200 and 8100 series tractors; check mounting and electrical compatibility before fitting.
