40W LED Oval Work Light – LG8470

This 40W LED oval work light delivers wide, even flood illumination for serious professional use. It runs on 9–32 V DC, is IP69K sealed, and uses a robust die-cast aluminium housing. Approved to ECE R10 and EMC CISPR 25 Class 4, it’s engineered for low electrical noise and reliable operation on demanding 12 V and 24 V systems.

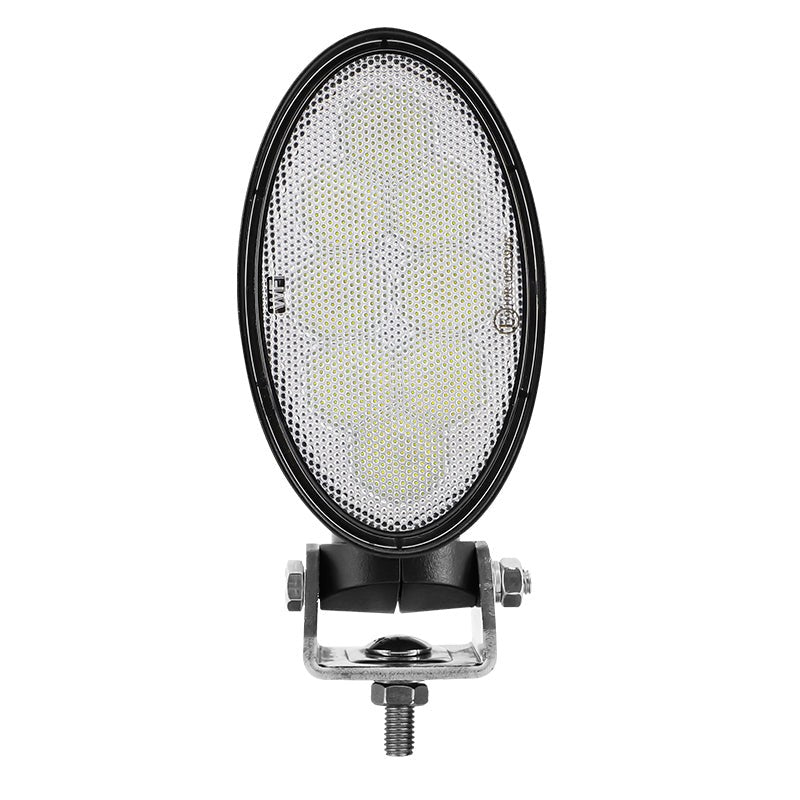

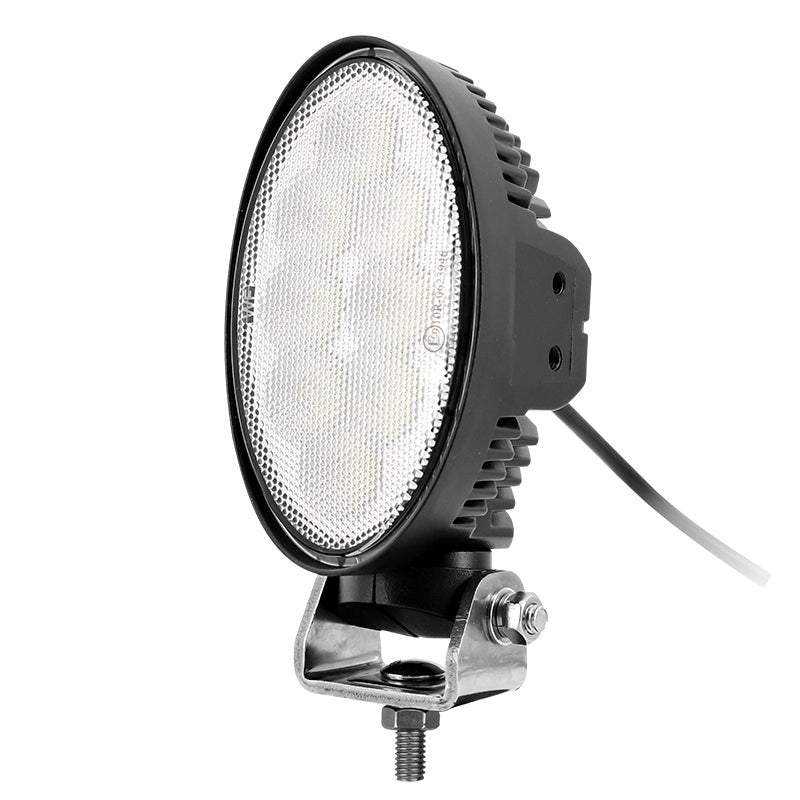

The LG8470 is built for one job: give you clear, usable light exactly where you need it, every time. With 8 × 5 W high-output LEDs driving a dedicated flood beam, it fills work areas, loading zones and off-road sites with consistent white light, helping operators see hazards earlier and work faster with less eye strain. The oval form factor and compact body (only 83.8 × 70.5 × 142.5 mm, 173.3 mm including bracket) make it easy to mount where space is tight but light output is critical.

This LED work lamp is designed for 9–32 V DC systems, so it drops straight into most 12 V and 24 V vehicles and machinery. The die-cast aluminium housing manages heat effectively and protects the electronics from impact and vibration, while the IP69K ingress protection rating means it stands up to high-pressure, high-temperature washdowns and heavy spray. In practice, that’s daily jet-washing, winter road grime, slurry and dust — without the lamp fogging or failing.

Electrically, the LG8470 is a good neighbour on the CAN bus. It’s approved to ECE R10 and compliant with EMC CISPR 25 Class 4, which means it’s designed to minimise radio interference with sensitive vehicle electronics, communication systems and GNSS equipment. The integrated DT plug & play connector with 20 cm cable makes installation quick for auto electricians and fleet workshops; just tie into a fused supply, mount the bracket, aim the beam, and you’re in business.

Tested from −40 °C to +60 °C, this work light is ready for frozen mornings on site and hot summer shifts alike. So whether it’s a quarry truck, a telehandler or a forestry forwarder, you get a stable, flicker-free work light that you can fit once and then stop worrying about.

Key Features

• 40 W LED output using 8 × 5 W LEDs for strong, usable white light and reliable performance in harsh working environments.
• Wide flood beam pattern designed to light up close and mid-range work areas, ideal for loading, reversing, and site work.
• Multi-voltage 9–32 V DC operation, suitable for both 12 V and 24 V vehicle and machinery electrical systems.

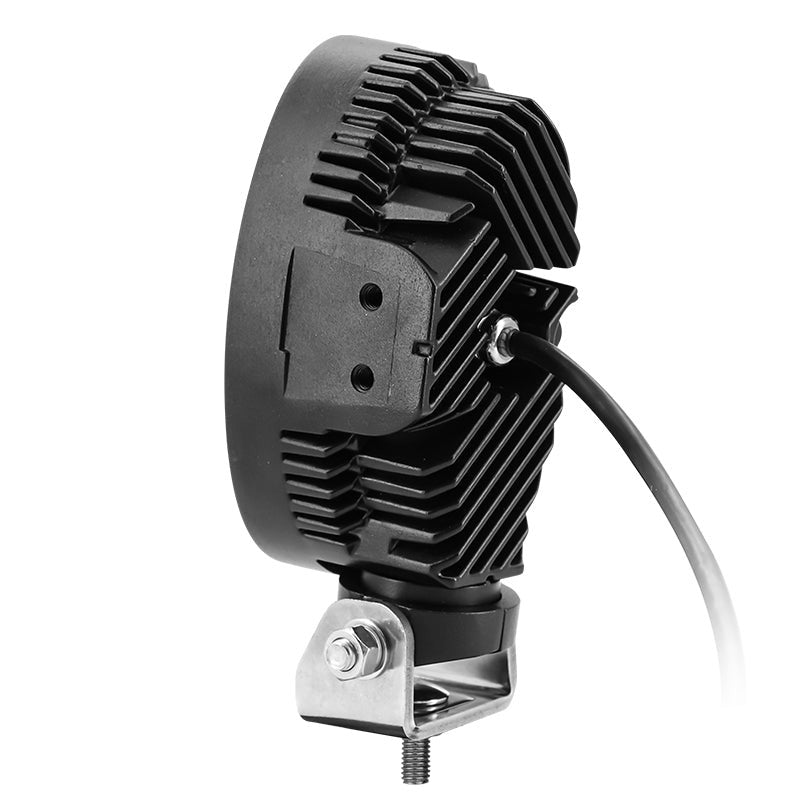

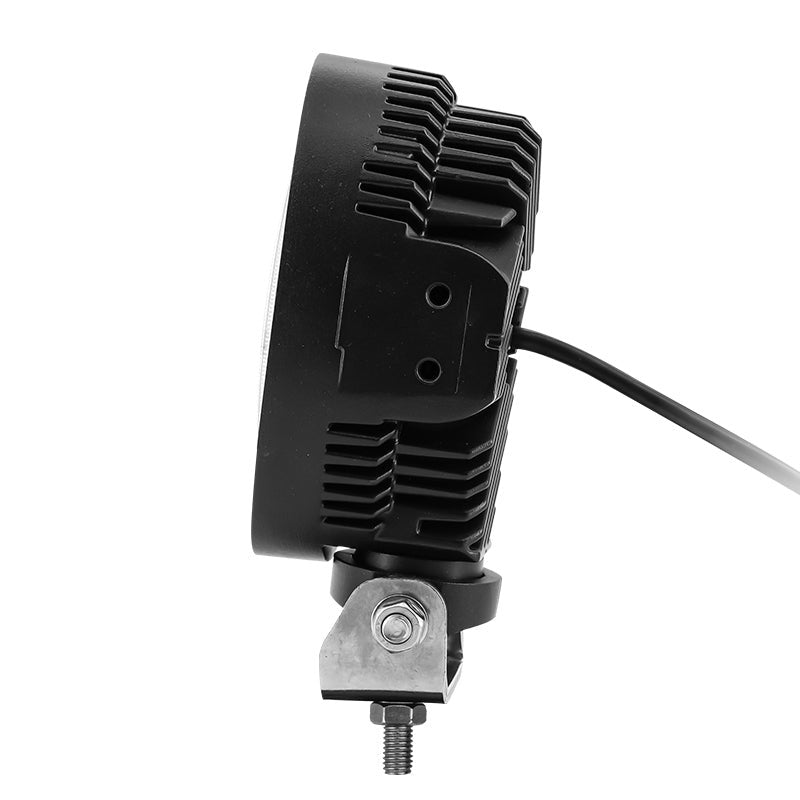

• Die-cast aluminium housing for excellent heat dissipation and mechanical strength, helping extend LED and driver lifespan.
• IP69K ingress protection, engineered to withstand high-pressure, high-temperature washdowns, heavy spray and fine dust.
• EMC compliant: ECE R10 & CISPR 25 Class 4, reducing the risk of interference with radios, GPS, communication gear and control systems.
• DT plug & play connector with 20 cm cable, simplifying installation, maintenance and replacement in busy workshops.
• Wide operating temperature range −40 °C to +60 °C, proven for winter start-ups and hot climate operation.
• Compact oval body – 83.8 × 70.5 × 142.5 mm (173.3 mm incl. bracket) for flexible mounting on crowded light bars, cabs and bodywork.

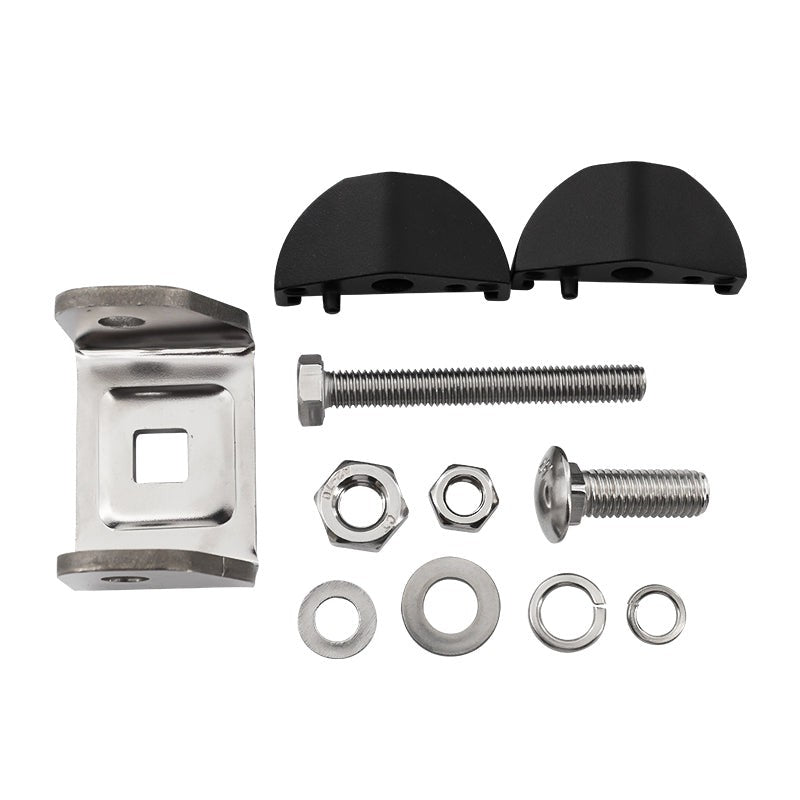

• Robust bracket mounting allows accurate aiming of the beam onto work zones, vehicle perimeters or equipment attachments.

Ideal Applications

• Construction and plant: excavators, dumpers, telehandlers, skid-steers and site service vehicles needing tough, flood work lighting.
• Agricultural machinery: tractors, sprayers, loaders and telehandlers working long hours in the yard and in-field.
• Mining, quarry and industrial fleets where durable, EMC-safe work lights are required on haul trucks and support vehicles.
• Utility and service vehicles: recovery trucks, breakdown vans, traffic management and roadside maintenance fleets.
• Forestry and municipal equipment: chippers, sweepers, refuse trucks and off-road utility vehicles.
