| Part number | LG936 |
|---|---|
| EAN / barcode | 4255929201960 |
| Operating voltage | 9–36 V DC |
| Ingress protection | IP68 / IP69K |
| Operating temperature | -40°C to +60°C |
| Housing | Die-cast aluminium |
| Lens | Polycarbonate (PC) |
| Bracket / mounting | Stainless steel; M10 mounting |
| Other conformity / EMC | CE, RoHS |
| Light functions | Driving; white/amber position; amber warning strobe |
| LED configuration | 4 × 40 W LMP LEDs |
| Power rating / consumption | 160 W nominal LED rating |
| Luminous flux | 11,000 lm effective |
| Beam pattern / range | 25° combo beam |
| Connection / cable | 6-pin DT; 500 mm cable |
| Approvals | ECE R10, R65, R148, R149 |
| Width / length | Ø218 mm reference in drawing |
| Height | 198 mm housing; 211 mm with bracket, excluding bolt |
| Depth | 87 mm |
| Included | 1 light, mounting bracket(s), screws and DT connector |

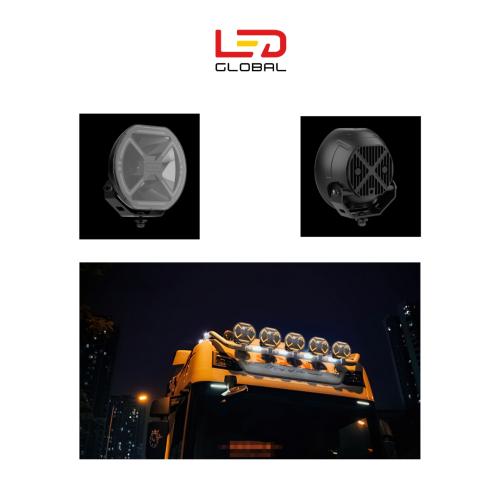

160W LED Driving Light with Position Light and Strobe – LG936
In stock
incl. VAT
Specifications
| Part number | LG936 |
|---|---|
| EAN / barcode | 4255929201960 |
| Operating voltage | 9–36 V DC |
| Ingress protection | IP68 / IP69K |
| Operating temperature | -40°C to +60°C |
| Housing | Die-cast aluminium |
| Lens | Polycarbonate (PC) |
| Bracket / mounting | Stainless steel; M10 mounting |
| Other conformity / EMC | CE, RoHS |
| Light functions | Driving; white/amber position; amber warning strobe |
| LED configuration | 4 × 40 W LMP LEDs |
| Power rating / consumption | 160 W nominal LED rating |
| Luminous flux | 11,000 lm effective |
| Beam pattern / range | 25° combo beam |
| Connection / cable | 6-pin DT; 500 mm cable |
| Approvals | ECE R10, R65, R148, R149 |
| Width / length | Ø218 mm reference in drawing |
| Height | 198 mm housing; 211 mm with bracket, excluding bolt |
| Depth | 87 mm |
| Included | 1 light, mounting bracket(s), screws and DT connector |
Description
The LG936 combines four 40 W LMP LEDs with white and amber position lighting and an integrated amber warning strobe. The nominal LED rating is 160 W and the specified effective output is 11,000 lumens, with a 25° combo beam.
The die-cast aluminium body, PC lens and stainless steel bracket are sealed to IP68/IP69K. A 500 mm cable with a 6-pin DT plug supports connection to 9–36 V systems. The drawing shows a 218 mm diameter reference, 198 mm housing height and 211 mm height with the bracket, excluding the mounting bolt.
All Lighting products
160W LED Driving Light with Position Light and Strobe – LG936
160W LED Driving Light with Position Light and Strobe – LG936
The LG936 combines four 40 W LMP LEDs with white and amber position lighting and an integrated amber warning strobe. The nominal LED rating is 160 W and the specified effective output is 11,000 lumens, with a 25° combo beam.
The die-cast aluminium body, PC lens and stainless steel bracket are sealed to IP68/IP69K. A 500 mm cable with a 6-pin DT plug supports connection to 9–36 V systems. The drawing shows a 218 mm diameter reference, 198 mm housing height and 211 mm height with the bracket, excluding the mounting bolt.
€174,95
● In stock
