60W LED Cab Insert Work Light - LG8340

60W LED Cab Insert Work Light – LG8340

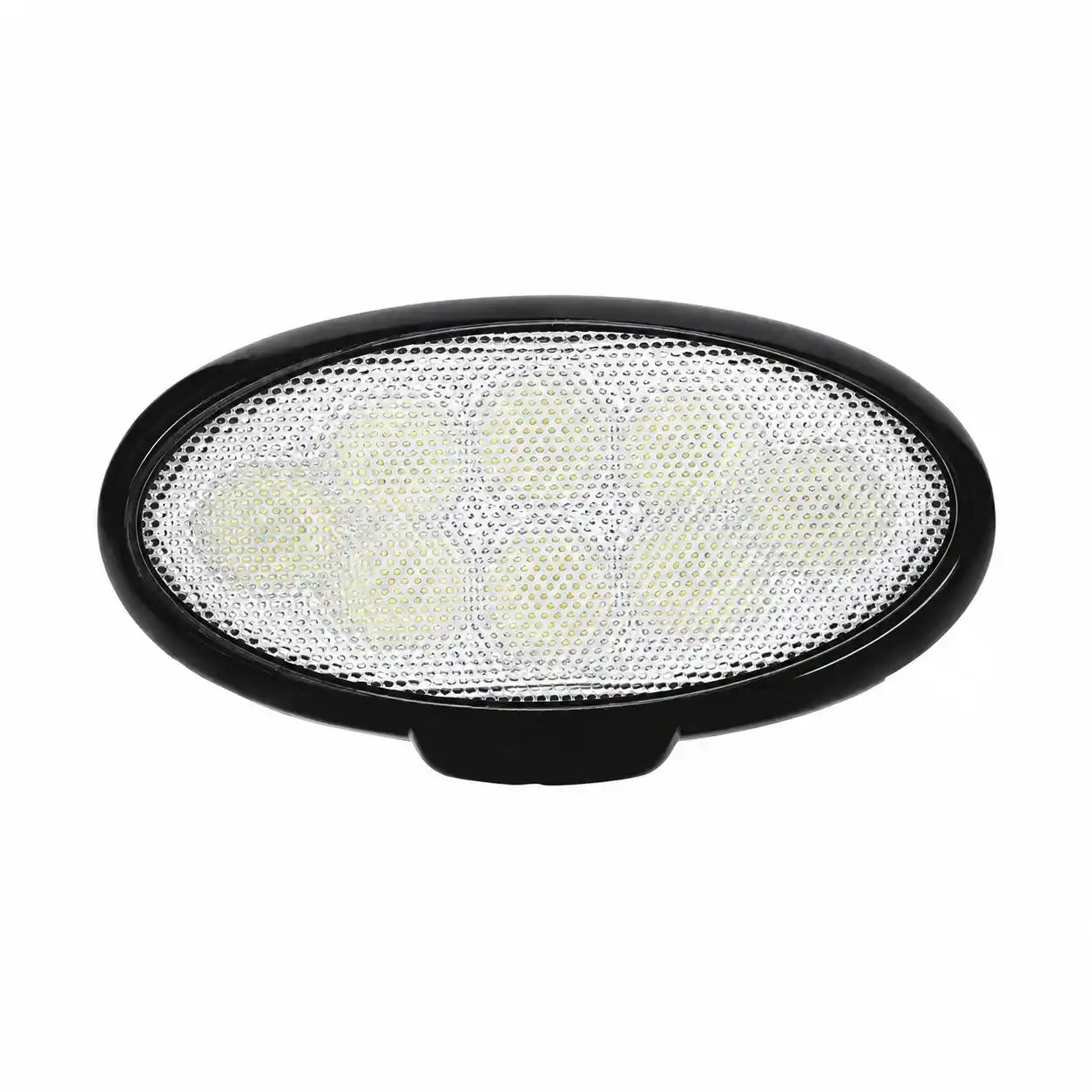

The 60W LED cab insert work light LG8340 is a direct replacement for John Deere cab-mounted lamps, engineered for long days and tougher nights. It delivers a powerful 6,000 K cold white beam for clear, even cab-area illumination on tractors and utility machines. Approved to ECE R10 and built to IP67 standards, it’s a proven upgrade from ageing halogen units.

This cab insert has one job. Put reliable, high-output light exactly where operators need it, without drama. The 60 W LED module runs on 9–32 V DC, so it’s at home on 12 V or 24 V systems across mixed fleets, and offers a strong lumen output with far lower current draw than the original halogen work lamps it replaces.

The LG8340 is designed as a direct-fit replacement for John Deere cab insert lights, using O.E.M reference RE574752 as its pattern. So instead of modifying brackets or trimming panels, you simply swap out the old lamp and bolt this into the existing mount using the bottom-mount stainless steel bracket. Dimensions are 191 × 107 × 65 mm (W × H × D), so it sits neatly into the original location without fouling doors or bodywork.

On the machine, the difference is obvious. The 6,000 K cold white light cuts through dust and drizzle and gives operators better contrast on implements, trailer edges and ground conditions. That means fewer missed details around the headland, safer hitching work, and less eye strain on long shifts. The die-cast aluminium housing handles vibration from ploughing, baling or haulage work, while IP67 ingress protection keeps out dust and protects against temporary immersion – ideal for pressure-washed tractors and wet yards.

From an electrical standpoint, the LG8340 is approved to ECE R10, ensuring it won’t introduce radio interference into your machine’s electronics or communication systems. It’s also CE and RoHS compliant, so you know the build, materials and EMC performance meet recognised European standards. In short, it’s a fit-and-forget upgrade for operators who just want the lights to work every time the key turns.

Key Features

• 60 W LED power for a high-output work light that comfortably outperforms typical halogen cab inserts.
• Wide voltage range 9–32 V DC, suitable for both 12 V and 24 V agricultural and utility vehicle systems.
• 6,000 K cold white colour temperature for crisp, daylight-like visibility and improved contrast around implements and attachments.

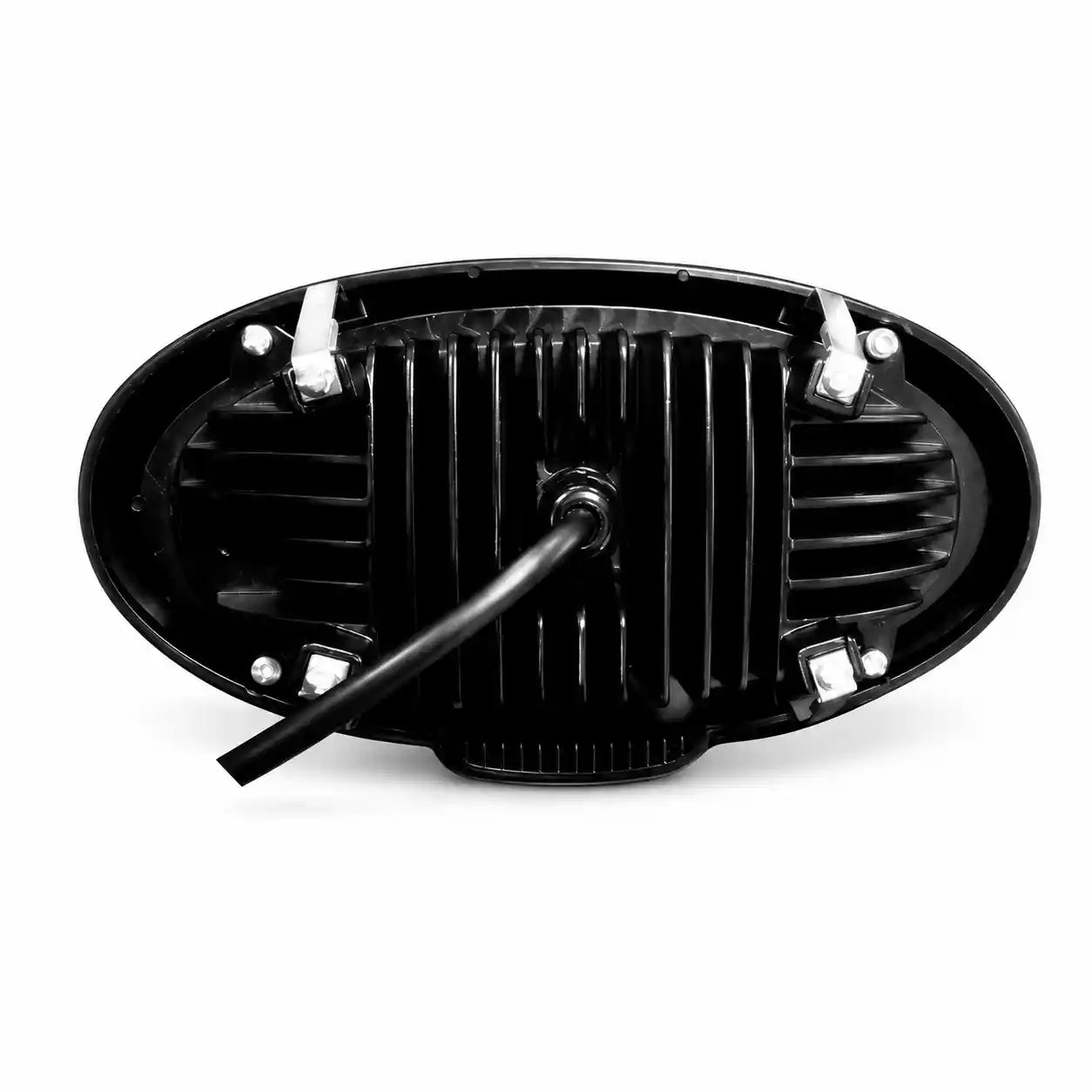

• Die-cast aluminium housing for strong mechanical durability and efficient heat management in continuous-duty applications.
• Bottom-mount stainless steel bracket for corrosion-resistant, secure mounting directly into the OEM cab light position.
• Compact dimensions 191 × 107 × 65 mm (W × H × D), engineered to fit standard John Deere cab insert locations without body modifications.
• IP67 ingress protection, keeping out dust and protecting against temporary immersion – ideal for machines that are routinely pressure-washed.
• Approved: ECE R10 for electromagnetic compatibility, reducing the risk of interference with radios, GPS and control systems.
• CE and RoHS compliant, aligning with European safety and environmental requirements.
• O.E.M reference RE574752 for direct replacement on compatible John Deere models, simplifying cross-referencing and parts ordering.

Ideal Applications

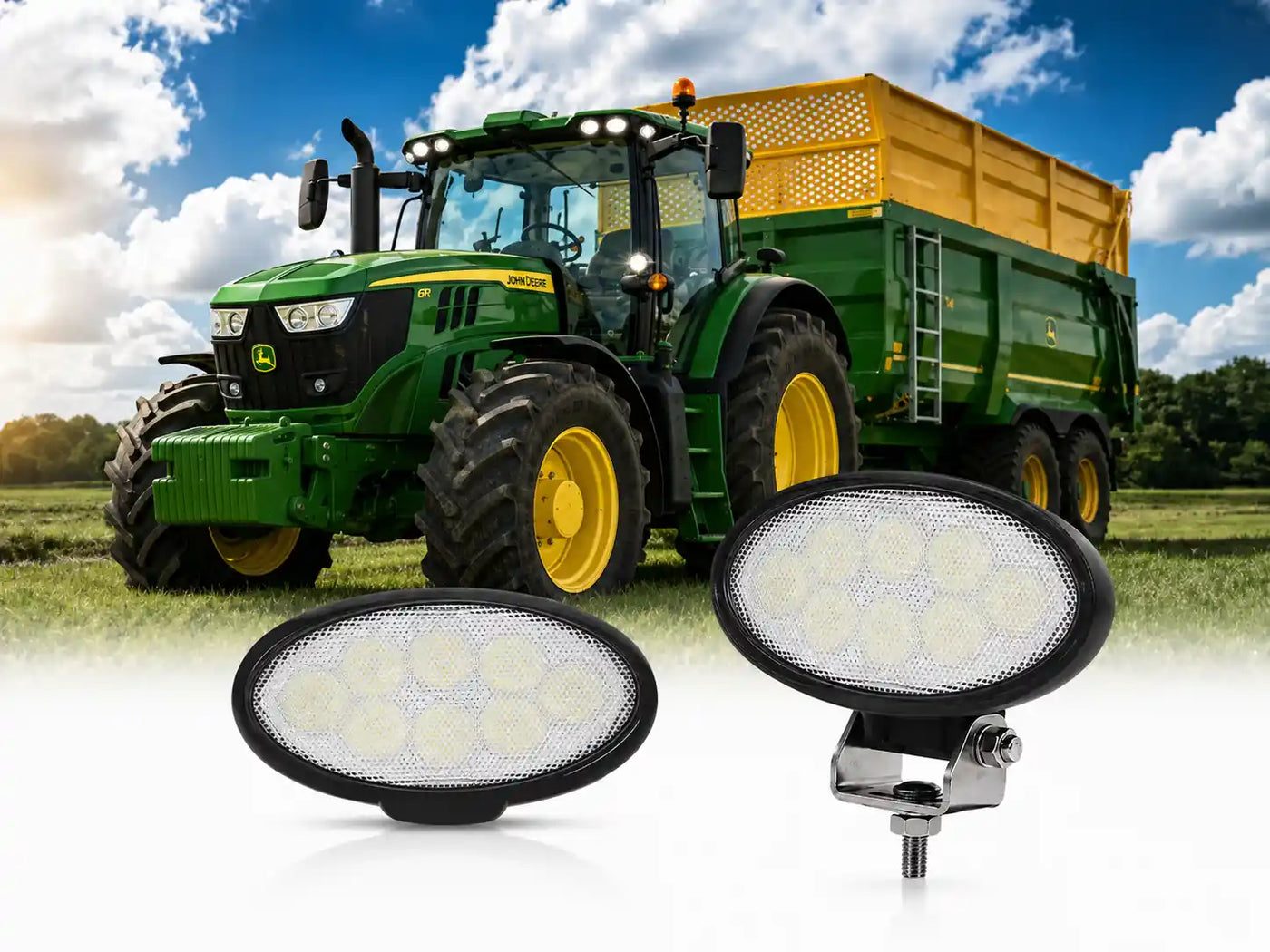

• John Deere tractors across 5M, 5R, 6R, 7R, 8R and 9R Series using cab-mount insert work lights (pattern RE574752).
• Agricultural tractors and telehandlers requiring a high-output, cab-mounted work lamp for headland turns, loader work and yard handling.
• Harvesters and forage equipment where clear vision around the cab and header is critical during night operations.
• Utility and municipal vehicles needing robust cab-area lighting for road maintenance, winter service and verge work.
• Mixed fleets upgrading from halogen to LED work lighting while keeping OEM-style fitment and reliable EMC performance.
