| Part number | LG987 |
|---|---|
| EAN / barcode | 4255929208259 |
| Operating voltage | 10–30 V DC |
| Ingress protection | IP68 / IP69K |
| Operating temperature | -30°C to +65°C |
| Housing | Die-cast aluminium |
| Lens | Polycarbonate (PC) |
| Bracket / mounting | Stainless steel; adjustable bolt-on bracket |
| Other conformity / EMC | CE, RoHS, CISPR 25 Class 3 |
| Light functions | ECE driving mode; off-road Boost mode; white or amber position light |
| LED configuration | OSRAM LEDs |
| Power rating / consumption | 108 W nominal; Boost 74.9 W initial / 47.5 W stable; ECE 20.4 W |
| Luminous flux | Effective: Boost 3,141 lm / ECE 1,285 lm; raw 9,600 lm |
| Beam pattern / range | 1 lux: ECE 305 m / Boost 569 m (manufacturer chart) |
| Connection / cable | 4-pin DT; 600 mm cable + 350 mm extension |
| Approvals | ECE R148, R149 |
| Width / length | 178.54 mm |
| Height | 165.95 mm housing, excluding bracket |
| Depth | 70.56 mm |
| Wire functions | Black: ground (-); red: driving (+); white: white position (+); blue: amber position (+) |
| Included | 1 light, mounting bracket(s), screws and DT connector |
| Position light consumption | White 5.7 W; amber 4.9 W |
| Current draw | ECE: 1.70 A / 0.81 A; Boost initial: 6.24 A / 3.05 A; stable: 3.96 A / 1.84 A (12 V / 24 V) |
| Features | Smoked lens profile |

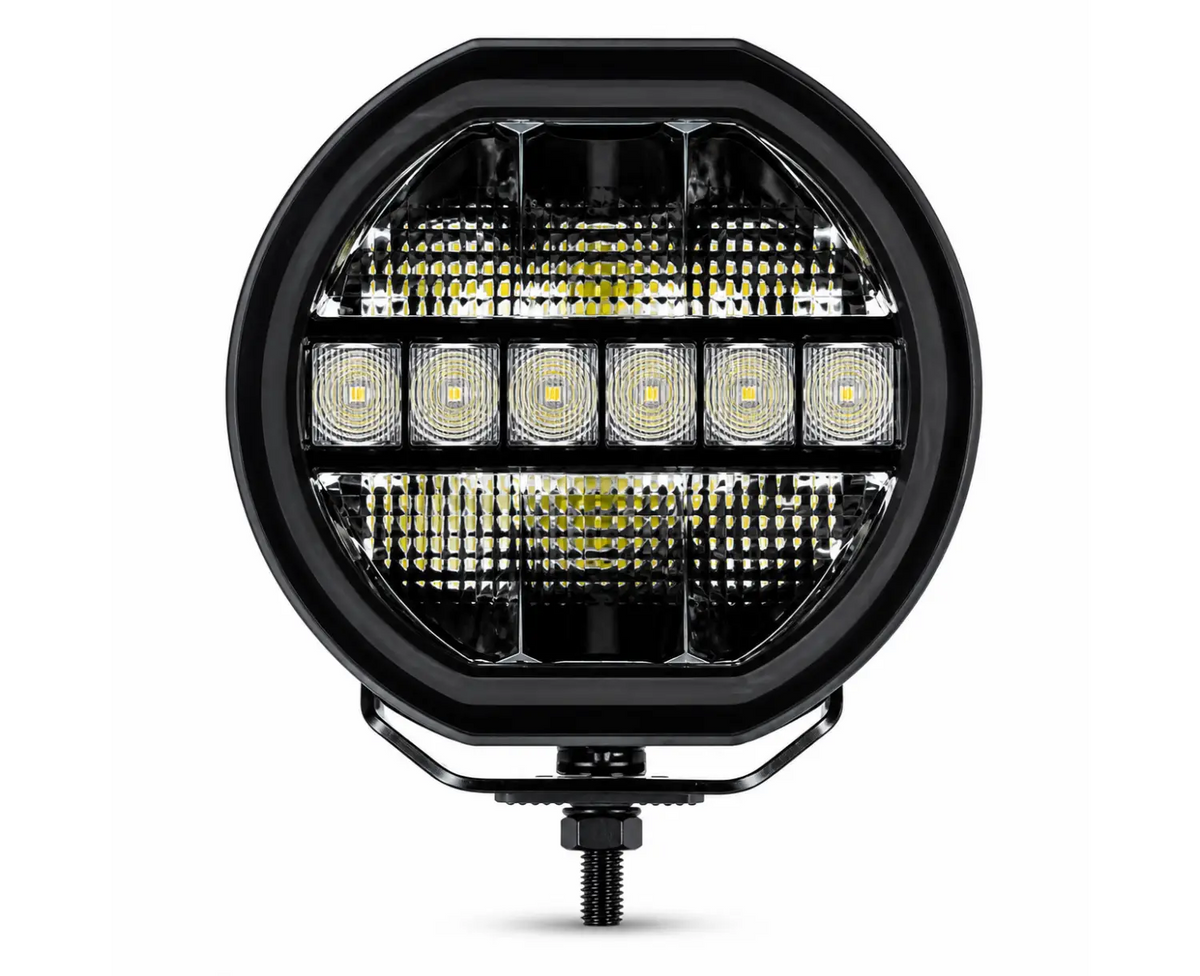

7-inch LED Driving Light with Boost Function – LG987
In stock
incl. VAT
Specifications
| Part number | LG987 |
|---|---|
| EAN / barcode | 4255929208259 |
| Operating voltage | 10–30 V DC |
| Ingress protection | IP68 / IP69K |
| Operating temperature | -30°C to +65°C |
| Housing | Die-cast aluminium |
| Lens | Polycarbonate (PC) |
| Bracket / mounting | Stainless steel; adjustable bolt-on bracket |
| Other conformity / EMC | CE, RoHS, CISPR 25 Class 3 |
| Light functions | ECE driving mode; off-road Boost mode; white or amber position light |
| LED configuration | OSRAM LEDs |
| Power rating / consumption | 108 W nominal; Boost 74.9 W initial / 47.5 W stable; ECE 20.4 W |
| Luminous flux | Effective: Boost 3,141 lm / ECE 1,285 lm; raw 9,600 lm |
| Beam pattern / range | 1 lux: ECE 305 m / Boost 569 m (manufacturer chart) |
| Connection / cable | 4-pin DT; 600 mm cable + 350 mm extension |
| Approvals | ECE R148, R149 |
| Width / length | 178.54 mm |
| Height | 165.95 mm housing, excluding bracket |
| Depth | 70.56 mm |
| Wire functions | Black: ground (-); red: driving (+); white: white position (+); blue: amber position (+) |
| Included | 1 light, mounting bracket(s), screws and DT connector |
| Position light consumption | White 5.7 W; amber 4.9 W |
| Current draw | ECE: 1.70 A / 0.81 A; Boost initial: 6.24 A / 3.05 A; stable: 3.96 A / 1.84 A (12 V / 24 V) |
| Features | Smoked lens profile |
Description

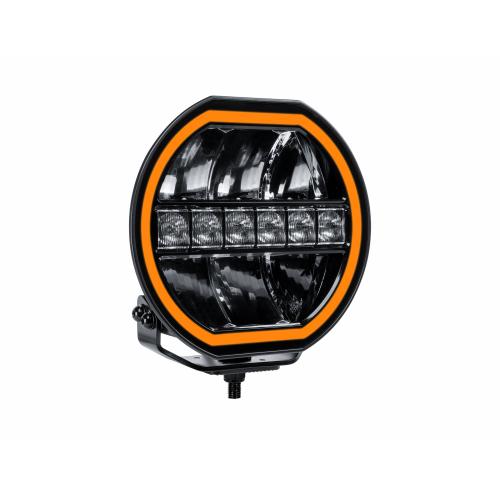

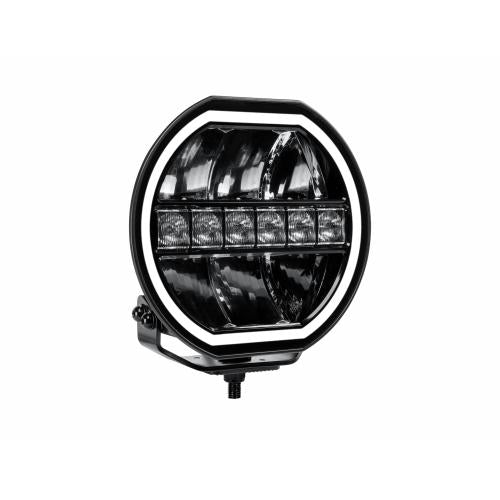

The LG987 offers an ECE driving mode and a separate off-road Boost mode, with selectable white or amber position lighting. The effective light output is 1,285 lumens in ECE mode and 3,141 lumens in Boost mode; the nominal LED rating is 108 W.

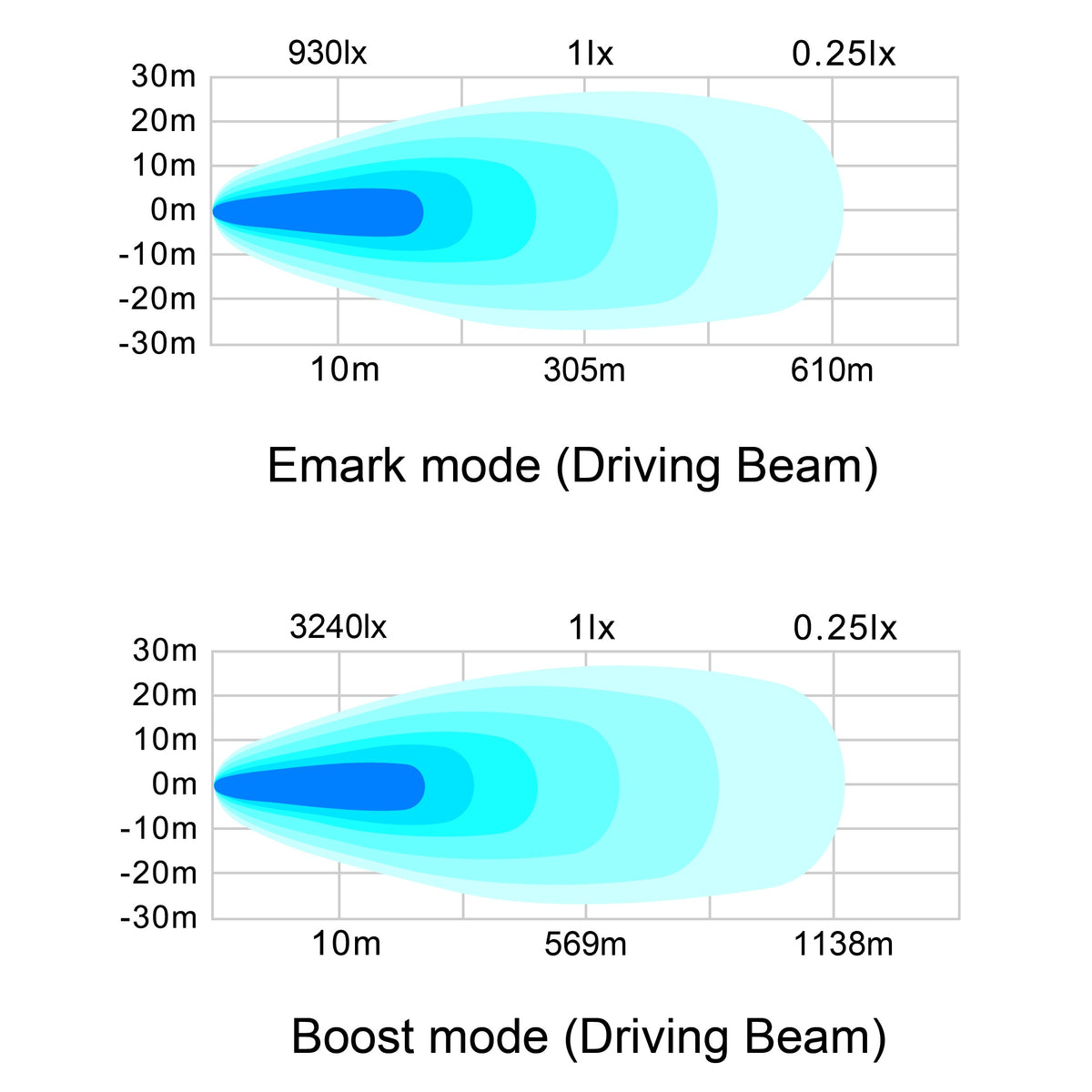

The supplied photometric chart shows 1 lux at 305 m in ECE mode and 569 m in Boost mode. These beam-chart values describe the manufacturer’s test conditions; output depends on the operating mode and temperature.

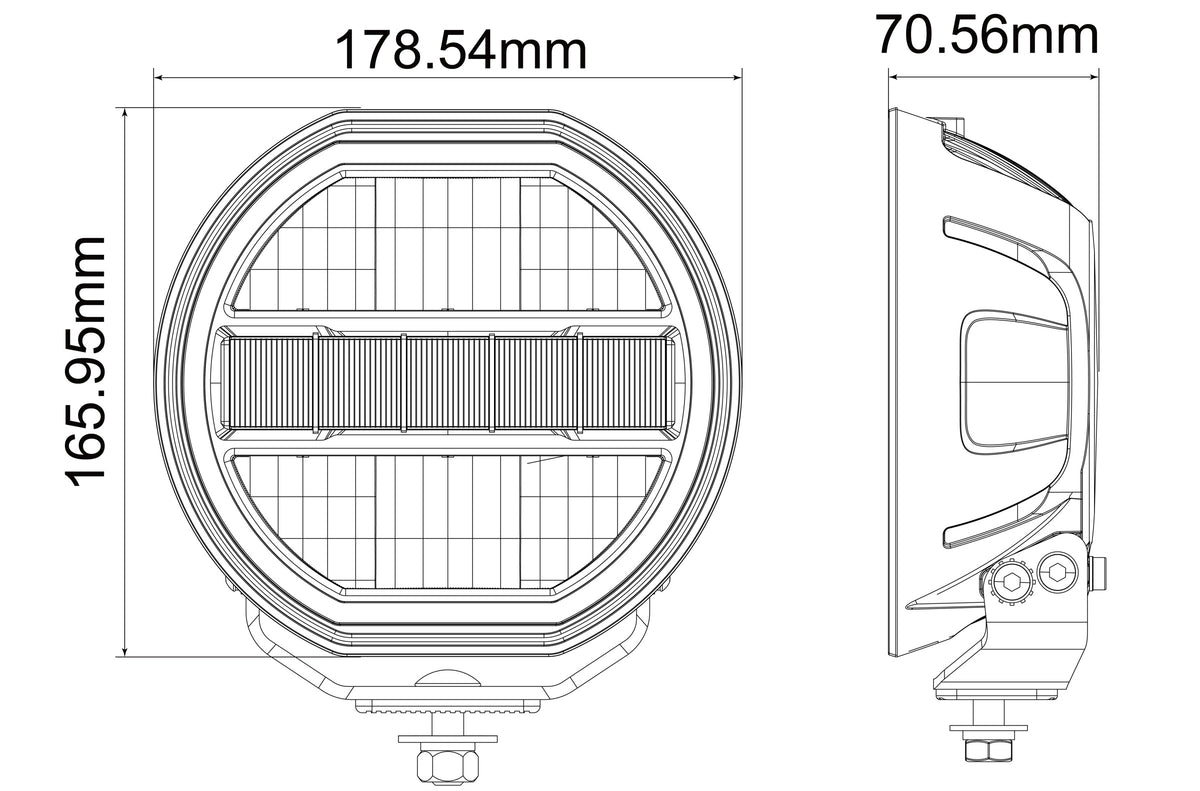

The aluminium housing and PC lens are sealed to IP68/IP69K. A stainless steel bracket and 4-pin DT harness are supplied. Housing dimensions are 178.54 × 165.95 × 70.56 mm; allow extra clearance for the bracket and mounting bolt.
All Lighting products
7-inch LED Driving Light with Boost Function – LG987
7-inch LED Driving Light with Boost Function – LG987
The LG987 offers an ECE driving mode and a separate off-road Boost mode, with selectable white or amber position lighting. The effective light output is 1,285 lumens in ECE mode and 3,141 lumens in Boost mode; the nominal LED rating is 108 W.
The supplied photometric chart shows 1 lux at 305 m in ECE mode and 569 m in Boost mode. These beam-chart values describe the manufacturer’s test conditions; output depends on the operating mode and temperature.
The aluminium housing and PC lens are sealed to IP68/IP69K. A stainless steel bracket and 4-pin DT harness are supplied. Housing dimensions are 178.54 × 165.95 × 70.56 mm; allow extra clearance for the bracket and mounting bolt.
€174,95
● In stock
