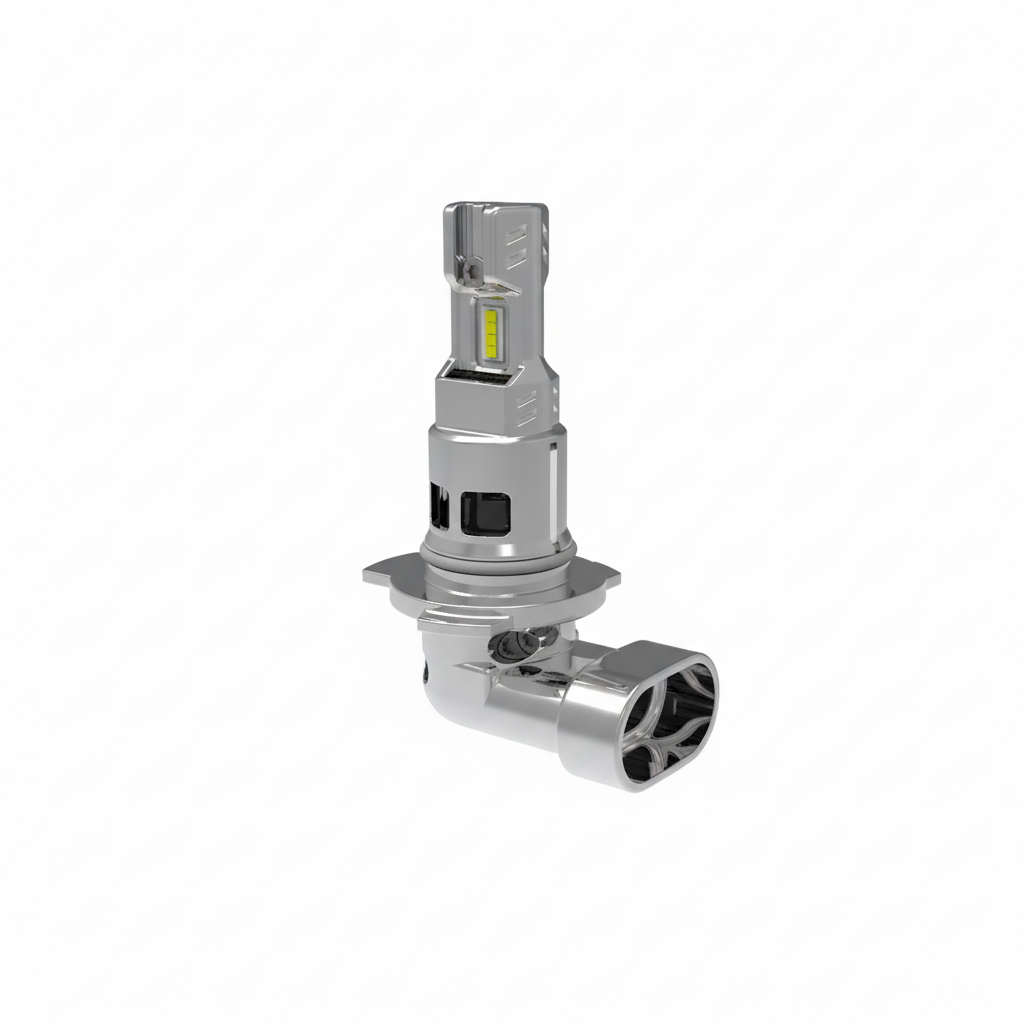

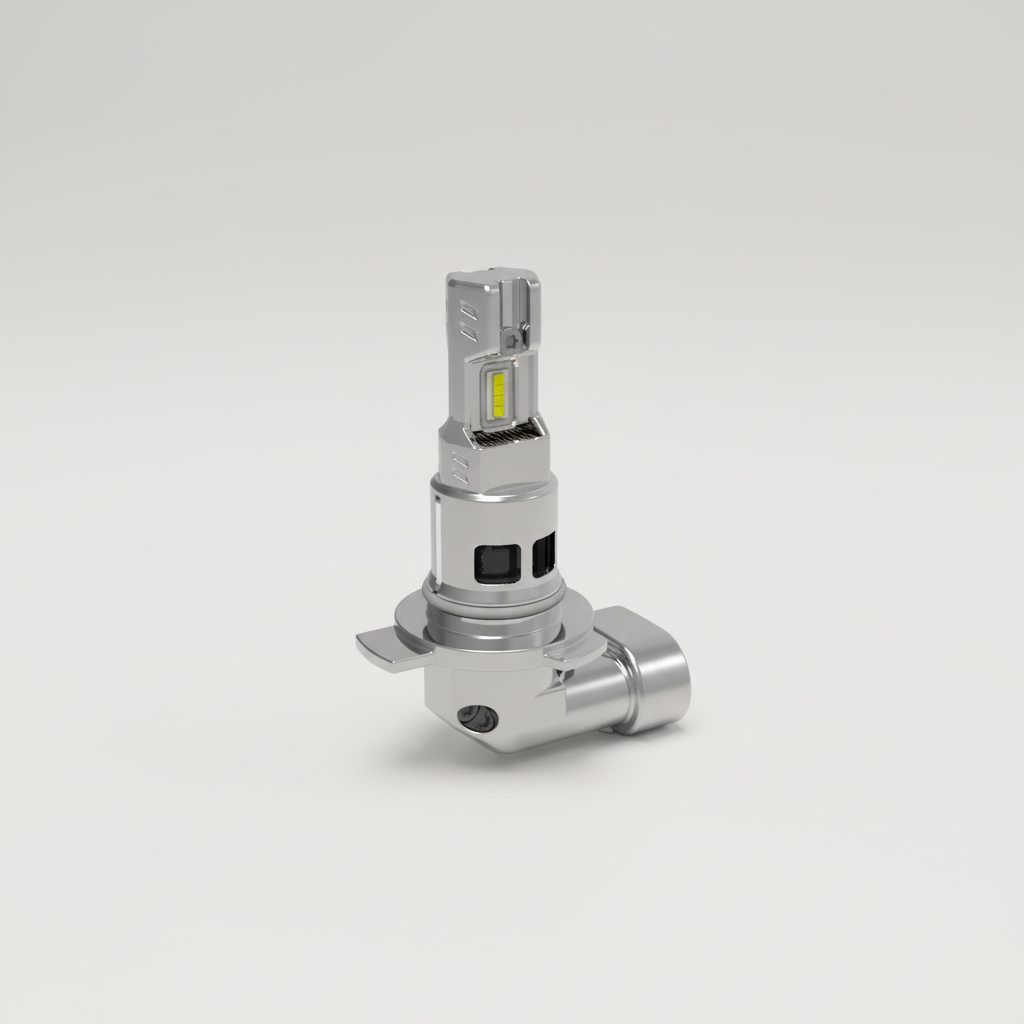

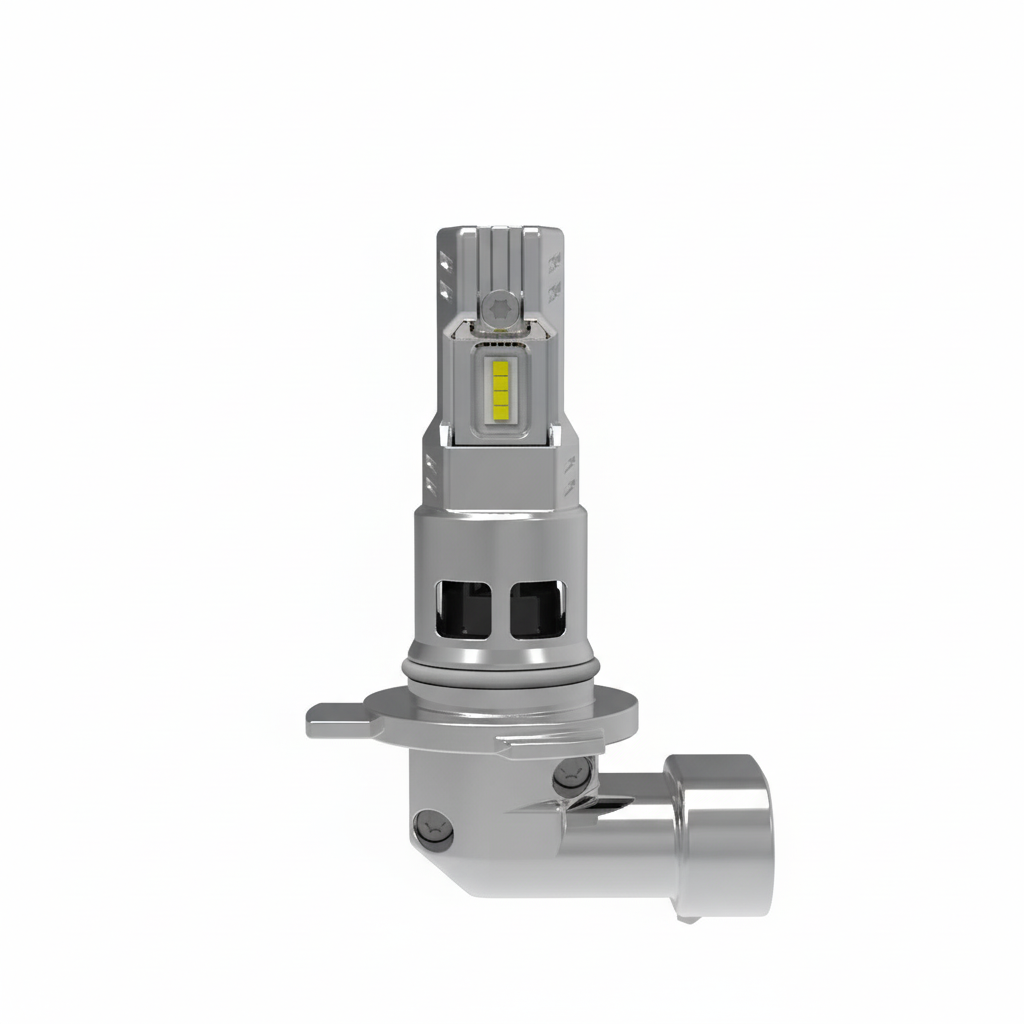

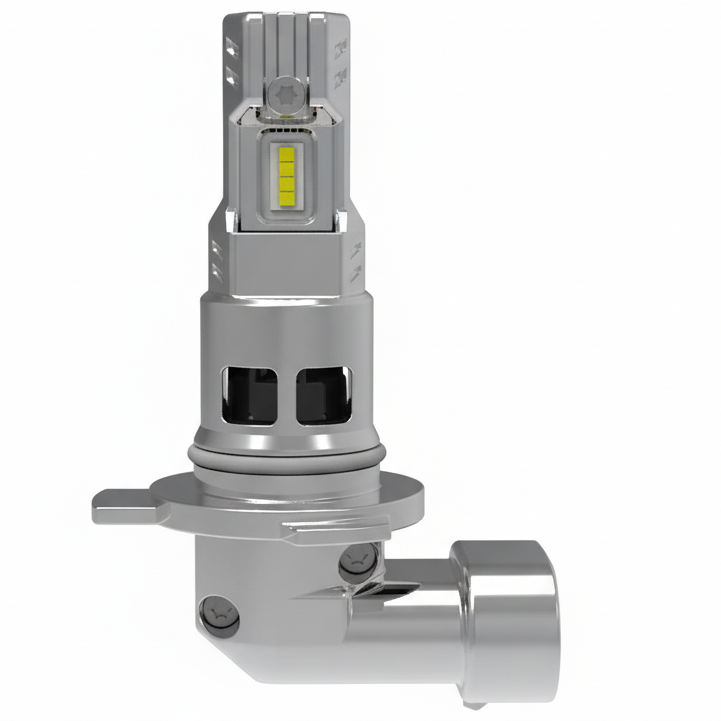

LED Bulb Type 9012 HIR2 (Pair) - LG5024

LED Bulb Type 9012 HIR2 (Pair) – LG5024

Upgrade 9012 / HIR2 headlamps to high-output LED without hacking the loom or changing the housing. The LG5024 9012 LED bulb pair delivers a crisp, focused beam with increased brightness and improved beam distance, while keeping a true 1:1 halogen equivalent footprint for clean fitment. Designed for 12 V systems and EMC approved, it’s a solid choice for professional fleets, tractors and everyday road cars that need reliable, modern light.

These 9012 / HIR2 LED headlight bulbs are built for people who work in the dark, not just drive through it. You get a stronger, whiter beam, better reach down the road and more usable light on the verge. The beam pattern is engineered to mirror the original halogen, so you maintain proper cut-off and reduce the risk of glare for oncoming traffic when correctly aligned.

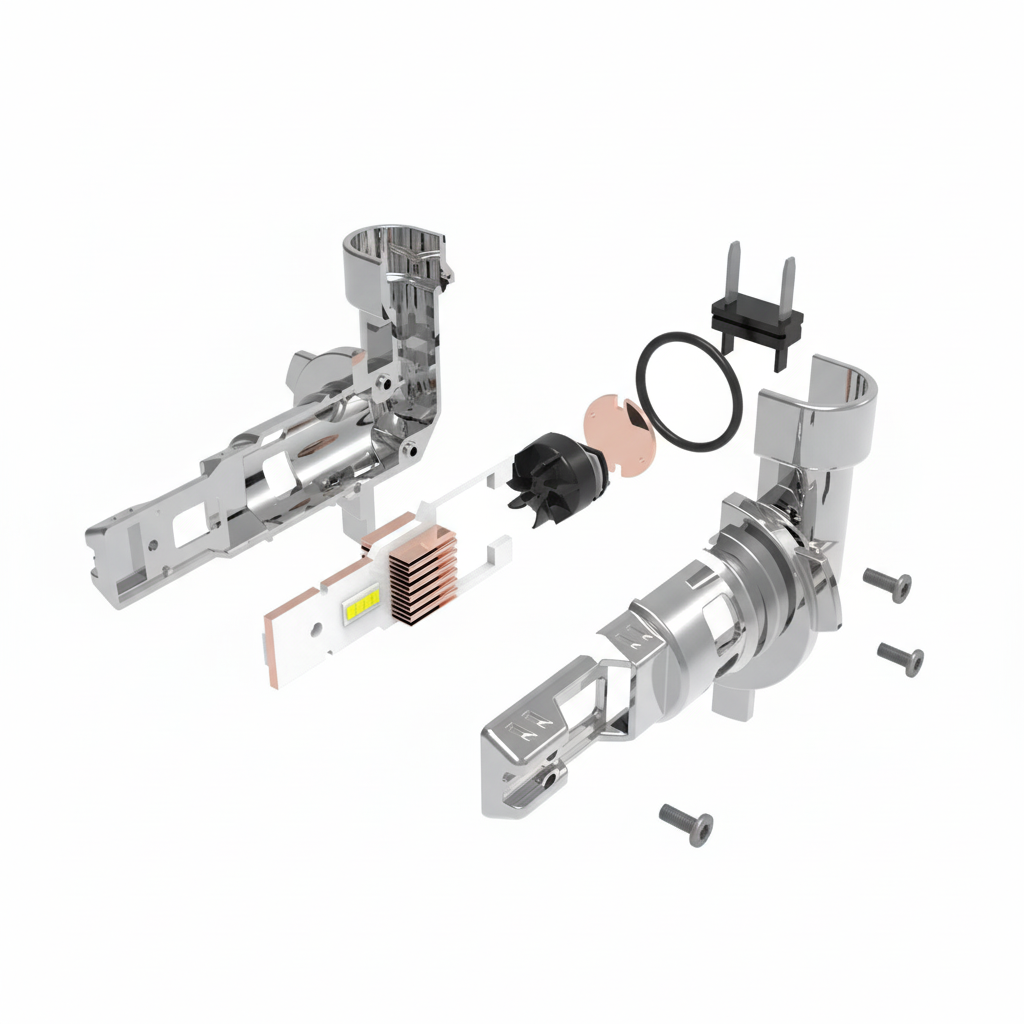

Each LG5024 bulb uses an aluminium shell, a pure copper heat plate and a dual-ball silent fan to pull heat away from the LED chips. That combination gives stable output and long service life, even in heavy traffic or slow field work where heat build-up is common. An intelligent temperature control IC constantly monitors conditions and trims power if needed to protect the electronics rather than letting them cook.

Installation is straightforward. These 9012 / HIR2 LEDs are plug-and-play on 12 V vehicles: remove the old halogen, twist in the new bulb, connect the factory plug. No extra drivers dangling, no cutting, no splicing. The compact design keeps to near-OE dimensions, which helps in tight headlamp housings on modern cars and tractors.

Because the LG5024 is EMC approved, it’s designed not to interfere with radios, communication equipment or other sensitive electronics on the vehicle when installed correctly. That’s important on tractors, service vans and trucks loaded with telematics and work equipment. One kit includes 1 × pair of 9012 / HIR2 LED bulbs, ready to fit as a matched set.

Key Features

• Bulb type: 9012 / HIR2 – direct LED replacement for standard 9012 / HIR2 halogen headlight bulbs.
• Voltage: 12 V system – engineered for passenger cars, light commercials and 12 V agricultural applications.
• Increased brightness & enhanced beam distance – delivers a stronger, longer-reaching beam for improved visibility on unlit roads and in rural areas.
• 1:1 halogen equivalent size – compact LED body maintains similar dimensions to OE halogen for easy fitment in tight housings.
• Plug-and-play installation – uses the original connector; no rewiring, no external boxes hanging loose.
• Aluminium shell construction – robust housing for efficient heat dissipation and mechanical durability in daily and off-road use.
• Pure copper thermal plate – thermal conductivity > 60× ordinary aluminium PCB, rapidly moving heat away from the LED chips.
• Dual ball silent cooling fan – high-speed, low-noise fan for active cooling and stable light output over long runs.
• Intelligent temperature control IC – automatically adjusts power based on operating temperature to protect components and extend lamp life.
• EMC approved – designed to minimise electromagnetic interference with vehicle electronics and communication systems.

Ideal Applications

• Passenger cars using 9012 / HIR2 headlamps that need a precise, brighter LED upgrade.
• Tractors and agricultural machinery running 12 V lighting where long hours and vibration demand robust cooling and stable output.
• Light commercial vehicles and vans used for deliveries, field service and night operations.
• 4×4, off-road and rural vehicles that rely on strong forward lighting on unlit country roads and tracks.
• Fleet vehicles where plug-and-play installation and EMC control are essential for efficient, standardised upgrades.

Why Choose LED-Global Lighting

LED-Global specialises in professional-grade vehicle lighting built for European roads, farms and fleets. Products are engineered with a focus on optical performance, EMC control and thermal management, not just headline lumen numbers. Every design is created to be practical to install, dependable in harsh use and consistent from one vehicle to the next.

When you choose LED-Global, you’re getting trusted, European-engineered lighting that respects your time, your vehicles and your electrical system – kit you fit once, then get on with the job.
