| Brand | LED Global |
|---|---|
| SKU | LG3006 |
| EAN | 4255929205449 |
| Product type | Mounting hardware / DIN pole spigot |
| Hardware type | YL-A010 |
| Material | Colour zinc-plated steel / metal |
| Finish | Corrosion-resistant zinc plating |
| Installation | Bolt-on base; permanent, hardwired installation |
| Compatibility | Standard DIN and Flexi-DIN warning beacons |
| Connector | Standard DIN socket at top; bare leads at bottom |
| Voltage | 12–24V DC pass-through |
| Wire length | 200 mm (20 cm) |
| Wiring | Red: positive (+); black: negative (−) |
| Pole diameter | 24 mm |

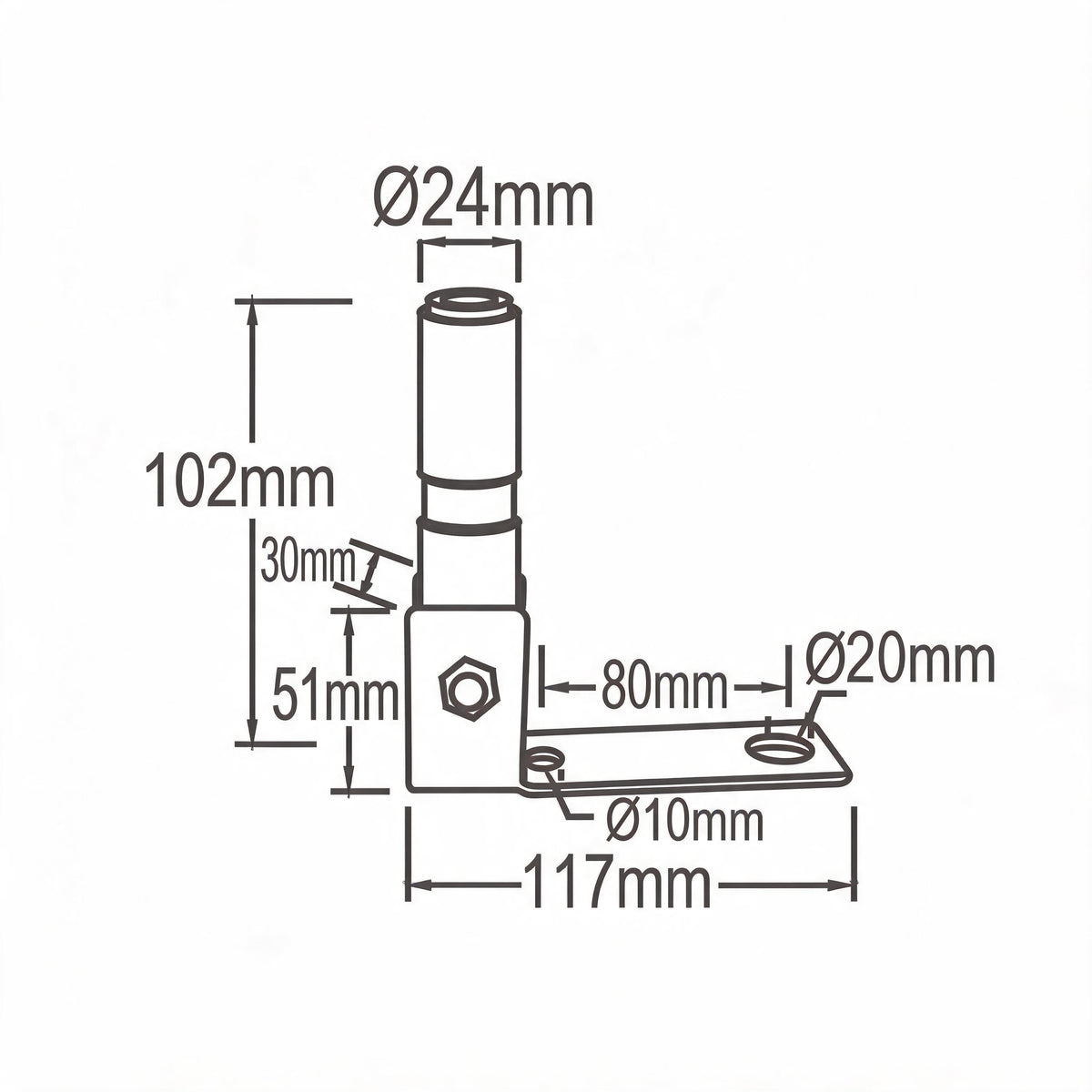

| Vertical dimension (see drawing) | 102 mm |
| Base bracket height | 51 mm |
| Overall base length | 117 mm |
| Mounting holes | Ø10 mm / Ø20 mm |
| Net weight | 0.35 kg |
| Weight with box | 0.40 kg |
| Included | 1 × LG3006 DIN mounting bracket with integrated wiring |
| Applications | Tractors, agricultural machinery, plant equipment and commercial vehicles |
Collapsible Side Mounted Beacon Bracket - LG3006
In stock
incl. VAT
Specifications
| Brand | LED Global |
|---|---|
| SKU | LG3006 |
| EAN | 4255929205449 |
| Product type | Mounting hardware / DIN pole spigot |
| Hardware type | YL-A010 |
| Material | Colour zinc-plated steel / metal |
| Finish | Corrosion-resistant zinc plating |
| Installation | Bolt-on base; permanent, hardwired installation |
| Compatibility | Standard DIN and Flexi-DIN warning beacons |
| Connector | Standard DIN socket at top; bare leads at bottom |
| Voltage | 12–24V DC pass-through |
| Wire length | 200 mm (20 cm) |
| Wiring | Red: positive (+); black: negative (−) |
| Pole diameter | 24 mm |
| Vertical dimension (see drawing) | 102 mm |
| Base bracket height | 51 mm |
| Overall base length | 117 mm |
| Mounting holes | Ø10 mm / Ø20 mm |
| Net weight | 0.35 kg |
| Weight with box | 0.40 kg |
| Included | 1 × LG3006 DIN mounting bracket with integrated wiring |
| Applications | Tractors, agricultural machinery, plant equipment and commercial vehicles |
Description
The LED Global LG3006 DIN mounting bracket provides a secure mounting and power connection for standard DIN and Flexi-DIN warning beacons. Its heavy-duty, colour zinc-plated steel construction resists corrosion, making it suitable for tractors, agricultural machinery, plant equipment and commercial vehicles.
The bolt-on base is designed for permanent installation. A standard DIN socket at the top allows the beacon to be removed easily, while the pre-wired 20 cm bare leads connect directly to the vehicle's 12–24V DC supply. Connect red to positive (+) and black to negative (−). The bracket passes power through to the beacon; it is a mounting accessory and does not produce light.
Supplied with one LG3006 bracket and integrated wiring. Check the mounting dimensions and beacon compatibility before fitting.
Beacon Brackets
Collapsible Side Mounted Beacon Bracket - LG3006
The LED Global LG3006 DIN mounting bracket provides a secure mounting and power connection for standard DIN and Flexi-DIN warning beacons. Its heavy-duty, colour zinc-plated steel construction resists corrosion, making it suitable for tractors, agricultural machinery, plant equipment and commercial vehicles.
The bolt-on base is designed for permanent installation. A standard DIN socket at the top allows the beacon to be removed easily, while the pre-wired 20 cm bare leads connect directly to the vehicle's 12–24V DC supply. Connect red to positive (+) and black to negative (−). The bracket passes power through to the beacon; it is a mounting accessory and does not produce light.
Supplied with one LG3006 bracket and integrated wiring. Check the mounting dimensions and beacon compatibility before fitting.
€6,95
● In stock
