Combo LED Headlight EU Left Side Bottom Mount – LG920L EU

The LG920L EU combo LED headlight is a heavy-duty left-hand headlamp designed for industrial, agricultural, construction and utility vehicles. It combines high beam, low beam, turn indicator, side direction indicator and parking light in one compact bottom-mount unit.

With 10–30 V DC operation, IP69K protection, strong high and low beam output, ECE approvals and CISPR 25 Class 3 EMC performance, this headlight is built for professional 12 V and 24 V vehicle systems working in demanding European conditions.

Left-Side Bottom Mount LED Headlight

The LG920L EU is designed for left-side installation with bottom mounting. Its compact 209 × 175 × 101 mm housing makes it suitable for vehicles that need a powerful, integrated headlight and indicator solution without using multiple separate lamps.

This makes it a practical option for tractors, telehandlers, loaders, municipal vehicles, industrial machinery and construction equipment.

High Beam, Low Beam and Integrated Signalling

The headlight provides high beam, low beam, turn indicator, side direction indicator and parking light functions in one unit. This helps reduce component count, wiring complexity and potential failure points on working vehicles.

The high beam delivers 7,000 lm raw output, while the low beam delivers 4,000 lm raw output. These outputs provide strong forward visibility for roads, tracks, yards, depots and worksites.

Powerful Multi-Function Performance

The LG920L EU uses 64 W for high beam, 40 W for low beam, 28 W for turn and side direction indicator functions, and 9 W for parking light. This gives installers clear load information when planning wiring and vehicle integration.

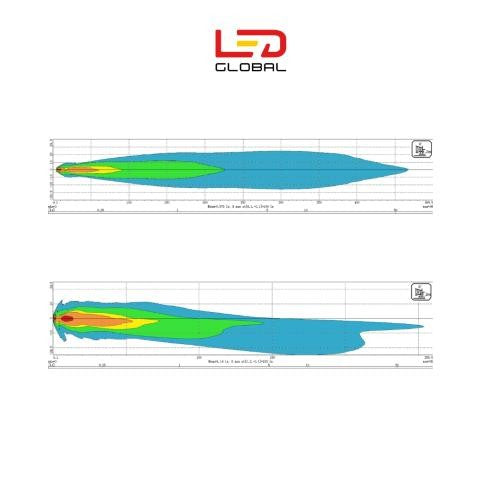

The beam pattern is designed for EU-compliant road use when correctly installed and aligned.

Built for 12 V and 24 V Systems

The 10–30 V DC voltage range makes this headlight suitable for both 12 V and 24 V vehicle electrical systems. This is useful for mixed fleets operating tractors, plant machinery, municipal vehicles and industrial equipment.

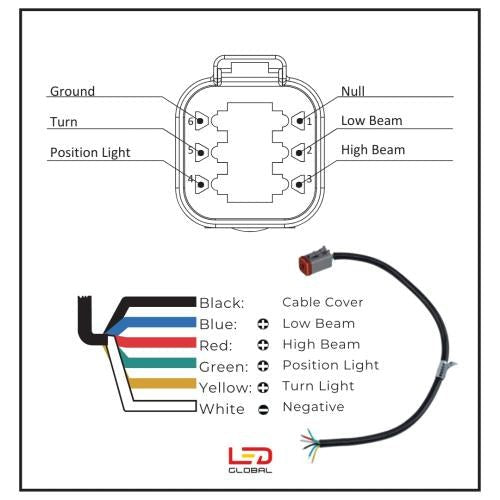

The supplied DT 6-pin plug and cable support a secure and professional installation.

IP69K Protection for Harsh Environments

The headlight uses a corrosion-resistant aluminium alloy housing, polycarbonate lens and stainless steel mounting hardware. This construction is designed to handle vibration, road salt, fertiliser, dust, mud and regular wash-down routines.

IP69K ingress protection helps protect the unit against dust and high-pressure, high-temperature water cleaning. The operating temperature range of -45°C to +50°C supports reliable use in both cold and hot climates.

ECE Approved and EMC Safe

The LG920L EU is approved to ECE R149, ECE R148 and ECE R10, with CE and RoHS compliance. These approvals support professional road-ready applications where correctly installed.

CISPR 25 Class 3 EMC performance helps reduce interference with radios, GPS, CANbus systems, control modules and other sensitive onboard electronics.

Key Features

• Left-side combo LED headlight with bottom mounting.
• High beam, low beam, turn indicator, side direction indicator and parking light in one unit.
• High beam raw output: 7,000 lm.
• Low beam raw output: 4,000 lm.
• Power: 64 W high beam, 40 W low beam, 28 W turn and side direction indicator, 9 W parking.
• 10–30 V DC input for 12 V and 24 V systems.
• Corrosion-resistant aluminium alloy housing.
• Polycarbonate lens for impact resistance.
• Stainless steel mounting hardware.
• IP69K protection against dust and high-pressure wash-down conditions.
• Operating temperature range from -45°C to +50°C.
• CISPR 25 Class 3 EMC performance.
• ECE R149 approval for headlamp function.
• ECE R148 approval for position and indicator lighting.
• ECE R10 approval for electromagnetic compatibility.
• CE and RoHS compliant.
• Supplied with DT 6-pin plug and cable.
• Compact size: 209 × 175 × 101 mm.

Ideal Applications

• Agricultural tractors, sprayers, harvesters and telehandlers.
• Construction vehicles, loaders, excavators, dumpers and road rollers.
• Municipal and utility vehicles, including sweepers, refuse trucks and service vehicles.
• Industrial yard equipment, terminal tractors and material-handling machines.
• Fleet upgrades from older halogen or sealed-beam headlamps.
• Mixed 12 V and 24 V fleets needing EU-approved LED headlighting.

Why Choose the LG920L EU Combo LED Headlight?

The LG920L EU is designed for professional users who need a durable, EU-approved and multi-function LED headlight in a compact left-side bottom-mount format. Its high output, integrated indicators, wide voltage range, IP69K protection, ECE approvals and EMC-safe performance make it suitable for demanding agricultural, construction, municipal and industrial applications.

For fleet operators, bodybuilders, workshops and machinery owners, this combo LED headlight offers strong visibility, simplified installation and long-term durability in real working conditions.

Important Fitment Note

Please confirm the required side, mounting style, connector type, voltage system, original lamp shape and vehicle compatibility before ordering. This is the left-side bottom-mount version. The lamp should be securely mounted, correctly wired and aligned in accordance with local road lighting regulations.
