LED 3-Pod Combination Tail Light, 10–30 V – LG504

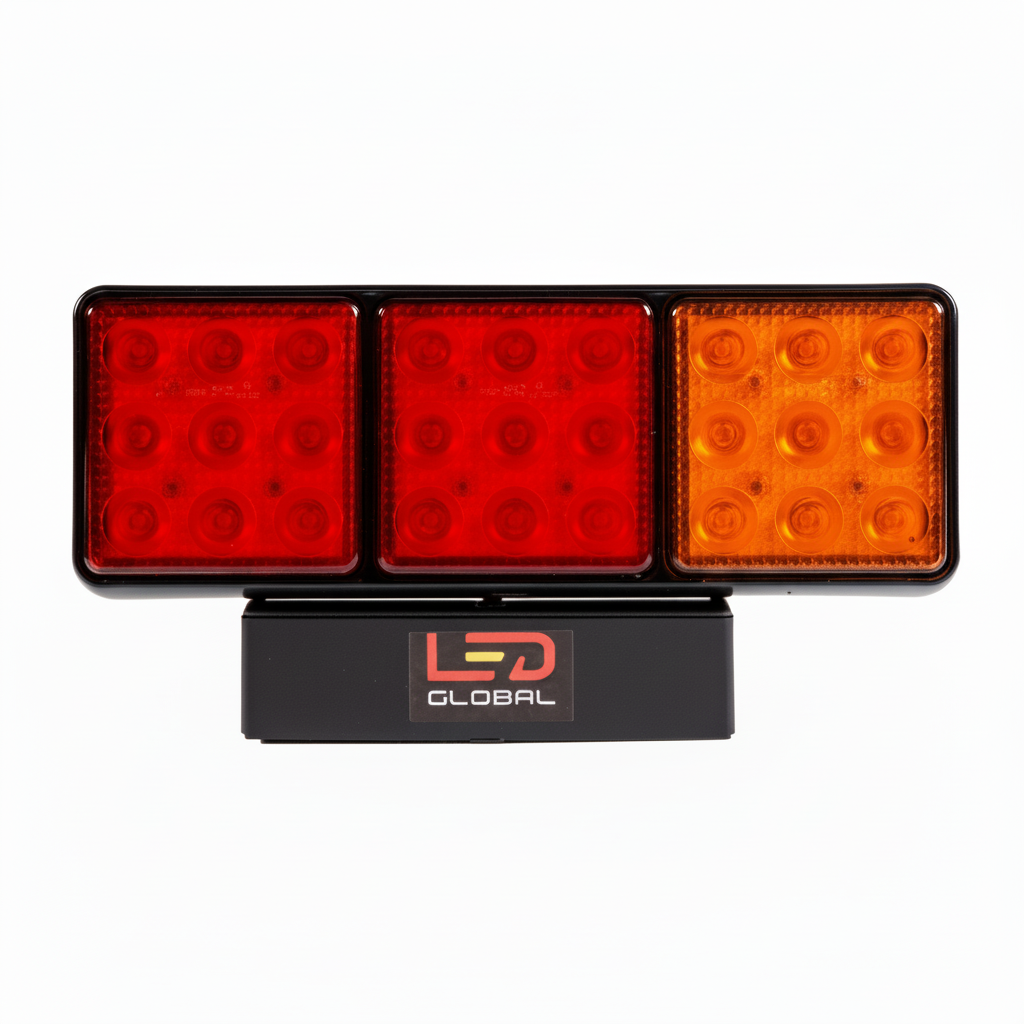

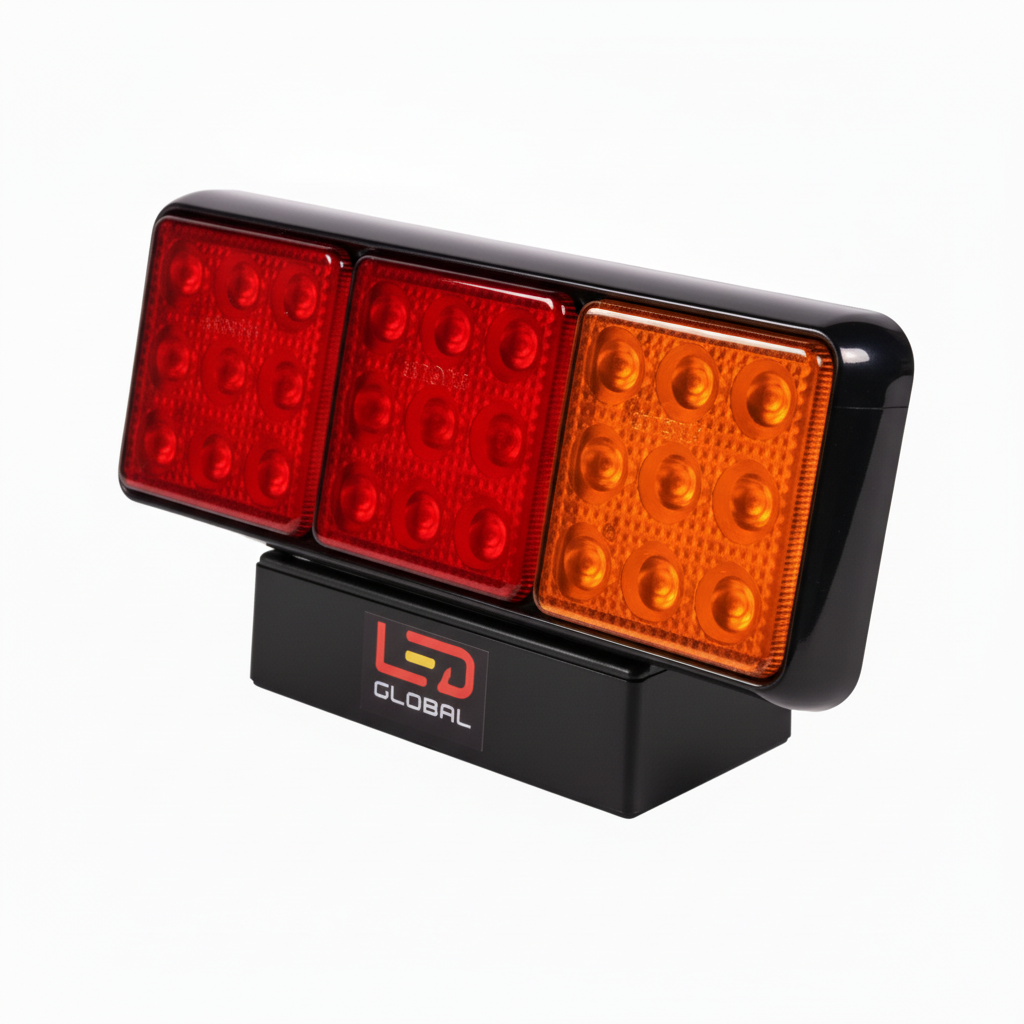

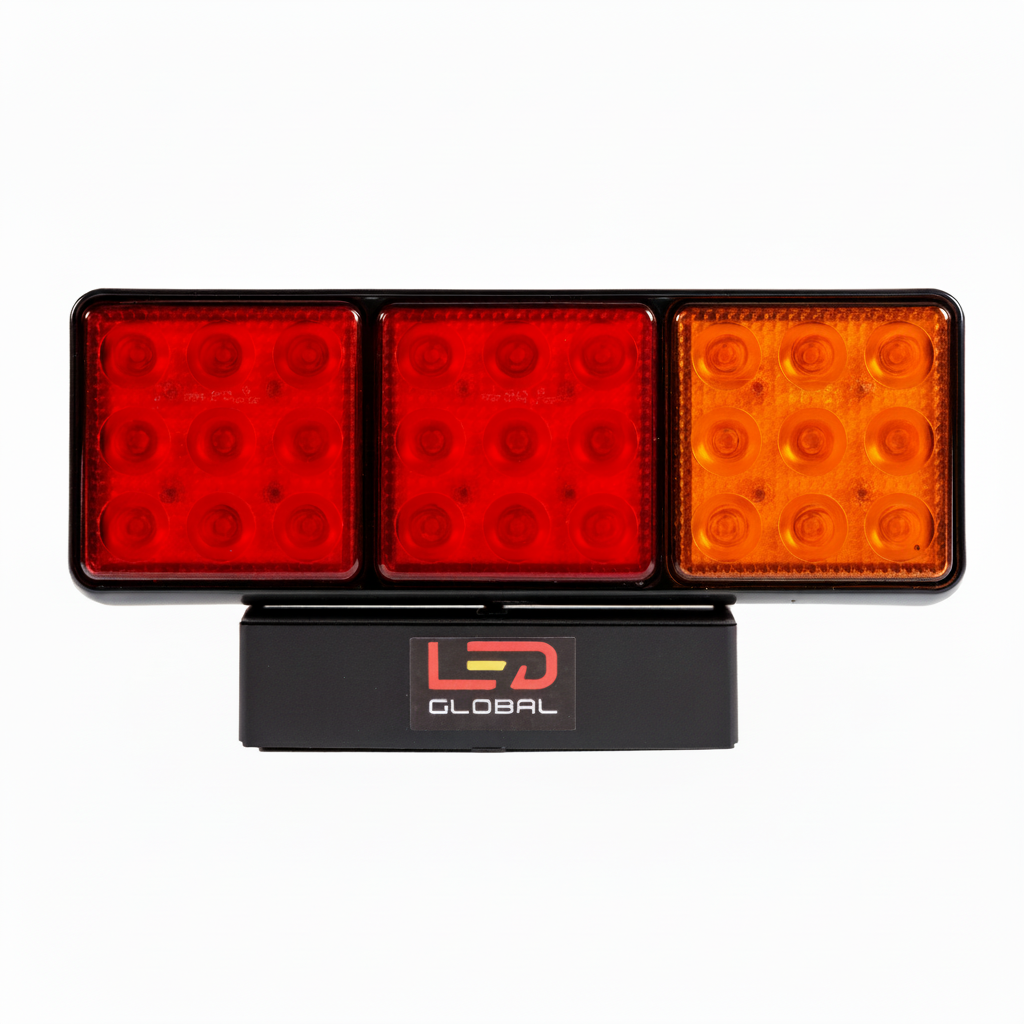

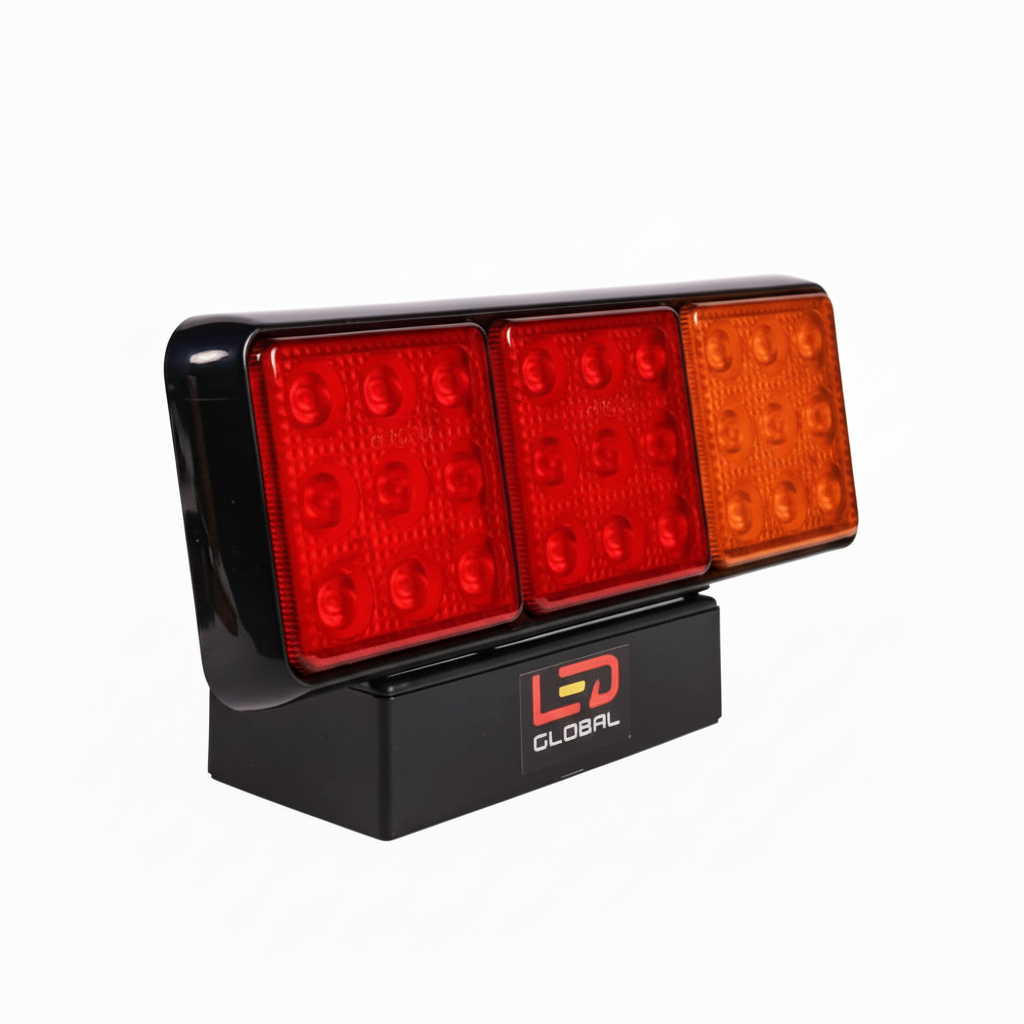

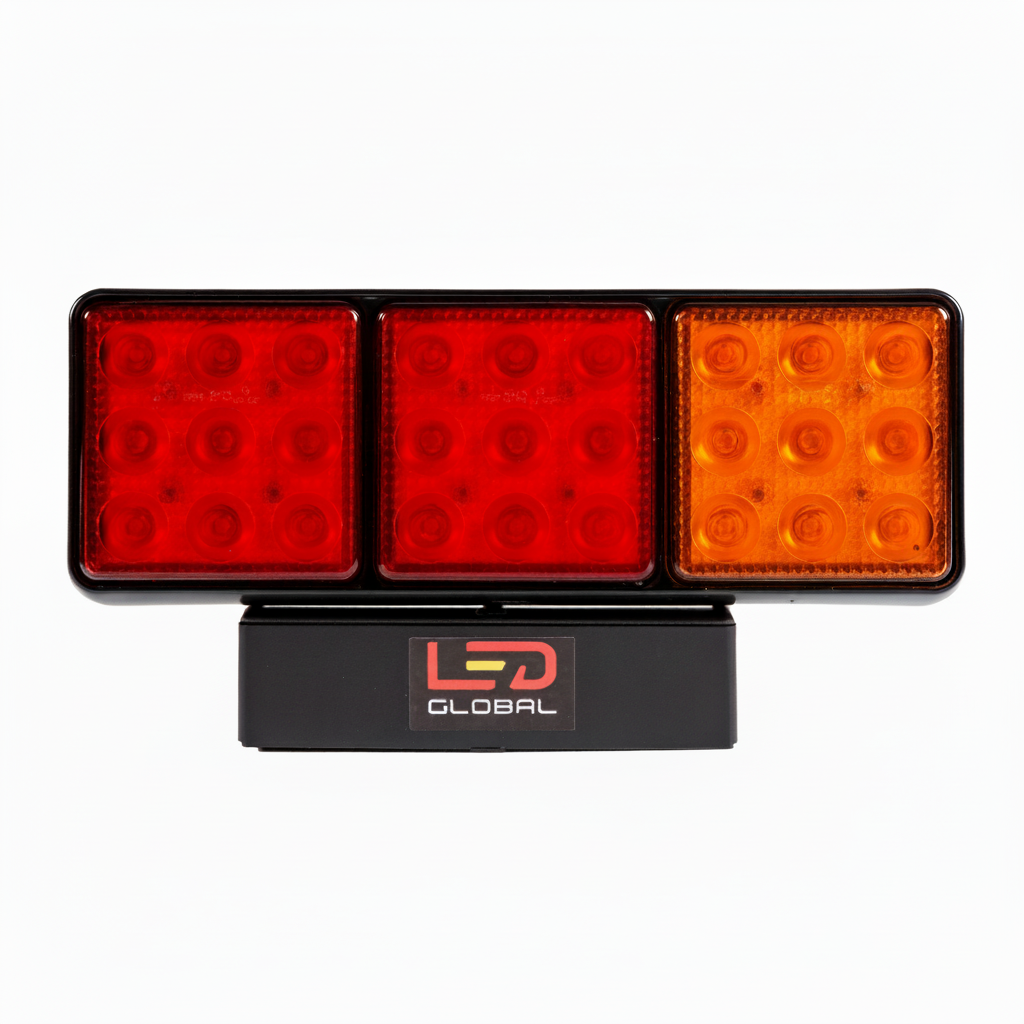

The LG504 is a pre-wired LED 3-pod combination tail light delivering stop, tail and indicator functions in one compact unit. Built around 27 high-output LEDs (9 per pod), it provides clear, even rear signalling for trailers, light commercial vehicles, plant transporters and agricultural implements. It is approved to ECE R3, R6, R7 and R10, with EMC compliance to CISPR 25 Class 3.

The LG504 is designed for installers who need a tidy, single-unit rear lighting solution that drops onto both 12 V and 24 V systems without rewiring or separate function lamps.

Stop, Tail and Indicator in One Unit

Each of the three pods handles a dedicated function – stop, tail and indicator. This separation helps following drivers read your intention faster, which improves safety on busy roads and in tight depots.

Mixed Fleet Compatibility

The 10–30 V DC input range covers 12 V and 24 V systems, making the LG504 a practical fit for mixed fleets, trailers and plant transporters.

Pre-Wired for Faster Installation

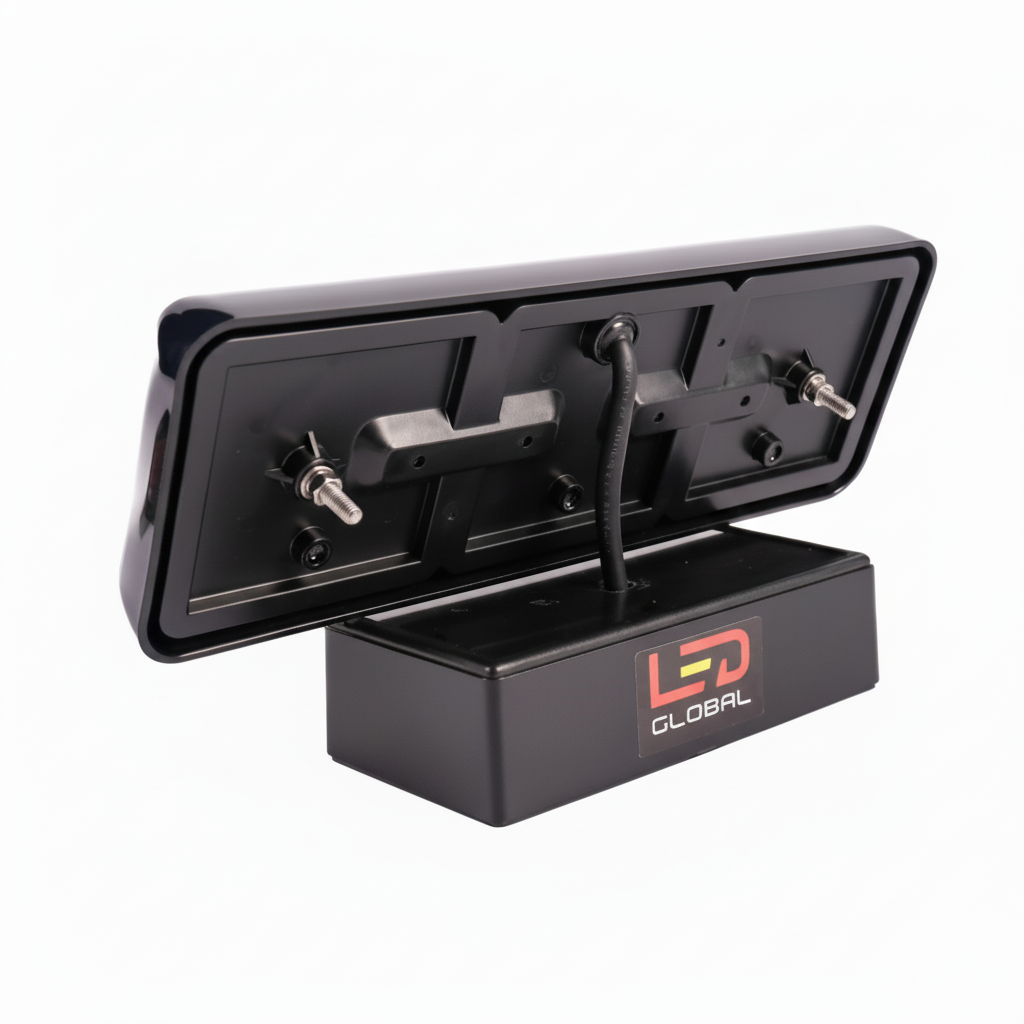

The lamp is factory-fitted with a 1.5 m 4-core pre-wired cable, allowing direct routing to junction boxes or vehicle looms without extending tails or making extra joins. This cuts installation time on new builds and retrofits.

European Road-Legal Approvals

The LG504 is approved to ECE R3, R6 and R7 for compliant rear lighting functions where applicable. ECE R10 EMC approval and CISPR 25 Class 3 radio-frequency suppression help prevent interference with radios, GPS, telematics and communication equipment.

Built for Wet Commercial Use

The lamp housing is IP67 rated – dust-tight and resistant to temporary immersion, making it suitable for wash-down environments, harsh weather, mud and road spray on commercial and agricultural trailers.

Key Features

• Combination stop / tail / indicator lamp in one unit.
• 27 LEDs total – 9 per pod.
• Wide 10–30 V DC input for 12 V and 24 V systems.
• Pre-wired with 4-core, 1.5 m cable.
• Compact dimensions: 272 × 100 × 27.4 mm.
• IP67 dust-tight and immersion-resistant housing.
• Approved to ECE R3, R6, R7 and R10.
• EMC compliance to CISPR 25 Class 3.
• Solid-state LED design for long service life.

Ideal Applications

• Commercial trailers and semi-trailers requiring LED rear combination lights.
• Light commercial vehicles and van conversions where space is tight.
• Agricultural trailers and implements in wet, muddy environments.
• Construction and plant transporters exposed to vibration and long hours.
• Fleet vehicles and hire trailers needing low-downtime rear lighting.

Important Fitment Note

Please confirm vehicle voltage, mounting position, wiring loom compatibility and applicable road-traffic regulations before installation. Install by a competent vehicle electrician for best results.
