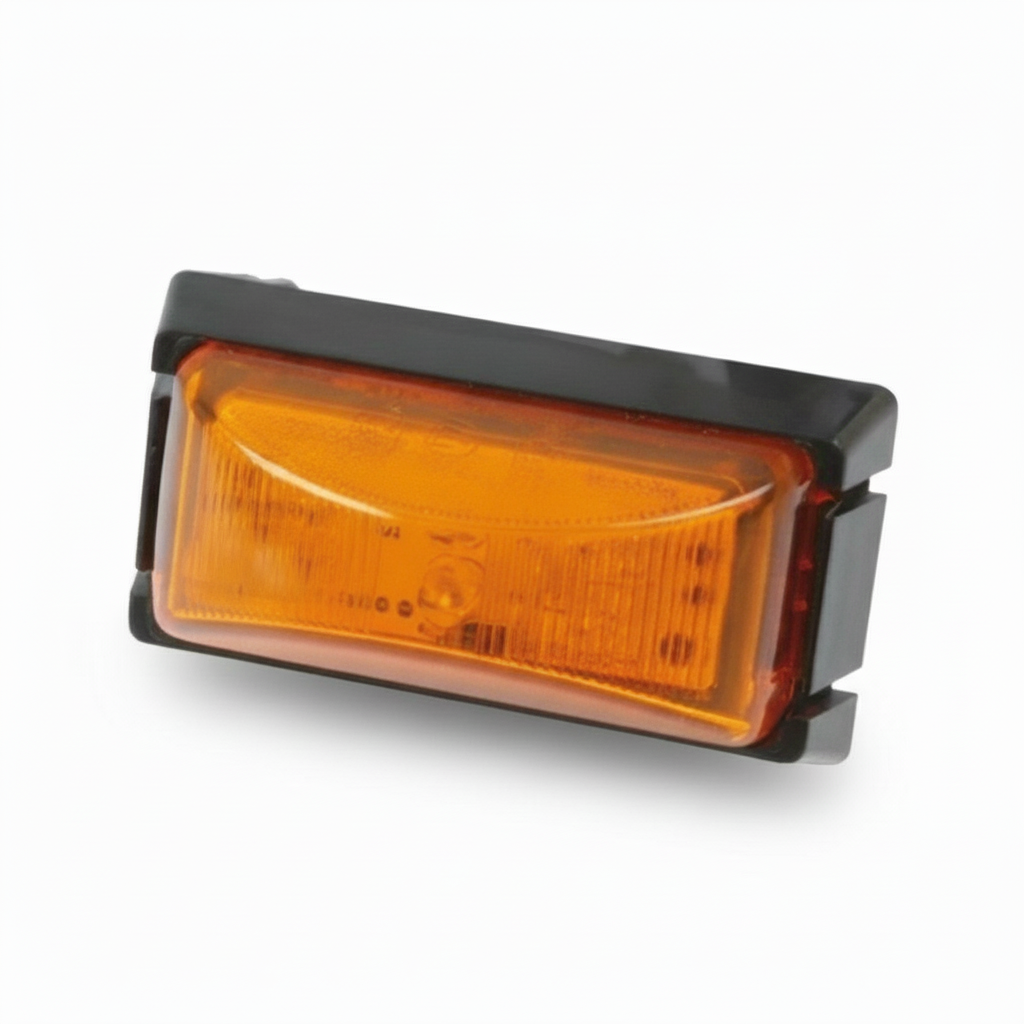

LED Rectangular Marker Light with 6 Diodes (AMBER) - LG104

LED Rectangular Marker Light with 6 Diodes (AMBER) – LG104

Compact, ECE-approved amber LED marker light engineered for dependable side visibility on commercial vehicles and machinery. The LG104 uses 6 high-intensity OSRAM LEDs to give a clean, even amber marker that stands out in poor weather and low light. Designed for 10–30 V DC systems and EMC-safe, it’s a straightforward upgrade for trucks, trailers, agri kit and plant.

This rectangular LED marker exists for one reason: clear, reliable side marking that you can fit and forget. The flat surface-mount housing in heavy-duty plastic and a PMMA lens gives a tough, compact unit that handles daily knocks on the road or in the yard. With 30,000+ hours rated lifespan and 6 × 0.1 W OSRAM diodes, you get stable light output with minimal current draw and no bulb changes.

The amber light colour is ideal for side marker and position light duties on long trailers, rigid bodies and specialist bodies. At 14.4 lumens, it’s bright enough to define the vehicle outline without glare for other road users. The 6000 K colour temperature gives a crisp, modern LED appearance that pairs well with existing LED front and rear lighting, helping keep fleets visually consistent.

LG104 is ECE approved / e-marked, so it’s suitable for road use across Europe when installed correctly in a compliant lighting layout. EMC / radio suppression is built in, so it won’t interfere with radios, telematics or other sensitive electronics on the vehicle. With an IP67 splashproof rating, it’s sealed against dust and can withstand immersion in water for short periods – ideal for vehicles that face spray, wash-downs and wet sites, but without claiming to be a deep-submersion lamp.

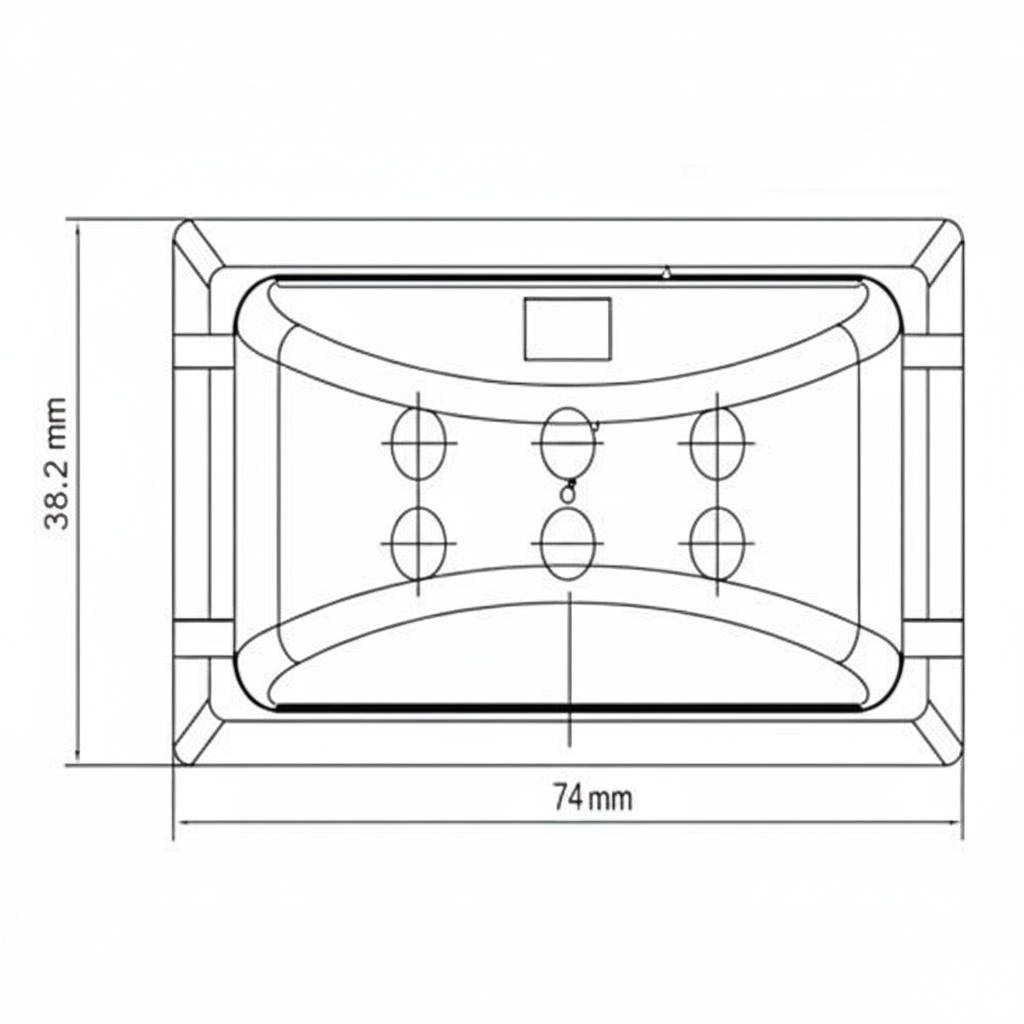

Installation is simple. It’s a flat surface mount marker light, pre-wired and ready to connect into 12 V or 24 V circuits (10–30 V DC compatible). Its compact dimensions – 73 mm (W) × 37 mm (H) × 30 mm (T) – make it easy to position along chassis rails, body sides or step frames where space is tight. For fleet managers and fitters, that means quick installs, clean routing, and a consistent, professional finish across vehicles.

Key Features

• Flat surface-mount marker light – easy to fit on body sides, chassis rails and bumpers without complex brackets.
• 6 × 0.1 W high-intensity OSRAM LEDs – proven European-quality diodes for stable, long-life performance and low power draw.
• Amber light colour – ideal for side marker / position light functions on trucks, trailers and machinery.
• Luminous flux: 14.4 lumens – clear, visible marker without excessive glare for other road users.
• Colour temperature: 6000 K – crisp, modern white-toned LED output that matches contemporary vehicle lighting.
• Wide voltage: 10–30 V DC – suitable for both 12 V and 24 V electrical systems across mixed fleets.
• Long lifespan: 30,000 hours+ – reduces downtime, call-outs and maintenance costs compared to traditional bulb markers.
• IP67 splashproof housing – sealed against dust and protected against water immersion for typical road spray and wash-down.
• H/D plastic housing with PMMA lens – robust construction designed for commercial and off-road environments.
• ECE approved / e-mark – compliant for road use in Europe when installed in a suitable lighting layout.
• EMC / radio suppression – reduces risk of interference with radios, GPS, telematics and control electronics.
• Pre-wired for quick connection – saves time for auto electricians and body builders during installation.

Ideal Applications

• Truck and trailer side marker lighting on curtainsiders, box bodies, flatbeds and low-loaders.
• Agricultural machinery such as tractors, balers, slurry tankers and grain trailers needing clear side visibility on road moves.
• Construction and plant equipment including tippers, hookloaders, low loaders and site support vehicles.
• Light commercial vehicles and specialist bodies, recovery trucks, utility fleets and service vans.
• Off-road and yard vehicles where clear outline lighting improves safety around pedestrians and other machinery.

Why Choose LED-Global Lighting

LED-Global focuses on high-performance vehicle lighting built around European engineering standards and practical field experience. Every unit, including the LG104, is specified with quality components like OSRAM LEDs, proper EMC control and real-world IP ratings, so you know exactly what you’re fitting. We design for fleet operators, body builders and auto electricians who need products that go on once, work hard, and keep vehicles compliant and visible day after day.
