| Brand | LED Global |
|---|---|
| SKU | LG505 |
| EAN / Barcode | 4255929219798 |
| Product Type / Line | Wireless LED Rear Combination Lamp Kit |
| Specific Vehicle Fitment / Make & Model | Universal (Trailers, Agricultural Equipment) |

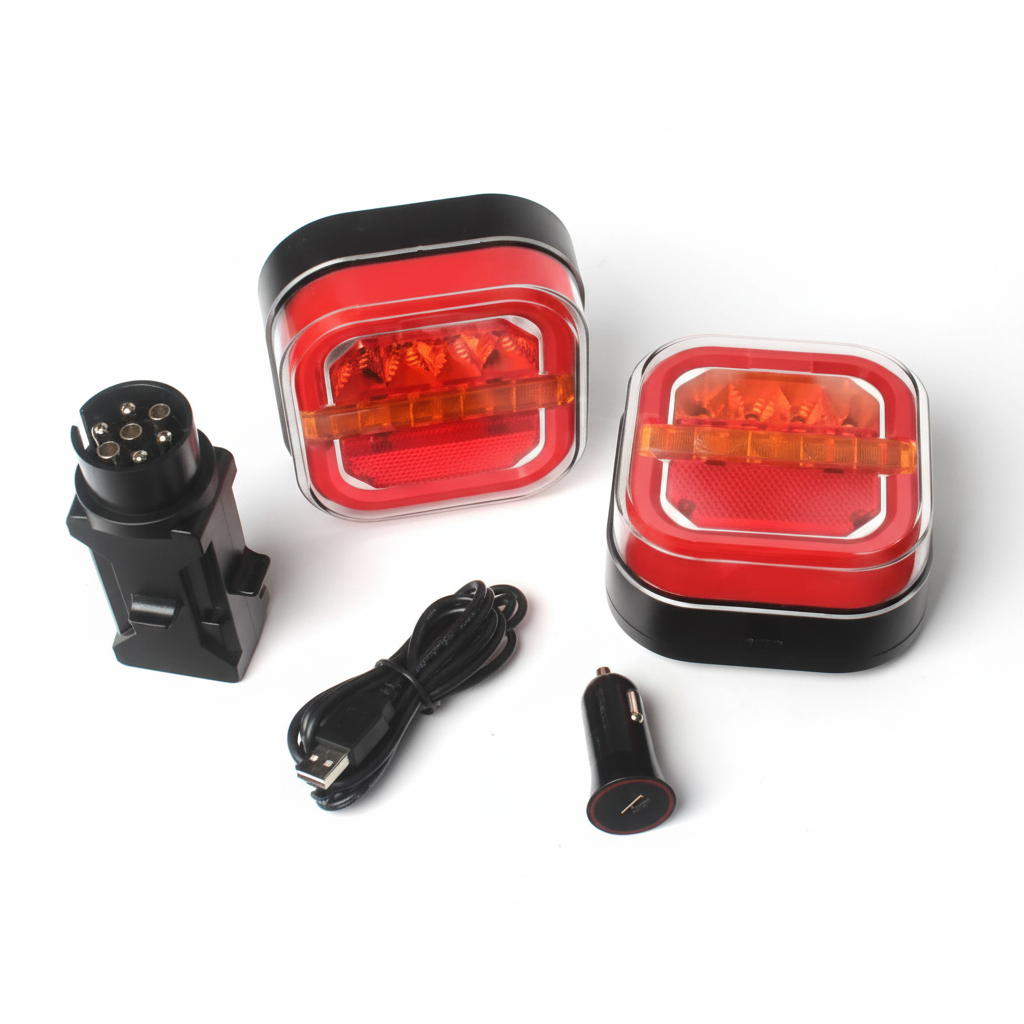

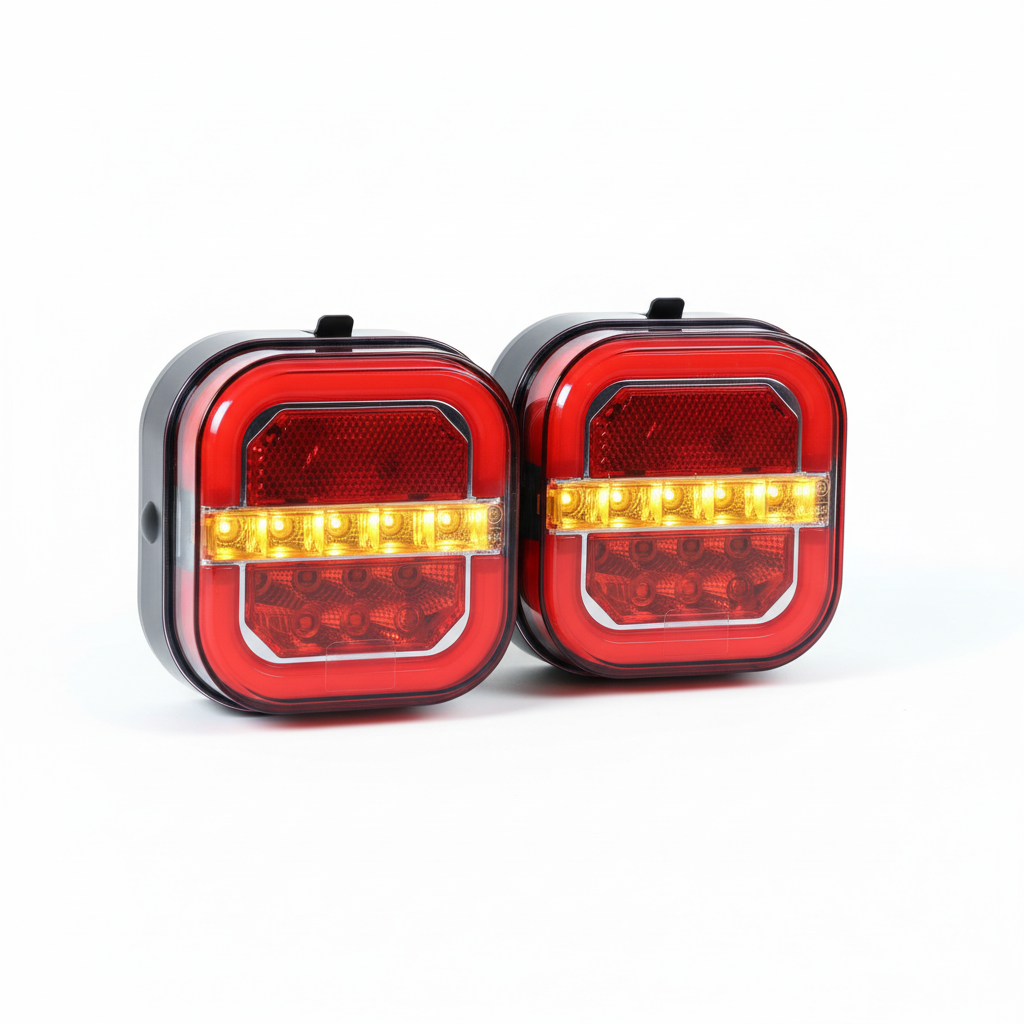

| Scope of Delivery (What's Included) | 1x Left Lamp, 1x Right Lamp, 1x 7-pin Transmitter, 1x USB Adaptor, 1x Charging Cord, 1x Storage Box |
| Fitting Position (Left / Right / Universal) | Left & Right Pair |

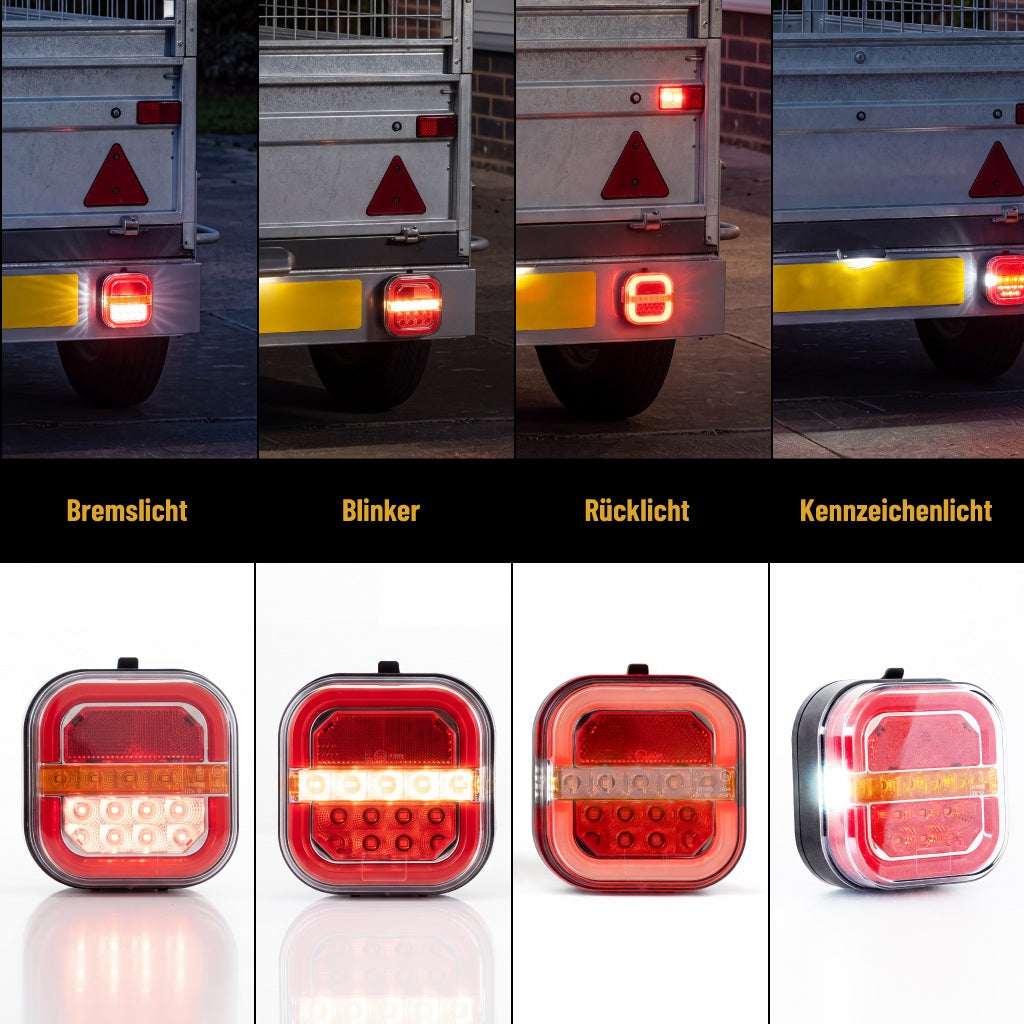

| Light Functions | Rear Position, Stop, Direction Indicator, Number Plate Light, Reflector |
| Number of Light Functions | 5 |
| Lens Color | Red / Clear |
| LED Color | Red, Amber, White |
| Optics / Reflector Design | SMD LEDs with built-in Reflex Reflector |
| Number of LEDs | Position: 24pcs, Indicator: 5pcs, Stop: 8, Number Plate: 4pcs |
| Supply Voltage Range (V) | 12-24V (Transmitter) / 5V USB (Charging) |
| Power Consumption - Stop (Watts) | 2W |
| Power Consumption - Tail (Watts) | 2W |
| Power Consumption - Indicator (Watts) | 1W |
| Number plate / reverse light | Number Plate: 0.5W / Reverse: N/A |
| ECE Approvals (R148, R150, etc.) | ECE R3, ECE R6, ECE R7 |
| Other conformity | RED, CE, RoHS |
| Ingress Protection Rating (IP Class) | IP67 |
| Operating Temperature Range (°C) | -40°C to +65°C |
| Housing Color | Black Base |

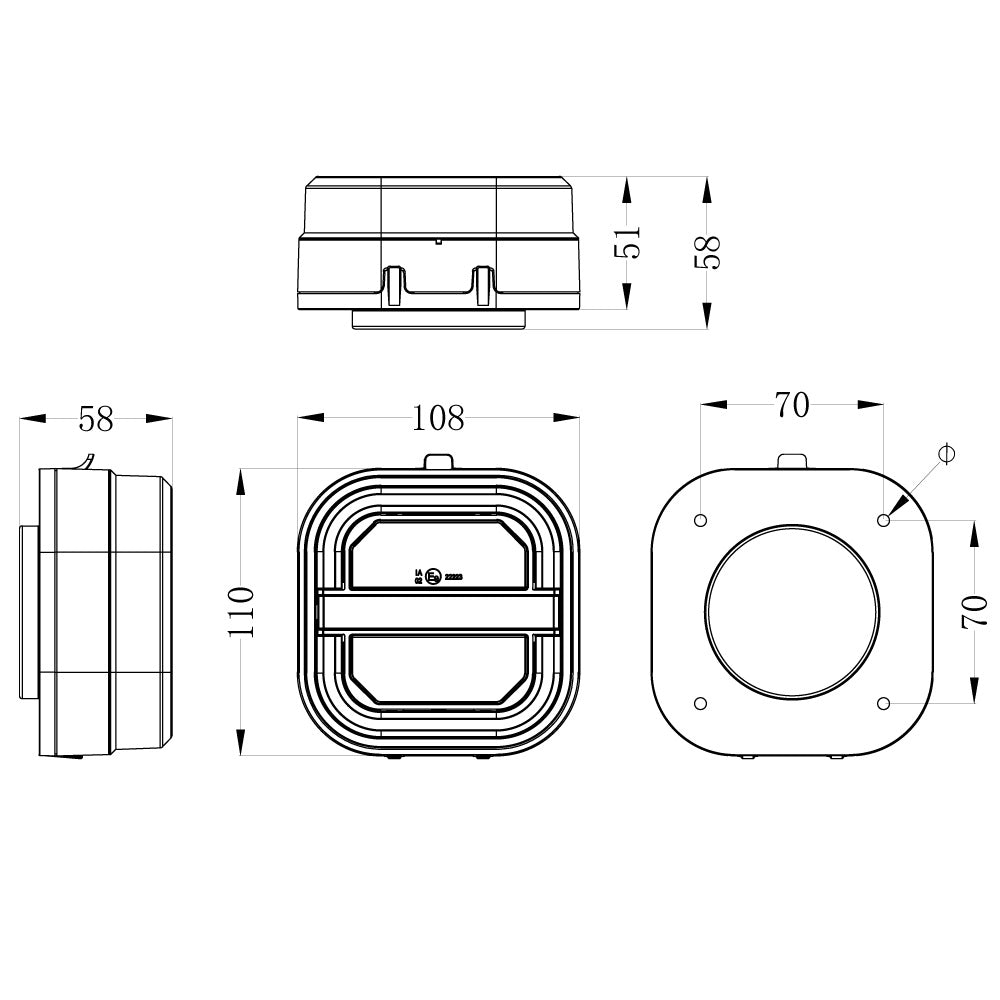

| Width (mm) | 108mm |
| Height (mm) | 110mm |
| Depth/Length (mm) | 58mm |

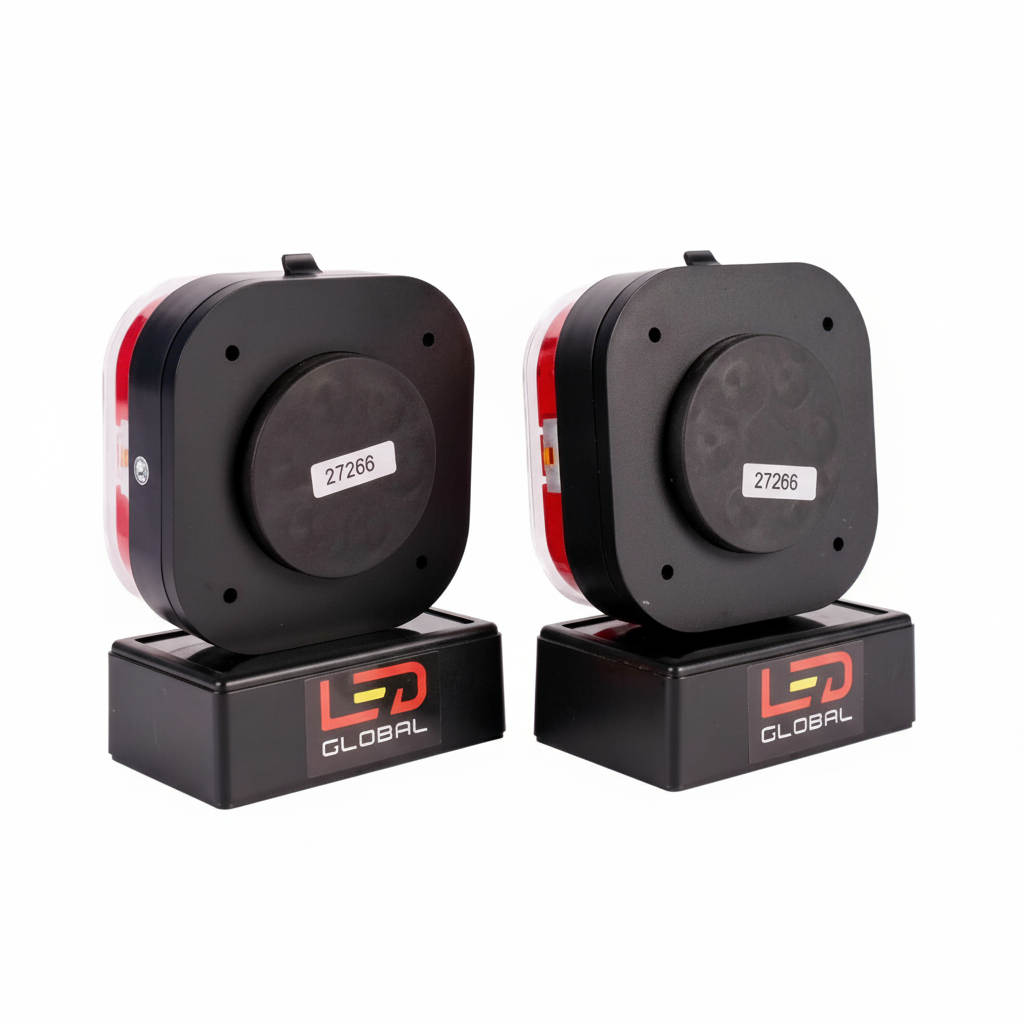

| Mounting / Fastening Type | Magnetic Mount |
| Mounting Orientation | Universal |
| Bolt Hole Center-to-Center Spacing (CC mm) | N/A (Magnetic) |
| Net Weight (kg) | 0.75kg |
| Gross Weight (kg) | 1.55kg |
| Plug / Connector Type | Wireless (7-Pin Transmitter Plug) & Micro USB charging port |
| Cable Length (mm) | Cable-free (Wireless) |
| Battery | 2600 mAh lithium battery |
| Battery life | Up to 8 hours |
| Charging time | 2.5 hours |
| Battery indicator | 25%, 50%, 100% |
Wireless Rechargeable LED Magnetic Trailer Tail Light Kit - LG505
In stock
incl. VAT
Specifications
| Brand | LED Global |
|---|---|
| SKU | LG505 |
| EAN / Barcode | 4255929219798 |
| Product Type / Line | Wireless LED Rear Combination Lamp Kit |
| Specific Vehicle Fitment / Make & Model | Universal (Trailers, Agricultural Equipment) |
| Scope of Delivery (What's Included) | 1x Left Lamp, 1x Right Lamp, 1x 7-pin Transmitter, 1x USB Adaptor, 1x Charging Cord, 1x Storage Box |
| Fitting Position (Left / Right / Universal) | Left & Right Pair |
| Light Functions | Rear Position, Stop, Direction Indicator, Number Plate Light, Reflector |
| Number of Light Functions | 5 |
| Lens Color | Red / Clear |
| LED Color | Red, Amber, White |
| Optics / Reflector Design | SMD LEDs with built-in Reflex Reflector |
| Number of LEDs | Position: 24pcs, Indicator: 5pcs, Stop: 8, Number Plate: 4pcs |
| Supply Voltage Range (V) | 12-24V (Transmitter) / 5V USB (Charging) |
| Power Consumption - Stop (Watts) | 2W |
| Power Consumption - Tail (Watts) | 2W |
| Power Consumption - Indicator (Watts) | 1W |
| Number plate / reverse light | Number Plate: 0.5W / Reverse: N/A |
| ECE Approvals (R148, R150, etc.) | ECE R3, ECE R6, ECE R7 |
| Other conformity | RED, CE, RoHS |
| Ingress Protection Rating (IP Class) | IP67 |
| Operating Temperature Range (°C) | -40°C to +65°C |
| Housing Color | Black Base |
| Width (mm) | 108mm |
| Height (mm) | 110mm |
| Depth/Length (mm) | 58mm |
| Mounting / Fastening Type | Magnetic Mount |
| Mounting Orientation | Universal |
| Bolt Hole Center-to-Center Spacing (CC mm) | N/A (Magnetic) |
| Net Weight (kg) | 0.75kg |
| Gross Weight (kg) | 1.55kg |
| Plug / Connector Type | Wireless (7-Pin Transmitter Plug) & Micro USB charging port |
| Cable Length (mm) | Cable-free (Wireless) |
| Battery | 2600 mAh lithium battery |
| Battery life | Up to 8 hours |
| Charging time | 2.5 hours |
| Battery indicator | 25%, 50%, 100% |
Description

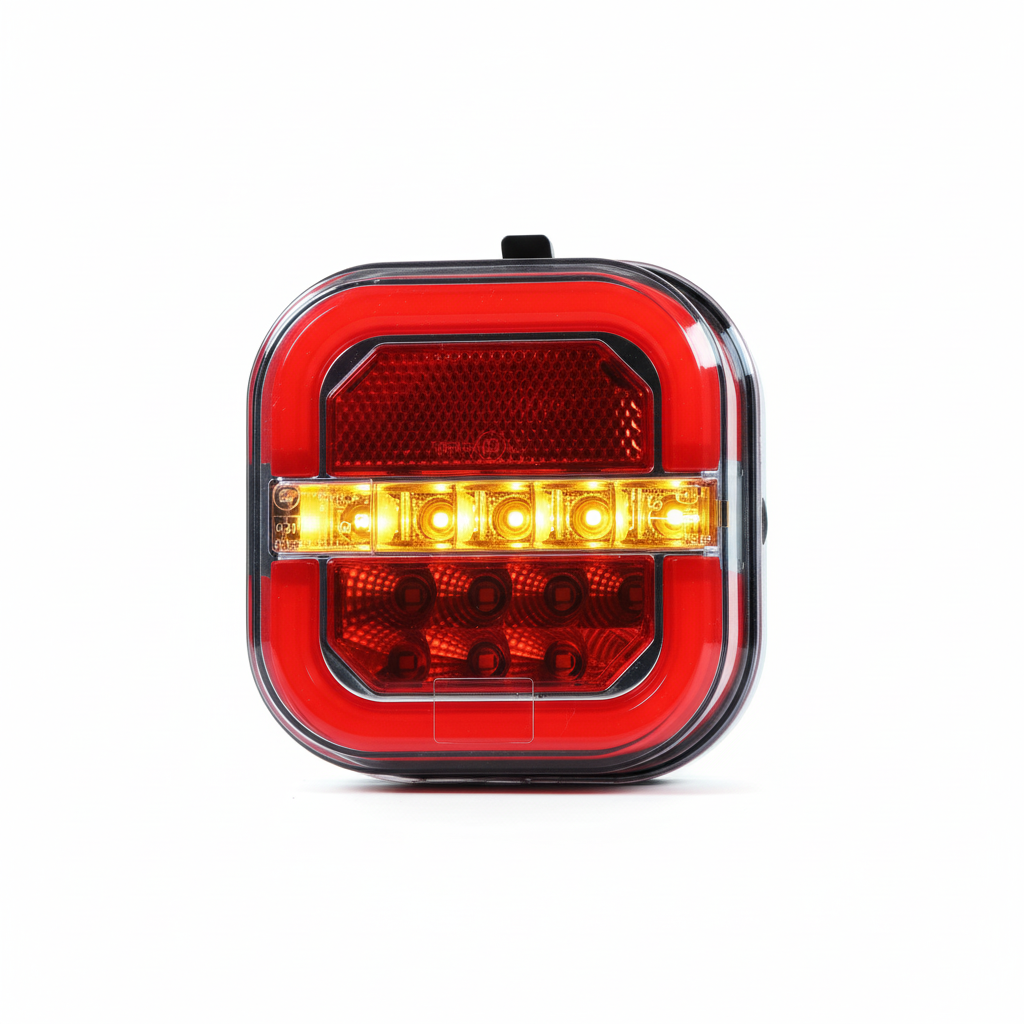

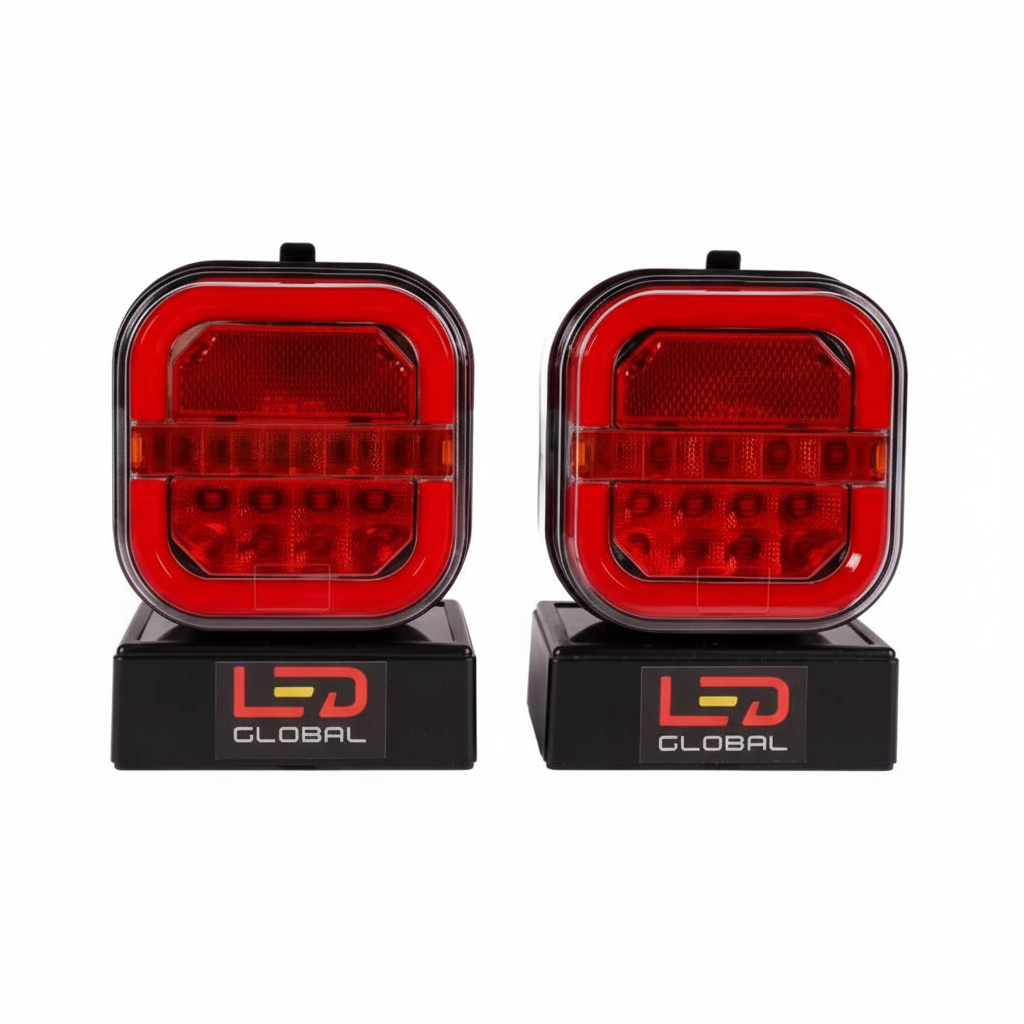

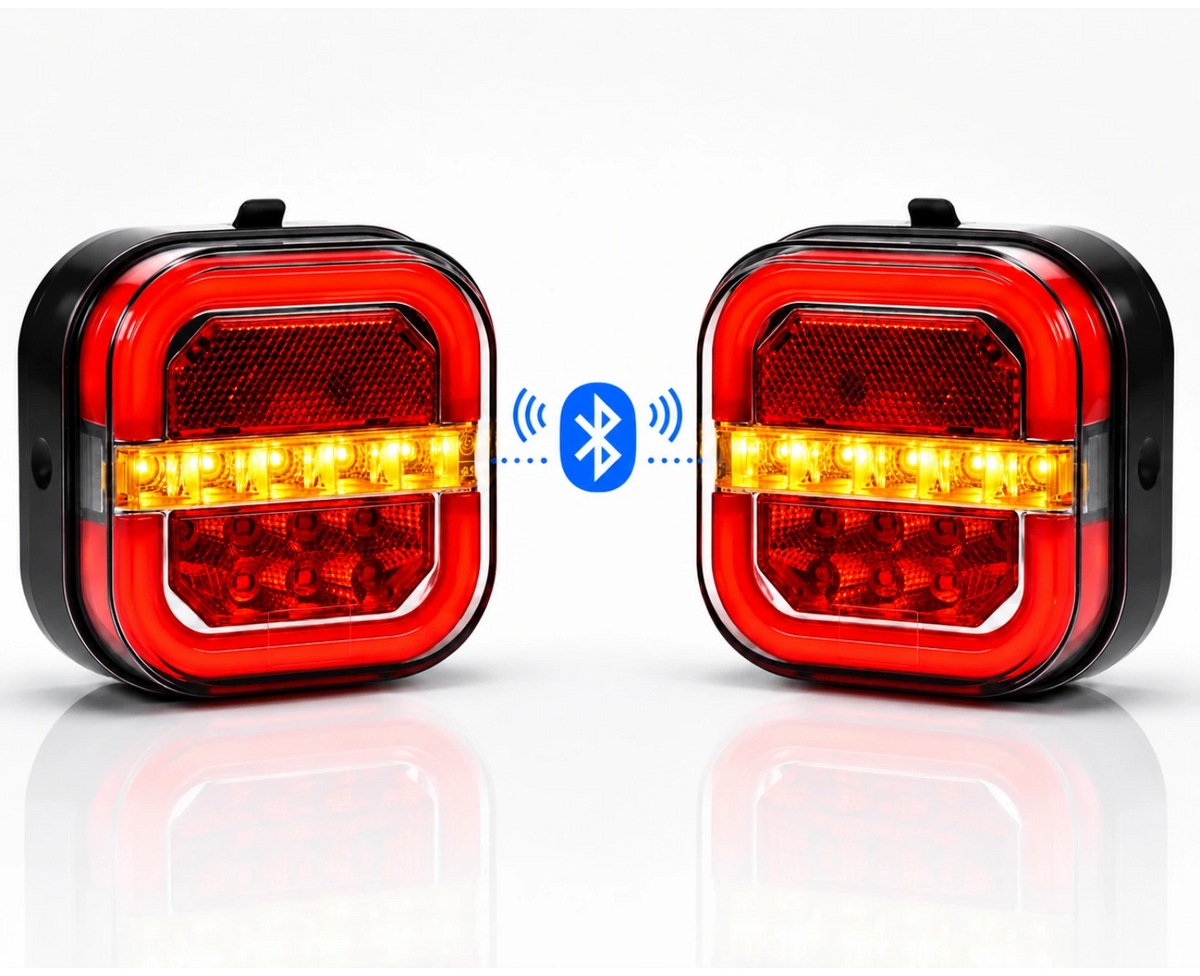

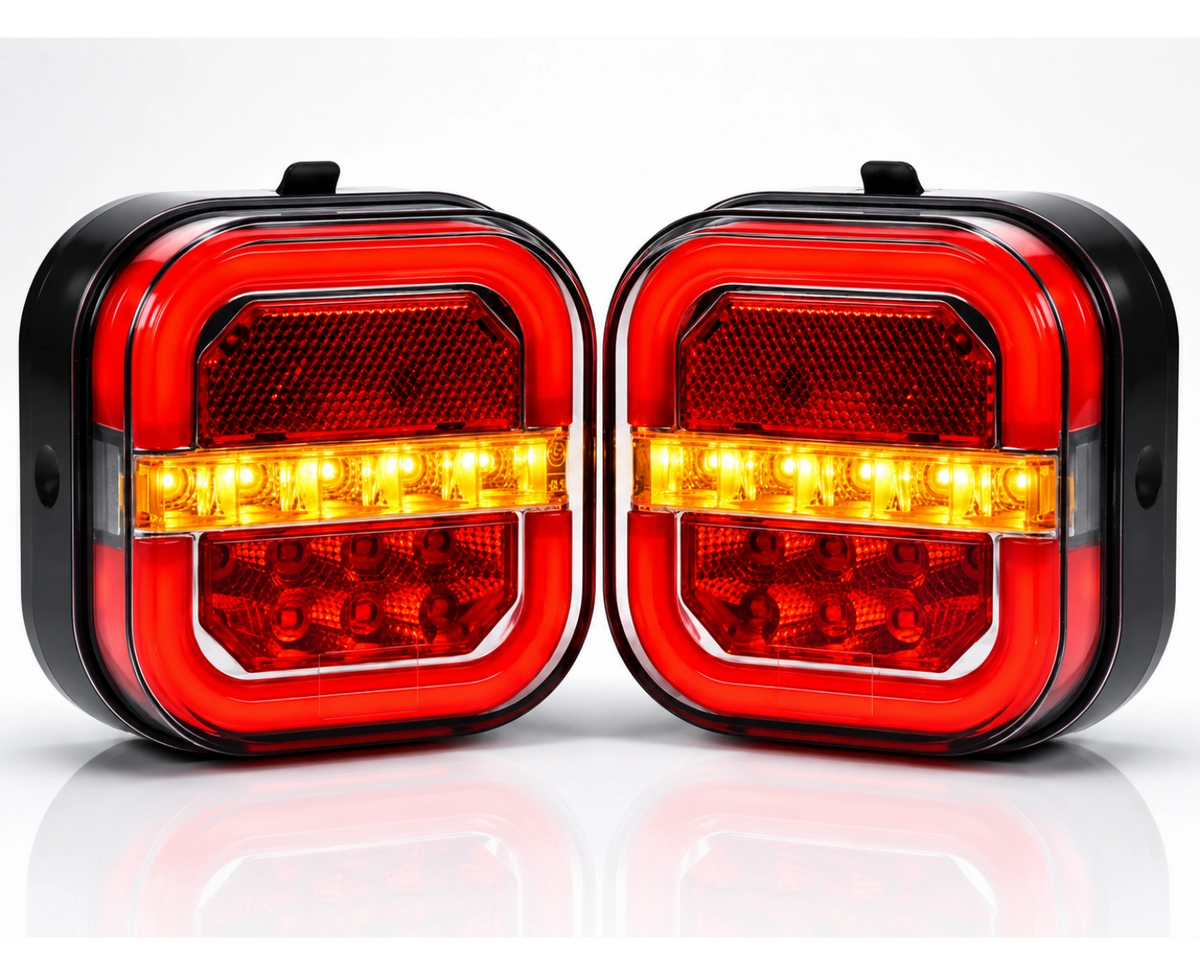

The LG505 provides rear position, brake, indicator and number-plate lighting with an integrated reflector. The left and right lamps receive their signal wirelessly from the 7-pin transmitter, avoiding a lighting cable along the trailer.

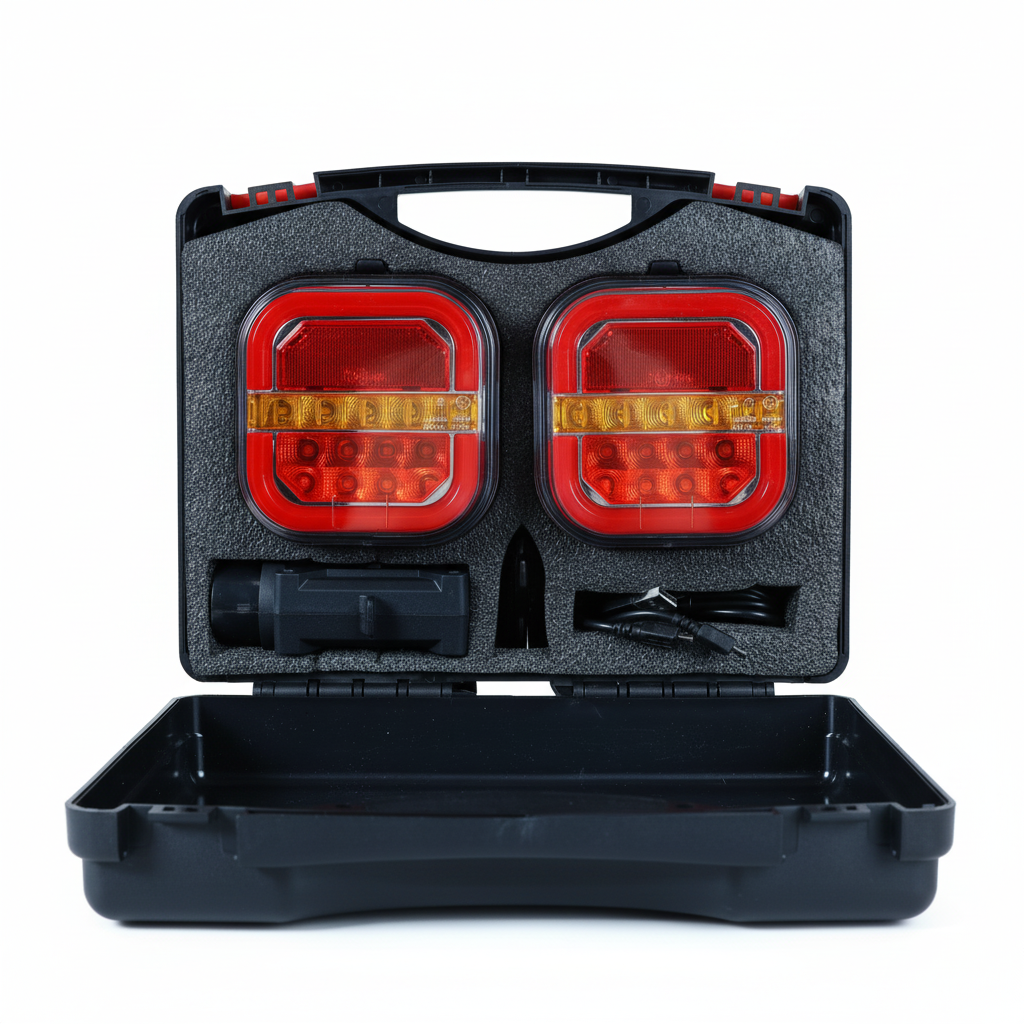

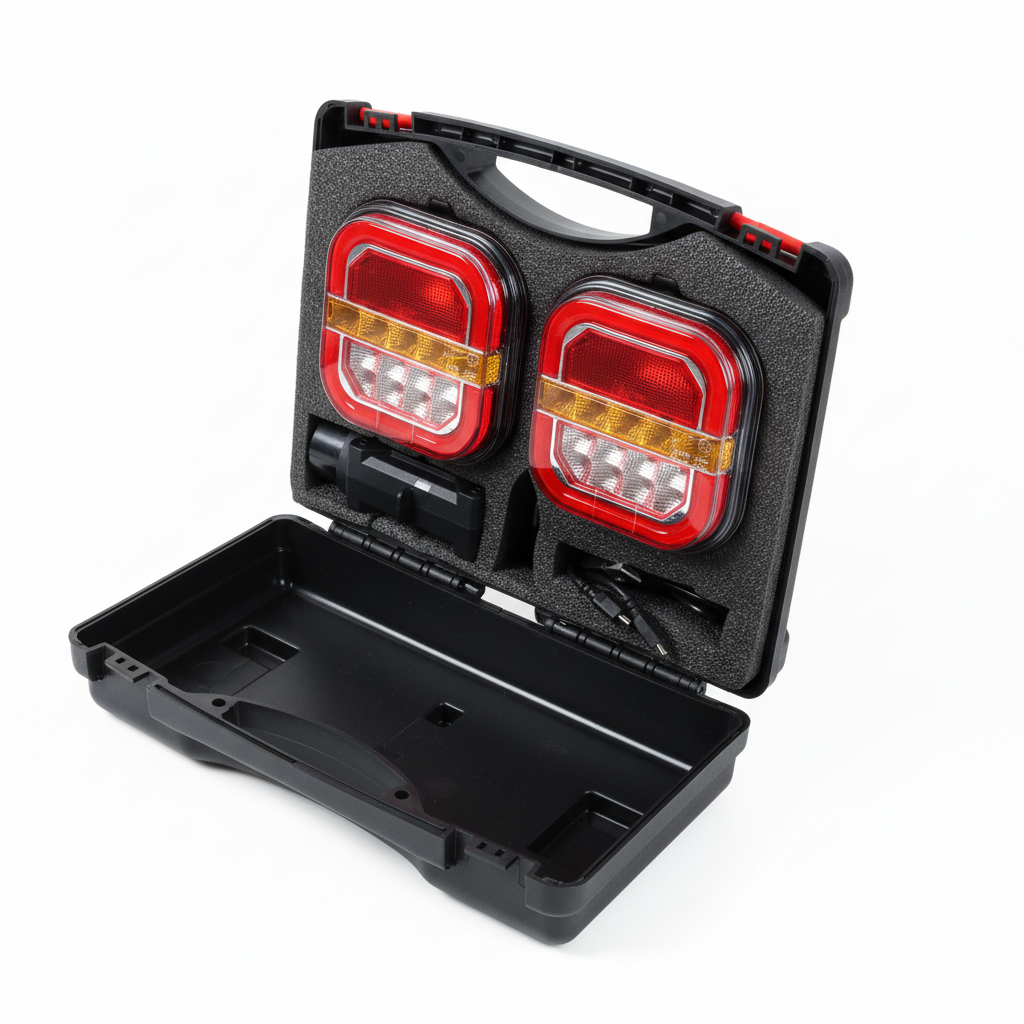

A 2600mAh lithium battery provides up to eight hours of operation, with a 2.5-hour Micro-USB charging time and 25%, 50% and 100% charge indication. The transmitter operates on 12–24V; charging uses 5V USB. Each lamp measures 108 × 110 × 58 mm. The IP67 kit includes both lamps, a 7-pin transmitter, USB adaptor, charging cord and storage box. ECE R3, R6 and R7 approvals and RED, CE and RoHS conformity are listed.
Tail Lighting
Wireless Rechargeable LED Magnetic Trailer Tail Light Kit - LG505
Wireless rechargeable magnetic trailer light kit
The LG505 provides rear position, brake, indicator and number-plate lighting with an integrated reflector. The left and right lamps receive their signal wirelessly from the 7-pin transmitter, avoiding a lighting cable along the trailer.
A 2600mAh lithium battery provides up to eight hours of operation, with a 2.5-hour Micro-USB charging time and 25%, 50% and 100% charge indication. The transmitter operates on 12–24V; charging uses 5V USB. Each lamp measures 108 × 110 × 58 mm. The IP67 kit includes both lamps, a 7-pin transmitter, USB adaptor, charging cord and storage box. ECE R3, R6 and R7 approvals and RED, CE and RoHS conformity are listed.
€64,95
● In stock
