114 Watt LED Fern- und Abblendlicht-Scheinwerfer mit Tagfahrlicht - LG885EU

114 Watt LED High & Low Beam Headlight with DRL – LG885EU

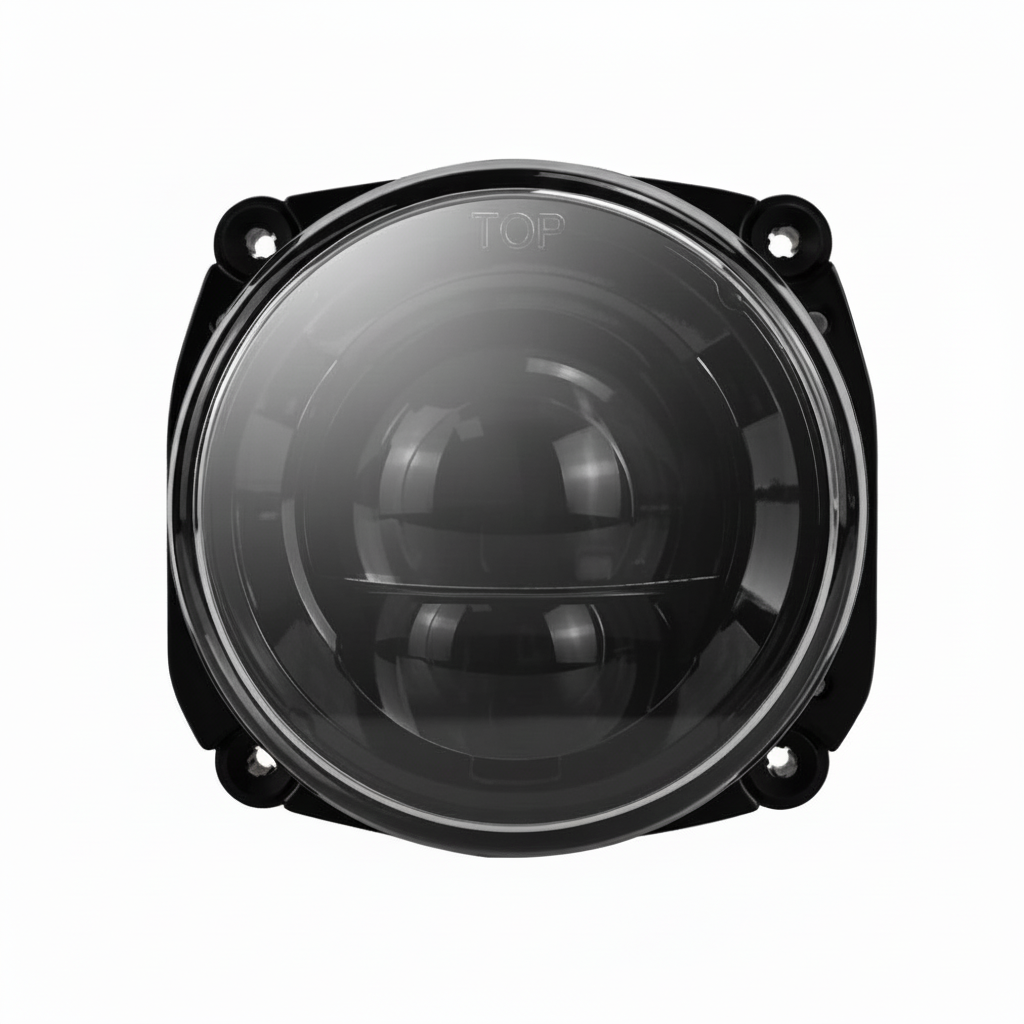

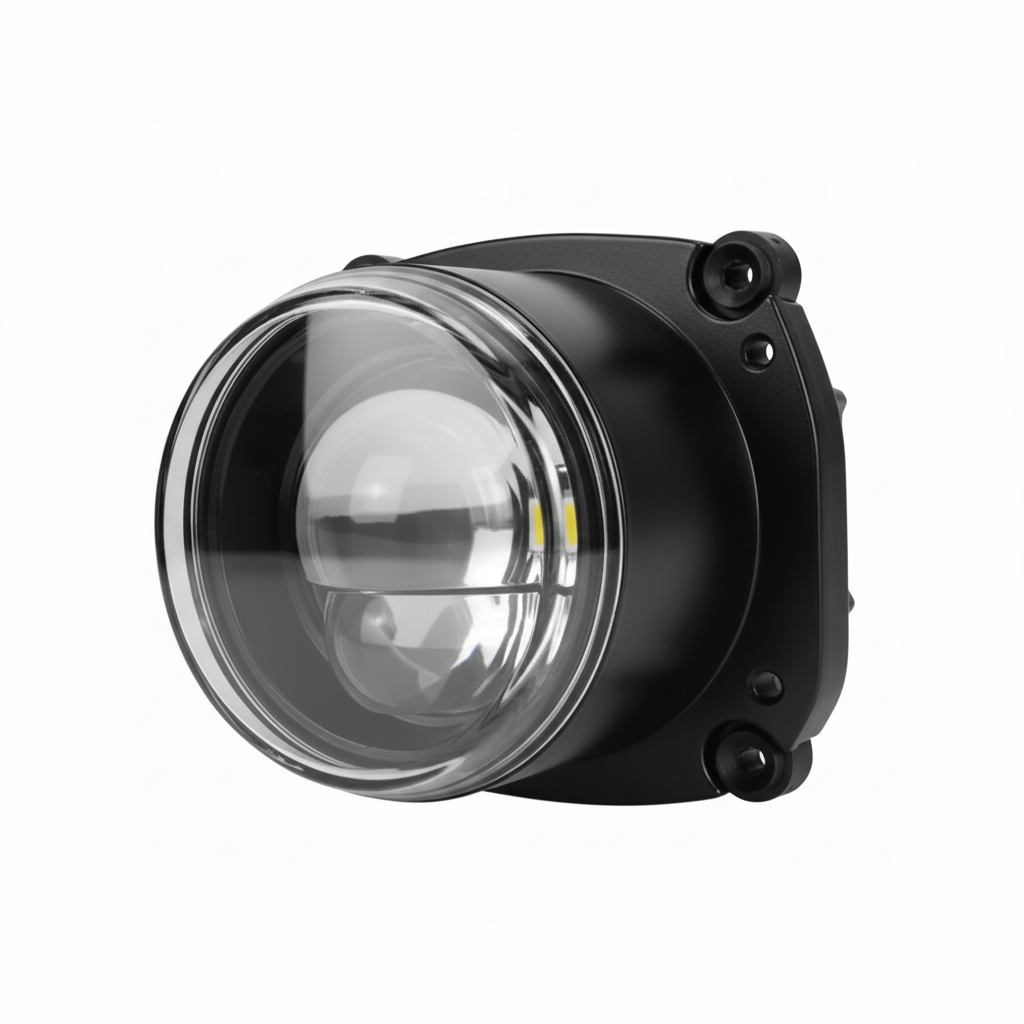

This 114 W LED tractor and machinery headlight delivers powerful high beam, low beam and integrated DRL in a compact, OEM-style unit. Designed for modern agricultural and construction fleets, it gives crisp 6000 K cold white light with stable patterns that match factory optics. Fully ECE approved and EMC protected, it’s engineered for road use in Ireland and the UK without electrical interference issues.

When you’re running long days and nights, you need headlamps that simply work. No flicker. No dark spots. No guessing where the beam will land. The LG885EU combines 60 W high beam, 30 W low beam and 24 W daytime running light in a diecast aluminium housing that drops neatly into a wide range of Massey Ferguson, Fendt, Claas, Valmet, Landini, Caterpillar, Komatsu, Deutz-Fahr and FIAT applications via 9005 and AMP plug & play connectors.

Light output is a clean 6000 K cold white, so operators see row ends, headlands and obstacles with much sharper contrast than with halogen. The beam pattern is ECE R149 (R112) and ECE R148 (R7) approved, so it’s road-legal where required and controlled enough not to dazzle oncoming traffic. Because it carries ECE R10 and CISPR 25 Class 4 EMC protection, it’s suitable for modern CAN-bus machines where radio, GPS and ISOBUS noise is a concern.

The housing is compact at 115 × 108 × 124.6 mm (W × H × D) and built from diecast aluminium for thermal stability and long LED life. With IP68 ingress protection, it’s sealed against dust and long-term moisture exposure, so it copes with pressure washing, slurry, mud and daily farm abuse. Operating temperature from −40 °C to +60 °C means it’s proven in European winters and hot harvest conditions alike.

Installation is straightforward. OEM-style references include 1AL 009 998-001 RHT; 1LL 009 998-011 LHT; Massey Ferguson V63995000 LHT; Fendt 72618748; FIAT 50525990; Claas 21659480; Deutz-Fahr 2.8039.313.0; Fendt G260 900 20 20; Fendt G334.900.160.020 / G334900160021; Hako 5104150000; Caterpillar 539-0528; Komatsu 20G-06-51530; Landini 6603320A1; Valmet 63595600; AGCO 63595600 / G334 900 160 20 / V63595600 RHT. That means you’re not fabricating brackets or hacking looms; you’re replacing or upgrading existing lamps with a direct-fit LED headlight that keeps the machine looking original while drastically improving usable light.

Key Features

• Combined 114 W LED headlight with 60 W high beam, 30 W low beam and 24 W DRL for full front lighting in one unit
• 6000 K cold white light for sharper visibility and reduced operator eye strain compared with warm halogen beams
• ECE road approvals: ECE R149 (R112) main/dipped beam and ECE R148 (R7) DRL, suitable for road-legal agricultural and construction use
• EMC-safe design with ECE R10 and CISPR 25 Class 4 to protect radios, GPS, ISOBUS and control systems from interference
• IP68 ingress protection, sealed against dust and long-term moisture exposure, ideal for frequent washing and harsh field conditions
• Wide operating temperature range −40 °C to +60 °C, proven for Nordic winters and hot summer workloads
• Diecast aluminium housing for excellent heat dissipation, stable LED performance and long service life
• Compact size 115 × 108 × 124.6 mm (W × H × D) for easy fitment in tight OEM headlamp recesses
• 9005 and AMP plug & play connectors, simplifying installation and minimising loom modification on modern tractors and machinery
• OEM cross-reference compatibility with key part numbers from Massey Ferguson, Fendt, Claas, Valmet, Landini, Caterpillar, Komatsu, Deutz-Fahr and FIAT, supporting fleet standardisation

Ideal Applications

• Massey Ferguson tractors, including MF 6715 S / 6716 S Dyna-4, Dyna-6 and Dyna-VT T4F models, and MF 7716–7726 Dyna-6 / Dyna-VT series
• High-horsepower tractors and harvesters from Fendt, Claas, Deutz-Fahr, Valmet, Landini and FIAT using the listed OEM lamp references
• Construction and industrial plant, including Caterpillar and Komatsu machines matching the supplied OEM part numbers
• Municipal and utility vehicles, including Hako and other compact carriers where a compact, E-marked LED headlamp is required
• Mixed-brand agricultural fleets looking to standardise on a single, high-performance LED headlight module

Why Choose LED-Global Lighting

LED-Global focuses on European-engineered lighting built for real working machines, not catalogue spec sheets. Every unit is specified with proven optics, robust housings and correct approvals, so fleet managers know exactly what they’re fitting and why it’s safe. With a background in engineering and years on farms and sites across Europe, we select and support lighting that reduces downtime, simplifies retrofits and keeps operators productive when the work doesn’t stop at dusk.
