120 Watt LED-Fahrlicht mit zweifarbiger Positionsleuchte und bernsteinfarbenem Warnblitz - LG933

120 Watt LED Driving Light with Dual Colour Position Light & Amber Warning Strobe – LG933

This 120 W LED driving light with dual colour position light and amber warning strobe is built for operators who need distance, width and visibility signalling in one unit. It throws 1 lux to 425 m with a tight combo beam, while selectable Xenon white / amber position light and integrated amber strobe make your vehicle stand out on and off road. Fully ECE approved (R112 / R10 / R7) and protected to IP68 / IP69K, it’s engineered for demanding European fleet and utility work.

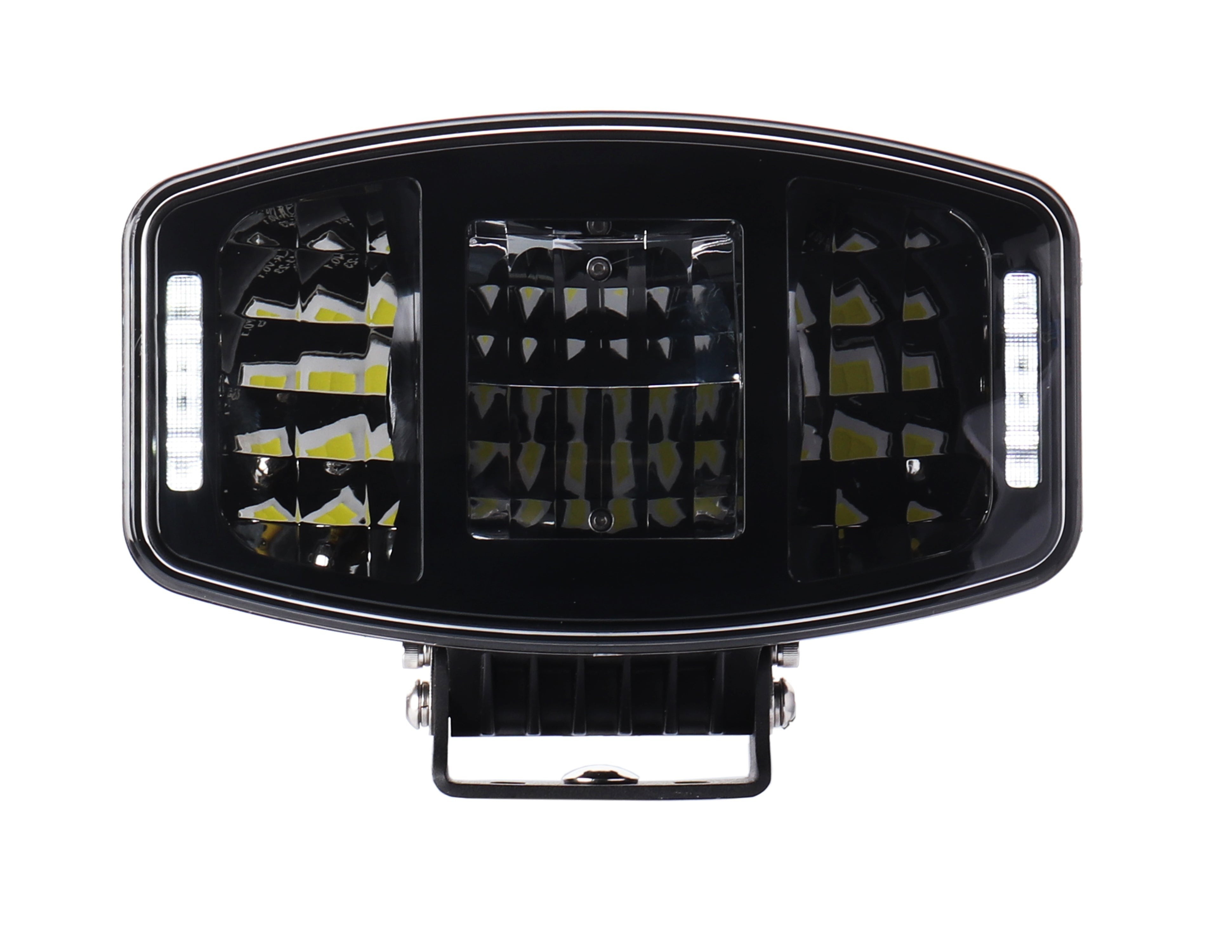

The LG933 is designed for serious road and off‑highway use. At its core are 4 × 25 W Cree XM-L2 LEDs producing 10,000 lm raw / 9,600 lm actual, running at 5700 K cold white for a clean, high-contrast beam that cuts through the dark without harsh glare. A combo beam pattern combines a long, focused centre hot spot with wide side coverage, so you can see hazards early while still lighting verges, work areas and site entrances.

What sets this unit apart is its integrated signalling. Four dedicated position LEDs let you switch between crisp Xenon white and high‑visibility amber to suit road rules, fleet standards or weather conditions. On top of that, 4 built‑in amber strobe LEDs provide a powerful warning function, ideal when you’re working roadside, on forestry tracks, construction sites or agricultural yards. One lamp, three functions: driving, marker, and warning.

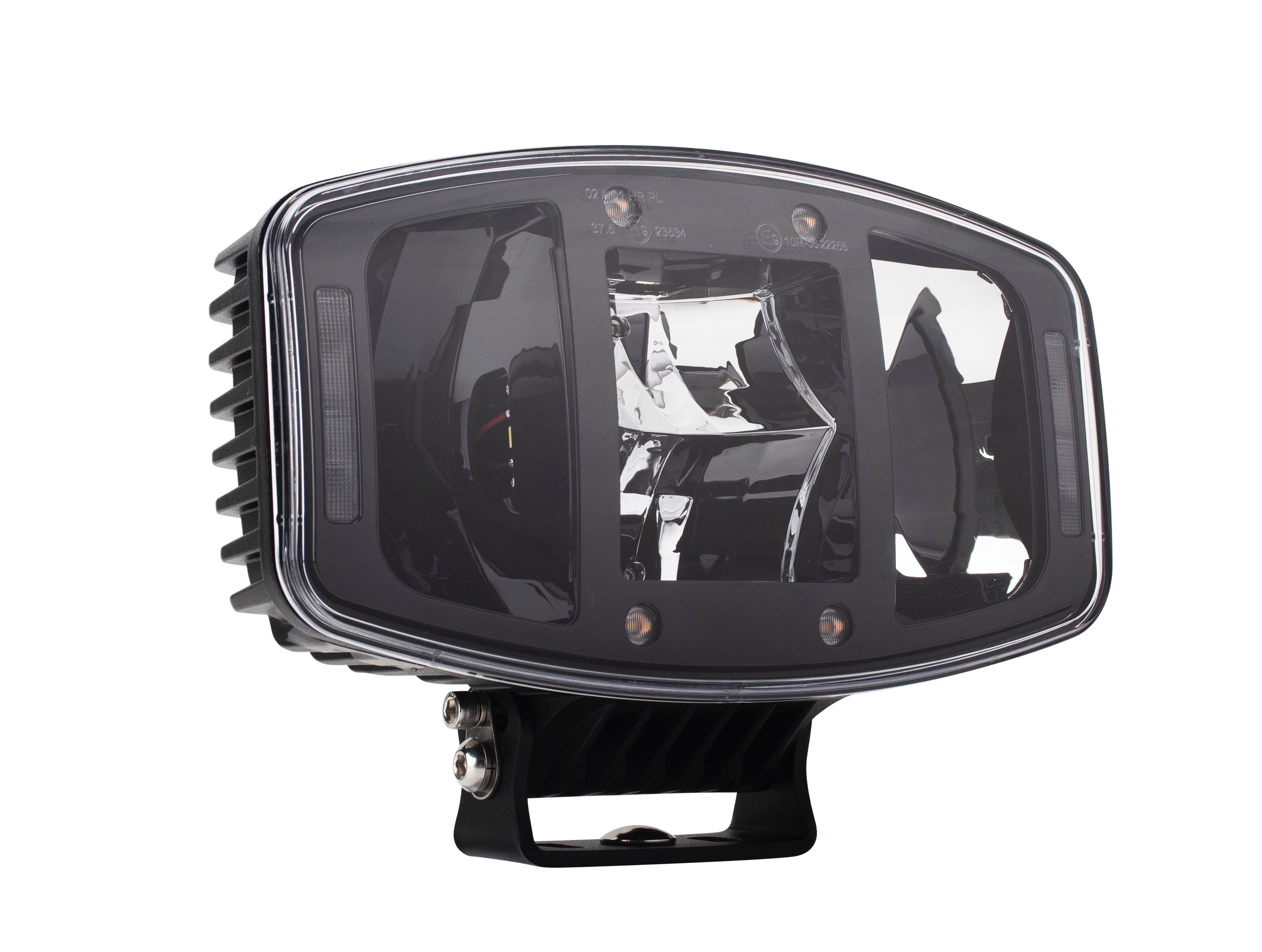

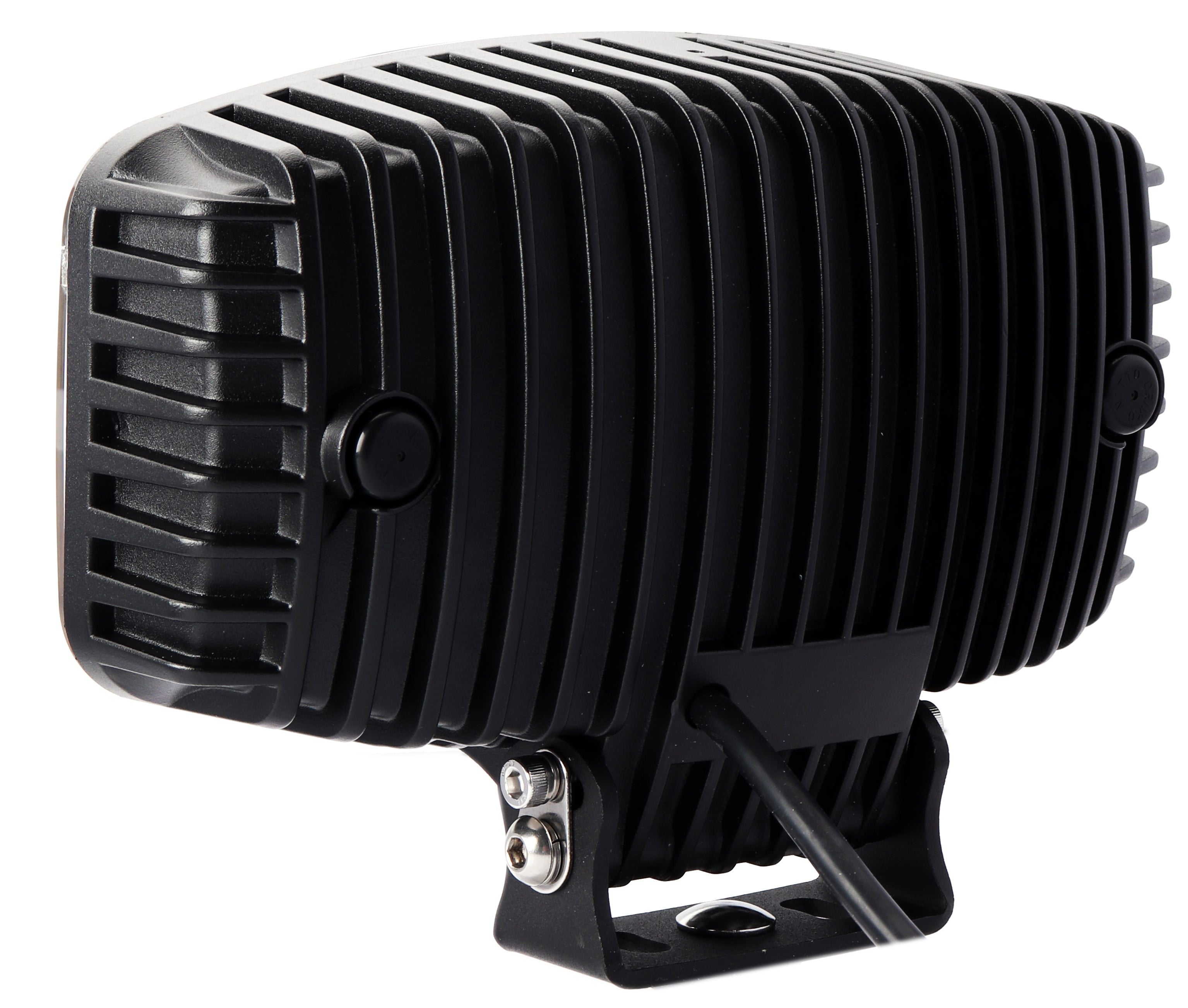

The light is built around a die‑cast aluminium housing with an adjustable stainless‑steel bracket and a pressure equalisation membrane that manages internal condensation and pressure changes. Protection to IP68 / IP69K means it withstands dust ingress, immersion and high‑pressure washdowns, so it’s at home on winter service vehicles, plant and agricultural kit. Electronic Thermal Management (ETM) constantly manages LED temperature to protect output and extend service life, even during long night shifts and summer heat.

Electrically, the LG933 runs on 9–36 V DC, drawing 7.7 A @ 12 V and 3.6 A @ 24 V, so it drops straight into most 12 V and 24 V vehicle systems. EMC protection with ECE R10 approval ensures low electrical noise, helping to protect sensitive vehicle electronics, radios and telematics. Connection is straightforward via a 6‑pole DT connector, with a 6‑pin adapter included for easy integration into existing harnesses. At 247 × 92 × 176 mm (L × W × H, incl. bracket) it offers serious performance without being oversized on modern cabs and bumpers.

Key Features

• High-output 120 W LED module using 4 × 25 W Cree XM-L2 chips for 10,000 lm raw / 9,600 lm actual light output, giving strong, usable illumination for professional operations.
• Combo beam pattern (wide + long range) delivering 1 lux at 425 m and 0.25 lux at 850 m, balancing long-distance spotting with near-field spread.

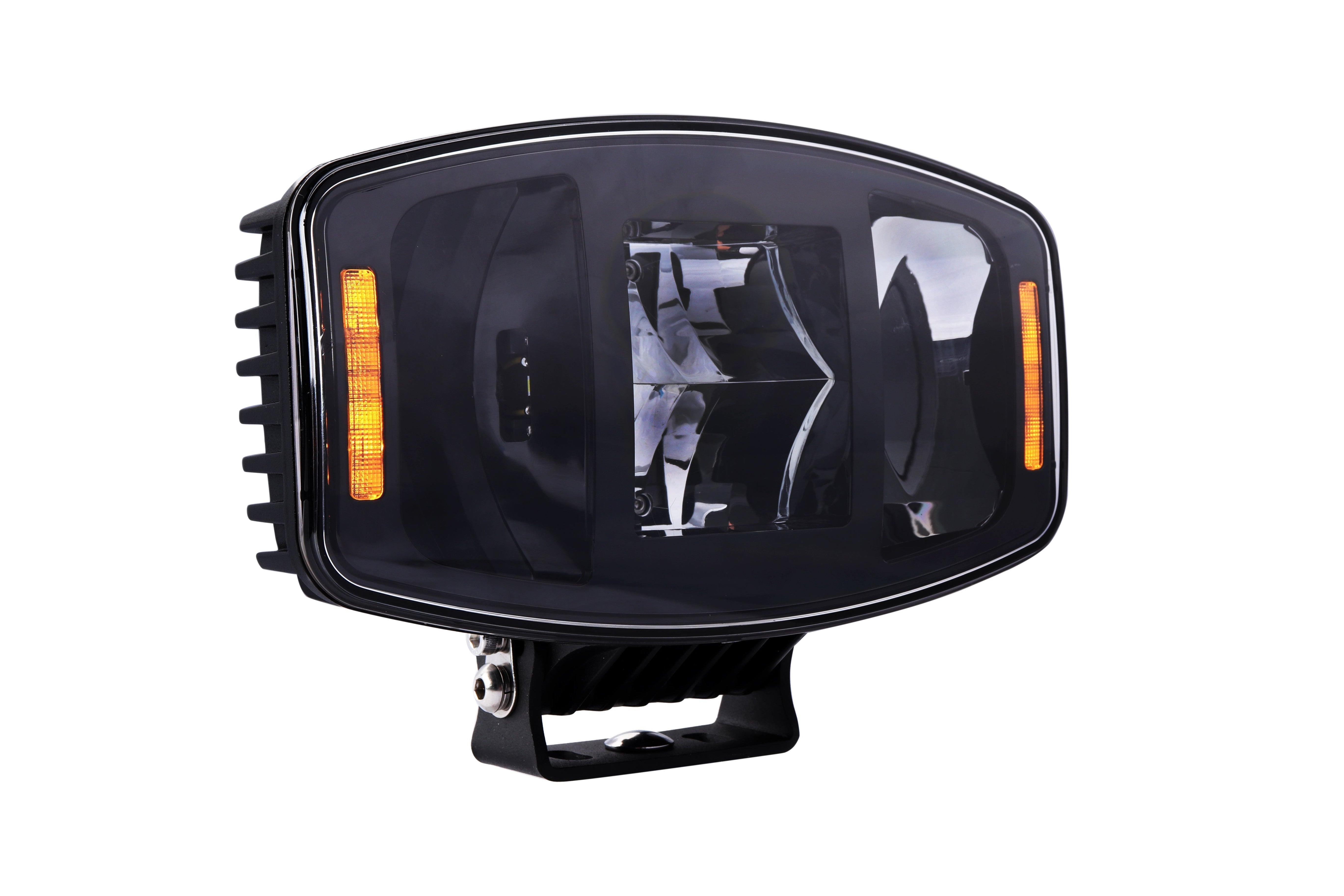

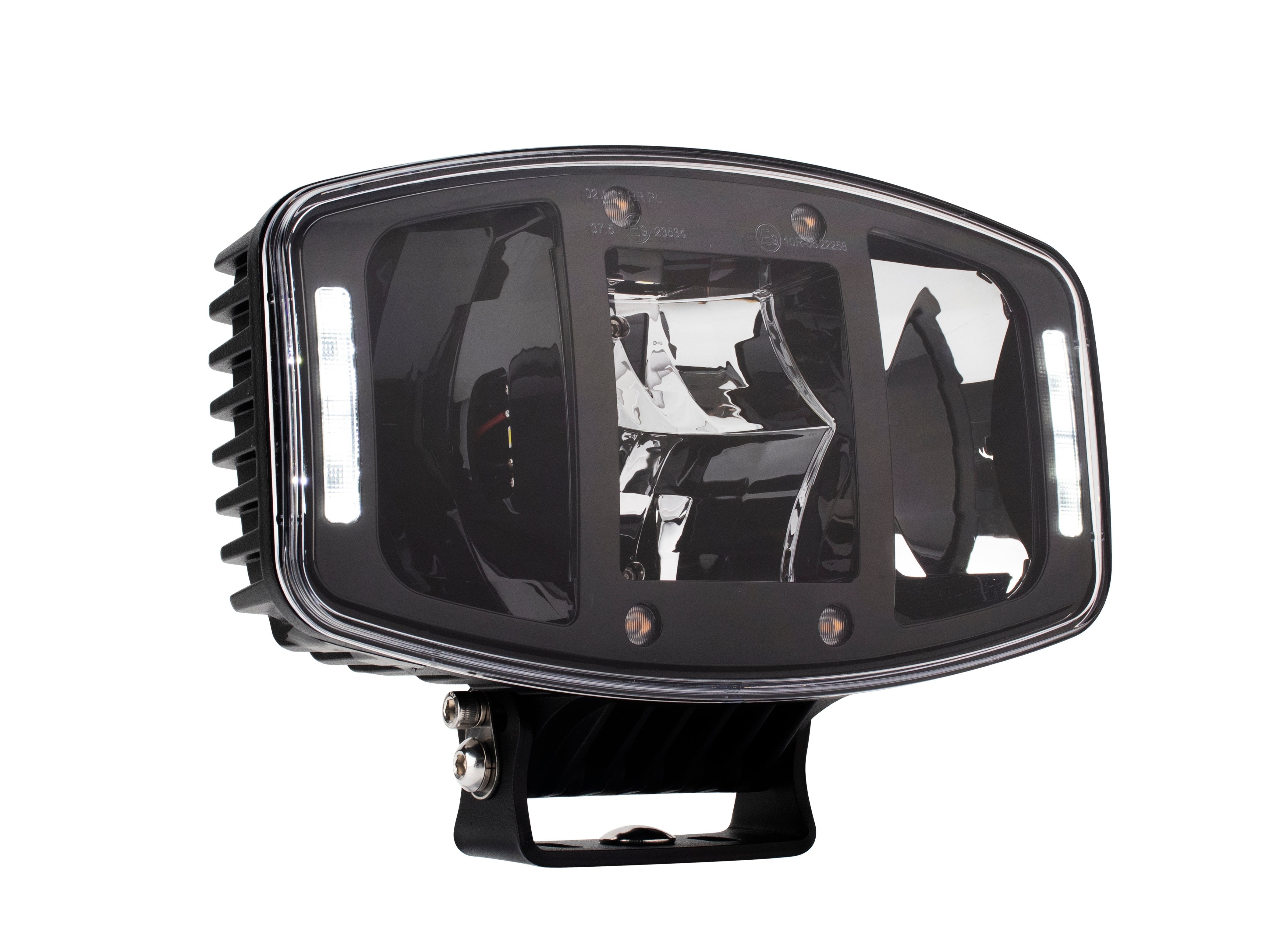

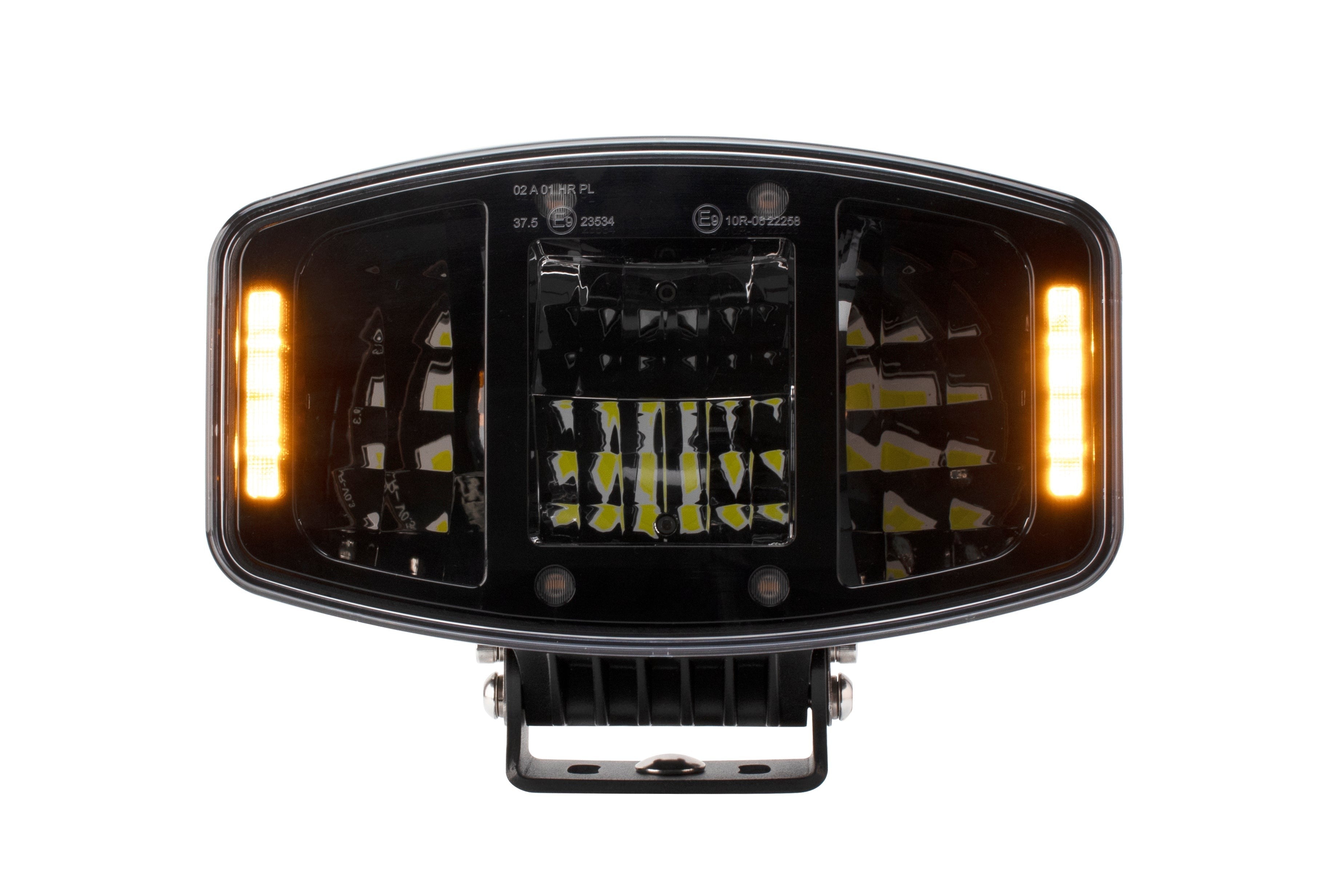

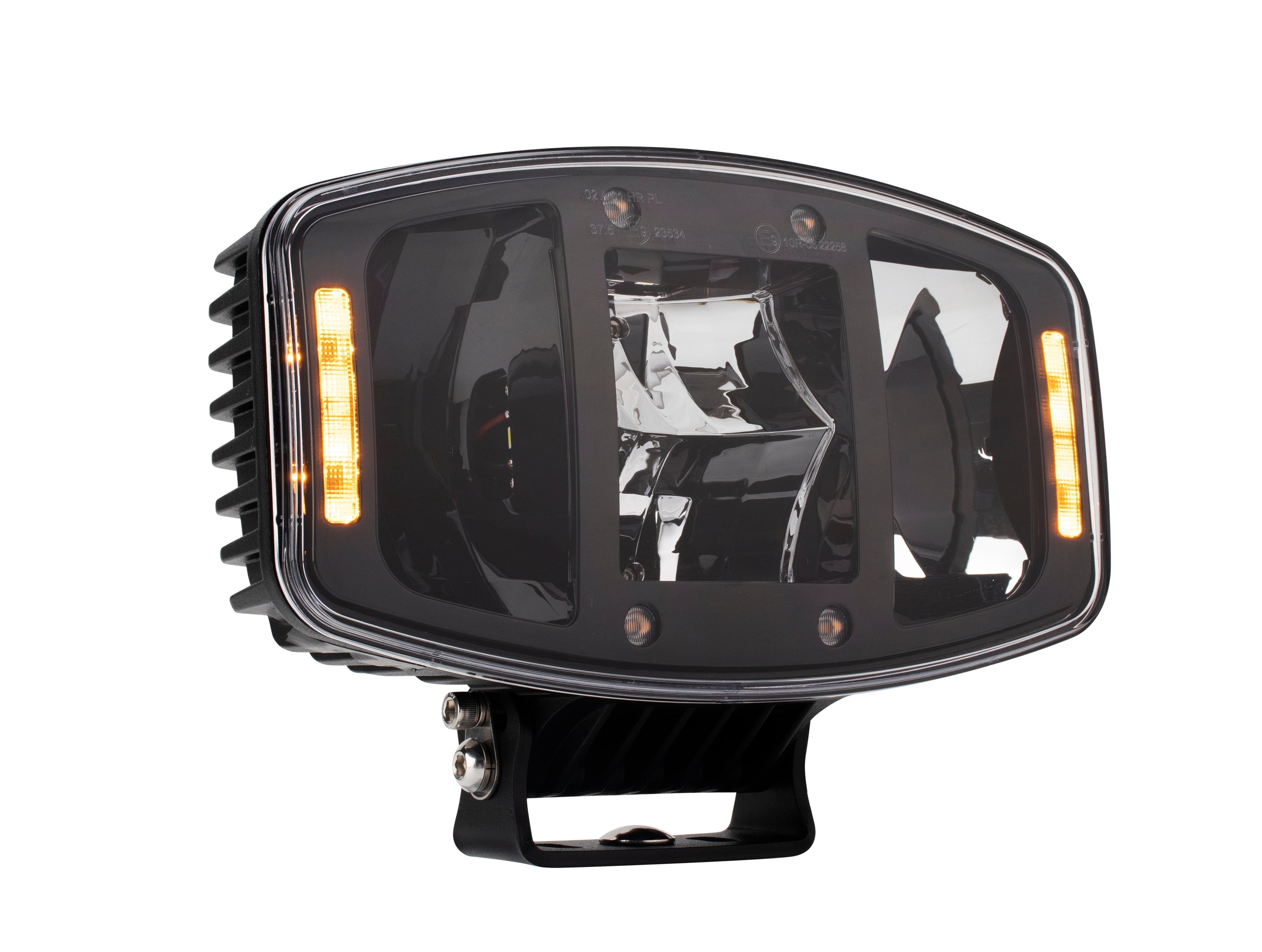

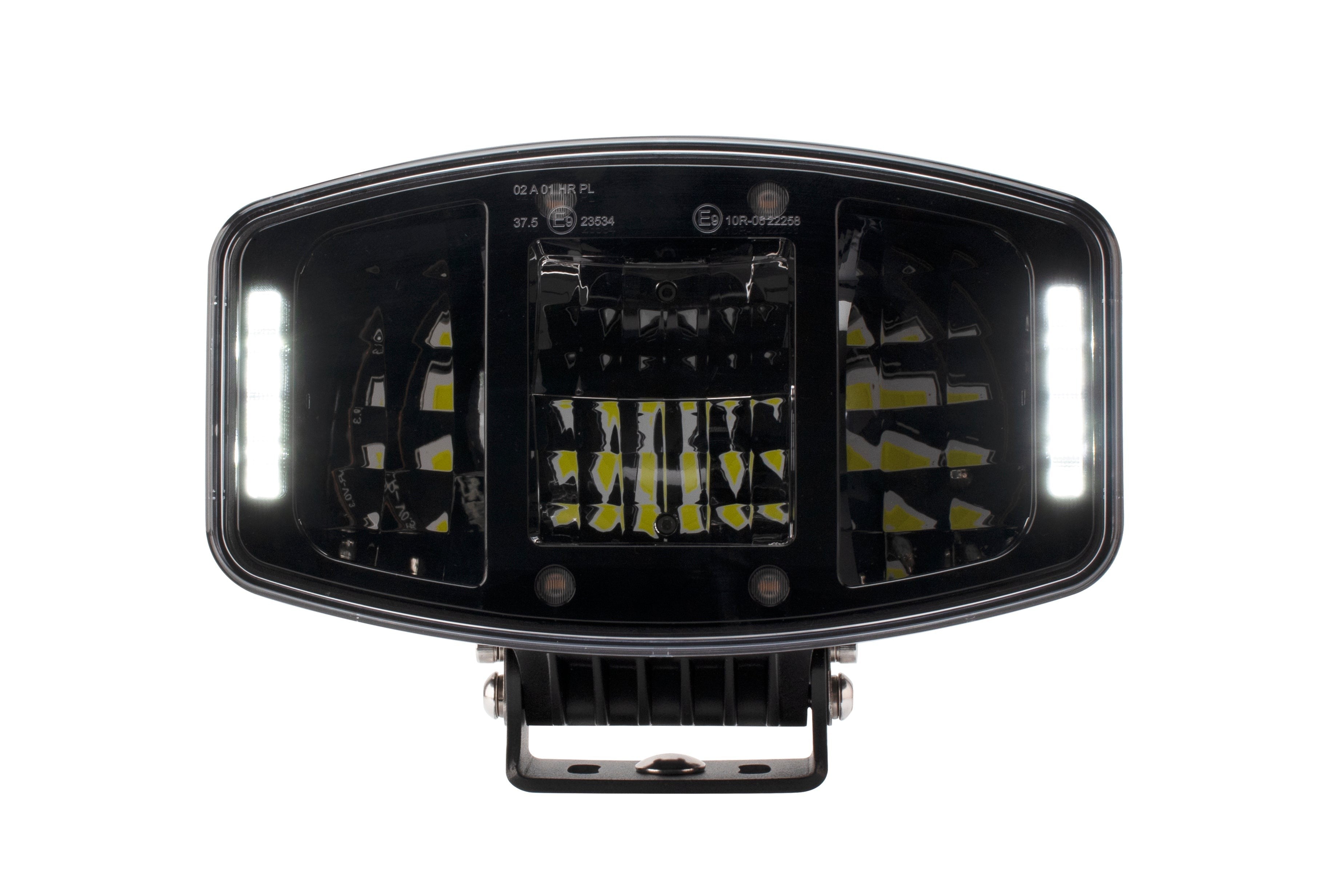

• Dual colour position light with 4 × position LEDs selectable between Xenon white and amber, so you can match fleet identity, operating rules or visibility needs.

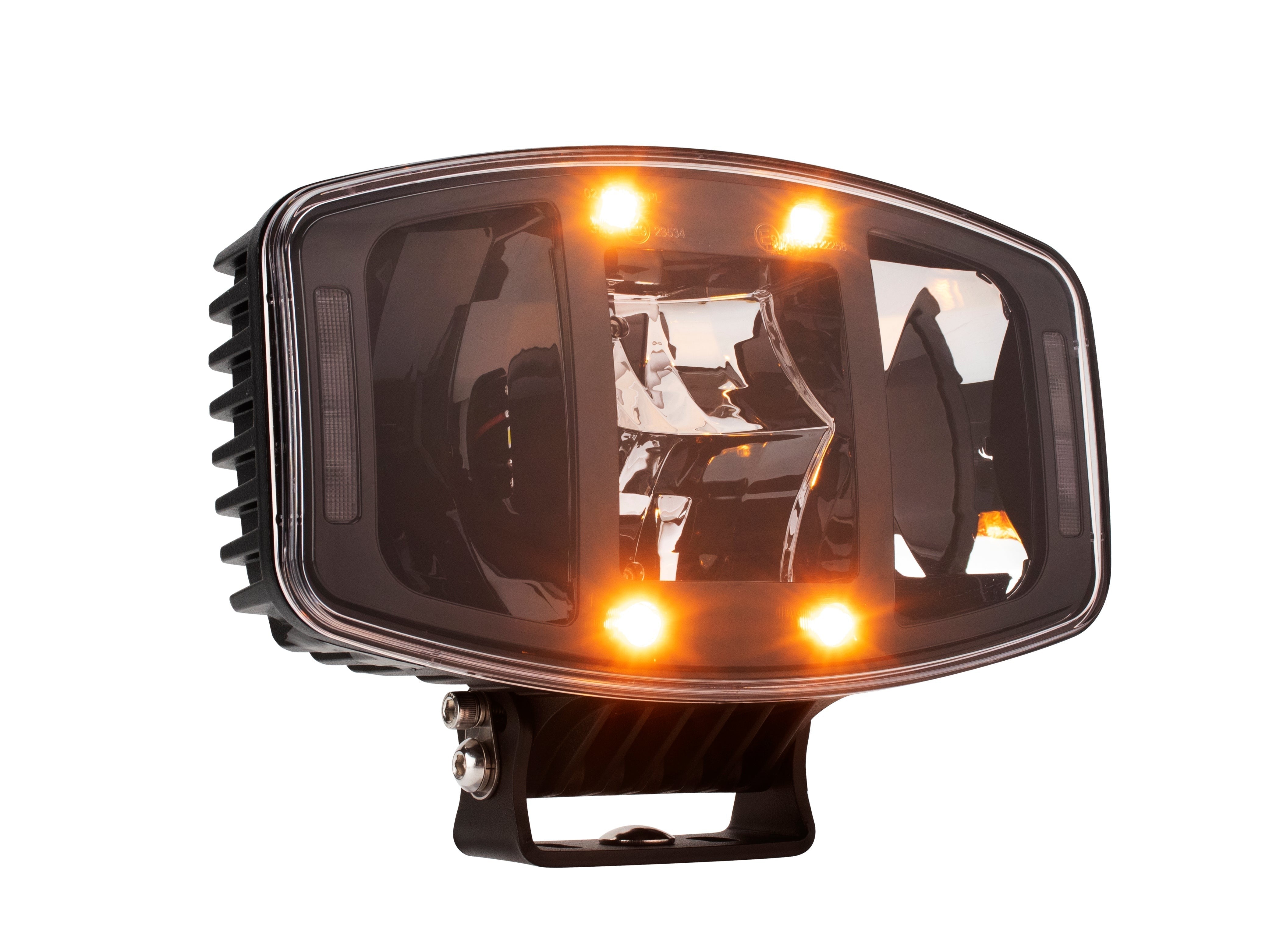

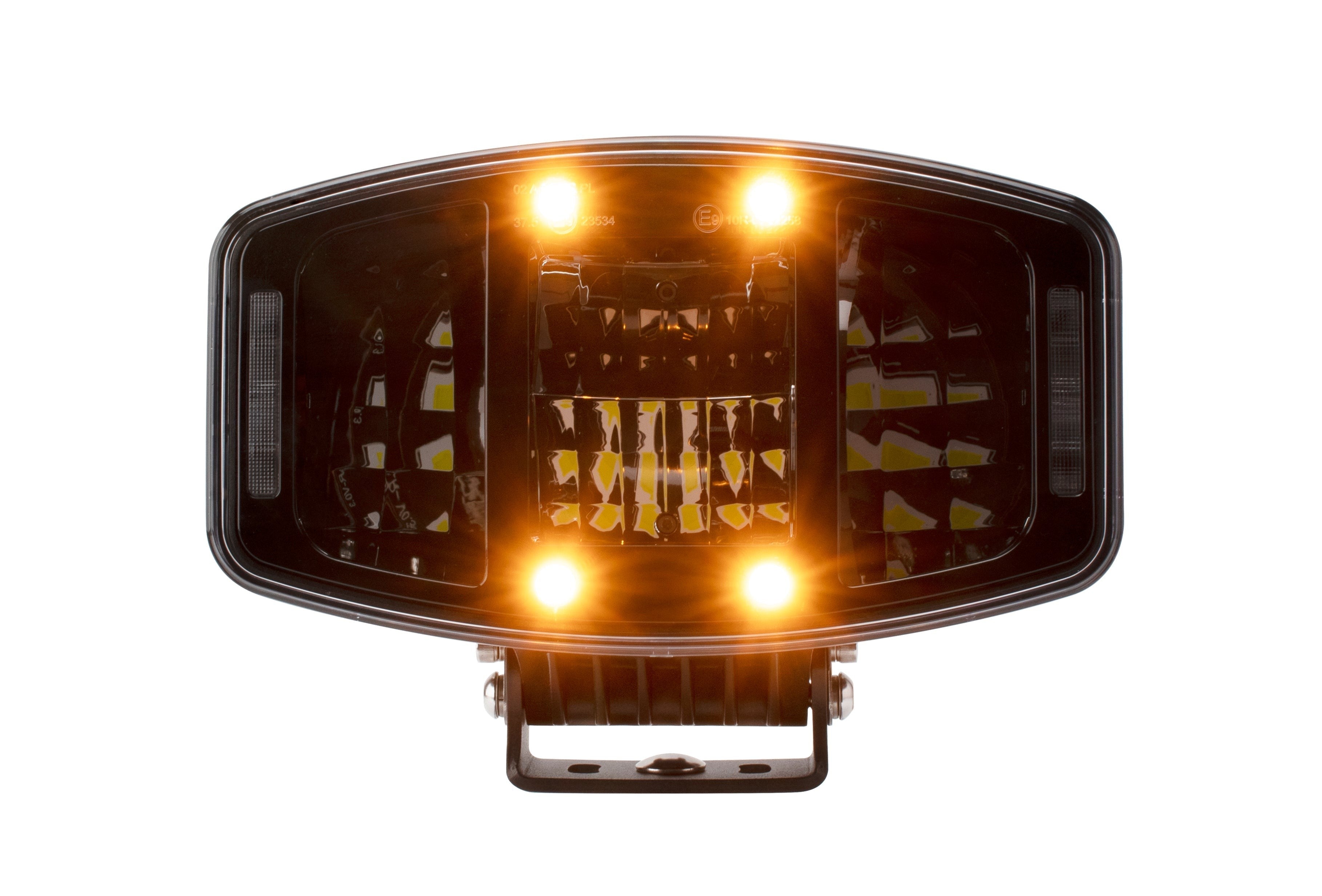

• Integrated amber warning strobe using 4 × built‑in amber LEDs, allowing you to add a hazard warning function without separate beacons or extra mounting points.
• Optimised optical system with TIR (Total Inner Reflection) and side reflective optics, improving beam control, reducing stray light and maximising lumen efficiency.
• Wide voltage range 9–36 V DC with 7.7 A @ 12 V and 3.6 A @ 24 V current draw, suitable for commercial vehicles, 4x4s, plant and agricultural machinery.
• Rugged construction with die‑cast aluminium alloy housing and adjustable stainless‑steel bracket, designed for high vibration environments and daily use.
• IP68 / IP69K ingress protection, providing sealed defence against dust, immersion, and high‑pressure, high‑temperature cleaning, ideal for harsh European winters and off‑road use.
• ETM (Electronic Thermal Management) and pressure equalisation membrane, protecting LEDs and seals, stabilising performance and extending service life in changing climates.

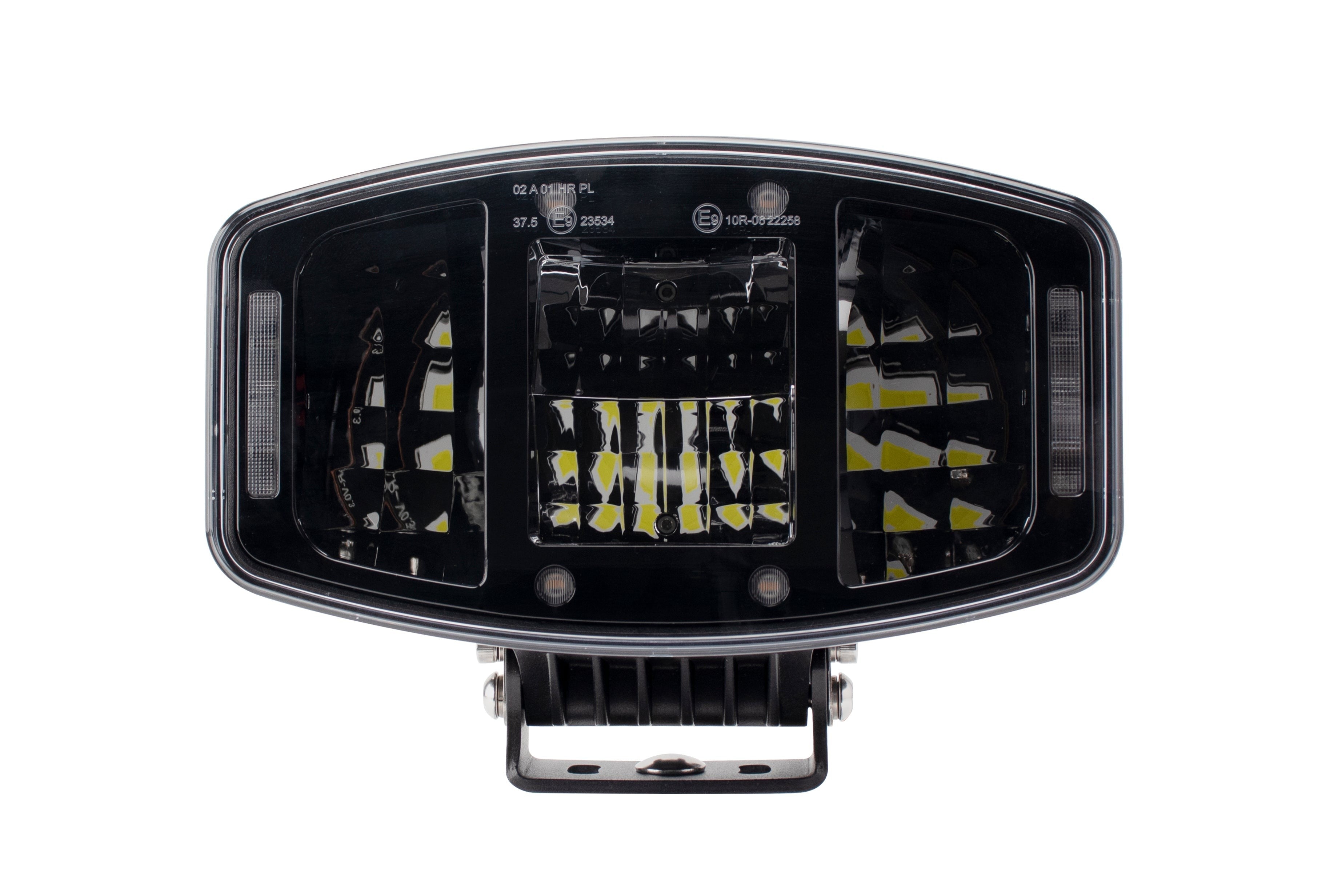

• ECE approved: R112 (Ref. 37.5) for driving light performance, R7 for white position light, and R10 for EMC, supporting road‑legal and electrically safe installations where these approvals are required.
• 6‑pole DT connector with 6‑pin adapter included, giving a secure, professional-grade electrical connection and easier integration into existing wiring looms.

Ideal Applications

• Highway maintenance and utility fleets needing powerful forward lighting with integrated position and warning functions on pickups, service vans and crew cabs.
• 4x4, off‑road and expedition vehicles where long-range driving light, daylight-like colour and compact strobe capability are all required.
• Agricultural and forestry machinery (tractors, telehandlers, harvesters) working in dusty, wet and high‑pressure washdown environments.
• Construction and mining equipment operating at night or in low visibility, where visibility and warning capability are essential for site safety.
• Emergency support, recovery and roadside assistance vehicles that need both performance lighting and attention-grabbing amber warning in a single unit.
