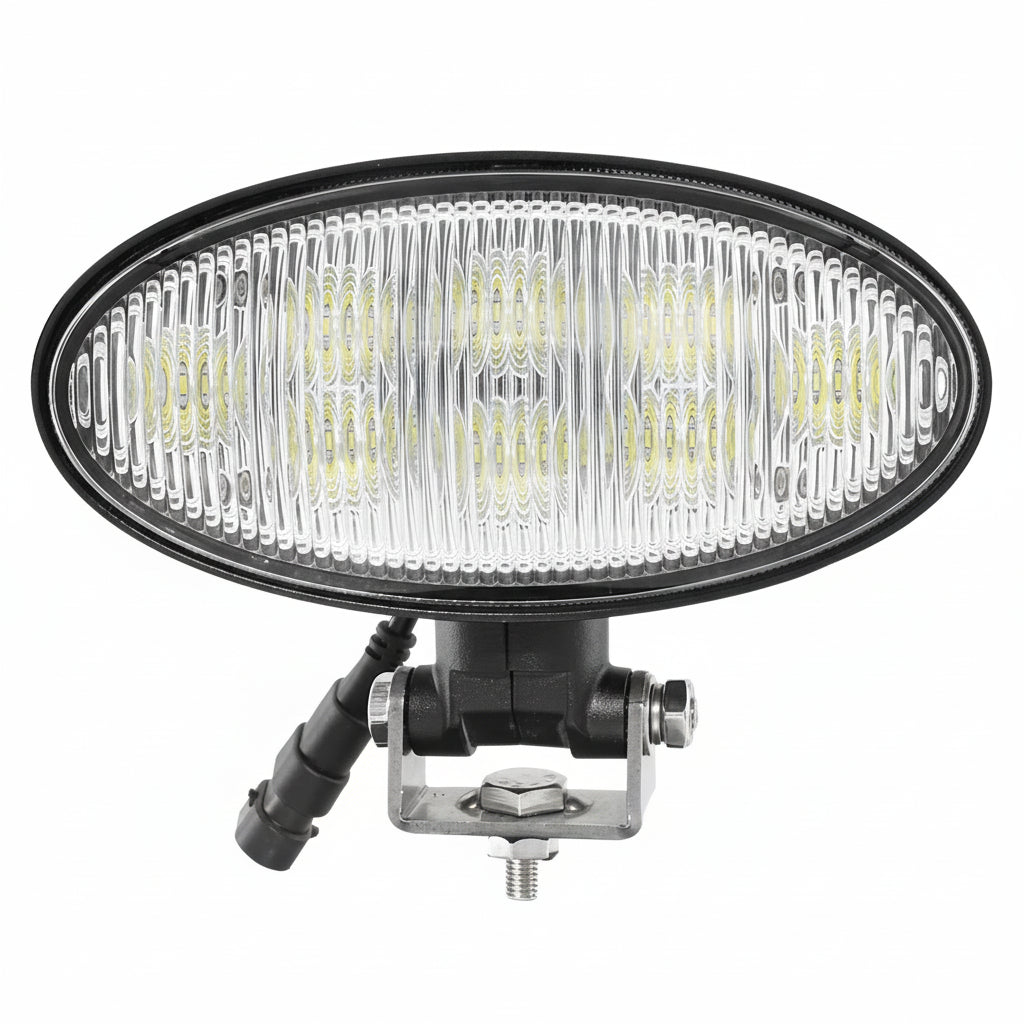

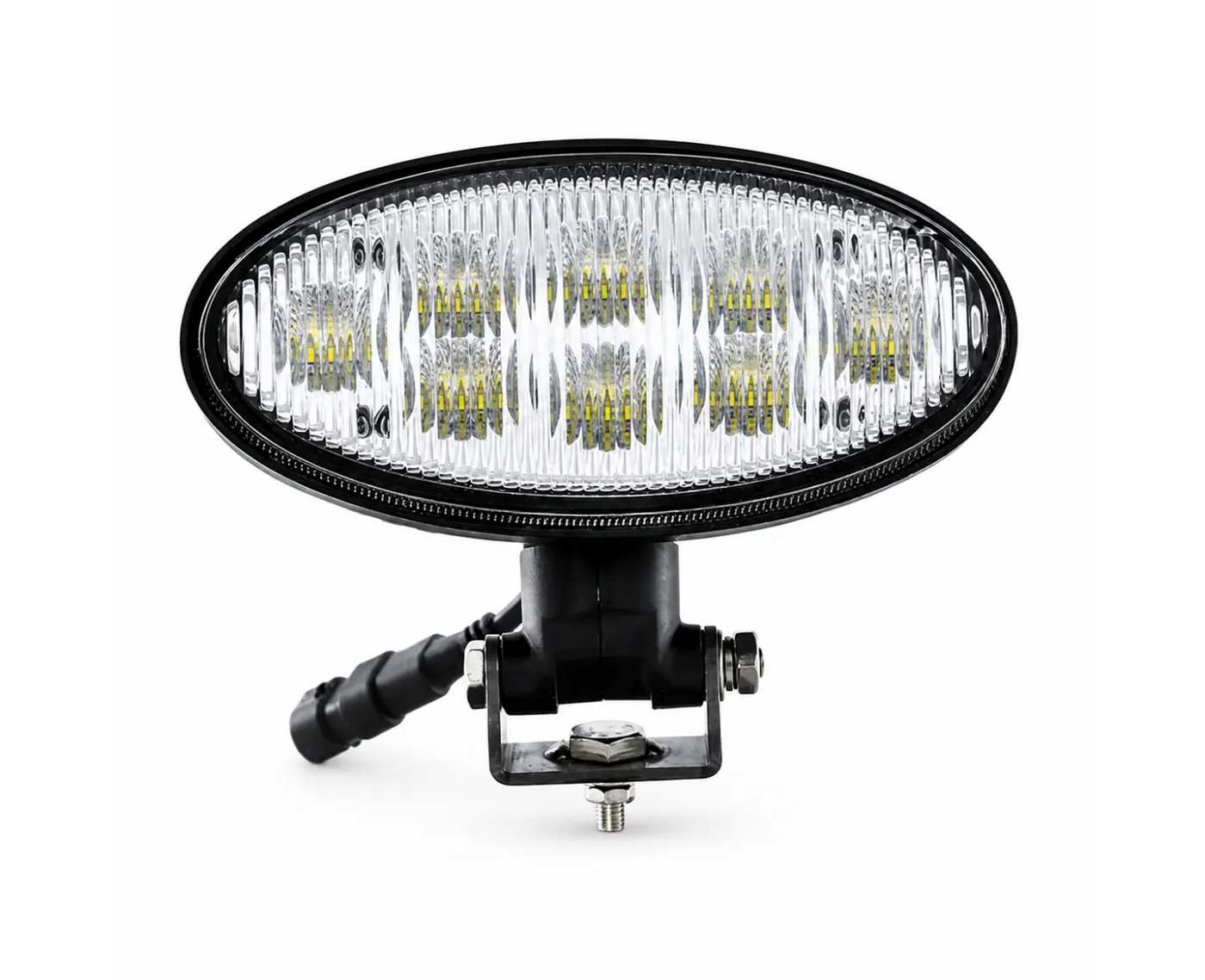

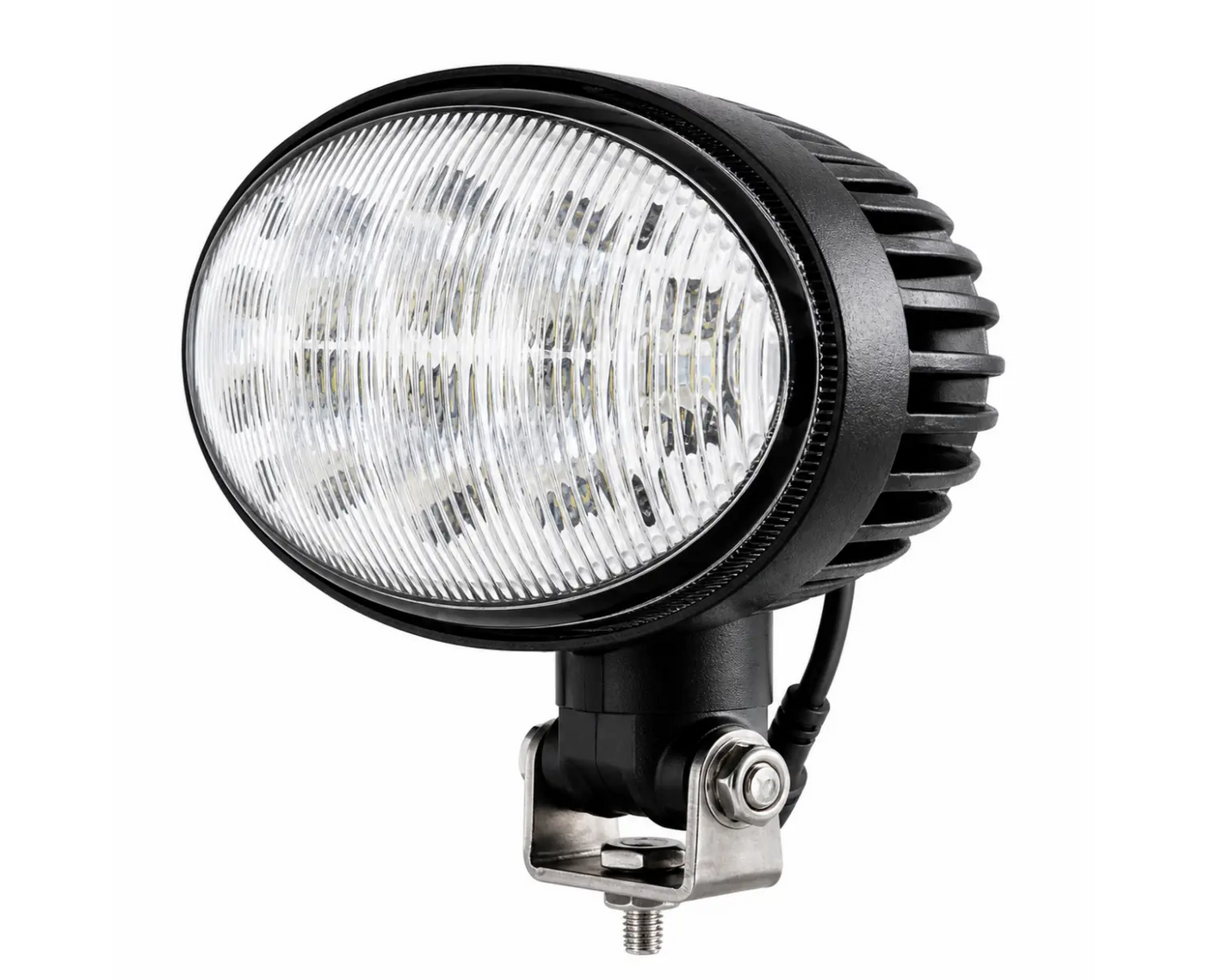

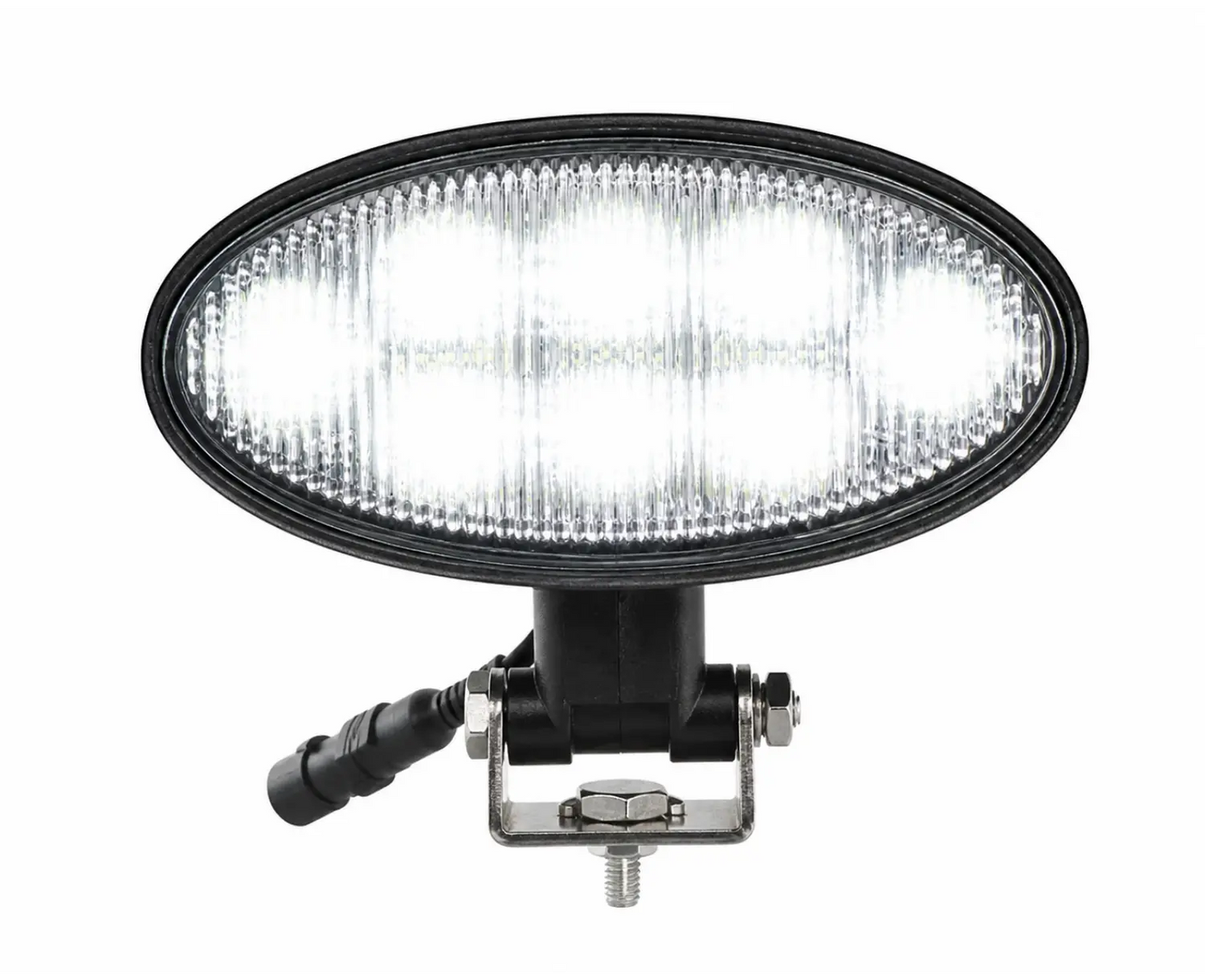

40 Watt LED Arbeitsleuchte - LG8350

40 Watt LED Work Light – LG8350

The LG8350 40 watt LED work light delivers a clean, punchy 4,000 lumen beam that turns night work into a controlled, safe workspace. Designed as a heavy-duty upgrade for John Deere R Series tractors and compatible 5M, 5R, 6R, 7R, 8R and 9R machines, it drops in where the original RE574752 light sits but adds serious performance. EMC ECE R10 and CISPR 25 Class 4 approvals keep your tractor electronics protected and your radio clear.

This 40 W LED work lamp is built for long shifts, harsh weather and constant vibration. The die-cast aluminium housing and stainless-steel bottom-mount bracket give you a rigid, corrosion-resistant package that stays where you bolt it, even on high-horsepower 8R and 9R tractors. With a 9–32 V DC input range, it’s ready for both 12 V and 24 V systems, so it integrates neatly across mixed fleets.

Light output matters. But so does control. The LG8350 packs 8 × 5 W high-output LEDs, delivering a strong 4,000 lm working beam that helps operators see the implement, the row and the ground around the tractor with confidence. That extra clarity reduces missed patches, protects expensive kit and cuts fatigue on long runs, especially during spraying, drilling or night-time carting.

Electromagnetic interference is a real headache on modern tractors. This work light is approved to ECE R10 and tested to EMC CISPR 25 Class 4, which is the automotive standard for low electrical noise. So the light runs clean alongside GPS guidance, ISOBUS control, radios and in-cab electronics without causing flicker, dropouts or crackle in the cab.

On the durability side, the IP69K ingress protection rating means the housing and seal design can handle high-pressure, high-temperature washdowns and wind-driven rain. You can pressure-wash the machine at the end of the day without nursing the lights. Dimensions are 176.4 × 80.1 × 86.4 mm (W × H × D), so it’s compact enough to fit in OEM locations while still giving you a broad, usable working area.

Installation is straightforward. The bottom-mount bracket lines up easily, and the 9006 male & 9006 female connectors with 20 cm cable make plug-in connection simple on compatible John Deere models. It’s designed as a smart LED upgrade where you want OEM-style fit but better light, better efficiency and less maintenance than halogen units.

Key Features

• 40 W LED power (8 × 5 W LEDs) for strong, reliable work illumination with low current draw compared with halogen lamps
• 4,000 lumen output for clear visibility around the tractor, implement and yard in poor light
• Wide voltage range 9–32 V DC, suitable for both 12 V and 24 V agricultural and construction electrical systems
• Heavy-duty die-cast aluminium housing for excellent heat dissipation and long LED life under continuous use

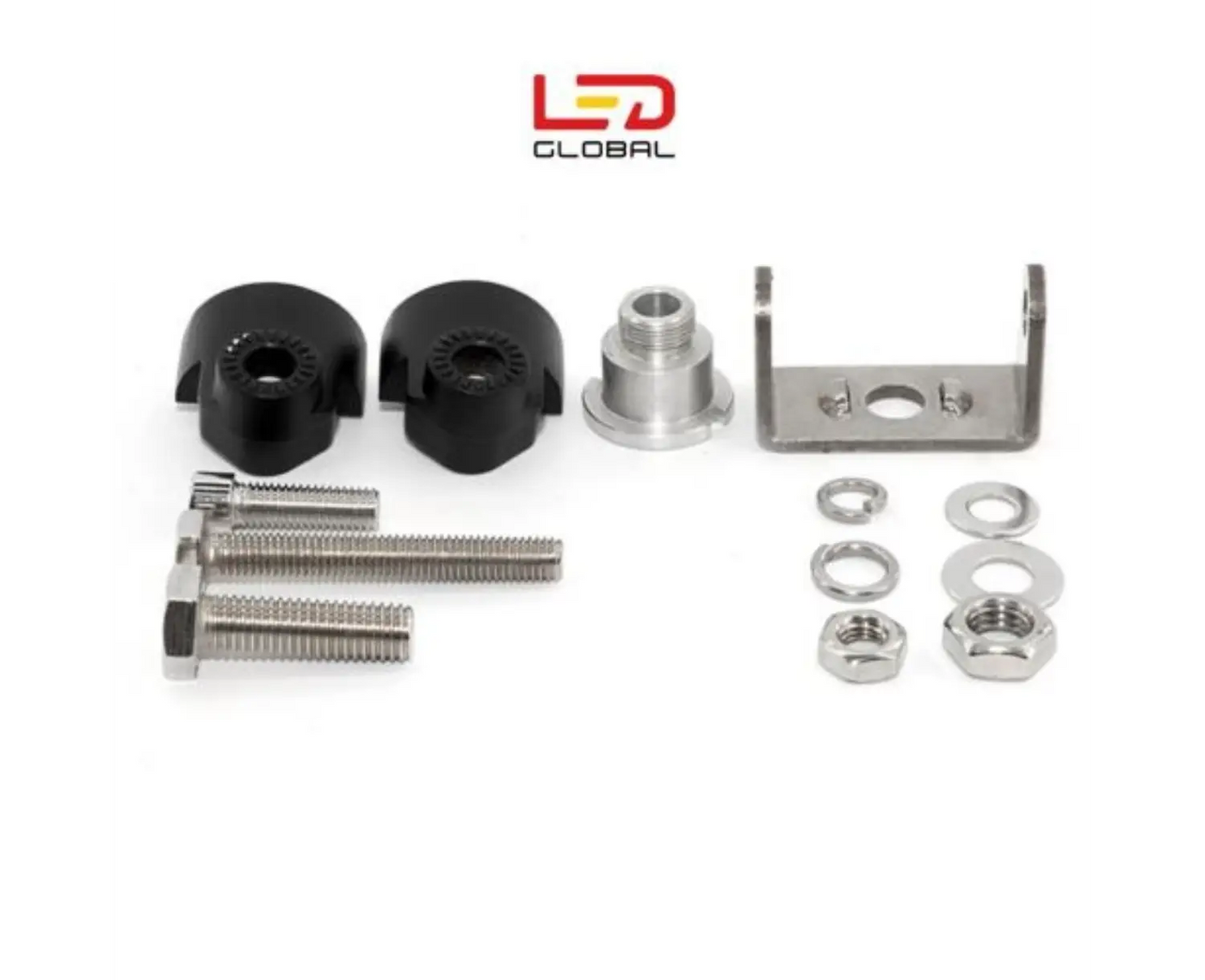

• Stainless-steel bottom-mount bracket for secure, corrosion-resistant mounting on exposed tractor positions
• IP69K ingress protection for reliable sealing against dust, mud, heavy spray and high-pressure hot washdowns
• EMC approved – ECE R10 and EMC CISPR 25 Class 4 to protect sensitive electronics and keep radios and GPS systems stable

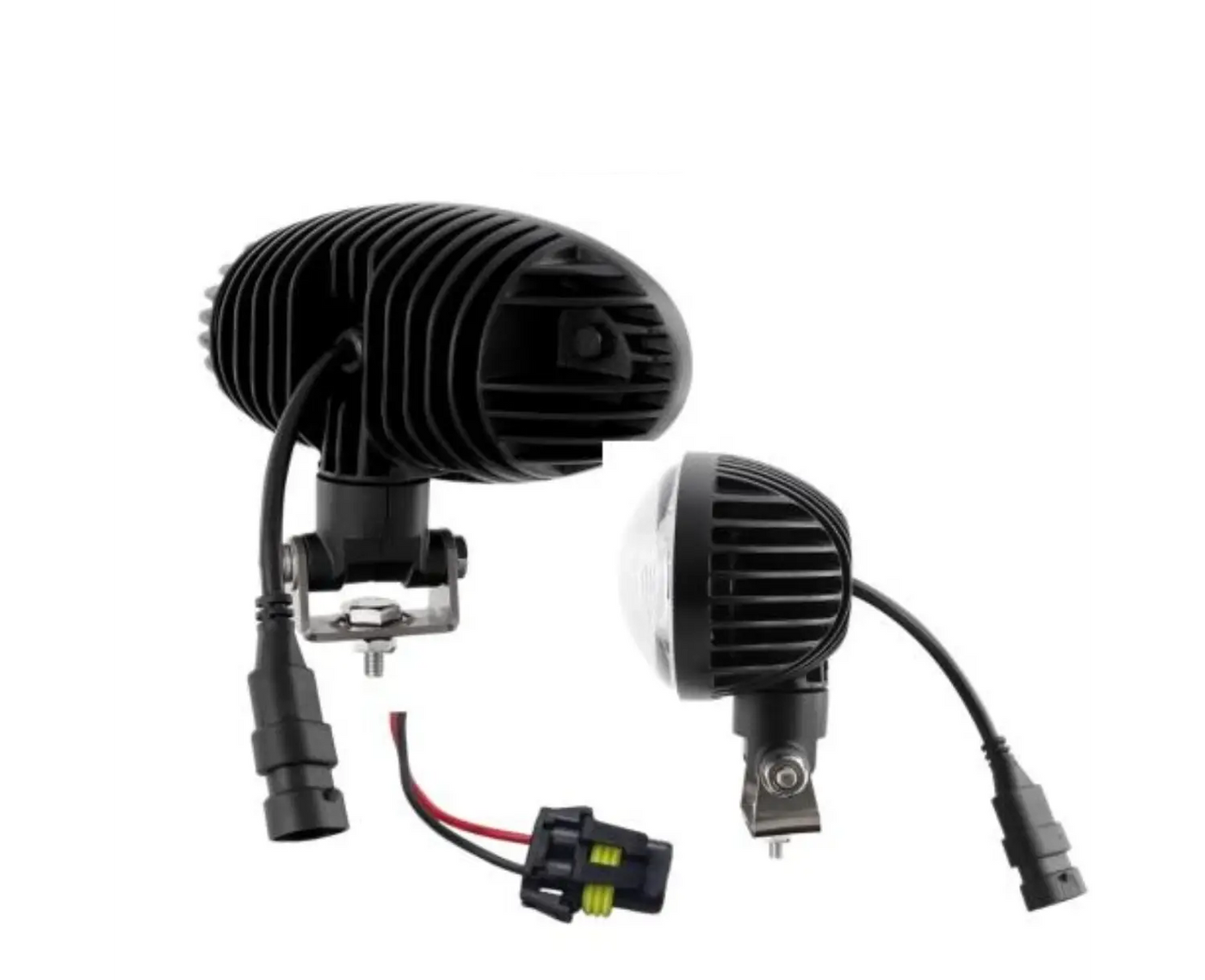

• Connector: 9006 male & 9006 female with 20 cm cable for fast, tidy installation on compatible harnesses
• Compact size – 176.4 × 80.1 × 86.4 mm (W × H × D) for easy fitment in OEM light locations
• O.E.M reference: RE574752 and compatibility with John Deere 5M, 5R, 6R, 7R, 8R, 9R Series for direct upgrade on many tractors

Ideal Applications

• John Deere 6R, 7R, 8R, 9R Series tractors needing higher-output LED work lights in OEM mounting points
• John Deere 5M and 5R Series tractors used for loader work, baling, topping and yard work after dark
• Field operations such as cultivating, drilling, planting and spraying where clear side and rear lighting improves accuracy and safety
• Contractor fleets looking to standardise durable, EMC-safe LED work lamps across mixed John Deere line-ups
• Heavy-duty farm and estate machinery regularly pressure-washed and operated in wet, muddy or dusty environments
