40 Watt LED Motorhauben-Arbeitslicht - LG873

40 Watt LED Bonnet Work Light – LG873

The 40 Watt LED bonnet work light LG873 is a compact, high-output upgrade for agricultural and industrial machines that need serious light under the bonnet and around the tractor. It delivers 3,200 lumens of cool white flood light from a rugged die-cast aluminium body, built for daily work rather than showroom looks. Fully ECE R10 and CISPR 25 Class 4 approved, it’s engineered to run clean on modern 9–32 V electrical systems without upsetting sensitive electronics.

This bonnet work lamp exists for one reason: to replace weak, ageing halogen units with a direct-fit LED replacement that simply works, every day. At 40 W with a 3,200 lm output, you get a strong, even flood beam that fills the working area around the front of the machine, so drivers can see clearly when hitching implements, checking hydraulics or working late in the yard. The 6,000 K cool white light gives sharp contrast on metal, rubber and ground conditions, making faults and obstacles easier to spot.

The housing is die-cast aluminium with a tough polycarbonate lens, so it shrugs off vibration, mud and the usual knocks that come with farm and contracting work. Rated IP68, it’s fully protected against dust ingress and designed to withstand prolonged immersion, which in the real world means it keeps working through heavy rain, washdowns and slurry. Lumen output and beam control are matched carefully to the compact size – 93.5 × 83 × 55 mm – for an OE-style look without bulky add-ons.

Electrically, the LG873 runs on 9–32 V DC, so it’s suitable for both 12 V and 24 V machinery across mixed fleets. It’s approved to ECE R10 and EMC CISPR 25 Class 4, which means it’s designed to minimise electrical interference with radios, GPS, ISOBUS and other sensitive control systems. Lux performance is proven in testing: 12 lux at 50 m and 1 lux at 186 m, giving strong foreground light with usable throw down the field or yard.

Compatibility is a key part of the design. This LED work lamp is a replacement for OEM references AL209455, 87539115 and 87328621, with fitment widely used on Deutz-Fahr Agrotron and Valtra N, T, C and M Series tractors, among others. Mounting points and form factor follow typical OE patterns, so installation is straightforward for workshop fitters and mobile electricians. Original equipment names and numbers are quoted strictly for reference; they don’t imply OEM manufacture, but they do make cross-referencing easier when you’re ordering for a fleet.

Key Features

• 40 W LED output delivering 3,200 lumens, giving a clear upgrade over standard halogen bonnet work lights.
• Flood beam pattern for wide, even illumination around the front of the tractor and bonnet area, ideal for close-range work and attachment changes.
• 9–32 V DC operating range, suitable for both 12 V and 24 V systems across mixed agricultural and industrial fleets.
• 6,000 K cool white colour temperature, providing crisp, daylight-style light that makes leaks, wear points and obstacles easier to see.

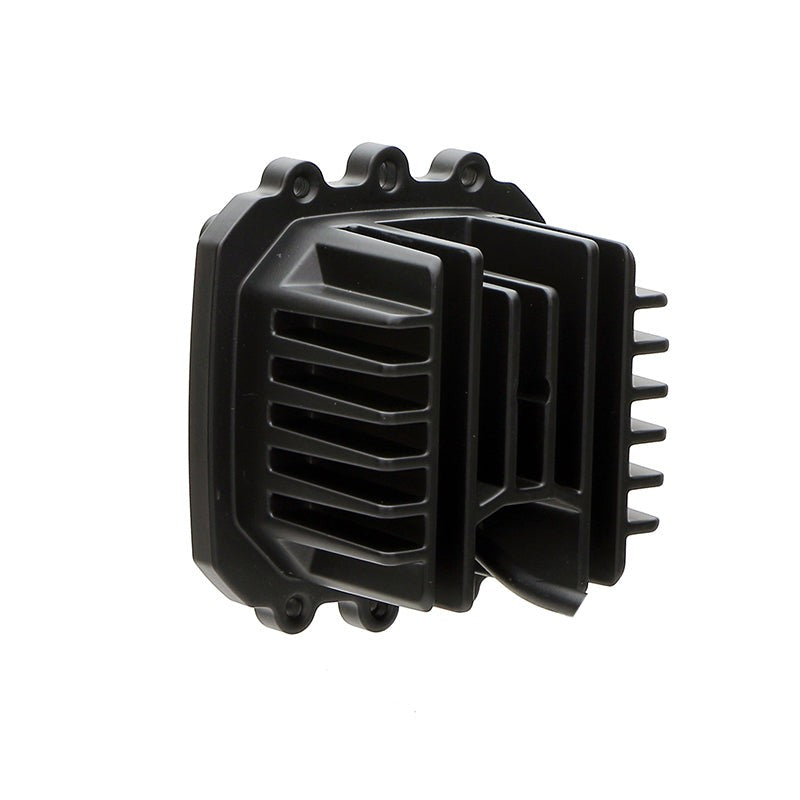

• Die-cast aluminium housing with polycarbonate lens for strength, impact resistance and good thermal management in heavy-duty service.
• IP68 ingress protection, dust-tight and designed to withstand prolonged immersion, so it copes with rain, slurry, and pressure washing.
• EMC compliant – ECE R10 and CISPR 25 Class 4 approved, helping prevent interference with radios, GPS and control electronics.
• Proven lux performance – 12 lux at 50 m and 1 lux at 186 m, giving strong working light and usable distance coverage.

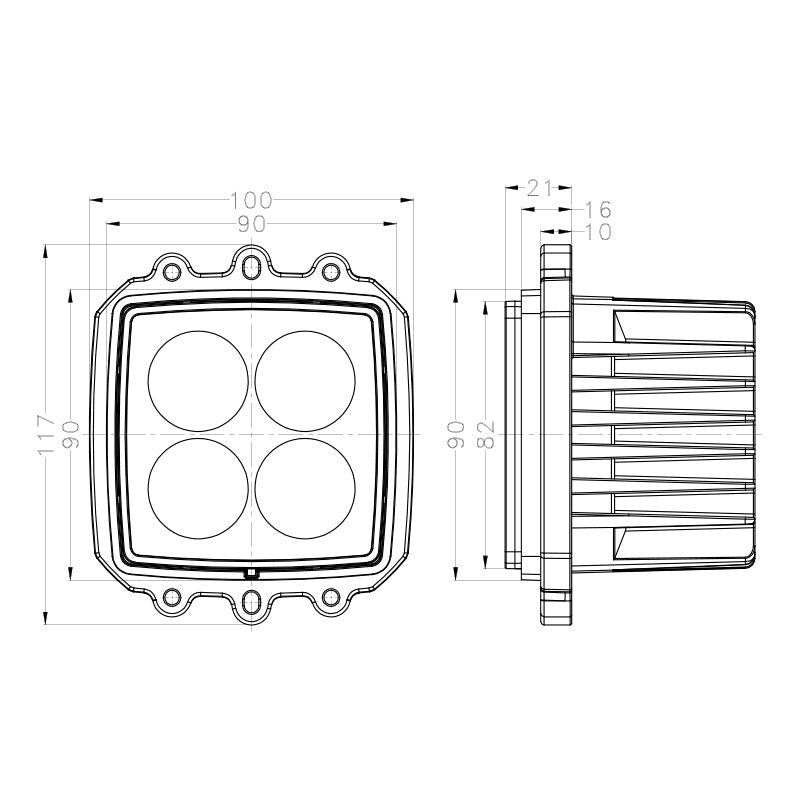

• Compact size 93.5 × 83 × 55 mm, allowing neat OE-style installation without obstructing panels or service access.
• OEM cross-reference: replaces AL209455, 87539115, 87328621 on selected Deutz-Fahr Agrotron and Valtra models, simplifying fleet upgrades.

Ideal Applications

• Deutz-Fahr Agrotron models: 4.70, 4.80, 4.85, 4.90, 4.95, 6.00, 6.01, 6.05, 6.15, 6.20, 6.30, 6.45, TTV 1130, TTV 1145, TTV 1160, 155-155 MK2, 106-106 MK2, 115-115 MK2, 135-135 MK2, 140-140 MK2, 160-160 MK2, 165-165 MK2, 175-175 MK2, 200-200 MK2, 260-260 MK2, 85-85 MK2.
• Valtra tractors: N1–3 Series, T1–3 Series, C Series and M Series bonnet and front work light positions.
• Agricultural contractors upgrading halogen bonnet lights to high-performance LED work lamps across mixed fleets.
• Farm workshops and plant maintenance teams needing a rugged LED bonnet or front work light for tractors, handlers and industrial machines.
