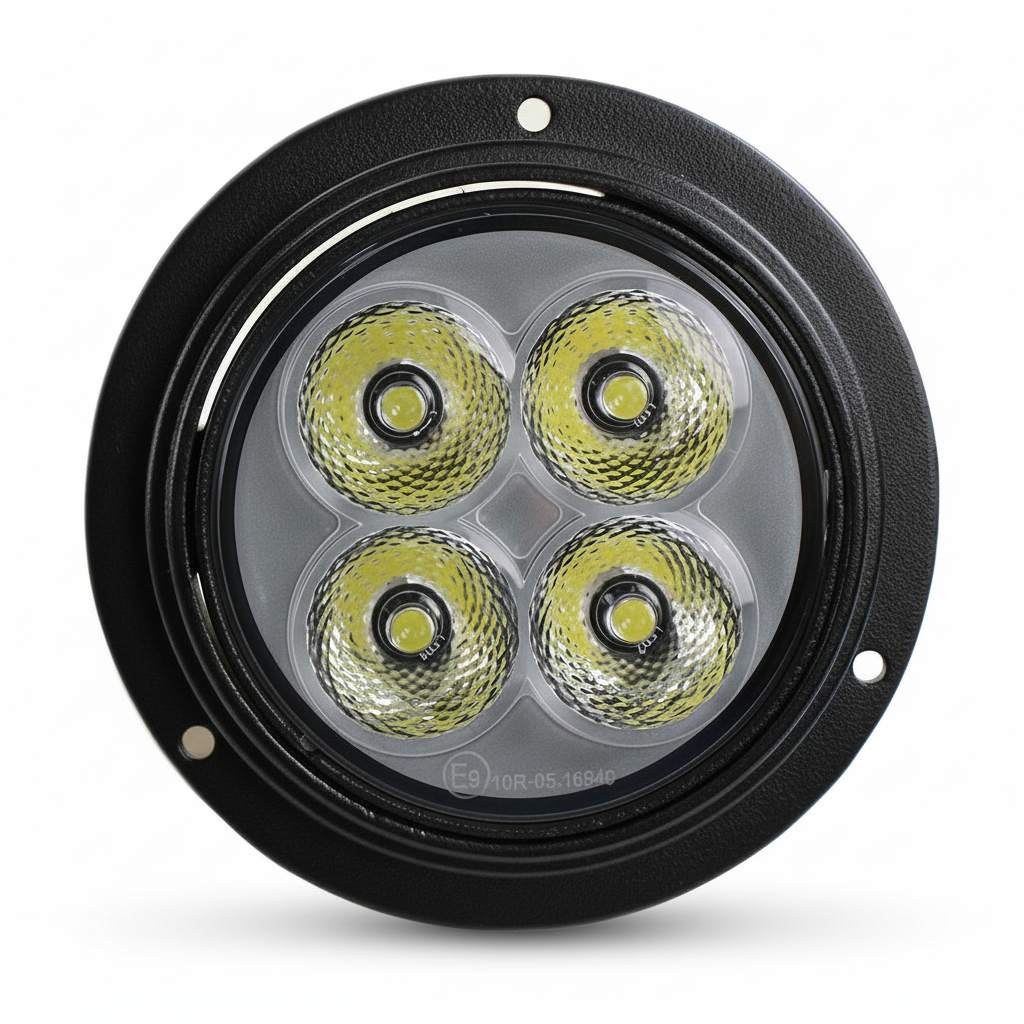

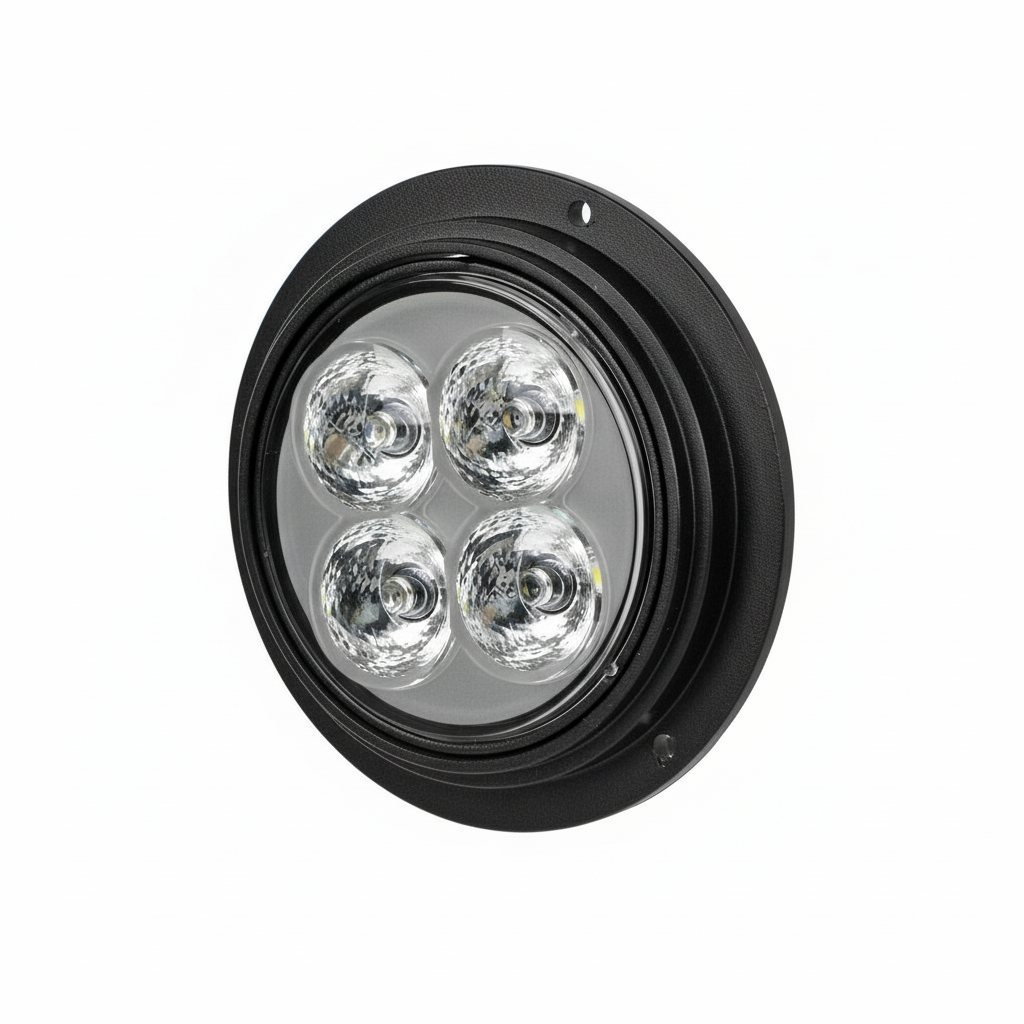

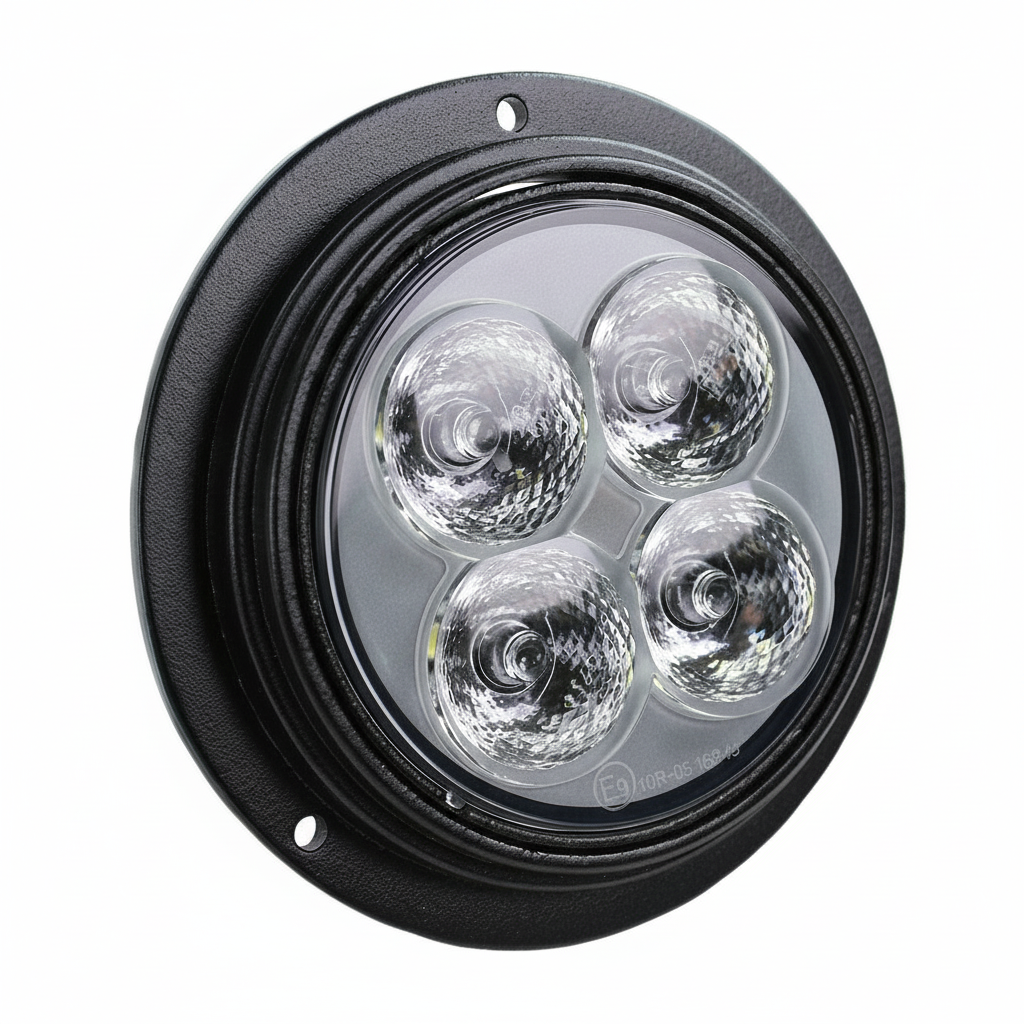

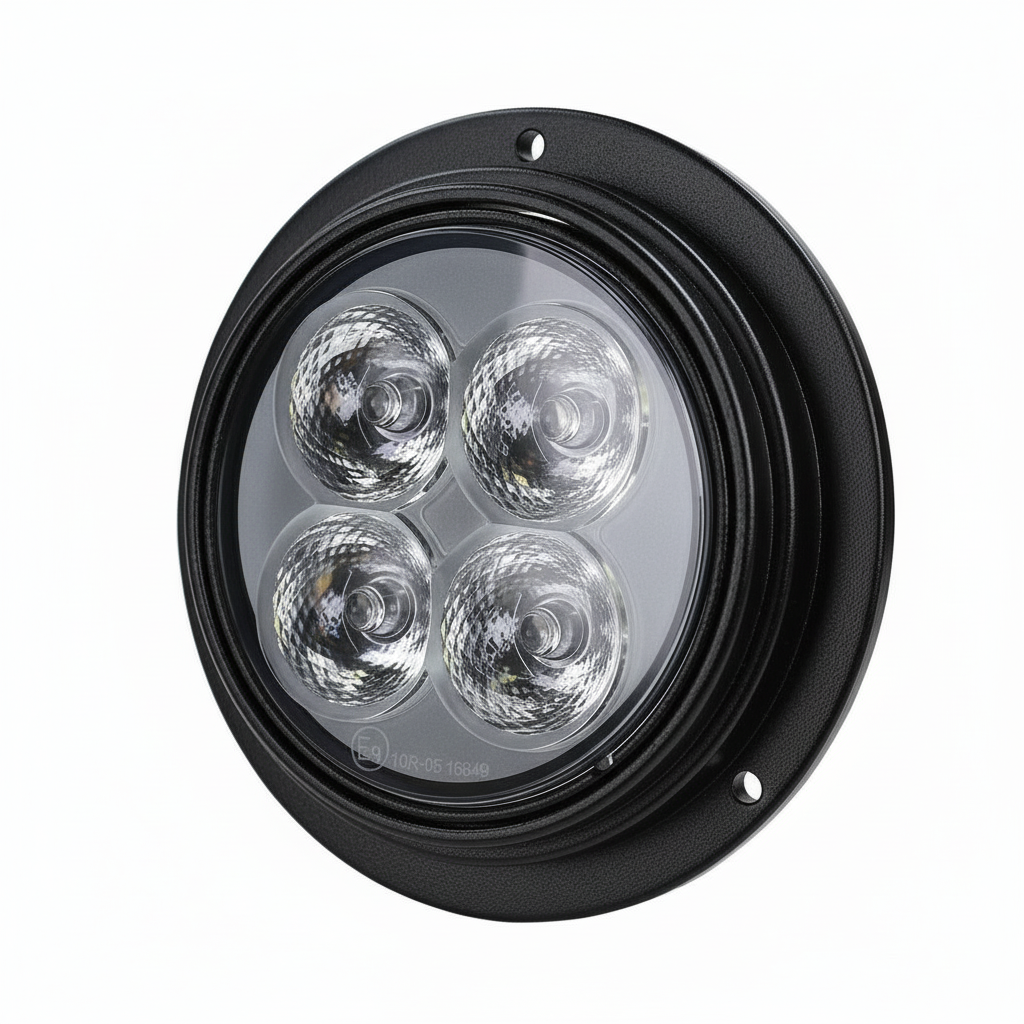

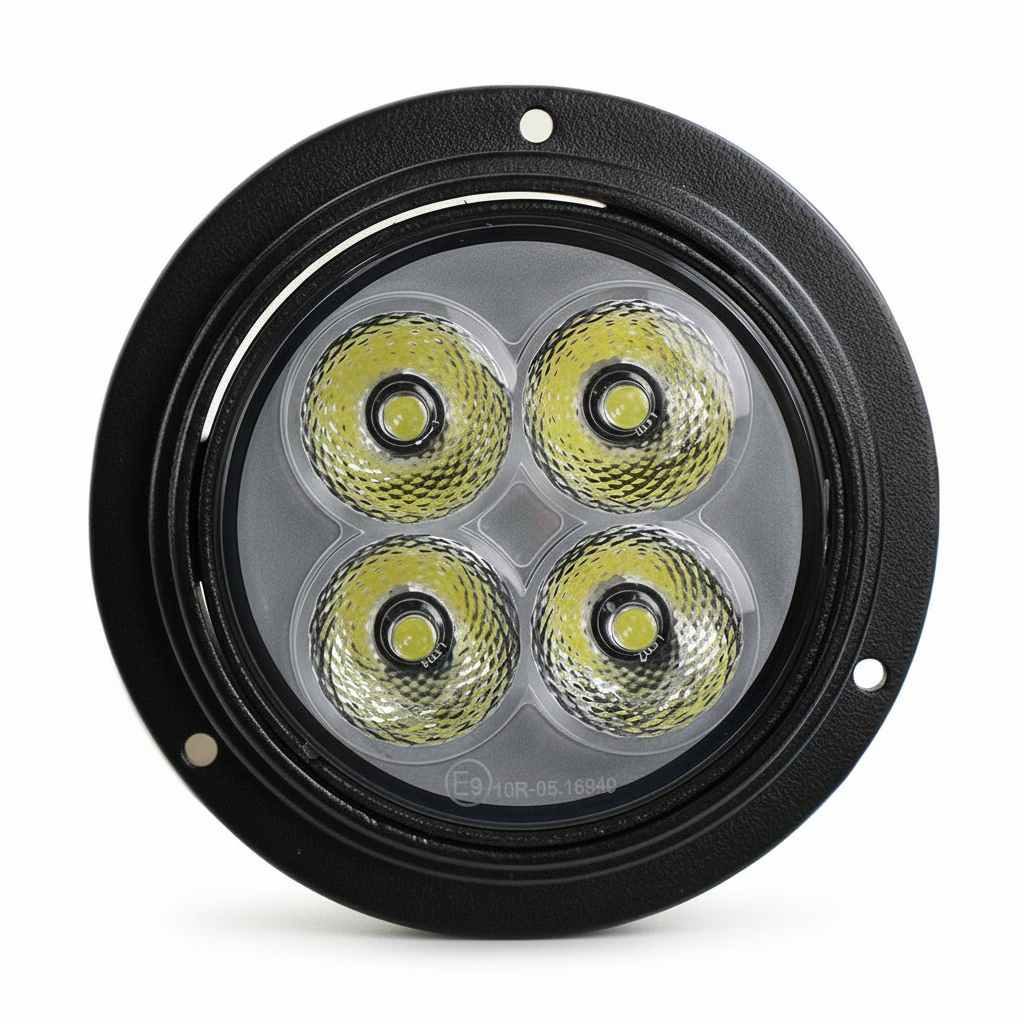

40 Watt LED Round Bonnet Work Light – LG830

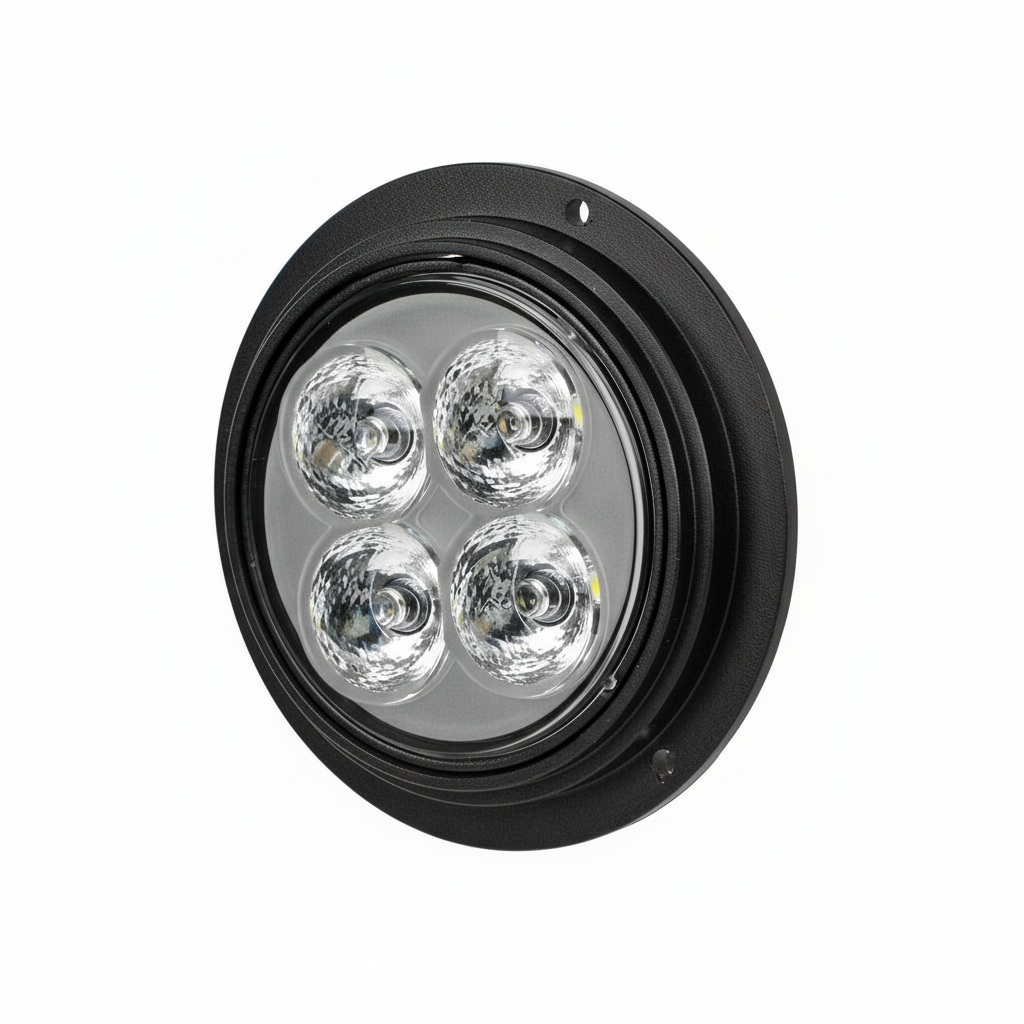

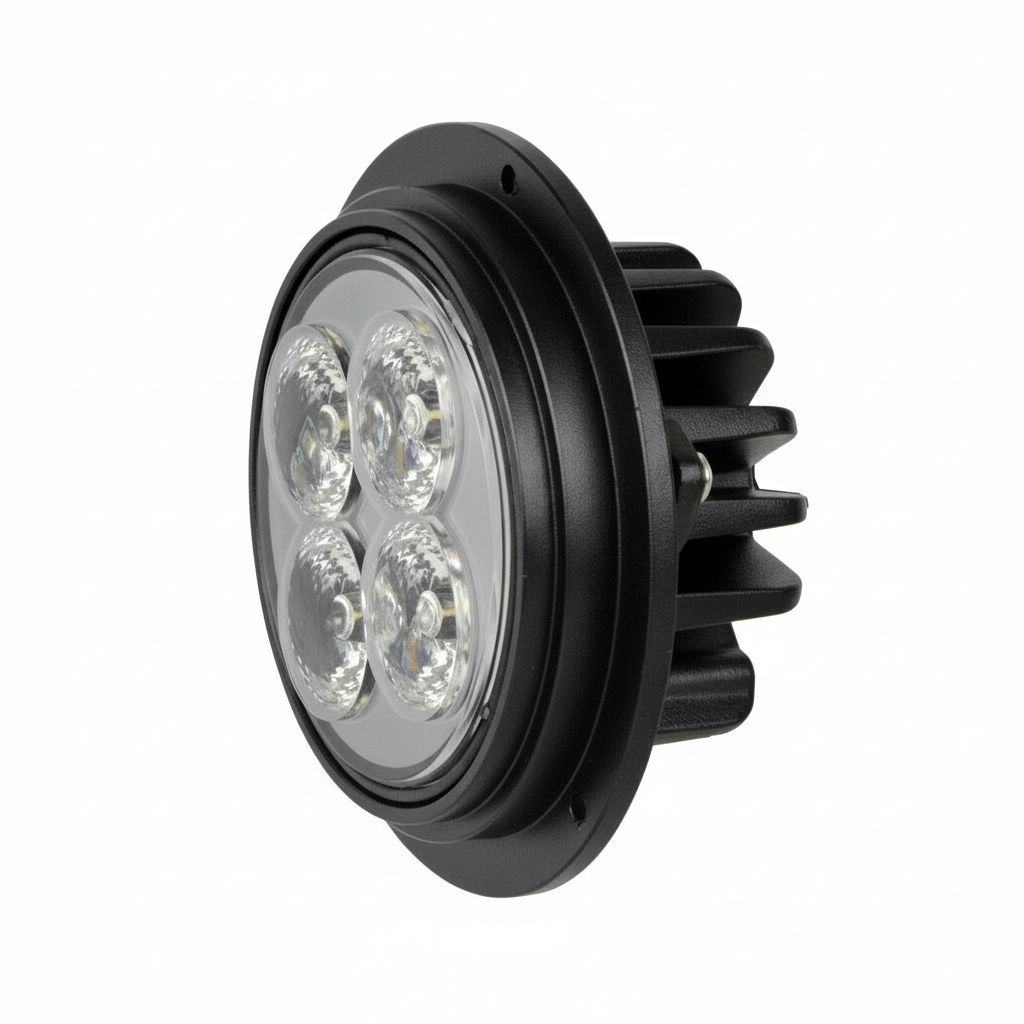

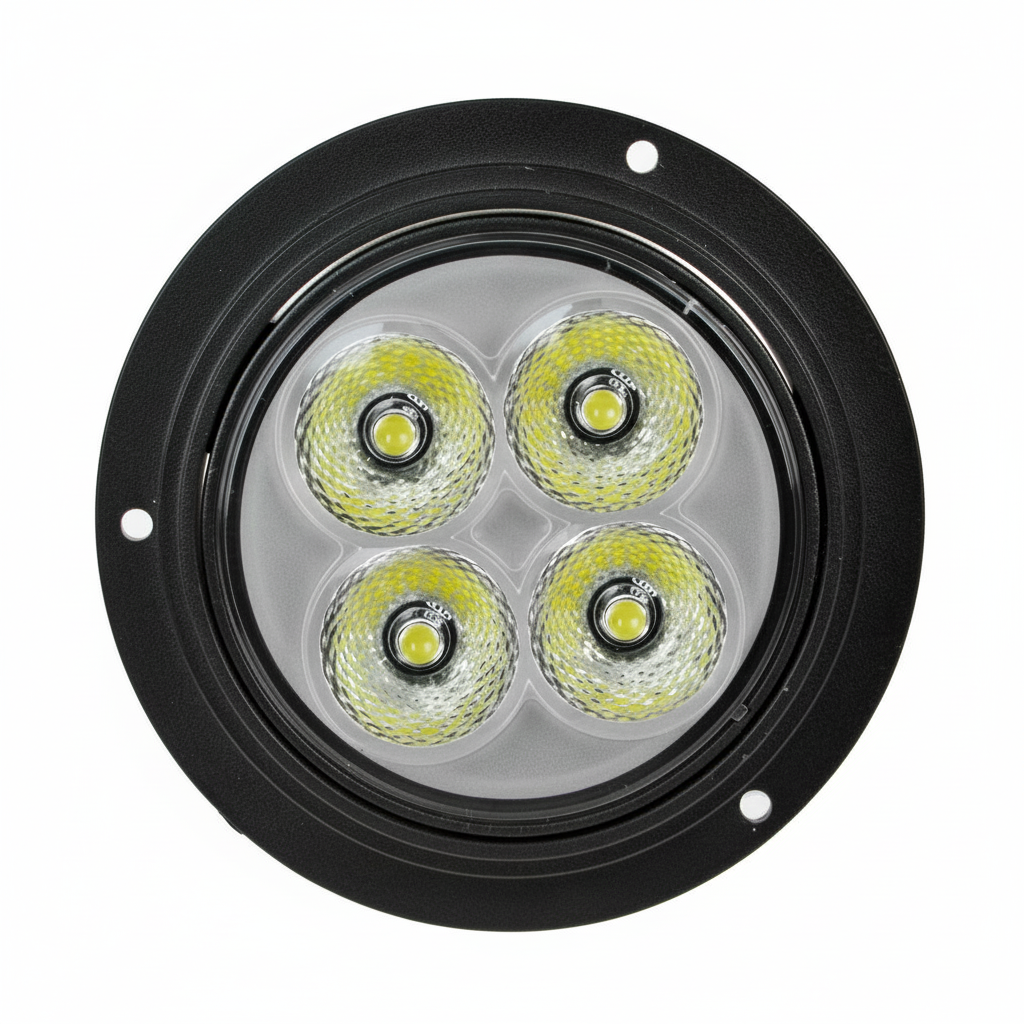

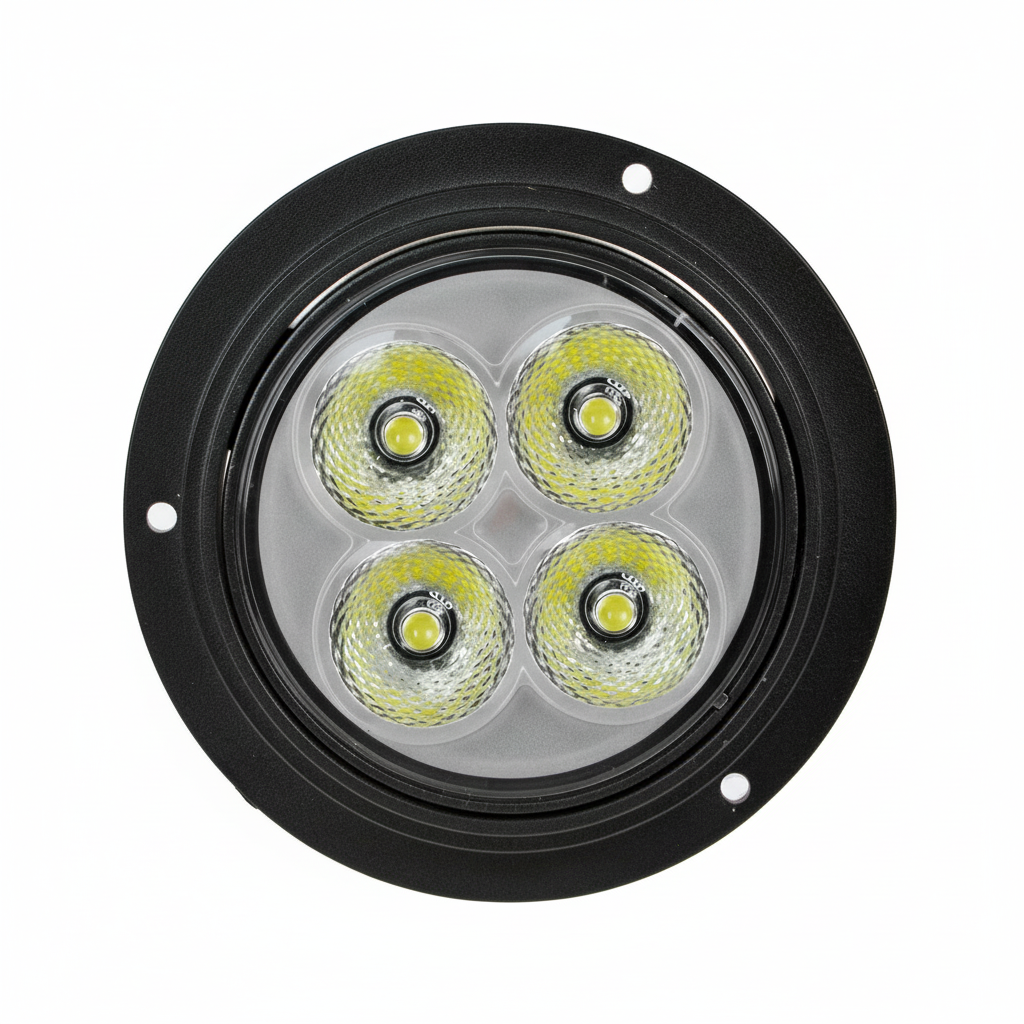

The 40 W LED round bonnet work light LG830 is a compact, high-output upgrade for modern agricultural and industrial tractors. It delivers 3,200 lumens of cool white flood lighting, with OE-style fitment for New Holland, John Deere and Case IH machines. Fully ECE R10 and CISPR 25 Class 4 approved, it’s engineered for clean EMC performance and reliable operation on 9–32 V systems.

When you’re working late on a slurry run, cultivating, or hauling, bonnet lighting makes the difference between guessing and knowing. The LG830 replaces factory bonnet lamps with a 40 W LED unit that gives a broad, even flood beam so you can see front implements, headland turns and obstacles with confidence. At 6,000 K colour temperature, it cuts through the dark with crisp, daylight-style light that reduces eye strain over long shifts.

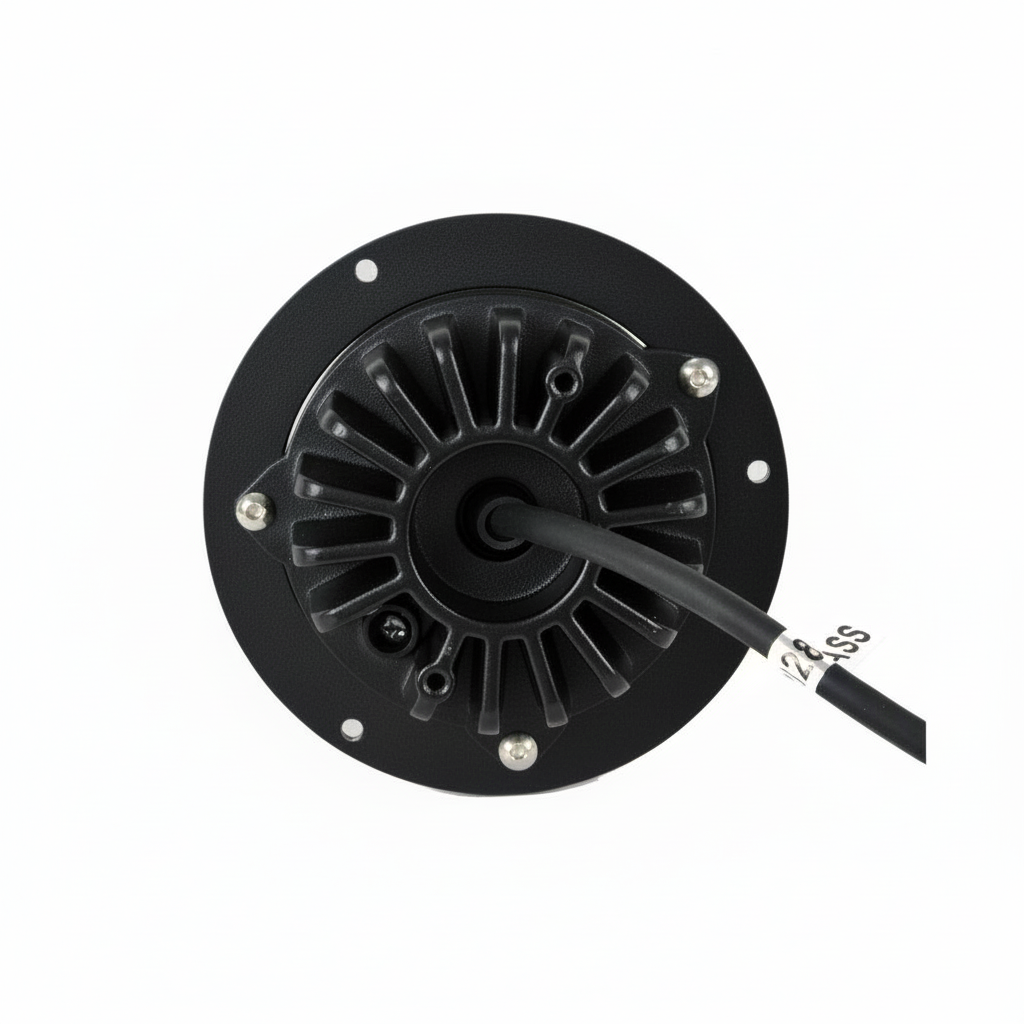

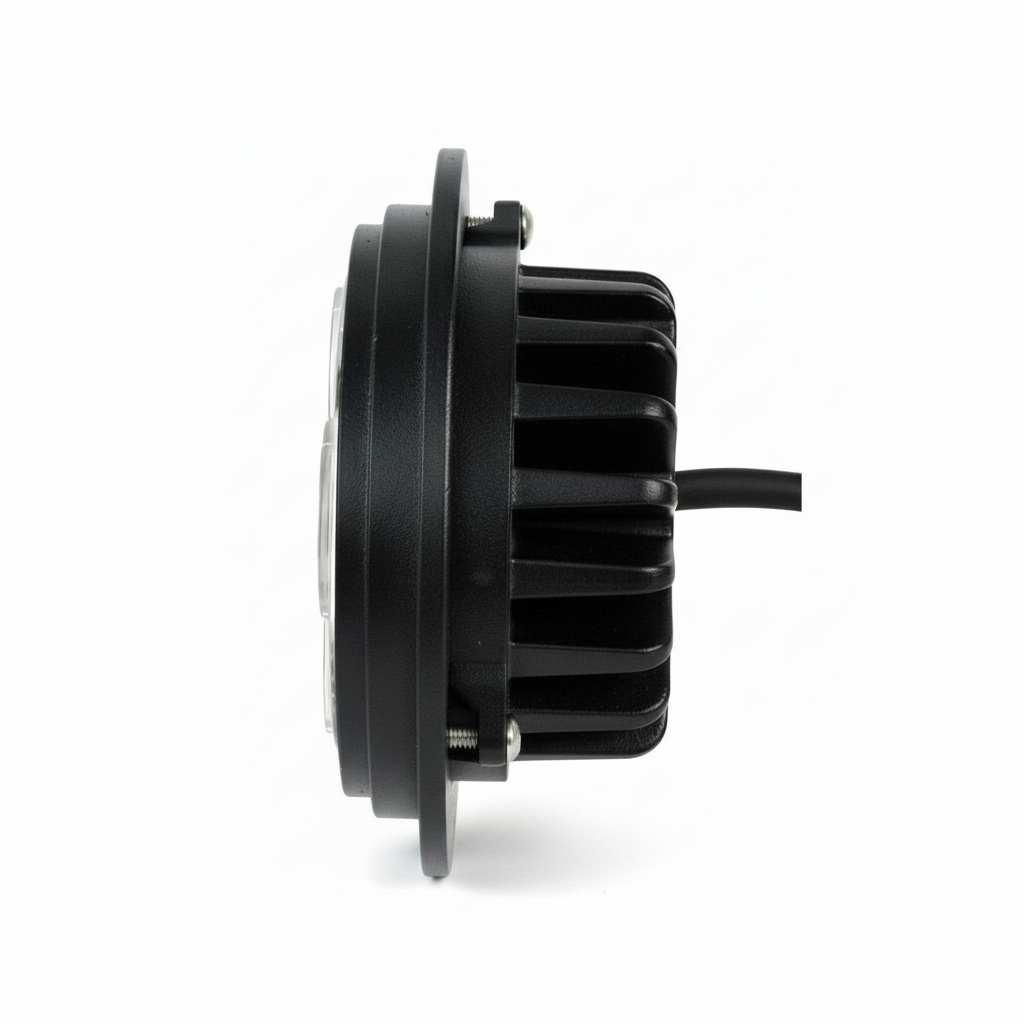

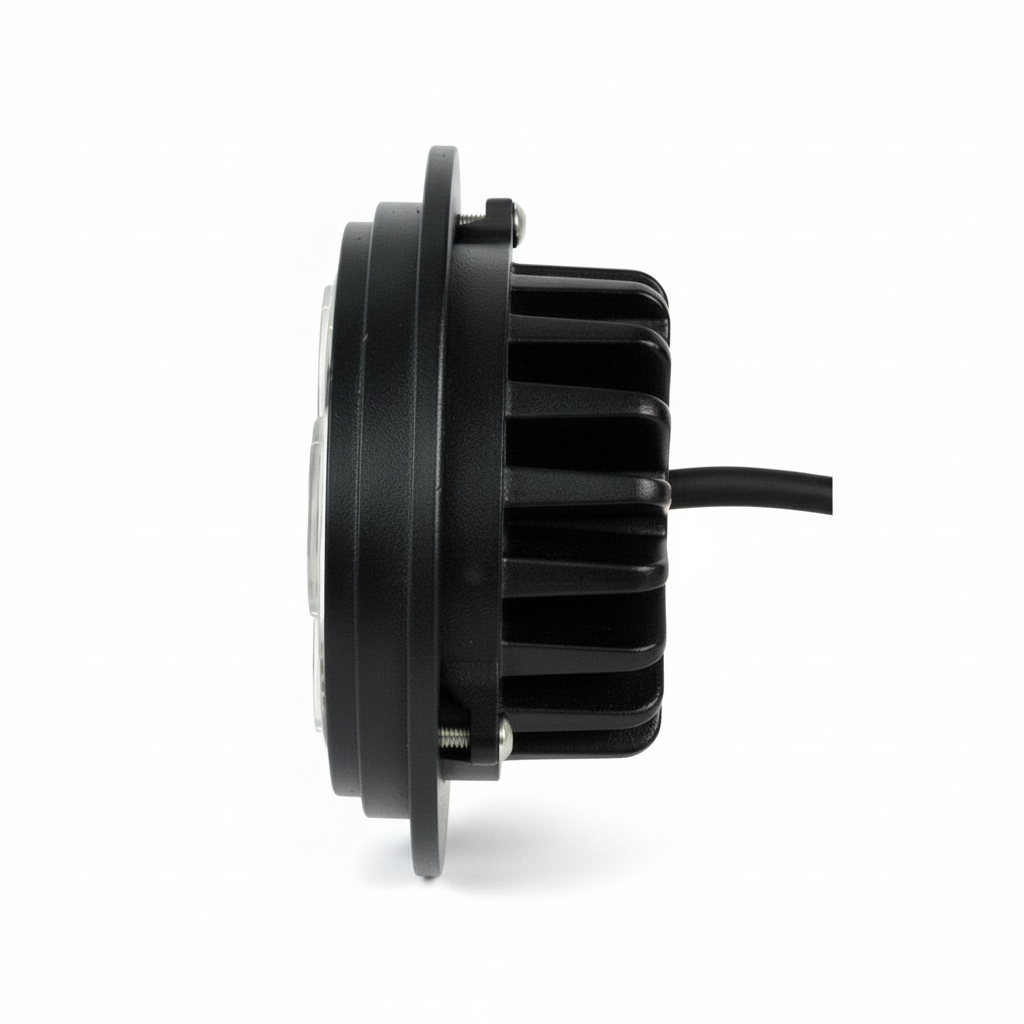

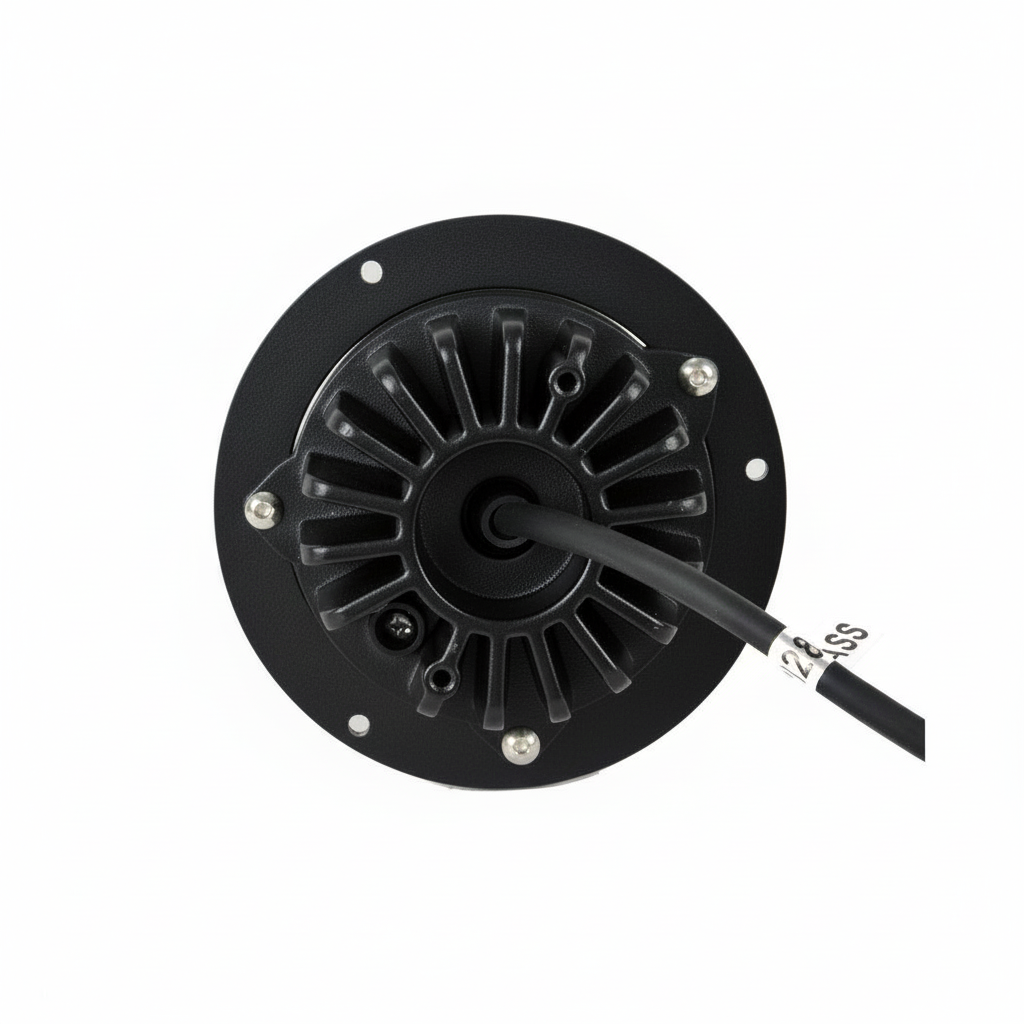

This work light is built around a die-cast aluminium housing and polycarbonate lens, so it stands up to vibration, mud and chemical wash-downs on busy fleets. With IP68 ingress protection, it keeps out dust and copes with prolonged exposure to water, making it suitable for harsh agricultural and construction environments. Lux readings of 12 lux at 50 m and 1 lux at 186 m mean you’re not just lighting the bonnet – you’re gaining usable working light in front of the machine.

Electrically, the LG830 is designed for modern mixed fleets. The 9–32 V DC input covers both 12 V and 24 V systems, and ECE R10 EMC compliance with CISPR 25 Class 4 helps prevent interference with radios, GPS guidance and ISOBUS electronics. OE reference cross-overs such as AL209455, 87539115, 87328621 make it a straightforward LED replacement for common Ford New Holland, John Deere and Case IH bonnet positions, with no need for major rewiring when installed correctly by a competent technician.

Key Features

• 40 W LED output – 3,200 lm for a strong, high-efficiency work light that clearly outperforms typical halogen bonnet lamps.
• Wide flood beam pattern designed to light front-linkage implements, loader areas and headland turns, not just a bright spot in the middle.
• 9–32 V DC input range, suitable for both 12 V and 24 V electrical systems, ideal for mixed-brand, mixed-voltage fleets.
• 6,000 K cool white light for a daylight-style beam that improves contrast on soil, crop and yard surfaces and helps reduce fatigue.
• IP68 ingress protection, keeping dust out and allowing long-term exposure to water in normal agricultural and industrial conditions.
• ECE R10 approved and CISPR 25 Class 4 compliant, supporting low electromagnetic interference with radios, RTK GPS and control electronics.
• Durable die-cast aluminium housing with impact-resistant polycarbonate lens for long service life on high-vibration tractors and construction kit.
• Compact size – 93.5 × 83 × 55 mm, making it easy to fit in bonnet and cowl positions without fouling panels or brackets.
• OE reference compatibility with AL209455, 87539115, 87328621, supporting direct replacement of many factory bonnet lamps.
• Proven on New Holland, John Deere and Case IH tractors, trusted as a practical upgrade by contractors and fleet operators across Europe.

Ideal Applications

• Bonnet work light replacement on Ford New Holland TG and T8000 series tractors (e.g. TG210–TG305, T8010–T8050).
• Front work lighting upgrade on John Deere 6M and 6R series (6105M–6195M, 6105R–6215R, including RH variants).
• Case IH Magnum and Puma series bonnet positions, including Magnum 190–380, MX215 and Puma 165–240.
• Agricultural contractors needing reliable, high-output lighting for night drilling, spreading, mowing and carting.
• Industrial and yard tractors used in loading, stacking and material handling where clear forward visibility is critical.
