40 Watt Ovaler Flut-LED-Arbeitsleuchte - LG970

40 Watt Oval Flood LED Work Light – LG970

The 40 W oval flood LED work light LG970 is built for operators who need a compact lamp that still punches hard on output. With 4,000 lm (3,200 lm effective) and a wide flood beam, it fills the work area with clean, usable light on 12 V or 24 V systems. ECE R10 and CISPR 25 Class 3 compliance mean it plays nicely with modern vehicle electronics and radio equipment.

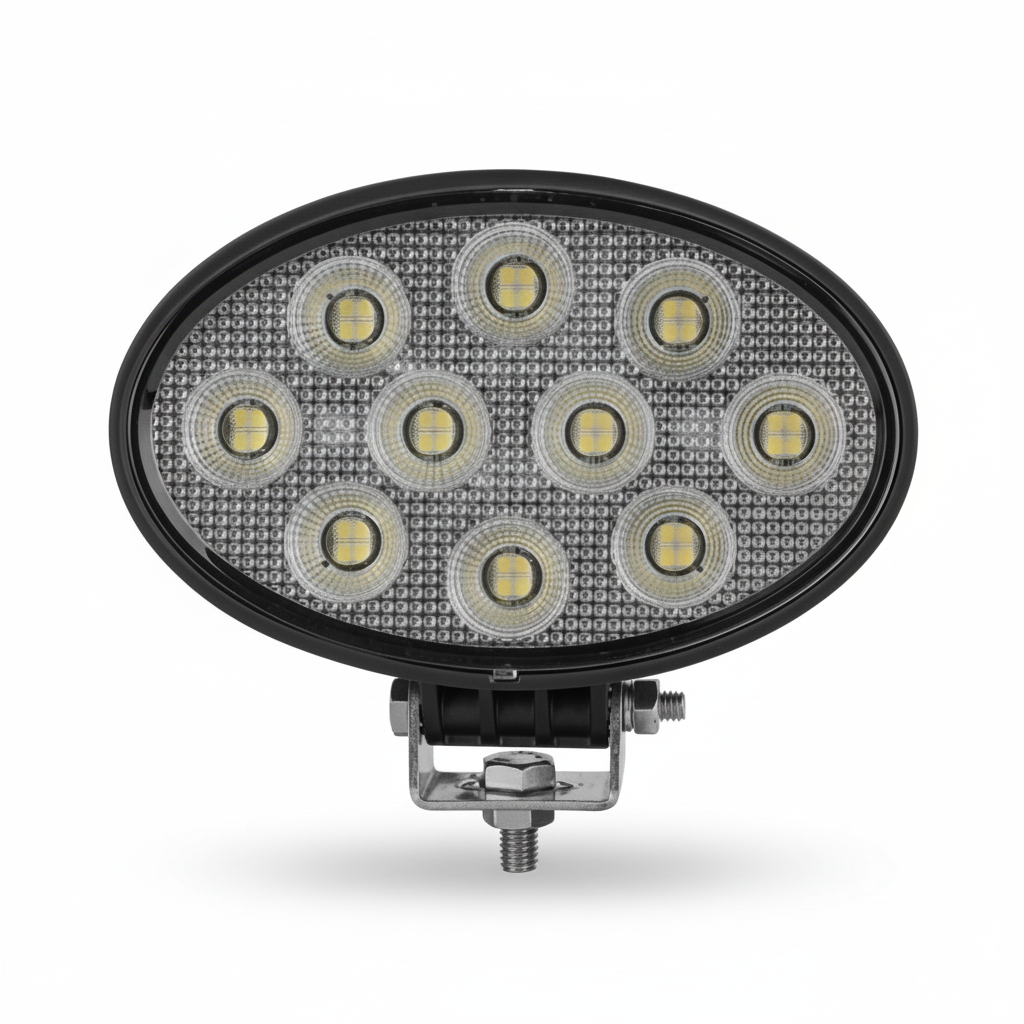

This LED work light is part of our Radiance Series, engineered for demanding trade and fleet use. Ten 4 W high-output LEDs sit in a robust die-cast aluminium housing, giving you a tight, efficient package with serious light on the ground. The wide flood pattern spreads light across the work zone, helping drivers, operators and ground staff see hazards, kit and edges clearly.

You can run the LG970 on almost any commercial or off-road platform thanks to its 9–32 V DC input range. That covers 12 V and 24 V vehicles without extra converters, so electricians and fitters can standardise on a single lamp across a mixed fleet. With an operating temperature from −40 °C to +60 °C, it’s proven in harsh European winters and hot summer sites alike.

Reliability isn’t just about the housing. The lamp is IP68 rated, so it’s sealed against dust and rated for long-term immersion in water, which translates in practice to trouble-free use on wet yards, farms and construction sites. EMC performance to CISPR 25 Class 3 and ECE R10 approval mean reduced risk of interference with CAN-bus systems, radios, GPS and telematics, which is critical on modern plant and service vehicles.

At 142.5 × 114.5 × 46.5 mm, the LG970 stays compact enough for tight mounting points on cabs, boom arms, rear gantries or side steps. Installers get a straightforward fit on standard 12 V/24 V circuits, and the low current draw of LED technology eases the load on alternators and batteries during long night shifts.

Key Features

• 40 W LED power using 10 × 4 W LEDs for high output from a compact housing
• 4,000 lm raw (3,200 lm effective) luminous output for strong, usable white light in real work conditions
• Flood beam pattern designed to spread light across the work area, improving visibility around vehicles and machinery
• Wide voltage range 9–32 V DC, ideal for both 12 V and 24 V commercial, agricultural and off-road systems
• Die-cast aluminium housing for strength, heat management and long service life in harsh environments
• Operating temperature −40 °C to +60 °C, proven performance from deep winter starts to hot summer shifts
• IP68 ingress protection, fully dust-tight and protected for long-term immersion, suitable for heavy washdowns and wet sites
• EMC CISPR 25 Class 3 for reduced radio interference, trusted on vehicles with sensitive communications and control electronics
• ECE R10 approved, compliant with European electromagnetic compatibility requirements for automotive use
• Compact size 142.5 × 114.5 × 46.5 mm, easy to mount on cabs, frames, cranes and rear work light positions

Ideal Applications

• Construction and plant: excavators, telehandlers, loaders, cranes and site vehicles needing robust work area illumination
• Agricultural machinery: tractors, sprayers, harvesters and telehandlers working long hours in the yard and field
• Commercial and municipal fleets: tippers, gritters, refuse trucks, service vans and maintenance fleets
• Off-road and utility vehicles: 4×4 pickups, utility ATVs and forestry equipment working in rough terrain
• Industrial yards and depots: fixed or vehicle-mounted lighting for loading bays, workshops and storage areas

Why Choose LED-Global Lighting

LED-Global focuses on European-engineered, high-performance vehicle lighting that earns its keep day after day. We balance output, reliability and compliance, so fleet managers and contractors get lighting that just works, with no drama and no guesswork. Every product is specified with clear data, recognised approvals and practical mounting options, helping electricians and installers deliver clean, safe jobs on time.
