40W LED-Eckleuchte - Rechts (*Geeignet für John Deere) - LG915R

40W LED Corner Light – Right (*Suitable for John Deere) – LG915R

This 40W right-hand LED corner work light is designed as a high-performance replacement for John Deere OEM AL172568. It delivers 3200 lumen of clean 6000K white light, giving you clear visibility around the front corner of the tractor where you need it most. Approved to ECE R10 with CISPR 25 Class 4 EMC protection, it’s built for modern machines with sensitive electronics.

If your original John Deere corner light is dull, flickering, or simply outdated, this is the tidy upgrade. The LG915R uses 4 x 10W OSRAM LEDs, so you get strong, even spread without glare or hot spots, and reliable performance in all weather. It runs on 10–30V DC, works on both 12V and 24V systems, and matches the OEM footprint so you keep the tractor looking factory-correct.

The robust die-cast aluminium housing and PC lens protect the light in heavy farm work. With an IP68 rating, it’s sealed against dust and designed to withstand high-pressure cleaning and wet conditions in the yard or field. Operating temperature from -40°C to +60°C means it’s proven in cold mornings, hot harvest days, and everything between.

Electrically, it draws 2.33A @ 12V and 1.17A @ 24V, so it’s efficient and easy on older harnesses while still giving a strong beam. It’s EMC protected to CISPR 25 Class 4 and ECE R10 approved, so it won’t upset radios, ISOBUS, or tractor ECUs – something many cheap lamps ignore. The light is supplied with a built-in H11 connector, so on compatible machines it clicks straight into the existing plug for a neat, quick install.

This right-hand LED corner lamp is dimensioned at 122 x 106 x 111 mm, closely matching the original John Deere unit for clean fitment. It’s a direct replacement suitable for tractors originally using OEM part number AL172568, including a wide range of 5M, 5R, 6x20, 6x30 and 7x30 series models (see list below). Left side is available separately for a matched pair.

Key Features

• 40W OSRAM LED output (4 × 10W) delivering 3200 lumen for strong, uniform corner illumination
• Wide 10–30V DC operating voltage, suitable for both 12V and 24V agricultural electrical systems
• Colour temperature 6000K for crisp, daylight-style white light that improves contrast on implements and ground
• Low current draw – 2.33A @ 12V and 1.17A @ 24V, reducing load on wiring and switches
• IP68 rated housing, fully sealed against dust and designed to withstand heavy spray and wash-down environments
• Operating temperature -40°C to +60°C, engineered for year-round field work in European climates
• Die-cast aluminium body for strength and heat management, with tough PC lens to resist impacts and vibration

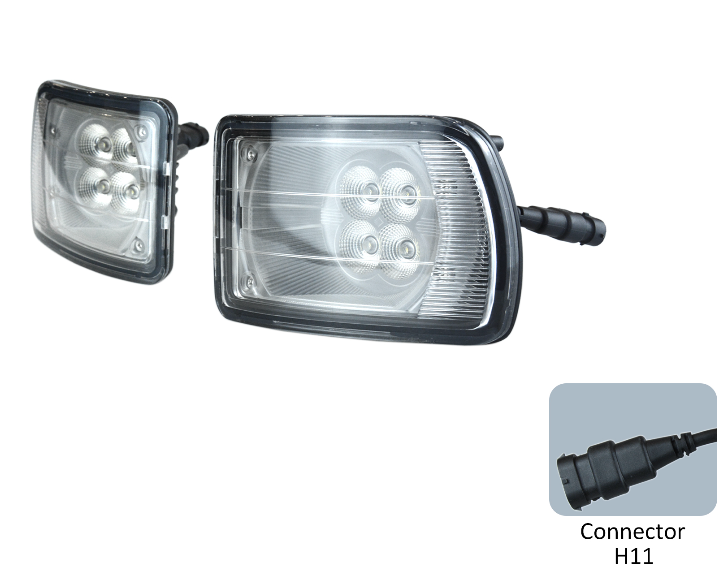

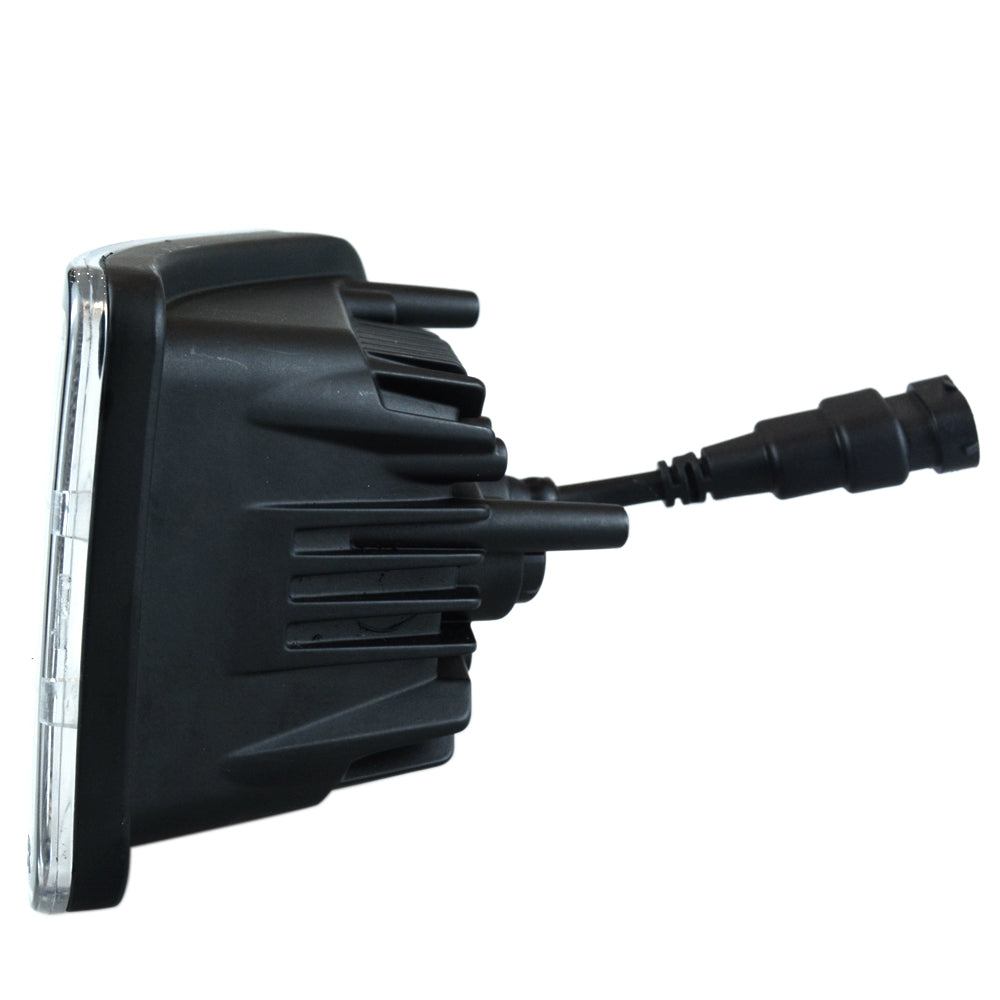

• Built-in H11 connector, designed to plug into compatible John Deere harnesses for straightforward installation
• EMC protection to CISPR 25 Class 4 and ECE R10 approved, minimising electrical interference with radios and control electronics
• Direct replacement suitable for OEM part number AL172568, keeping the original look while upgrading to modern LED performance

Ideal Applications

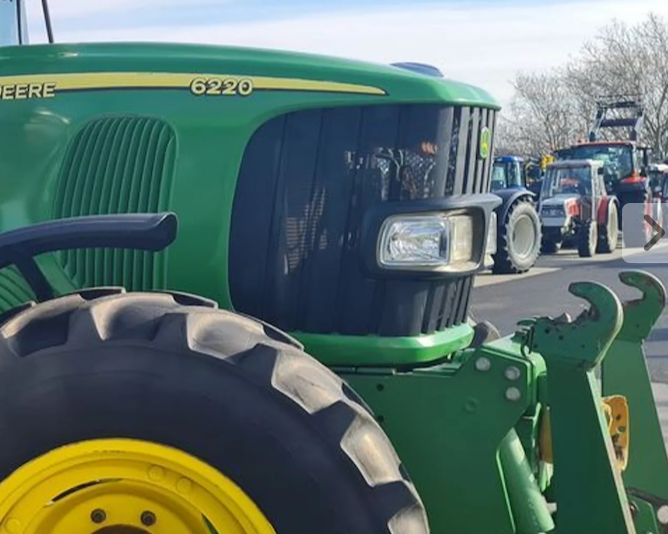

• Right-hand front corner light on John Deere tractors originally equipped with AL172568
• Upgrade or replacement on John Deere 5M / 5R / 6x20 / 6x30 / 7x30 series tractors, including:
• 5070M, 5080M, 5080R, 5080RN, 5090R, 5090RN, 5100M, 5100R, 5100RN
• 5620, 5720, 5820, 6020, 6120, 6120L, 6130, 6215, 6220, 6220L, 6230
• 6320L, 6330, 6415, 6420, 6420L, 6420S, 6430, 6520, 6520L, 6530, 6534
• 6615, 6620, 6630, 6715, 6820, 6830, 6920, 6920S, 6930, 7130, 7230, 7330
• SE6020, SE6120, SE6220, SE6320, SE6420, SE6520, SE6620
• Fleet upgrades where consistent LED corner lighting is required across mixed-age John Deere tractors
• Professional farm, contracting and municipal users wanting OEM-style fit with LED performance

Original equipment names, series numbers and references are used for identification only and do not imply that these replacement parts are supplied as original equipment.

Why Choose LED-Global Lighting

LED-Global focuses on high-performance lighting for working vehicles, not generic consumer lamps. Every unit is specified with European conditions in mind – long hours, rough tracks, cold starts, and hot engines. That’s why you see proper EMC approvals, IP ratings and operating temperatures on the spec sheet, not guesswork.

You get trusted, proven products that installers can fit with confidence and operators can rely on in the field. Clear documentation, honest performance figures, and a range built around real machines – that’s the approach. Fit once, and get on with the job.
