45W LED-Arbeitslicht - LG8330

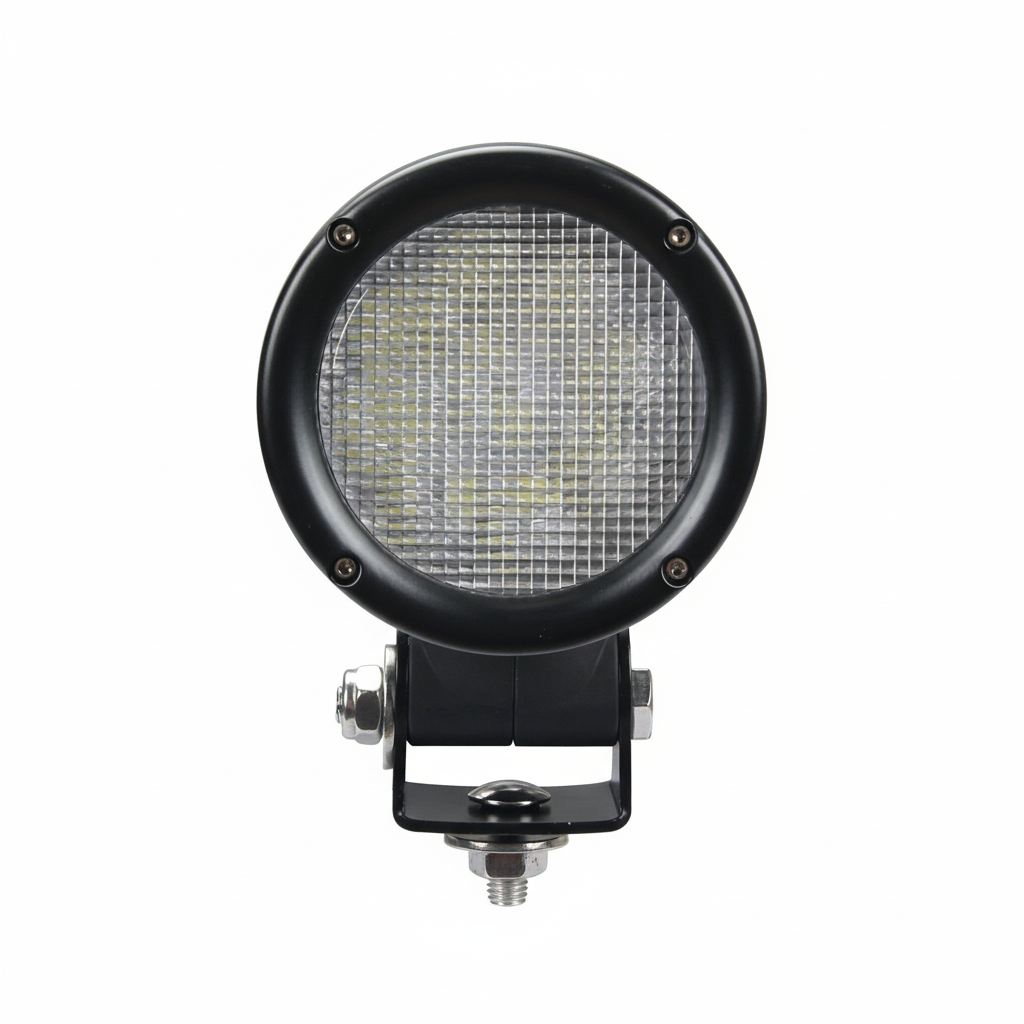

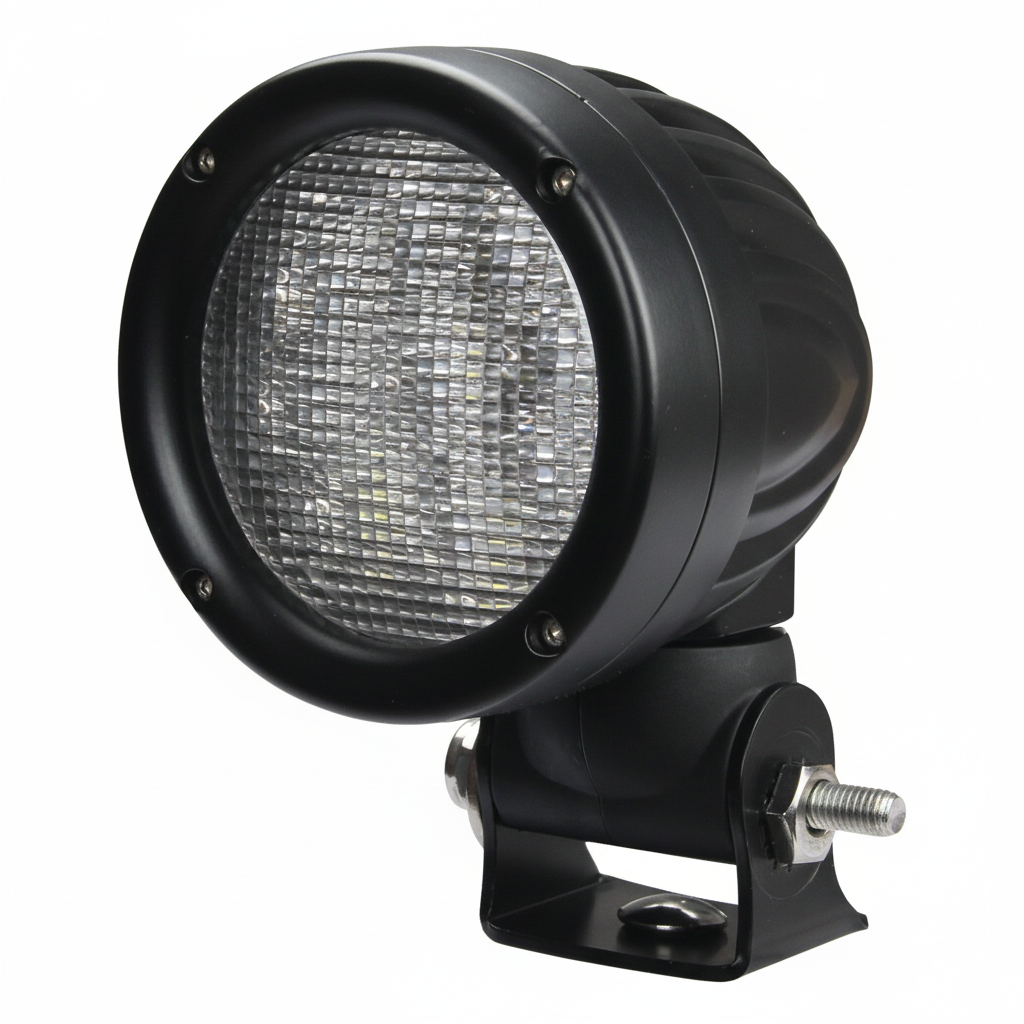

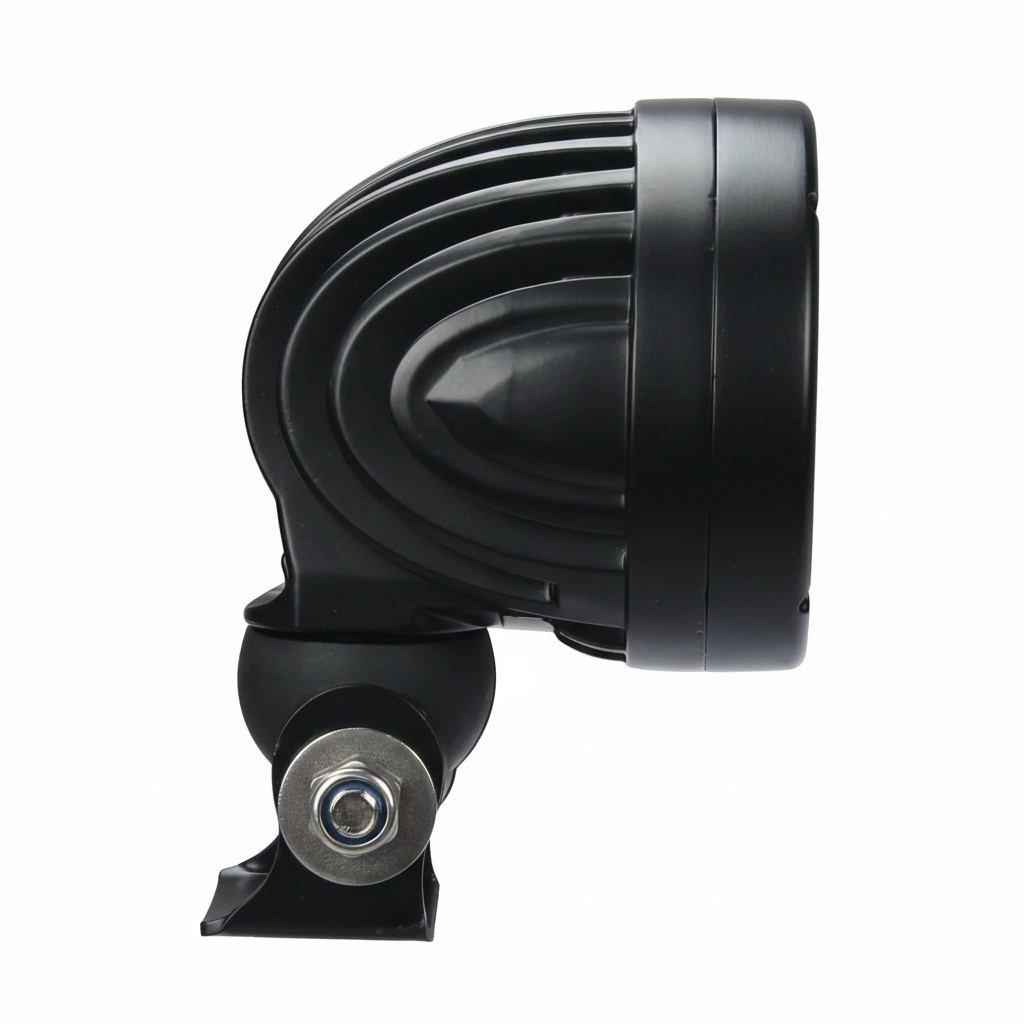

45W LED Work Light – LG8330

The 45W LED work light LG8330 delivers strong, focused light output for serious professional use, without draining your electrical system. With 9 OSRAM P8 LEDs producing 4950 raw lumens and a 10–30 V operating range, it’s built for 12 V and 24 V fleets alike. EMC CISPR 25 Class 4 and ECE R10 approval mean stable, low-interference performance on modern, electronics-heavy vehicles.

This compact LED work lamp is designed for operators who need reliable task lighting every day – on construction sites, in agriculture, on service trucks, and in harsh depot environments. The OSRAM P8 emitters deliver a clean, consistent beam pattern, giving you clear visibility around the vehicle for loading, reversing, lifting or inspection work. At 45 W it offers a strong light punch, while keeping current draw reasonable for smaller alternators and auxiliary systems.

The LG8330 is engineered around a robust aluminium alloy housing with a tough polycarbonate (PC) lens and stainless steel fittings. With an IP69K rating, it’s built to handle high‑pressure, high‑temperature washdowns and heavy spray, which makes it ideal for plant, agri and municipal vehicles that see daily cleaning. ECE R10 and CISPR 25 Class 4 EMC compliance help protect against radio interference on vehicles with sensitive CAN‑bus and communication equipment.

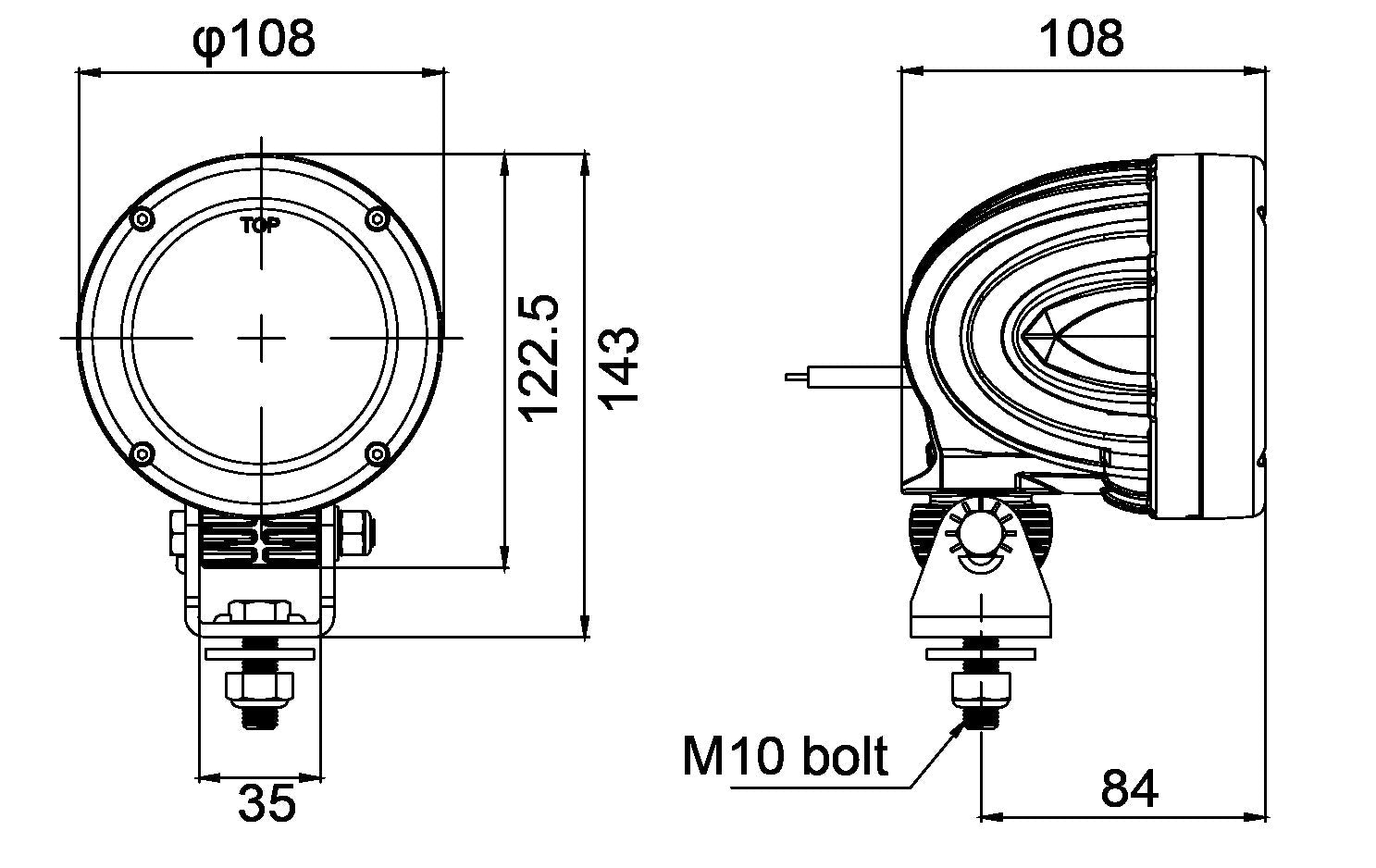

Installation is straightforward. The lamp runs on 10–30 V, so it suits both 12 V and 24 V systems without modification. A Deutsch DT female connector with 20 cm fly lead makes connection to existing harnesses simple and secure, especially on professional builds and fleet installations. With compact overall dimensions of 108 mm x 143 mm, it fits neatly on masts, headboards, rear gantries and side mounting points where space is tight but high output is still needed.

Key Features

• 45 W LED work light – strong light output for demanding commercial and off‑road applications.
• 9 x OSRAM P8 LEDs – premium emitters for stable output, good efficiency and long service life.
• Up to 4950 raw lumens – delivers bright task lighting for loading, reversing and work area illumination.
• Wide voltage range: 10–30 V – suitable for both 12 V and 24 V vehicle electrical systems.
• EMC Grade: CISPR 25 Class 4 – reduced electromagnetic interference, ideal for vehicles with radios, telematics and CAN‑bus systems.
• Approved to ECE R10 – compliant with automotive EMC standards for road vehicles.
• IP69K enclosure rating – designed to withstand high‑pressure, high‑temperature cleaning and heavy spray in harsh environments.
• Durable construction – aluminium alloy housing, PC lens and stainless steel hardware for long‑term resistance to corrosion and impact.
• Deutsch DT female connector with 20 cm wire – trusted automotive connector system for secure, vibration‑resistant installation.
• Compact size: 108 mm x 143 mm – easy to package on light bars, machinery frames, service bodies and tight mounting points.

Ideal Applications

• Construction and plant machinery – excavators, loaders, telehandlers and skid steers for night work and low‑light sites.
• Agricultural equipment – tractors, sprayers, balers and telehandlers working in fields, yards and livestock areas.
• Utility, service and breakdown vehicles – rear and side work lighting on vans, pick‑ups and workshop trucks.
• Municipal and fleet vehicles – refuse trucks, sweepers, gritters and maintenance fleets requiring robust, wash‑down ready lighting.
• Off‑road and 4x4 builds – auxiliary work lamps for overlanding, recovery and site support vehicles.

Why Choose LED-Global Lighting

LED-Global focuses on high‑performance vehicle lighting for professional users across Europe. Products like the LG8330 are specified with proven LED technology, robust housings and proper EMC approvals, so they integrate cleanly into modern fleets without headaches. Every lamp is engineered with a practical mindset – easy to fit, built to last, and designed to deliver consistent light where you need it, shift after shift.
