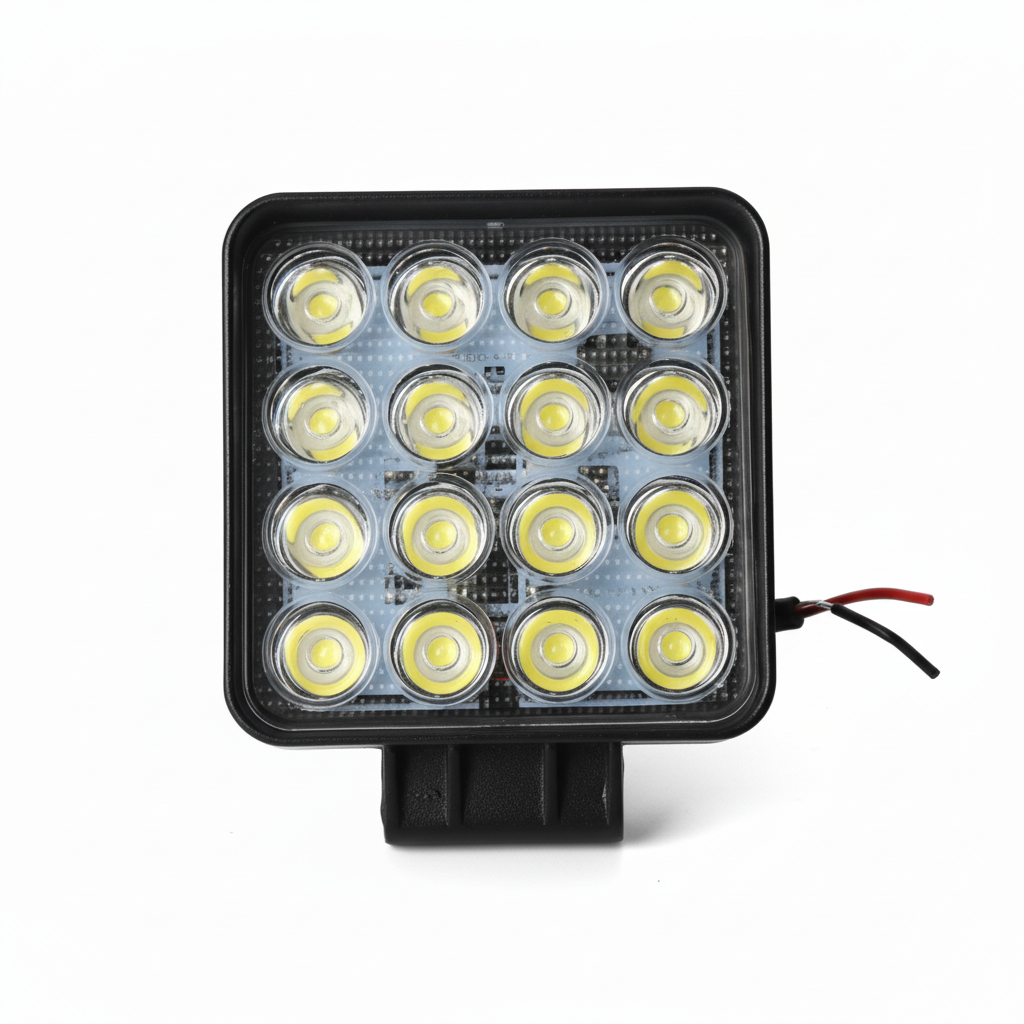

48 Watt quadratisches LED-Arbeitslicht - LG860

48 Watt Square LED Work Light – LG860

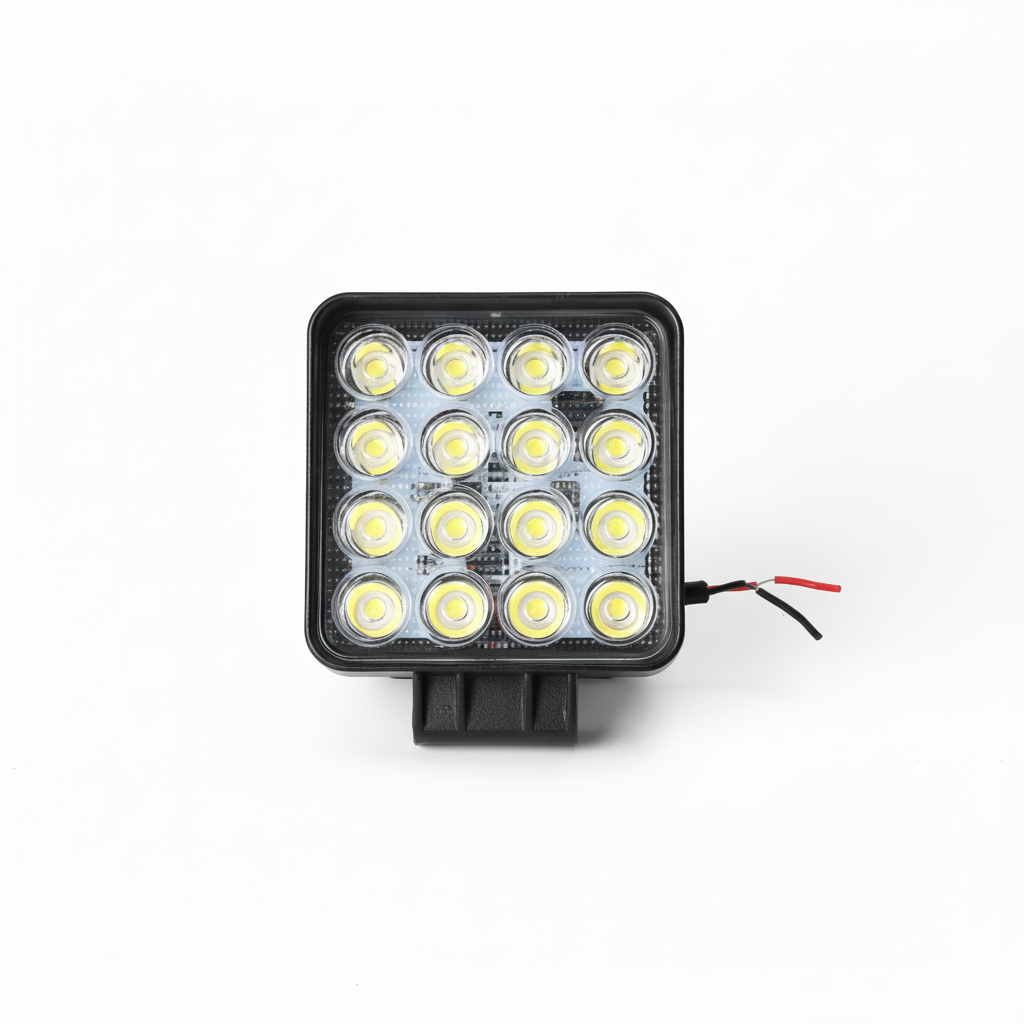

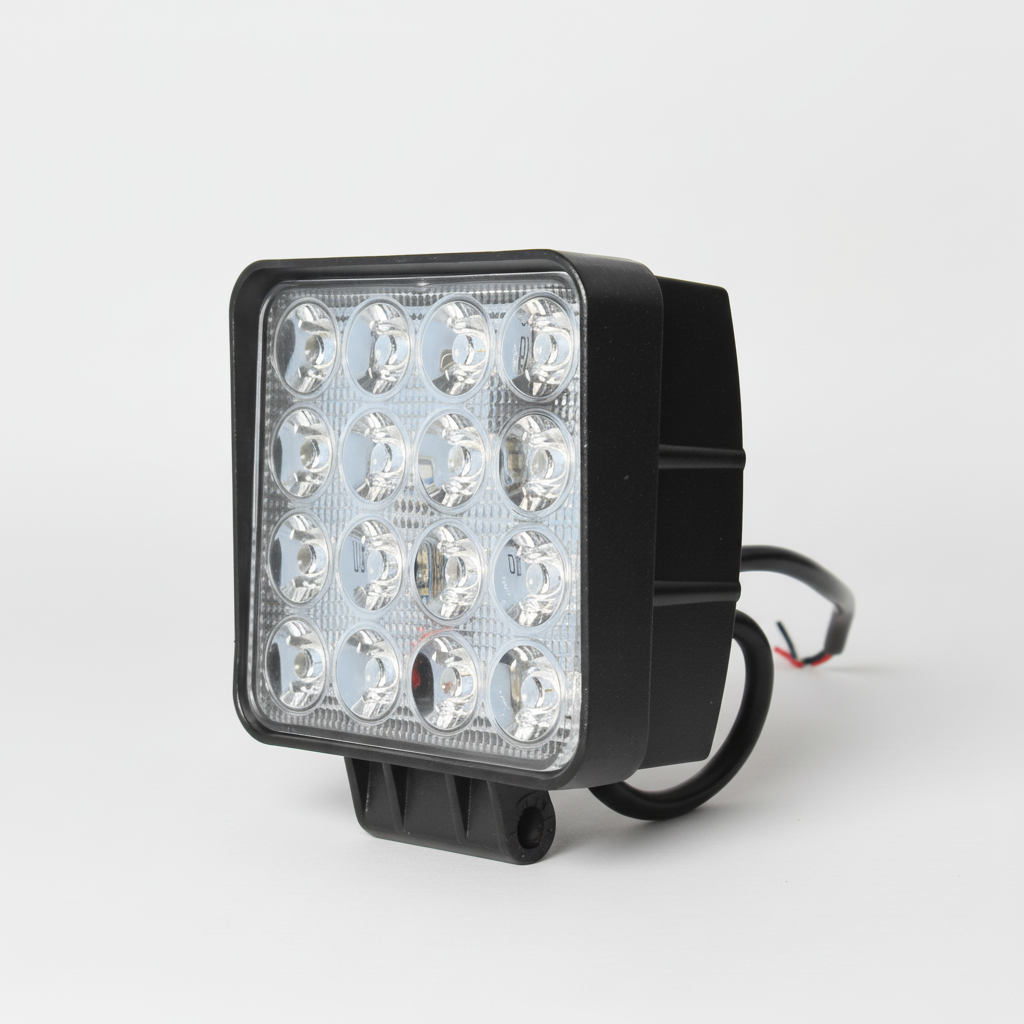

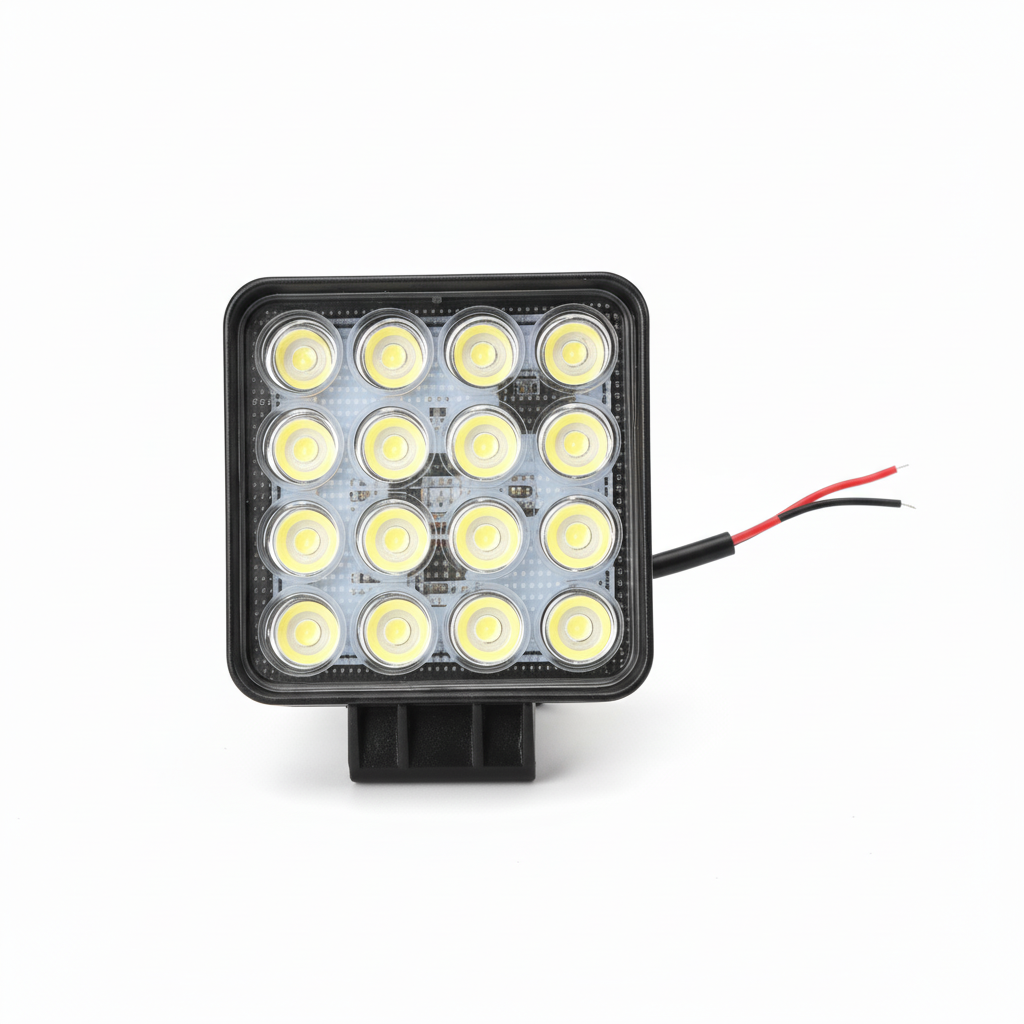

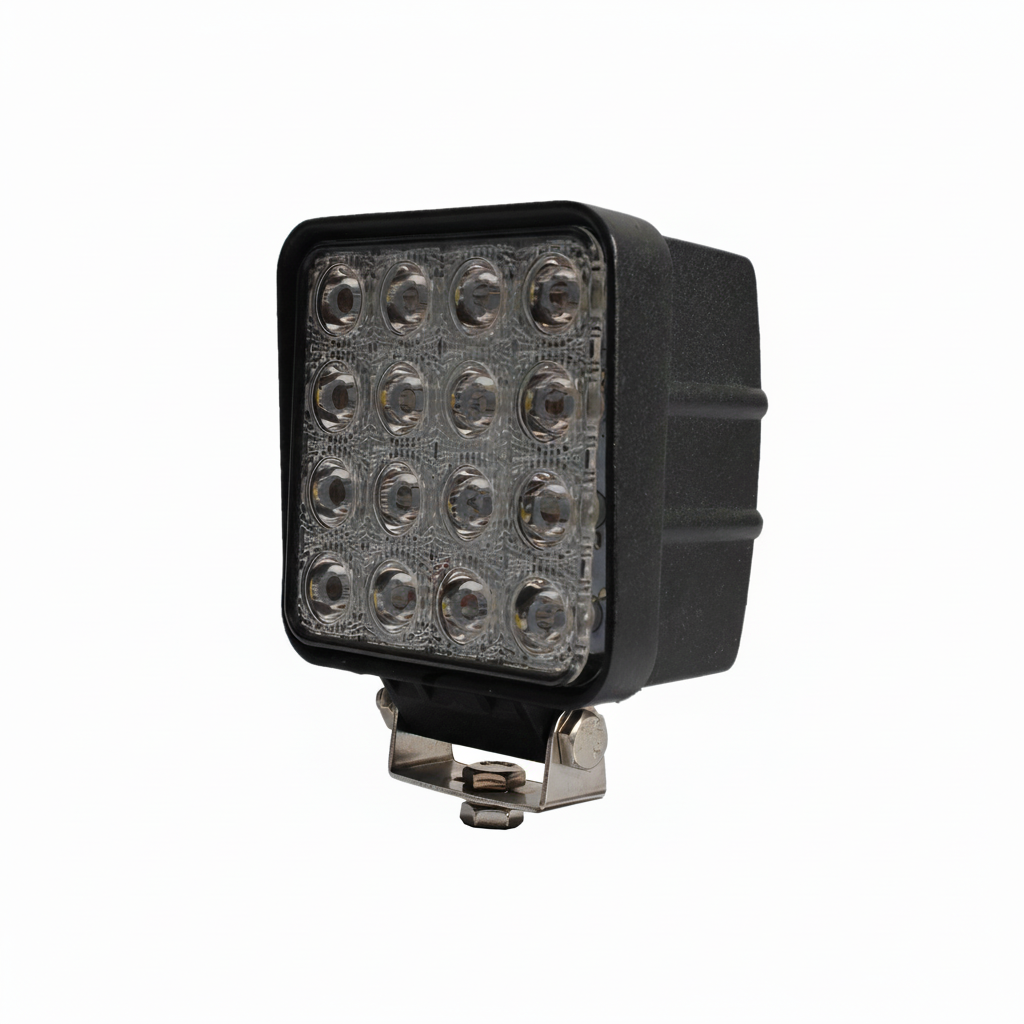

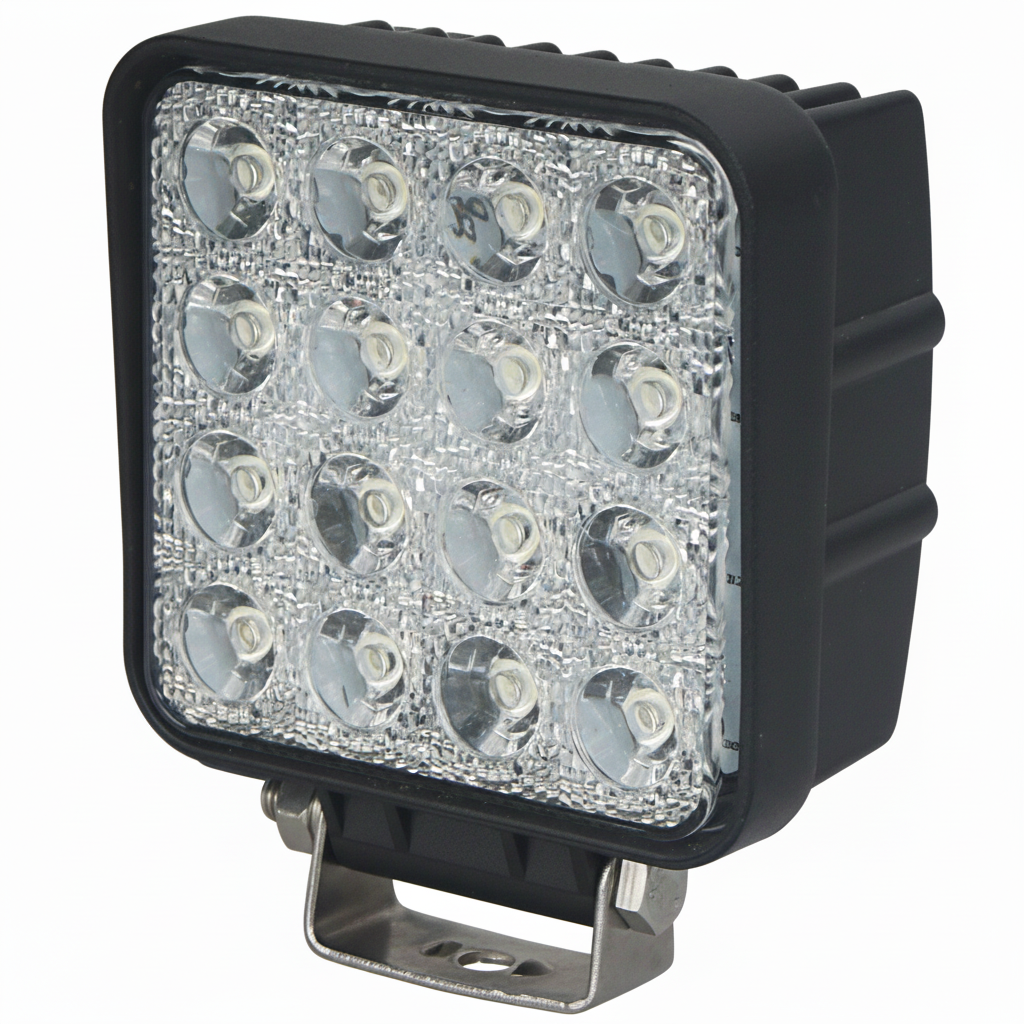

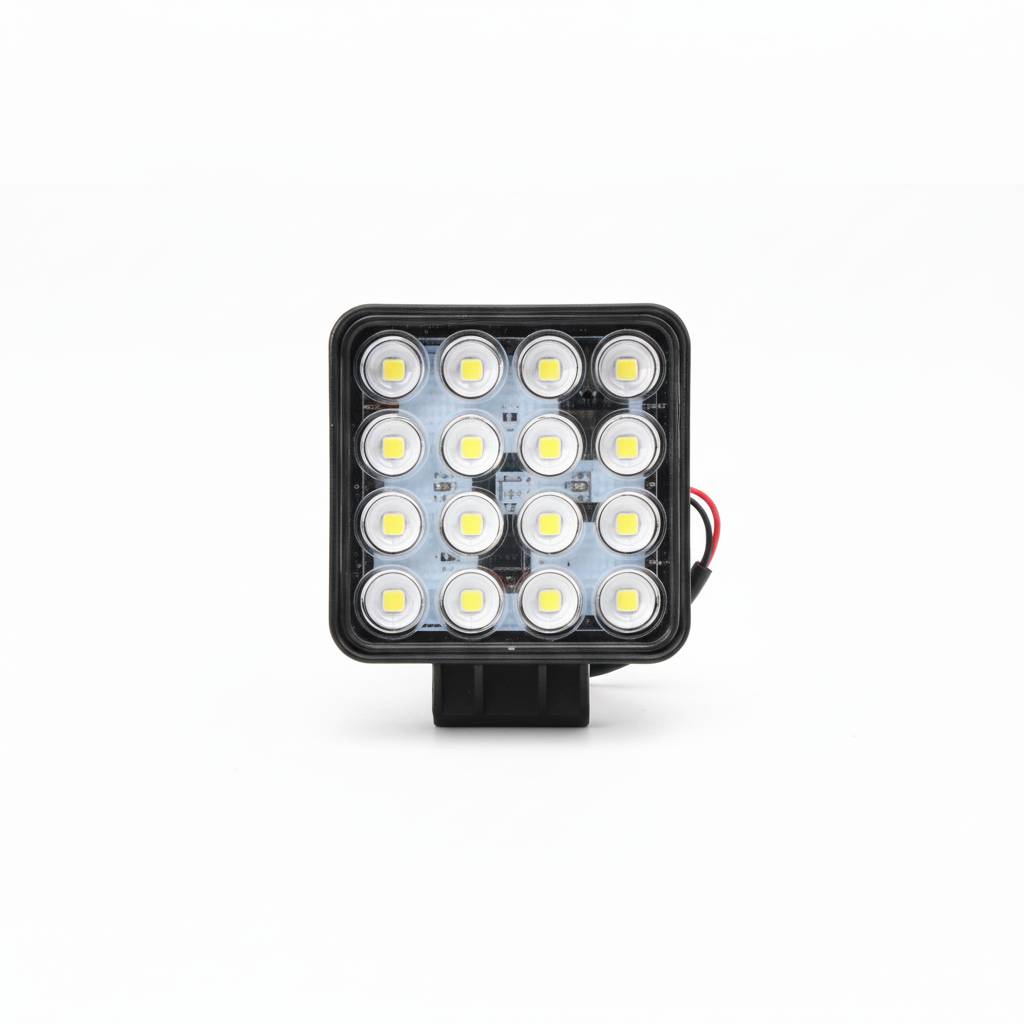

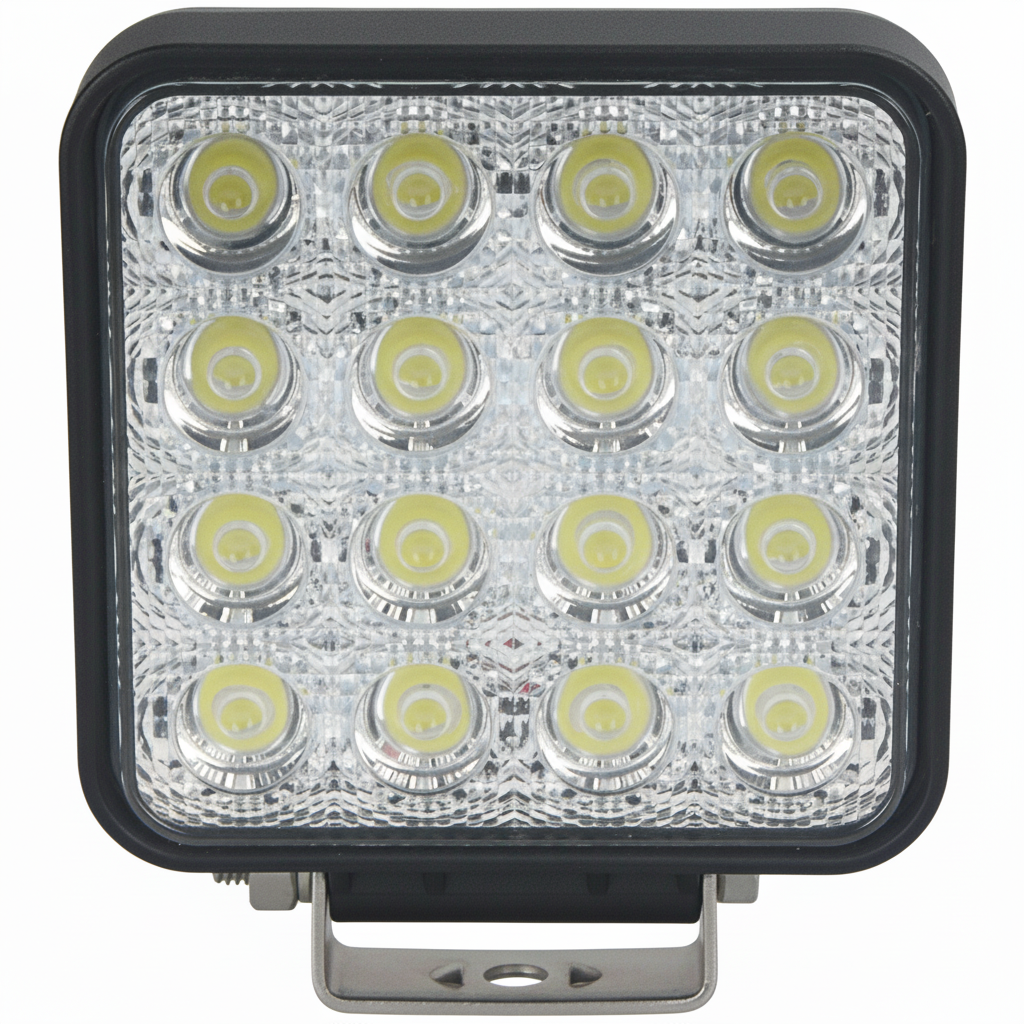

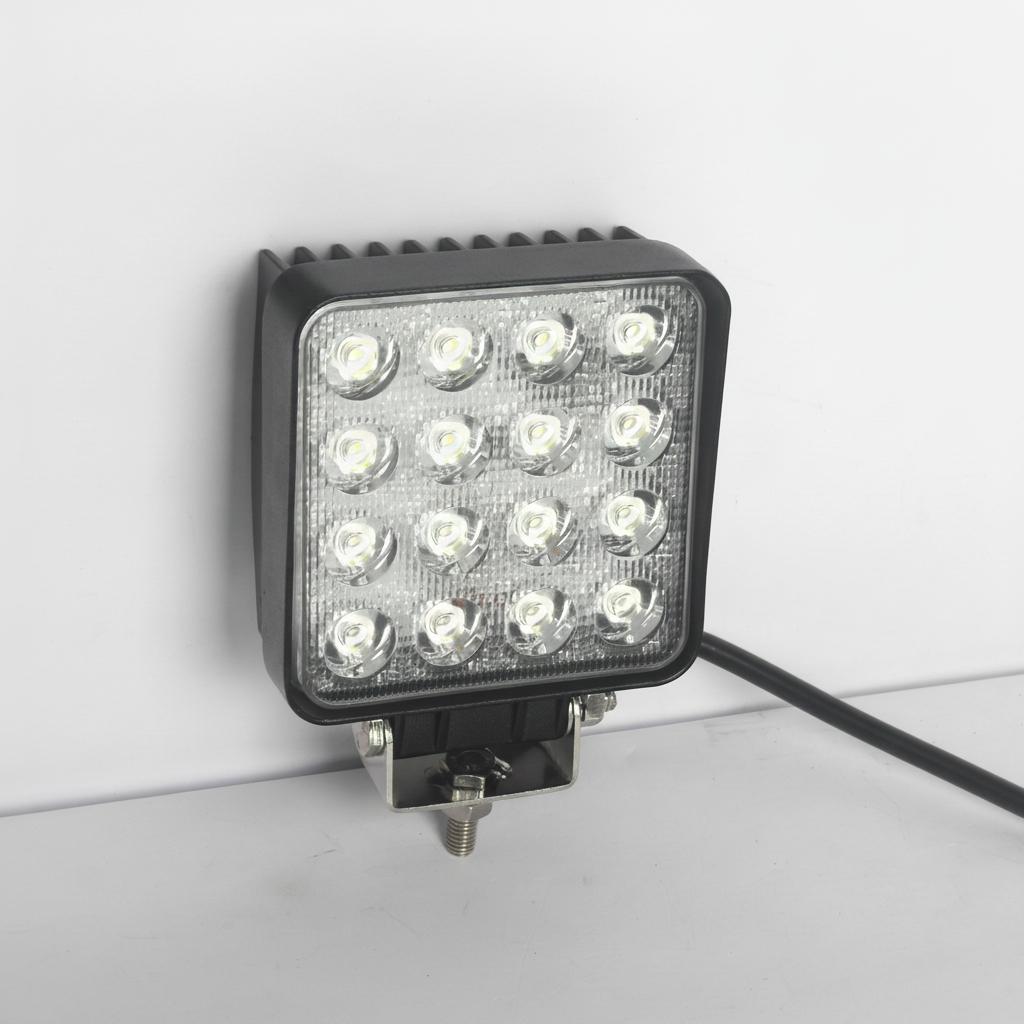

The 48 W square LED work light LG860 delivers strong, usable light where you actually need it – on the job, in the field, and on site. With a 3,300 lumen output, a flood/spot combination beam, and a tough IP67 housing, it’s built for long days on tractors, harvesters, construction kit and utility vehicles. Approved to ECE R10 and CISPR 25 Class 3, it gives you high-output lighting without upsetting your vehicle electrics.

You know the problem. Dark corners around the machine, shadows on the implement, poor stockyard visibility. The LG860 is designed to sort that out with a balanced, cool white 6,000 K light that cuts through dust, drizzle and night shift fatigue. The mixed flood/spot pattern throws light down the track while filling in the near field around the vehicle, so operators see both the obstacle ahead and the blade, bucket or attachment in front of them.

Electrically, it’s straightforward. The wide 9–32 V DC input suits 12 V and 24 V systems across mixed fleets, from compact tractors to telehandlers and service trucks. ECE R10 and EMC CISPR 25 Class 3 approvals mean it’s been tested not to interfere with radios, CAN-bus systems or sensitive control electronics, which matters on modern European machinery packed with electronics and telemetry.

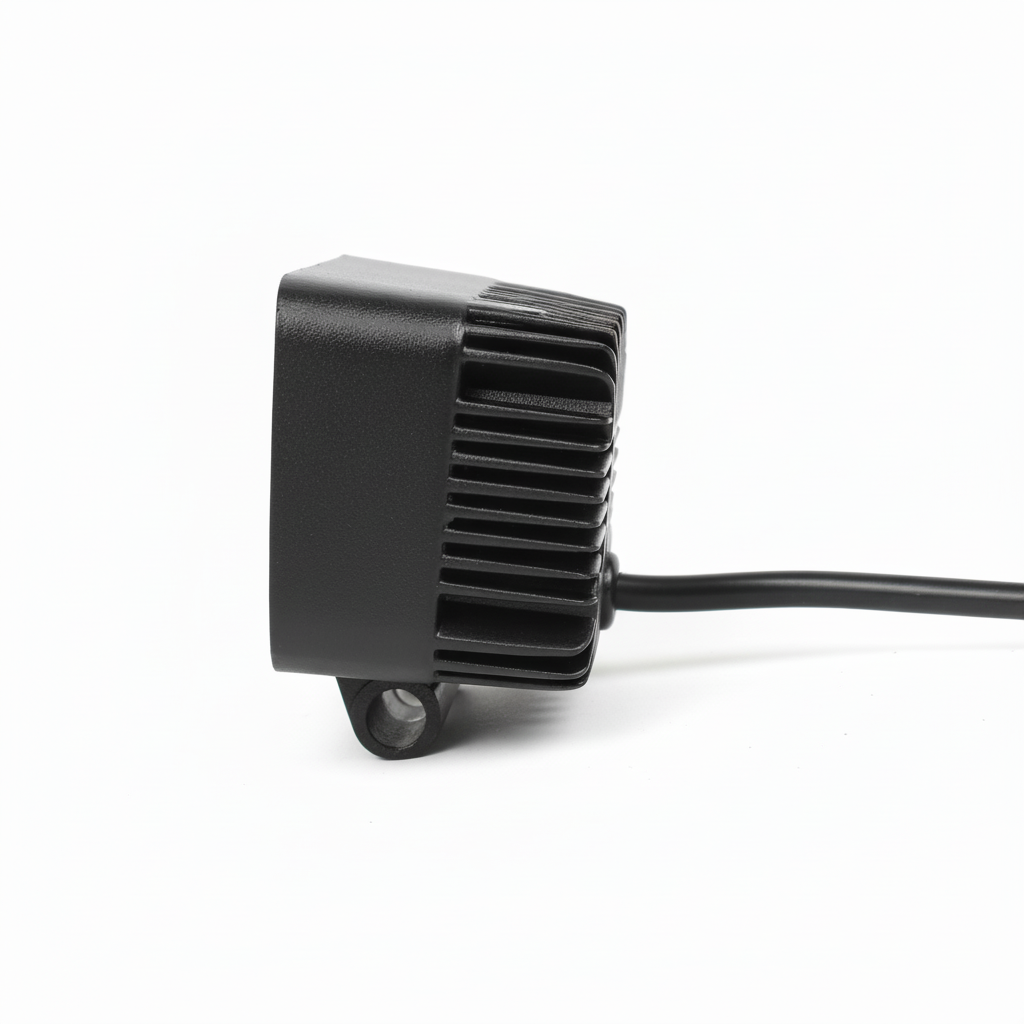

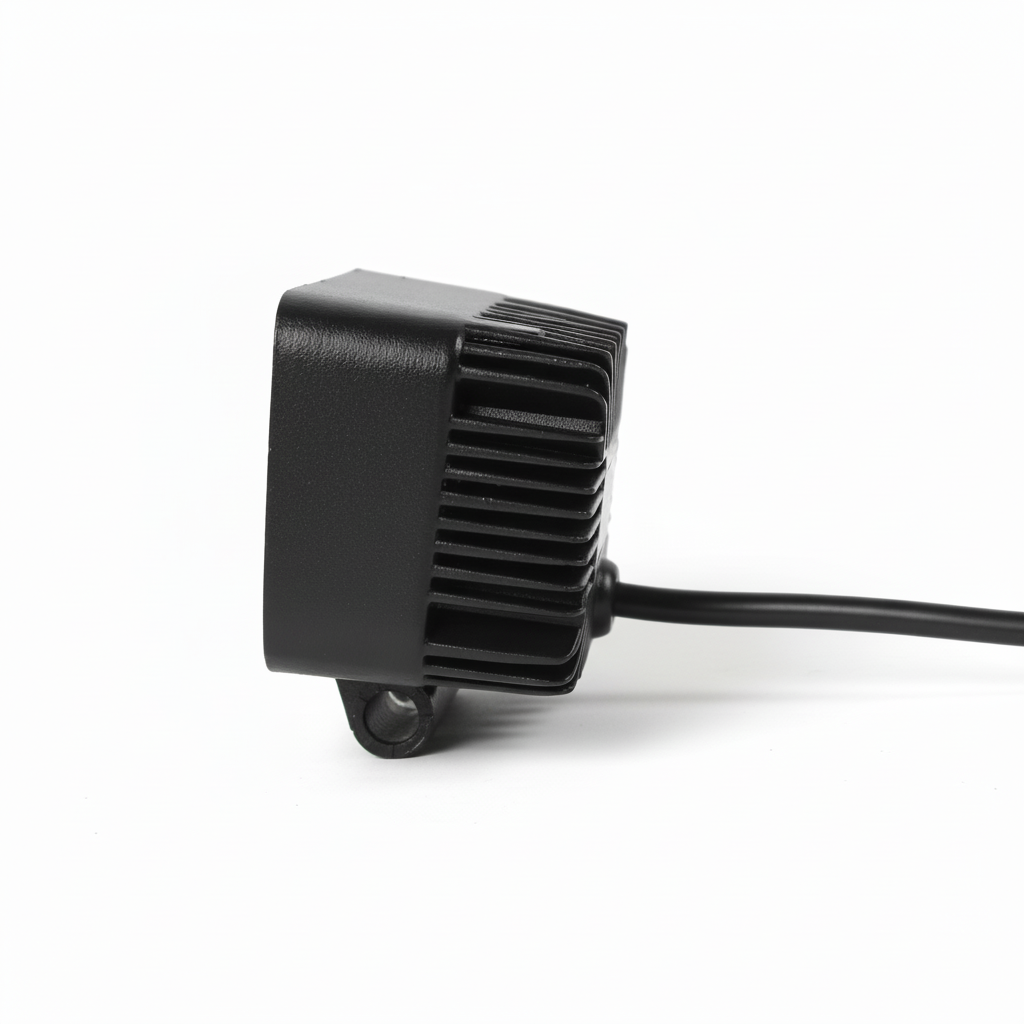

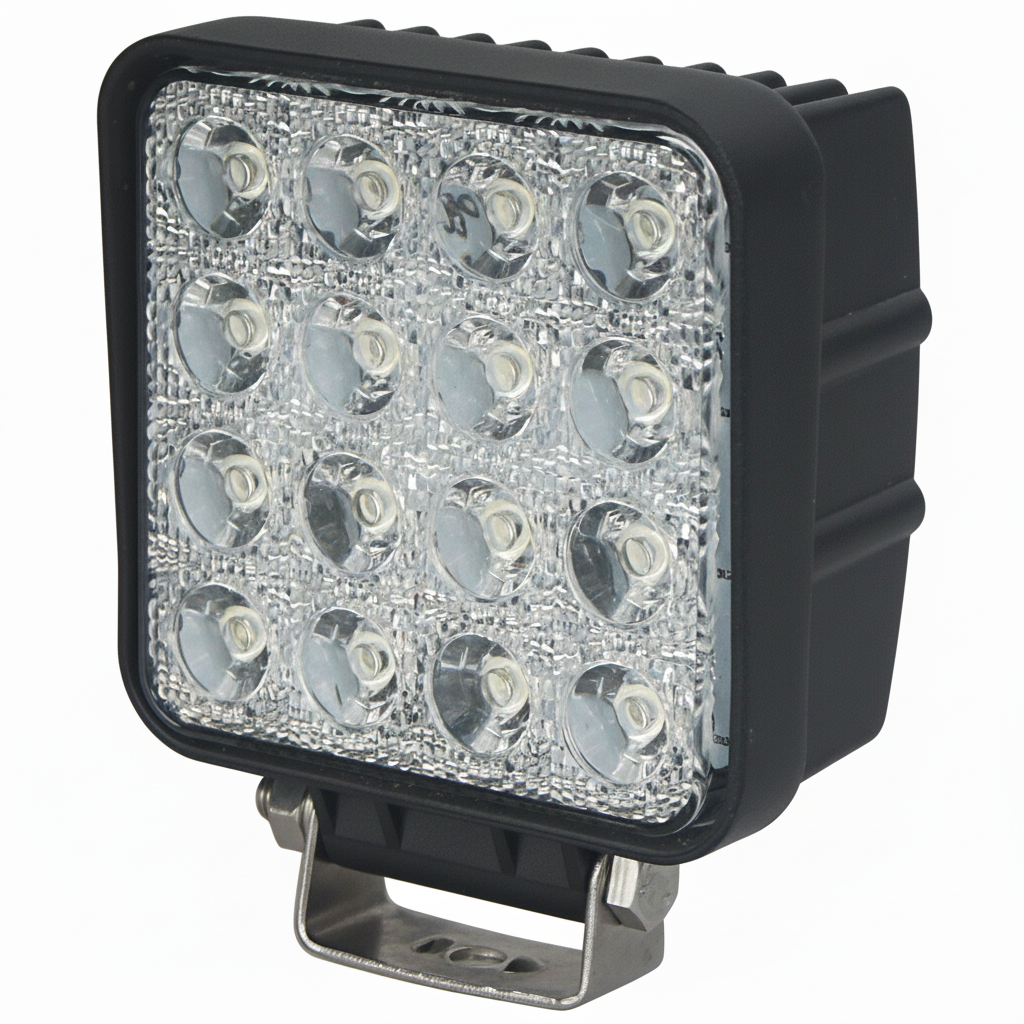

Mechanically, the LG860 is built like a proper work lamp. A die‑cast aluminium housing manages heat and resists corrosion, while the polycarbonate lens handles vibration, stone chips and daily abuse better than glass. Rated IP67, it’s protected against dust ingress and temporary immersion, so it stands up to pressure washing, slurry, and wet yards. With a 50,000 hour design life, you fit it once and, realistically, you won’t be back to it for a long time.

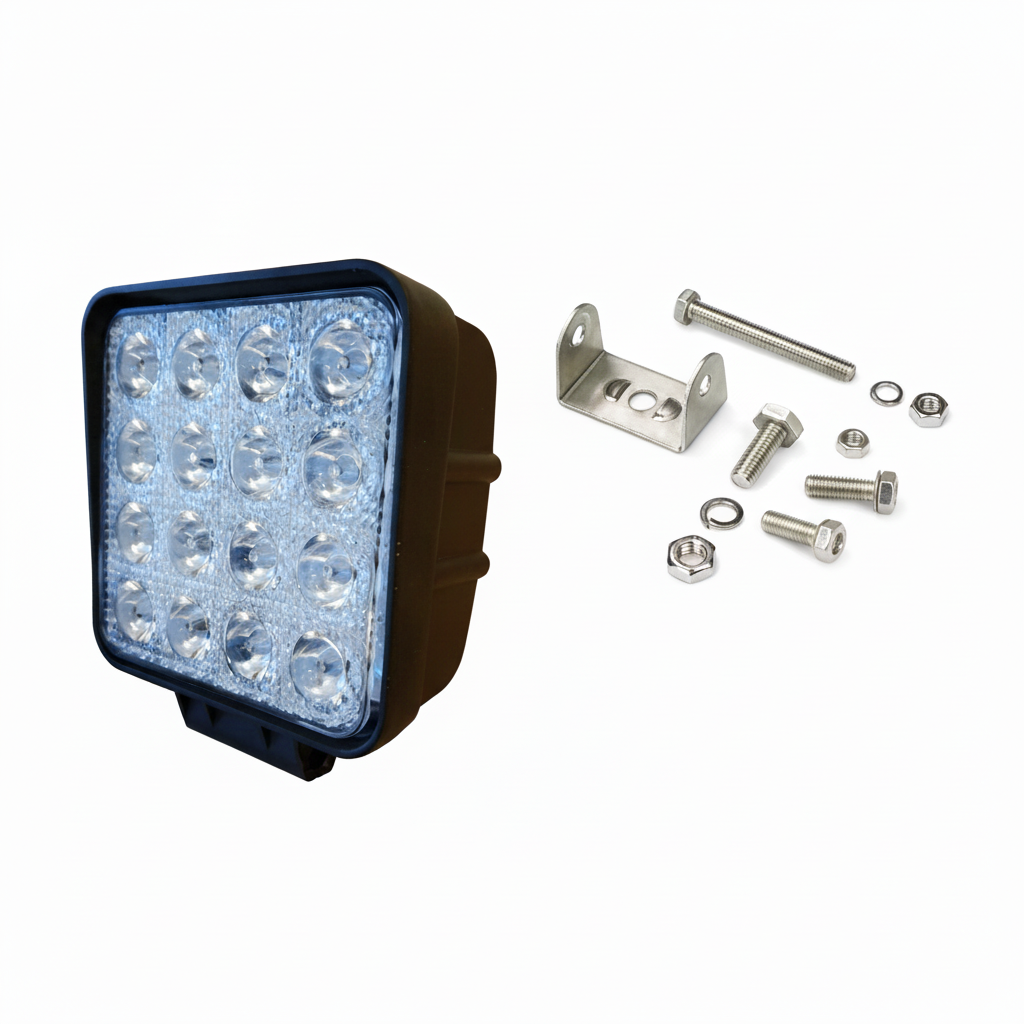

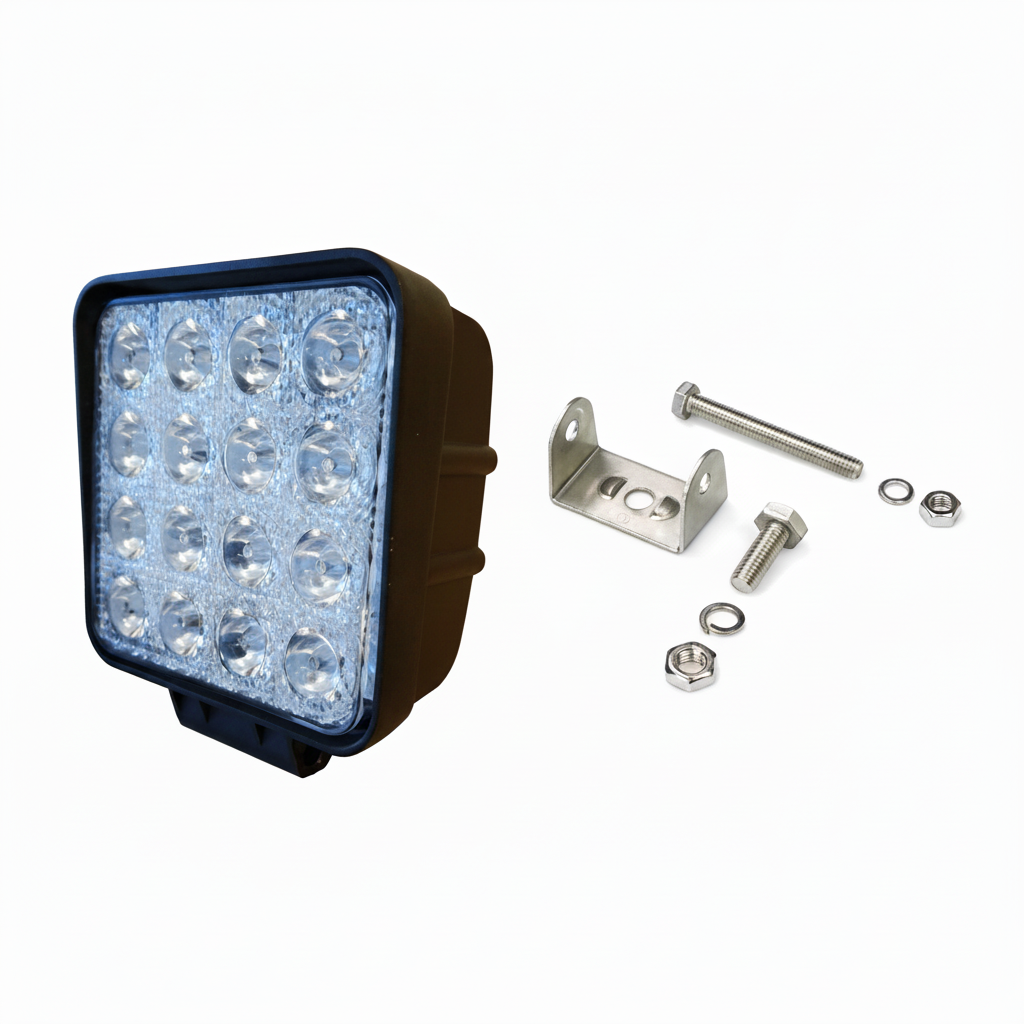

Installation is simple thanks to its compact footprint. At 110 × 126 × 57 mm, it fits where many older halogen or HID units were mounted, often using existing brackets with minimal adjustment. That means quick upgrades on older agricultural and construction fleets, and easier standardisation across machines when you’re trying to simplify spares and reduce downtime.

Key Features

• 48 W high-output LED work light delivering 3,300 lm of usable light for demanding professional applications.
• 9–32 V DC input range for direct use on 12 V and 24 V vehicle systems across mixed fleets.

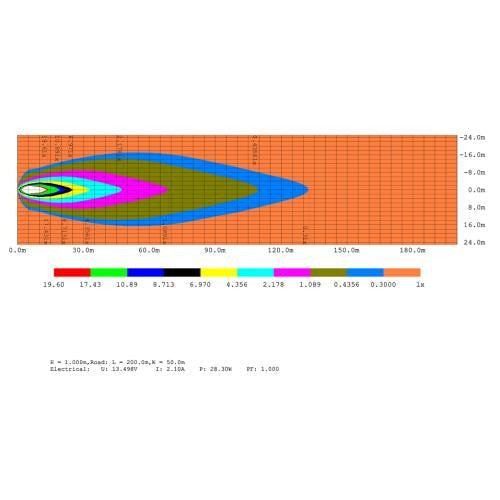

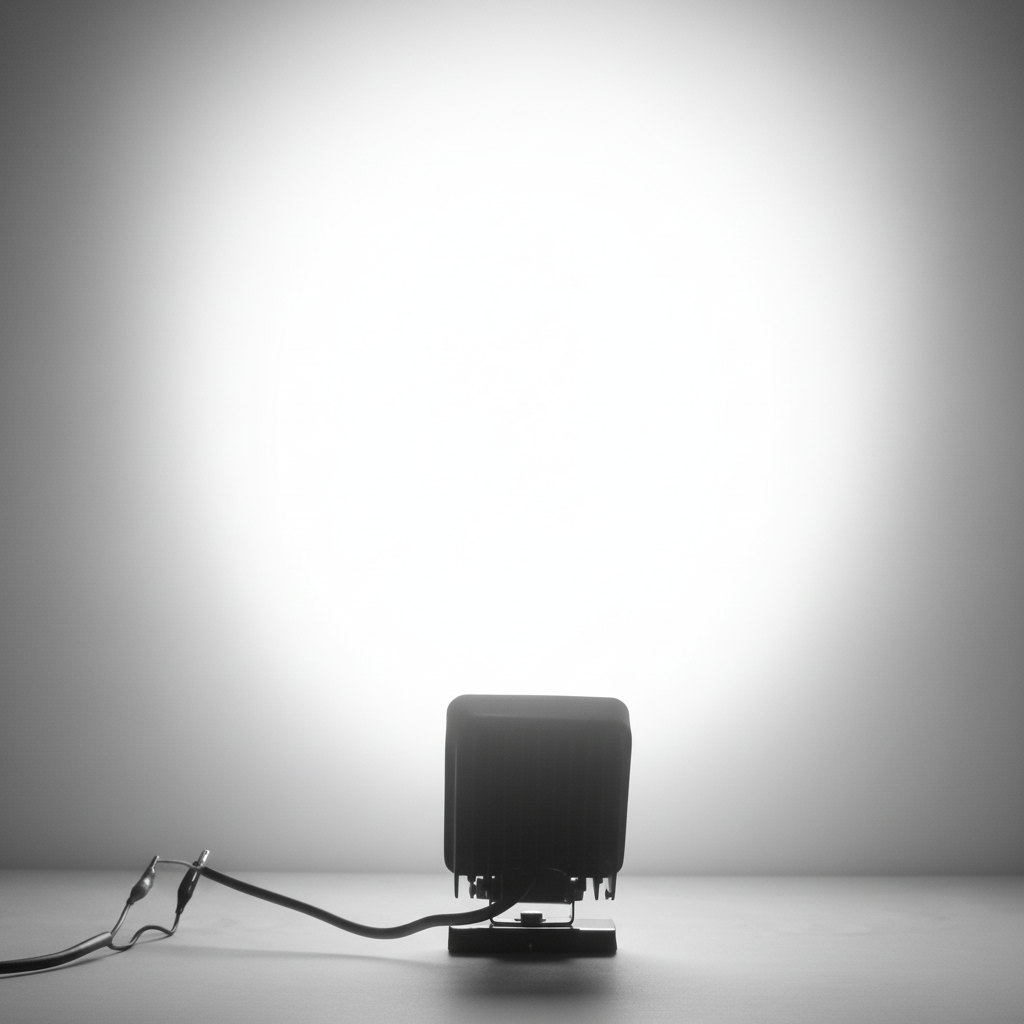

• Flood / spot combination beam for both distance and area lighting – ideal for working implements, yards and access tracks.
• Cool white 6,000 K colour temperature for crisp contrast, better object definition and reduced operator eye strain at night.

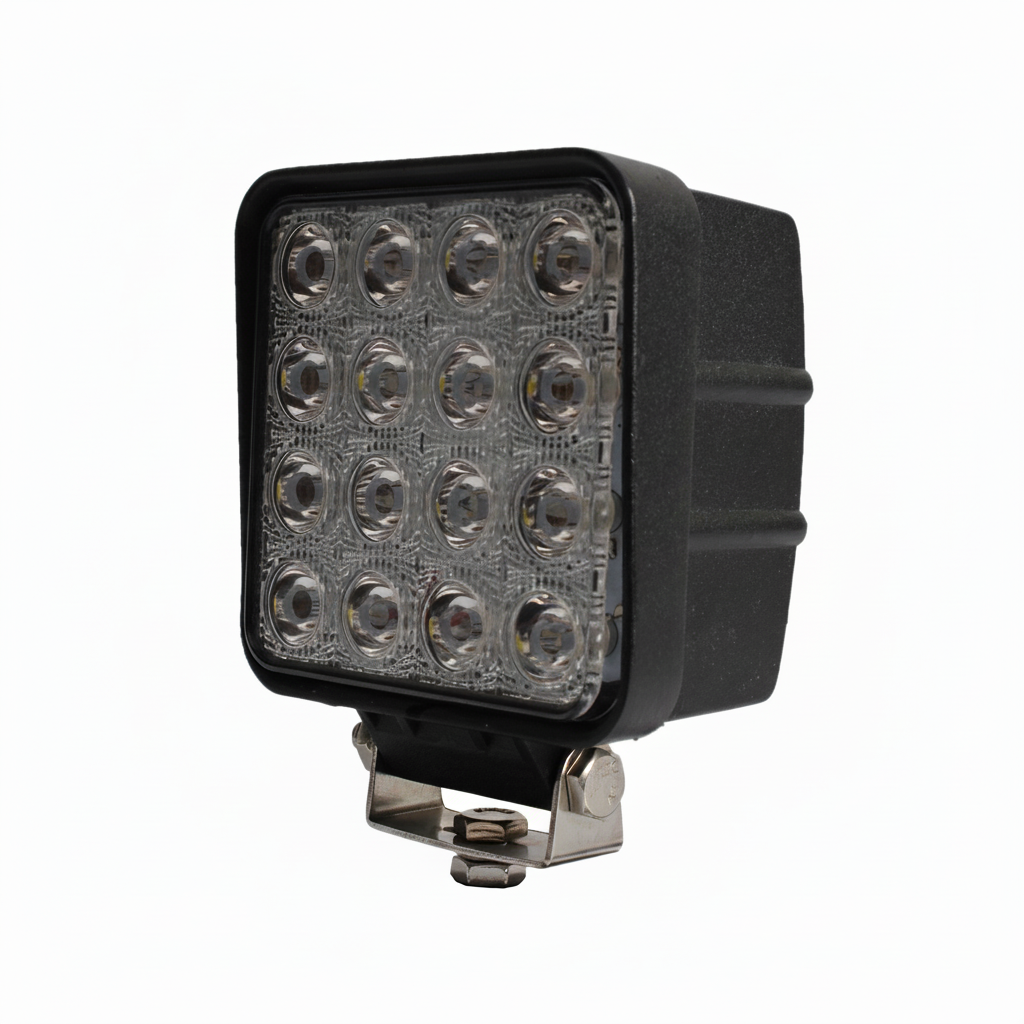

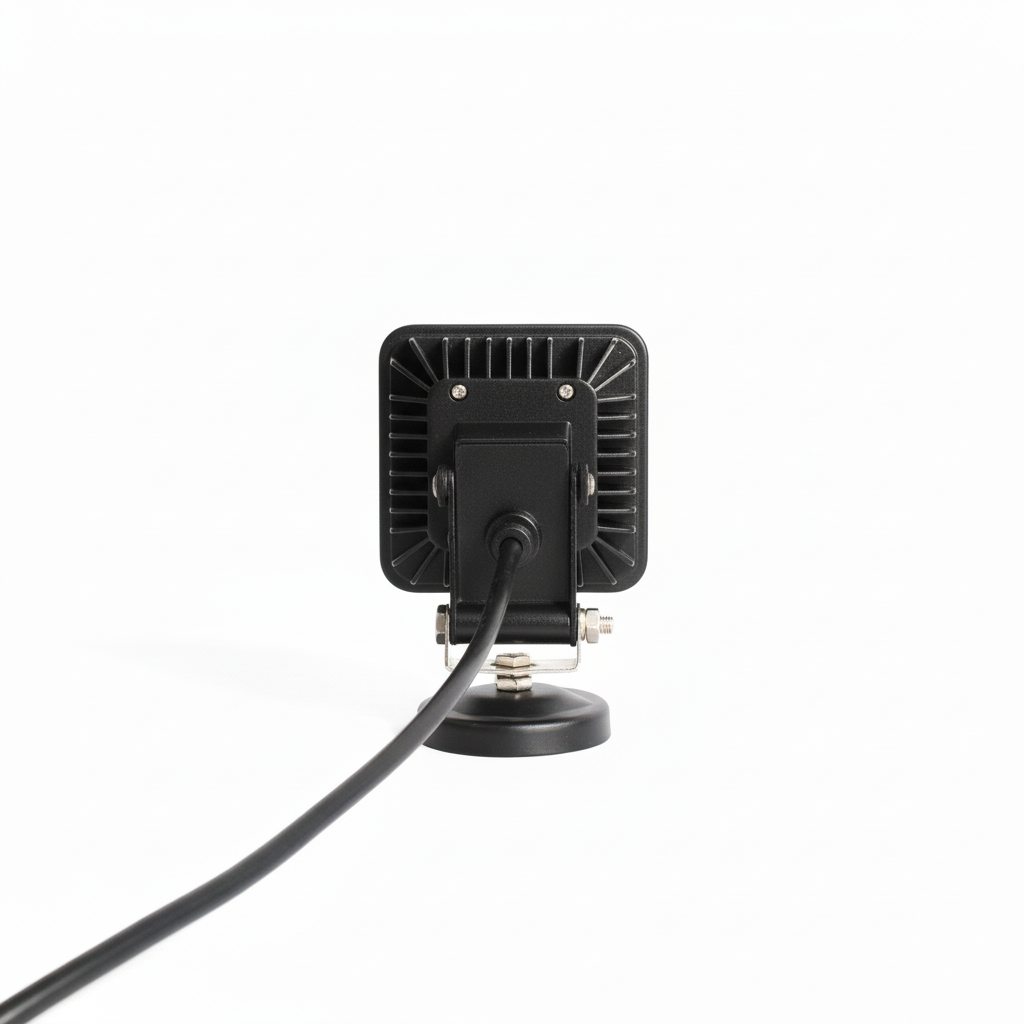

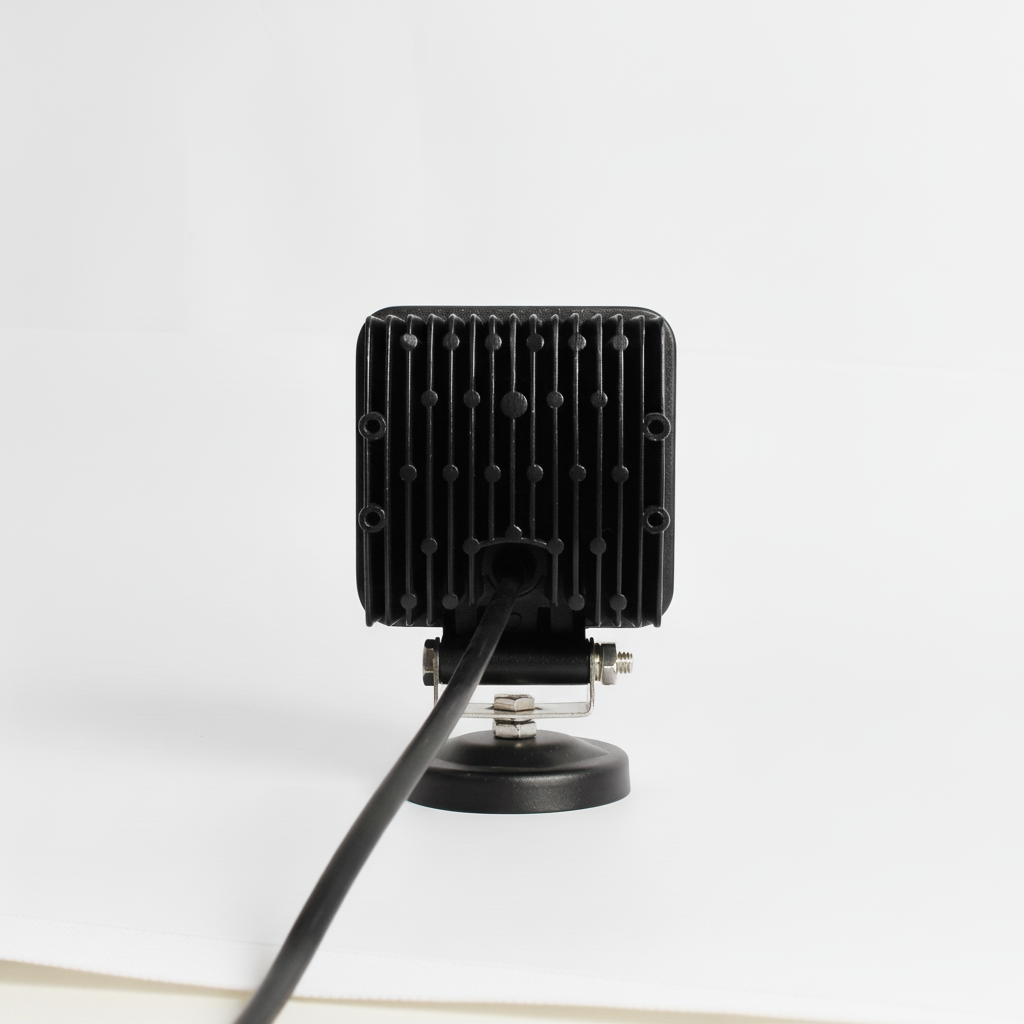

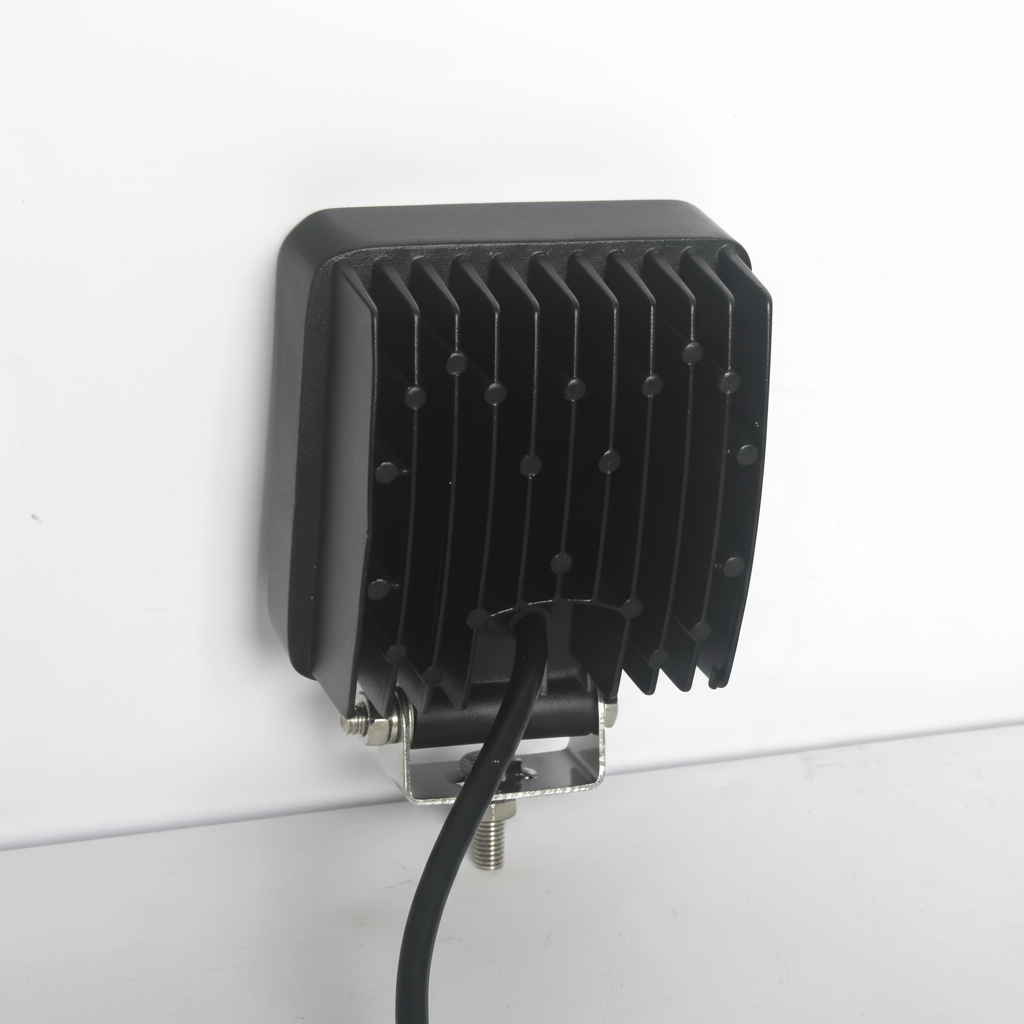

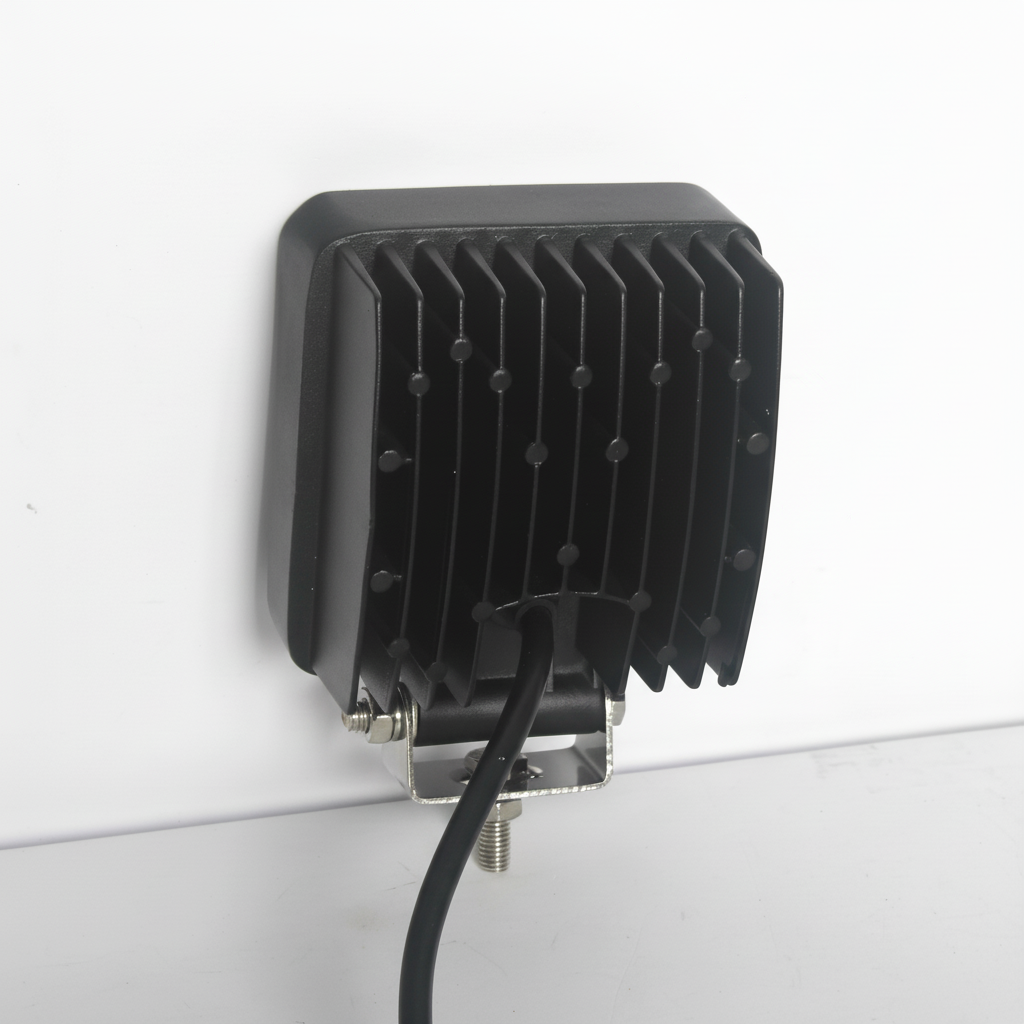

• Die-cast aluminium housing for excellent heat dissipation, corrosion resistance and mechanical strength in harsh environments.
• Impact-resistant polycarbonate lens that stands up to vibration, stone strike and heavy daily use better than glass.
• IP67 ingress protection – fully dust-tight and protected against temporary immersion, suitable for washdowns and wet, dirty sites.
• ECE R10 approved and EMC CISPR 25 Class 3 compliant, helping prevent interference with radios, control modules and telematics.
• Vibration-tested to 15 G and shockproof design for reliable operation on rough ground and heavy machinery.
• Long service life (50,000 h) LED technology reduces lamp changes, labour cost and unscheduled downtime.
• Compact size – 110 × 126 × 57 mm, giving flexible mounting on crowded cabs, booms, bodywork and gantries.

Ideal Applications

• Agricultural machinery – tractors, loaders, sprayers, harvesters and slurry tankers for field work and yard lighting.
• Construction and plant – excavators, wheel loaders, telehandlers, dumpers and site equipment.
• Utility and service vehicles – recovery trucks, maintenance vans, refuse trucks and rail service vehicles.
• Industrial and warehouse equipment – forklifts, yard tugs, material handling and loading bays.
• Off-road and forestry – 4x4s, UTVs, forestry forwarders and specialist off‑highway machines.
