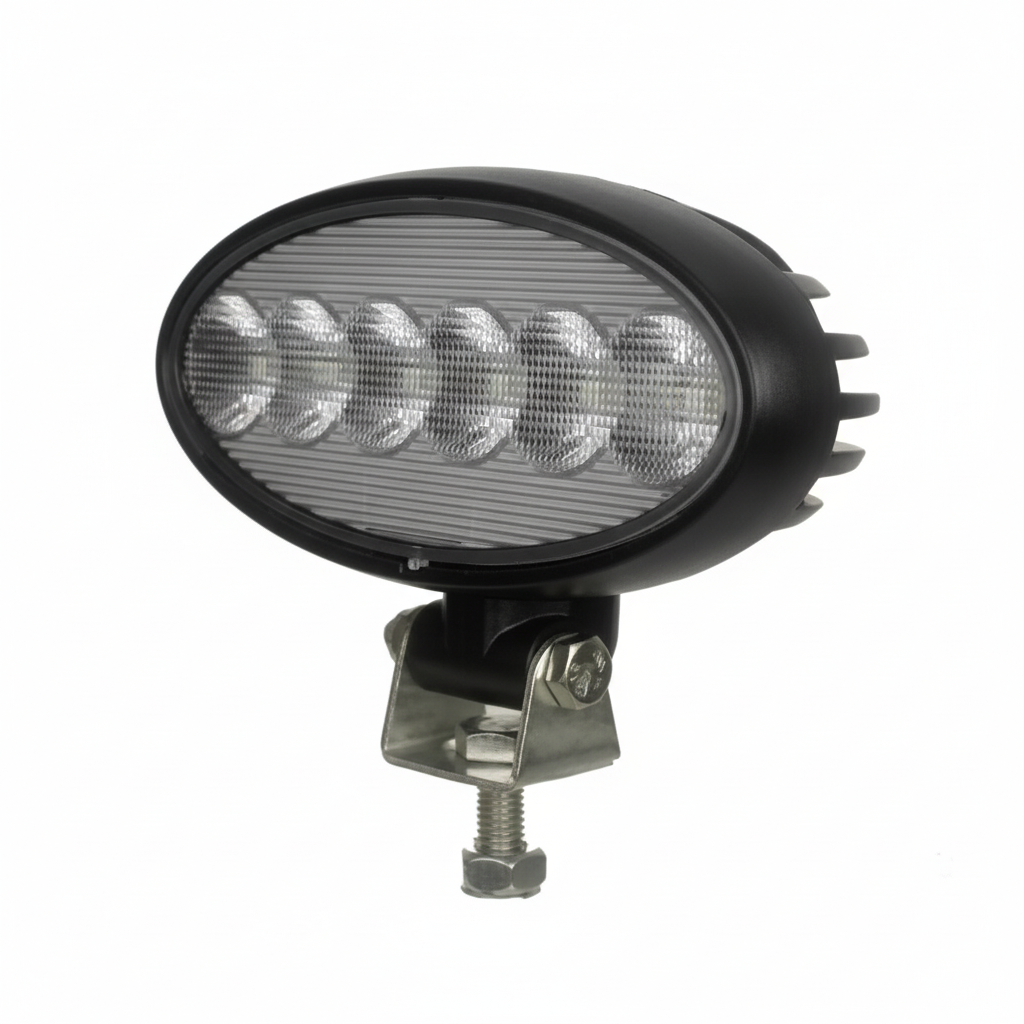

60 Watt LED Work Light – LG835

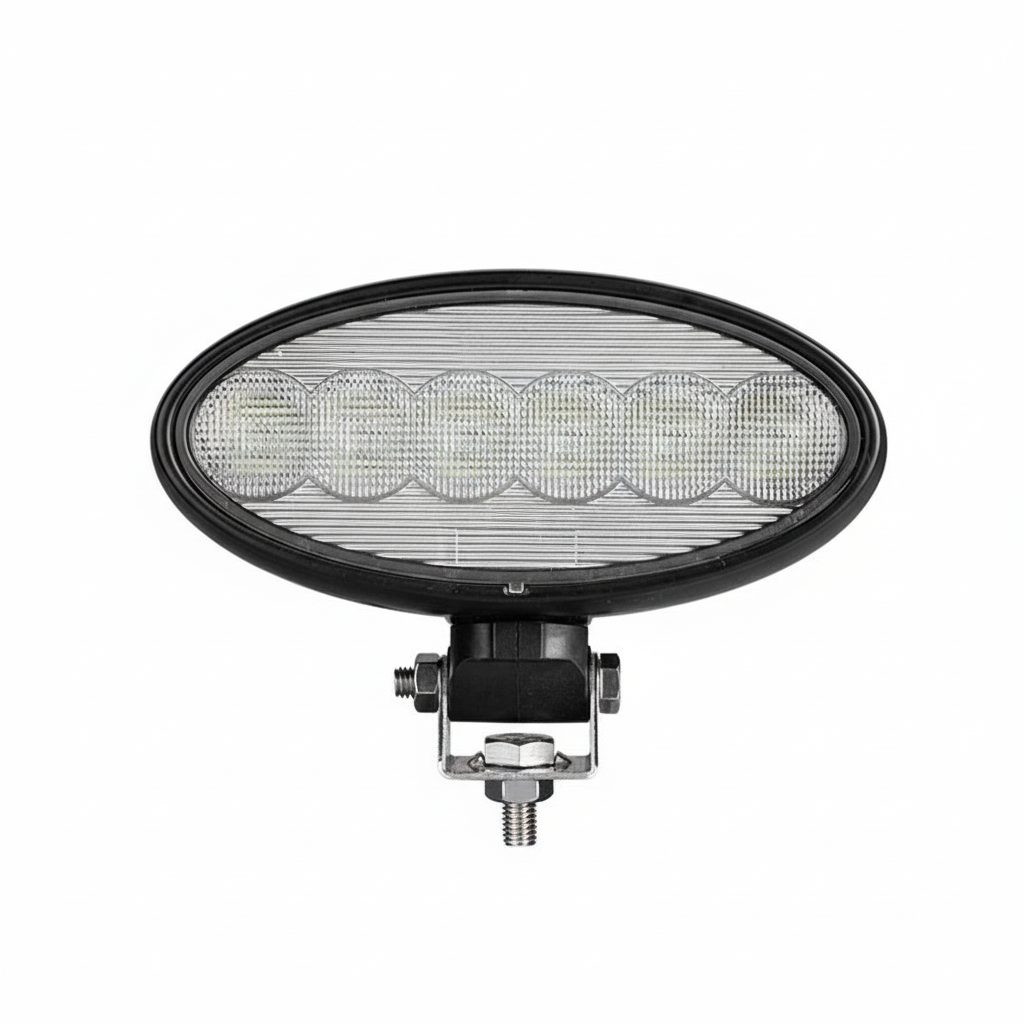

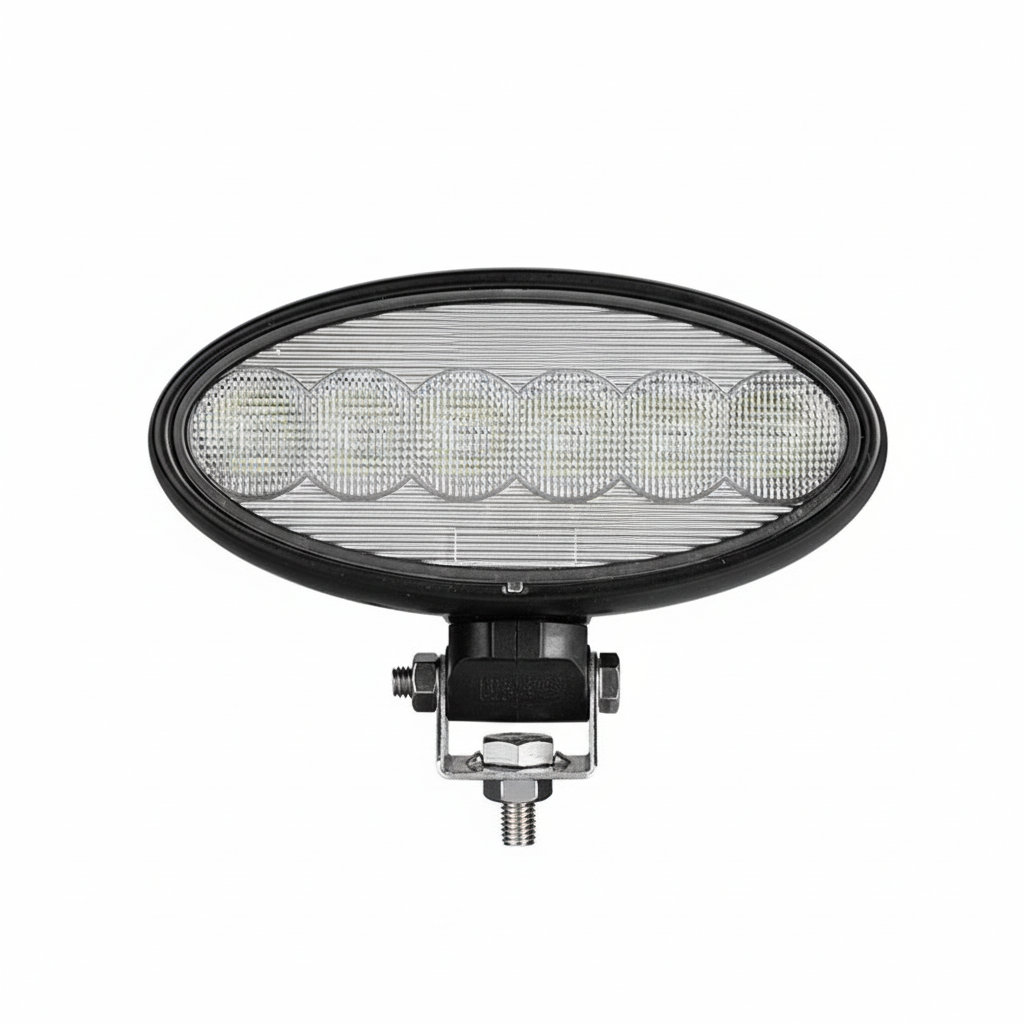

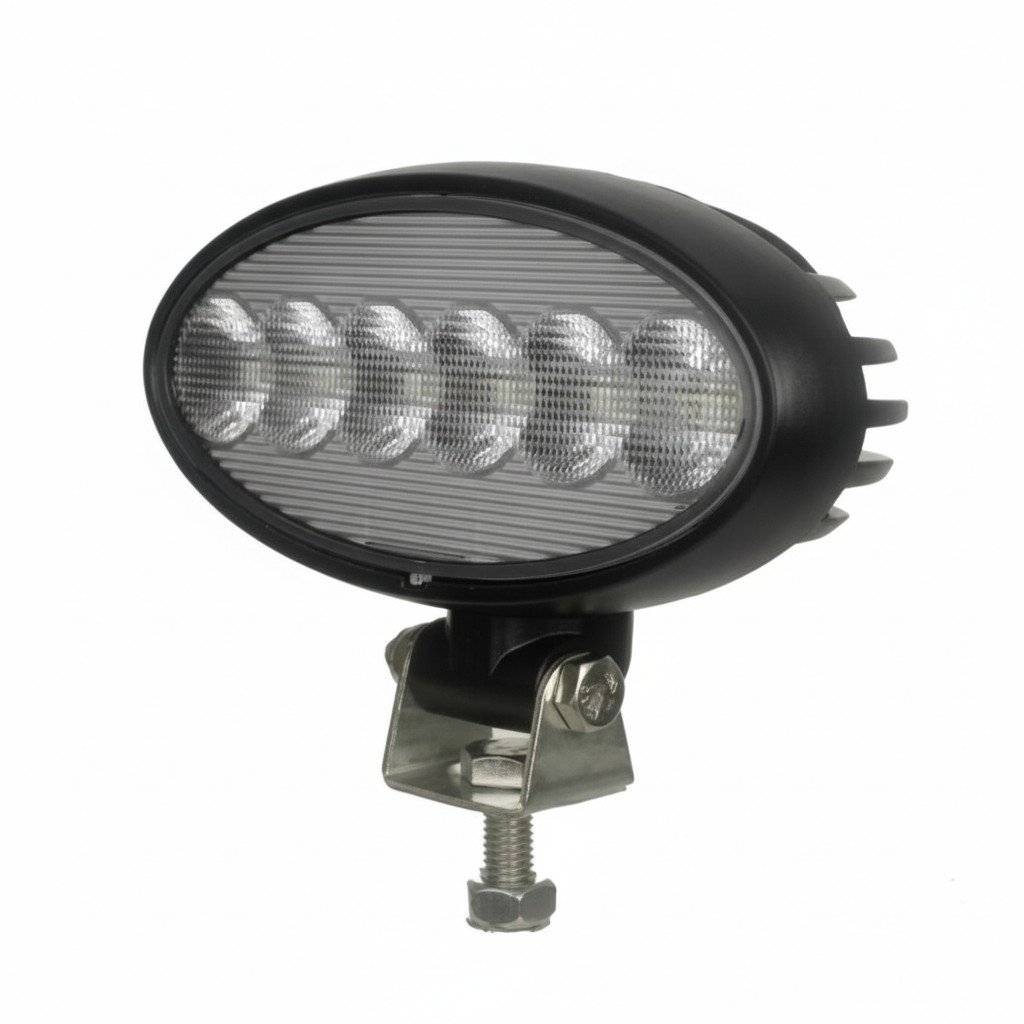

The 60 W LED work light LG835 delivers a strong 4,800 lumen flood beam that turns night work into clear, usable daylight. It’s designed for professional operators who need reliable, wide-area illumination on tractors and heavy machinery, not just a brighter spot. Fully ECE R10 and CISPR 25 Class 4 approved, it offers stable light with low electrical noise on 9–32 V DC systems.

When you’re pulling a late shift on the tractor or finishing a job in the yard, guesswork is expensive. This 60 W LED work lamp gives you a broad, even flood beam so you can see implements, headlands, and obstacles properly. At 50 m you still have 12 lux on the ground, and at 186 m there’s 1 lux of usable light, so you’re not working into a wall of darkness just beyond the bonnet.

The LG835 uses high-intensity CREE XTE LEDs with a rated 50,000-hour service life, mounted in a die-cast aluminium housing for thermal control and impact resistance. Colour temperature sits at 6,000 K cold white, which picks out detail in crops, mud, and machinery without the yellow haze of older halogen work lights. It’s a straight upgrade in both light quality and energy efficiency for modern tractors, sprayers, and loaders.

Electrically, it’s built for mixed fleets. The 9–32 V DC input covers both 12 V and 24 V systems, so one part number works across tractors, harvesters, and support vehicles. With ECE R10 approval and EMC CISPR 25 Class 4 compliance, the lamp is proven not to upset sensitive electronics, guidance systems, or in-cab radios. That’s why it’s trusted on higher-end John Deere models where CAN bus stability matters.

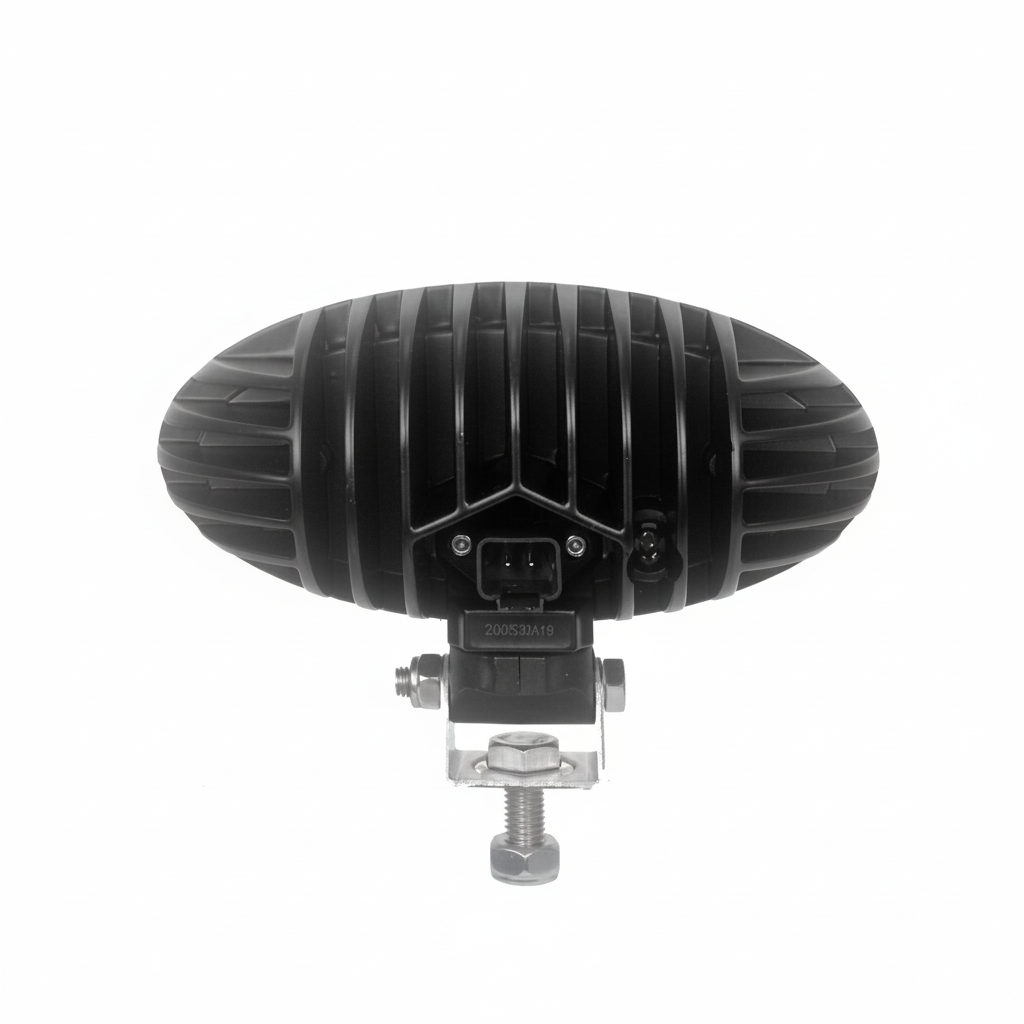

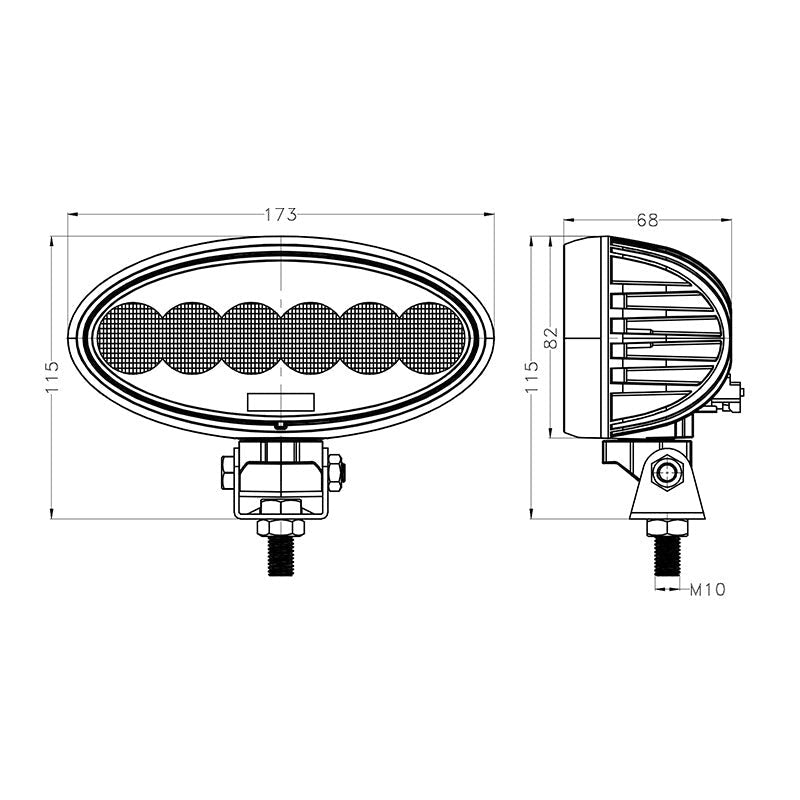

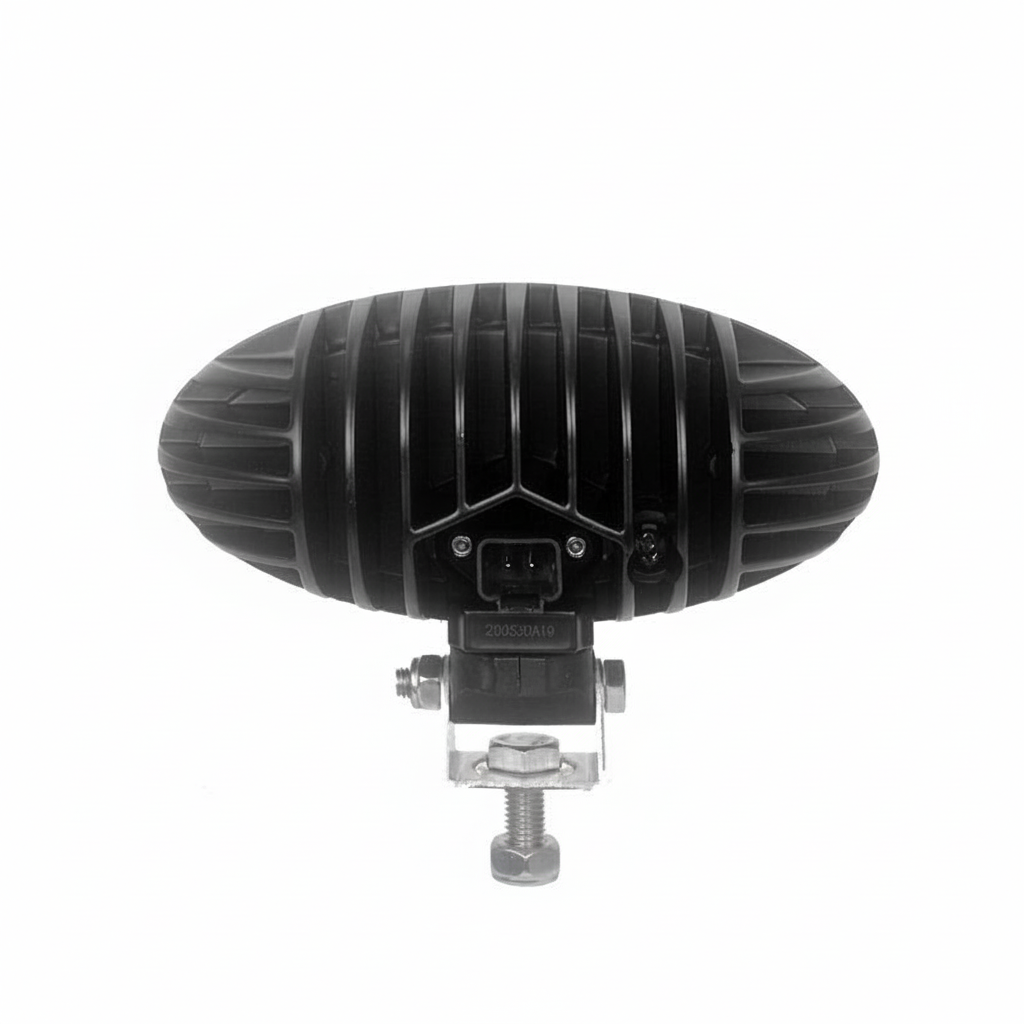

Installation is straightforward. The lamp is supplied with a 7024 plug and socket, matching common John Deere O.E.M reference RE574752 locations, which cuts fitting time and avoids cutting or splicing the original loom. Compact dimensions of 173 × 115 × 73 mm (W × H × D) make it easy to retrofit on existing brackets, while IP68 ingress protection keeps out dust and allows safe operation in heavy rain, pressure washing, and muddy conditions typical of European agriculture.

Key Features

• 60 W LED power using high-intensity CREE XTE LEDs for strong, consistent output and long service life.
• 4,800 lumen flood beam for wide-area illumination around tractors, loaders, and implements.
• Lux performance: 12 lux at 50 m · 1 lux at 186 m, giving real working light well beyond the immediate area.
• Wide voltage range 9–32 V DC, suitable for both 12 V and 24 V agricultural and construction equipment.
• 6,000 K cold white colour temperature for clear, high-contrast visibility of terrain, crops, and machinery.
• Die-cast aluminium housing for strength, impact resistance, and effective heat management in continuous-duty use.
• Long-life design – 50,000 h service life, reducing downtime and replacement intervals in demanding fleets.
• IP68 ingress protection, sealed against dust and capable of operating under prolonged exposure to water and heavy spray.
• EMC safe – ECE R10 and CISPR 25 Class 4 compliant, minimising electrical interference with radios, GPS, and control systems.
• Plug-and-play 7024 connector, supplied with plug and socket for quick installation and clean integration with existing looms.

Ideal Applications

• John Deere tractors and machinery using O.E.M reference RE574752, including:
• 6R / 7R / 8R / 9R Series
• 5M Series (5065 M to 5115 M)
• 5R Series (5080 R to 5125 R)
• 6R Series (6105 R to 6250 R)
• 7R Series (7200 R to 7310 R)
• 8R Series (8225 R to 8400 R)
• 9R Series (9360 R to 9620 R)
• General agricultural work lighting on tractors, telehandlers, sprayers, and balers needing a flood beam upgrade.
• Construction and plant equipment working in low light, yards, and sites where wide, even light is critical.
• Fleet retrofit programmes where standardising on one robust, EMC-safe work lamp reduces stock and maintenance complexity.
• Municipal and utility vehicles that operate at night or in poor weather and need dependable area lighting.

Original equipment names, series numbers, and references are used for identification only and do not imply original equipment manufacture.

Why Choose LED-Global Lighting

LED-Global focuses on high-performance vehicle lighting engineered for European conditions and standards. Every work lamp, including the LG835, is specified with real-world operators in mind: clear optics, stable electronics, and honest performance figures. Our products are tested to recognised approvals like ECE R10 and CISPR 25 Class 4, so you can integrate them into modern machinery with confidence.

If you’re running a mixed fleet and you want proven, plug-and-play upgrades instead of experimental kit, this is exactly the type of work light we build.
