7-Zoll kabelloses Rückfahrkamera-Kit - LG9045

7-inch Wireless Reversing Camera Kit – LG9045

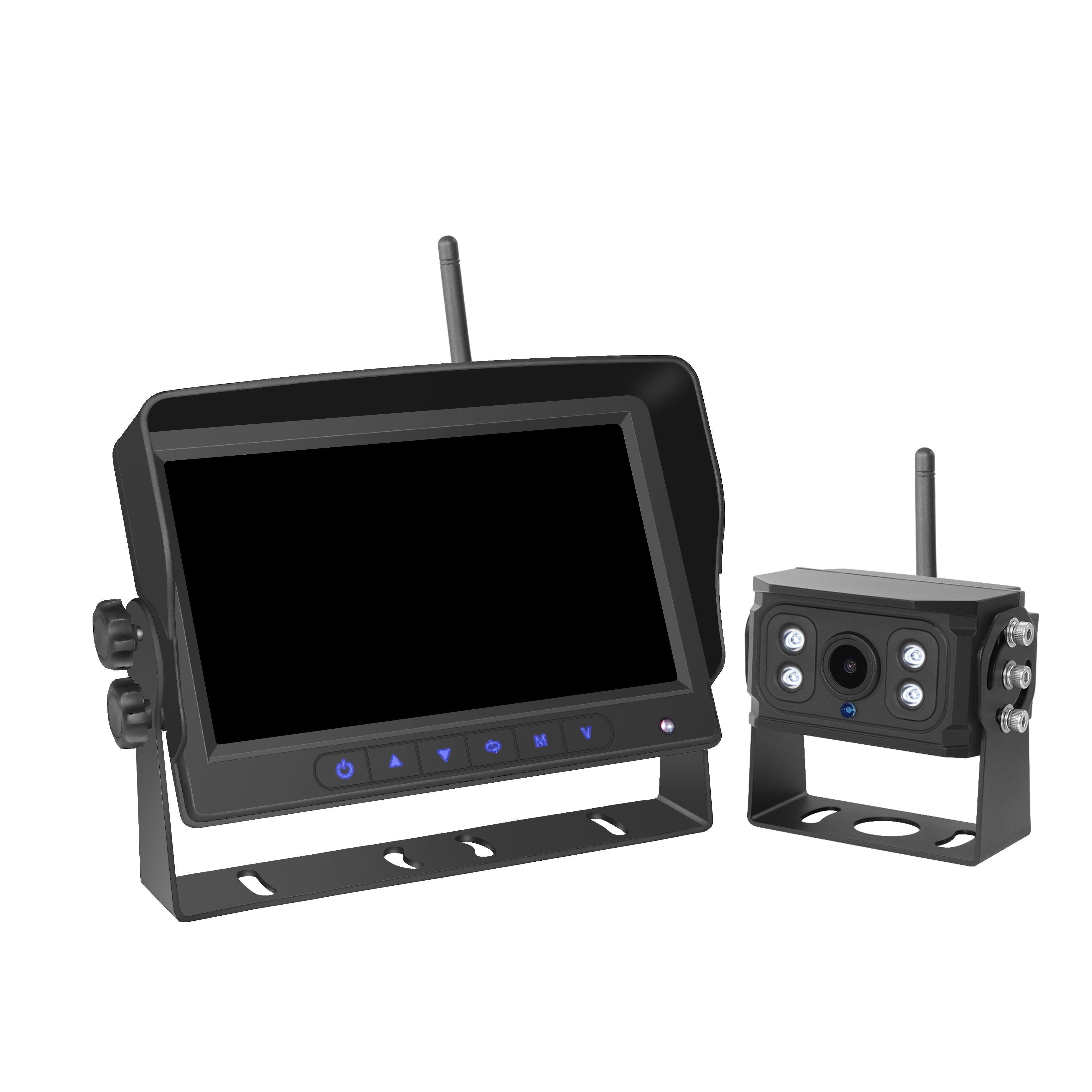

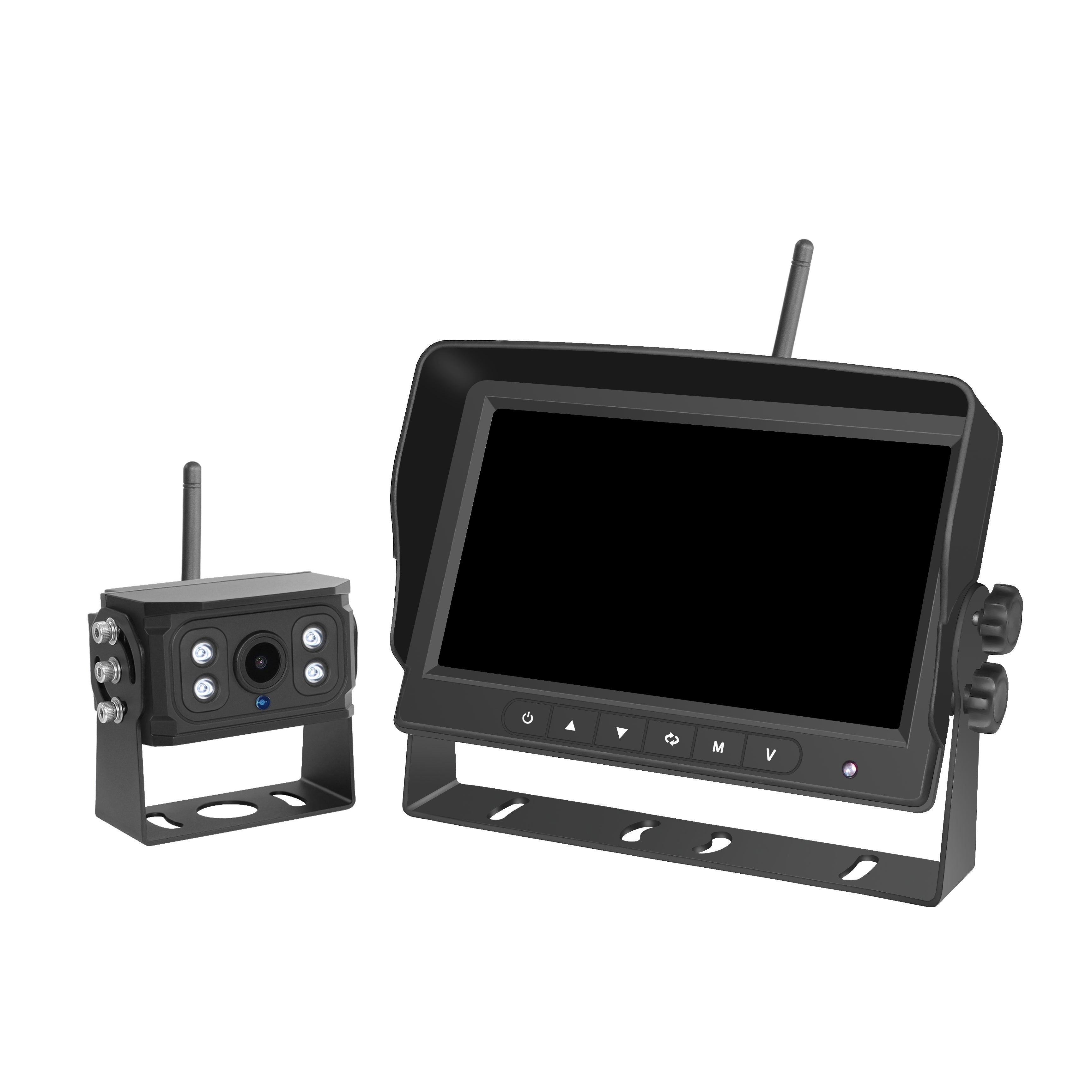

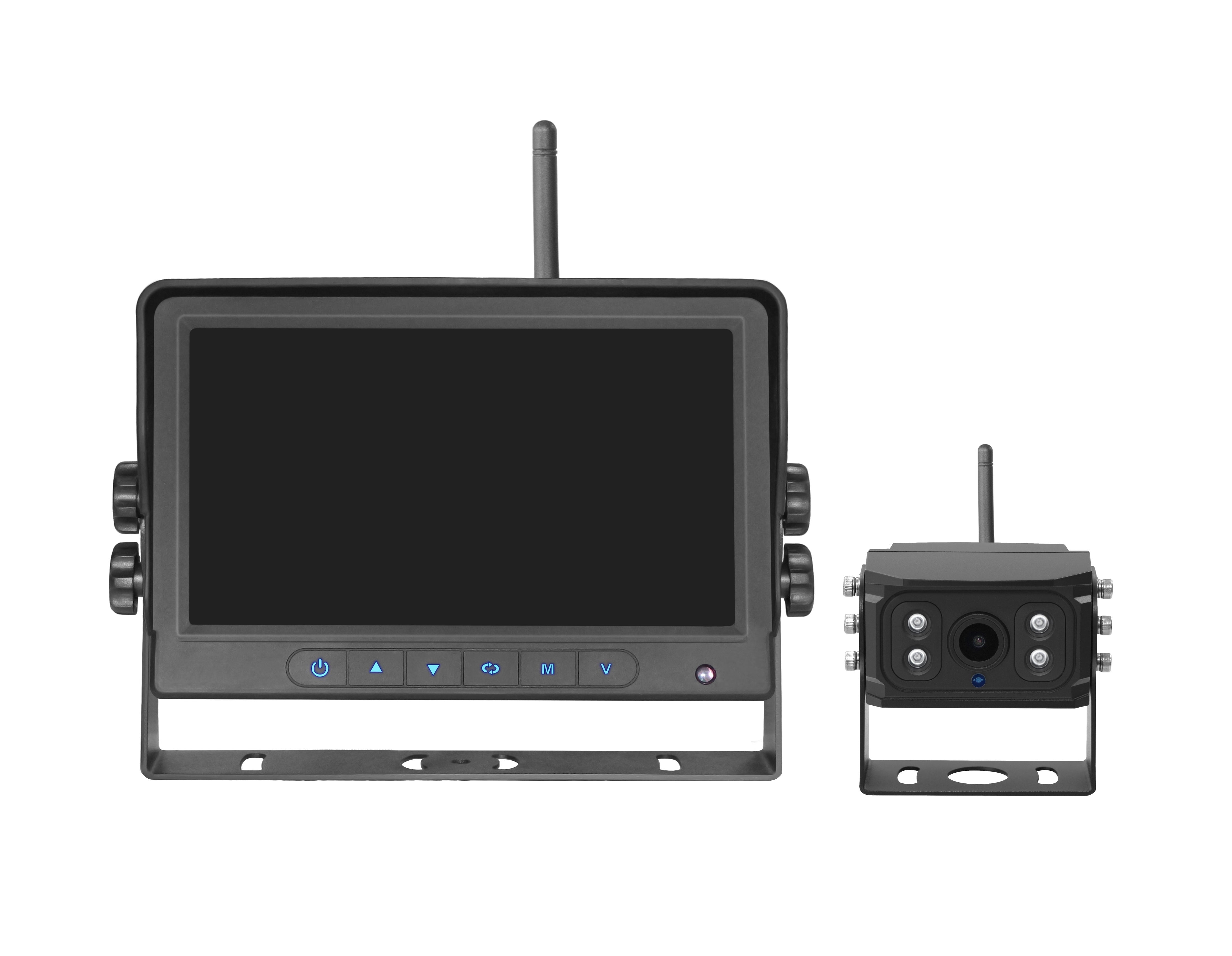

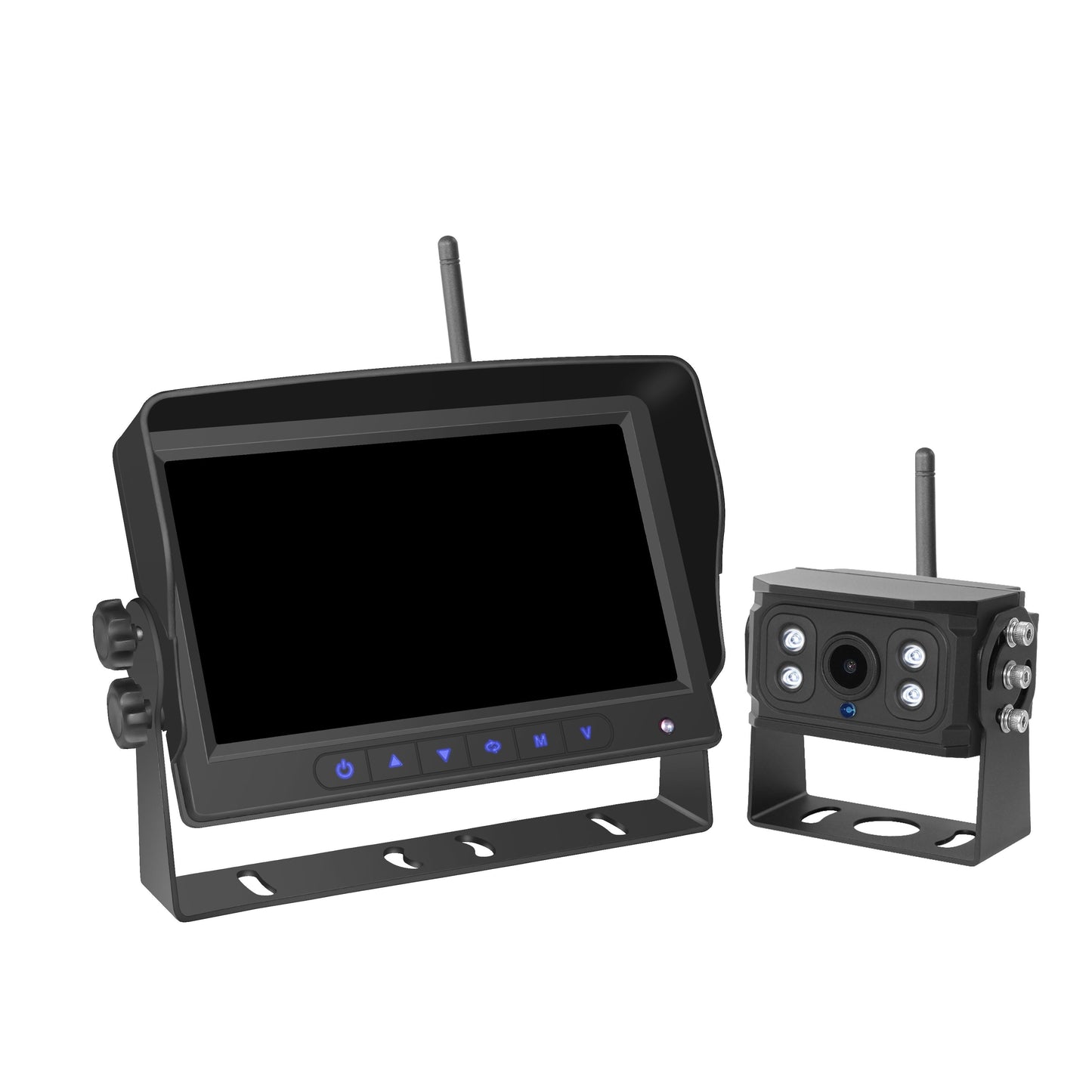

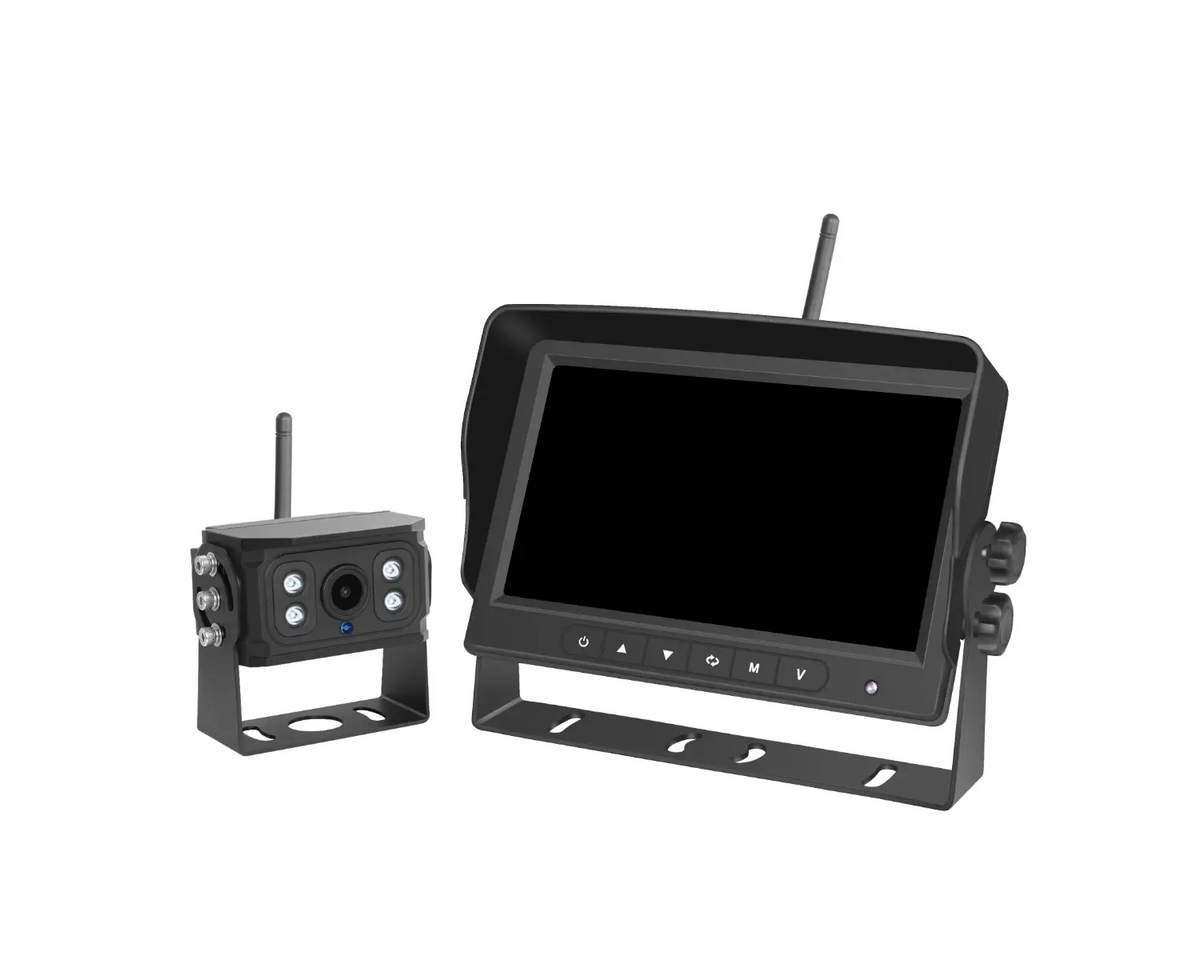

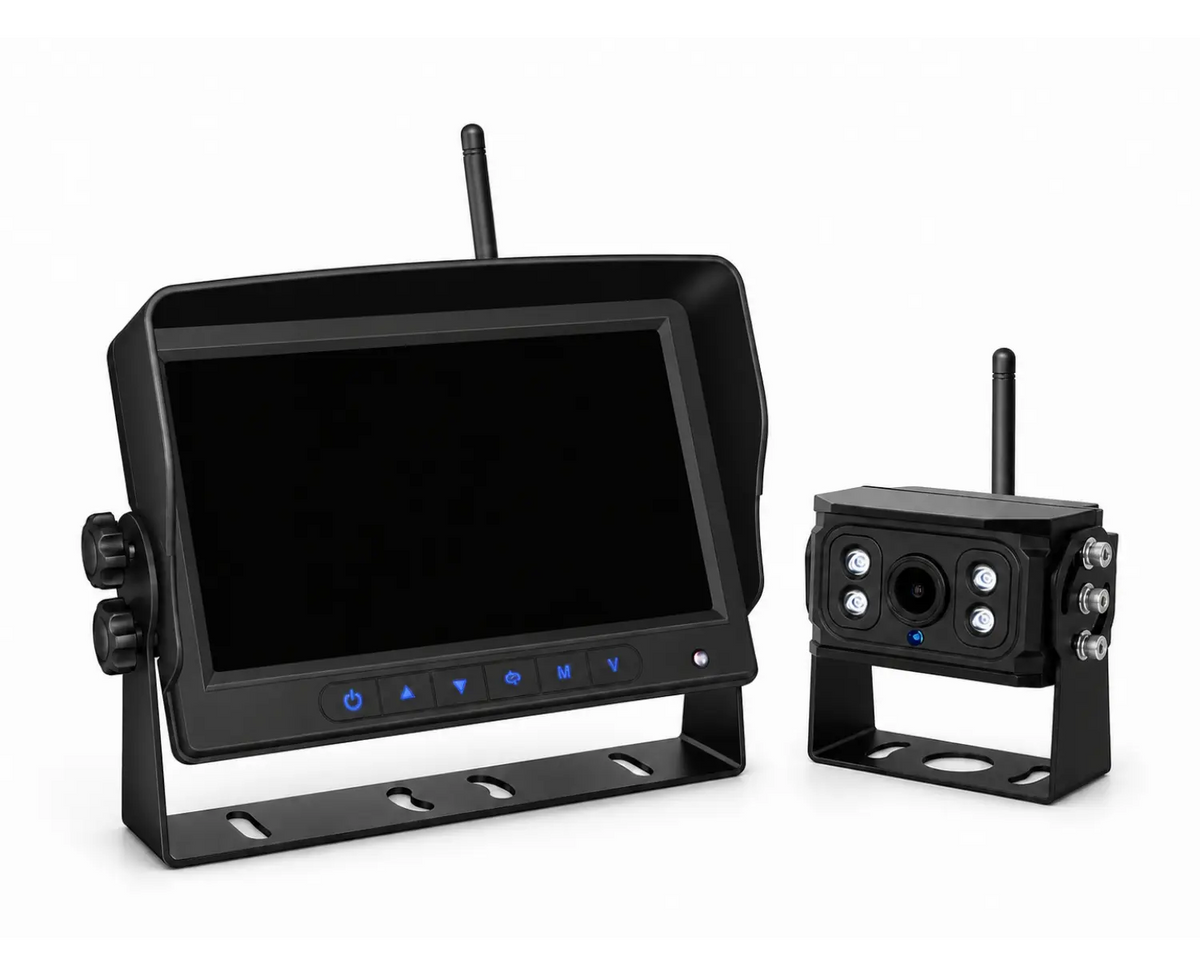

A 7-inch wireless reversing camera kit built for busy fleets, plant and agricultural machines that need clear vision without dragging cables through the vehicle. The LG9045 pairs a 1024 × 600 AHD monitor with a 1080P IP69K camera, giving sharp images in day and night. Designed for 12–24 V systems, it’s a practical upgrade for safer manoeuvring, loading and yard work.

The LG9045 solves a simple problem: you need a reliable rear-view system, but you don’t want to strip out interiors to run video cables. This kit uses wireless AHD transmission, so you only power the camera at the rear and the monitor in the cab. No long video looms, less labour, fewer weak points to chase faults in later.

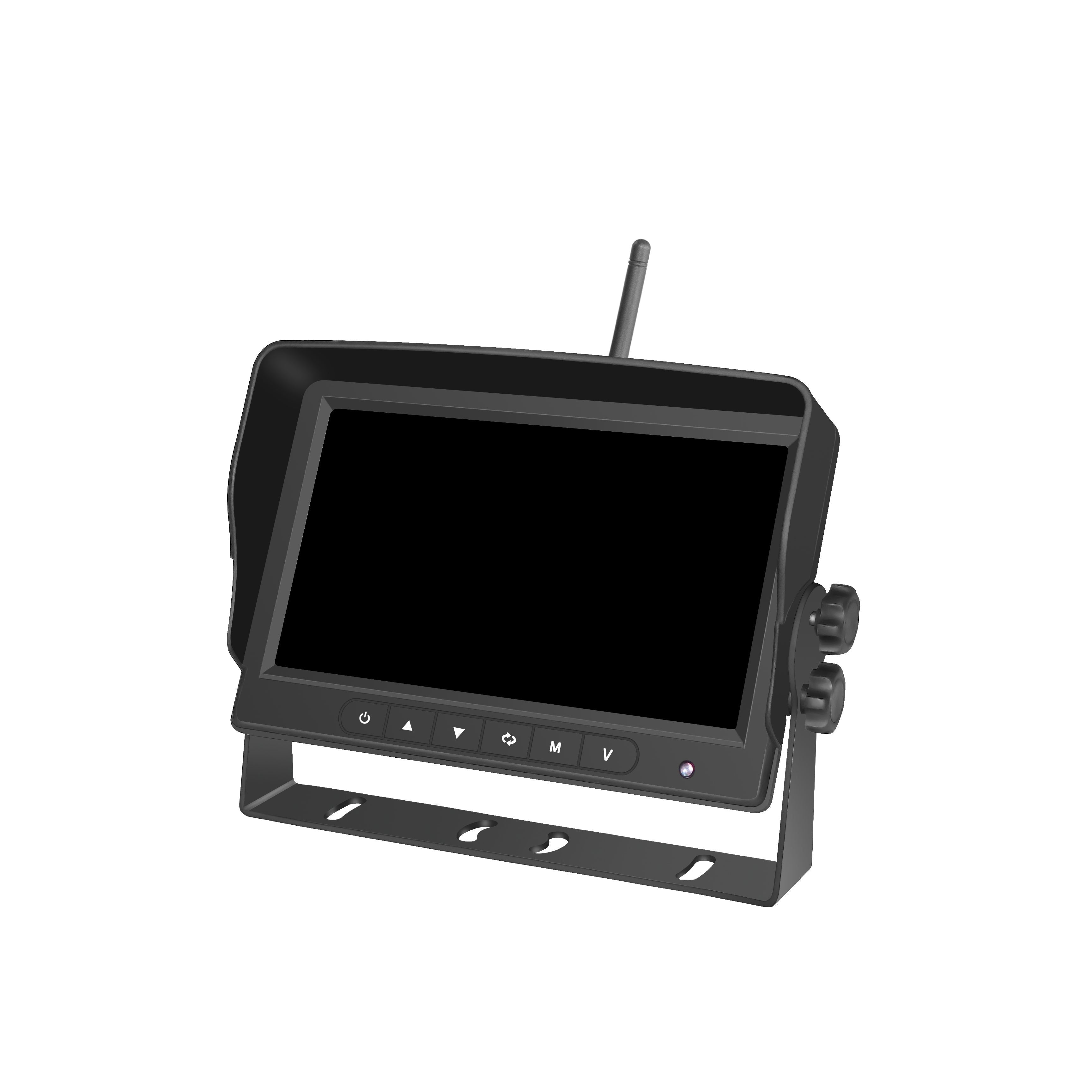

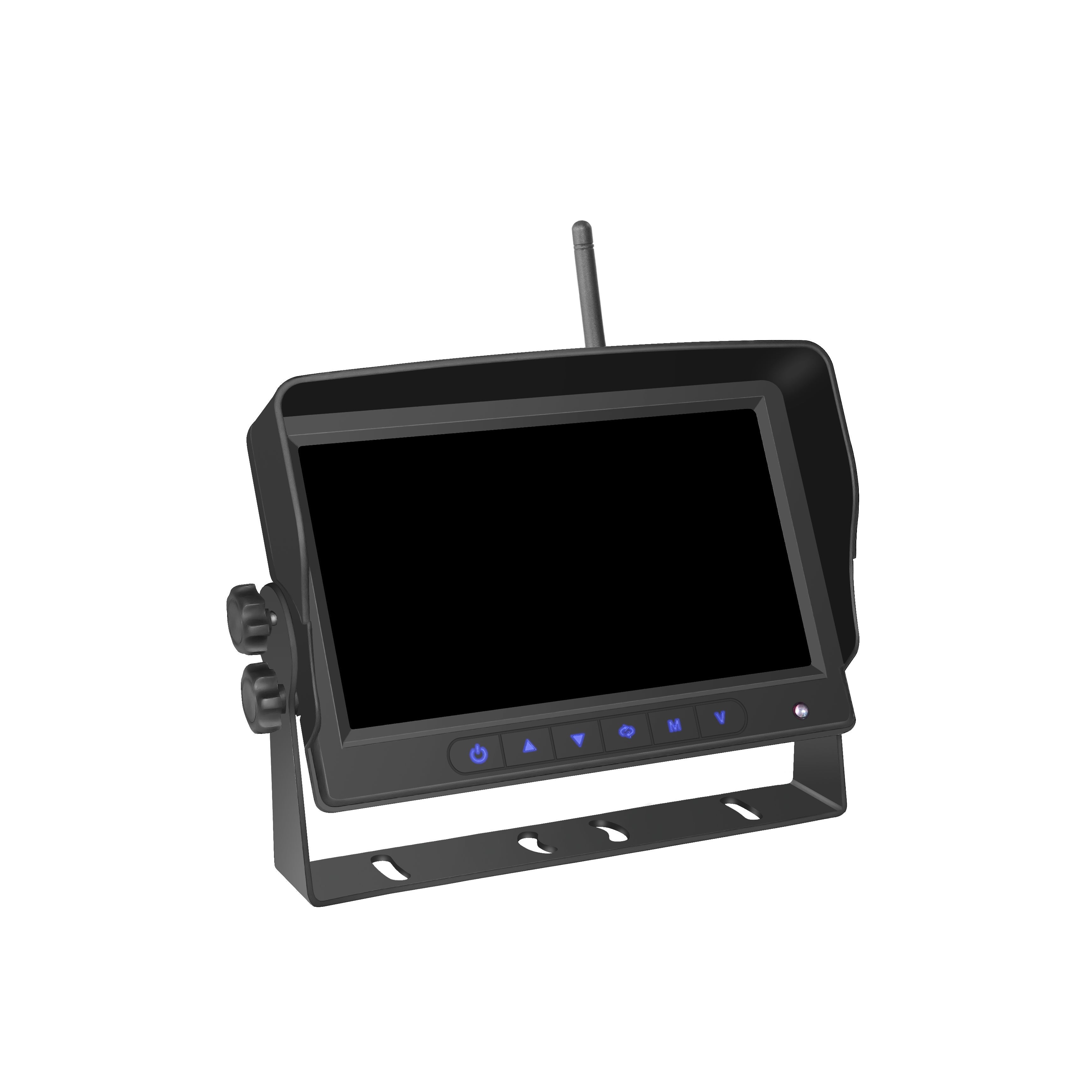

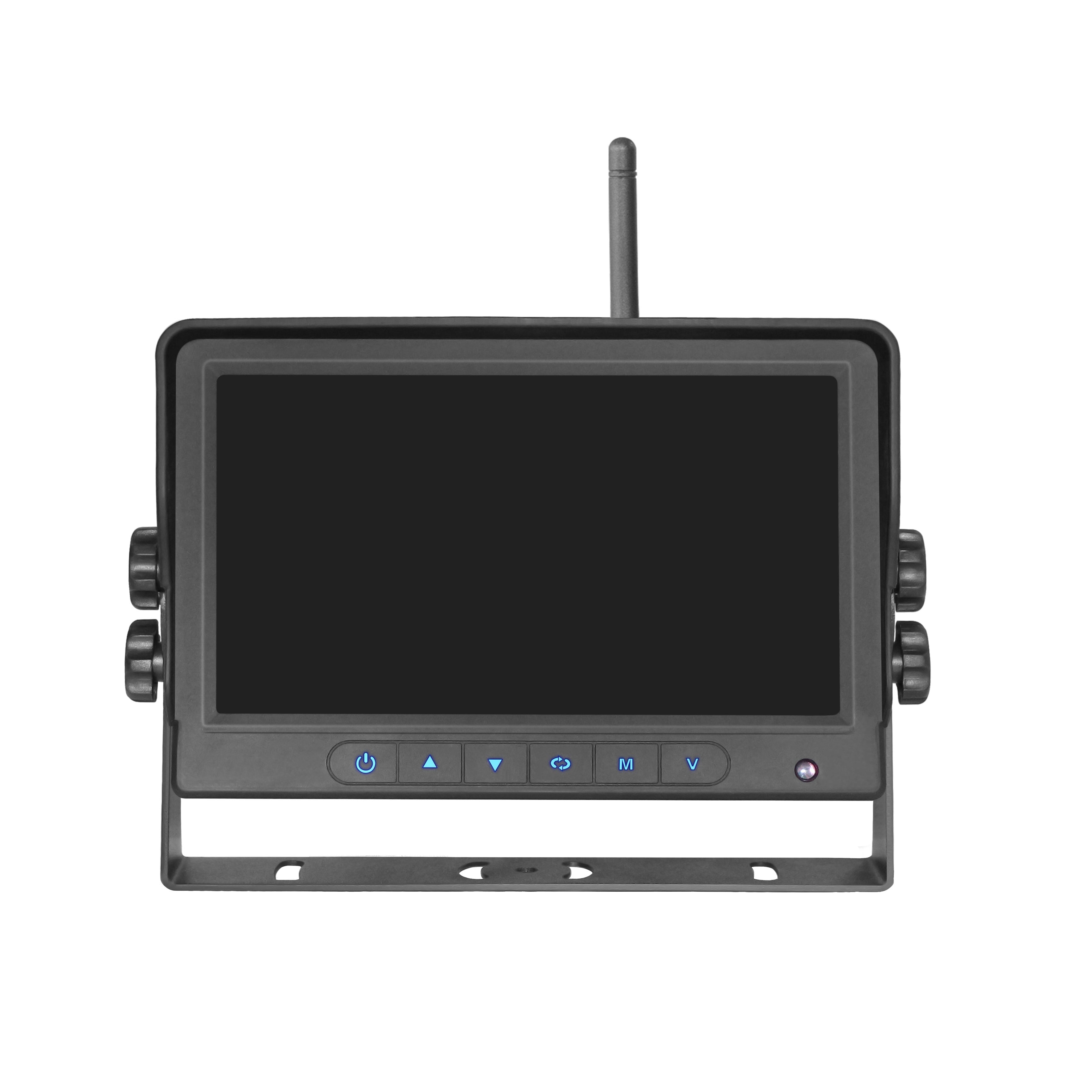

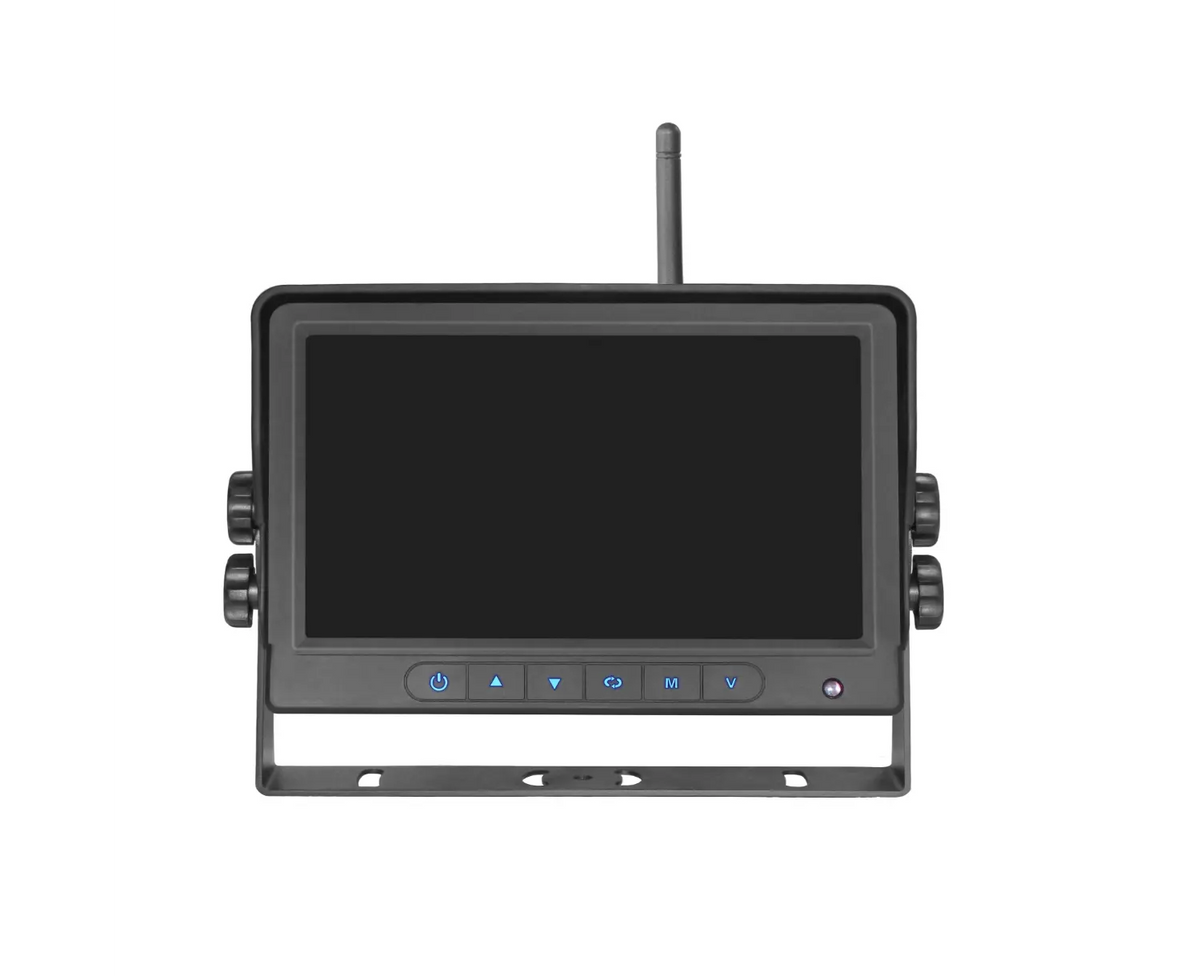

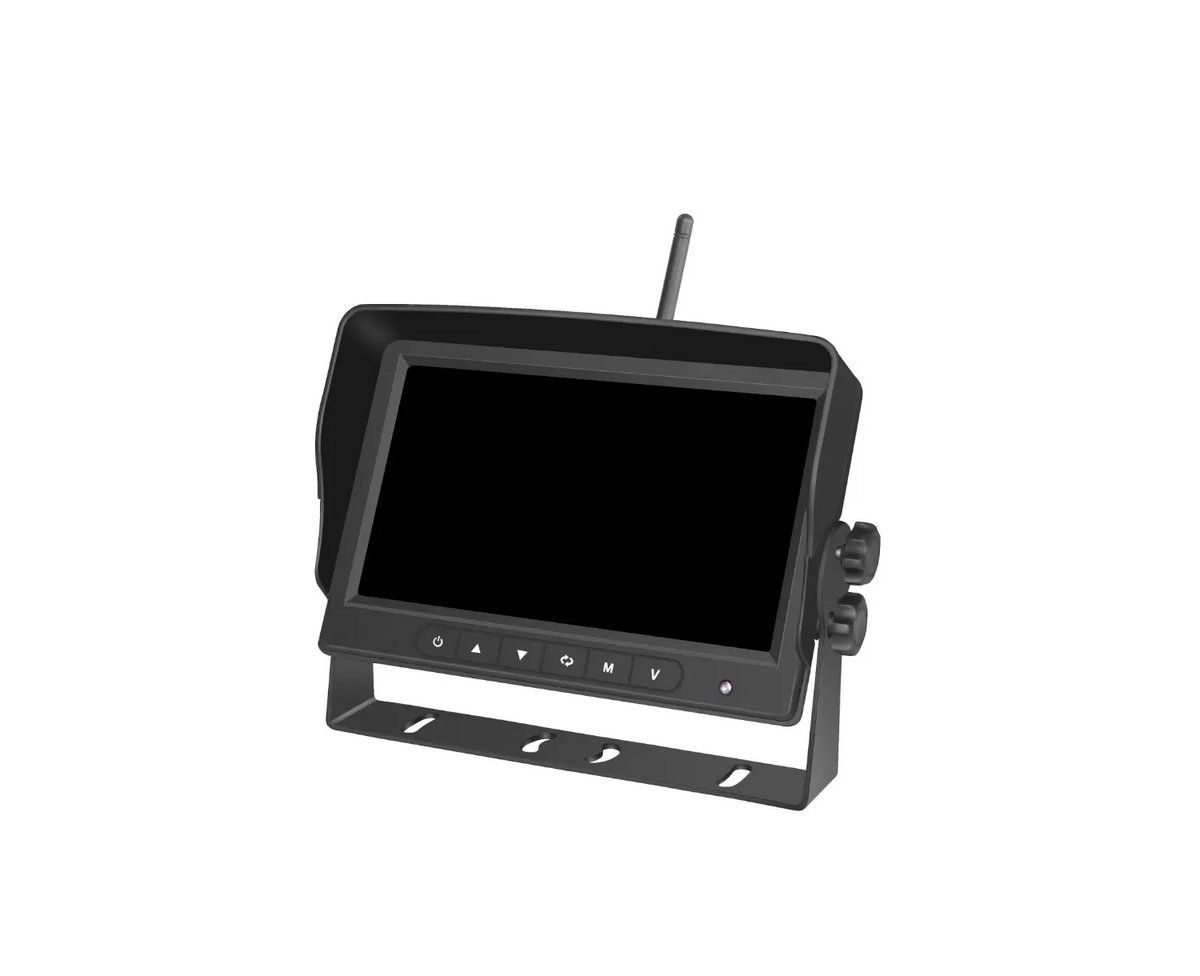

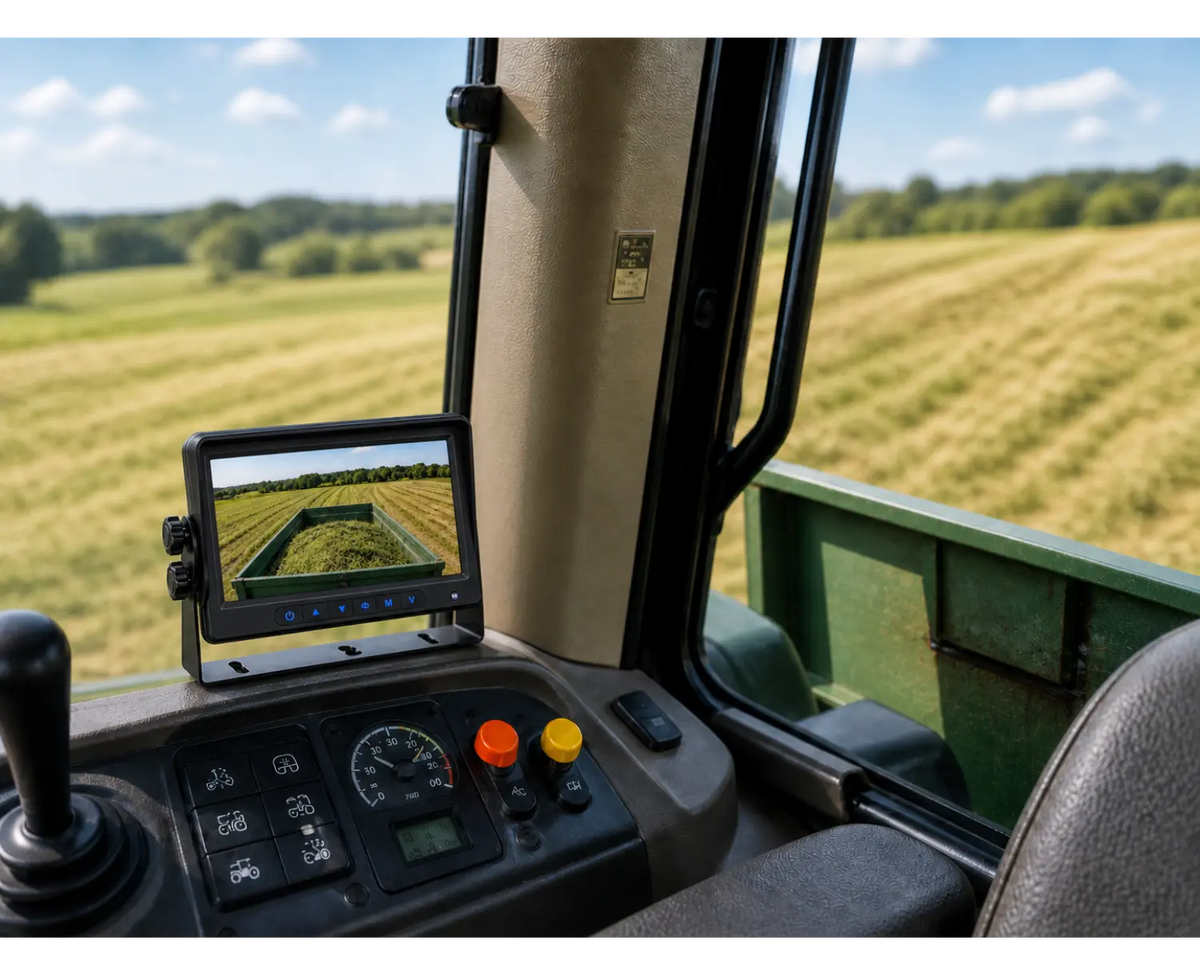

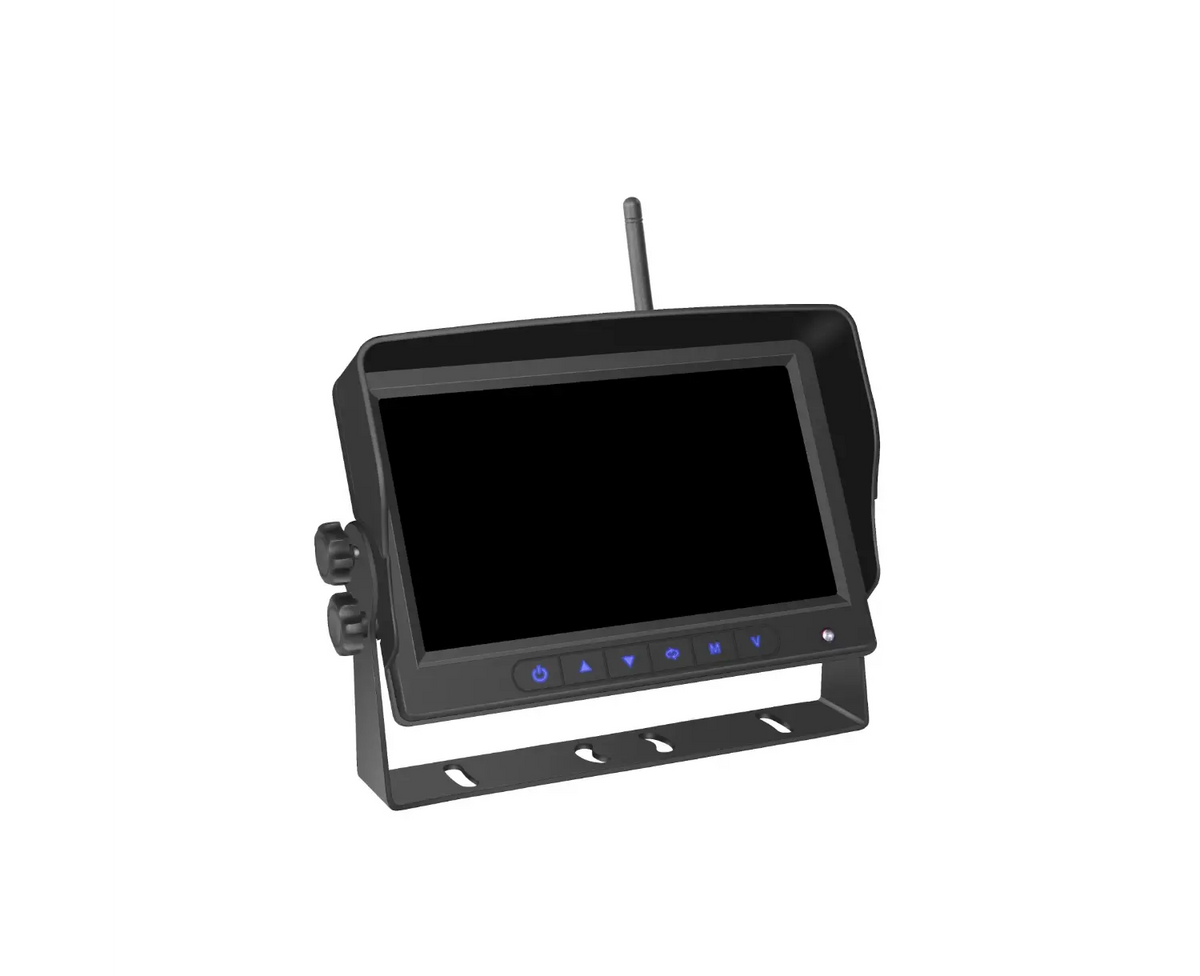

On the dash, the 7" 16:9 TFT display gives a crisp 1024 × 600 (RGB) image, so drivers can judge distance, pedestrians and obstacles with confidence. The monitor supports 4-way video input, so you can add extra cameras for side or front views if required. On-screen menus (OSD) keep setup simple, and a built-in speaker lets you use audio from compatible cameras for extra awareness around the vehicle.

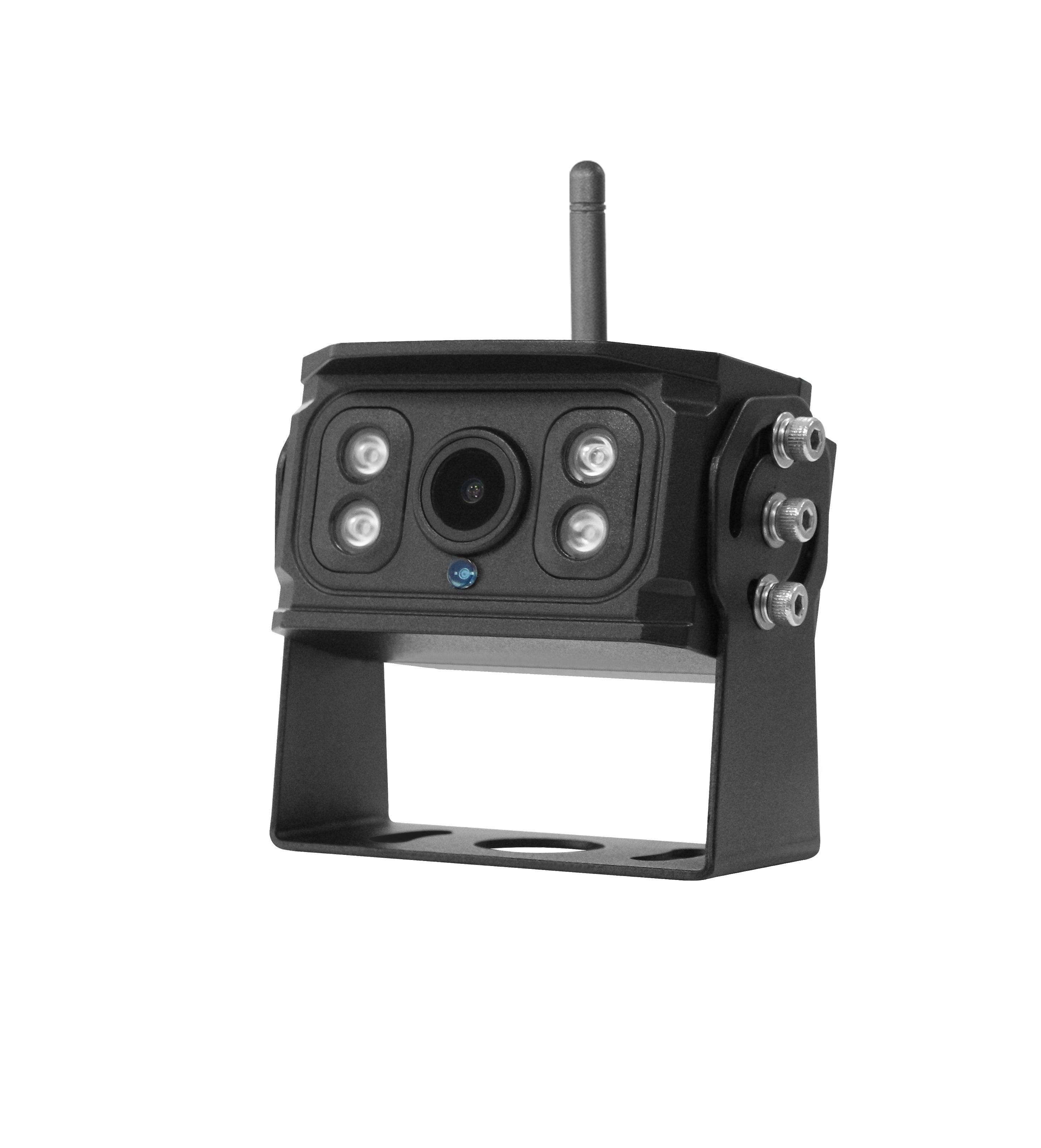

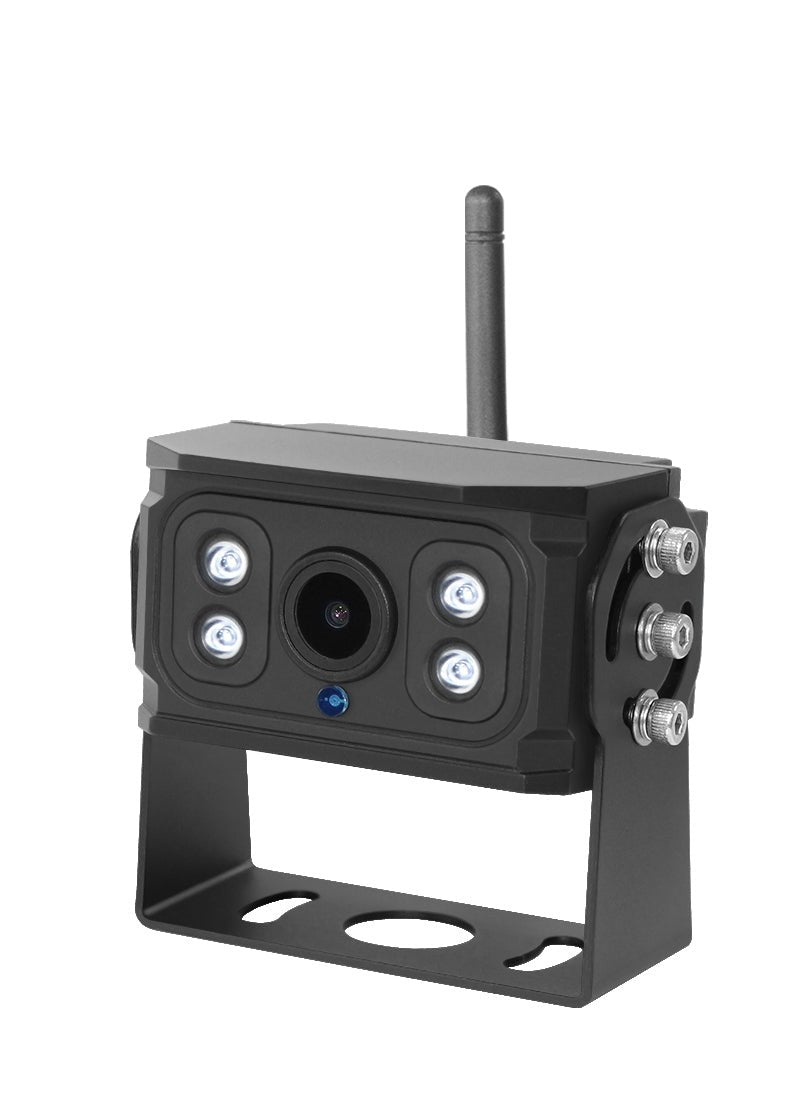

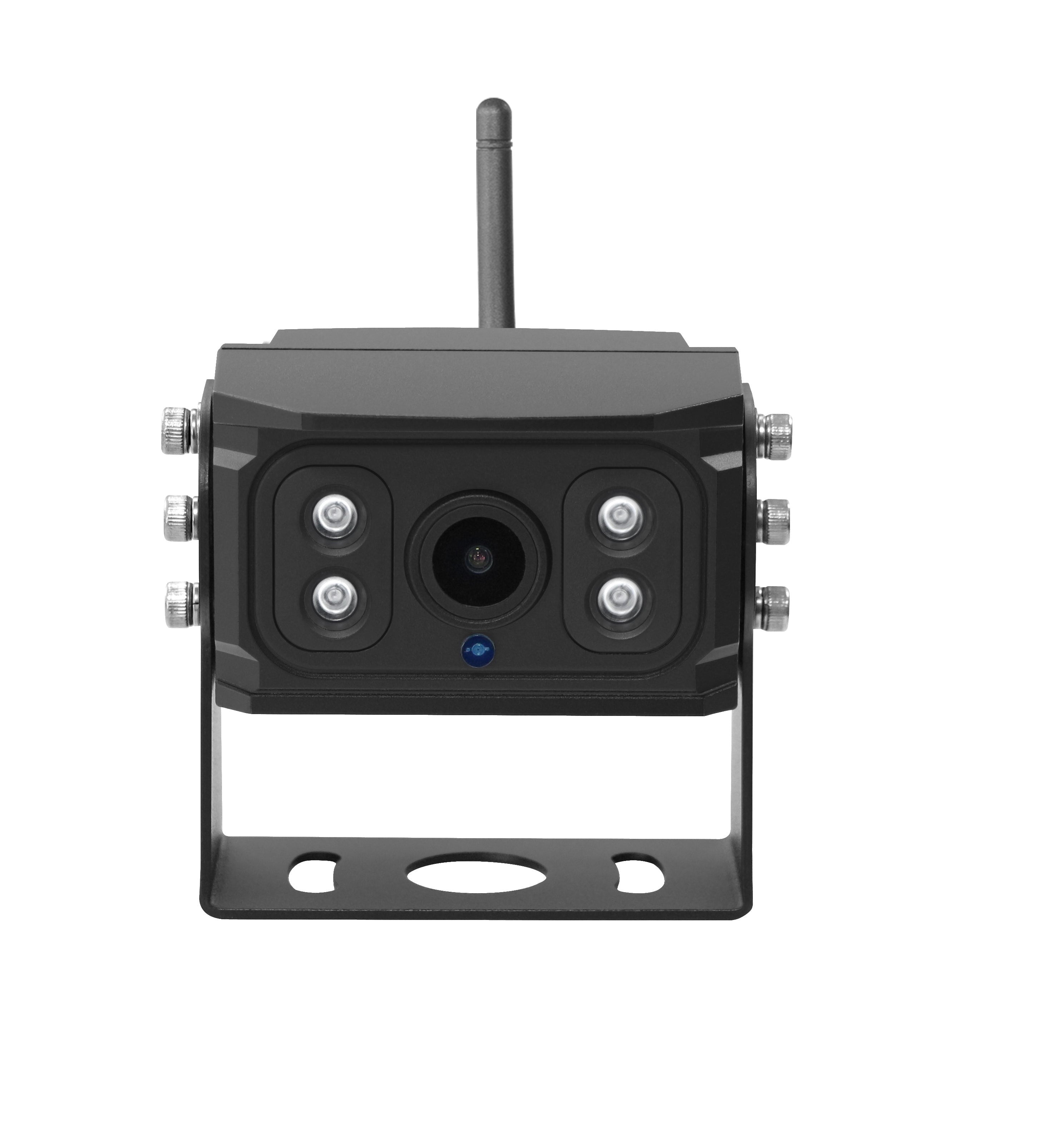

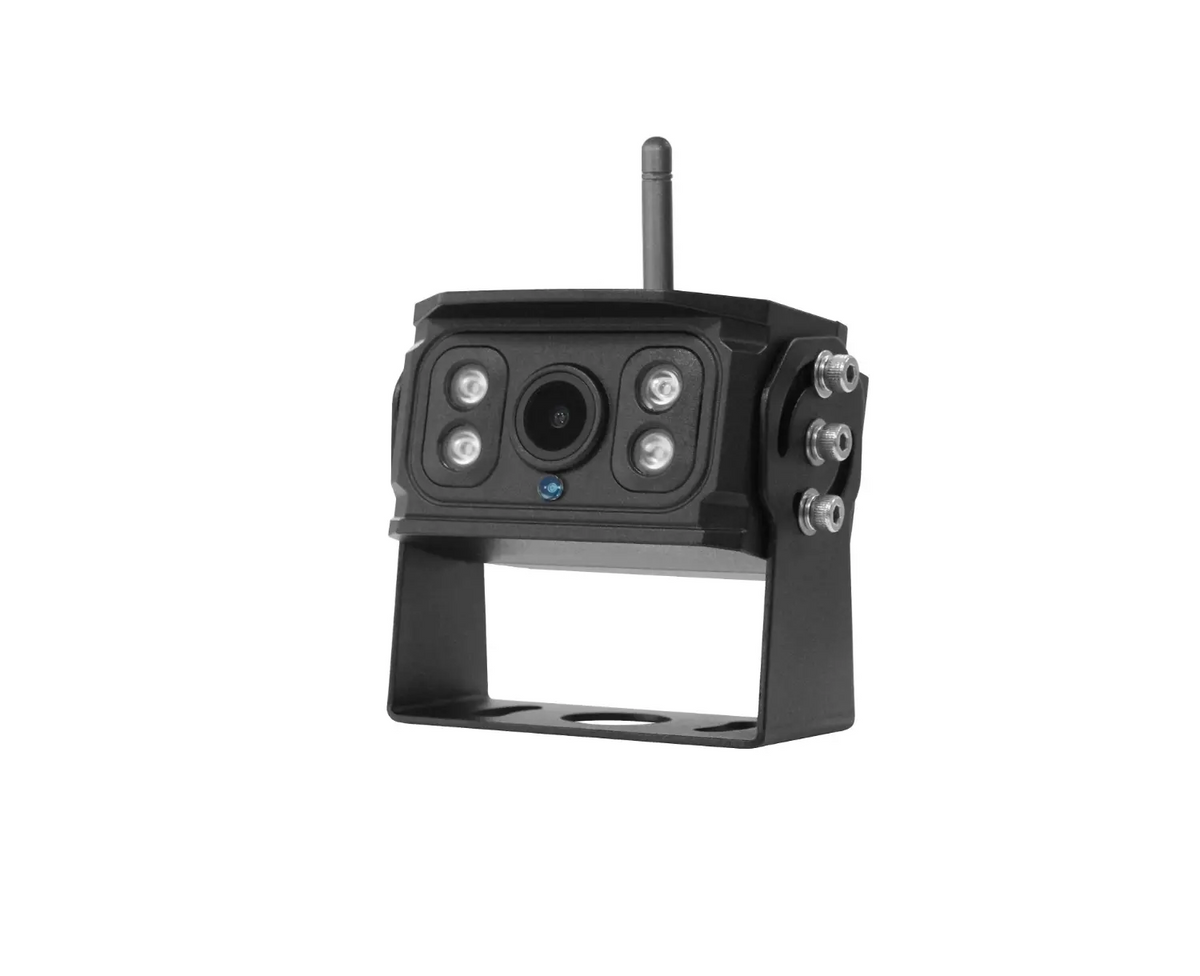

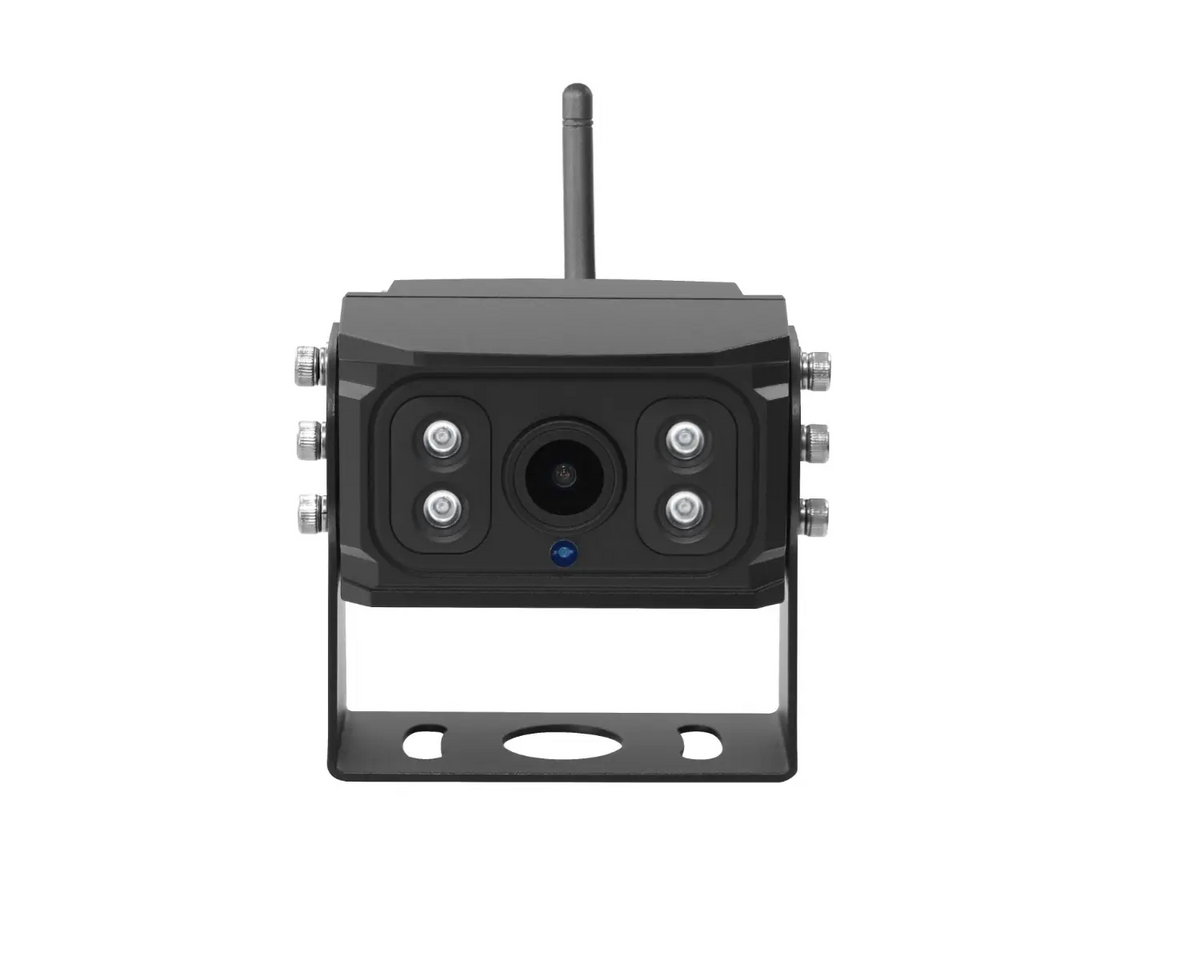

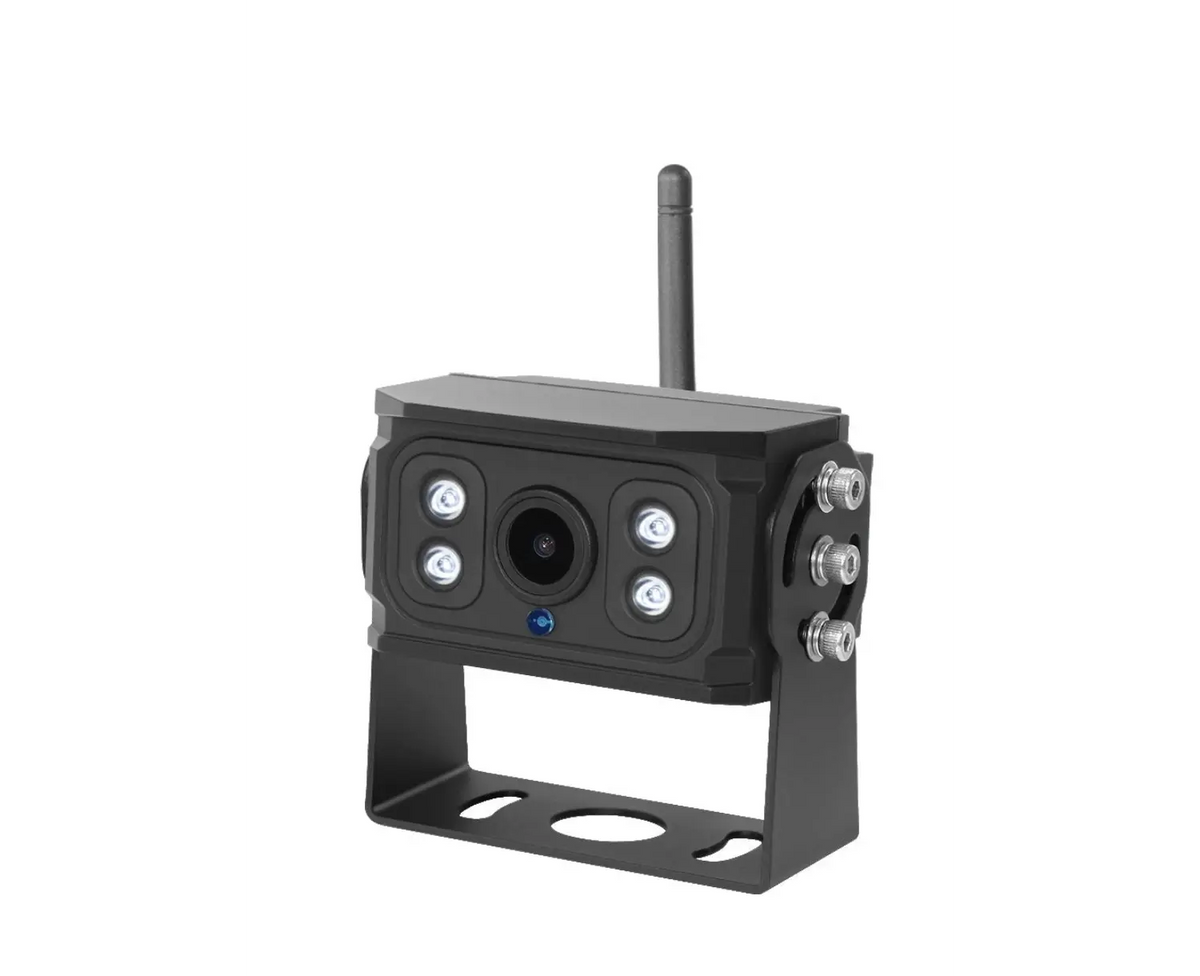

At the rear, the 1080P AHD camera delivers 1920 × 1080 effective pixels with a 120° wide-angle lens, ideal for covering the full width of trailers, vans, tippers and plant. The unit is rated IP69K, so it withstands high-pressure, high-temperature washdowns and heavy spray in real-world use. 4 × SMT LEDs provide night vision support, maintaining usable images in low light around depots, yards and farm buildings.

Installation is straightforward for any competent auto electrician. The kit runs on 12–24 V DC, so it suits light commercial, HGV, agricultural and construction equipment without step-down modules. A 4-pin GX12 connector on the monitor, a dedicated 12–24 V power cable set, and the supplied wireless antenna keep wiring clean. Camera video runs wirelessly; you only feed it power at the rear.

Key Features

• 7" AHD monitor (16:9) – clear, wide-format display with 1024 × 600 (RGB) resolution for sharp reversing images and better distance judgement.
• Wireless AHD camera system – no video cable between cab and camera; reduces installation time and avoids routing issues through bodywork.
• 1080P rear camera – 1920 × 1080 effective pixels for detailed vision of trailers, pedestrians, forks, tow hitches and close obstacles.
• IP69K-rated camera housing – engineered to withstand high-pressure, high-temperature washdowns and heavy road spray in demanding fleet conditions.
• 120° wide-angle lens – broad field of view to cover vehicle rear corners, reducing blind spots around vans, trucks and machinery.
• 4 × SMT LED night vision – supports low-light operation so drivers still see useful detail in yards, depots and farm tracks after dark.
• 4-way video input monitor – connect up to four cameras (rear, side, front) on one screen for a complete vehicle vision system.
• 12–24 V DC power range – suitable for light commercial, HGV, agricultural and construction equipment without additional converters.
• Heavy-duty monitor and camera housings – designed for daily professional use, with U-shape or suction-cup monitor bracket options for flexible mounting.
• Recording-capable monitor – supports video recording (with suitable media), useful for incident review, training and insurance evidence.

Ideal Applications

• Fleet vans and delivery vehicles needing a tidy, cable-free reversing camera retrofit.
• Rigid trucks, tippers and refuse vehicles where running long video looms is time-consuming or impractical.
• Agricultural tractors, telehandlers and trailers working in mud, dust and regular washdowns.
• Construction plant and off-road machinery operating in tight yards and busy sites with mixed traffic.
• Specialist bodies and coach-built vehicles where interior panels are sealed or costly to disturb.
