7-Zoll Kabelgebundenes Rückfahrkamera-Kit - LG9001

7-inch Wired Reversing Camera Kit – LG9001

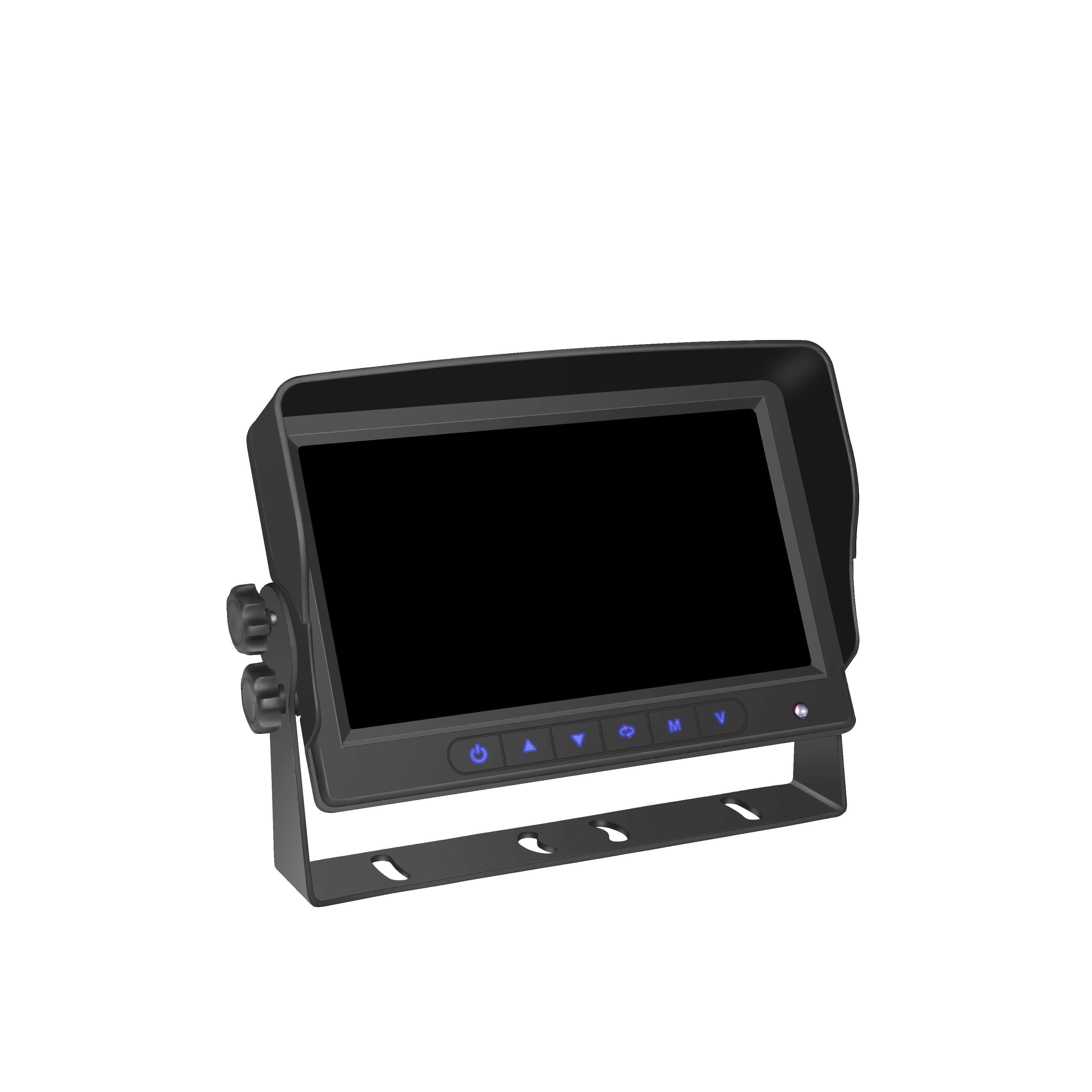

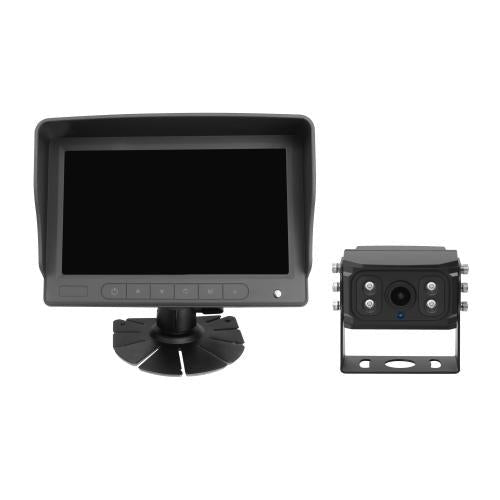

This 7-inch wired reversing camera system gives drivers a clear, stable view behind the vehicle, even in harsh working conditions. The 1080P AHD camera and 7" 1024 × 600 monitor are engineered for commercial use, with heavy-duty housings and secure 4‑pin connections. Ideal for vans, plant, HGVs and trailers where reliability matters more than gimmicks.

A reversing camera kit should do one thing well: show you what’s behind, every time. LG9001 pairs a 7" 16:9 monitor with a 1920 × 1080 AHD camera, so drivers get a sharp, wide 120° view when manoeuvring in tight yards, depots or sites. No wireless drop-outs, no guesswork, just a solid wired link built for long days on the road or on site.

The monitor runs on 12–24 V DC, so it drops straight into mixed fleets without extra hardware. With AHD and CVBS compatibility and two video inputs, you can run a single rear camera now and add a second view later (for example, a side or load-space camera). On-screen display (OSD) controls make setup simple for installers and drivers alike.

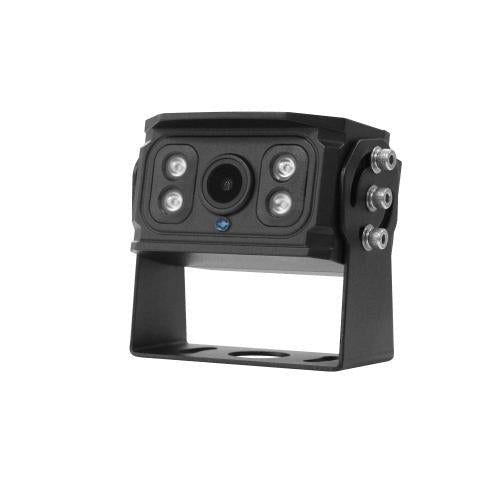

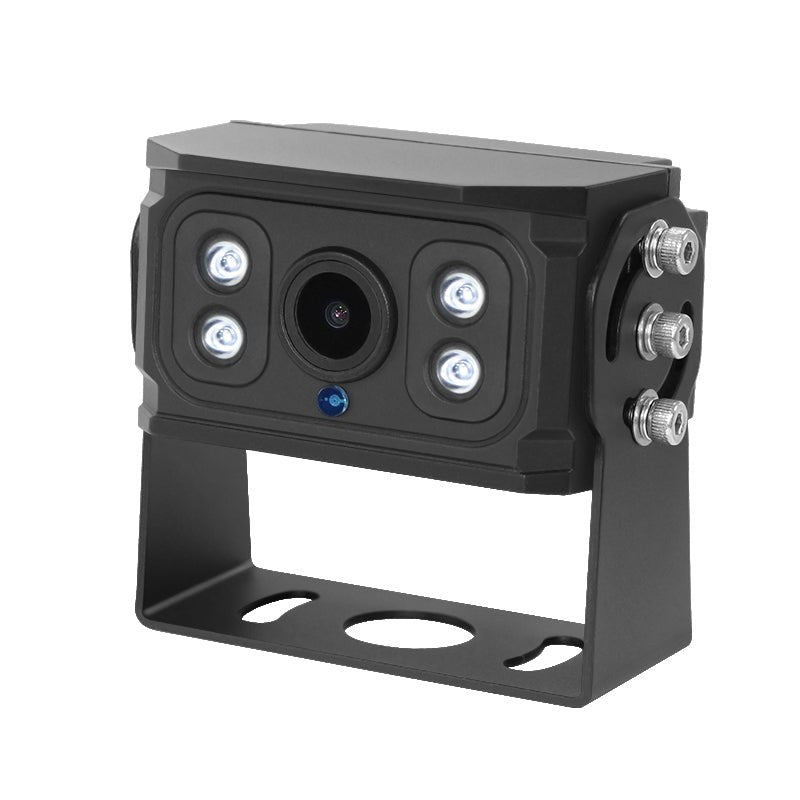

The camera housing is heavy duty and rated IP69K, so it stands up to constant washing, road spray and foul weather. Four SMT LEDs provide night vision support, keeping the image usable in poor yard lighting and winter mornings. A 20 m 4‑pin extension cable is included, giving enough length for longer vans, small trucks and many trailers without signal issues.

This kit uses GX12 4‑pin connectors on both the monitor and camera for a secure, vibration-resistant connection. That means fewer call-backs for loose plugs and less downtime. It’s a practical, proven setup for fleet operators, installers and bodybuilders who want a reversing system that just works and keeps working.

Key Features

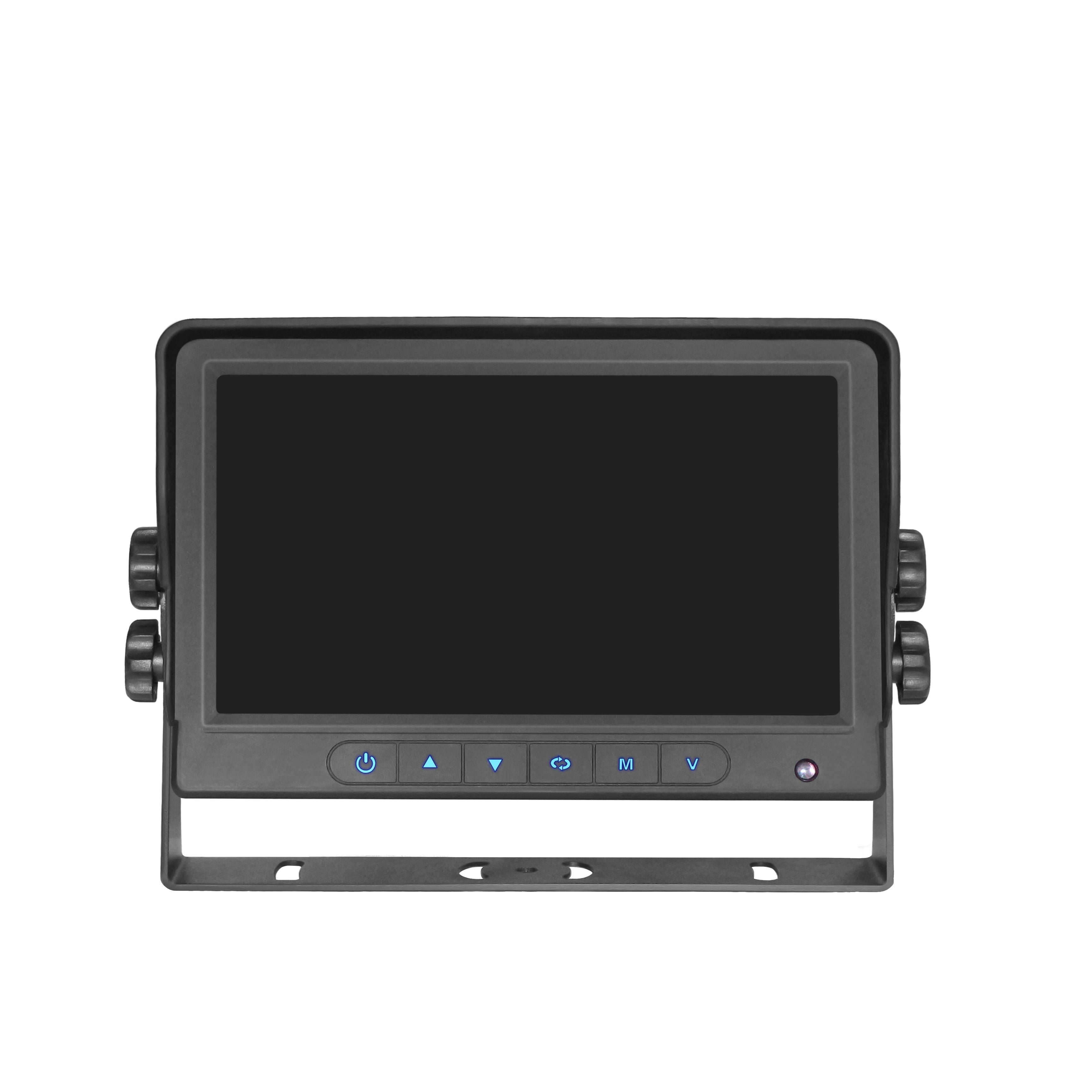

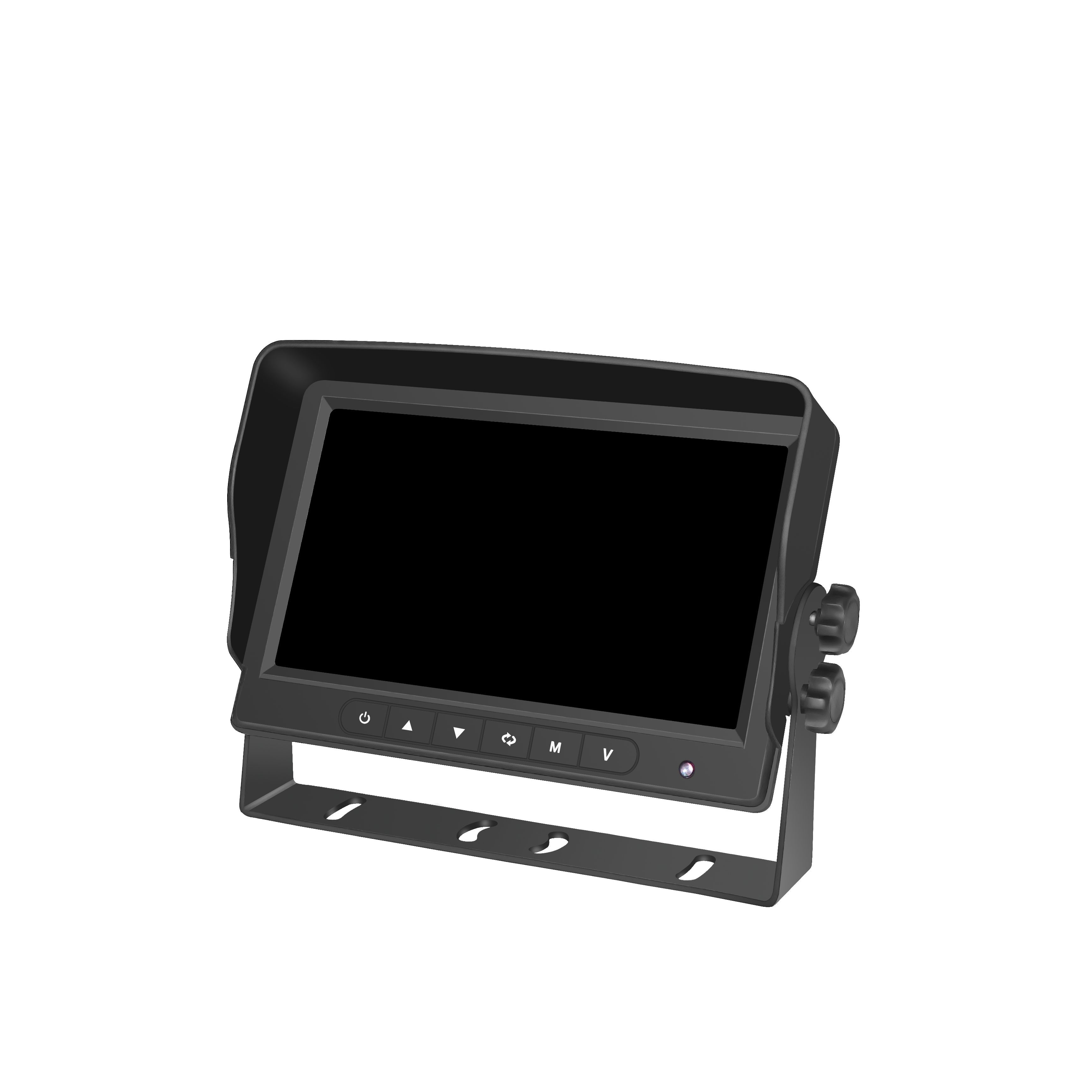

• 7" 16:9 display with 1024 × 600 resolution for a sharp, clear reversing image in all light conditions.
• 1080P AHD camera with 1920 × 1080 effective pixels for detailed rear vision, ideal for tight urban manoeuvres and busy yards.
• Wide 120° viewing angle to cover blind spots directly behind the vehicle and reduce the risk of low-speed collisions.
• Dual video inputs (2 channels) so you can connect a second camera (rear, side or load-space) to the same monitor.
• AHD and CVBS compatible, making it suitable for a wide range of existing camera systems and upgrade projects.
• 12–24 V DC power supply, designed for both light commercial vehicles and heavy trucks without additional converters.
• IP69K-rated camera housing, engineered to withstand high-pressure washdowns, road grime and severe weather.

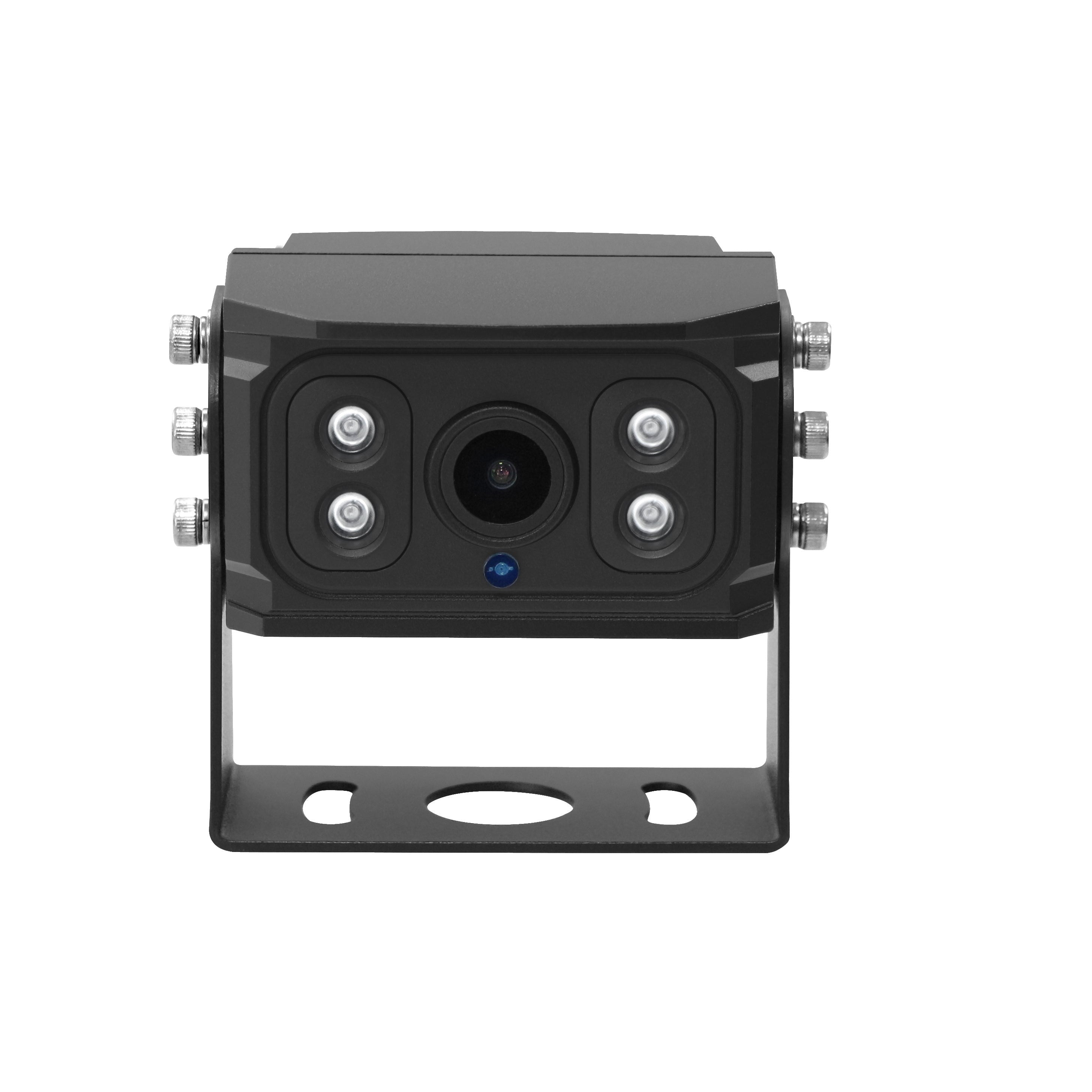

• 4 SMT LEDs for night vision, improving low-light performance when working in depots, yards or unlit rural sites.

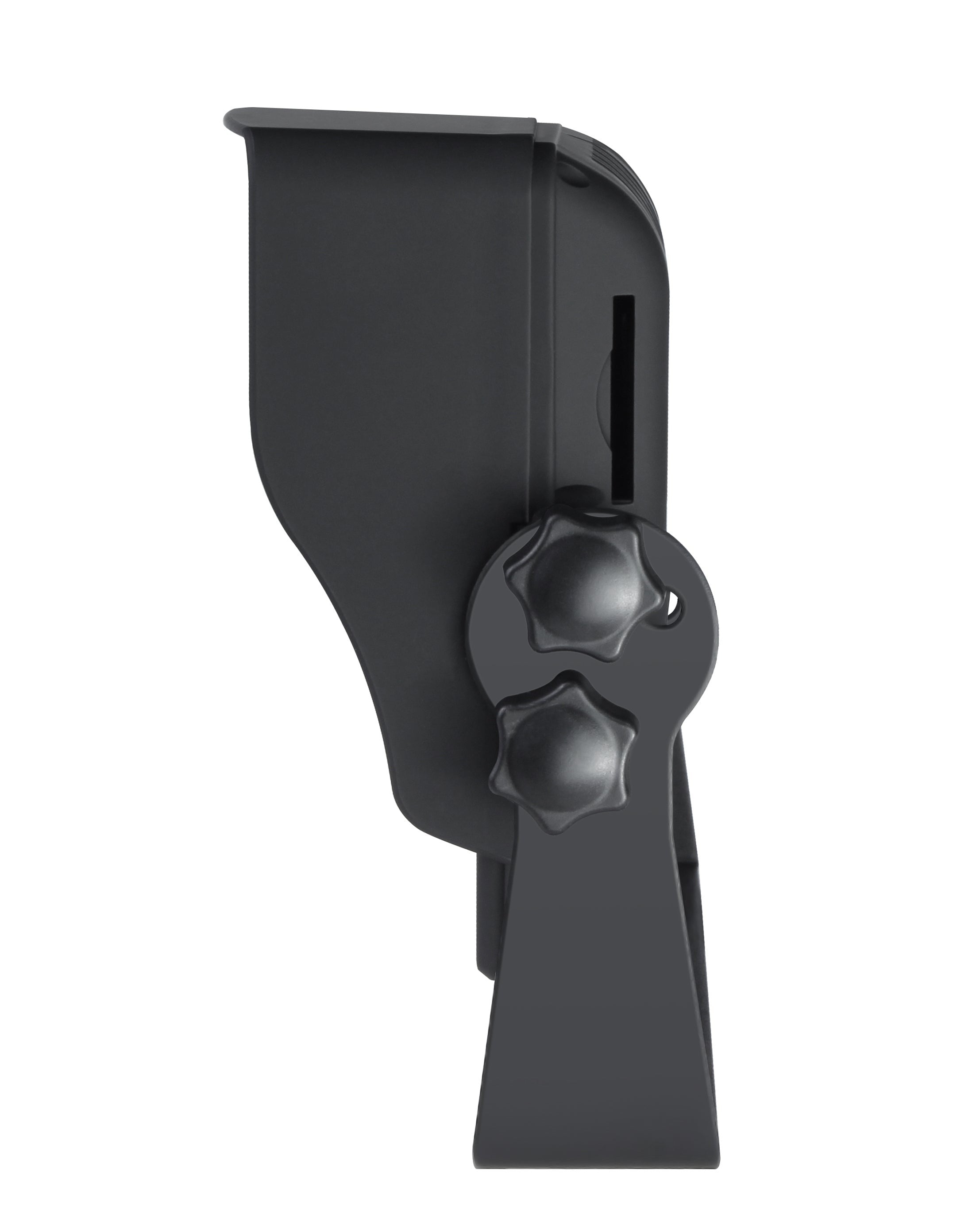

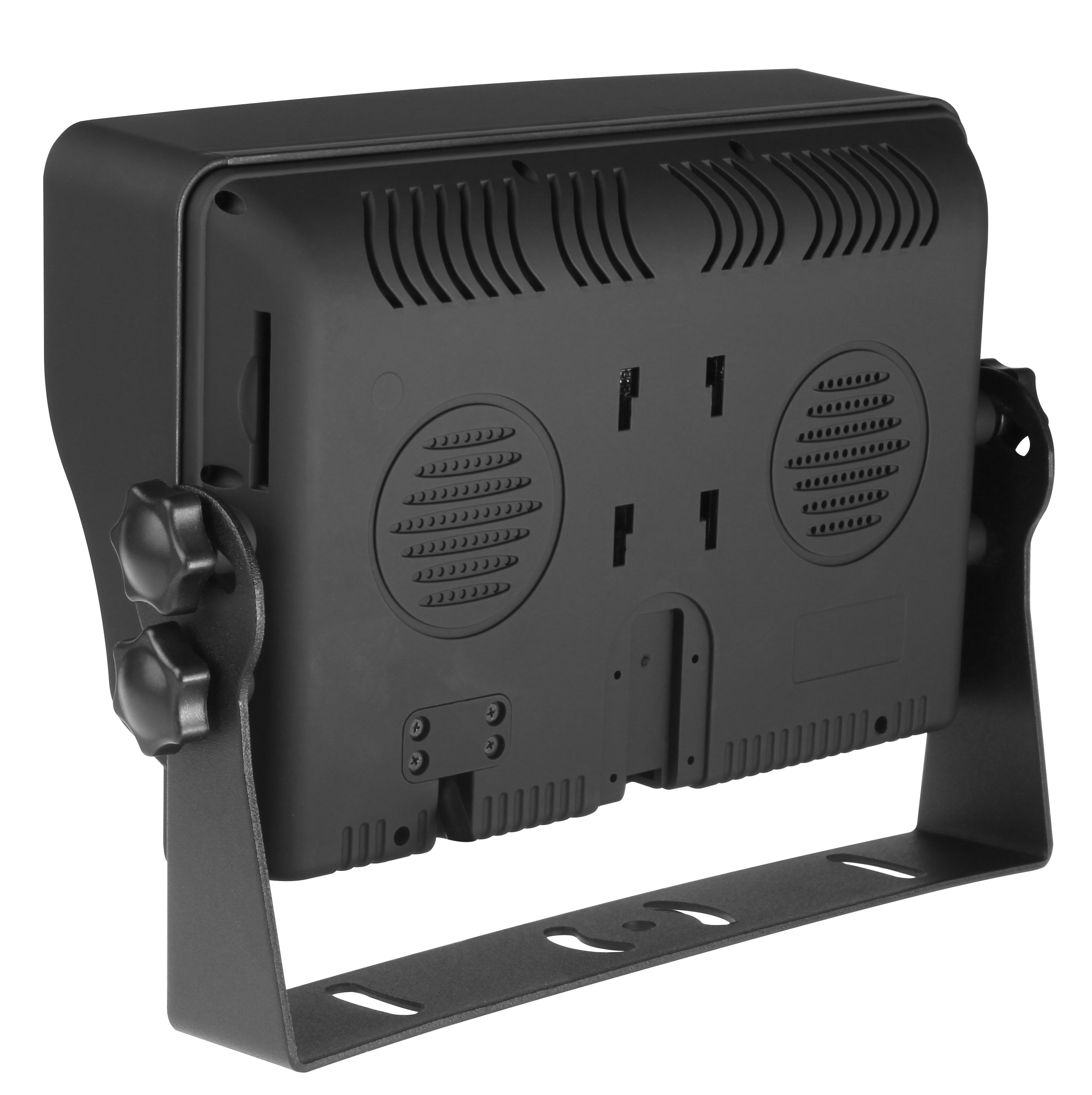

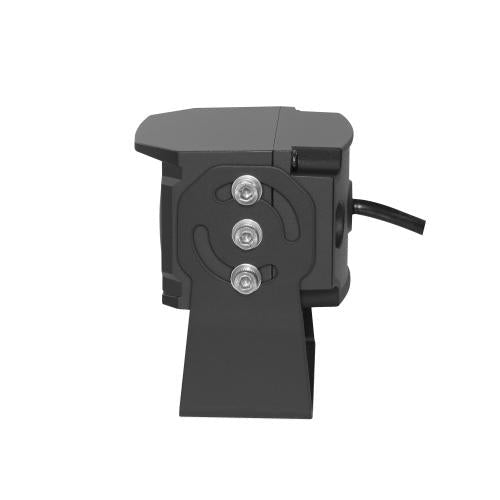

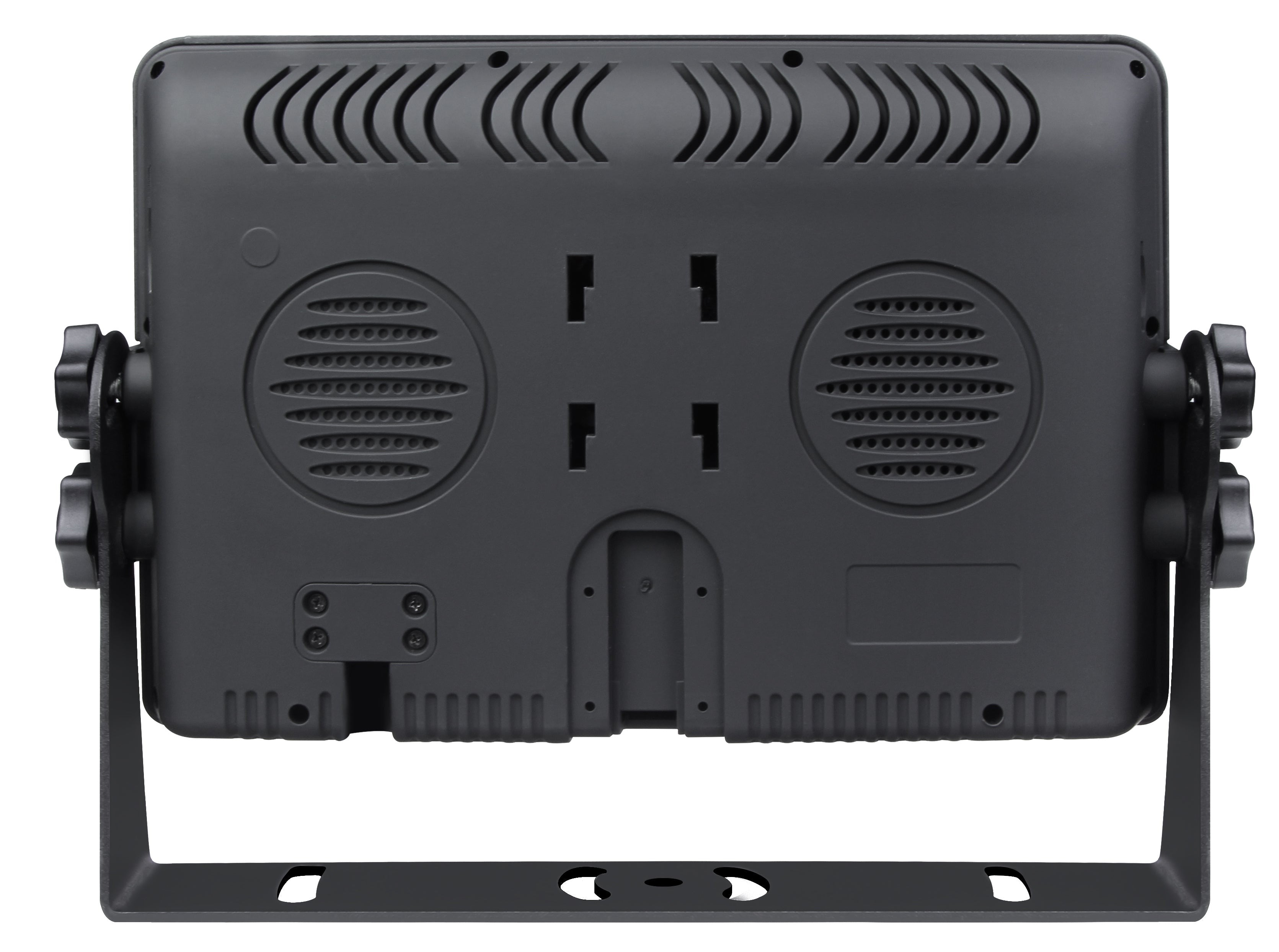

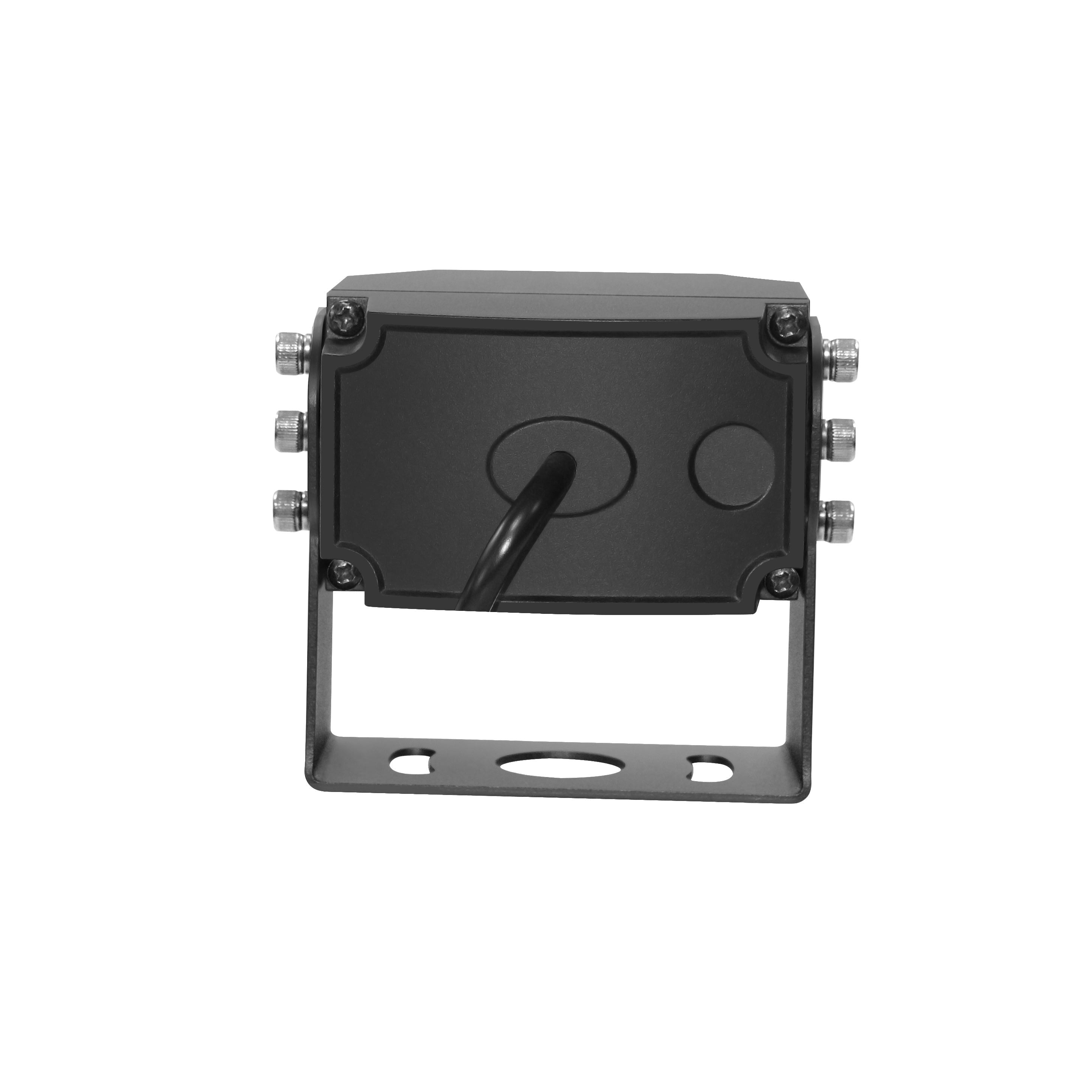

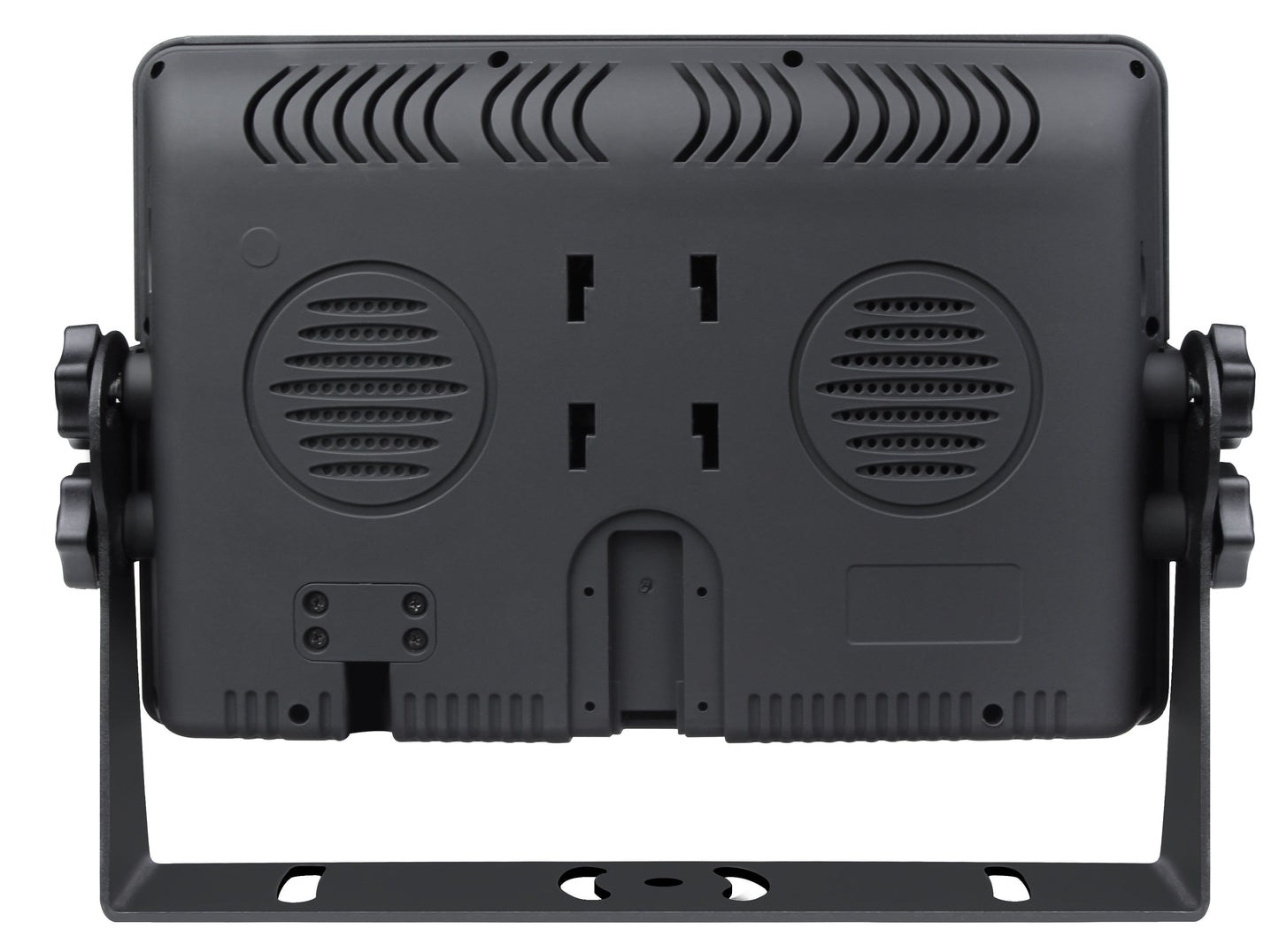

• Heavy-duty housings on both monitor and camera, with an adjustable U-bracket for secure mounting and precise aiming.
• 20 m 4‑pin GX12 extension cable included, providing a stable wired connection and enough reach for longer bodies and trailers.

Ideal Applications

• Delivery vans and LCVs operating in tight urban streets, loading bays and residential areas.
• Rigid HGVs and municipal vehicles needing a robust wired rear-view system for daily operations.
• Construction and plant equipment such as tippers, hook-loaders and site support vehicles.
• Horseboxes, motorhomes and large trailers where rear visibility is limited by bodywork or load.
• Fleet conversions and bodybuilders requiring a dependable, easy-to-integrate reversing camera kit.

Why Choose LED-Global Lighting

LED-Global focuses on practical, European-engineered vehicle lighting and vision systems that stand up to real fleet use, not just lab tests. Every kit is specified with installers and operators in mind: sensible voltages, rugged connectors, and components chosen for long service life. When you choose LED-Global, you get honest specifications, proven hardware and responsive support, so your vehicles spend more time working and less time off the road.
