LED-Rücklichtkombination mit dynamischem Blinker + eingebautem Smart-Widerstand (LH) - LG565

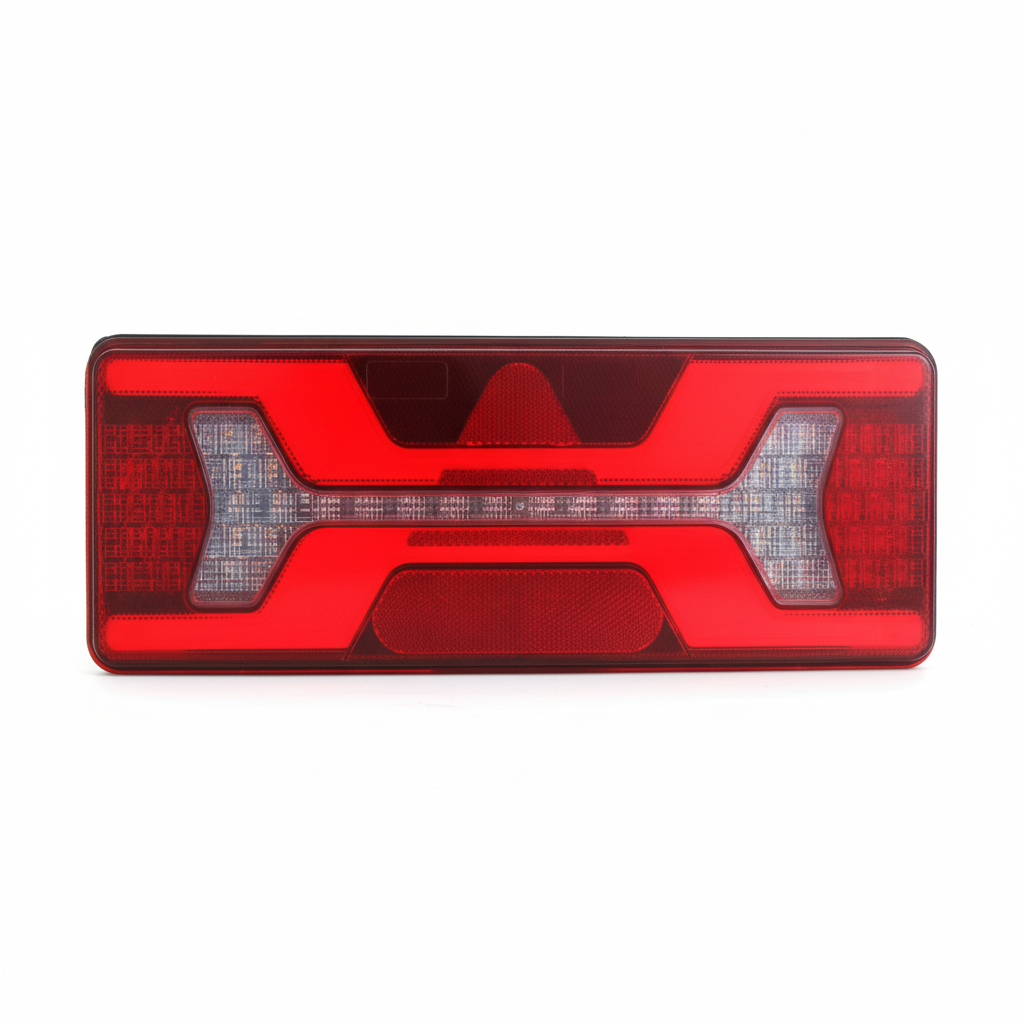

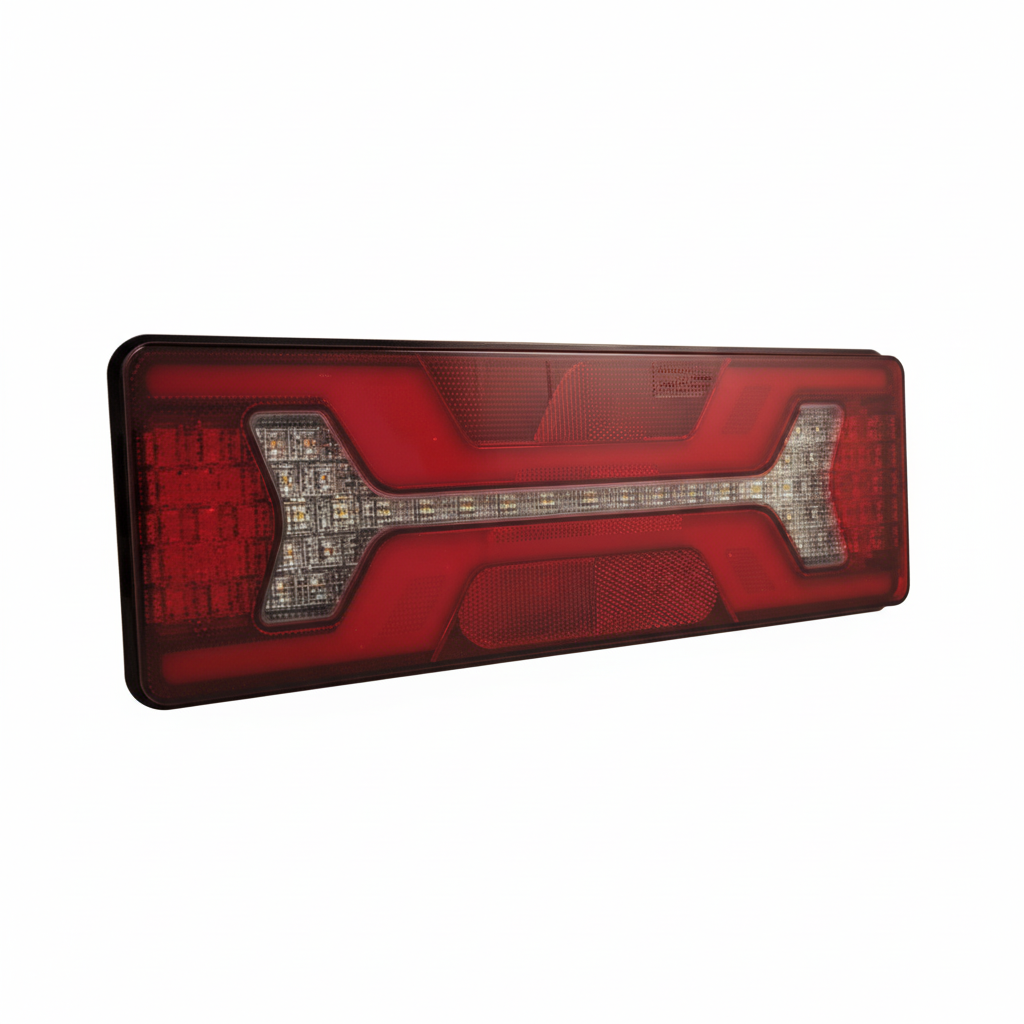

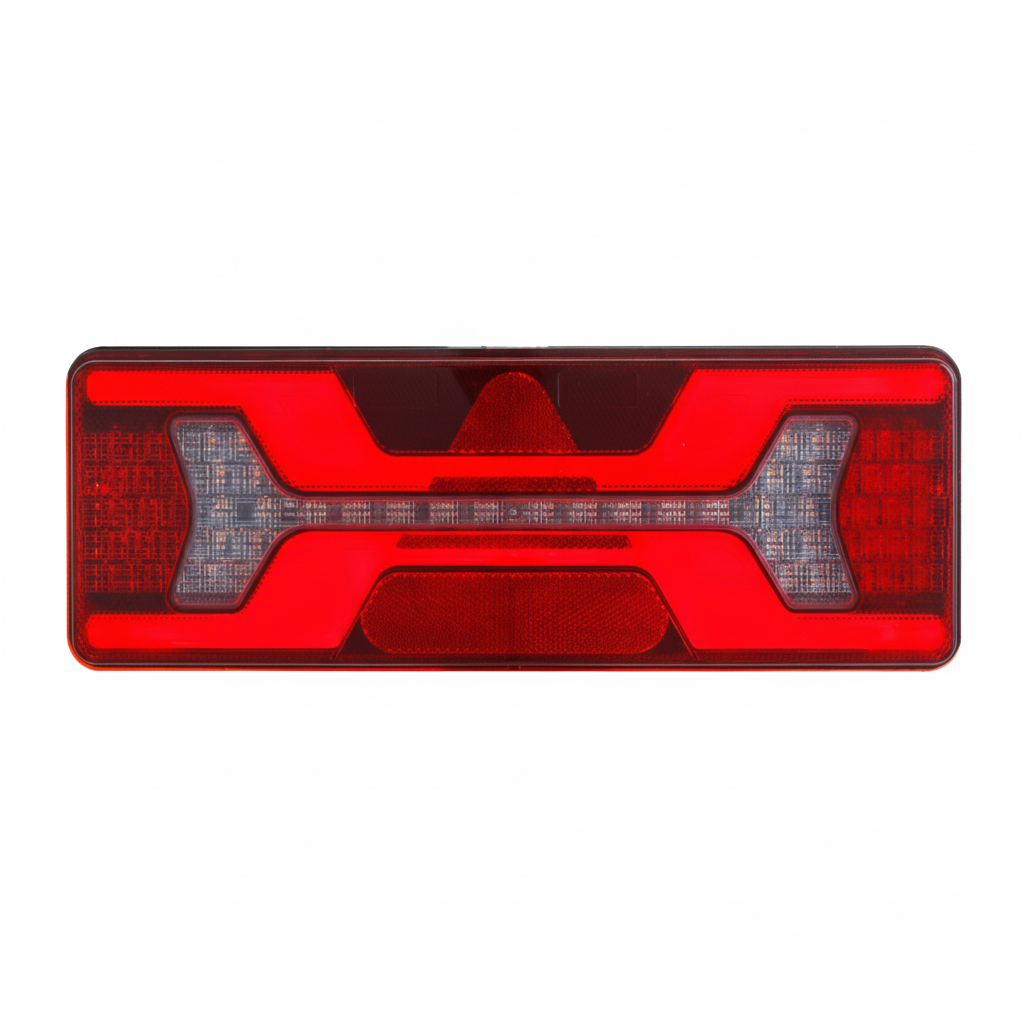

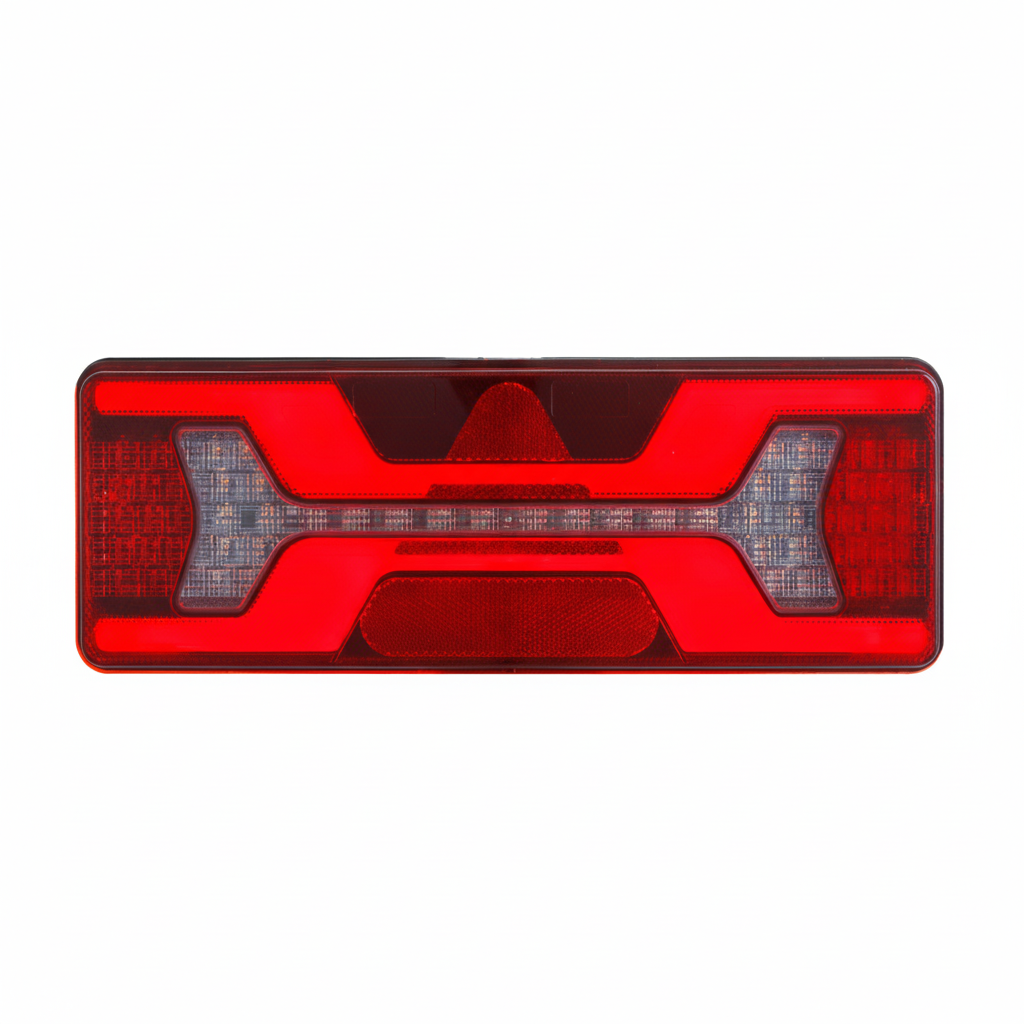

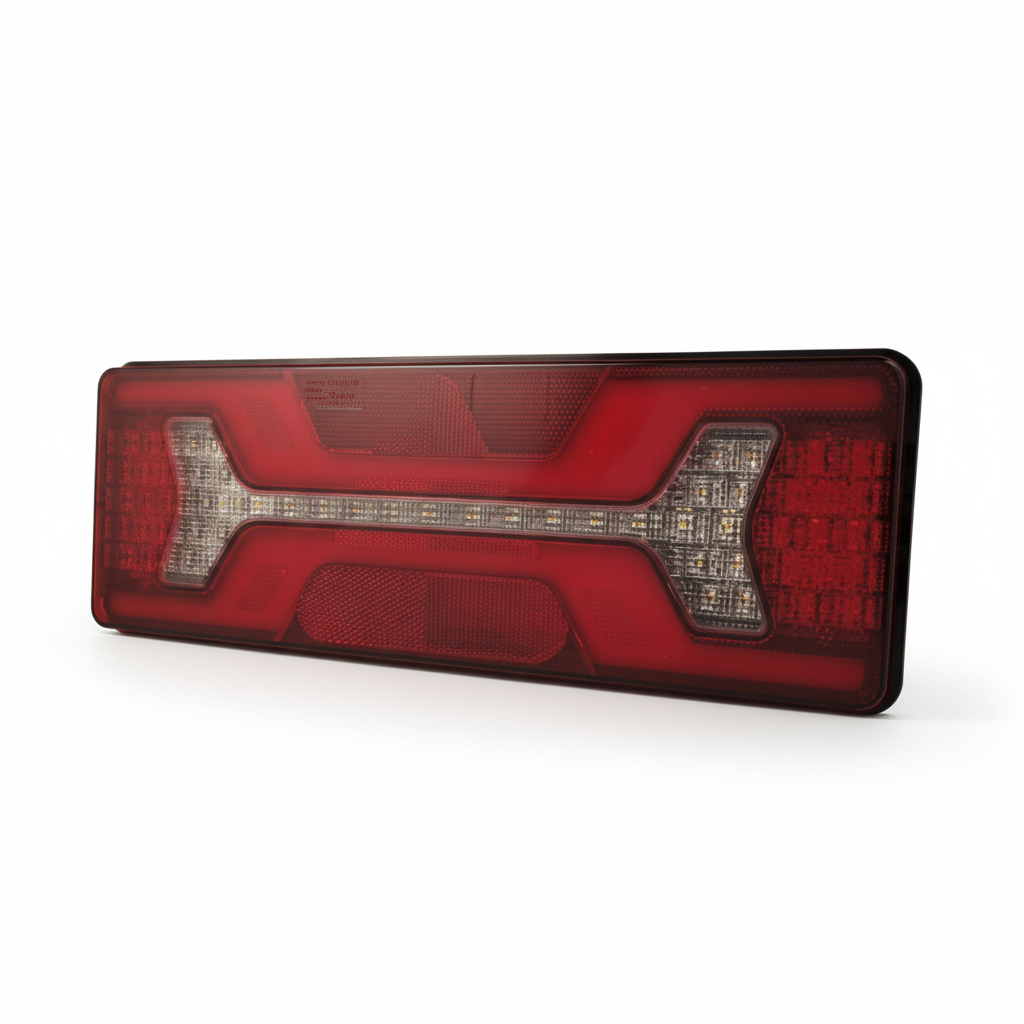

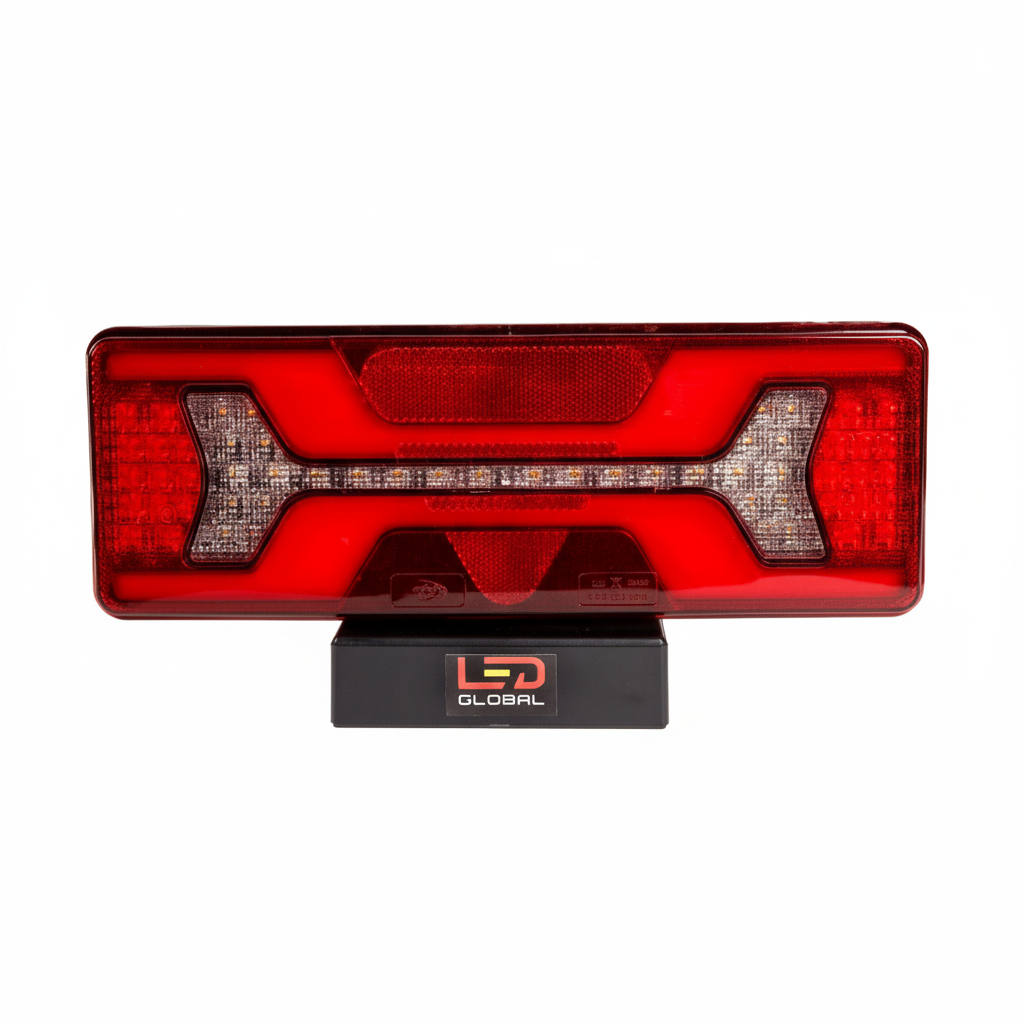

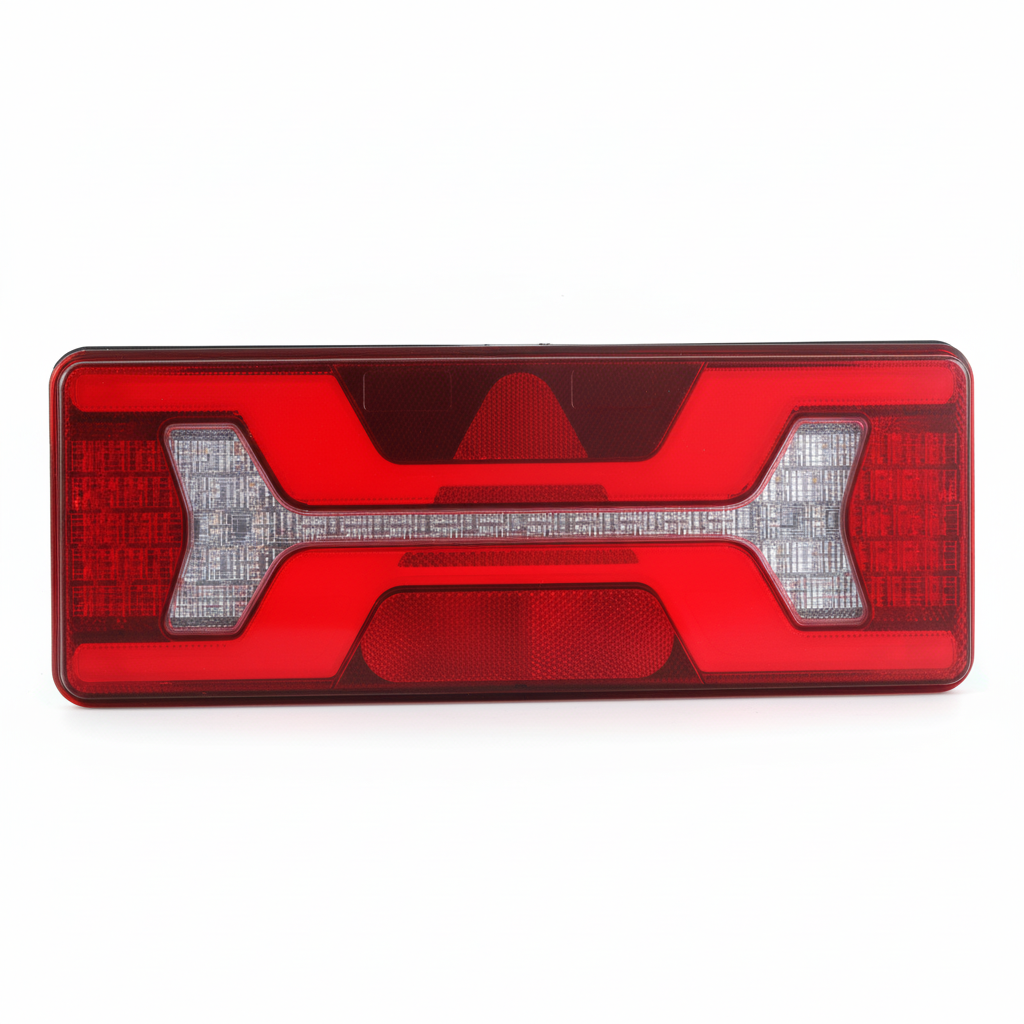

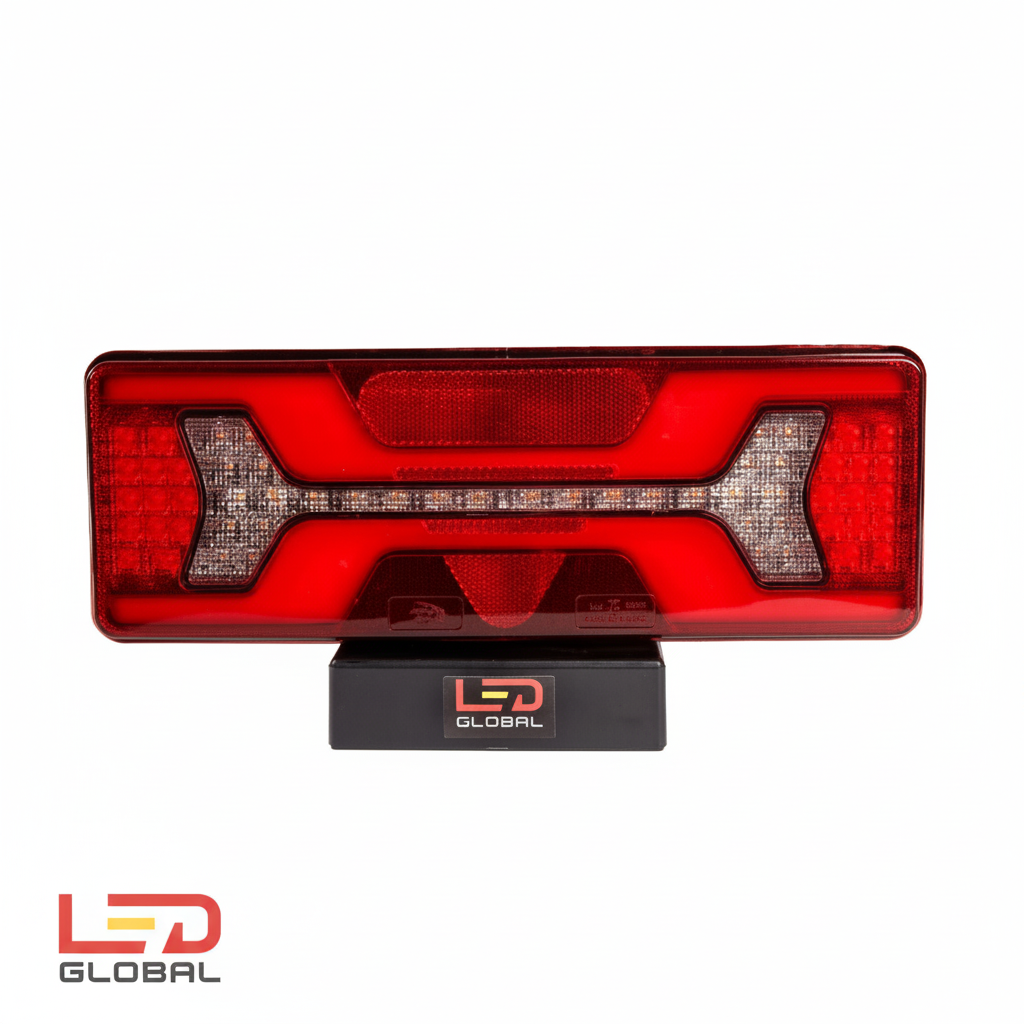

LED Tail Light Combination with Dynamic Indicator + Built-In Smart Resistor (LH) – LG565

This LED tail light combination with dynamic indicator is built for modern trailers that work hard and travel far. The LG565 left-hand lamp combines stop, tail, indicator, fog, reverse and reflector functions in one compact, road-legal unit, approved to multiple ECE standards and CISPR 25 Class 4 for clean EMC performance. It’s designed for 9–33 V DC systems and comes with a built-in smart load resistor on the indicator, so it plays nicely with most tow vehicles without extra modules.

If you’re tired of chasing bulb faults, this is the step up. The LG565 uses high-output LEDs with a typical service life of 50,000 hours, so fleet trailers, plant hire kit and agricultural machinery spend more time working and less time in the workshop. The dynamic amber indicator gives a clear sweeping signal that stands out in poor visibility and urban traffic, while the bright red stop and tail, rear fog, and 6000K white reverse light keep you visible and compliant in all conditions.

This left-hand (LH) combination lamp is fully sealed to IP68, so it’s protected against dust ingress and prolonged immersion, which suits pressure-washed trailers, boat trailers near slipways, and off-road equipment that lives in the muck. With ECE approvals R10, R3, R4, R6, R7, R23, R38 and R91, you know each function – from reflector to reverse – has been tested for on-road use across Europe. The integrated reflector means one less part to mount and wire.

Installation is straightforward. The LG565 runs on 9–33 V DC, so it’s compatible with both 12 V and 24 V systems across light commercial, HGV and agricultural sectors. The built-in smart load resistance on the indicator helps prevent CANBUS and bulb failure warnings on many towing vehicles, reducing the need for external resistors or interface boxes. At 375 mm (W) x 130 mm (H) x 33 mm (T), it fits neatly on most rear panels, and the pre-defined wiring colours (blue earth, yellow tail, black reverse, brown indicator, grey brake, white fog) make connection clear and predictable for any auto electrician.

Key Features

• 6-in-1 combination tail light – Stop / Tail / Indicator / Fog / Reverse / Reflector in a single left-hand unit, reducing parts and install time.
• Wide voltage range 9–33 V DC – Works on both 12 V and 24 V systems across trailers, trucks, vans and agricultural machinery.
• Dynamic amber indicator – Sweeping LED signal for faster recognition by other road users, improving rear-end visibility and safety.
• Built-in smart load resistor (indicator) – Helps prevent CANBUS errors and false bulb warnings without external resistors or extra modules.
• Long-life LED design – 50,000 h service life – Cuts downtime, call-outs and bulb replacement costs, especially on high-use fleets.
• IP68 ingress protection – Fully sealed against dust and resistant to long-term immersion, ideal for pressure-washed and off-road equipment.
• ECE approved – Compliant with ECE R10, R3, R4, R6, R7, R23, R38, R91 for light output, reflector performance and electromagnetic compatibility.
• EMC protection – CISPR25 Class 4 – Minimises radio interference, important on vehicles with sensitive communications and telemetry.
• Cool white 6000K reverse light – Crisp rear illumination for safer manoeuvring in yards, depots and unlit rural tracks.
• Compact housing – 375 mm (W) x 130 mm (H) x 33 mm (T) – Slim profile for modern bodies and retrofit upgrades on existing trailers.

Ideal Applications

• Commercial box trailers and curtain-siders used for daily distribution and logistics.
• Plant, construction and utility trailers carrying machinery, tools and site equipment.
• Agricultural trailers and implements operating in fields, yards and rural roads.
• Boat and marine trailers that face frequent washing and wet environments.
• Municipal, rental and hire fleets needing robust, low-maintenance rear lighting.

Why Choose LED-Global Lighting

LED-Global focuses on European-engineered vehicle lighting that stands up to real work, not just spec sheets. Products like the LG565 are selected for consistent light output, robust sealing and proven compliance with ECE and EMC standards. Every lamp is built to give fitters an easier life, fleet managers fewer defects, and drivers lighting they can trust when conditions turn against them.
