90 Watt LED runder Scheinwerfer mit Fern- und Abblendlicht - LG824EU

90 Watt LED Round High & Low Beam Headlight – LG824EU

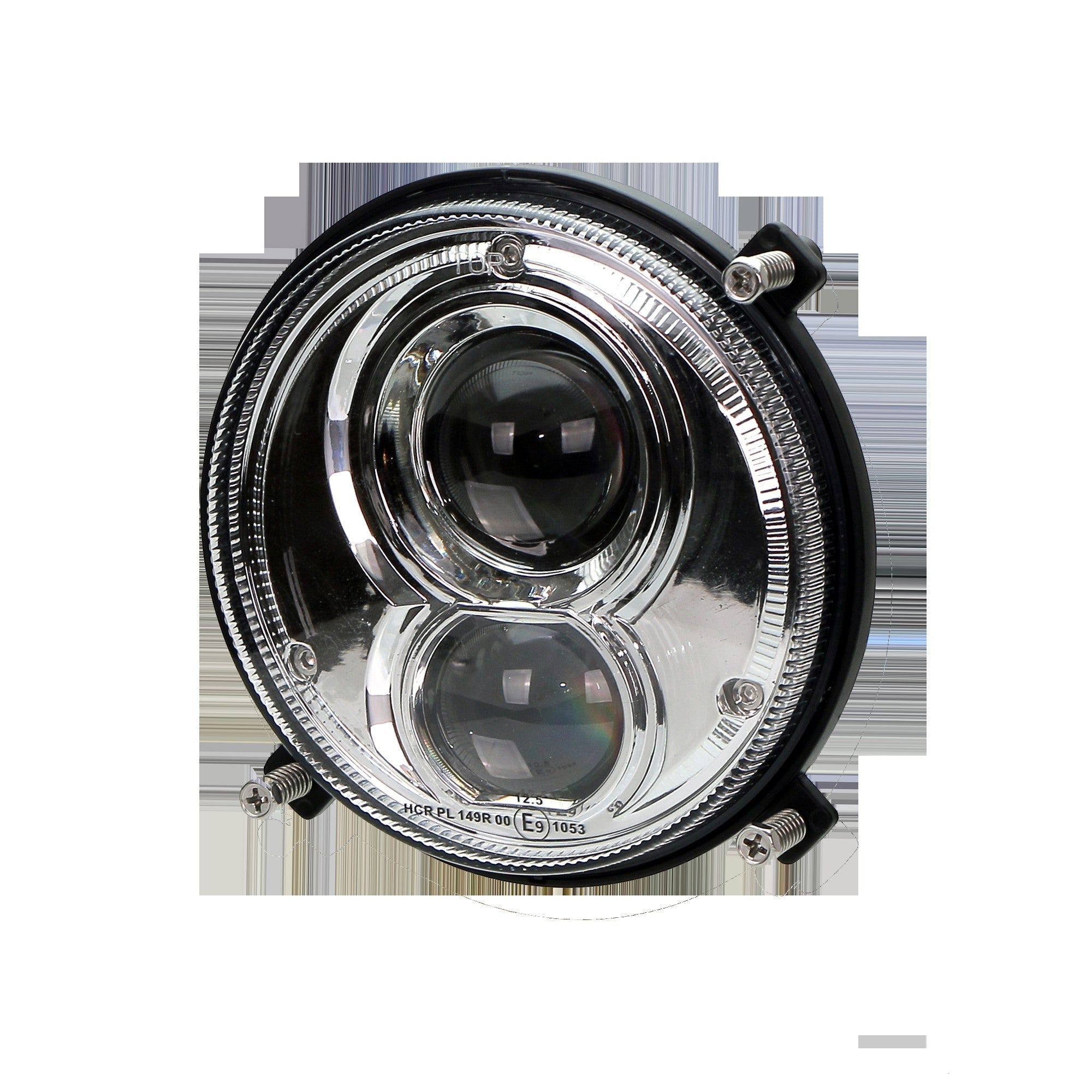

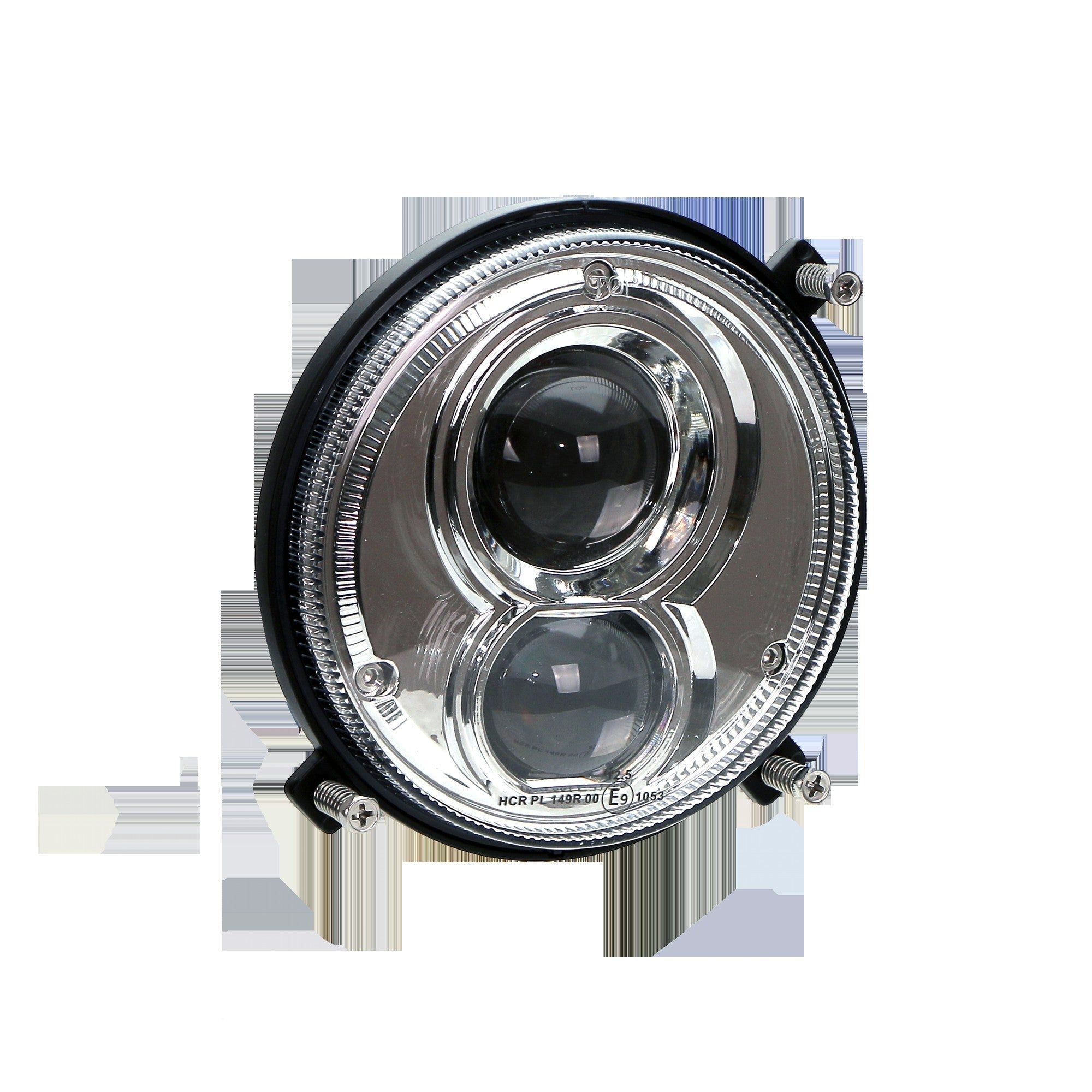

This 90 watt LED round high and low beam headlight delivers a punchy 5,600 lumen high beam with a clean 6,000K cold white output for clear, confident night driving. Designed for indoor and off-road use, it combines a rugged die-cast aluminium housing with proven LED technology for long-term reliability. Fully ECE R10 and ECE R112 approved with CISPR 25 Class 4 EMC, it’s built for professional vehicles where radio performance and light output both matter.

When you need more usable light on site, in a yard or off-road, this lamp steps in where standard halogen headlights give up. The 60W CREE XTE LED high beam outputs 5,600 lumens, pushing a solid 12 lux at 50 m and a usable 1 lux at 186 m. Drop to the 30W low beam at 2,400 lumens and you still get a crisp, defined pattern that helps operators see edges, obstructions and ground detail without fighting yellow, scattered light.

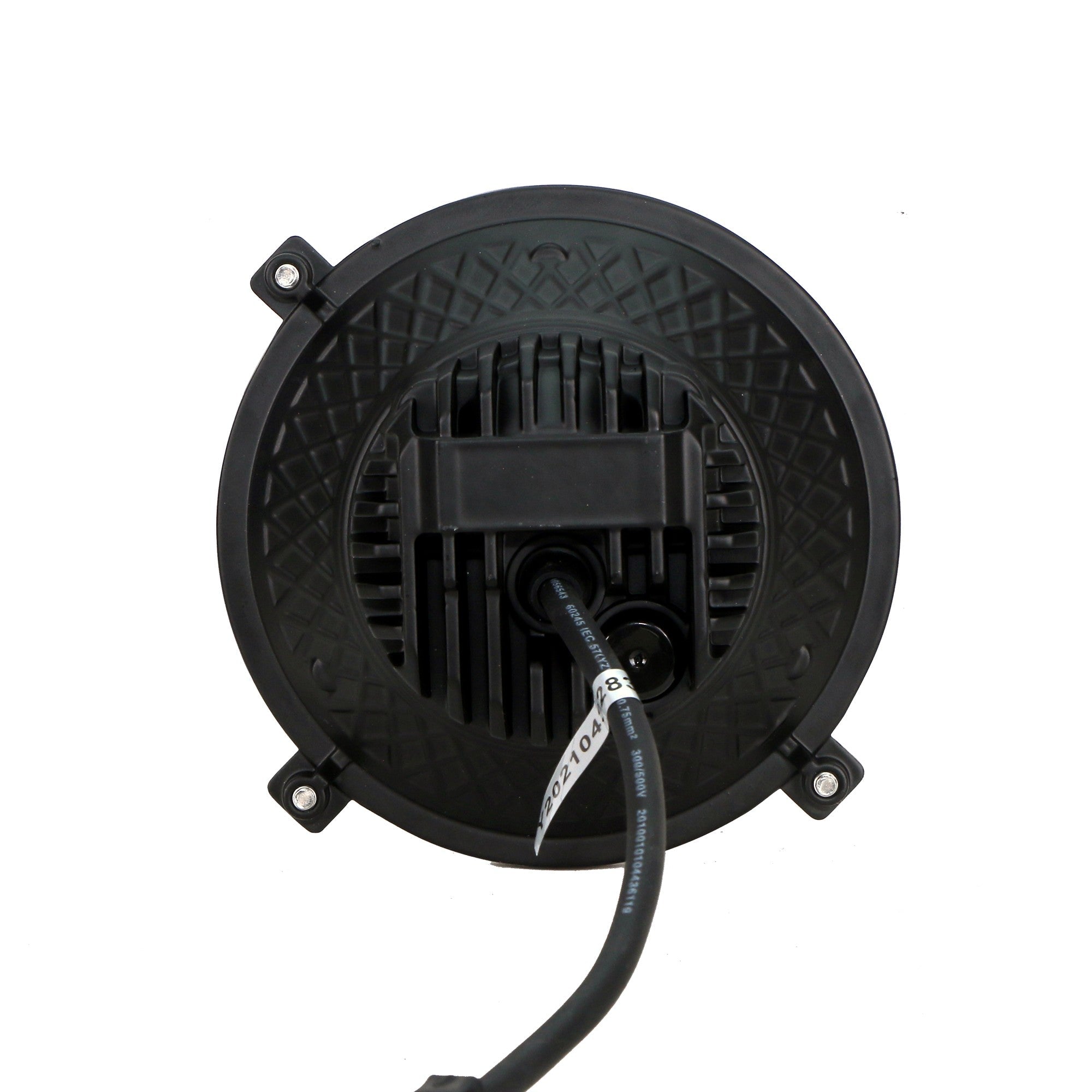

The housing is die-cast aluminium for strength and thermal control, so the LEDs run cooler and last longer. Rated to IP68, the unit is sealed against dust and protected against continuous immersion, which is exactly what you want on plant, off-road machinery and work trucks that live in mud and wash bays. A 50,000 hour rated lifespan means less downtime, fewer lamp changes and a lower total cost over the life of the vehicle or machine.

From an electrical point of view, the headlight is 9–32V DC, so it suits both 12V and 24V systems across agricultural, construction and off-road fleets. EMC is often the weak spot in powerful LED lamps; here you’re covered with ECE R10, ECE R112 and CISPR 25 Class 4 radio frequency suppression, so your radios, GPS and telematics stay stable and usable. Dimensionally it’s compact at 140 x 140 x 79 mm, so it’s easy to integrate on bumpers, A-bars or custom brackets.

Installation is straightforward. The lamp is supplied with an H4 plug & play connection, helping retrofit work on vehicles originally fitted with H4-type headlights. For professional installers, that means predictable wiring, less time fault-finding, and a cleaner handover to the operator.

Key Features

• High output LED headlight – 5,600 lumen high beam for powerful, focused forward lighting on off-road and work vehicles.
• Dual function – 60W high beam / 30W low beam, giving both long-range punch and controlled close-range illumination in one unit.
• Wide voltage range 9–32V DC, suitable for both 12V and 24V systems across fleets and machinery.
• High performance CREE XTE LEDs (60W) for proven reliability, efficient output and long service life.
• Cold white 6,000K light colour, improving contrast and perceived clarity over traditional halogen lamps.
• Robust die-cast aluminium housing, designed for heat management and mechanical strength in demanding environments.
• IP68 environmental protection, fully dust-tight and protected against continuous immersion for harsh site and wash conditions.
• ECE R10 and ECE R112 approved, supporting compliant installations where these approvals are required.
• CISPR 25 Class 4 EMC rating, minimising radio interference on communication and control equipment.
• Long lifespan – up to 50,000 hours, reducing maintenance intervals and replacement costs.
• Compact size (140 x 140 x 79 mm), easy to mount on bumpers, bars, or custom brackets in tight spaces.
• H4 plug & play connection, simplifying retrofit work on vehicles using standard H4 headlamp connectors.

Ideal Applications

• Off-road 4x4s, pick-ups and expedition vehicles needing a compact but powerful high/low beam upgrade.
• Construction and quarry machinery such as loaders, dumpers and graders working in low-light or night shifts.
• Agricultural tractors and implements used for night-time fieldwork or yard operations.
• Industrial and warehouse vehicles requiring strong indoor lighting where fixed infrastructure lighting is poor.
• Special-purpose and municipal vehicles (service trucks, site support units, recovery trucks) needing reliable forward lighting with good EMC control.

Why Choose LED-Global Lighting

LED-Global focuses on European-engineered, technically sound lighting for professional users who can’t afford downtime. Every product is selected and specified with an engineer’s eye: output, thermal design, EMC, and approvals are all considered, not just headline lumens. With proven components, clear approvals and honest specifications, you get lighting you can trust on site, on fleet and in the workshop – backed by a team that understands how these products are used in the real world.
