Verkabelte Rückfahrkamera (für alle verkabelten Kits geeignet) LG9004

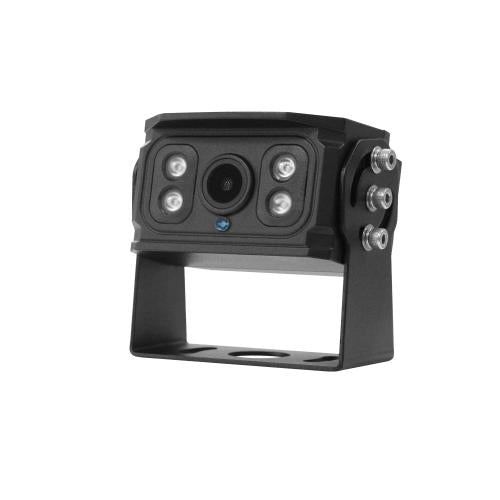

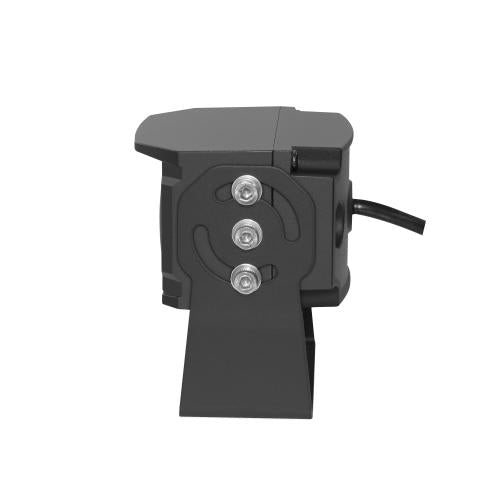

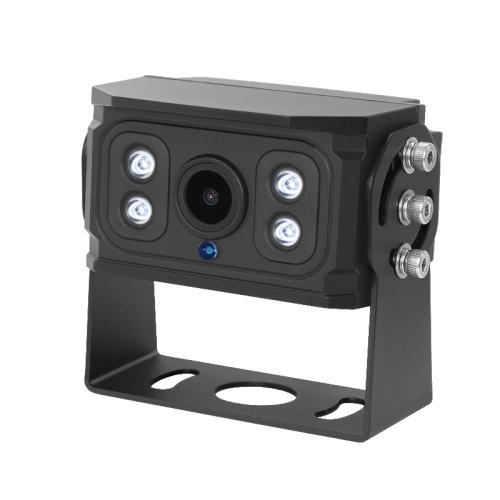

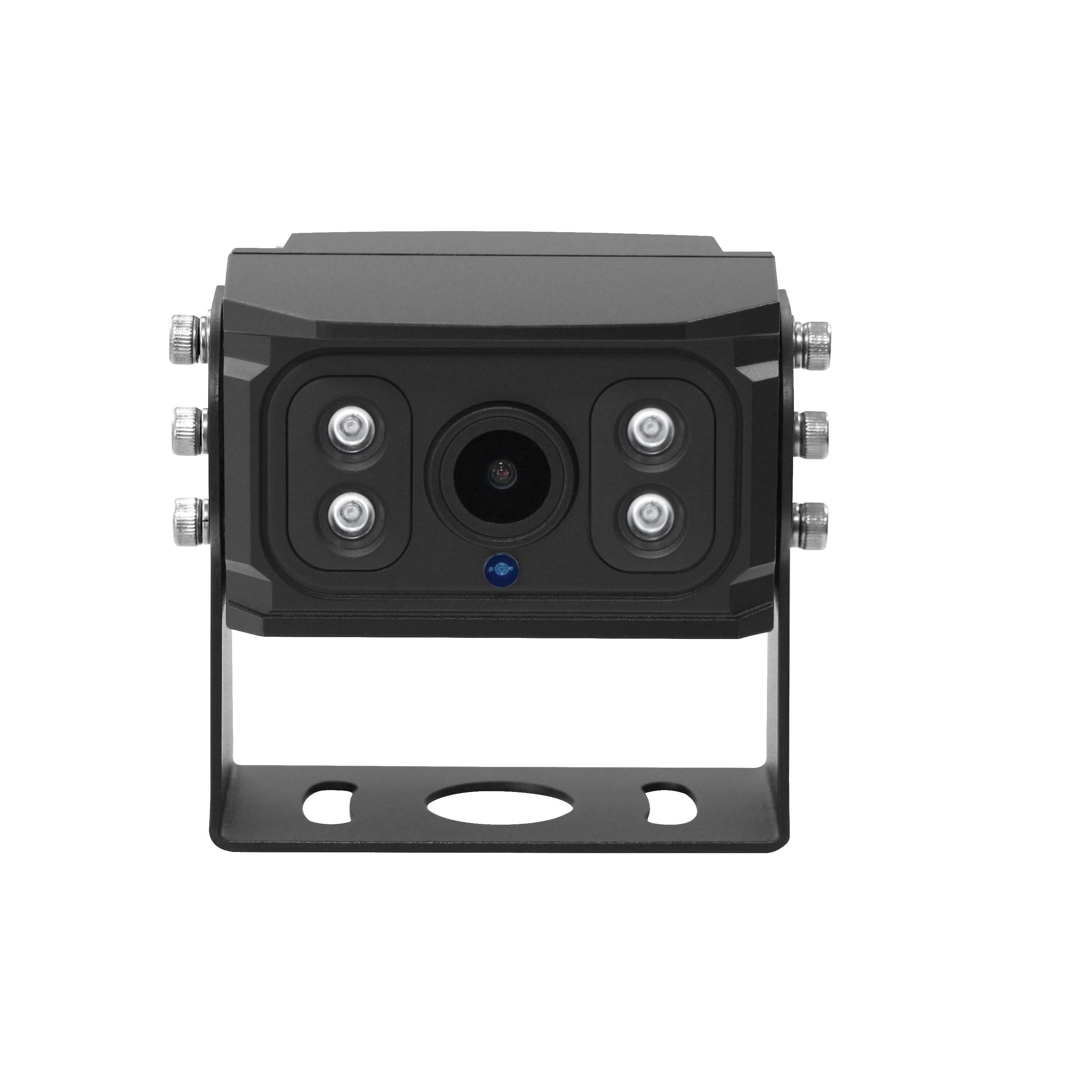

Wired Rear View Camera – LG9004

The Wired Rear View Camera LG9004 gives drivers a clear, stable 1080P image where mirrors simply can’t. It’s built for daily use on working vehicles, with a heavy-duty housing, IP67 protection, and a 12–24 V DC power range that suits mixed fleets. Ideal as a reversing camera or permanent rear-view system on vans, trucks, plant and trailers.

This AHD rear view camera is designed for operators who need detail, not guesswork. The 1080P resolution and 1920 × 1080 effective pixels deliver a sharp image that makes it easier to judge distance to obstacles, pedestrians, and loading bays. The 120° viewing angle gives broad coverage behind the vehicle while still keeping perspective realistic, so drivers don’t misjudge space.

Four integrated SMT IR LEDs support low-light and night operation. The camera automatically boosts visibility in dark yards, tunnels, and unlit rural roads, helping the driver maintain awareness when it matters most. With a frame rate of 30 FPS, movement appears smooth and predictable, which is especially important around busy depots and tight manoeuvring areas.

The LG9004 uses a 4‑pin connector, giving a secure, vibration-resistant connection to compatible AHD monitors and DVRs. The heavy-duty housing is engineered to handle daily wash-downs, road spray and general abuse in commercial fleets. With an IP67 ingress protection rating, the unit is dust-tight and protected against temporary immersion, so it’s well suited to European weather and on-site conditions.

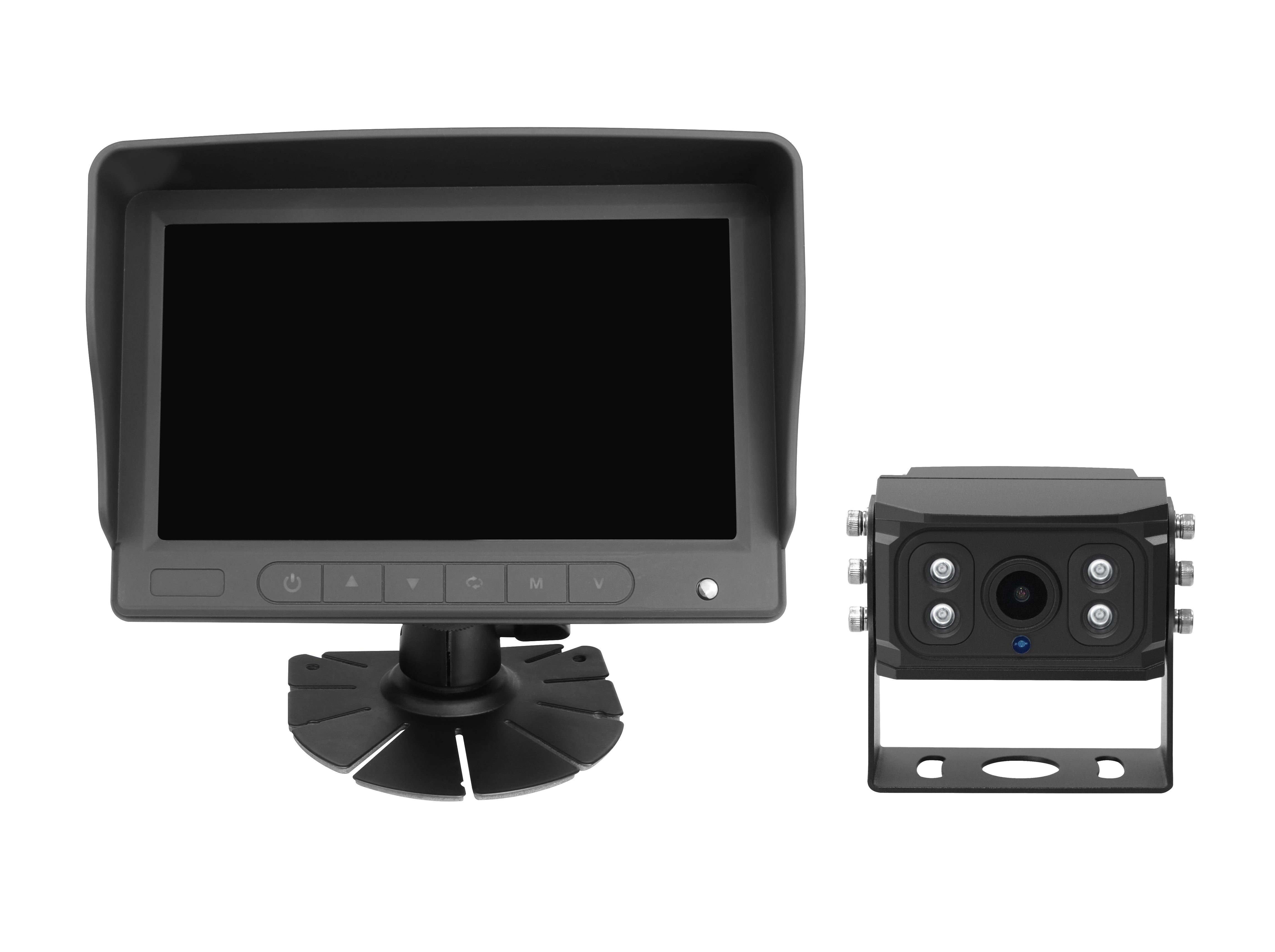

Powered from 12–24 V DC, the camera integrates cleanly with both light commercial and heavy goods vehicles. A professional installer or auto electrician can route the wired connection along existing looms, secure the body to the rear of the vehicle or bodywork, and pair it with an AHD monitor in the cab. Once installed, it gives drivers a consistent, low-latency rear view every time they select reverse or engage the system.

Key Features

• Full HD 1080P resolution – delivers a sharp, detailed image for safer reversing and manoeuvring.
• 1920 × 1080 effective pixels – high pixel count improves clarity of pedestrians, bollards, pallets and trailer edges.
• AHD signal type – Analogue High Definition video over coax-style cabling, ideal for robust, low-latency in-vehicle systems.
• 120° viewing angle – wide rear coverage without extreme distortion, helping drivers judge distance more accurately.
• 4 × SMT / IR LEDs – supports low-light and night-time visibility around depots, yards and rural loading points.
• 30 FPS frame rate – smooth motion display so moving vehicles, forklifts and people are easier to track.
• Heavy-duty housing – built for commercial environments with vibration, road grime and frequent cleaning.
• IP67 ingress protection – dust-tight and protected against temporary immersion; suited to rain, spray and wash-downs.
• 12–24 V DC power supply – works across mixed fleets from vans to trucks and plant, simplifying integration.
• 4‑pin connector interface – secure, professional connection to compatible AHD monitors and recording systems.

Ideal Applications

• Light commercial vans and service vehicles needing a reliable wired reversing camera for urban deliveries.
• HGVs, rigids and tractor–trailers where drivers require a stable rear view around docks and distribution centres.
• Tippers, skip lorries and construction trucks operating on muddy, low-visibility sites.
• Agricultural machinery and telehandlers that work around workers, livestock and equipment in tight spaces.
• Plant, municipal and refuse vehicles requiring continuous rear monitoring during slow manoeuvres and collection routes.

Why Choose LED-Global Lighting

LED-Global focuses on practical, engineered solutions for professional fleets across Europe. Every product is specified with installers and operators in mind, from the connector choice through to housing durability and voltage range. Our lighting and vision systems are trusted by contractors, fleet managers and bodybuilders who need equipment that fits first time and stands up to daily use. With LED-Global, you get clear technical information, proven performance, and support from a team that understands how working vehicles are used in the real world.
