LED-Rechteckiges Positionslicht Bernstein - LG098

LED Rectangular Amber Marker Light – LG098

Compact, bright, and built for hard work – the LED Rectangular Amber Marker Light LG098 gives clear side visibility on trucks, trailers, plant and agri kit. This 12–24 V LED side marker uses high-intensity OSRAM LEDs to deliver a crisp amber signal with minimal power draw. Approved to ECE R10 and rated IP67, it’s engineered for reliable service on European roads and work sites.

This rectangular amber marker exists for a simple reason: vehicles are getting bigger, sites are getting busier, and side visibility can’t be left to chance. The LG098 creates a clear, defined amber marker or position light along the side of the vehicle, helping other road users see length, width, and movement in poor weather, low light, or yard conditions. With 6 OSRAM LEDs and a power draw of around 0.6 W, it gives strong visual presence without adding load to your electrical system.

The body is built around a heavy‑duty plastic housing with a tough PC (polycarbonate) lens, so it stands up to vibration, road spray, and day‑to‑day knocks on commercial fleets, agricultural machinery, and construction equipment. Rated IP67, it is sealed against dust and protected against temporary immersion, so it keeps working in rain, washdowns, and muddy yards. At 110 × 40 × 35 mm, it’s compact enough for tight mounting positions, yet large enough to be clearly seen.

Installation is straightforward. The LG098 is a flat surface mount design with a removable bracket, giving you flexibility when fitting to bodywork, chassis rails, mudguards, or side guards. A 30 cm pre‑wired cable is already installed, so your auto electrician can mount, connect, and test with minimal fuss. The wide 12–24 V DC range makes it suitable for both 12 V and 24 V systems across mixed fleets.

ECE R10 approval confirms good EMC performance, so this marker light won’t interfere with radios or sensitive on-board electronics. That’s important on modern trucks and tractors with CAN-bus systems and telematics hardware. Built in Europe using OSRAM LED technology, the LG098 is a solid, long‑life alternative to filament bulb markers that fail at the worst possible time.

Key Features

• Amber LED marker / position light – ideal for side outline lighting on trucks, trailers, agri and construction vehicles.
• 6 pcs high‑intensity OSRAM LEDs – proven LED technology for strong, even light output and long service life.
• 12–24 V DC operation – compatible with both 12 V and 24 V electrical systems across mixed commercial fleets.
• Low power consumption (~0.6 W) – reduces load on the vehicle’s electrical system and supports battery health on vehicles with long idle times.
• Heavy‑duty plastic housing – robust body designed for on‑road and off‑road environments.
• Impact‑resistant PC lens – tough polycarbonate lens resists chips and cracking from road debris.
• IP67 ingress protection – dust‑tight and protected against temporary immersion, ideal for rain, spray, and regular washdowns.
• ECE R10 approved – electromagnetic compatibility for use on modern vehicles without radio or electronics interference.

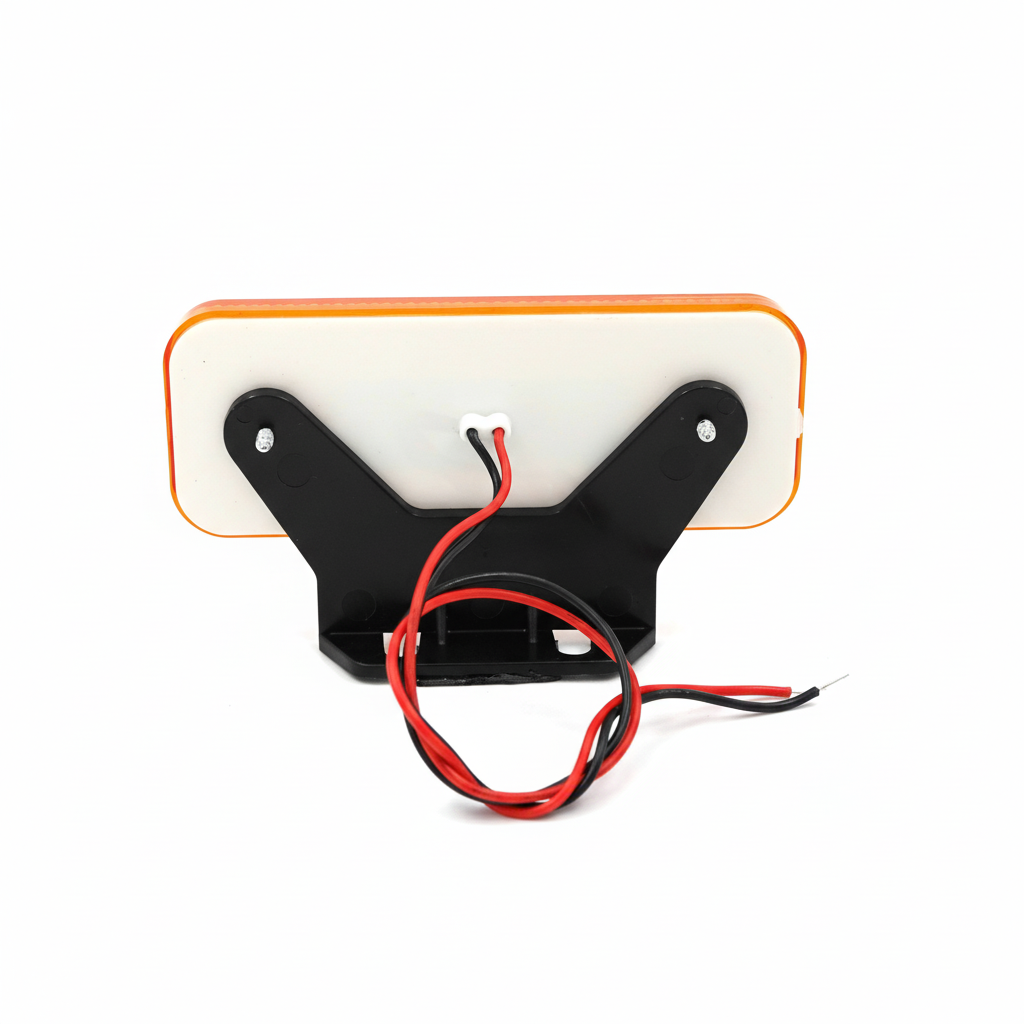

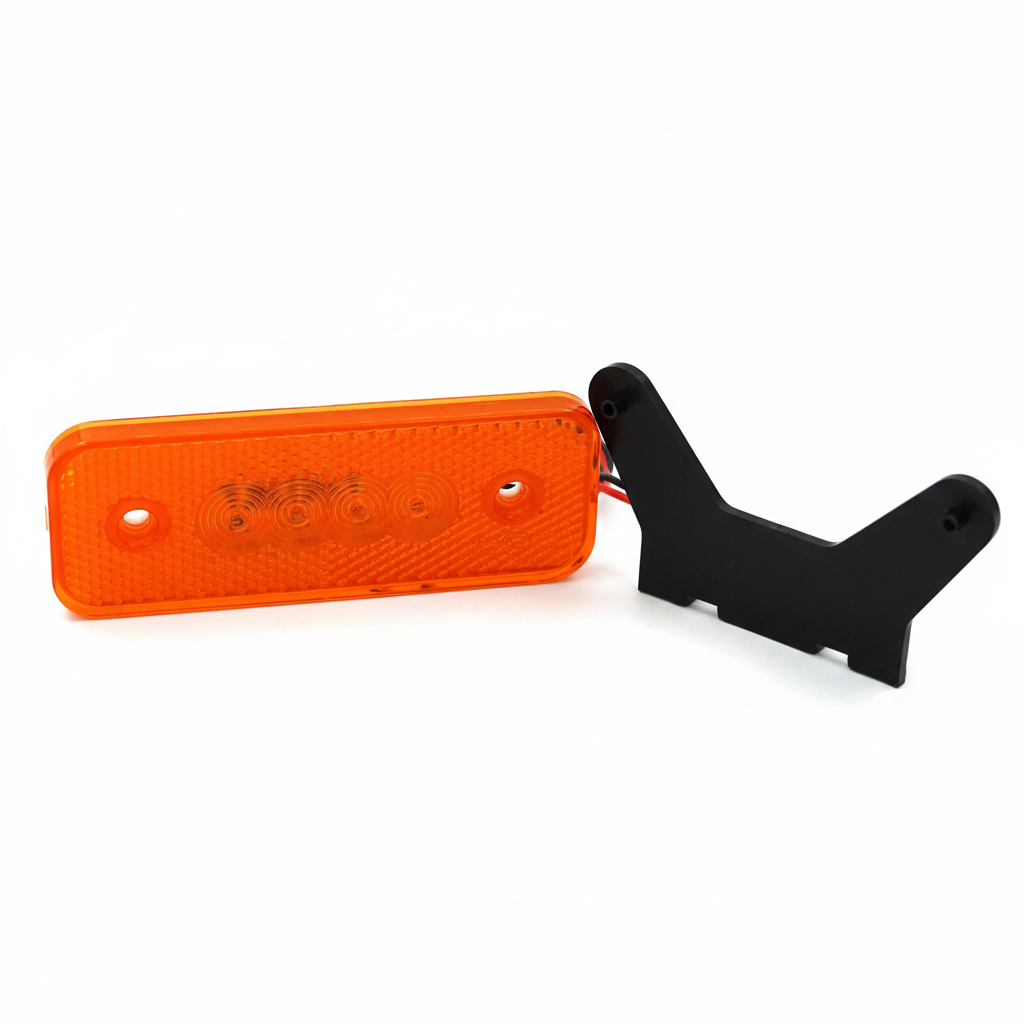

• Flat surface mount with removable bracket – flexible mounting on body panels, chassis, side rails, or guards.
• 30 cm pre‑wired cable – simplifies installation and saves time on fitting.

Ideal Applications

• Articulated trucks and rigid lorries – side marker / position lighting along trailers and box bodies.
• Semi‑trailers, drawbar trailers and low loaders – improved side visibility in yards, depots, and at night on the road.
• Agricultural machinery – tractors, balers, slurry tankers, grain trailers operating on road and farm tracks.
• Construction and plant equipment – tipper bodies, plant trailers, service trucks, and site support vehicles.
• Utility and municipal fleets – recovery trucks, refuse vehicles, maintenance vans and highway support units.

Why Choose LED-Global Lighting

LED-Global focuses on European-engineered vehicle lighting that works in real conditions, not just on paper. We specify quality components like OSRAM LEDs, design around strict European standards, and back it up with consistent build quality. That means less downtime, fewer call‑outs for failed lamps, and lighting you can trust across your fleet, season after season.
