Kombiniertes LED-Scheinwerfer (EU) - rechte Seite, Heckmontage - LG920RREU

COMBO LED HEADLIGHT (EU) – RIGHT SIDE, REAR MOUNT – LG920RREU

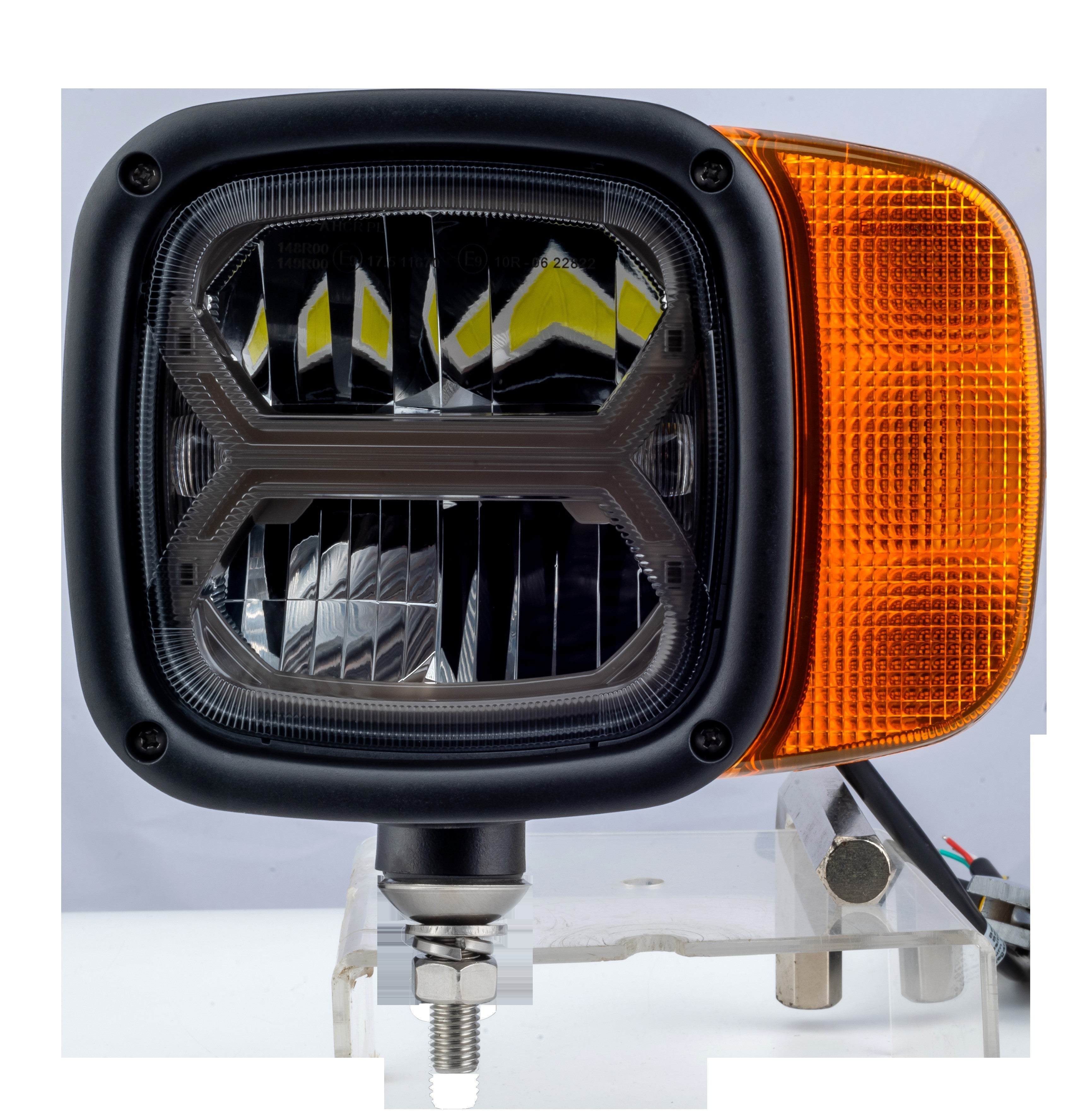

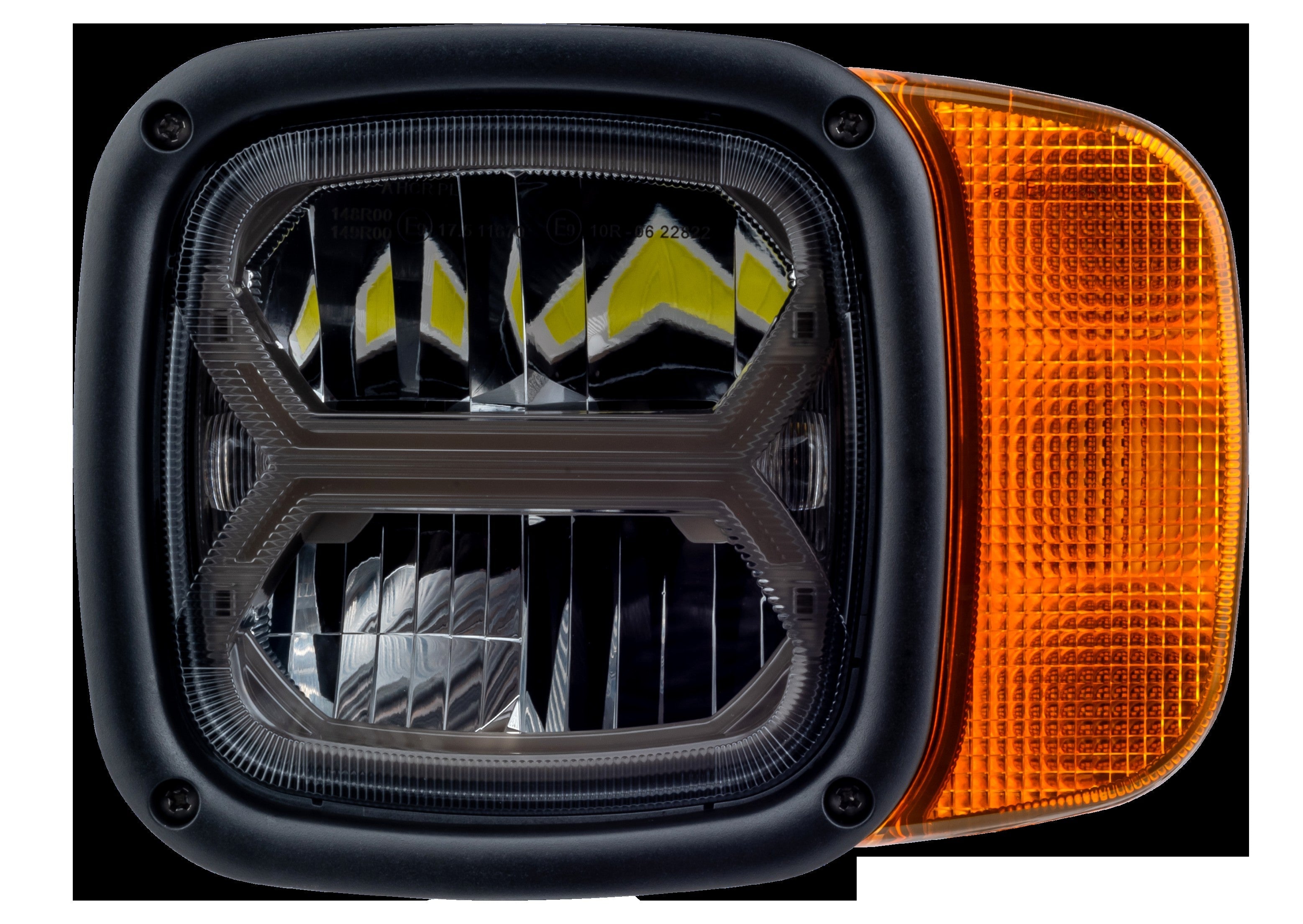

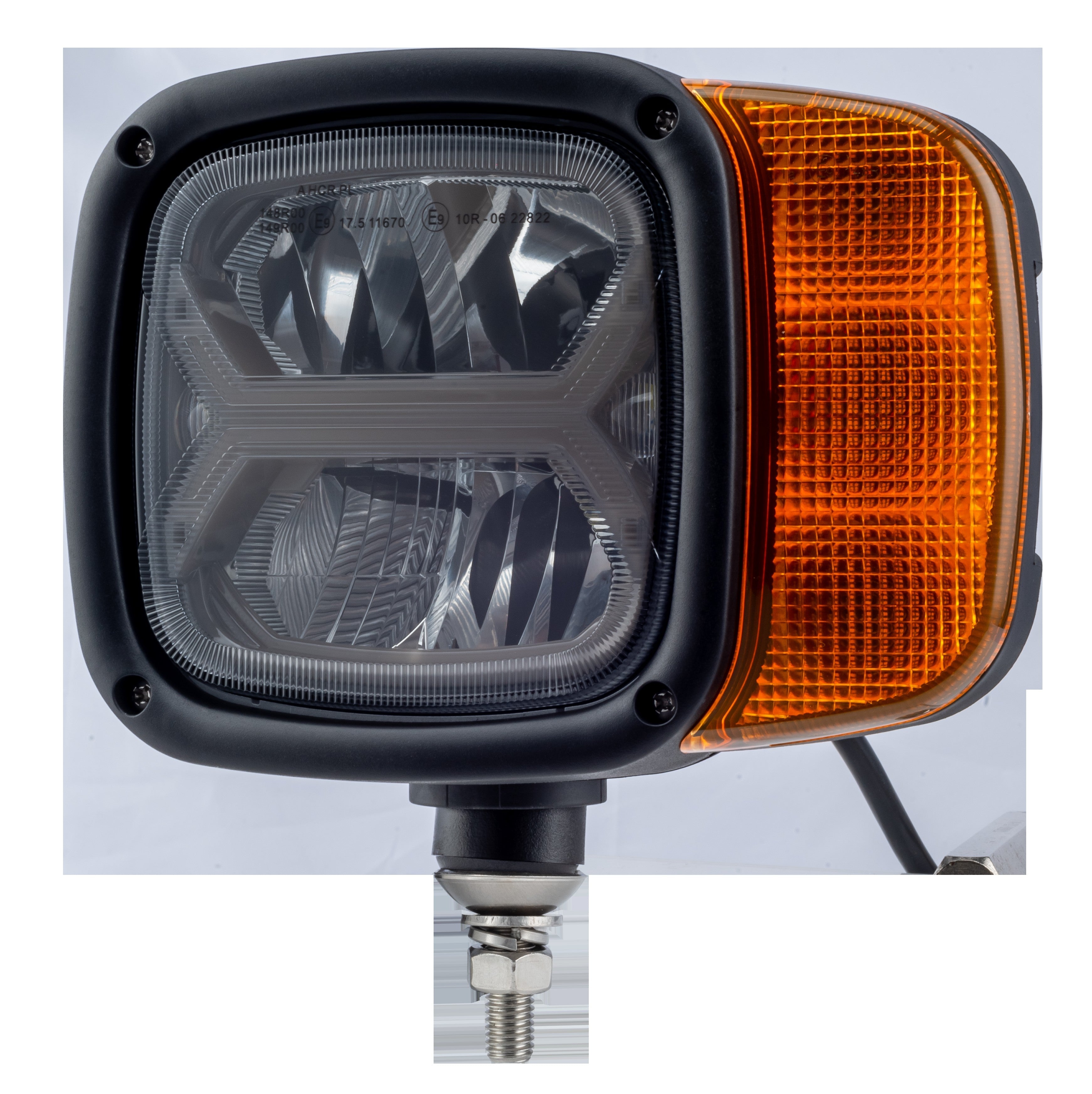

This EU-approved combo LED headlight is engineered for operators who need reliable high/low beam, indicators and position light in one compact unit. It delivers 7000 lm high beam output from a 10–30 V system, with proven EMC and IP69K protection for hard-working commercial and agricultural vehicles. Fully compliant with ECE-R149 / R112, ECE-R148 / R7 and ECE-R10, it’s ready for road use across Europe when installed correctly.

You want one lamp that simply does the lot. High beam, low beam, turn, side and parking, all in a single, robust housing. That’s exactly where the LG920RREU combo LED headlight fits – a right-hand, rear-mount unit designed to clean up your wiring, simplify installs and reduce points of failure at the front of the vehicle.

The light engine is built around a 10–30 V electronic driver, so it suits both 12 V and 24 V fleets. You get 64 W high beam producing 7000 raw lumens, and a 40 W low beam rated at 4000 raw lumens, giving clear, controlled light for on-road and off-road work. The integrated indicator, side direction indicator (28 W total) and parking light (9 W) complete the front lighting package in one assembly, making it ideal for modern trucks, tractors, specialist machinery and plant.

Harsh environments are where this unit earns its keep. An aluminium alloy housing with PC (polycarbonate) lens and stainless steel hardware handles vibration, impacts and daily washing. The IP69K rating means it’s tested against high-pressure, high-temperature water jets, so regular wash-downs and heavy spray aren’t a problem when installed correctly. With a working temperature from -45°C to +50°C, it’s proven in cold storage yards, winter road work and hot summer construction sites across Europe.

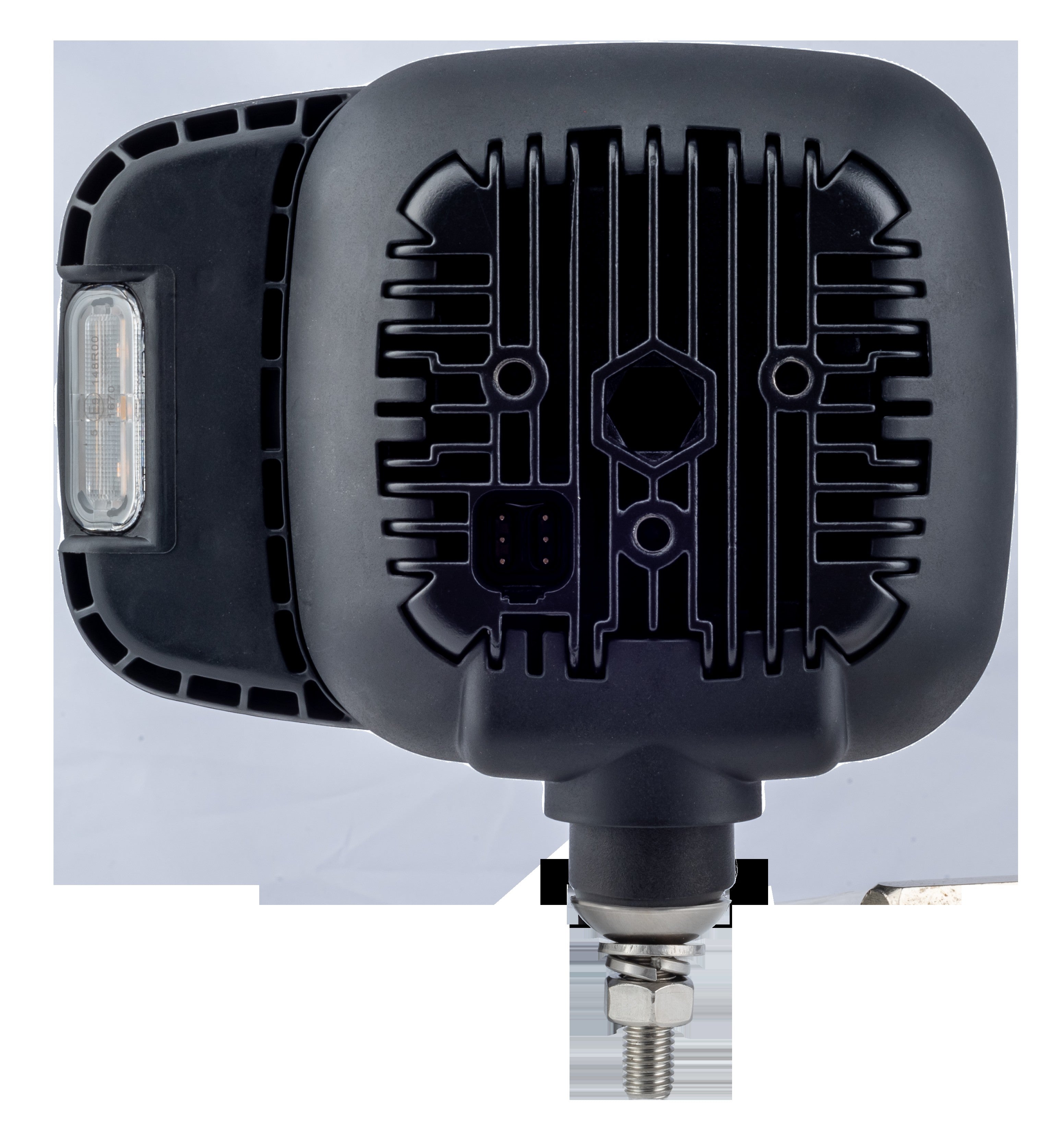

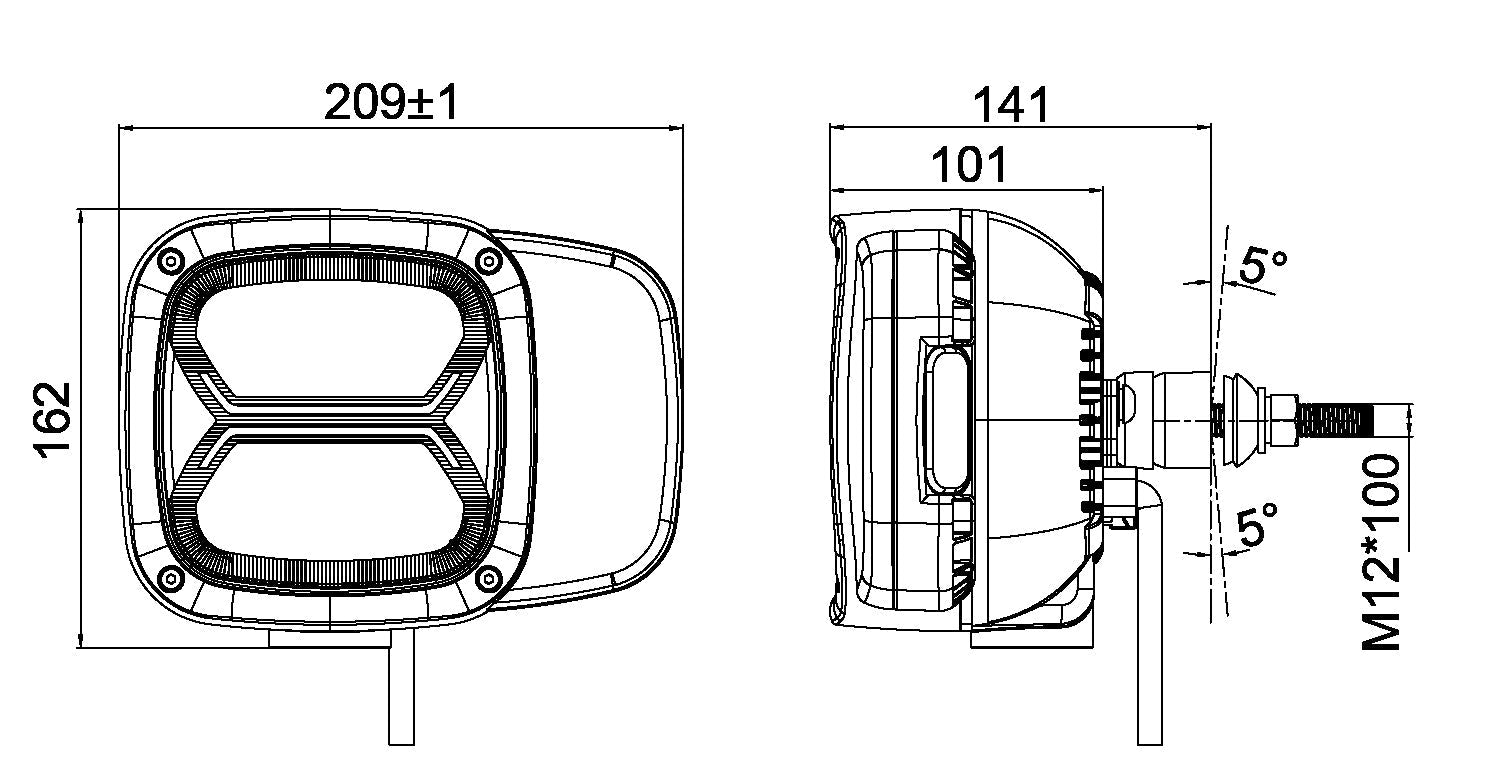

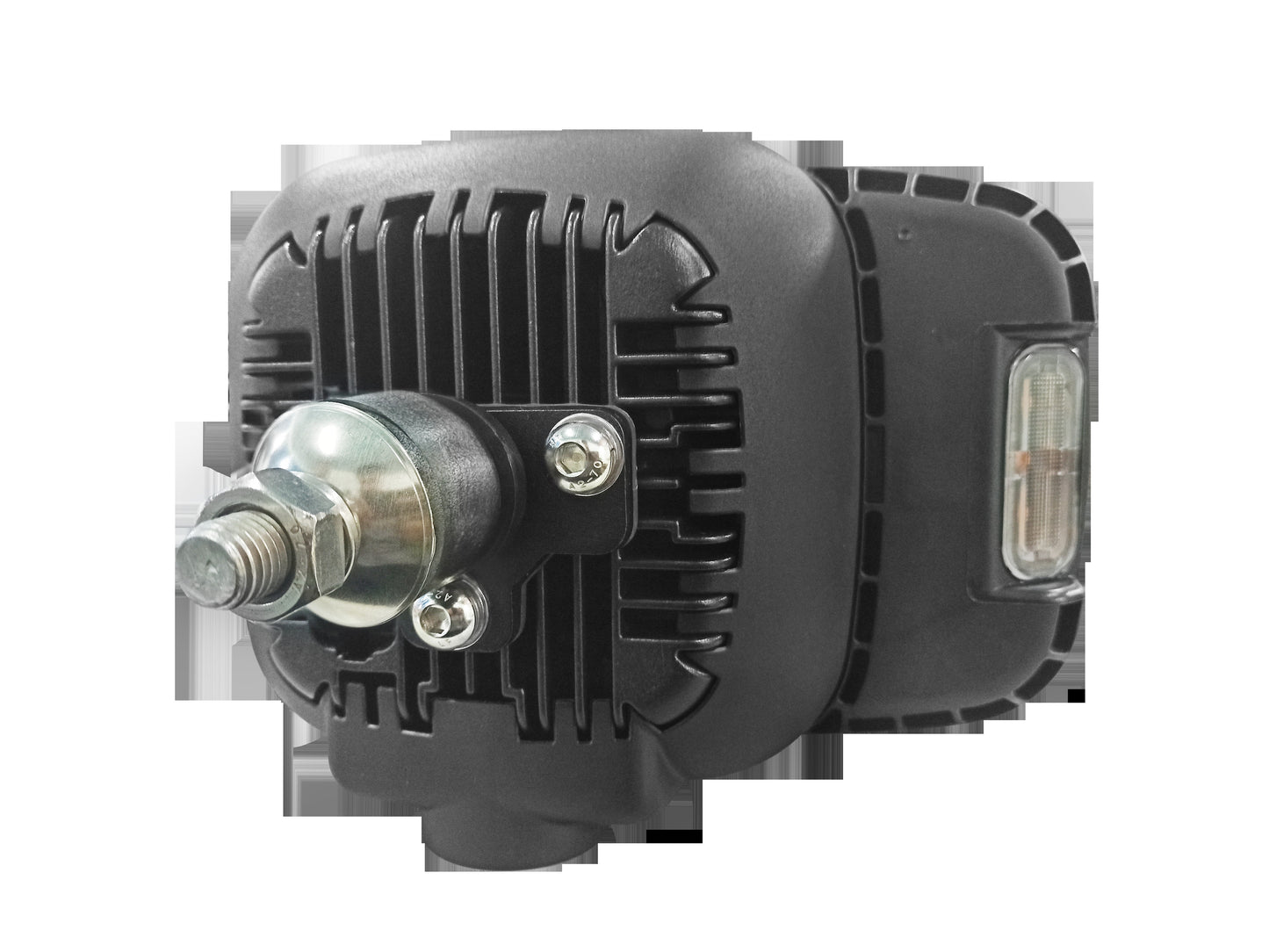

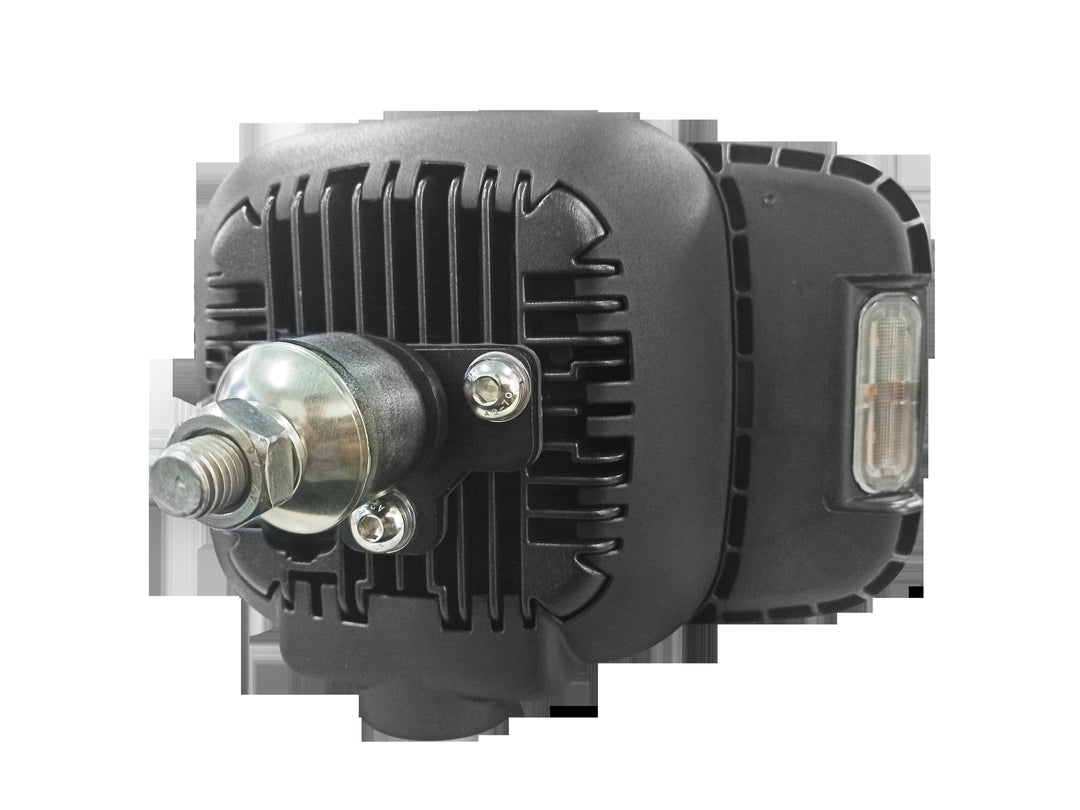

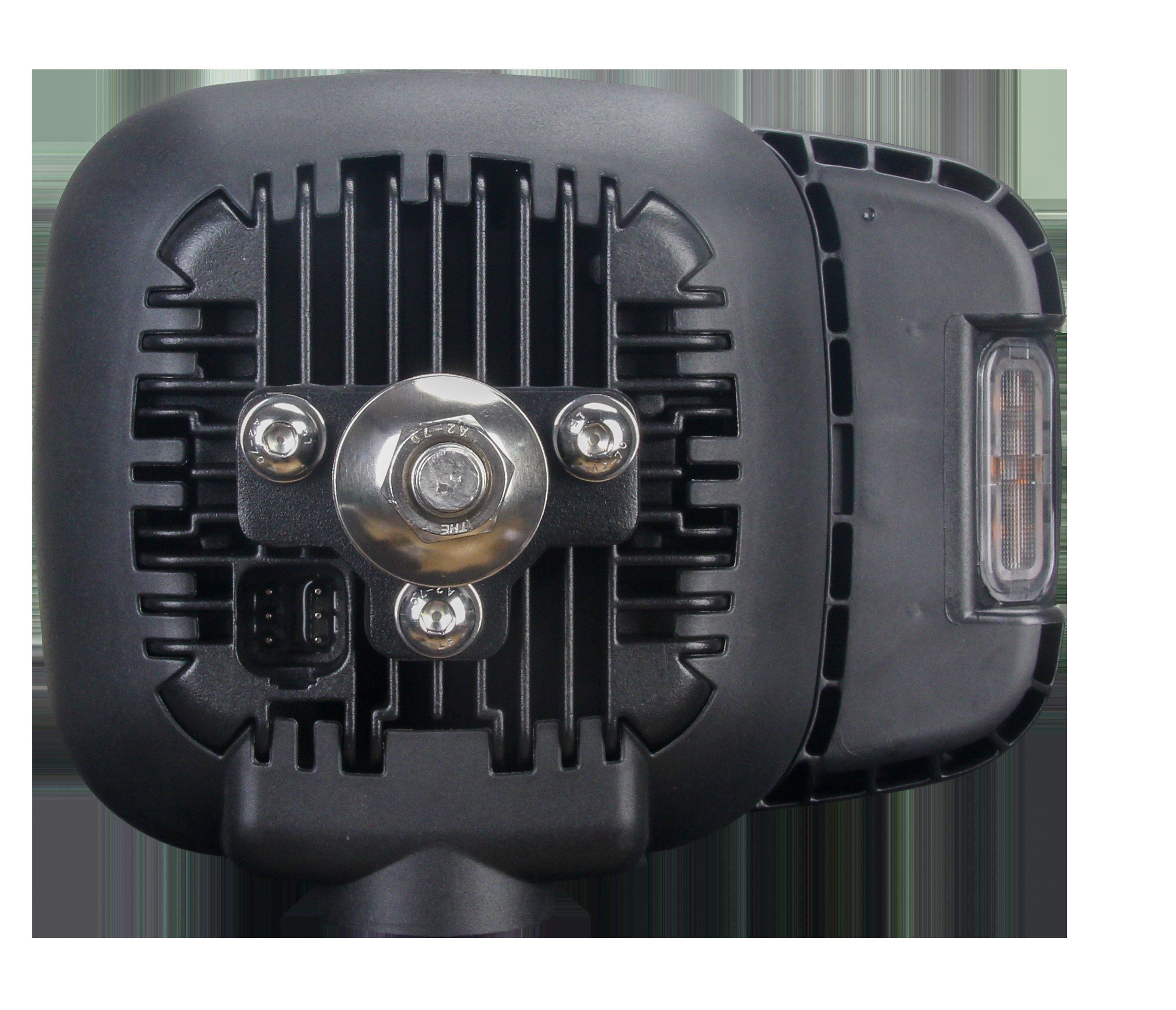

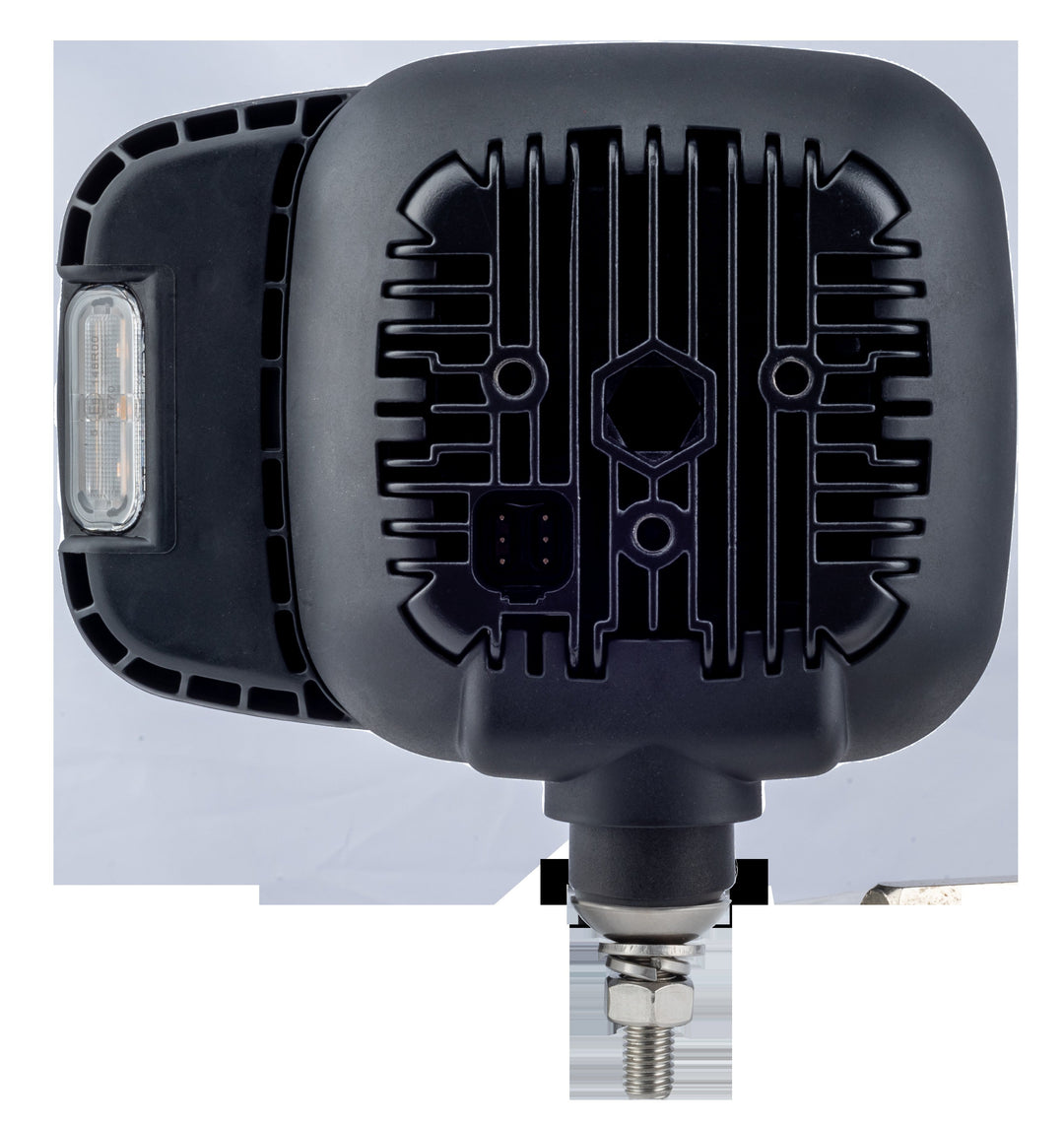

Electrically, the headlight is CISPR 25 Class 3 and ECE-R10 compliant, so it won’t upset radios, CAN systems or sensitive control electronics when fitted properly. It ships with a DT 6‑pin connector plus cable, making integration straightforward for auto electricians and OEM builders. The rear-mount design and compact 209 × 175 × 101 mm footprint give you flexibility on crowded front panels, with a dedicated right-side orientation to match European beam patterns and legal requirements.

Key Features

• Combo LED headlight with full front functions – high beam, low beam, turn, side direction indicator and parking light in one unit to simplify wiring and reduce components.
• Wide voltage range 10–30 V – suitable for both 12 V and 24 V commercial, agricultural and specialist vehicles.

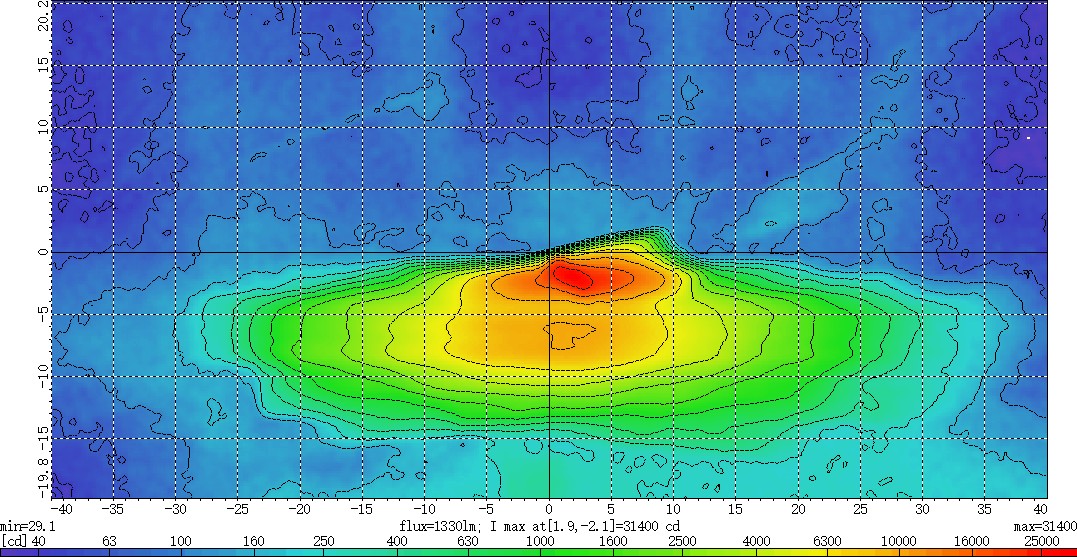

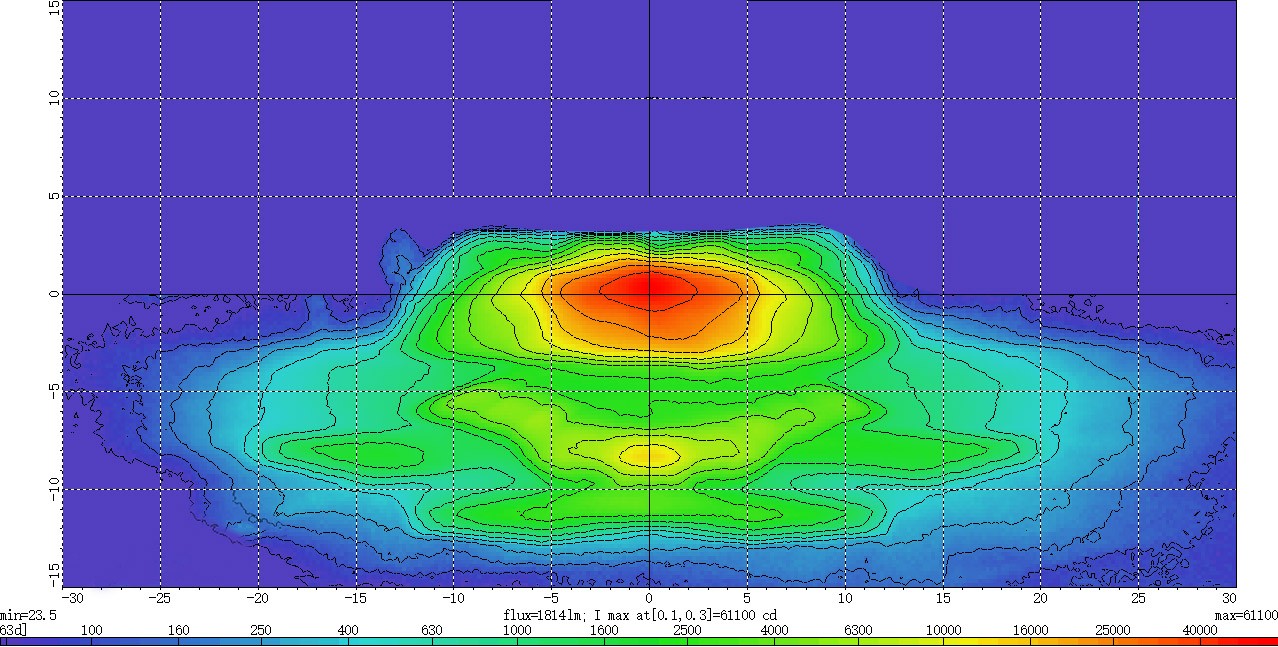

• High output optics – 64 W high beam / 7000 raw lumens and 40 W low beam / 4000 raw lumens for strong, controlled forward lighting.

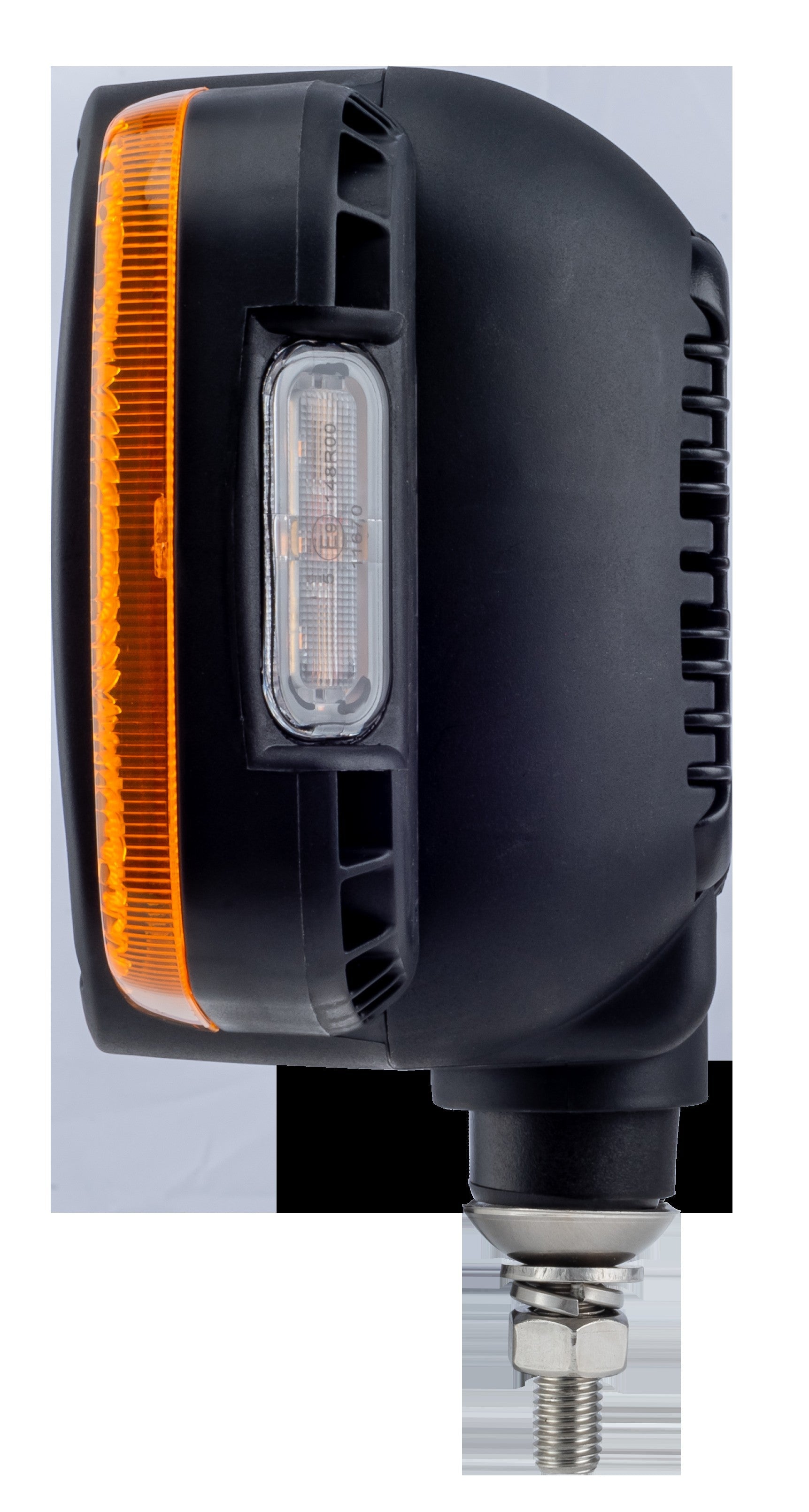

• Integrated signalling – Turn + side direction indicator 28 W and parking 9 W built in, supporting clear signalling without extra lamps.
• EMC protection – CISPR 25 Class 3 & ECE-R10 – designed to minimise electrical interference with vehicle radios, telematics and control modules.
• Road-legal European approvals – ECE-R149 (ECE-R112) for headlamp beams and ECE-R148 (ECE-R7) for position light, plus CE and RoHS for safety and material compliance.
• IP69K ingress protection – tested against high-pressure, high-temperature water jets, suitable for regular wash-downs and severe weather when correctly installed.
• Durable construction – aluminium alloy housing, PC lens and stainless steel fixings provide long-term resistance to vibration, impact and corrosion.

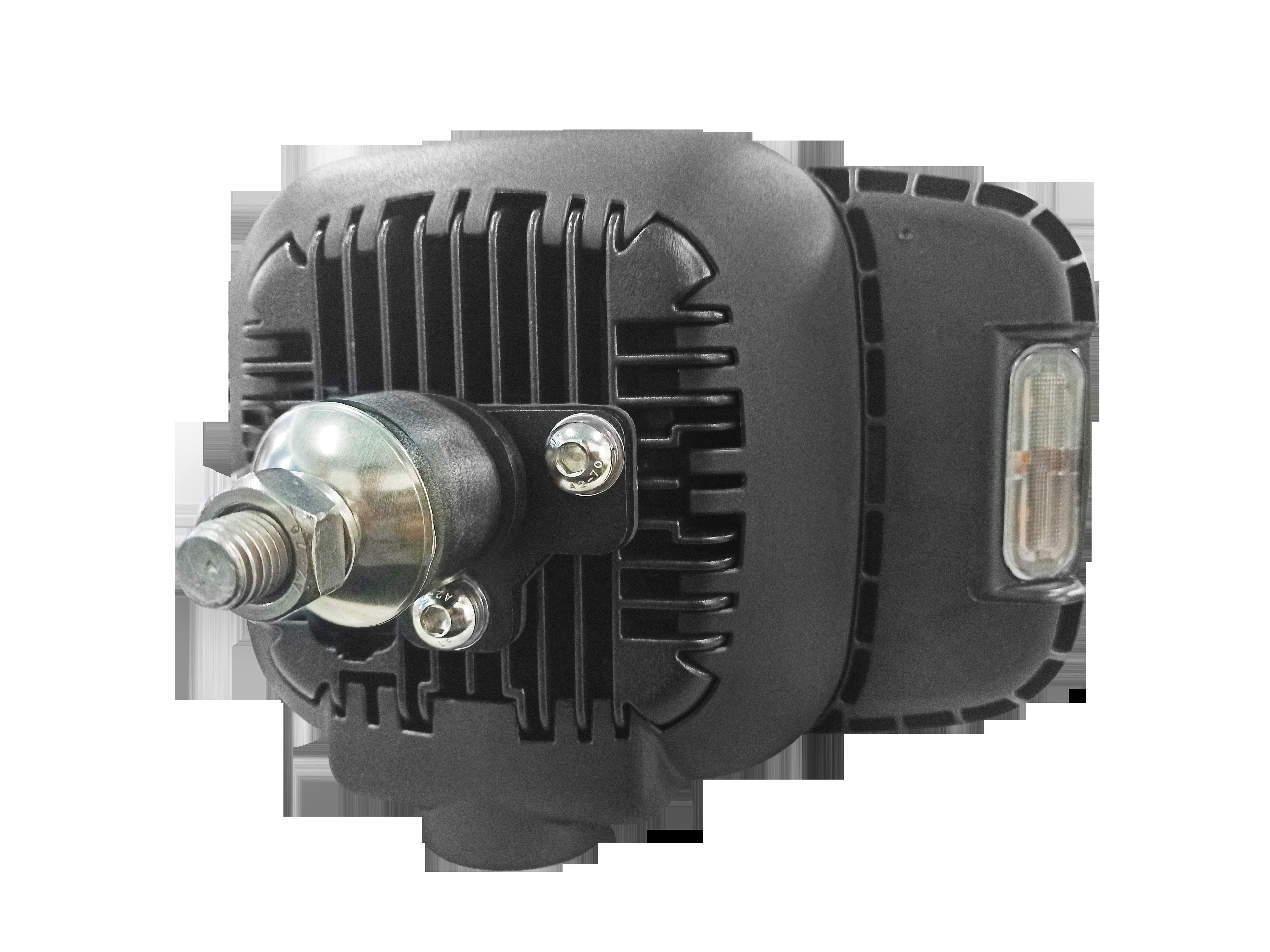

• Rear-mount design, right side specific – optimised for right-hand installation with rear fixing points, ideal for OEM panels and retrofit upgrades.
• Compact dimensions 209 × 175 × 101 mm – easy to package on crowded front ends of trucks, tractors, municipal vehicles and plant.

Ideal Applications

• Heavy trucks and haulage fleets needing EU-approved combo LED headlights for right-hand side installations.
• Agricultural tractors and self-propelled machinery working long hours in mud, spray and regular wash-down conditions.
• Construction and quarry equipment where robust, sealed front lighting is essential for safety and uptime.
• Municipal and utility vehicles – sweepers, refuse trucks, gritters and service vans requiring compliant, low-maintenance front lighting.
• Specialist and OEM vehicle builds where a single, integrated LED headlamp assembly reduces design complexity.

Why Choose LED-Global Lighting

LED-Global focuses on European-engineered lighting that works as hard as your equipment. Every unit is specified with clear data, proven approvals and practical mounting options, so installers and fleet managers know exactly what they’re getting. Our products are tested in real fleets and tough environments across Europe, and backed by a team that speaks your language – electrical values, approvals and real-world uptime, not marketing fluff. If you need reliable, compliant LED vehicle lighting you can fit once and trust, this combo headlight fits straight into that philosophy.
