LED-Glühbirne Typ 9005 (Paar) - LG5025

LED Bulb Type 9005 (Pair) – LG5025

Upgrade tired 9005 halogen bulbs to high-output 9005 LED bulbs with a clean, focused beam and fast, reliable start-up. The LG5025 pair is engineered for 12 V vehicles that need stronger forward lighting without complicated rewiring or bulky ballasts. EMC approved and built with active cooling, they’re designed for daily use in demanding road and off-road conditions.

These 9005 LED headlight bulbs are built as a 1:1 halogen equivalent, so the light source sits in the correct position in the reflector or projector. That means a controlled beam pattern, improved distance, and less stray glare for oncoming traffic when correctly aimed. You get increased brightness and a tighter hotspot, helping drivers see lane markings, road signs and hazards earlier, especially on unlit roads.

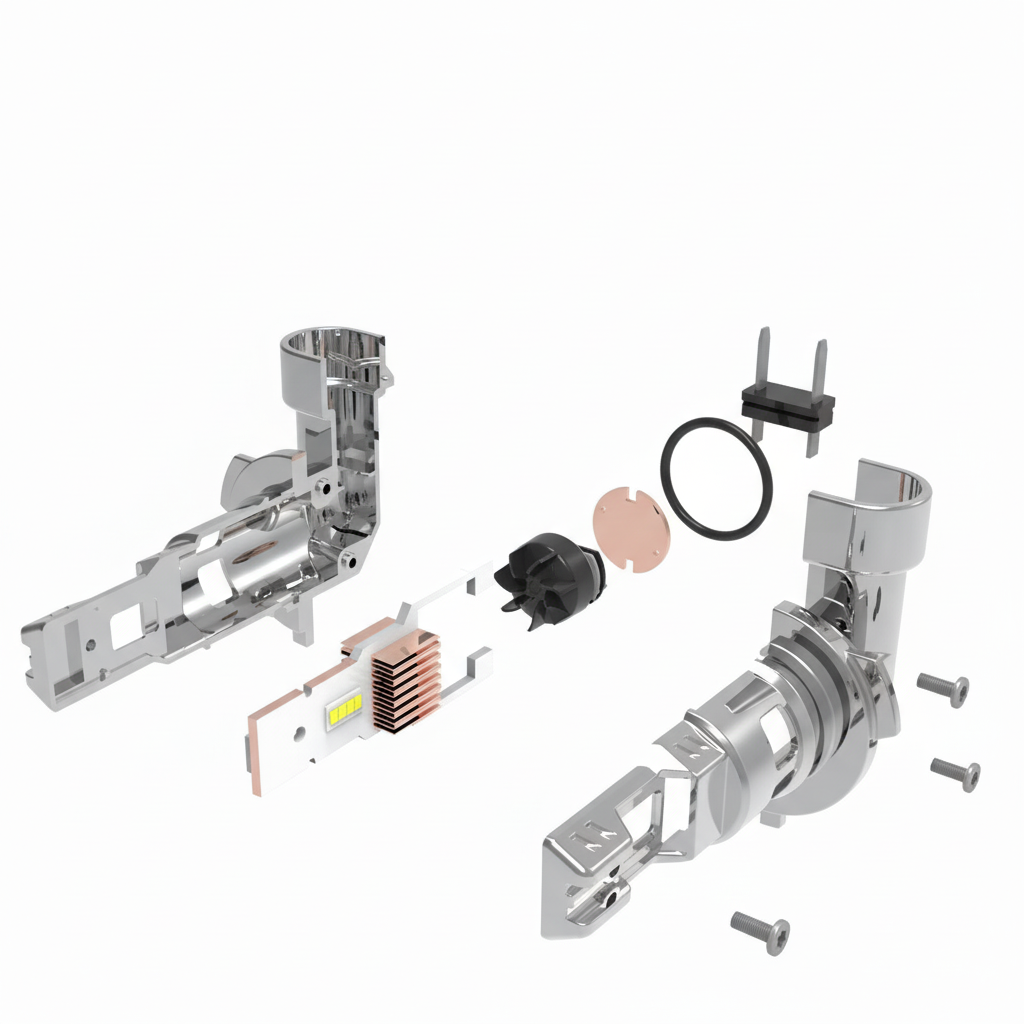

The LG5025 uses an aluminium shell and a pure copper thermal plate to move heat away from the LED chips quickly. Copper conducts heat over 60× better than standard aluminium, so the built-in dual ball silent fan doesn’t have to work as hard to keep temperatures under control. An intelligent temperature control IC trims power if things get too hot, protecting the LEDs and maintaining stable output over long night runs.

Designed for 12 V systems on cars, tractors and light trucks, these bulbs are a genuine plug & play upgrade for 9005 fitments. There’s no external driver box to mount, and no changes needed to the vehicle loom in most applications. With EMC approval, the LG5025 is engineered to reduce electrical interference with radios and other onboard electronics, which is critical for professional and agricultural users who rely on clear communications.

Key Features

• Bulb type: 9005 (HB3) – direct replacement for standard 9005 halogen bulbs in compatible housings.
• 12 V operation – designed for passenger cars, 4x4s, vans, tractors and light trucks running 12 V electrical systems.
• Increased brightness and enhanced beam distance – engineered LED chips and precise 1:1 halogen geometry for better reach and foreground fill when correctly aligned.
• Plug & Play installation – built-in driver and OEM-style connector for quick swap-out with minimal tools in most vehicles.
• Aluminium shell – robust housing with efficient passive cooling to support continuous night-time use.
• Pure copper thermal plate – thermal conductivity > 60× ordinary aluminium, rapidly pulling heat away from the LED junction.
• Dual ball silent fan – high-speed, low-noise cooling fan for active heat dissipation without intrusive cabin noise.
• Intelligent temperature control IC – automatically adjusts power based on operating temperature to protect components and stabilise light output.
• 1:1 halogen equivalent design – LED light source positioned to mimic filament location, supporting a clean cut-off and correct beam focus.
• EMC approved – designed to minimise electromagnetic interference with radio, GPS and other vehicle electronics.

Ideal Applications

• Passenger cars and 4x4s needing a sharper, brighter 9005 main beam or high beam.
• Light commercial vehicles and vans used for early-morning and night-time deliveries.
• Agricultural tractors and yard vehicles working in dark fields, yards or forest tracks on 12 V systems.
• Light trucks and pick-ups running auxiliary front lighting with 9005 bulb holders.
• Fleet upgrades where consistent performance, easy fitment and EMC-safe operation matter.

Why Choose LED-Global Lighting

LED-Global focuses on practical, engineered lighting upgrades that work in real European conditions – wet lanes, rough tracks and long winter nights. Products are specified by people who understand vehicle electrics and know the difference between headline claims and dependable output. Each lamp is selected for reliability, EMC safety and straightforward installation, backed by responsive technical support for trade, fleet and agricultural users. When you choose LED-Global, you’re getting European-led engineering standards and lighting you can trust shift after shift.
