LED Positionsleuchte mit Halterung (AMBER) - LG135

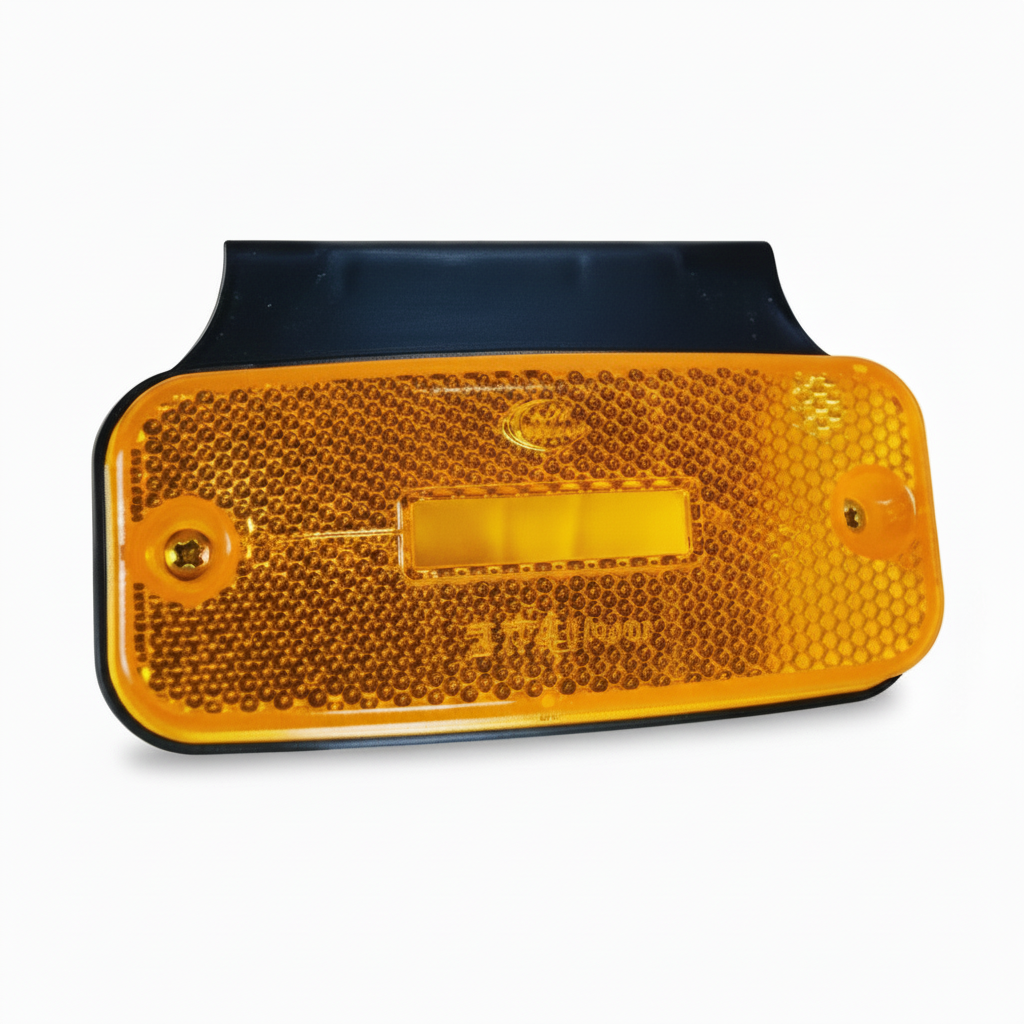

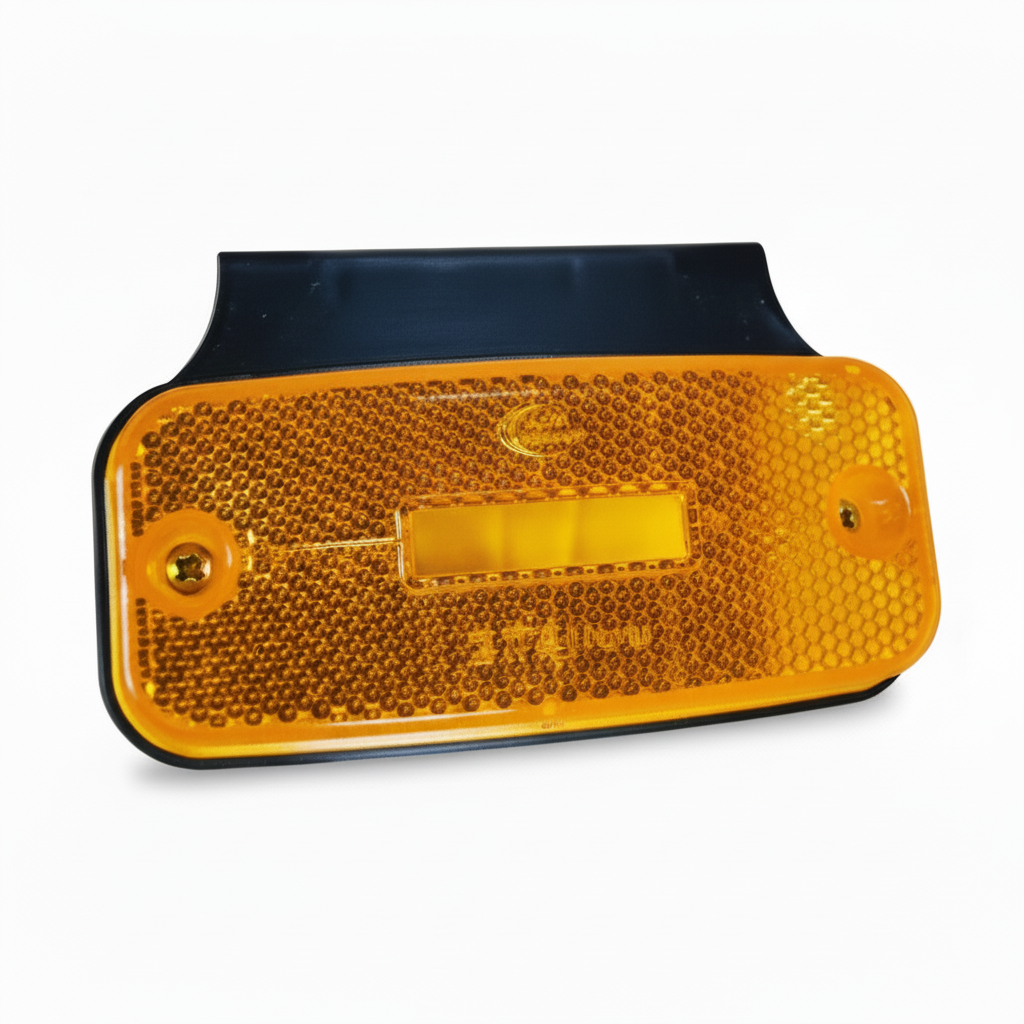

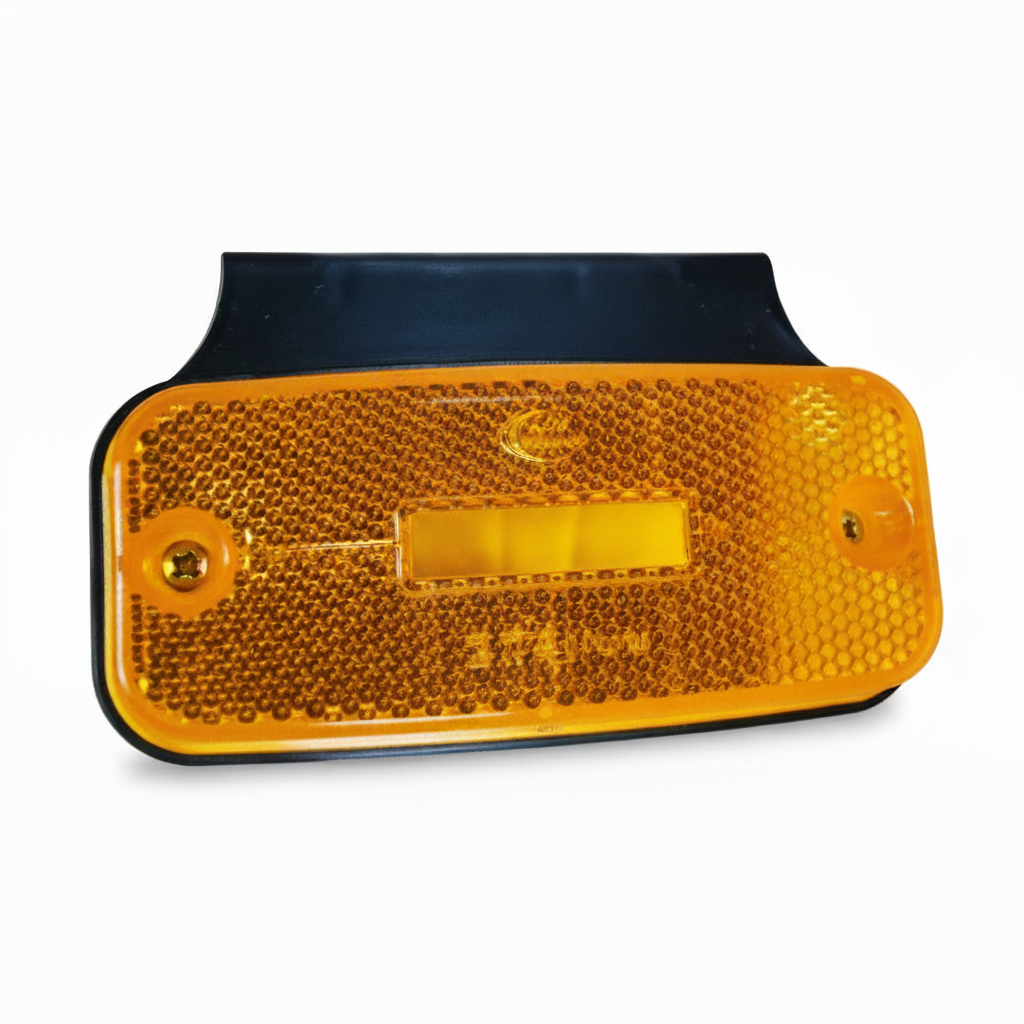

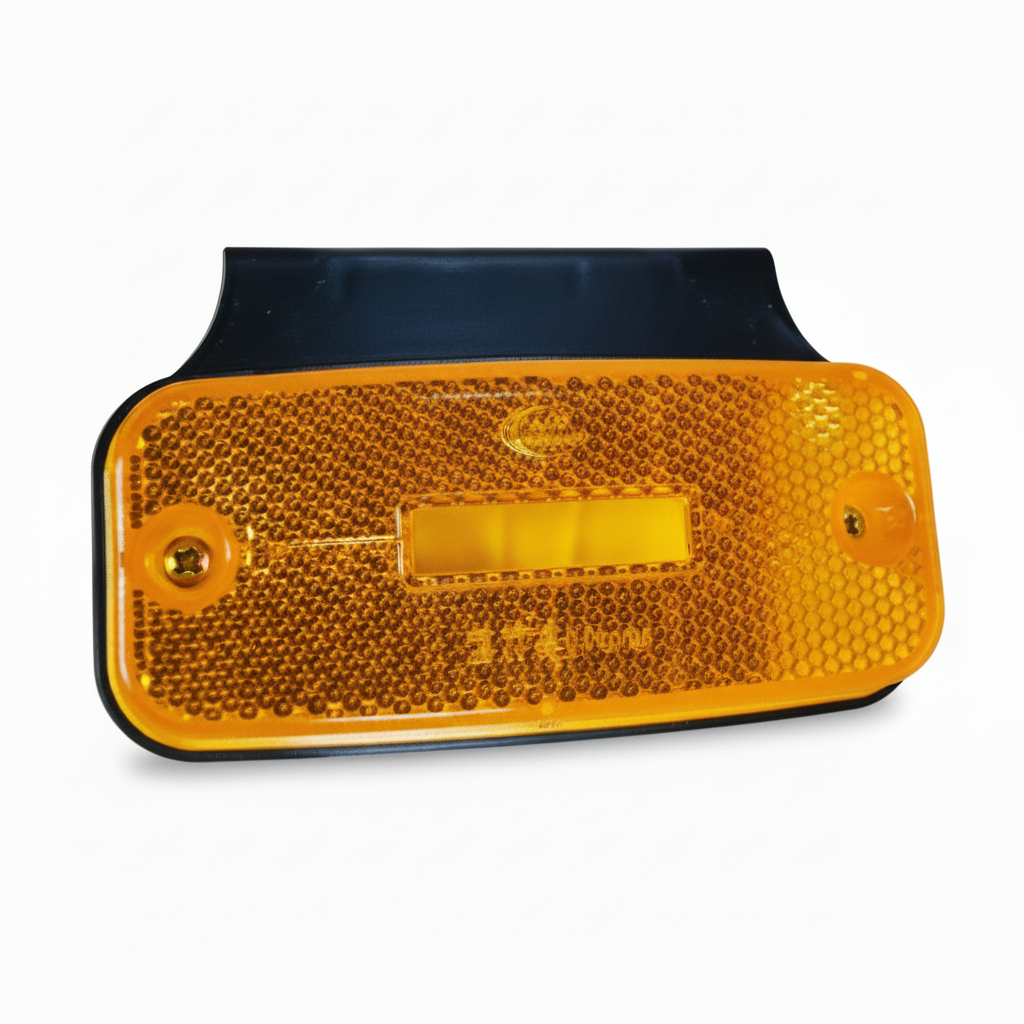

LED Marker Light with Bracket (AMBER) – LG135

Compact, bright and tough, the LG135 amber LED marker light is built for professional fleets that need reliable side visibility day and night. It uses 4 high-intensity OSRAM LEDs to give a clean, even marker signal while drawing minimal power on 9–33 V systems. Fully ECE approved with EMC suppression, it’s ready for road use on trucks, trailers, agricultural and construction equipment.

Side marker lights do a simple job, but they’re safety critical. This unit is engineered in Europe with proven OSRAM diode technology, a PMMA lens and a heavy-duty plastic housing, so it stands up to daily use on busy fleets. The integrated mirror reflector technology boosts visibility without adding power draw, helping other road users pick up the outline of long or wide vehicles earlier.

This amber LED marker lamp is splashproof to IP67, so it’s protected against dust and temporary immersion – ideal for vehicles that see rain, spray and routine washing. With a lifespan of 50,000+ hours, your fit-and-forget cost is low, and you’re not sending technicians out to chase failed bulbs. The light runs on 9–33 V DC, so one part number covers both 12 V and 24 V installations across mixed fleets.

Installation is straightforward. The LG135 comes pre‑wired and supplied with a removable bracket, giving you two mounting options to suit bodywork, bumpers or side rails. At 114 mm (W) × 70 mm (H) × 18.8 mm (T), it’s slim enough for tight locations but still large enough to be seen and handled easily during fitting.

Key Features

• Amber LED side marker light with removable bracket – versatile mounting for trucks, trailers and plant.
• 4 × 1.25 W high-intensity OSRAM LEDs – proven European diode technology for stable, bright output.
• Wide voltage range: 9–33 V DC – suitable for 12 V and 24 V vehicle electrical systems.
• Low power consumption: 0.6 W nominal lamp power – reduces load on vehicle electrics and supports battery health.
• Mirror Reflector Technology – enhances perceived brightness and visibility without increasing power draw.
• Long service life: 50,000+ hours – minimises downtime, call-outs and replacement stock.
• ECE approved / e‑mark – compliant side marker light for on‑road use across Europe.
• EMC / radio suppression – designed to avoid interference with radios, communication equipment and vehicle electronics.
• IP67 splashproof housing – resistant to dust ingress and temporary immersion; ideal for harsh weather and regular washing.
• Durable construction: heavy-duty plastic housing with PMMA lamp finish – impact‑resistant and built for commercial environments.
• Compact dimensions: 114 mm (W) × 70 mm (H) × 18.8 mm (T) – easy to position on crowded vehicle bodies.
• Pre‑wired from factory – speeds up installation and reduces wiring faults on site.

Ideal Applications

• Articulated trucks and trailers needing compliant side marker lighting across long vehicle lengths.
• Agricultural machinery such as grain trailers, slurry tankers and bale trailers working on-road and in the yard.
• Construction and plant equipment including low-loaders, tippers and support vehicles operating in dusty, wet conditions.
• Light commercial vehicles and recovery trucks that require clear side outline lighting for night operations.
• Fleet retrofits and upgrades from incandescent marker lamps to low-maintenance LED technology.
