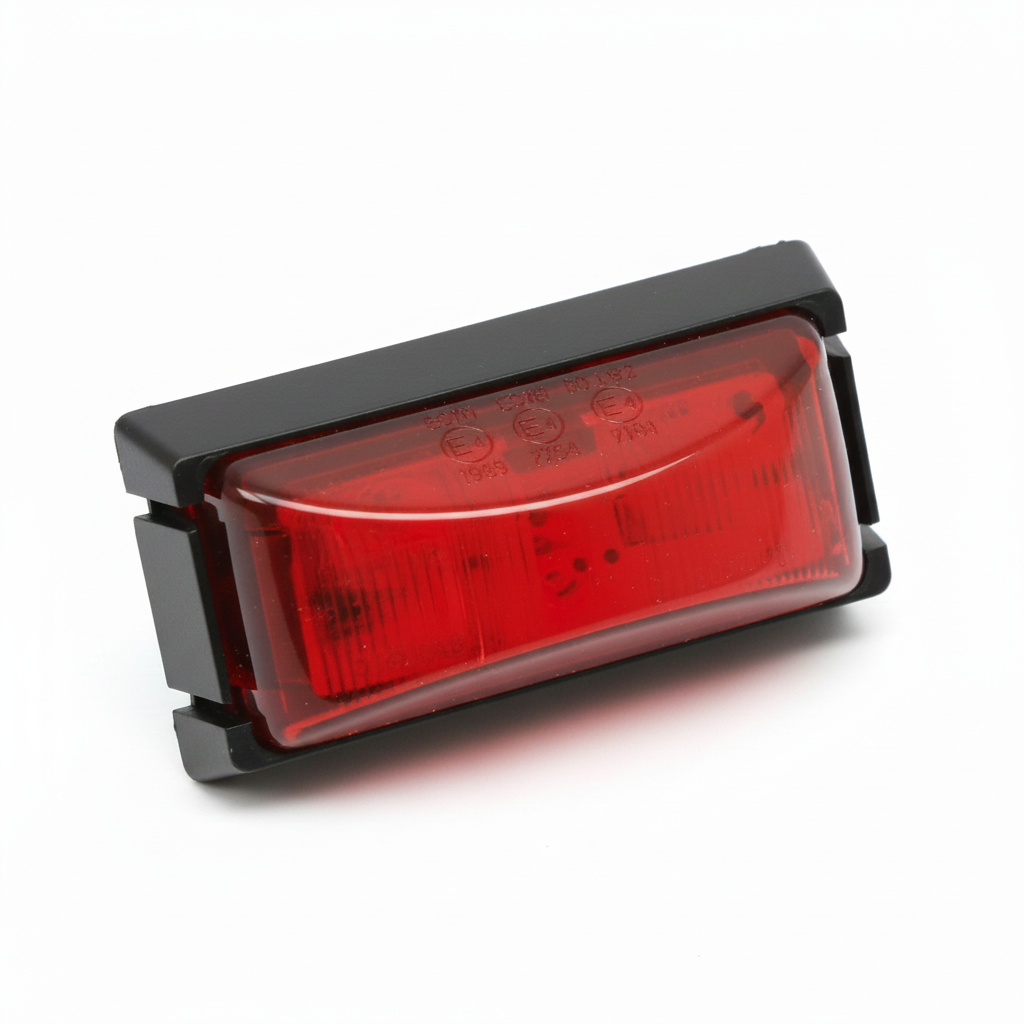

LED-Rechteck-Markierungsleuchte mit 6 Dioden (ROT) - LG105

LED Rectangular Marker Light with 6 Diodes (Red) – LG105

Compact, bright and built for hard work, the LED Rectangular Marker Light LG105 gives clear red side marking for trucks, trailers and plant. It uses 6 high‑intensity OSRAM LEDs for reliable output and long service life, even on demanding fleets. Fully ECE approved and EMC safe, it’s ready for on-road use across Europe.

This red LED marker exists for one reason: make your vehicle visible from the side, every time, in any conditions. Where bulb markers fade, crack and fail with vibration, the LG105’s solid-state OSRAM diodes and heavy-duty plastic housing keep working. The lamp is flat surface mount, so it sits close to the bodywork and resists knocks in tight yards, loading bays and field gateways.

Light output is controlled, not wasteful. The lamp draws just 0.6 W (6 × 0.1 W LEDs) yet delivers a clean red output with a colour temperature of 6000 K, giving a crisp, modern appearance that matches LED tail-lights and position lamps. With a rated lifespan of 30,000+ hours, downtime for replacement is drastically reduced, which matters when you’re running busy trailers or agricultural kit through long seasons.

The LG105 runs on 10–30 V DC, so it’s suited to both 12 V and 24 V systems without extra components. That means it can be standardised across mixed fleets: road-going artics, off-road spreaders, site machinery and utility trailers. The splashproof IP67 construction protects against dust ingress and immersion in water during normal washing and bad weather, so it’s at home on European roads and farm tracks alike.

Installation is straightforward. The unit is pre‑wired, so your auto-electrician or in‑house workshop can mount, connect and move on. At just 73 mm wide, 37 mm high and 30 mm thick, it’s easy to position on tight body panels, side guards or mudguard brackets. With ECE approval / e‑mark and EMC / radio suppression, the lamp won’t cause interference with radios or vehicle electronics and is road-legal where side marker lights are required.

Key Features

• 6 high-intensity OSRAM LEDs delivering stable, bright red side marking with low power draw
• Nominal lamp power: 0.6 W (6 × 0.1 W LEDs) for energy-efficient operation on 12 V and 24 V systems
• Wide voltage range: 10–30 V DC, ideal for mixed fleets and multi-voltage machinery
• ECE approved / e‑mark for road use across Europe where marker lights are required
• EMC / radio suppression built in, helping to prevent interference with radios and sensitive electronics
• IP67 splashproof construction, protecting against dust ingress and temporary immersion during washing and heavy rain
• Robust housing in heavy-duty plastic, engineered to handle vibration and day-to-day knocks on commercial vehicles
• PMMA lamp finish for good optical clarity and resistance to ageing and UV exposure
• Long service life: 30,000+ hours, reducing maintenance intervals and call-outs

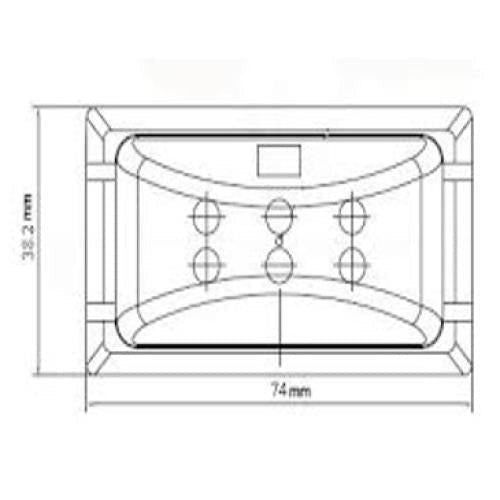

• Compact dimensions: 73 mm (W) × 37 mm (H) × 30 mm (T) for easy mounting on tight panels and brackets
• Flat surface mount design, suited to trailers, side guards and body panels with minimal protrusion
• Pre‑wired for quick installation, saving workshop time on fleets and body builds

Ideal Applications

• Articulated lorries and rigid trucks requiring reliable red side marker lights on trailers and bodies
• Semi‑trailers, drawbar trailers and box vans operating long hours in mixed weather conditions
• Agricultural machinery such as slurry tankers, balers, feed wagons and grain trailers working into the night
• Construction and plant equipment including low-loaders, tippers and service vehicles on site
• Utility, municipal and service fleets needing standardised, ECE-approved LED marker lighting

Why Choose LED-Global Lighting

LED-Global focuses on European-engineered lighting that workshop managers can trust and drivers can depend on. Every marker, including the LG105, is built around quality components, proven optics and honest specifications – no inflated lumen claims, just real-world performance. Our products are tested for demanding commercial use, backed by practical technical support and a clear focus on compliance and safety for professional fleets across Europe.
