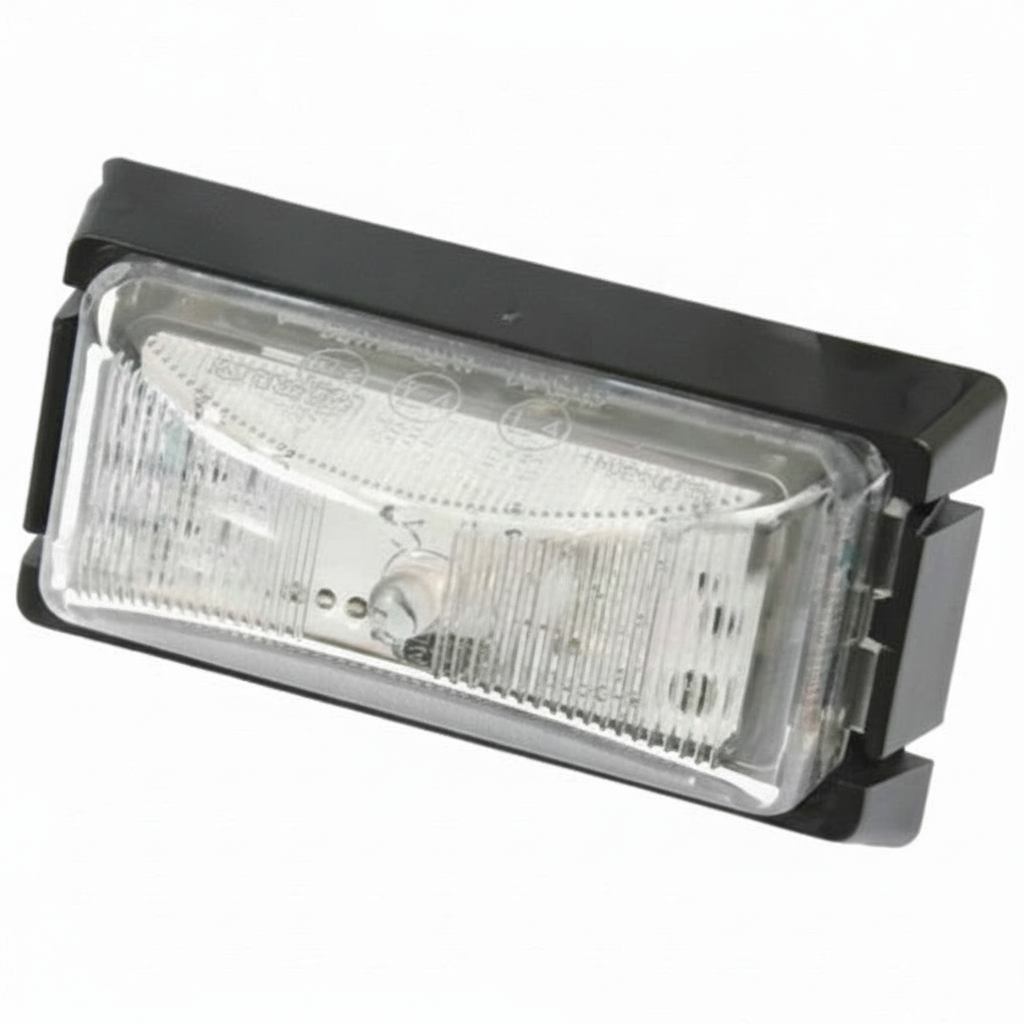

LED-Rechteck-Markierungsleuchte mit 6 Dioden (WEISS) - LG103

LED Rectangular Marker Light with 6 Diodes (WHITE) – LG103

This white LED rectangular marker light is a compact, flat surface-mount unit designed for reliable side and position marking on professional fleets. With 6 high-intensity OSRAM diodes, 10–30 V DC compatibility and ECE e-mark approval, it’s a proven choice for trucks, trailers, agricultural and construction equipment. Built in Europe, it delivers clean 6000 K white light with low power draw and long service life.

Sidemarker lamps do a simple job, but they need to do it every single night, in any weather. LG103 is engineered as a rugged, low-profile marker that gives clear side visibility and position indication on road-going and off-road vehicles. The cold white 6000 K output provides crisp, highly visible light, improving conspicuity for other road users while keeping glare to a minimum.

The heart of this marker is its 6 × 0.1 W high-intensity OSRAM LEDs. They’re driven gently for longevity, but still deliver 14.4 lumens of focused marker light where you need it. With a nominal lamp power of just 0.6 W and a wide 10–30 V DC input range, it runs efficiently on both 12 V and 24 V systems, making it ideal for mixed fleets and retrofit work.

The housing uses heavy-duty plastic with a durable PMMA lens finish for impact and UV resistance. Rated IP67 splashproof, it resists dust ingress and can withstand immersion for short periods, so it copes with regular washing, spray, and wet yard work. ECE approval and EMC / radio suppression mean LG103 is suitable for use on public roads and won’t interfere with vehicle electronics or communications.

Installation is straightforward. The lamp is flat surface mount with a compact footprint (approximately 73 mm (W) × 37 mm (H) × 30 mm (T)), so it fits neatly on bodywork, chassis rails and side guards. It comes pre‑wired, reducing installation time and connection points, which also cuts down on possible failure points over the life of the vehicle. Once fitted, you can expect 30,000+ hours of service under normal operating conditions.

Key Features

• European-made flat surface marker light for professional fleets and machinery
• 6 × 0.1 W high-intensity OSRAM LEDs for proven performance and long life
• Cold white 6000 K light colour for crisp, clean side and position marking
• Low power consumption – 0.6 W nominal lamp power, ideal for multi-lamp installations
• Wide 10–30 V DC input range, suitable for both 12 V and 24 V vehicle systems
• Luminous flux: 14.4 lumens, optimised for marker visibility without dazzling
• IP67 splashproof construction for dust-tight sealing and resistance to water spray and short-term immersion
• ECE approved / e-mark for legal use on road-going vehicles in European markets
• EMC / radio suppression to protect radios, telematics and other electronics from interference
• Heavy-duty plastic housing with PMMA lens for impact and UV resistance in harsh working environments
• Pre-wired design to speed up installation and reduce connection failures

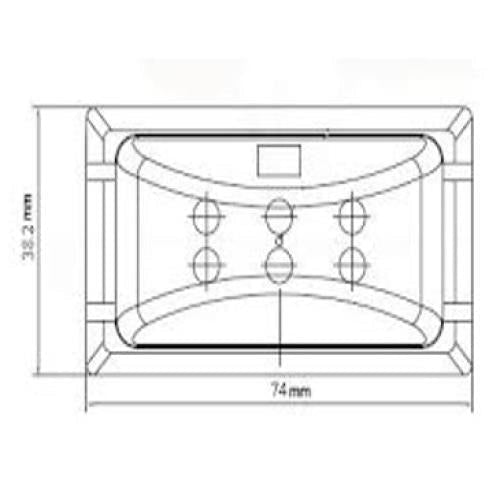

• Compact dimensions – 73 mm (W) × 37 mm (H) × 30 mm (T) for easy mounting on crowded bodywork

Ideal Applications

• Truck and trailer side marker light on curtainsiders, box vans, low-loaders and tankers
• Agricultural equipment lighting, including tractors, balers, sprayers and grain trailers
• Construction and plant machinery, such as tippers, dumpers, telehandlers and service vehicles
• Fleet vans and utility vehicles needing additional side position or step illumination
• Specialist bodies and conversions where low-profile, road-legal side markers are required

Why Choose LED-Global Lighting

At LED-Global, we focus on practical, European-engineered lighting that works as hard as your vehicles do. Every marker, including the LG103, is built around quality components like OSRAM diodes and tested for real-world use on trucks, trailers and heavy equipment. You get consistent performance, clear approvals and honest specifications, backed by a team that understands vehicle electrics and fleet operations.
