Red Line LED Gabelstapler-Sicherheitslicht - LG854

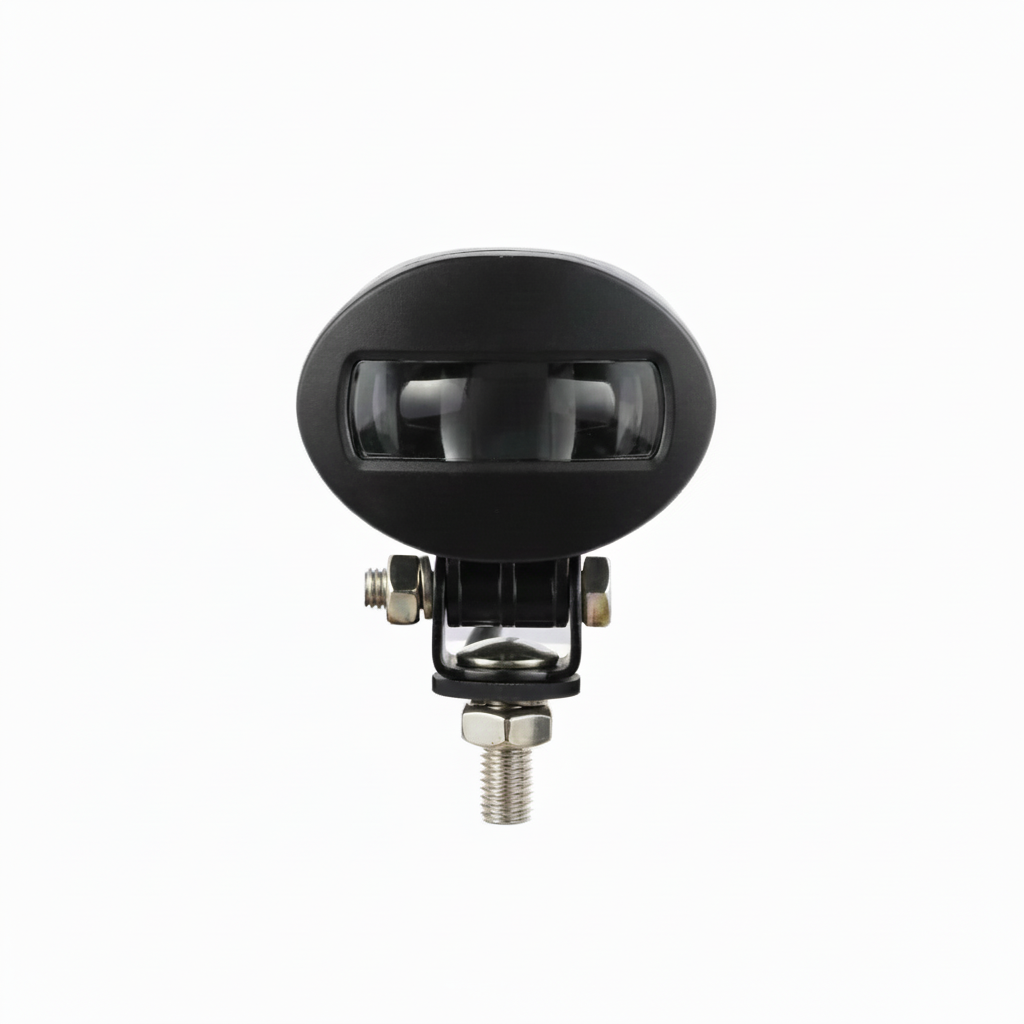

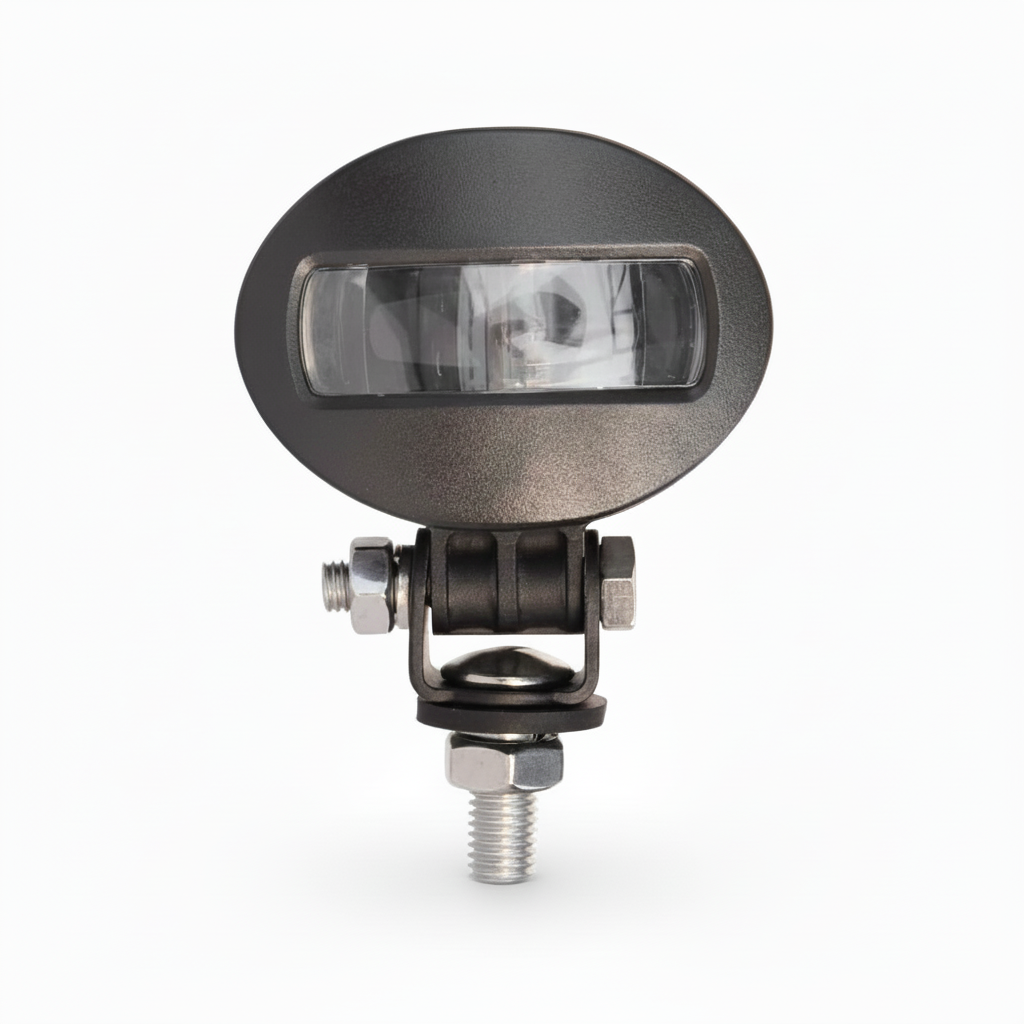

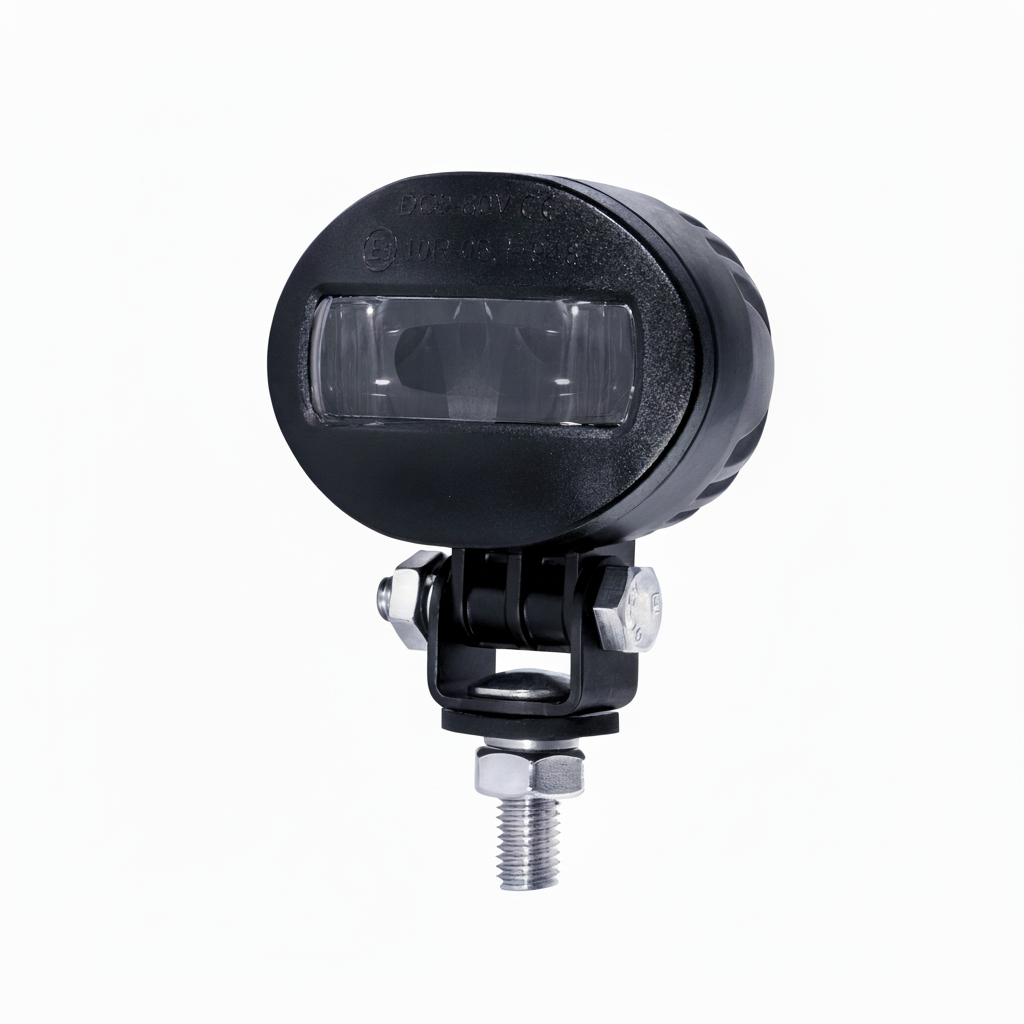

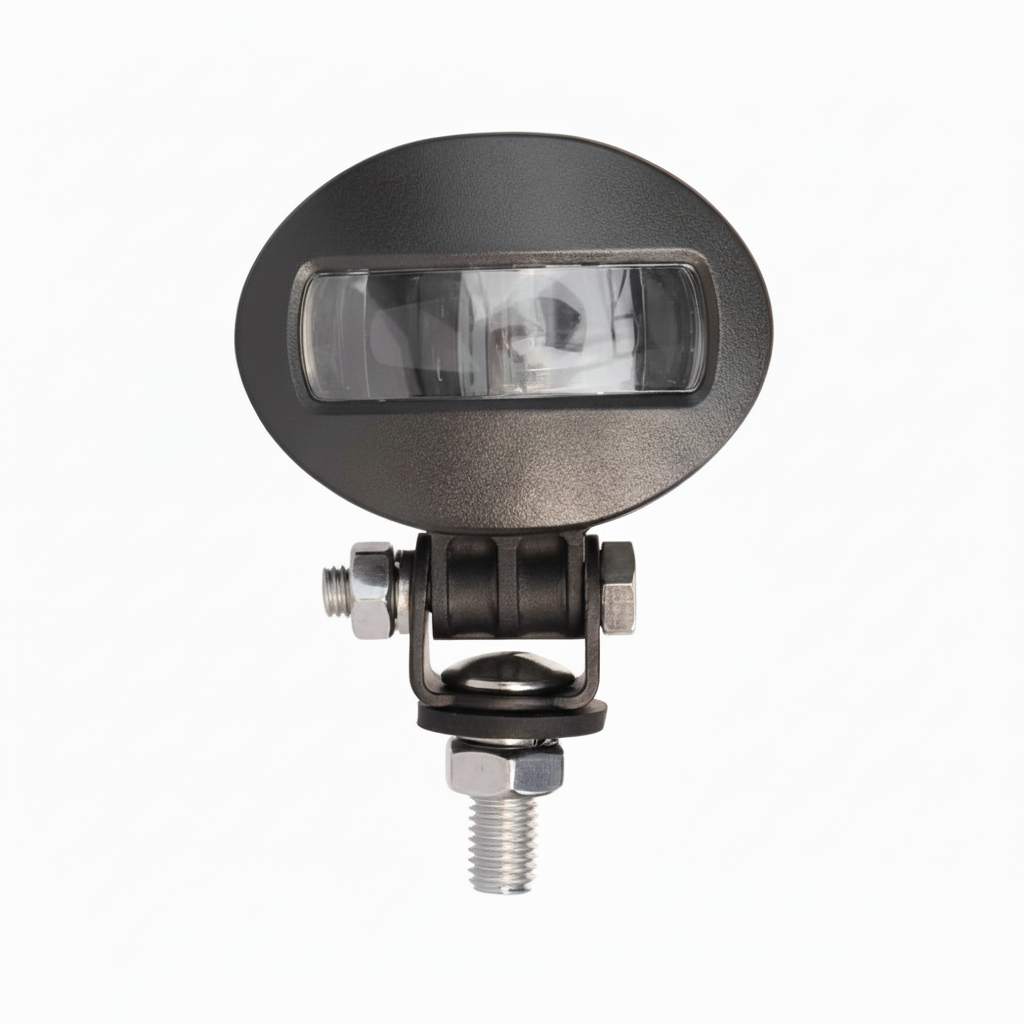

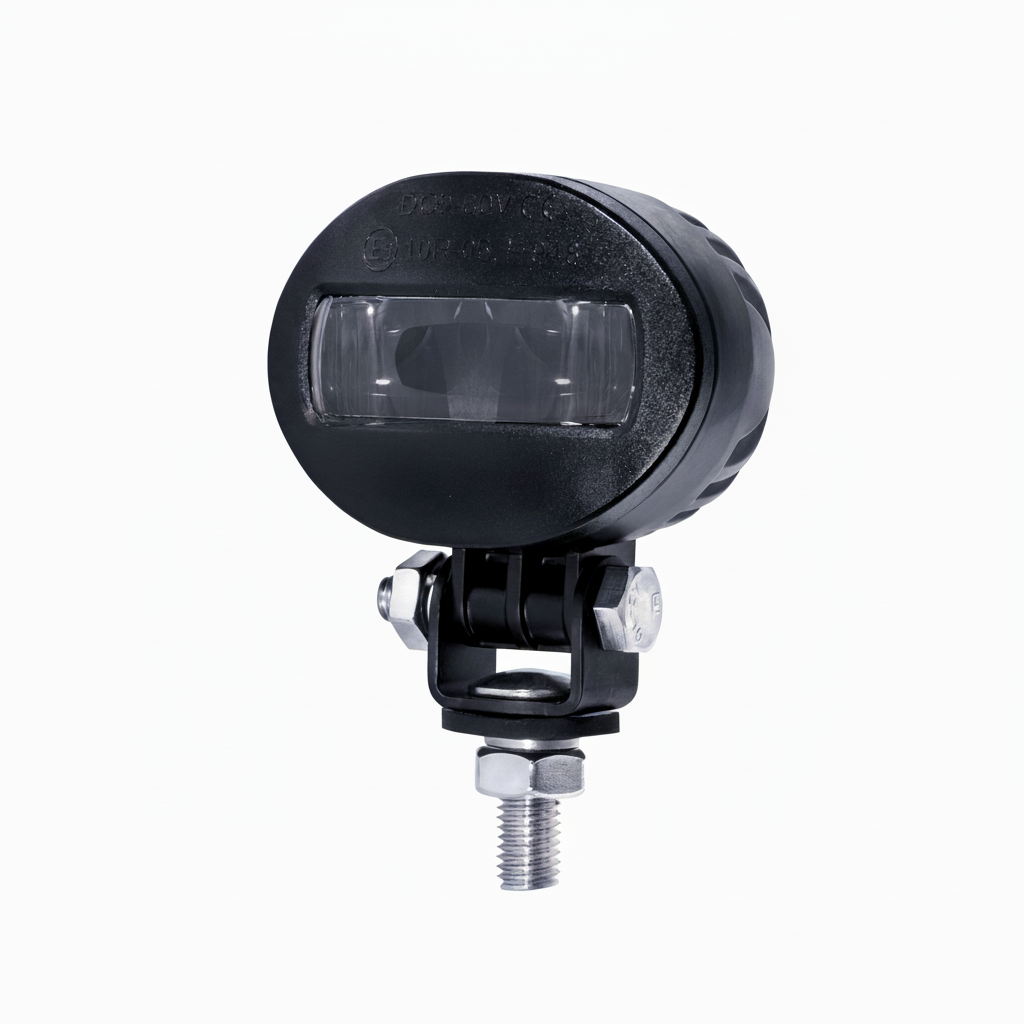

Red Line LED Forklift Safety Light – LG854

The Red Line LED Forklift Safety Light LG854 projects a clear red line on the floor to warn pedestrians of approaching forklifts and warehouse vehicles. It’s compact, tough, and engineered for demanding industrial sites, helping you reduce near-misses around busy aisles and loading bays. Approved to ECE R10 and EMC CISPR 25 Class 4, it delivers stable performance without interfering with vehicle electronics.

This forklift red line warning light exists for one reason: to give people a visual “do not cross” zone around moving trucks. The LG854 throws a bright, well-defined red beam on the ground, making it obvious where the danger area is, even in noisy warehouses where an audible alarm is easily missed. It delivers 700 lm from 15 W of LED power, so the line is crisp and visible without being distracting to the driver.

The light is universal voltage 9–80 V DC, so it works across electric reach trucks, diesel forklifts, pallet stackers and mixed fleets without fuss. A powder-coated aluminium housing and polycarbonate lens protect the optics against impacts and chemicals common in industrial environments. Rated IP67, it’s sealed against dust and high-pressure spray, so regular wash-downs and dusty floors aren’t a problem.

Installation is straightforward. The adjustable stainless-steel bracket lets you fine-tune the beam position to mark side, front or rear danger zones. A DT plug-and-play connector is supplied, making integration clean for fleet electricians and OEM installers. With a 50 000 h service life and proven 15 G vibration resistance, the LG854 is built for continuous shift work and rough yard conditions.

Key Features

• Bright red line projection – creates a clear floor-level safety exclusion zone around forklifts and warehouse vehicles.
• 15 W LED output delivering around 700 lm, giving a sharp, visible beam in busy, mixed-light environments.
• Wide voltage range 9–80 V DC – ideal for electric, LPG and diesel industrial vehicles across a whole fleet.
• Durable housing with powder-coated aluminium body and impact-resistant polycarbonate lens for long service in harsh industrial areas.
• Adjustable stainless-steel mounting bracket for precise aiming to the side, front, or rear of the vehicle.
• DT plug & play connector (supplied) for quick, clean installation and easy replacement during maintenance.
• Long service life – 50 000 h rated, reducing unplanned downtime and bulb change-outs.
• IP67 ingress protection – sealed against dust and resistant to high-pressure cleaning, suited to warehouses, loading bays and outdoor yards.
• Vibration tested to 15 G for reliable operation on uneven floors, ramps and dock plates.
• Approved to ECE R10 and compliant with EMC CISPR 25 Class 4, minimising electrical interference with vehicle control systems.

Ideal Applications

• Forklifts in warehouses, distribution centres and logistics hubs.
• Electric reach trucks and pallet stackers operating in narrow aisles with pedestrian traffic.
• Warehouse and factory vehicles working in shared pedestrian zones and picking aisles.
• Loading bays and goods-in/out areas where people and machines operate in close proximity.
• Industrial safety zones in production plants, cold stores and cross-dock facilities looking to enhance visual safety cues.

Why Choose LED-Global Lighting

LED-Global focuses on high-performance vehicle lighting designed for European industrial and commercial fleets. Products like the LG854 are engineered with practical detail in mind – robust housings, stable EMC performance and fittings that make life easier for installers. Every unit is built to consistent standards, backed by a team that understands fleet downtime, safety compliance and the realities of running busy sites across Europe.
