Far LED 90 Watt cu fază lungă și scurtă - LG893EU

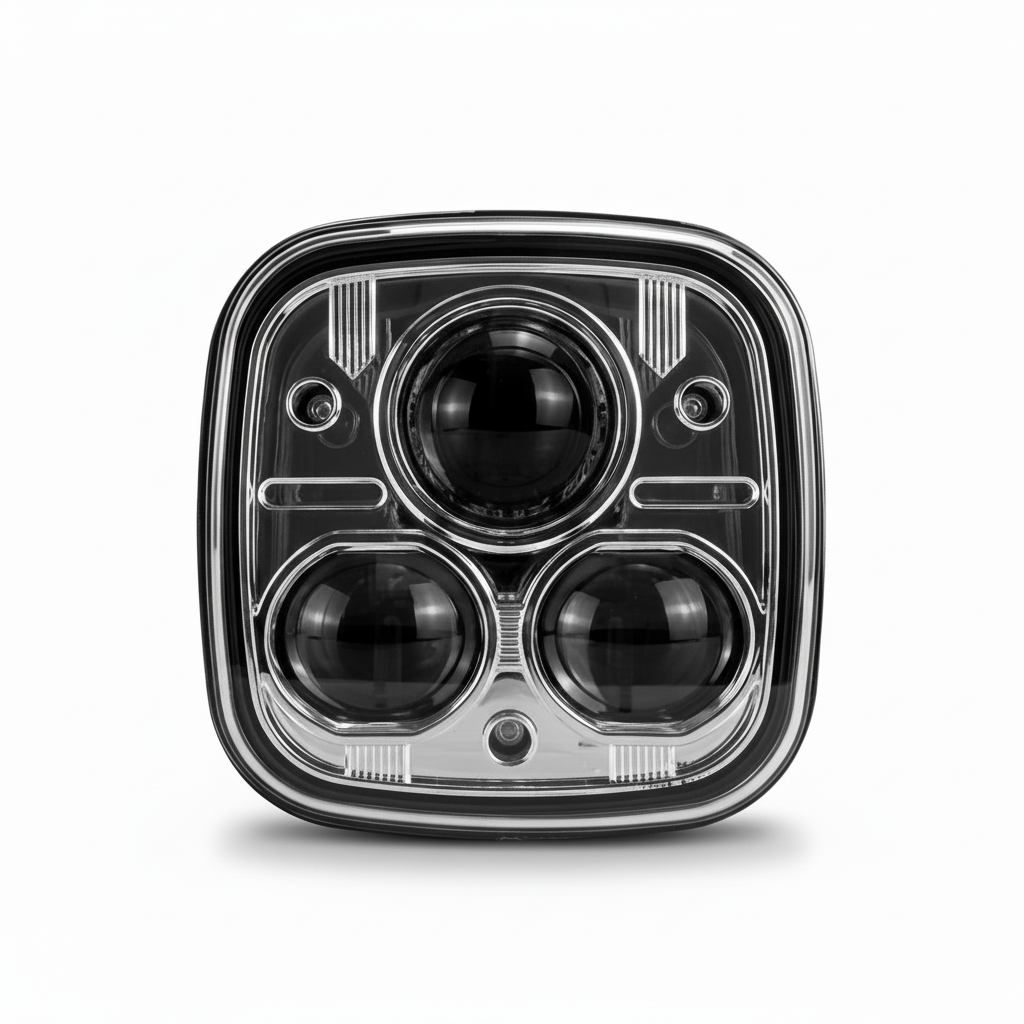

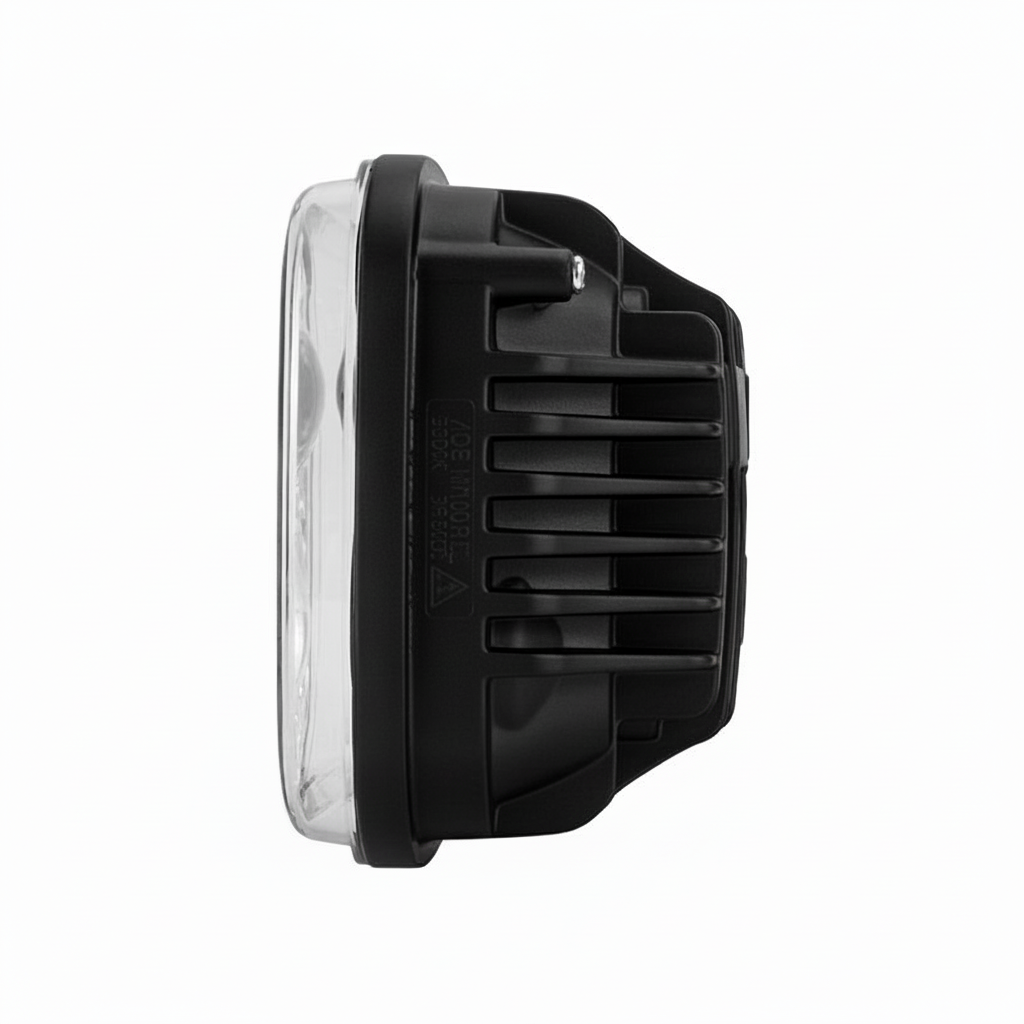

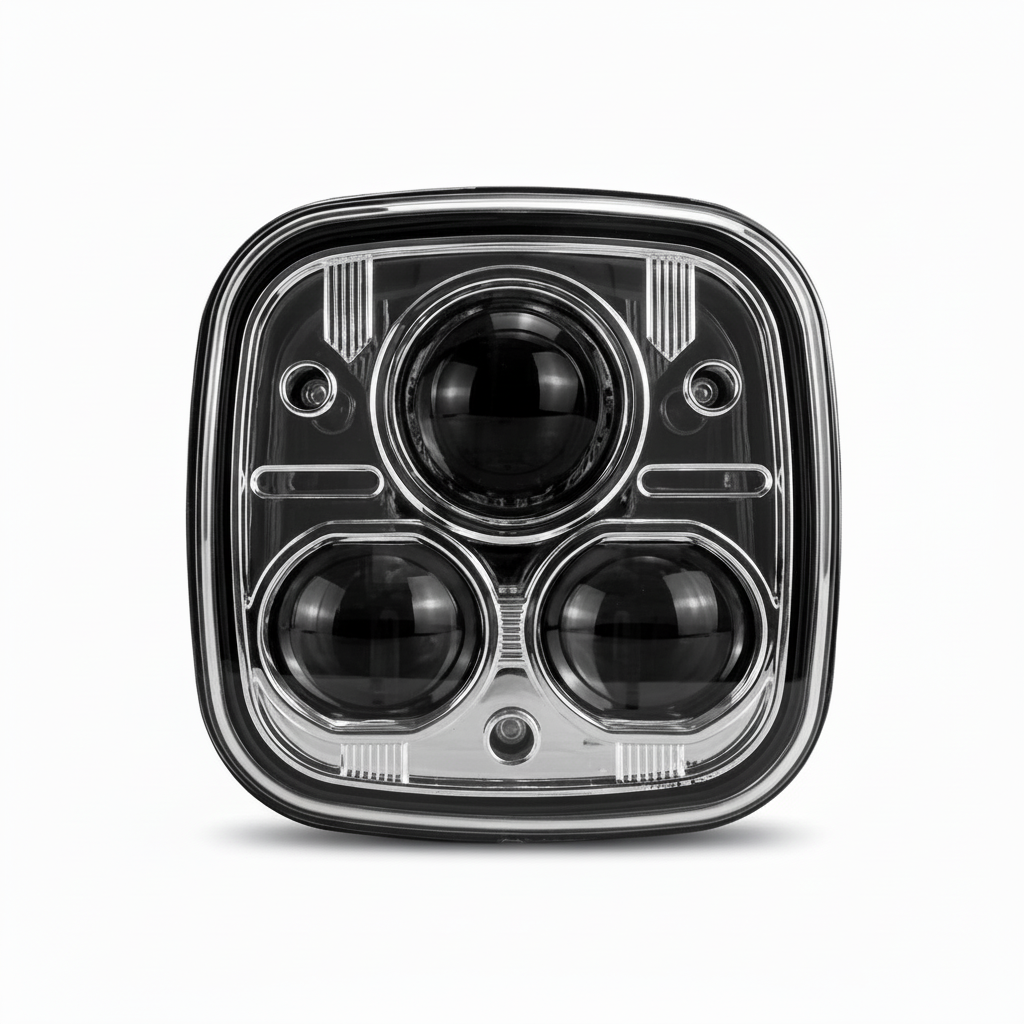

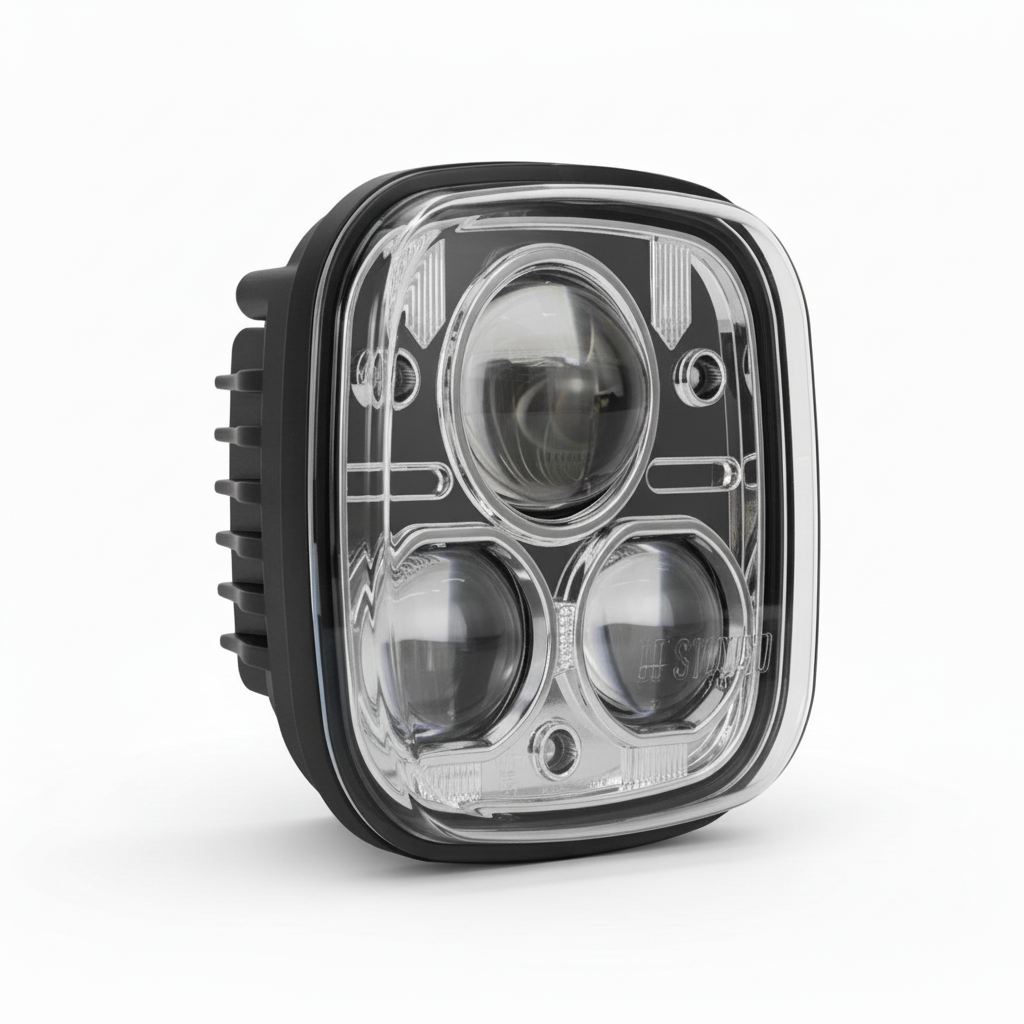

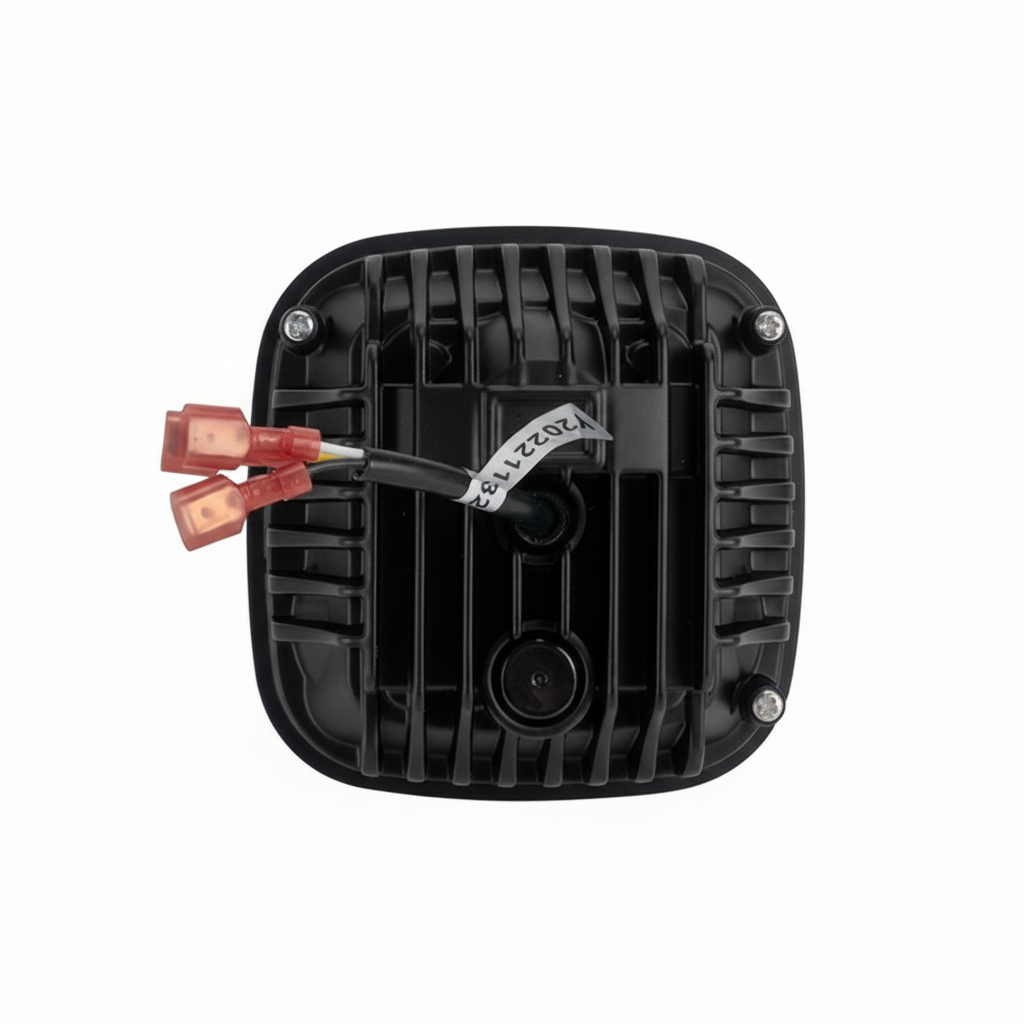

90 Watt LED High & Low Beam Headlight – LG893EU

This 90 W LED high and low beam headlight is built for long days in the cab and rough nights in the field. It delivers a powerful 60 W high beam and 30 W low beam in a compact housing, with full ECE R149 / R112 / R10 approvals for road use in Europe. Designed as a direct replacement for key John Deere references, it gives you sharper light, lower power draw and proven EMC protection.

You know the problem. Older halogen or work-worn lamps fade, pull heavy current, and struggle in rain or dust. The LG893EU solves that with a robust 9–32 V DC LED headlight, engineered for both on-road and off-road use. You get stable light output, even when the alternator is working hard and the electrical system is loaded with auxiliary equipment.

The die-cast aluminium housing manages heat and protects the optics in harsh conditions, from −40 °C to +60 °C. With an IP68 ingress rating, it is sealed against dust and resistant to prolonged immersion, so it keeps working through slurry, washdowns and winter weather. The advanced CISPR 25 Class 4 EMC compliance means it plays nicely with sensitive electronics, radios and GPS systems – something many cheaper lamps struggle with.

This 90 W LED tractor headlight is approved to ECE R149 and ECE R112 for high and low beam performance and ECE R10 for electromagnetic compatibility, making it suitable for road-legal use where fitted in line with local regulations. With dimensions of 127 × 127 × 79 mm, it’s compact enough to retrofit neatly while still packing serious output. It replaces several John Deere OEM references – AL178164, AL178138, AL173619, AL17816458749 – and is trusted by operators who need consistent visibility on 6030 and 7030 series machines.

Installation is straightforward for anyone familiar with agricultural lighting. Match the OEM reference, bolt it up, connect to a 9–32 V system and you’re ready. Once fitted, you benefit from long LED service life, reduced maintenance visits and a clean, white beam that helps reduce eye strain during night work.

Key Features

• 90 W LED headlight with 60 W high beam and 30 W low beam for strong, balanced road and field illumination
• Wide voltage range 9–32 V DC, ideal for 12 V and 24 V agricultural and utility vehicles
• Approved to ECE R149 and ECE R112, supporting road-legal high and low beam use in Europe when installed correctly
• ECE R10 compliant for electromagnetic compatibility, reducing the risk of interference with radios, GPS and control systems
• CISPR 25 Class 4 EMC performance for stable operation in electrically noisy environments
• IP68 ingress protection, sealed against dust and resistant to prolonged immersion for reliable use in wet, muddy or washdown conditions
• Operating temperature −40 °C to +60 °C, designed for cold starts, hot days and continuous duty
• Die-cast aluminium housing for strength, heat management and long LED lifespan
• Compact size 127 × 127 × 79 mm, easy to integrate as a replacement or upgrade unit
• Direct replacement for John Deere OEM refs AL178164, AL178138, AL173619, AL17816458749, reducing install time and compatibility headaches

Ideal Applications

• John Deere 6030 Series tractors – 6230, 6330, 6430, 6530, 6630, 6830, 6930, 6534
• John Deere 7030 Series tractors – 7230, 7330, 7130, 7530 PR, 7430 PR
• Agricultural tractors and handlers needing an ECE-approved LED high/low beam upgrade
• Municipal, roadside and contractor fleets operating in mixed road/field environments
• Heavy-duty off-road machinery where reliable, EMC-safe LED headlights are essential
