Комплект дротової камери заднього виду 10 дюймів - LG9050

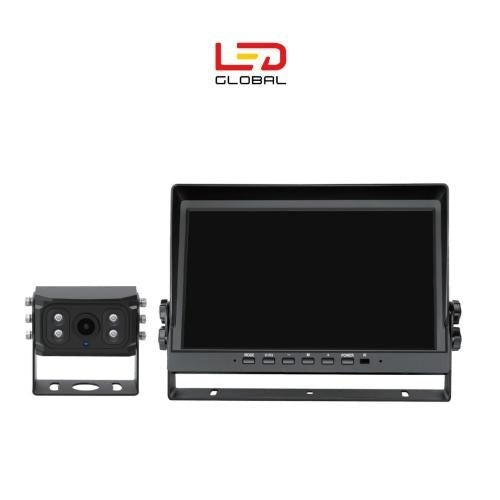

10-inch Wired Reversing Camera Kit – LG9050

This 10-inch wired reversing camera kit gives drivers a clear, stable rear view on everything from tippers to tractors. The 1080P AHD camera and 10.1-inch 1024 × 600 monitor deliver sharp detail, day and night, so you can reverse, hitch or manoeuvre with confidence. Designed for 12–24 V systems, it’s a robust, hard‑wired solution for fleets that want reliability, not guesswork.

The LG9050 exists for one reason: to cut blind spots and reduce metal‑on‑metal incidents. A large 10.1-inch 16:9 display gives your driver a proper picture, not a postage stamp. Paired with a 120° wide-angle camera at 1920 × 1080 resolution, it shows pedestrians, bollards, drawbars and loading bay edges in time to react, not after the crunch. The system supports both AHD and CVBS video signals, so it drops into mixed fleets and retrofit jobs without drama.

The monitor runs on 12–24 V DC, with 2 video inputs as standard (with a 4-channel option available), letting you add side or front cameras later. An OSD (On-Screen Display) menu makes setup straightforward, and you can assign trigger priority, so when reverse is selected, the correct view always takes over. The heavy-duty monitor housing with sunshade and iron mounting bracket keeps the screen readable and secure, even in bright daylight or rough cabs.

At the rear, the AHD camera uses a 1/3" CMOS sensor with 4 super IR LEDs for genuine 0 lux performance when the IR is active. That means usable night vision in yards, depots, fields or unlit roads. The IP69K-rated housing is engineered to withstand high-pressure washing and harsh weather, so it’s suited to agricultural, construction and commercial vehicles that see dirt every day. An IR cut filter, auto AGC (Automatic Gain Control) and BLC (Back Light Compensation) help stabilise the image across changing light conditions.

Because the kit is fully wired with a 20 m 4-pin GX12 extension cable, you avoid wireless interference and pairing issues. The 4-pin connectors on both monitor and camera give a secure, vibration‑resistant connection, ideal for plant and off‑road machinery. Power to the camera is DC 12 V, supplied via the system, so you don’t have to run extra feeds to the rear. Installation is straightforward for any competent auto electrician, and once fitted, the system becomes a trusted part of the driver’s daily routine.

Key Features

• 10.1-inch wide-screen monitor (16:9) – large, clear image area for precise reversing and hitching on commercial and plant vehicles.
• Resolution 1024 × 600 display – sharp, detailed output that makes obstacles, pedestrians and trailer edges easier to see and judge.
• Supports AHD & CVBS mixed inputs – works with modern AHD cameras and legacy analogue (CVBS) sources, ideal for upgrades and mixed fleets.
• 2 video inputs (4-channel option) – connect a rear camera now and add side or front views later for full 360° coverage.
• 12–24 V DC power supply – suitable for both light commercial and heavy-duty 24 V vehicles across transport, agri and construction.
• Heavy-duty monitor housing with sunshade and iron mounting bracket – stable, durable installation with improved screen visibility in bright cabs.
• 1080P AHD camera with 1920 × 1080 effective pixels – high-definition image quality that picks up fine detail around the vehicle.
• 120° wide-angle viewing – broad field of view to reduce blind spots behind vans, trucks, trailers and machinery.
• 4 × Super IR LEDs with 0 lux performance (with IR) – dependable night vision in yards, fields and unlit sites.
• IP69K-rated camera housing – engineered to withstand high-pressure cleaning and harsh outdoor conditions on working vehicles.
• 30 FPS frame rate – smooth, real-time video without distracting lag during tight manoeuvres.
• IR cut, auto AGC & BLC – automatic control of exposure and contrast for stable images in changing light.
• 4-pin GX12 connectors and 20 m 4-pin extension cable included – secure, vibration‑resistant cabling for reliable, long-term use.
• Camera powered by DC 12 V from system – simplifies wiring and reduces extra power runs to the rear of the vehicle.

Ideal Applications

• Rigid trucks, tippers and refuse vehicles where rear blind spots and tight yard manoeuvres are a daily challenge.
• Trailers, horseboxes and drawbar combinations needing a stable, wired reversing camera for safe coupling and loading.
• Agricultural tractors, telehandlers and harvesters operating with rear implements, trailed equipment and busy farmyards.
• Construction and plant machinery such as excavators, wheel loaders and dumpers working on confined or shared sites.
• Light commercial fleets and vans that reverse into loading bays, urban streets and crowded depots all day.
