20" (508mm) LED-Fahrlichtleiste mit weißem Positionslicht & bernsteinfarbener Stroboskopfunktion - LG894

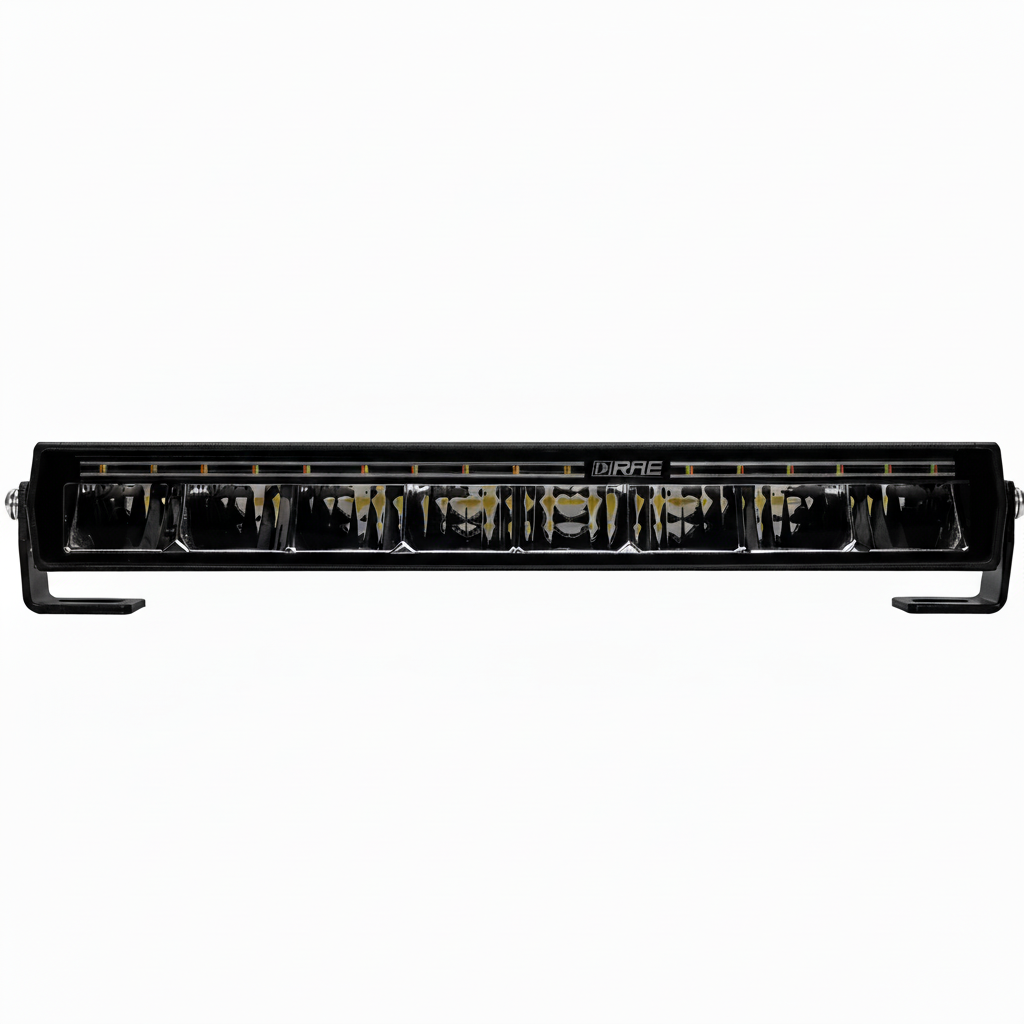

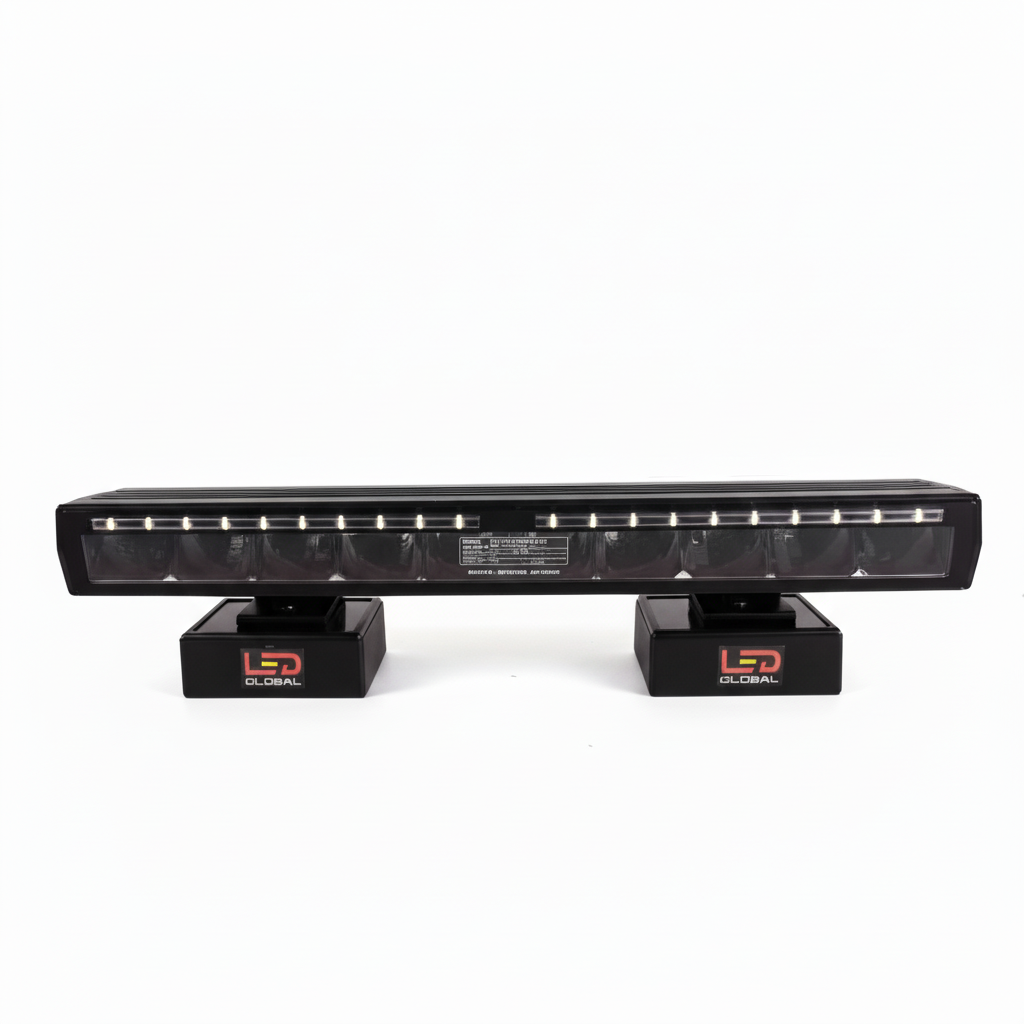

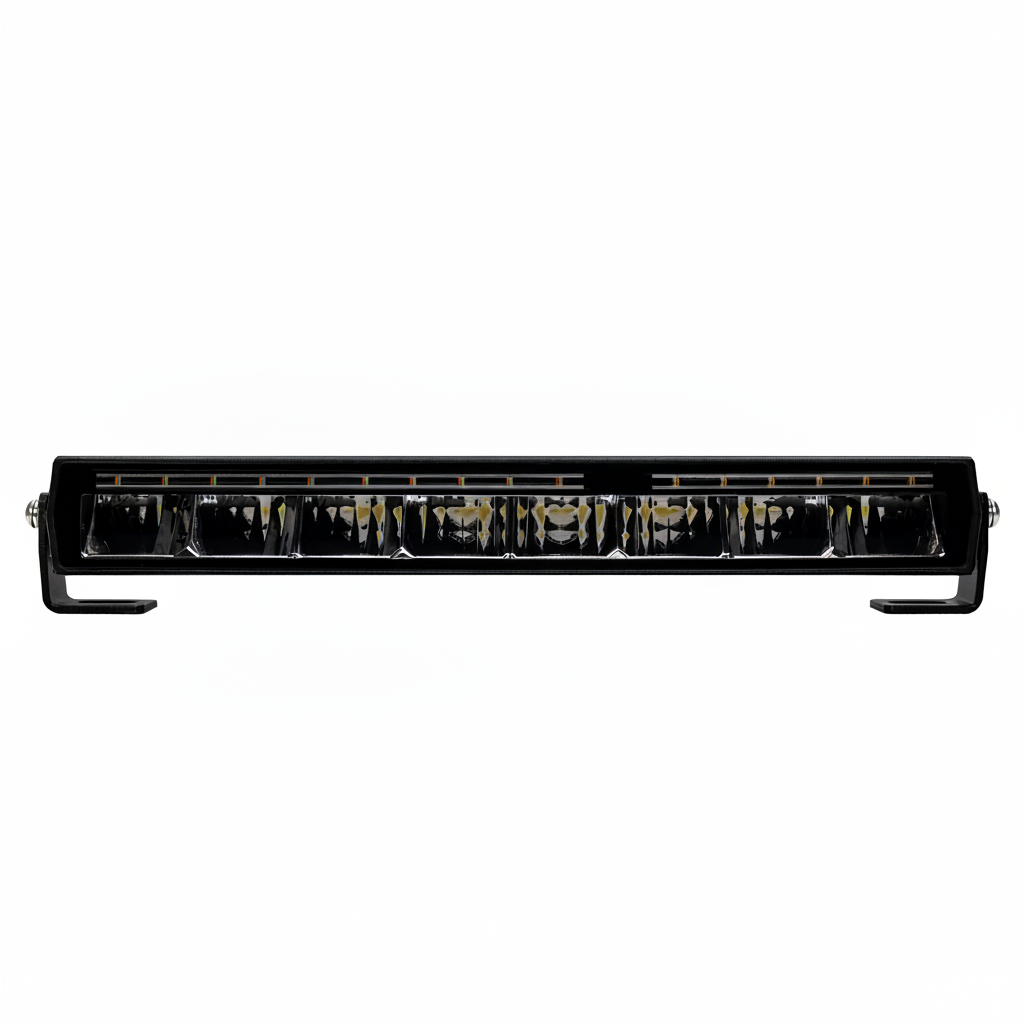

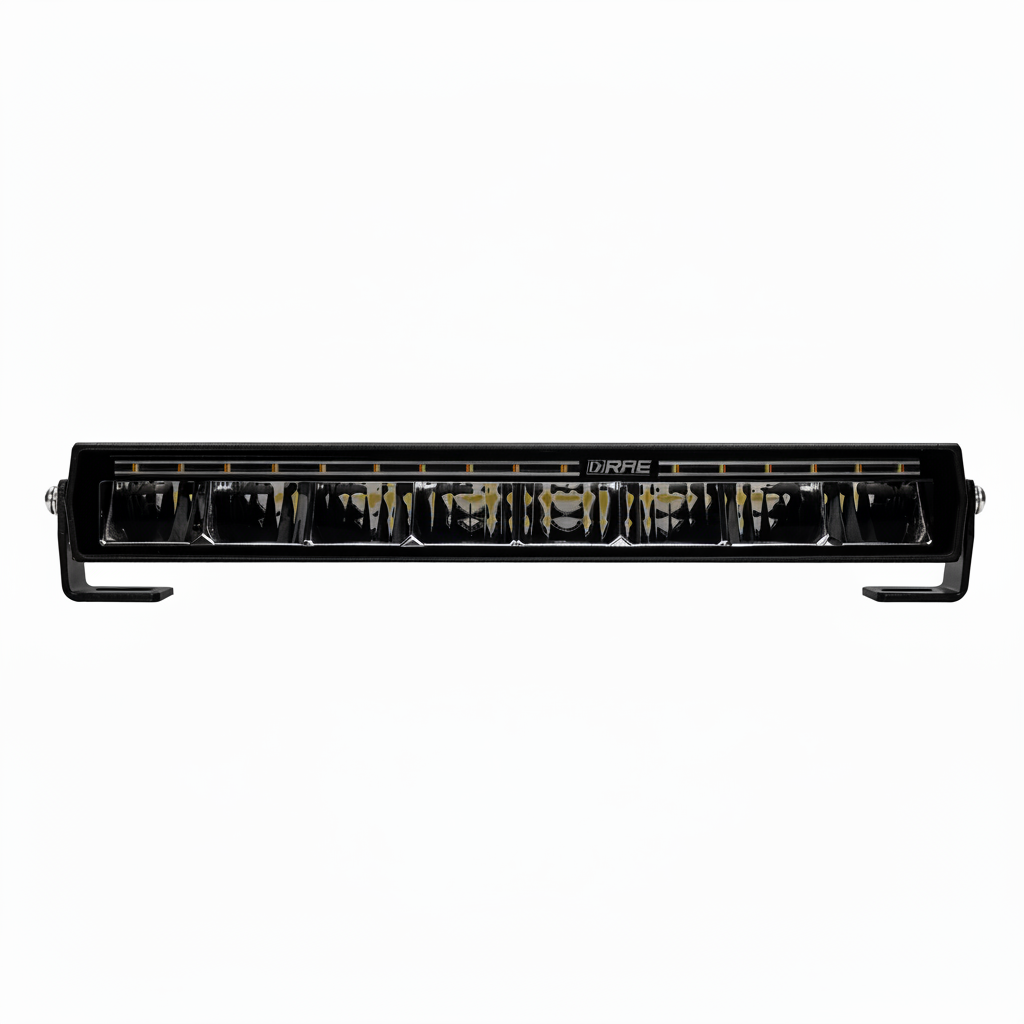

20" (508mm) LED Driving Bar with White Position Light & Amber Strobe Function – LG894

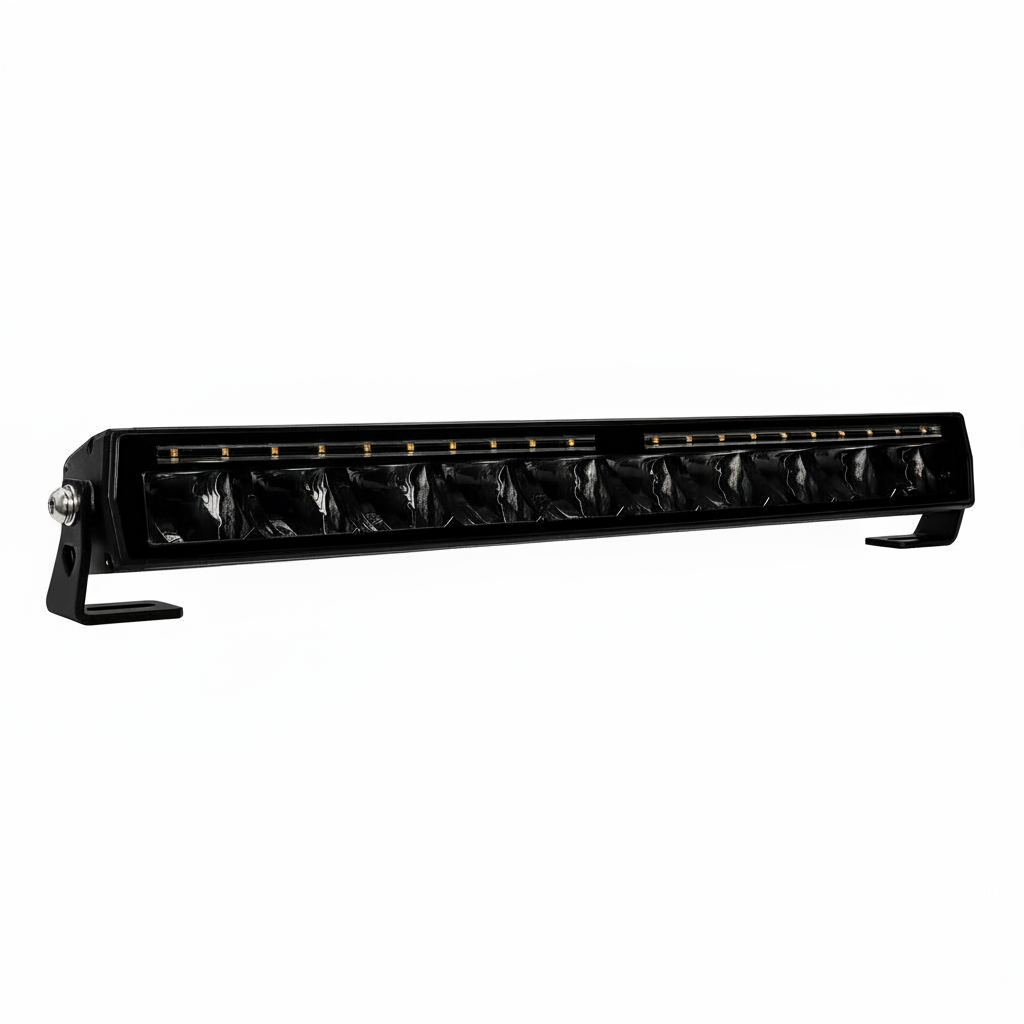

This 20" LED driving bar delivers a 150 W main beam, a crisp white position light, and an integrated amber strobe in one compact unit. It’s built for professional road and off-road use where you need distance light, clear vehicle presence, and compliant amber warning. Fully ECE approved (R112, R7, R65, R10) and EMC-safe (CISPR 25 Class 4), it’s ready for fleet work, recovery, utility, and commercial builds.

You want high beam reach, legal approvals, and a clean install. Not three separate lamps fighting for space on the bar. The LG894 driving bar combines a 150 W main beam, white position light, and ECE R65 amber strobe into a single, slim 514 mm housing, giving you serious light output without cluttering the vehicle front.

With up to 12,000 lm theoretical / 9,600 lm actual output and a 6000 K cold white colour temperature, this light bar pushes a tight, usable beam out to 725 m @ 0.25 lux and 470 m @ 1 lux. That means real visibility at speed, not just a bright splash in front of the bumper. The white position light gives a modern signature and improves vehicle presence, while the independent amber strobe function provides a compliant warning pattern for roadside work and slow-moving vehicles.

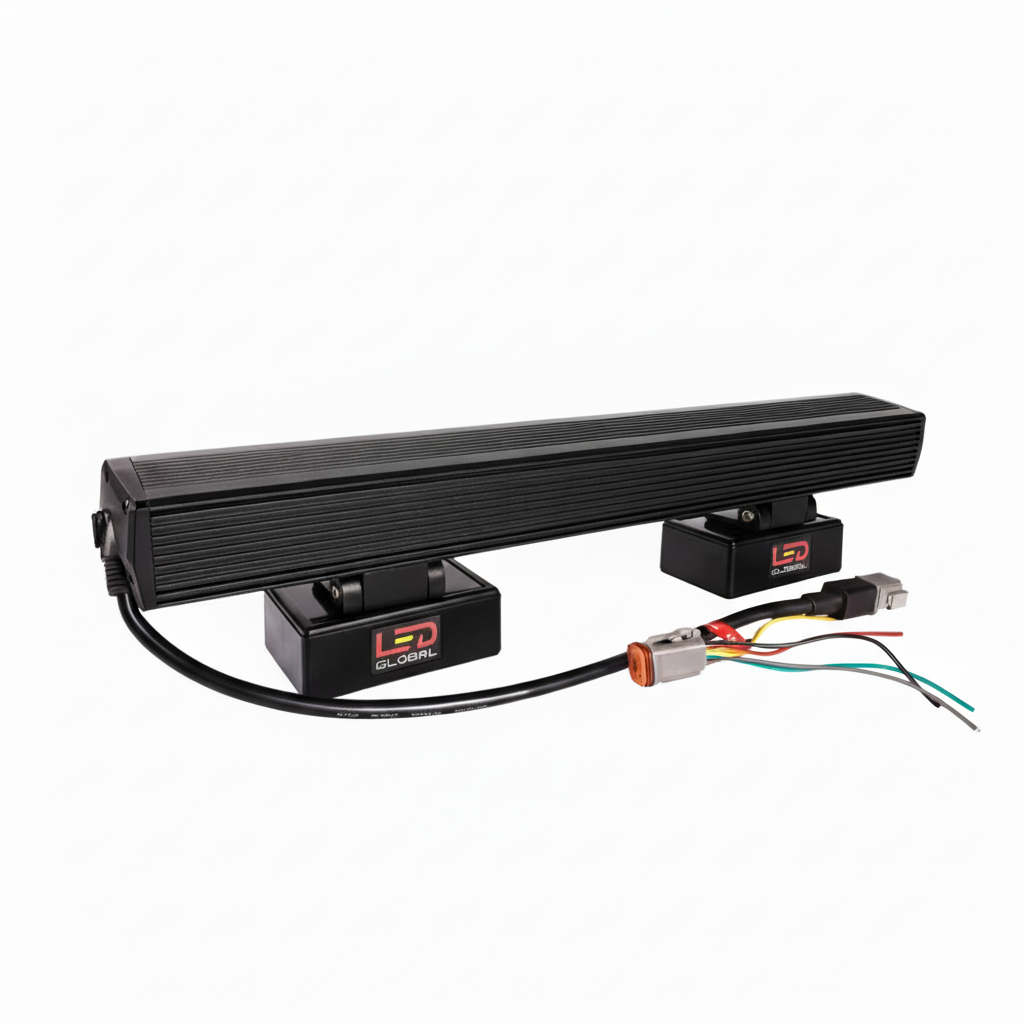

The housing is engineered around a polycarbonate lens and aluminium heatsink/casing, with a pressure-equalisation membrane to manage condensation and pressure changes. Rated IP69K, it’s built to handle high-pressure washdowns, road grime, and European weather without complaint. Running on 9–36 V DC, it’s suitable for both 12 V and 24 V systems, making integration straightforward across mixed fleets.

Installers get a predictable, professional package. The bar’s compact footprint – 514 × 54 × 61.5 mm (L × W × H) – works well on light bars, roof racks, grille mounts, and commercial bumpers. Separate position and strobe functions allow you to tie into existing vehicle circuits, warning controllers, or switch panels. With ECE R112 (driving beam), ECE R7 (position), ECE R65 (amber warning) and ECE R10 / CISPR 25 Class 4 (EMC) approvals, it’s designed to be road-legal where used correctly and to sit comfortably on modern CANbus-equipped vehicles without introducing interference.

Key Features

• Powerful 150 W main driving beam for serious forward lighting performance on-road and off-road.
• High output: 12,000 lm (theoretical) / 9,600 lm (actual) for strong, usable light where operators need it most.
• Long-range beam pattern – 725 m @ 0.25 lux, 470 m @ 1 lux, giving confident visibility at higher speeds and on unlit routes.

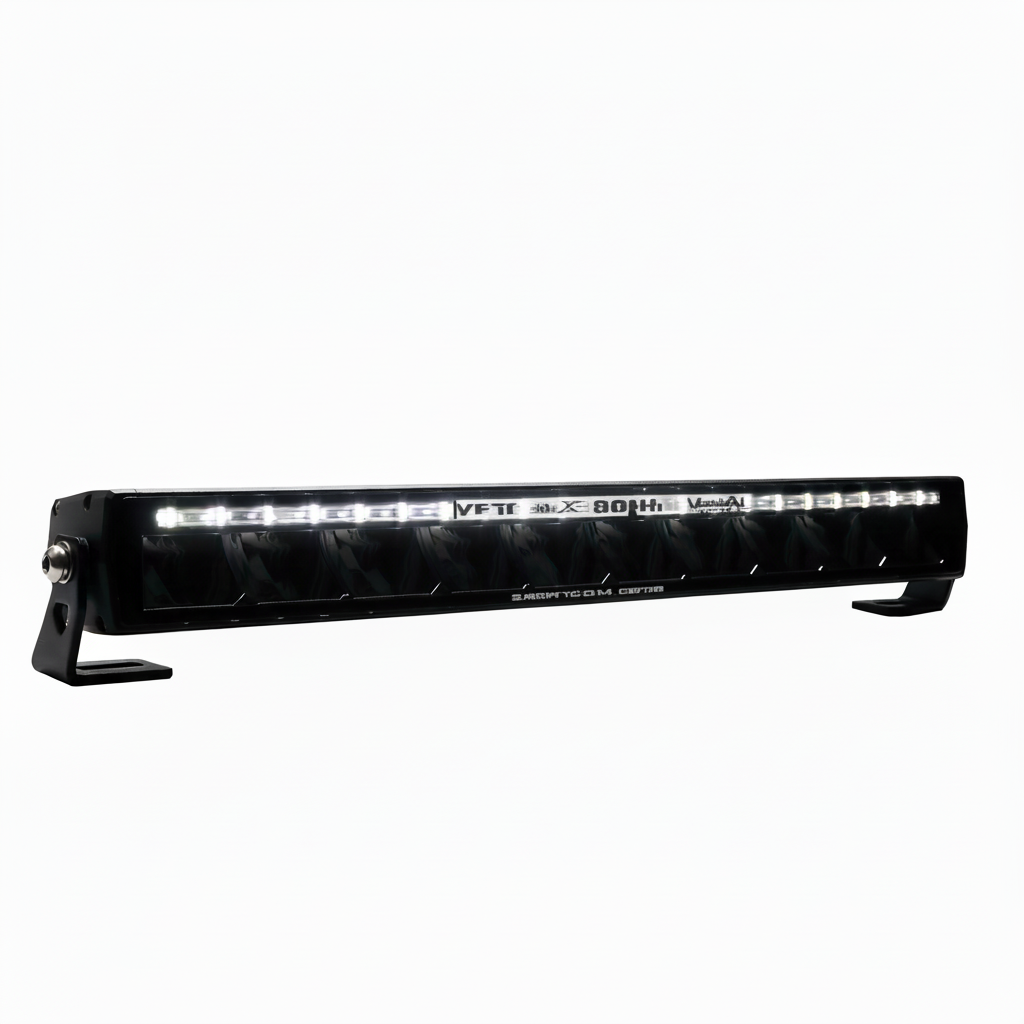

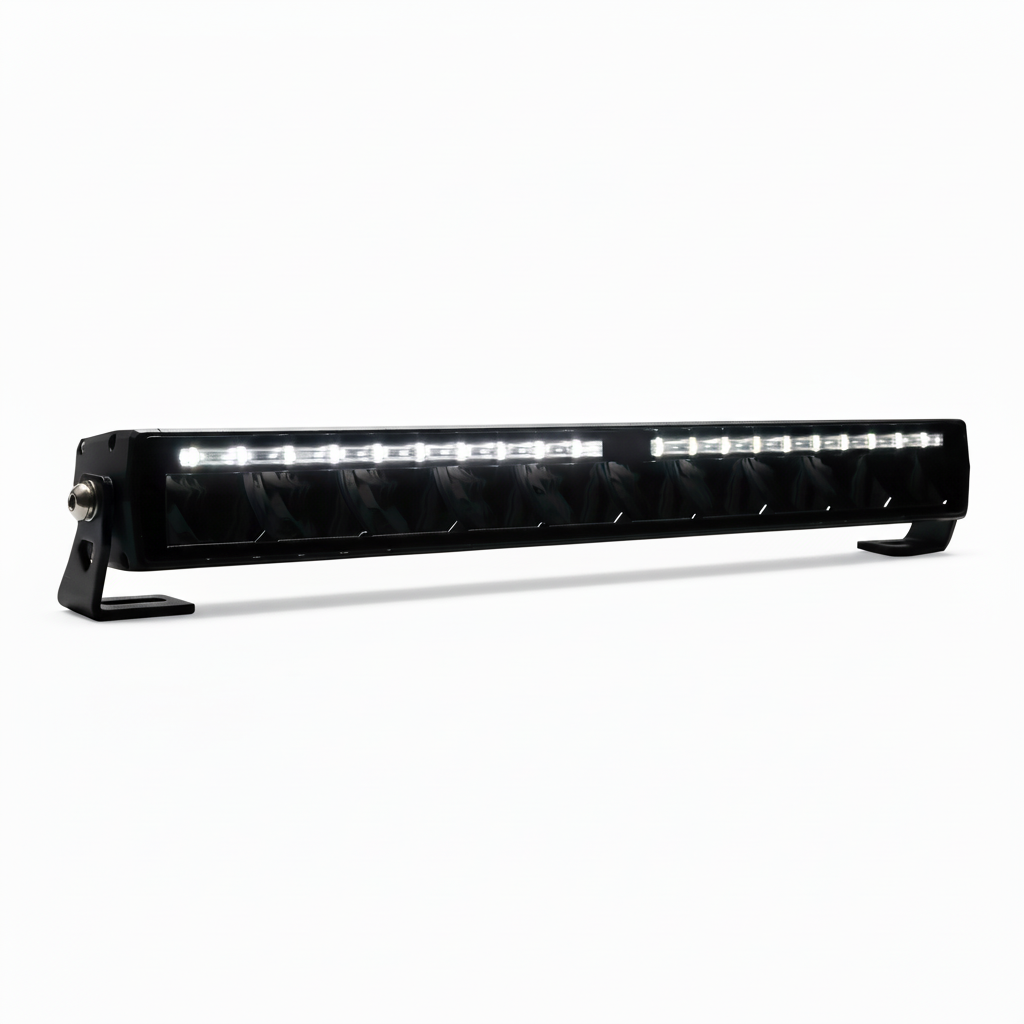

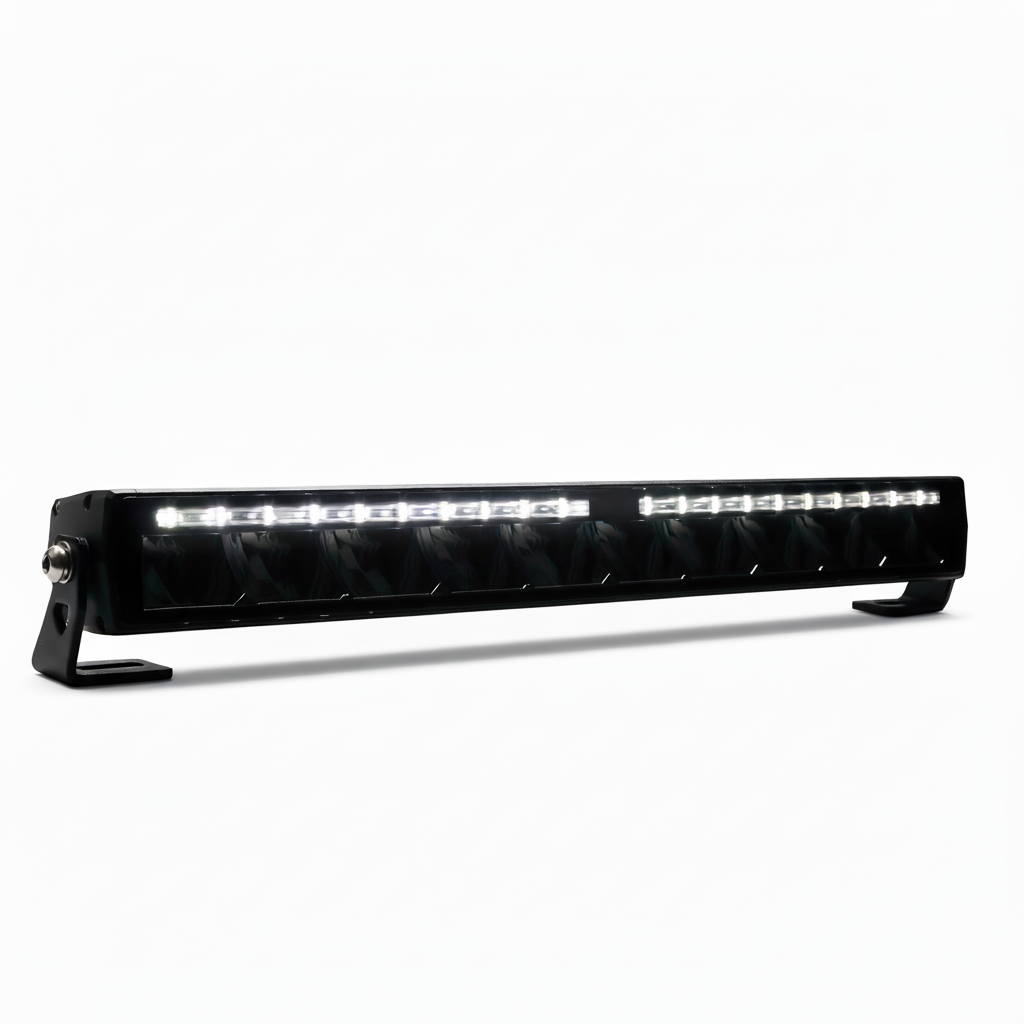

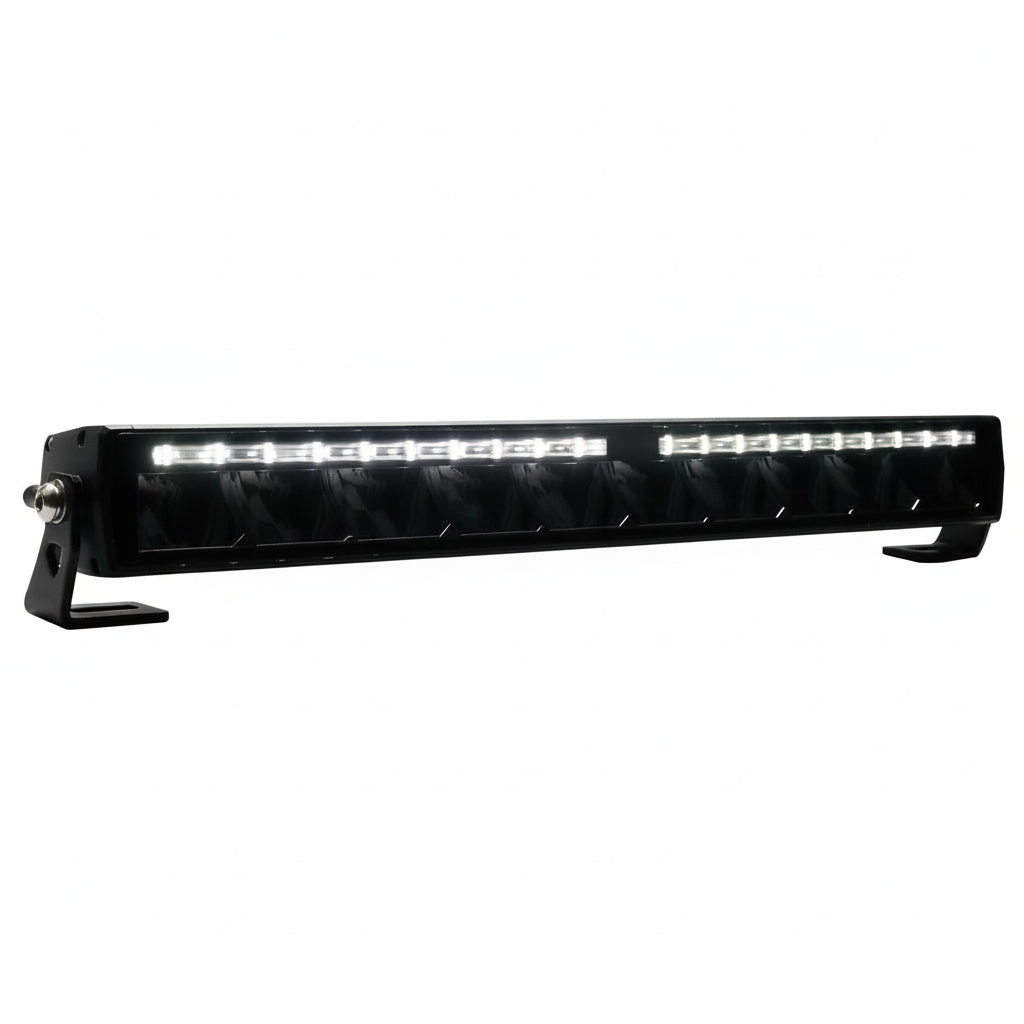

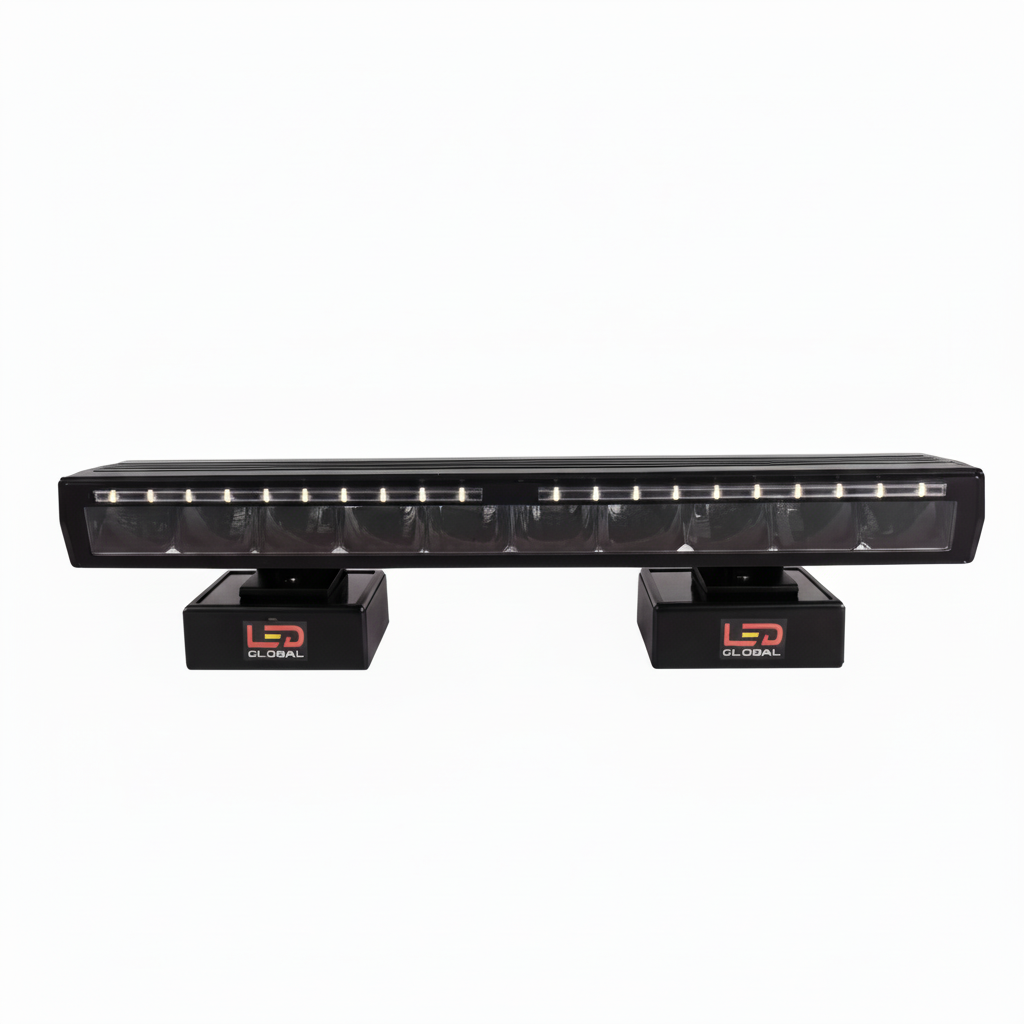

• Integrated white position light for a clean visual signature and improved vehicle presence in traffic or on site.

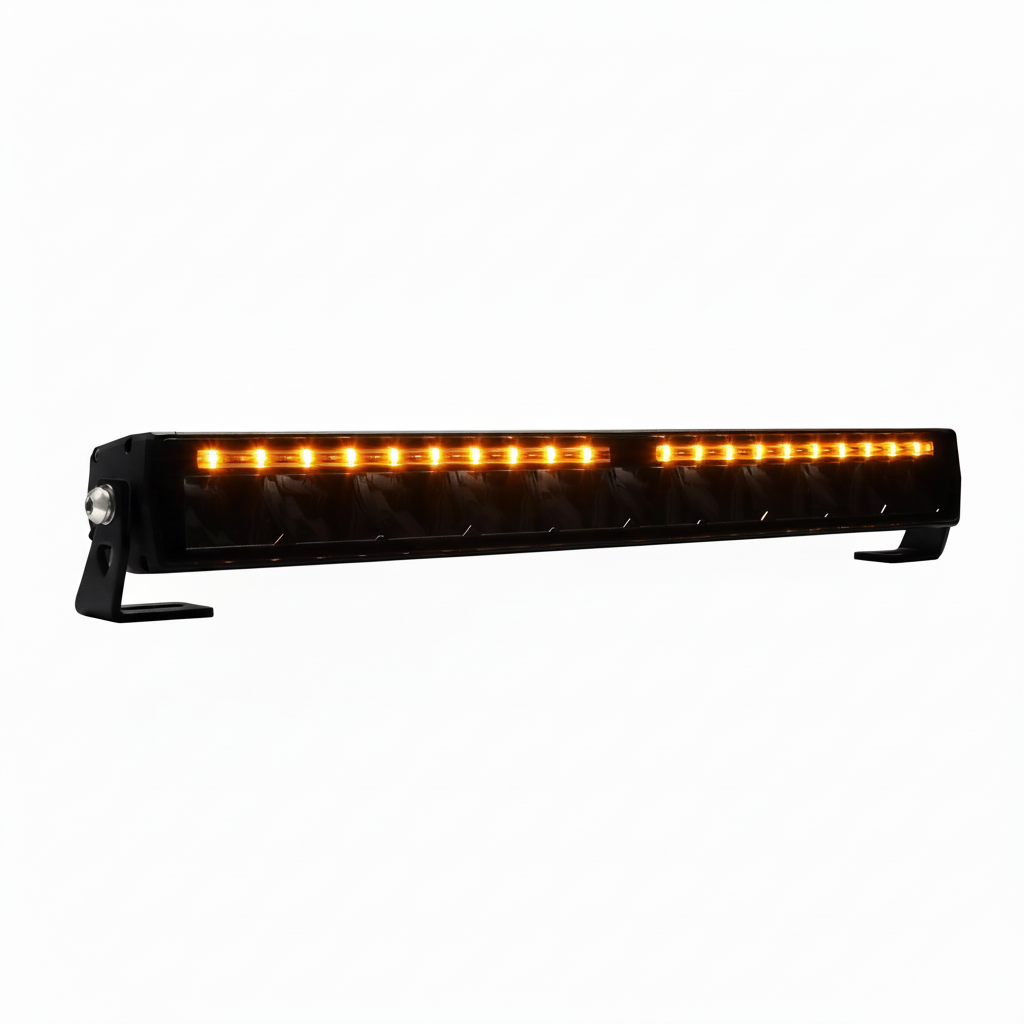

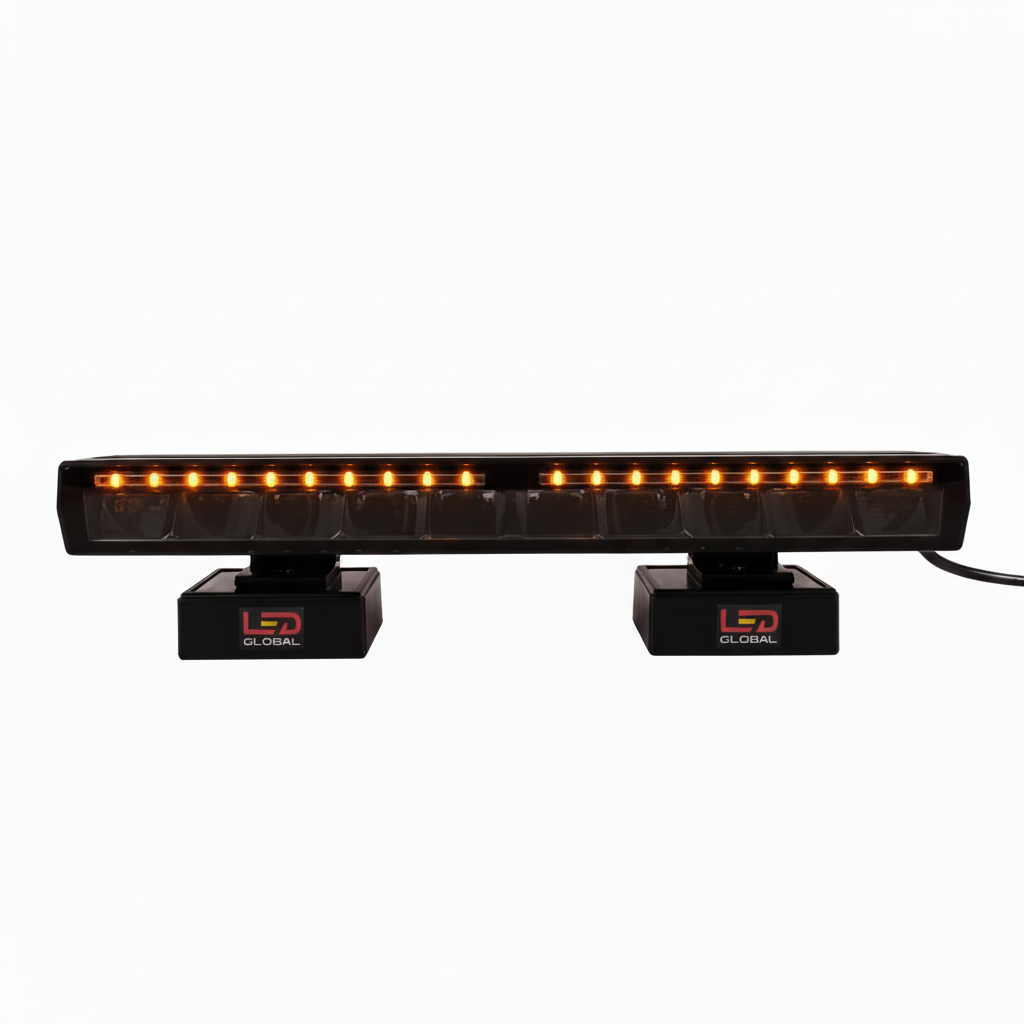

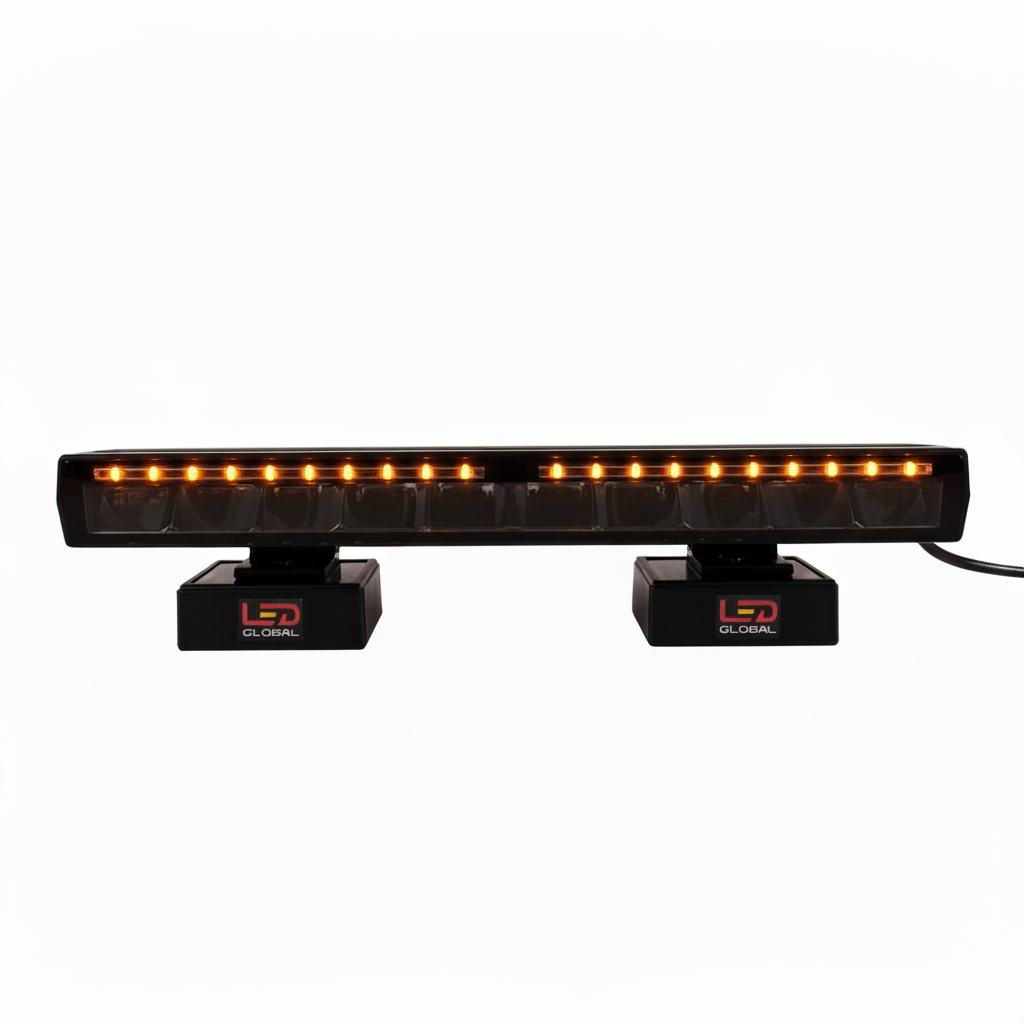

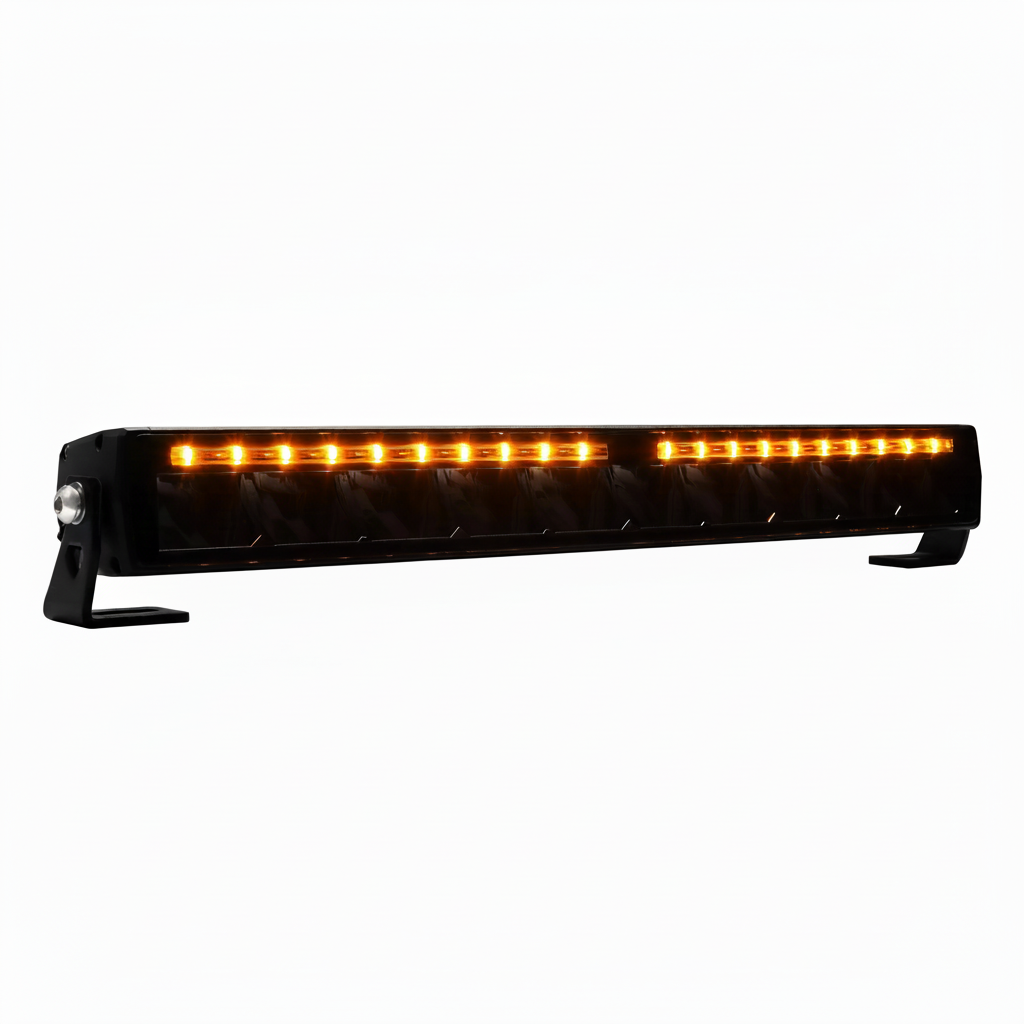

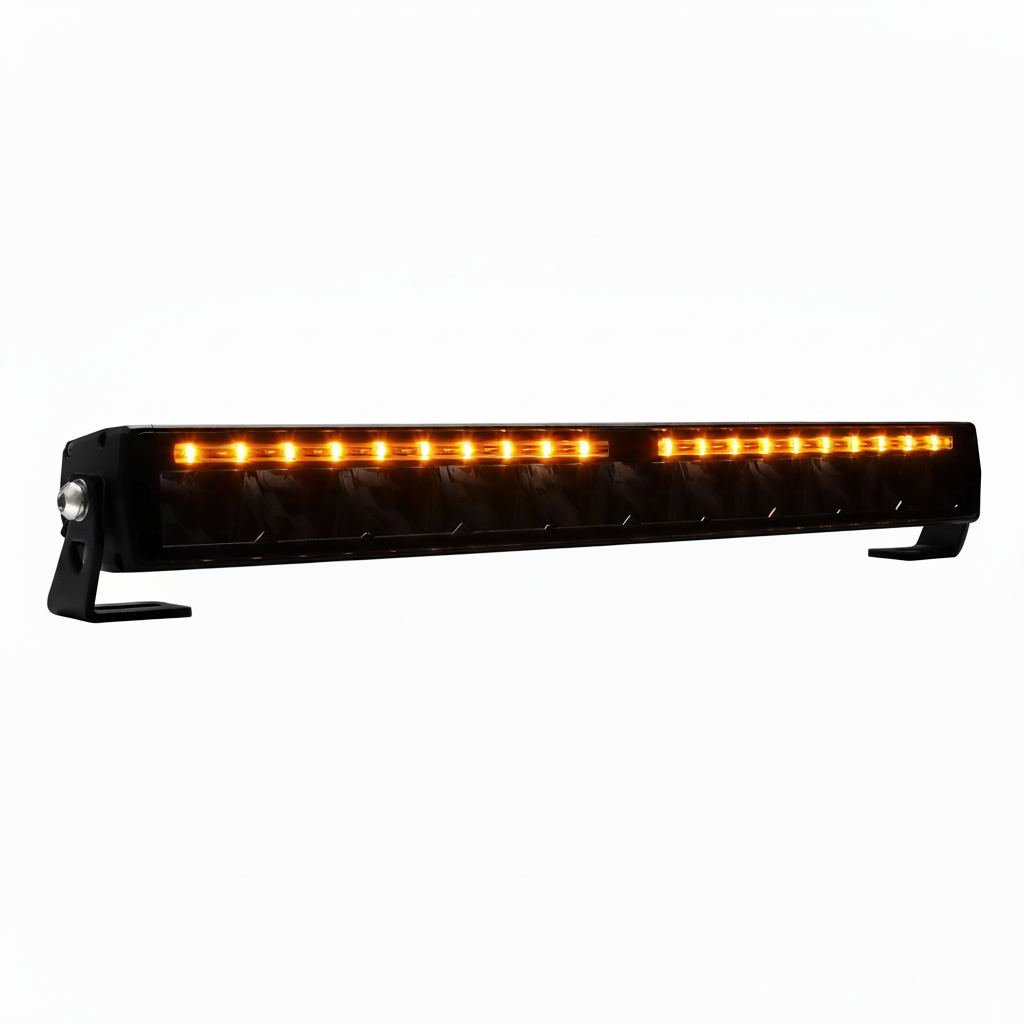

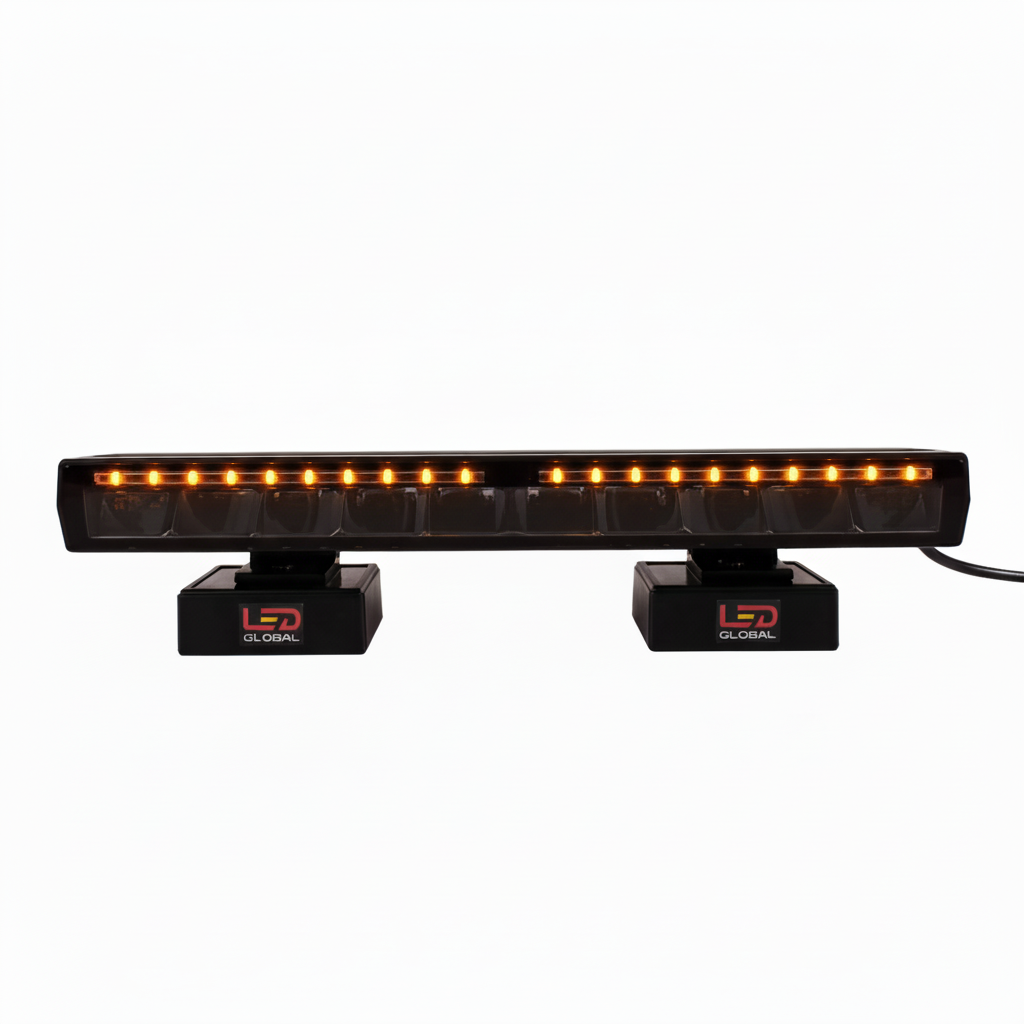

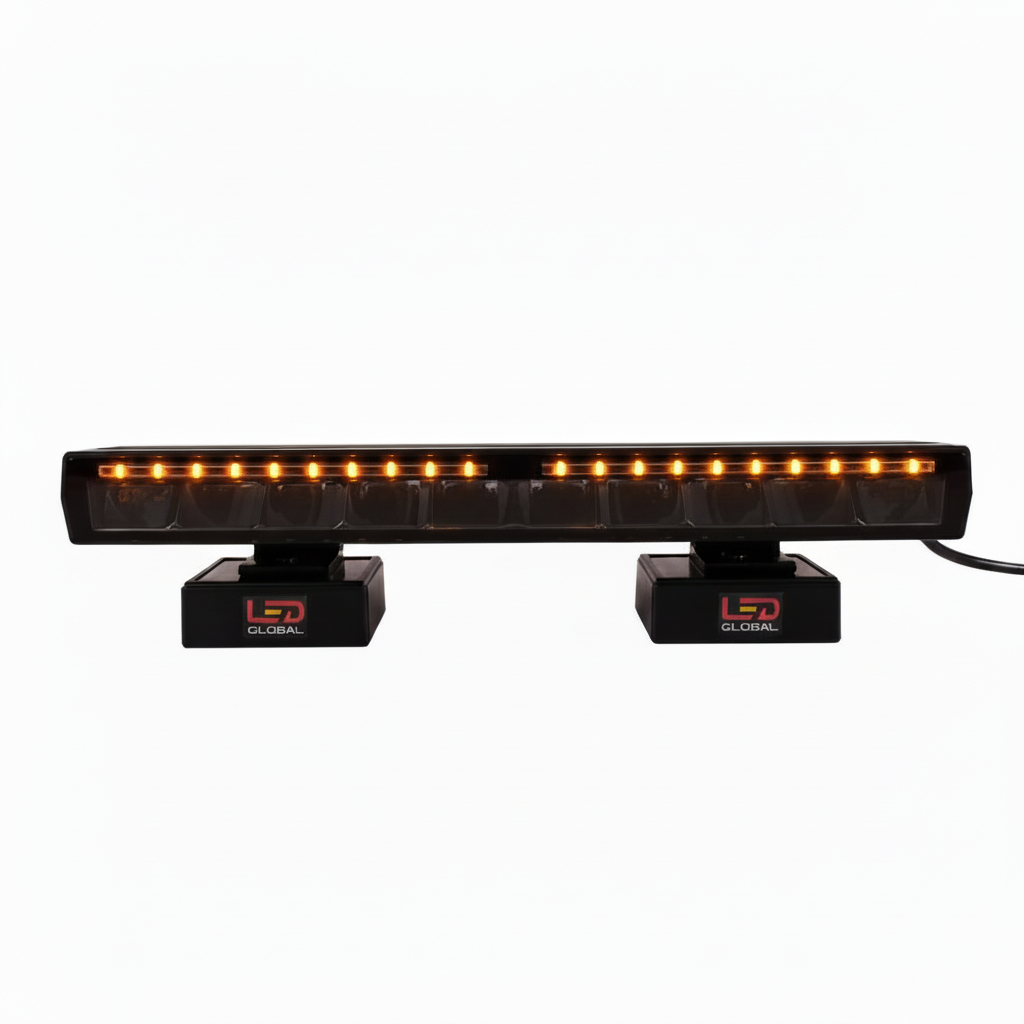

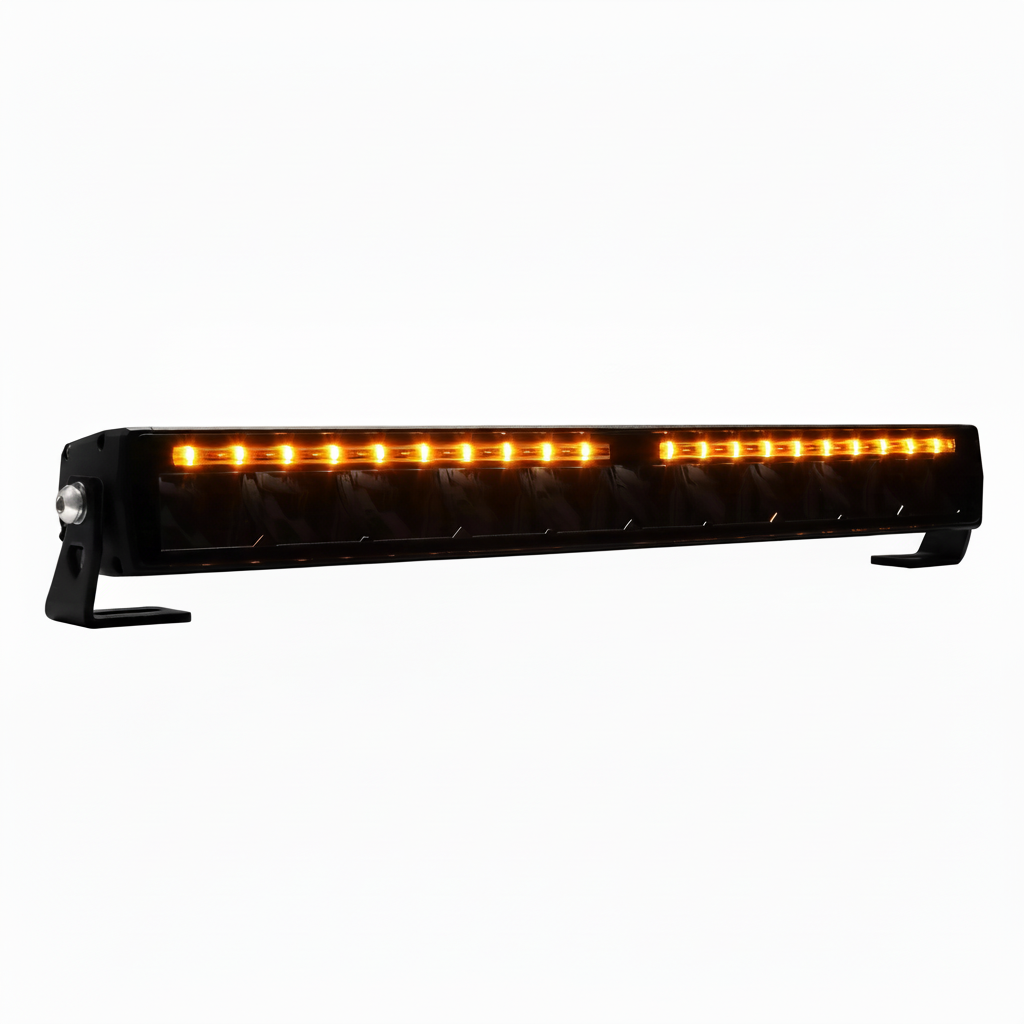

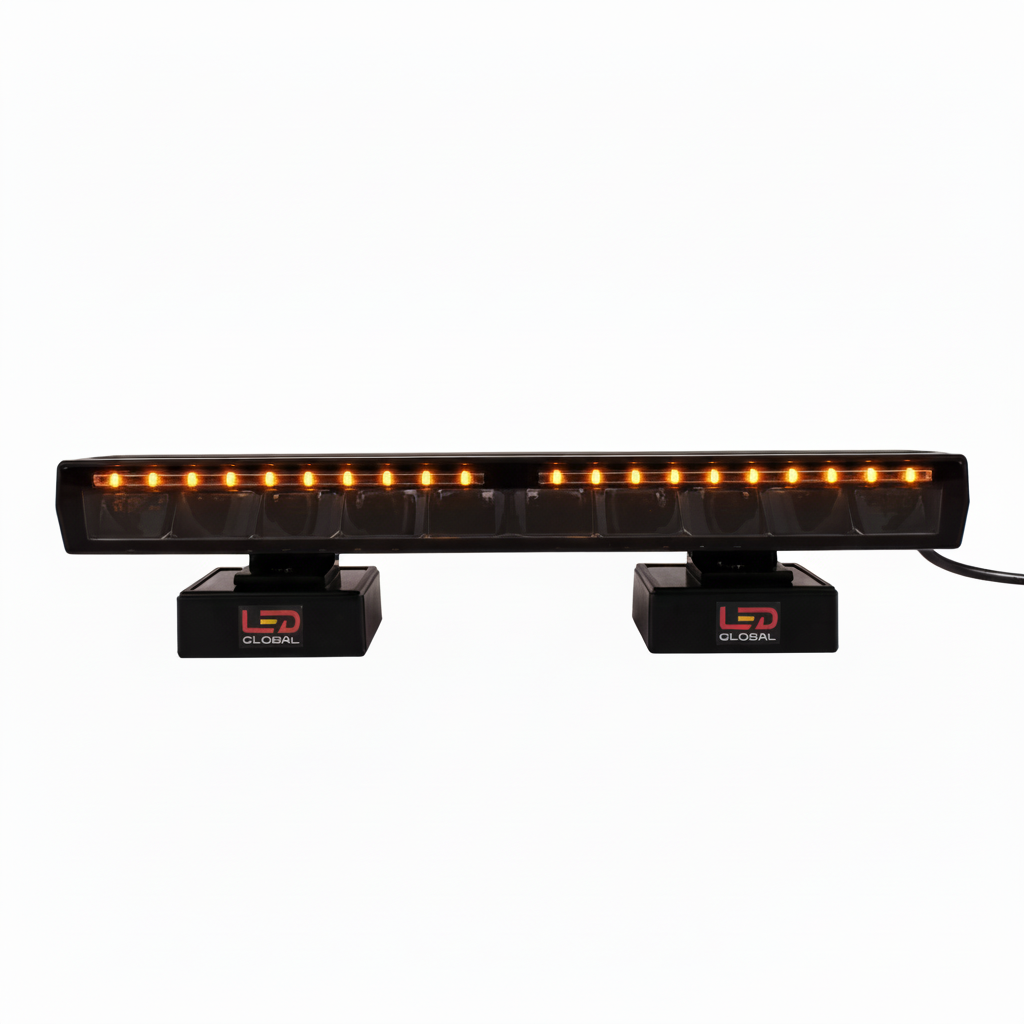

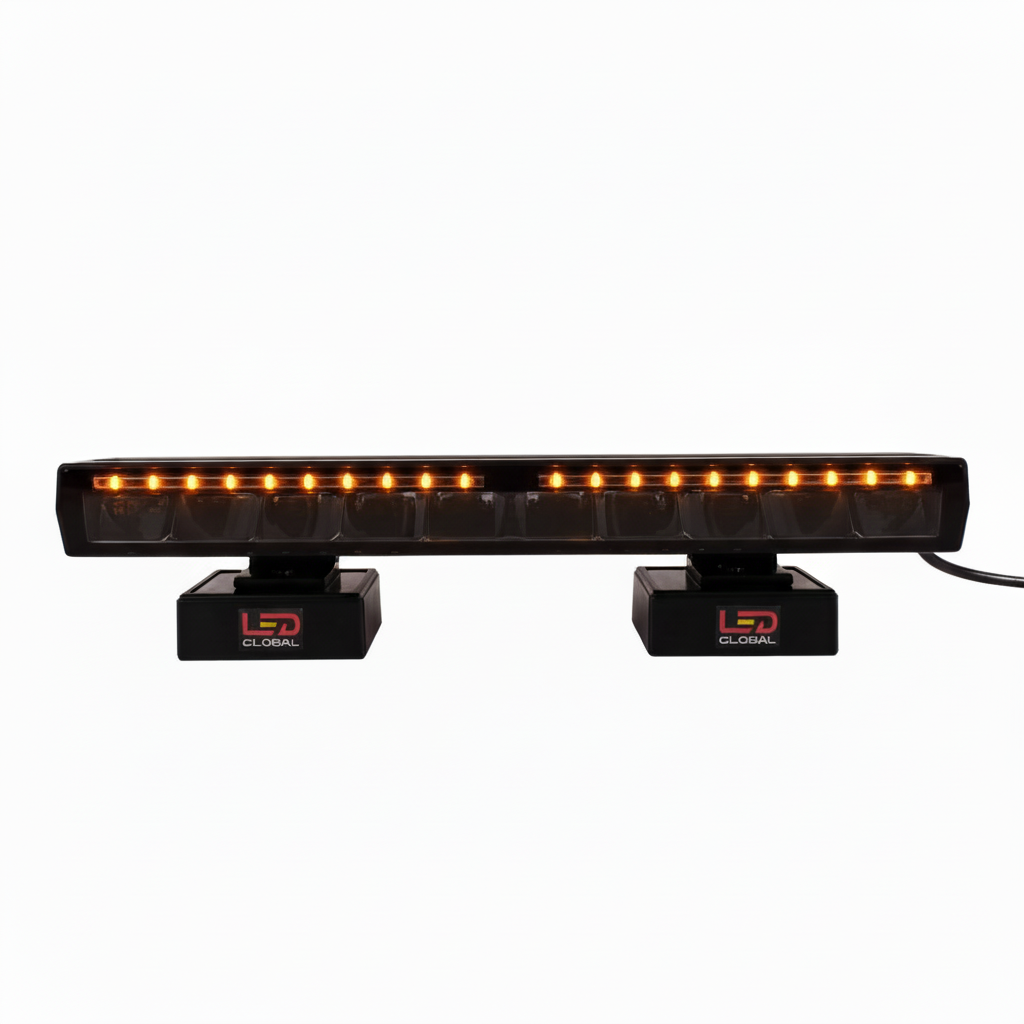

• ECE R65-compliant amber strobe function for road-legal warning use (where installed and used in line with local regulations).
• Wide voltage range: 9–36 V DC, suitable for 12 V and 24 V commercial, agricultural, and plant vehicles.
• 6000 K cold white colour temperature, engineered for contrast and driver comfort in night operations.
• Rugged construction: polycarbonate lens with aluminium heatsink & casing, designed for long-term professional use.
• IP69K ingress protection, allowing use with high-pressure cleaning and in harsh road environments.
• Pressure equalisation membrane to reduce condensation and maintain consistent optical performance.
• EMC-safe design – ECE R10 and EMC CISPR 25 Class 4 approved, minimising interference with radios, GPS, and CANbus systems.
• Multi-approval package: ECE R112 (driving), ECE R7 (position), ECE R65 (warning) for a fully compliant lighting solution.

Ideal Applications

• Recovery trucks and breakdown vehicles needing distance light plus compliant amber warning in one unit.
• Utility, highway maintenance, and council fleets operating at night and around live traffic.
• 4x4, pick-up, and off-road builds where space is limited but high performance and clean styling are expected.
• Agricultural and forestry machines working on unlit tracks and public road links.
• Construction, mining, and quarry vehicles requiring robust, EMC-safe lighting on 12 V and 24 V systems.

Why Choose LED-Global Lighting

LED-Global focuses on professional, European-engineered lighting that does what you expect, night after night. Every product is specified with installers, fleet managers, and operators in mind – clear approvals, honest lumen figures, and hardware built for real work, not brochure photos. With proven EMC performance, robust housings, and trusted ECE approvals, our lamps integrate cleanly into modern vehicles and help keep crews safer, more productive, and legal on the road.
