24 Watt Square Flood LED Work Light – LG966

The 24 W square flood LED work light LG966 is a compact, high-output work lamp for harsh, everyday use on agricultural, construction and utility vehicles. It delivers up to 2,400 lumens of broad, even flood light from a small die-cast aluminium body, ideal for close and mid-range task lighting around machinery. Approved to ECE R10 and CISPR 25 Class 3, it’s designed not to interfere with modern electronics on tractors, harvesters and plant.

You know the problem. Dark yard, tight space, expensive kit moving near people and obstacles. This 24 watt LED work lamp is built to turn those blind spots into a clear working area, without drawing heavy current or taking up much space on the machine.

The LG966 uses 6 × 4 W high-power LEDs to give 2,400 lm raw and 1,920 lm effective light output. The beam is a wide flood pattern, so you get usable light across the full working zone rather than a narrow hot spot. That makes it ideal for loader arms, rear work areas, side mounting on construction kit, or general area lighting on service vehicles.

Housing is die-cast aluminium, designed to manage heat and protect the electronics from vibration and weather. With IP68 ingress protection, the unit is sealed against dust and can handle prolonged exposure to rain, spray and wet conditions on site or in the field. The −40 °C to +60 °C operating range means it will start reliably on cold winter mornings and hold up in hot engine bays or enclosed cabs.

Electrical compatibility is straightforward. The wide 9–32 V DC input covers both 12 V and 24 V systems, so you can standardise across mixed fleets. EMC approvals to ECE R10 and CISPR 25 Class 3 mean the lamp is engineered to limit electrical noise, helping to avoid interference with radios, GPS receivers, control systems and CAN bus networks.

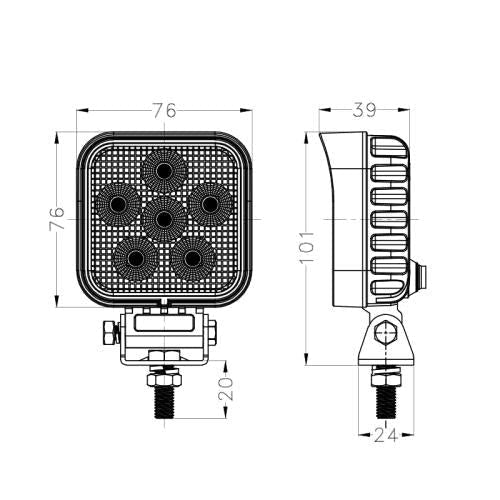

Installation is simple. The compact body size of 76 × 101 × 39 mm (W × H × D) gives you options where space is tight on modern machines. It’s a universal fit work light, so your auto electrician or in-house workshop can mount it using standard brackets and hardware on tractors, harvesters, telehandlers, excavators or service trucks.

Key Features

• 24 W LED power (6 × 4 W LEDs) for a strong, efficient work light output with low current draw.
• Up to 2,400 lm (1,920 lm effective) for clear, bright illumination of working areas around the vehicle.
• Flood beam pattern designed for broad, even coverage in close and mid-range work zones.
• Wide voltage range 9–32 V DC, suitable for both 12 V and 24 V vehicle systems, ideal for mixed fleets.
• Die-cast aluminium housing for strength, impact resistance and effective thermal management in demanding environments.
• IP68 ingress protection for full dust protection and reliable performance in heavy rain, spray and wet site conditions.
• Operating temperature −40 °C to +60 °C, proven for cold starts in winter and high-heat engine bay mounting.
• EMC approved to ECE R10 and CISPR 25 Class 3, engineered to minimise interference with radios, GPS and vehicle electronics.
• Compact size – 76 × 101 × 39 mm (W × H × D), easy to fit on crowded cabs, booms, bodywork and tool carriers.
• Universal work light mounting suitable for machinery, plant, utility and agricultural vehicles.

Ideal Applications

• Agricultural machinery – tractors, telehandlers, sprayers and harvesters for rear, side and loader-arm work lighting.
• Construction and plant – excavators, dumpers, skid steers, loaders and rollers working on sites and in yards.
• Utility and service vehicles – breakdown trucks, maintenance vans, municipal and fleet vehicles needing reliable task lighting.
• Material handling – forklifts, yard shunters, stackers and warehouse support vehicles operating in low-light areas.
• Off-road and industrial equipment – generators, compressors, mobile plant and static towers requiring compact area lighting.

Why Choose LED-Global Lighting

LED-Global focuses on professional-grade vehicle lighting, engineered for the realities of European agriculture, construction and fleet work. Products like the LG966 are specified with honest lumen figures, proven approvals and robust housings, so what you install is what you can rely on season after season. Every lamp is built to meet strict EMC and environmental standards, giving you stable performance on modern electronic platforms and fewer call-backs for your workshop.
