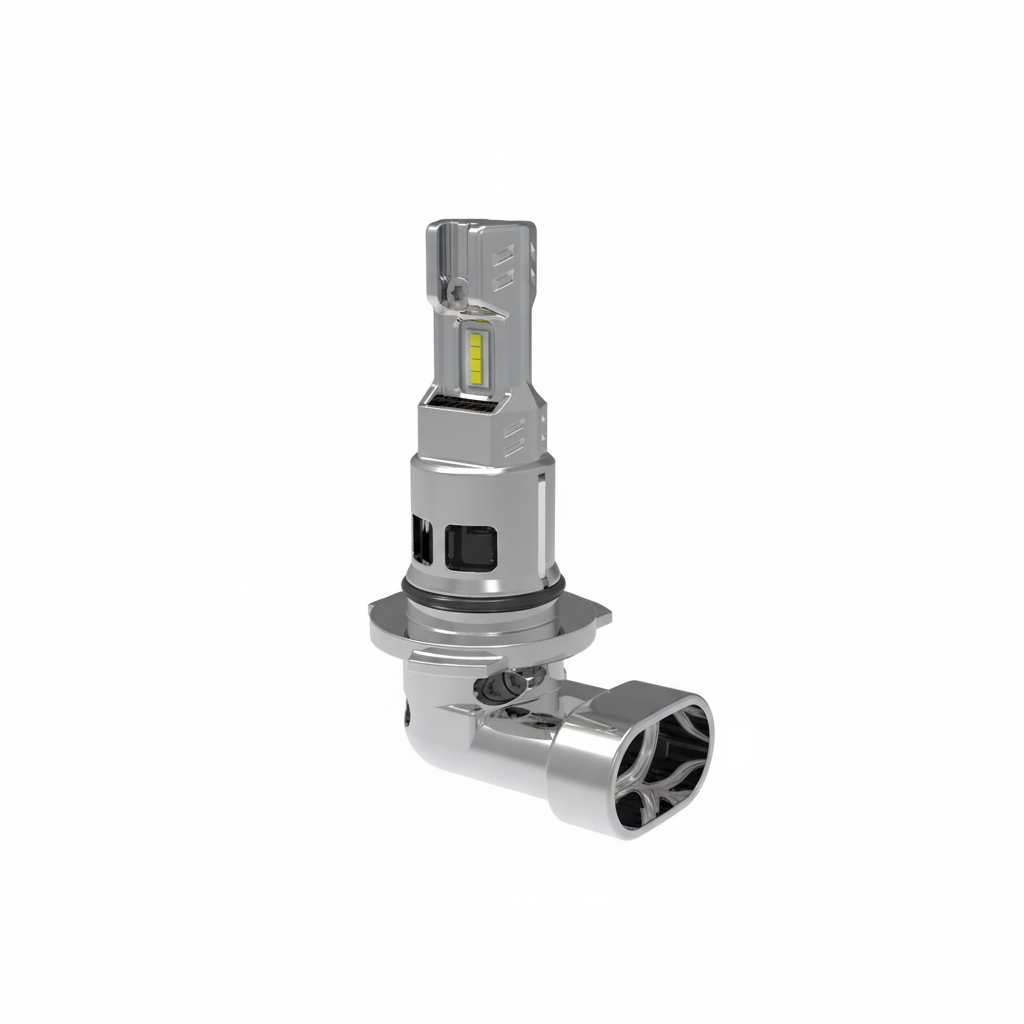

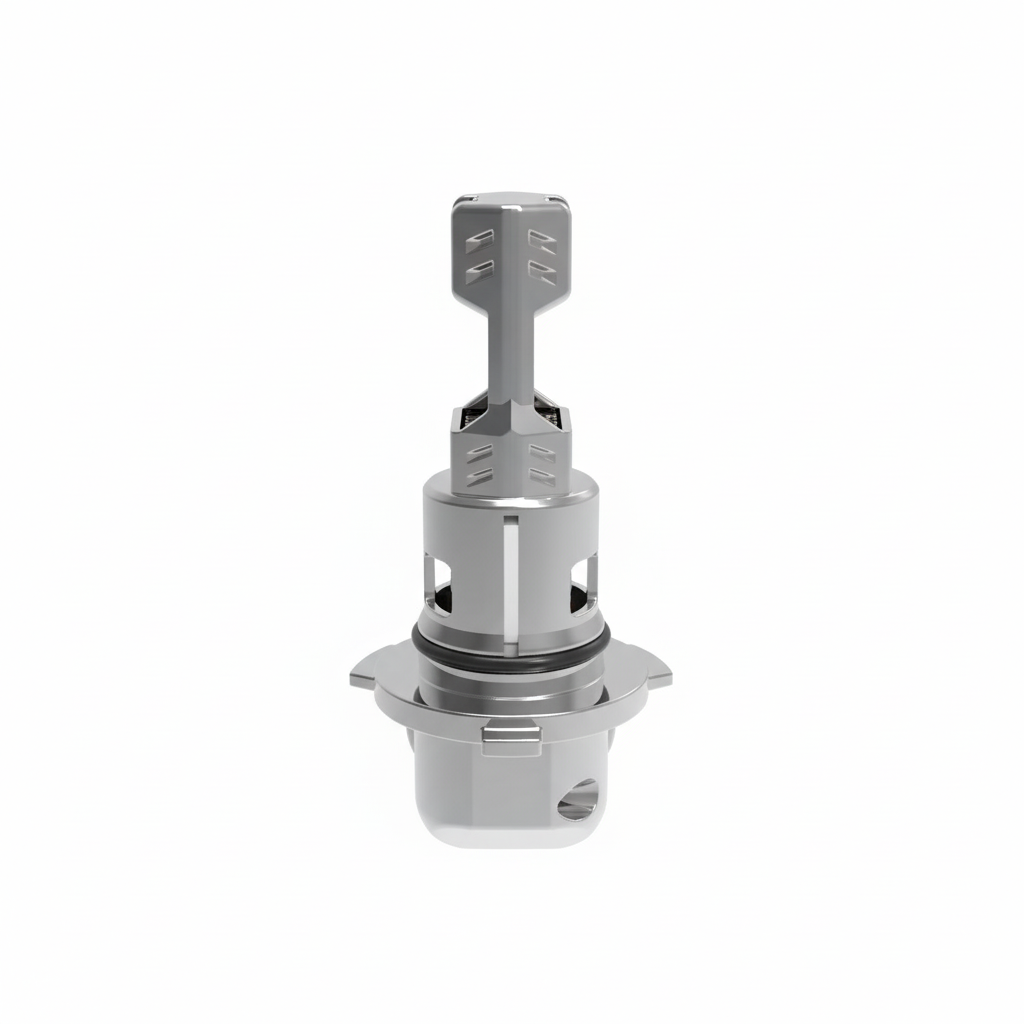

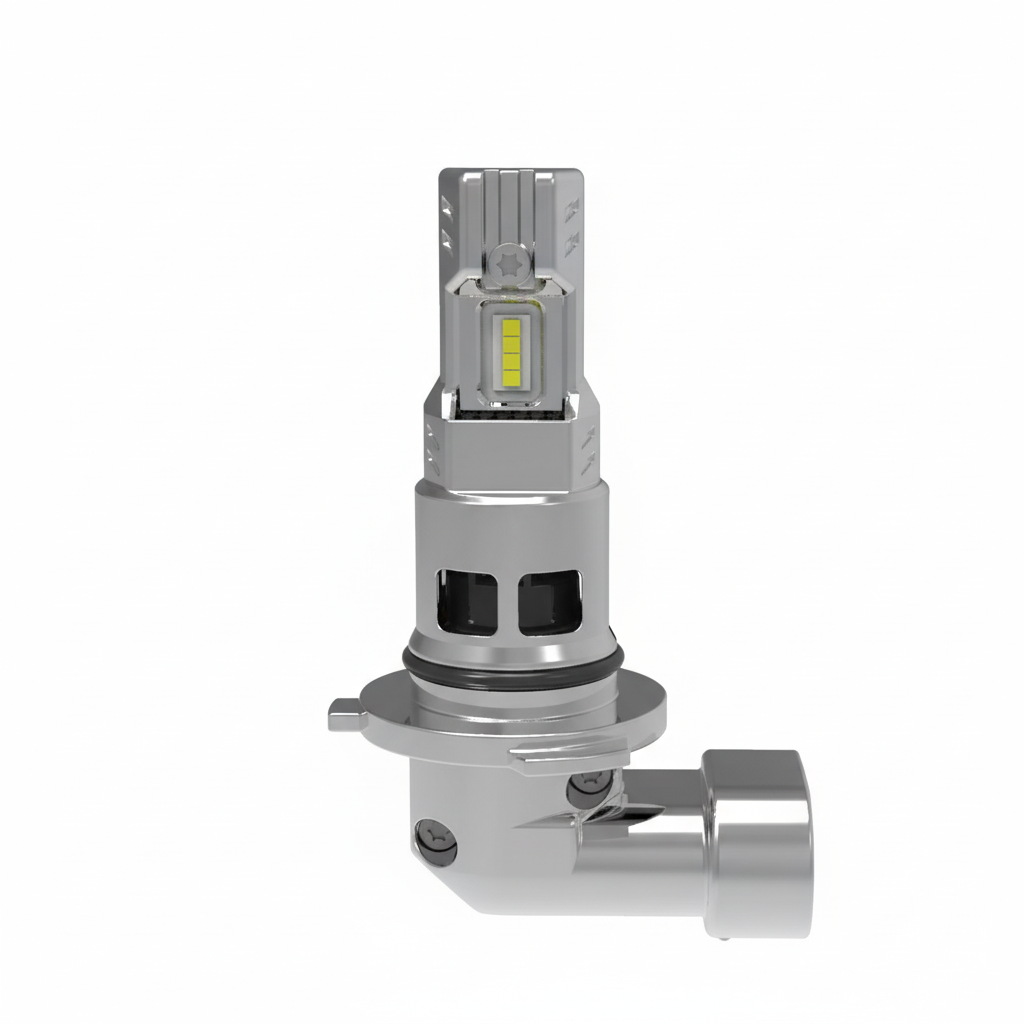

LED Bulb Type 9006 HB4 (Pair) – LG5026

The LED Bulb Type 9006 / HB4 – LG5026 is a plug-and-play upgrade for standard 9006 halogen headlight and fog light bulbs. It delivers a sharper, brighter beam with 1:1 halogen dimensions, so you get improved visibility without awkward fitment issues. EMC-approved electronics and active cooling make it a solid choice for cars, tractors and trucks that run long hours.

These 9006 / HB4 LED bulbs are engineered for 12 V systems and built as a direct replacement for factory halogen units. The 1:1 halogen equivalent design keeps the light source in the correct position inside the reflector or projector, so you maintain a controlled beam pattern rather than a scattered glare. That’s exactly what you need if you’re upgrading work vehicles or a mixed fleet and you want predictable, repeatable results.

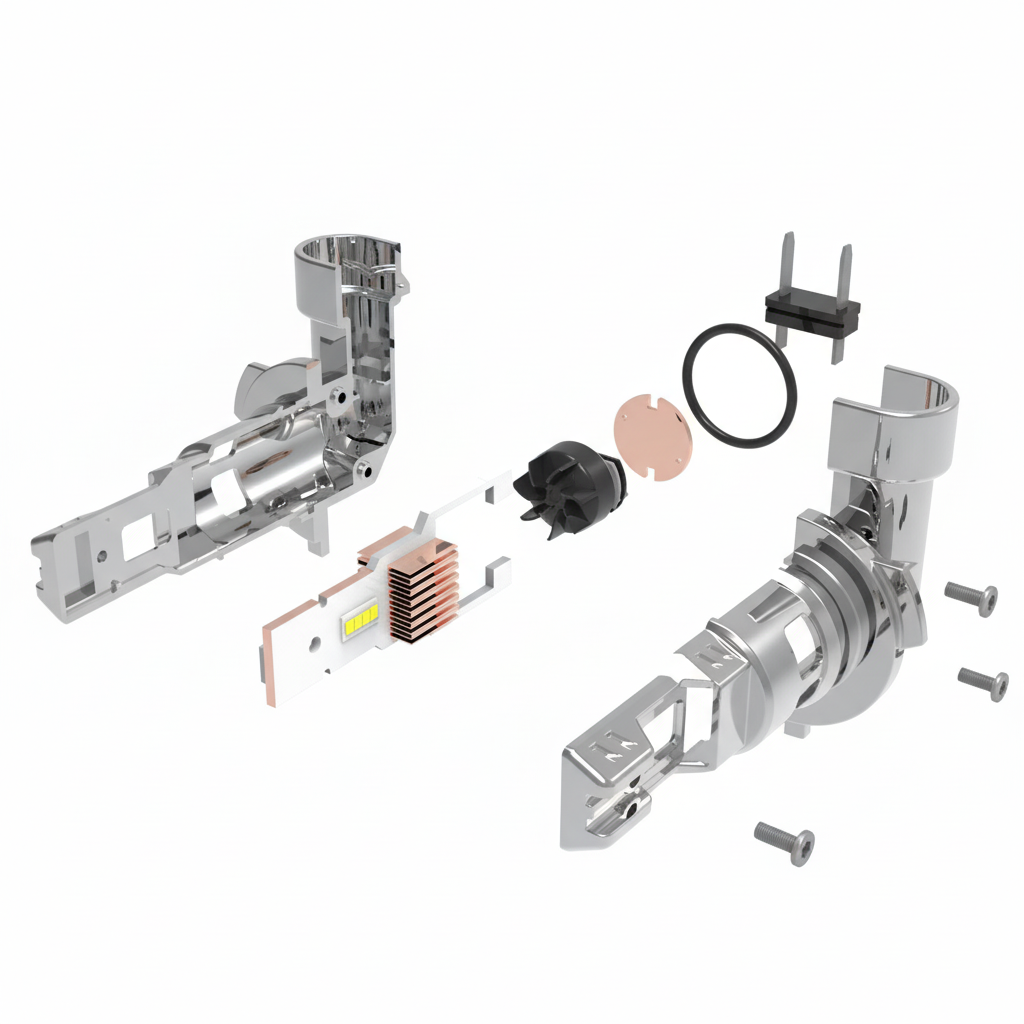

Cooling is handled properly, not as an afterthought. A pure copper plate under the LED chips moves heat away up to 60× faster than standard aluminium, feeding it into an aluminium shell that’s shaped to shed heat efficiently. A dual ball-bearing, low-noise fan then pulls the temperature down further, while an intelligent temperature control IC automatically trims power if things get too hot. The result is stable light output and longer service life, even in enclosed headlamp housings where many budget LEDs fail.

Installation is straightforward. The LG5026 uses the standard 9006 / HB4 connector, so there’s no cutting or extra wiring on a 12 V system. Being EMC approved, it’s designed to reduce electrical interference with radios and other onboard electronics, which matters on tractors, specialist vehicles, and older trucks with sensitive equipment. Each kit ships as a matched pair of bulbs, so you upgrade both sides in one go and keep the beam colour and output consistent.

Key Features

• Bulb type: 9006 / HB4 – direct LED replacement for standard 9006 halogen headlight and fog light bulbs.
• 12 V compatible – designed for passenger vehicles, light commercial vans, tractors and many trucks using 12 V lighting systems.
• 1:1 halogen equivalent – LED chip position mirrors the original filament position for a clean, controlled beam pattern.
• Built-in cooling fan – dual ball silent fan provides active, low-noise cooling for stable performance on long night runs.
• Aluminium housing – optimised heat-dissipation design transfers heat away from the LEDs, supporting longer service life.
• Pure copper thermal plate – up to 60× higher thermal conductivity than standard aluminium, keeping LED junction temperature under control.
• Intelligent temperature control IC – automatically adjusts power with ambient temperature to protect the electronics and LEDs.
• Increased brightness and beam distance – sharper, whiter output than halogen for better forward visibility and roadside detail.
• Plug & play installation – standard 9006 / HB4 connector, no extra drivers or resistors needed in most 12 V applications.
• Electromagnetic compatibility (EMC) approved – designed to minimise interference with radios, GPS and other onboard systems.

Ideal Applications

• Passenger cars and 4x4s using 9006 / HB4 bulbs for low beam, high beam or fog lamps.
• Agricultural tractors and telehandlers needing brighter, reliable 12 V front lighting for early mornings and late finishes.
• Light trucks and vans where improved night-time visibility helps reduce driver fatigue and near-miss incidents.
• Municipal and utility vehicles that operate in poor weather and require cleaner, more defined forward lighting.
• Fleet upgrades where consistent, plug-and-play LED 9006 bulbs simplify maintenance across multiple vehicles.

Why Choose LED-Global Lighting

LED-Global focuses on practical, engineering-led lighting upgrades that stand up to daily use across European roads and worksites. Each product is selected and tested for real-world reliability, not just headline lumen numbers. With a background in vehicle electrics and heavy equipment, we care about EMC behaviour, heat management and long-term durability as much as brightness.

When you choose LED-Global, you get clear technical information, consistent quality, and support from a team that speaks the same language as your workshop and your drivers.
